  1. DM206Sybase Replication Agent for Microsoft NT and UNIX Wanda Beck Senior Software Engineer Enterprise Solutions Division wbeck@sybase.com

  2. e-Business & Replication Quick Replication Overview What is Replication? What are the Components of Replication? What is a Replication Agent? Overview

  3. SybaseReplication Agent for Microsoft NT and UNIX Architecture Specific Functions Large Object Replication Function Replication Management by RepServer Manager Heterogeneous Replication Migration from existing Replication Agents Overview (cont.)

  4. Thin Clients PDA Mobile Customer Intelligence Customer Care Change Mgmt Wireless Xchange Self-service Patient Care Insurance Brokerage Banking Capital Mkts Asset Mgmt Investment Bkg Financial Server Other Verticals Financial Server e-Business Infrastructure Telco Server Professional Services Sybase e-Business Strategy Mobile & Wireless Vertical Solutions Enterprise Portal

  5. Integration Availability • Access & Analysis Corporate Information • Plug’n Play with Standard Internet Technologies • Continuous Database Availability • Real-time Database Maintenance & Tuning Productivity • Portal Productivity Technologies • Web Transaction Management Portal-Ready Requirements Database Requirements

  6. Integration Availability • Access & Analysis Corporate Information • Near Real-time Data Replication Primary Data Server Replication Server Replication Agent Productivity • Provide Corporate Data Where It’s Needed Sybase Replicatione-Business Infrastructure

  7. Batch or Snapshot Updates Can be large amounts of data Data is not up to date Real-time Updates Application based ( e.g., 2-phase commit ) Not easily expanded Transaction Replication Sybase Replication Quick Replication Overview Replication Choices

  8. Sybase replication maintains replicated data in multiple databases while ensuring the integrity and consistency of the data Sybase replication can replicate subsets of data at the table, data row, or column level Sybase replication supports heterogeneous data servers Sybase replication uses a basic publish-and-subscribe model Quick Replication OverviewTransaction Replication

  9. Remote Distribution Provide immediate access to current information such as inventory, pricing Corporate Rollup Provide immediate updates to central decision support applications Acquisition Local Duplication Quick Replication OverviewAdvantages of Replication

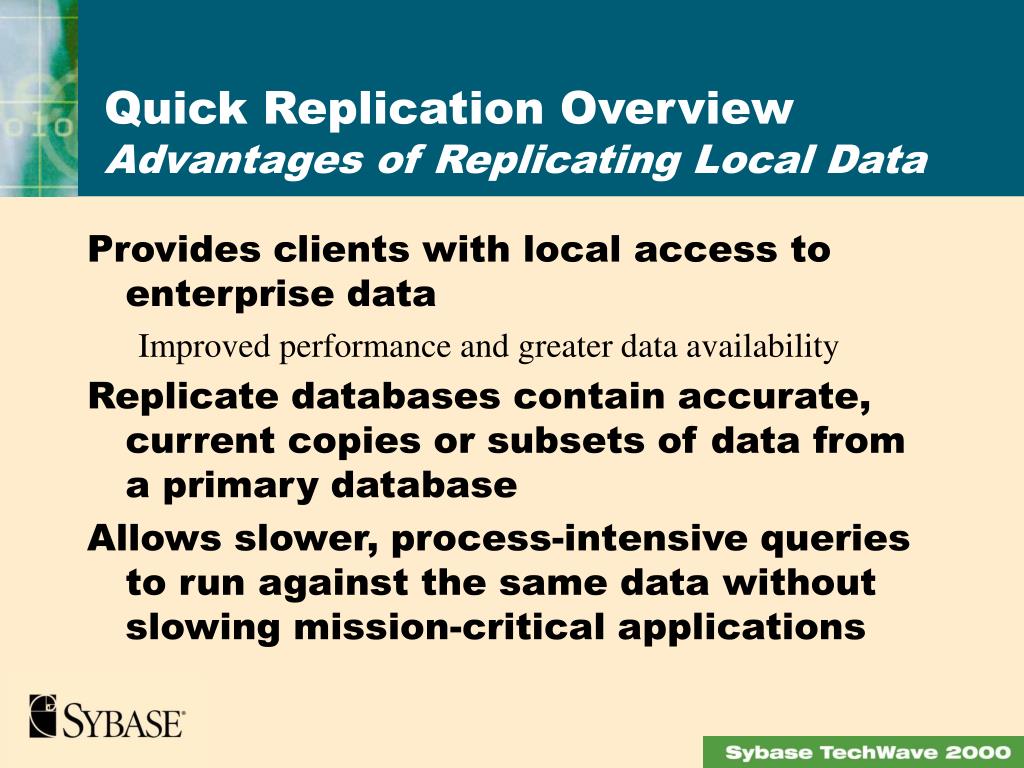

  10. Provides clients with local access to enterprise data Improved performance and greater data availability Replicate databases contain accurate, current copies or subsets of data from a primary database Allows slower, process-intensive queries to run against the same data without slowing mission-critical applications Quick Replication OverviewAdvantages of Replicating Local Data

  11. Primary Database Replication’s Main ComponentsPrimary Database

  12. The primary database is the source of the replicated transactions Transactions are replicated by table or procedure A primary table or procedure must be identified (marked) for replication so that a Replication Agent can replicate the transactions affecting the data in that table Replication’s Main ComponentsPrimary Database

  13. Replication’s Main ComponentsReplication Agent Primary Database Replication Agent

  14. Replication Agent transfers transactions from the primary database to Replication Server for distribution to replicate databases Accesses transactions in a transaction log Generates Log Transfer Language commands (LTL) for Replication Server Replication’s Main ComponentsReplication Agent

  15. RSSD Replication’s Main ComponentsReplication Server & RSSD Primary Database Replication Agent Replication Server

  16. A Replication Server may be a primary, or a replicate, or both Replication Server replicates data to one or more replicate sites Transactions are stored in stable queues Replication Server guarantees transaction delivery Replication Definitions and Subscriptions Information is stored in the Replication Server System Database (RSSD) Replication’s Main ComponentsReplication Server & RSSD

  17. RSSD Replication’s Main ComponentsReplicate Database Primary Database Replication Agent Replication Server Replicate Database

  18. The replicate database is any target that will hold the results of replicated transactions Sybase supports various targets, including: Direct Connect: DB2, Oracle, Informix InfoHub: DB2, VSAM, IMS, IDMS, ADABAS OmniConnect: DB2, Informix, Oracle, DEC RDB, Ingress, SQL Server Replication Driver for ODBC: Lotus Notes, Microsoft SQL Server, Microsoft Access Replication’s Main ComponentsReplicate Database

  19. Replication’s Main ComponentsSummary Primary Sites ReplicateSites • Adaptive Servers/IQ/ Anywhere/ Enterprise Replication Agents Replication Server • DB2 • AS/400 • Oracle • ODBC • Informix • MS SQL • UDB DirectCONNECT OmniCONNECT • OS/390 DB2 • Adaptive Server Enterprise • Adaptive Server Anywhere • Replication Toolkit for MVS • Oracle • Informix • Microsoft SQL Server • IBM DB2 Universal Database Mobile Users SA SQL Remote Adaptive Server Anywhere

  20. RepAgent - for Adaptive Server Log Transfer Manager (LTM) - for Sybase SQL Server data servers Replication Agents for foreign data servers: IBM DB2 Replication Toolkit for MVS Oracle Informix Microsoft SQL Server IBM DB2 Universal Database Which Replication Agent For Your System?

  21. Transaction Log Application Interface Log Reader Log Transfer Interface Log Transfer Manager Architecture:What makes a Replication Agent?

  22. RepServer Primary Data Server What makes a Replication Agent?Transaction Log Transaction Log Replication Agent

  23. This can be a log provided by the Primary Database ( e.g., DB2 ) or can be created by the Replication Agent ( Sybase Replication Agent ) The log must contain: Transaction begin/commit boundaries Operation type ( Insert, Update, Delete ) Before and after images of the data Column metadata What makes a Replication Agent?Transaction Log

  24. RepServer Transaction Log Reader Primary Data Server What makes a Replication Agent?Application Interface and Log Reader Transaction Log Application Program Interface Replication Agent

  25. Application Interface The set of exposed commands that allows configuration or manipulation of the Replication Agent’s processing and selection of objects to be replicated Log Reader The Log Reader reads the Transaction Log data for changes to tables marked for replication. It retrieves all the relevant information and delivers it to the Log Transfer Interface. What makes a Replication Agent?Application Interface and Log Reader

  26. RepServer Transaction Log Reader Primary Data Server What makes a Replication Agent?Log Transfer Interface LTL Log Transfer Interface Transaction Log Application Program Interface Replication Agent

  27. Translates the command structures received from the Log Reader into Log Transfer Language (LTL) Batches the LTL in a buffer, and delivers the buffer to the Replication Server Replication Server translates the LTL statements into transactions to be applied at the replicate site(s) What makes a Replication Agent?Log Transfer Interface

  28. RepServer Transaction Log Reader Primary Data Server What makes a Replication Agent?Log Transfer Manager Log Transfer Manager LTL Log Transfer Interface Transaction Log Application Program Interface Replication Agent

  29. The Log Transfer Manager is the controlling agent Manages the interaction of the Log Reader and Log Transfer Interface Manages connections to the Primary Database and Primary Replication Server What makes a Replication Agent?Log Transfer Manager

  30. RepServer Transaction Log Reader Primary Data Server What makes a Replication Agent?Summary Log Transfer Manager LTL Log Transfer Interface Transaction Log Application Program Interface Replication Agent

  31. Object-Oriented model written in Java The “Write Once, Run Anywhere” promise Memory Management Speed JDBC ( Java DataBase Connectivity ) for Primary database communication Simplifying the communication topography Architecture:Sybase Replication Agent

  32. Message and Trace Logs Configuration File Architecture:Sybase Replication Agent Sybase RepAgent

  33. JDBC Driver Primary Data Server Primary Database Message and Trace Logs Configuration File Architecture:Connectivity to Primary Database Sybase RepAgent

  34. JDBC Driver RepServer jConnect Primary Data Server Primary Database Message and Trace Logs Configuration File RSSD Architecture:Connectivity to Replication Server Sybase RepAgent

  35. JDBC Driver RepServer jConnect isql isql Primary Data Server Primary Database Message and Trace Logs Configuration File Administrator RSSD Architecture:Administration - isql Sybase RepAgent

  36. RSM JDBC Driver RepServer jConnect Primary Data Server Primary Database Message and Trace Logs Configuration File Administrator RSSD Architecture:Administration - RSM Sybase RepAgent

  37. RSM JDBC Driver RepServer jConnect isql Primary Data Server Primary Database Message and Trace Logs Configuration File Administrator RSSD Architecture:Administration Sybase RepAgent

  38. Triggers are added to each table Transaction information is stored in “shadow” tables and transaction logs that exist in the primary database Other tables are installed in the Primary Database for other housekeeping Stored procedures and functions to reduce network traffic and improve turnaround Architecture:Sybase RepAgent Transaction Log

  39. Architecture:Sybase RepAgent Transaction Log (cont.) Primary Tables AUTHORS TITLES PUBLISHERS Transaction Log Tables preTRAN_LOG_ preSH_a preSH_b preSH_c shadow tables

  40. Trigger Insert into Authors Architecture:Sybase RepAgent Transaction Log (cont.) preMARKED_OBJS_ Insert preSH_a AUTHORS preTRAN_LOG_

  41. RepServer JDBC Driver jConnect Transaction Log Reader ChangeSet Queue Architecture:Sybase RepAgent Replication Log Transfer Manager JDBC Result Sets LTL Log Transfer Interface Sybase Replication Agent

  42. Primary Database Impact Oracle: With Sybase Replication Agent on Oracle and logging turned on, the Oracle server takes about four times as long to complete the same transaction set Informix: With Sybase Replication Agent on Informix and logging turned on, the Informix server takes not quite three times as long to complete the same transaction set Note: These are casual comparisons Architecture:Sybase RepAgent Transaction Log (cont.)

  43. Configurable Transaction Log Naming Configurable Transaction Log Location Optional Script Execution Object Marking Tables, Stored Procedures, Large Objects Case-sensitive names are supported Multi-part names are supported (e.g., owner.tablename) Aliases or synonyms are supported “Replicated As” Disabling Replication Individual marked objects Sybase Replication AgentSpecific Functionality

  44. Transaction Log Management Manual or Automatic Truncation Accessing the RSSD Filter out columns not included in the Replication Definition Remove column names from the LTL Filtering Maintenance User Transaction LTL Column Compression Specific Functionality ( Cont. )

  45. Internal Statistics Generation Logging and Tracing One installation can execute multiple instances of the Replication Agent Specific Functionality ( Cont. )

  46. Increased Flexibility Over 100 commands and configuration options Simplified topology Improved Performance Multi-threaded Reduced Network Traffic Usability Log Management, Tracing Specific FunctionalitySummary

  47. Large Objects ( LOB ) Character or Binary LOB columns are marked independently Performance Concerns Those highly concerned with replication performance should avoid LOB replication. Put LOBs in their own tables Logging Limitations Fetching data directly from the primary database Transaction Integrity Concerns More Features: LOB replication

  48. Insert webdata values ( ‘Cat’, cat.jpg ) Insert operation gets current value IMAGE Id IMAGE Id IMAGE Cat cat.jpg Cat dog.jpg Update webdata set image = dog.jpg where Id = ‘Cat’ Update operation gets current value IMAGE Id IMAGE Id IMAGE Dog dog.jpg Dog dog.jpg Commit More Features: LOB replicationTransaction Integrity Concerns

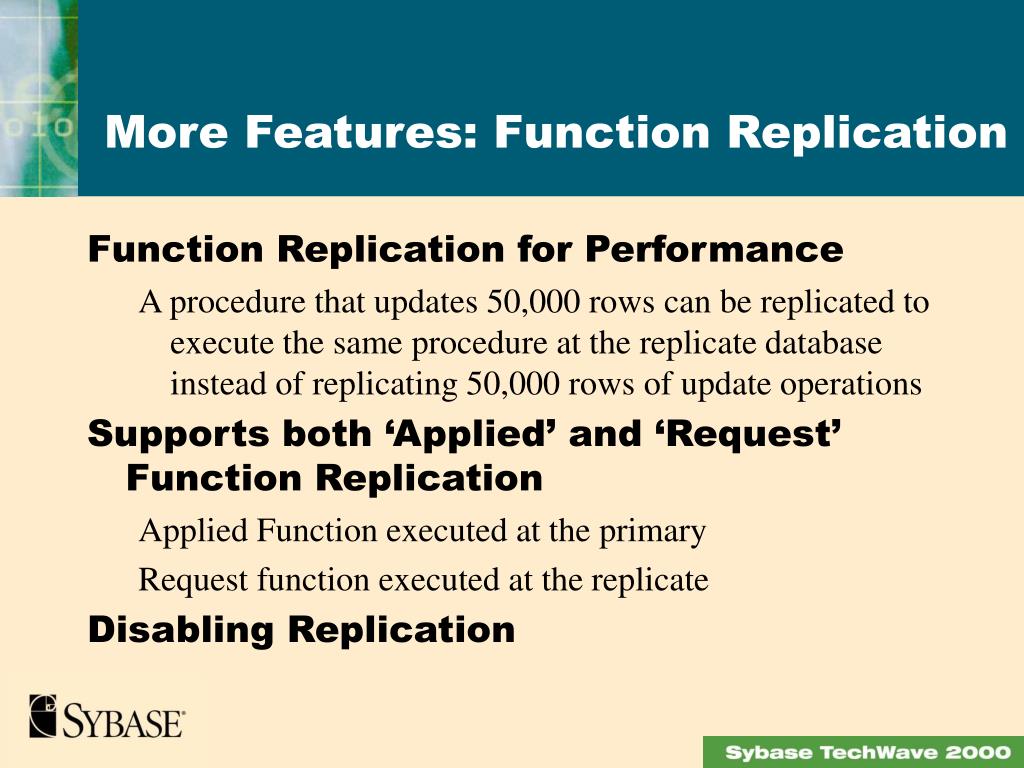

  49. Function Replication for Performance A procedure that updates 50,000 rows can be replicated to execute the same procedure at the replicate database instead of replicating 50,000 rows of update operations Supports both ‘Applied’ and ‘Request’ Function Replication Applied Function executed at the primary Request function executed at the replicate Disabling Replication More Features: Function Replication

  50. Function ReplicationApplied Function Execute “mass_update” Execute “mass_update” Replication Agent Replication Server START
