  1. 19th Advanced Summer School in Regional Science An introduction to GIS using ArcGIS

  2. Outline • First Day • Introduction to GIS using ArcGIS • Training with ArcGIS • Overview and more advanced directions • Training with ArcGIS • Second Day • GIS topics with ArcGIS: Raster and other data • Training with ArcGIS • Overview and advanced data manipulation • Training with ArcGIS

  3. Early (1507) GIS Martin Waldseemüller Map

  4. GIS Programs • Is GIS a map? Is a map GIS? • Collect, organize and relate spatial and non-spatial data • Measure and calculate variables in a ‘spatially sensible’ fashion • Make inferences and test hypotheses about relationships that might have spatial structure, and about the spatial structure itself • Map can be viewed as a limited GIS • GIS is more than mapping – visual display of spatial information • Mapping does not necessarily permit measurement/calculation • Mapping rarely ventures into inference or hypothesis testing • Complete GIS implemented using computer programs • Combined graphics editing, database, statistical analysis • This course is focused on use of ArcGIS • There are many other programs worth exploring

  5. There is a “free” way • http://www.freegis.org

  6. Google Earth • Particularly useful for data display

  7. ArcGIS • ArcGIS is a suite of programs for working with spatial data • Three core “workhorse” programs • ArcCatalog • ArcMap • ArcToolbox • Three useful extras • ArcReader • ArcScene • ArcGlobe • ArcGIS itself comes in 3 levels: view, editor and info

  8. ArcCatalog • View folder contents • Connect to and navigate drives/folders • Launch other ArcGIS applications

  9. ArcCatalog • Preview GIS data • Examine ‘Metadata’ • Search and preview online data • Load data layers into ArcMap

  10. ArcMap • The central workspace for analysis an display of geographic data • Table of Contents • Tools • Map

  11. ArcMap • Layers • ArcMap and all advanced GIS programs adopt ‘layers’ for managing data display • Layers display can depend on scale • Layers can be switched on or off • Layers can be moved up or down • Layers can be of any data type

  12. ArcToolbox • Launched from ArcCatalog using red toolbox • Provides data and file utilities • Conversion • Projection • Analysis

  13. ArcToolbox • For simple projects these tools are often not required • For large projects with many layers using data from many sources, they can be very useful • Essential for managing projections and coordinate systems • Raster combinations, clipping • Conversions

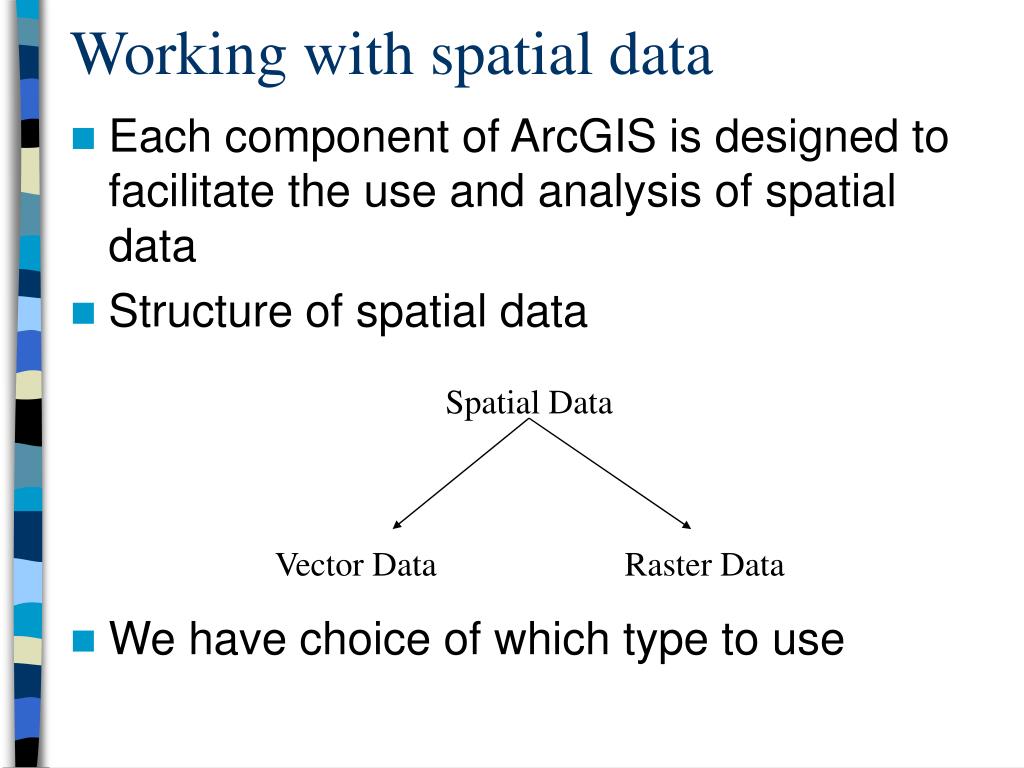

  14. Working with spatial data • Each component of ArcGIS is designed to facilitate the use and analysis of spatial data • Structure of spatial data • We have choice of which type to use Spatial Data Vector Data Raster Data

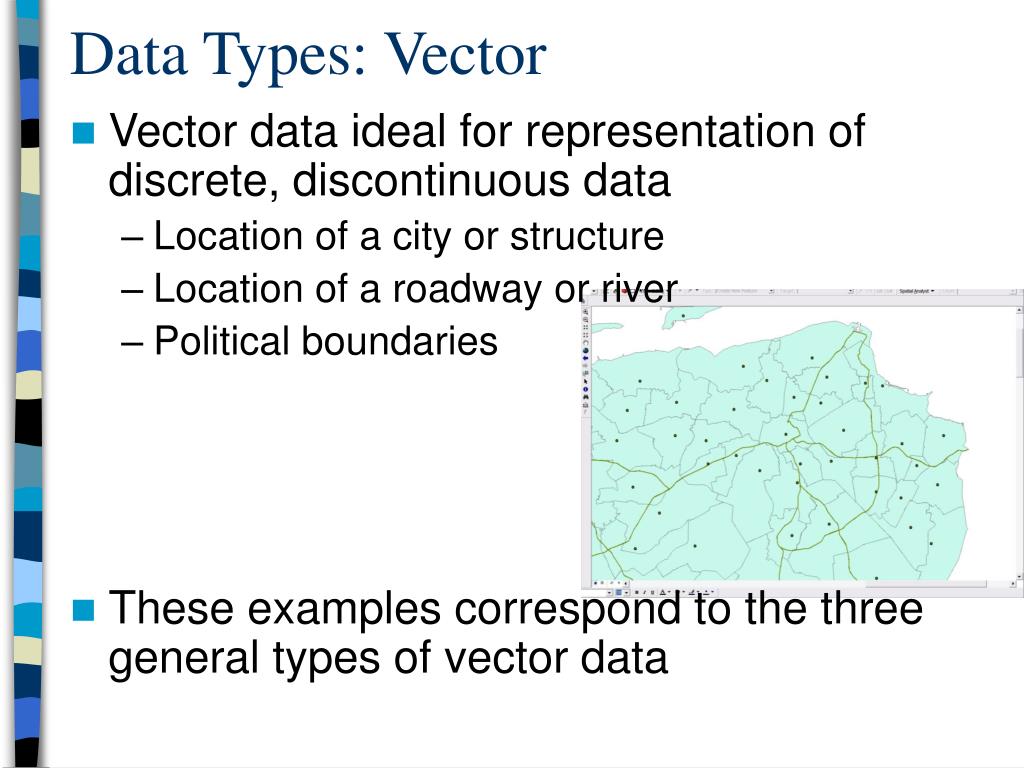

  15. Data Types: Vector • Vector data ideal for representation of discrete, discontinuous data • Location of a city or structure • Location of a roadway or river • Political boundaries • These examples correspond to the three general types of vector data

  16. Data Types: Vector • Vector • Points • Lines • Polygons

  17. Data Types: Raster • Raster represents spatial data as square array of numbers • Each element of array associated with a pixel • Each pixel has a location – spatial structure • Value of array element represents data at that location • Rasters are natural for representing certain types of data • Elevation • Slope • Temperature • Other continuous variables • Rasters can be used for representing some discontinuous data as well • Transport costs • Land Use

  18. Data Types: Raster • Rasters provide direct representation of value, not shape • Represent continuous variables or data over space • Patterns of values can represent shape • Land forms and other structures emerge via patterns

  19. Data Files • Vector data and raster data require different file formats • In ArcGIS, vector data are mostly stored in two formats • Shapefiles (older format – wide compatibility) • GeoDatabase (newer format – more information) • What is the structure of a “shapefile”?

  20. Shapefiles • A group of files having the same prefix but varying file extensions • Required: • .shp - the file that stores the feature geometry. Required. • .shx - the file that stores the index of the feature geometry. Required. • .dbf - the dBASE file that stores the attribute information of features. Required.

  21. Shapefiles • A group of files having the same prefix but varying file extensions • Optional: • .sbn and .sbx - the files that store the spatial index of the features. • .prj - the file that stores the coordinate system and projection information • .xml - metadata for using shapefiles on the Internet. • .fbn and .fbx – read-ony indexes • .ain and .aih - active field indexes

  22. Shapefiles • Viewed in Windows Explorer • Viewed in ArcCatalog

  23. Shapefiles • Components of a shapefile are called “features” • Each feature may have one or more “attributes” • Feature attributes are recorded in dbf file • Shapefiles can be created within ArcCatalog • Right click on folder, choose New..Shapefile • Shapefiles do not store “topological” information • Polygons that must share boundaries • Line segments that must be connected • No automatic way to check if these have been disturbed or incorrectly entered

  24. GeoDatabase • GeoDatabase provides an extended format for vector data • Microsoft Access mdb format • 28 tables • GDB_AnnoSymbols to • GDB_ValidRules • More type checking • More checking of topology • Conversion between formats is available in ArcToolbox

  25. Structure of a GeoDatabase • Standard information • Feature Data • Info about each field • Additional information • Topological information • Data validation

  26. Raster Files • Files that include geographic location • ESRI Grid • Geo-TIFF • BIL • Files that present raster data but lack location • jpg • TIFF • Many others

  27. ArcCatalog Test Drive • Preview Data • View MetaData • Create New Files • Launch Toolbox • Launch ArcMap • Add Layers • Connect to Internet • Feature Servers • Map Servers       

  28. ArcToolbox Test Drive • Projection • Conversion • Indexing   

  29. ArcMap Basics • Adding Map Layers • Data Frame(s) • Frame Properties and Layer Properties • Features and Attributes    

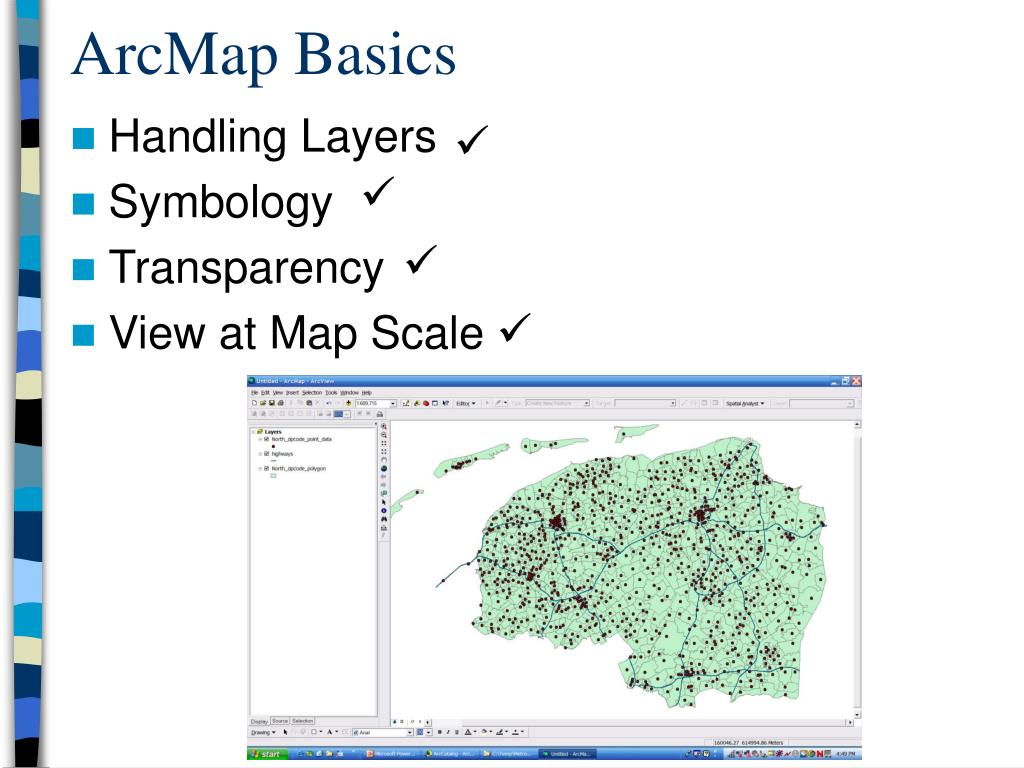

  30. ArcMap Basics • Handling Layers • Symbology • Transparency • View at Map Scale    

  31. ArcMap Basics • Selecting Features • Controlling selection layers • Creating new layer from selection • Queries • Basic information • Attribute queries • Spatial queries • Calculating New Attributes • Exporting Data    

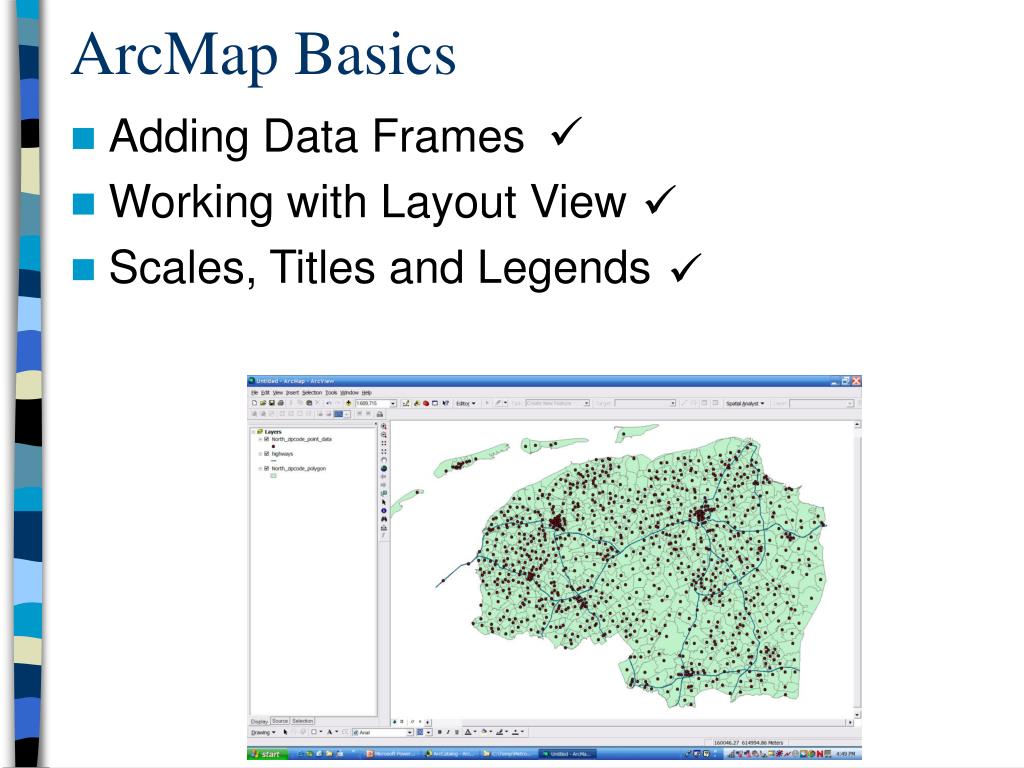

  32. ArcMap Basics • Adding Data Frames • Working with Layout View • Scales, Titles and Legends   

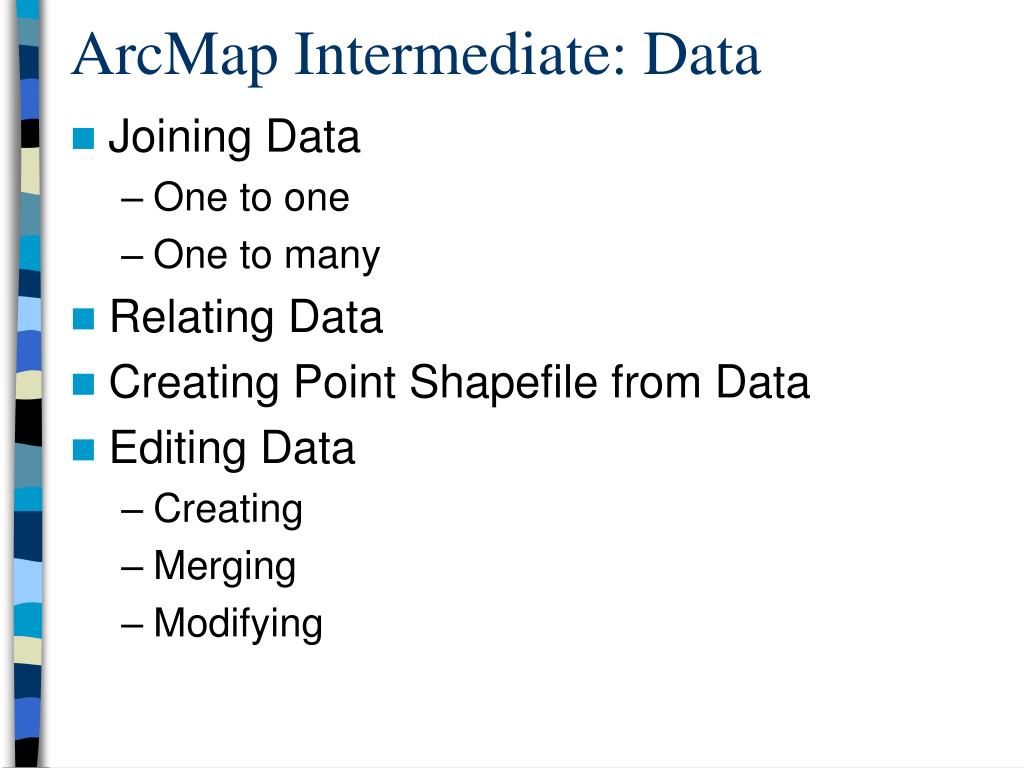

  33. ArcMap Intermediate: Data • Joining Data • One to one • One to many • Relating Data • Creating Point Shapefile from Data • Editing Data • Creating • Merging • Modifying
