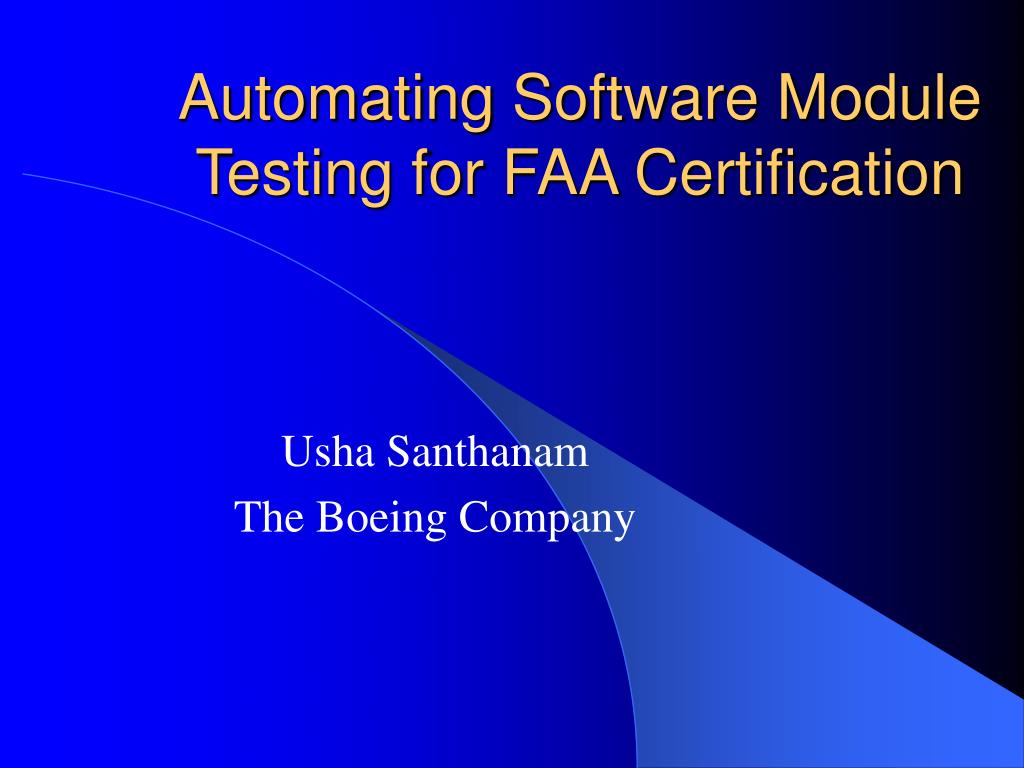

  1. Automating Software Module Testing for FAA Certification Usha Santhanam The Boeing Company

  2. Automating Software Module Testing for FAA Certification • Challenges in code based software testing • FAA certification testing • Test Set Editor (TSE) tool set and process • Regression testing • Benefits of TSE • Limitations of TSE • Summary

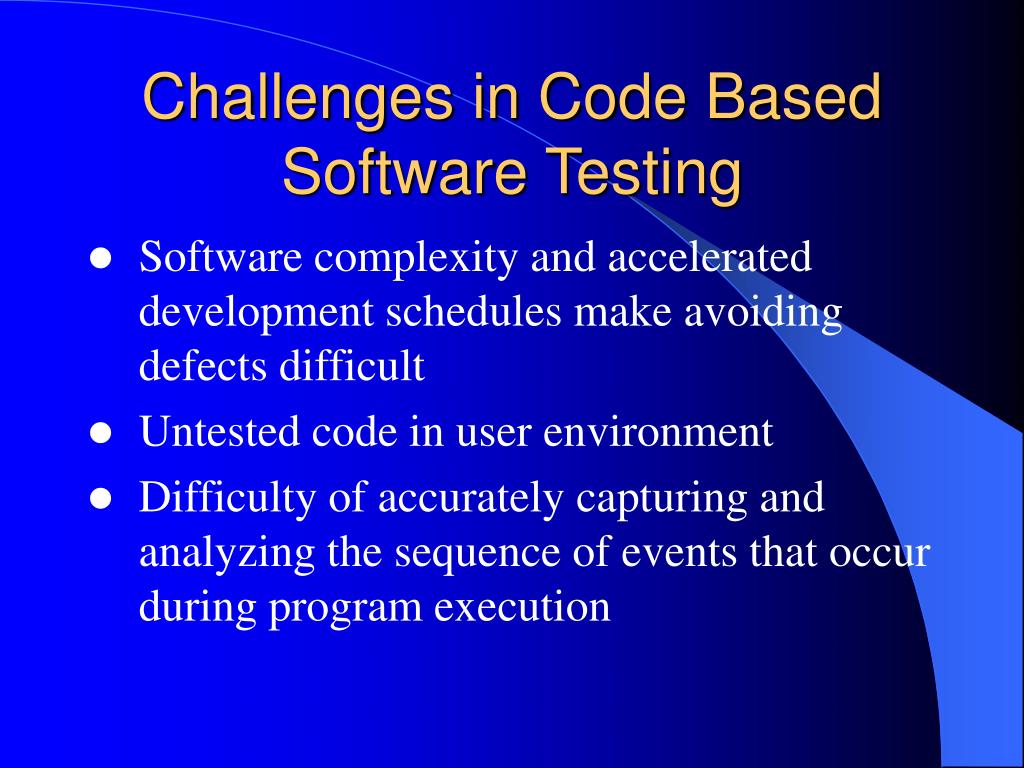

  3. Challenges in Code Based Software Testing • Software complexity and accelerated development schedules make avoiding defects difficult • Untested code in user environment • Difficulty of accurately capturing and analyzing the sequence of events that occur during program execution

  4. FAA Certification Testing • Structural coverage is often not achieved through requirements based testing alone • Testing each module in isolation provides the desired coverage • The three levels of structural coverage to deal with are statement coverage, decision coverage, and modified condition and decision coverage (MCDC)

  5. Structural Coverage • Statement coverage: execute each source level statement at least once • Decision coverage: take each execution branch at least once • MCDC: designed to demonstrate the independence of individual conditions that constitute a complex decision

  6. TSE Tool Set and Process • TSE is designed to achieve shorter turnaround time and cut cost during regression testing • TSE is domain-independent and removes the language-dependent test driver chores • TSE requires the test engineer to construct the test cases, but the rest of the testing process is automated

  7. TSE Tool Set and Process(cont.) • Tasks of testing a module for structural coverage are • Identifying inputs and outputs of a module (or collection of modules) • Selecting test cases and tagging them with the requirements they address • Constructing a test driver and stubs for subprograms called by the module under test

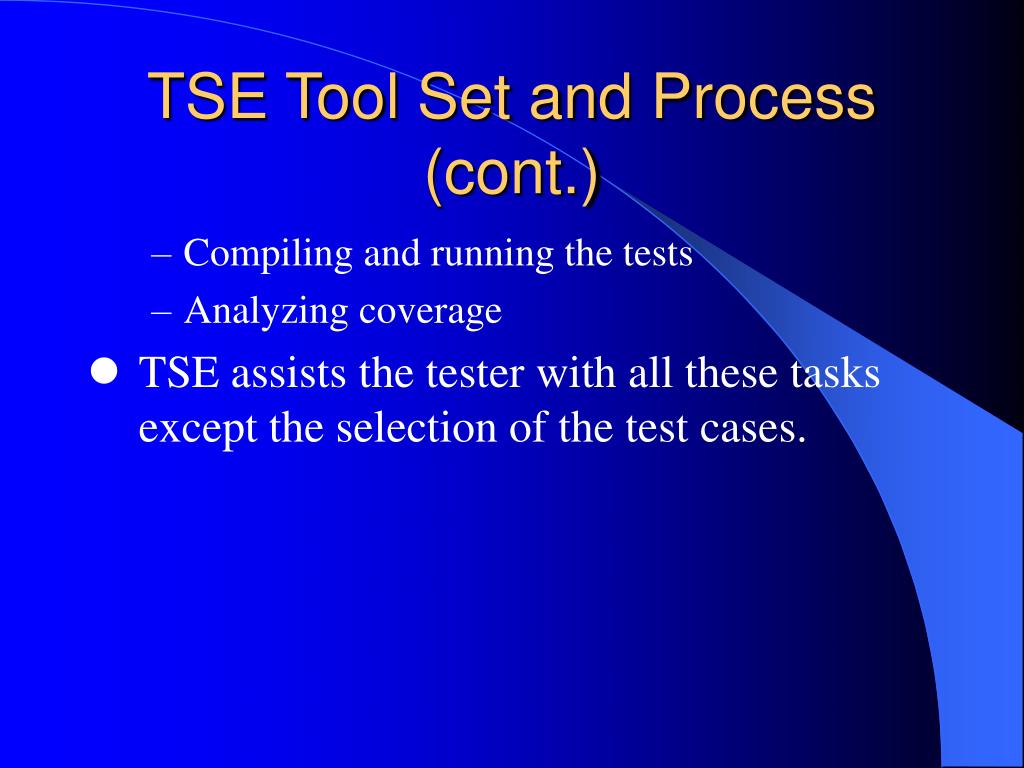

  8. TSE Tool Set and Process (cont.) • Compiling and running the tests • Analyzing coverage • TSE assists the tester with all these tasks except the selection of the test cases.

  9. package Io is Debugging : Boolean := False; procedure Get_End; end Io; with Text_Io; package body Io is K : constant := 1024; Max_Line_Length : constant := 16*K; Line : String (1 .. Max_Line_Length); procedure Error (Msg : String) is begin null; end Error; procedure Get_Line is begin null; end Get_Line; procedure Get_End is begin if Line (1 .. 4) = ".end" then Get_Line; else Error ("Missing .END, assume here."); end if; end Get_End; end Io; Example: Procedure Get_End in Package Io

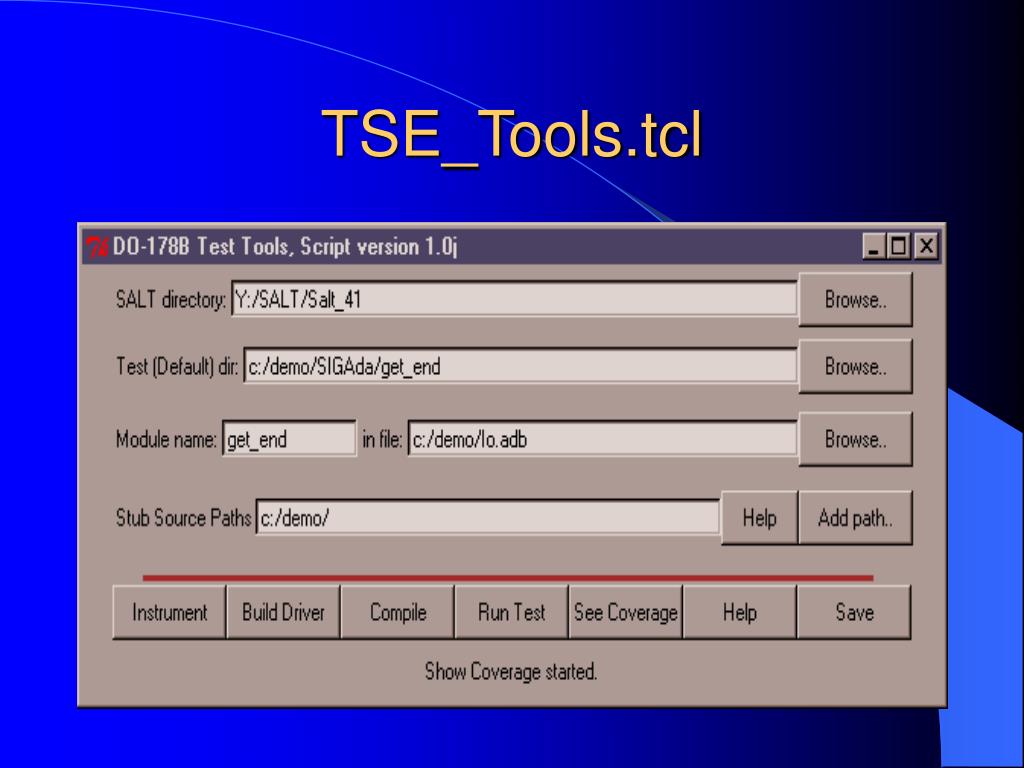

  10. TSE_Tools.tcl

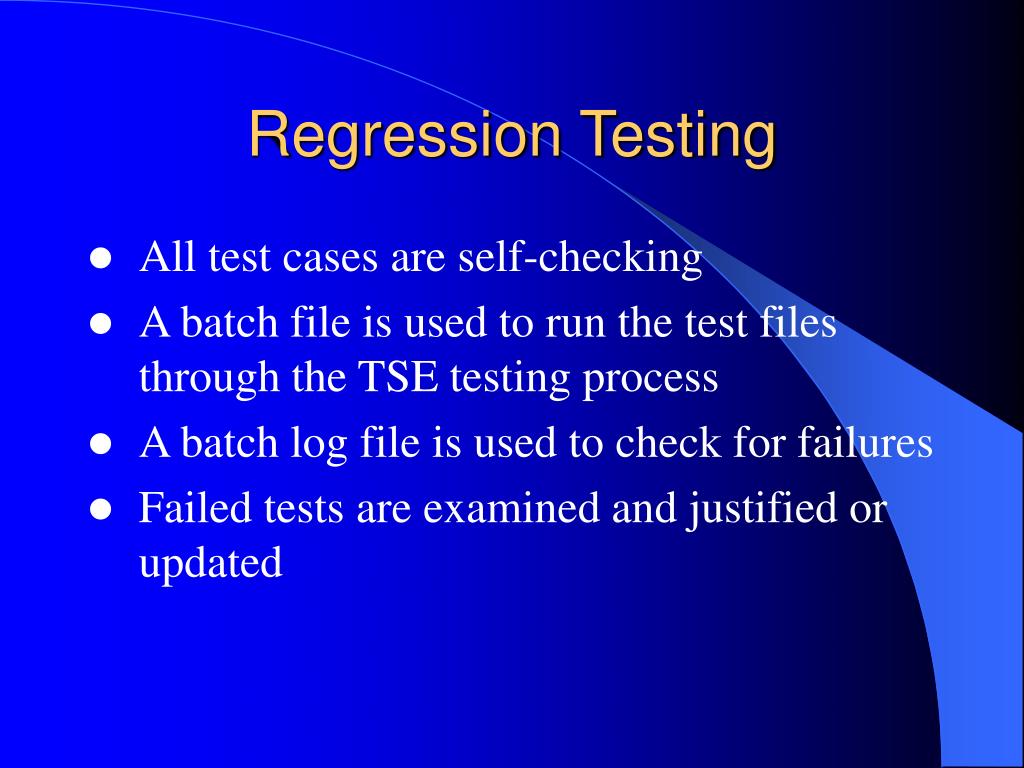

  11. Regression Testing • All test cases are self-checking • A batch file is used to run the test files through the TSE testing process • A batch log file is used to check for failures • Failed tests are examined and justified or updated

  12. Benefits of TSE • Tests can be developed by engineers who are not necessarily expert programmers in Ada • TSE includes a tool to analyze the source code and identify inputs and outputs of a given module • Provides coverage information

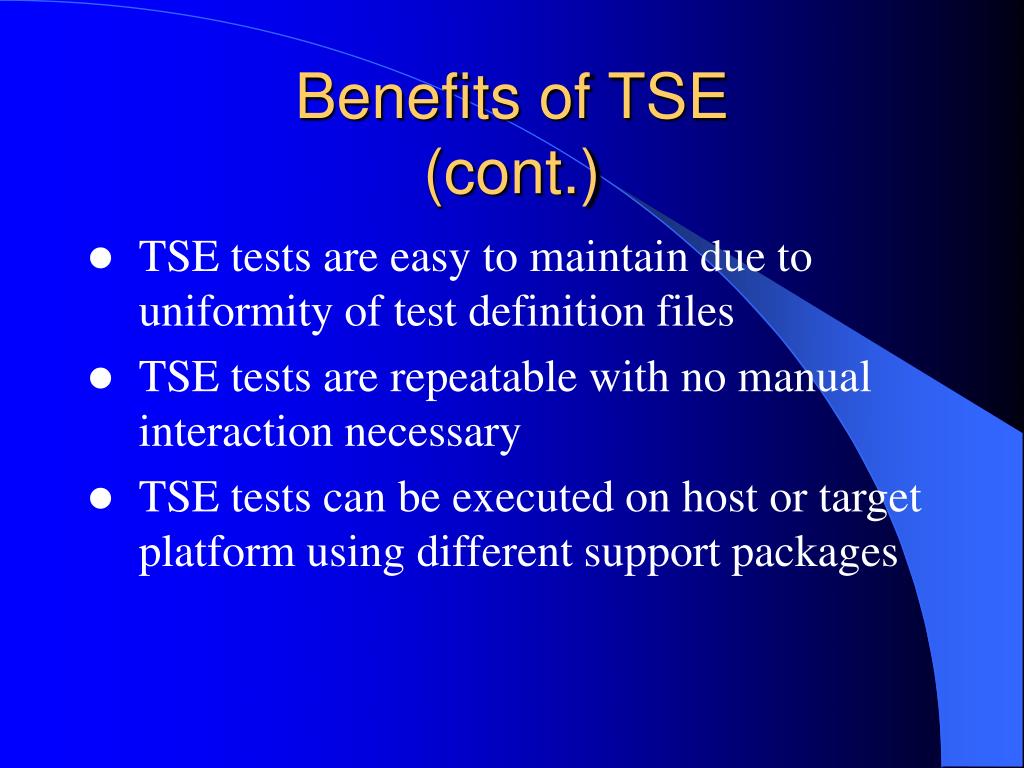

  13. Benefits of TSE(cont.) • TSE tests are easy to maintain due to uniformity of test definition files • TSE tests are repeatable with no manual interaction necessary • TSE tests can be executed on host or target platform using different support packages

  14. Productivity Improvements • Based on our experience we have seen a range of 1:5 to 1:10 productivity advantage. • Depends on the complexity of the module

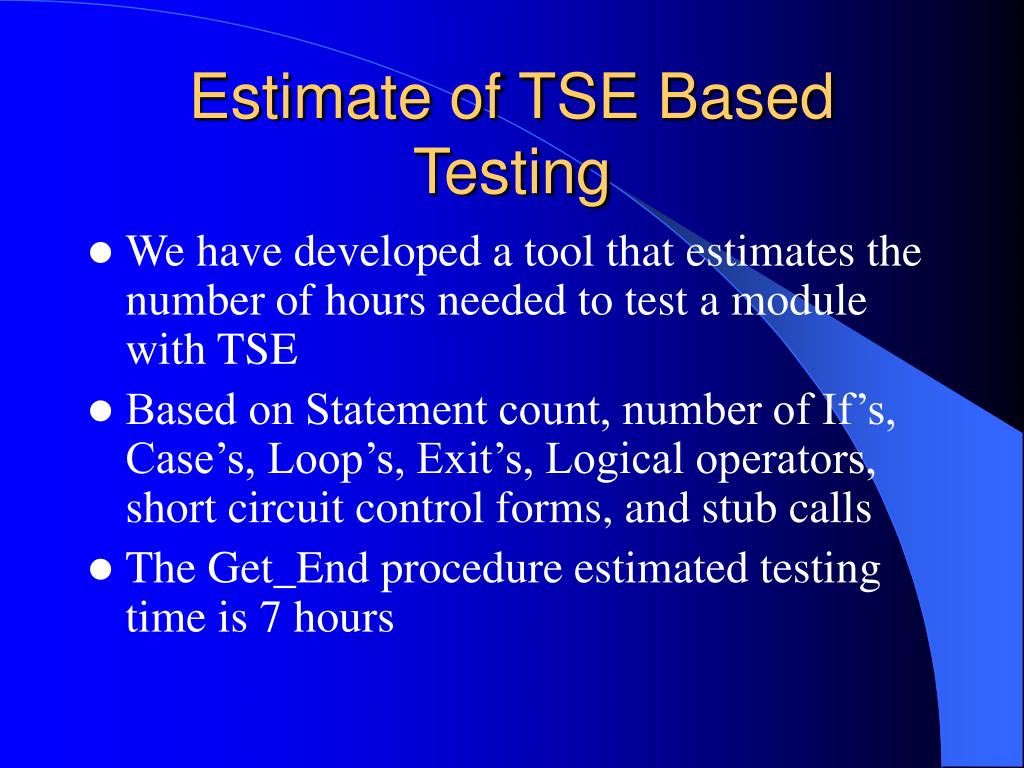

  15. Estimate of TSE Based Testing • We have developed a tool that estimates the number of hours needed to test a module with TSE • Based on Statement count, number of If’s, Case’s, Loop’s, Exit’s, Logical operators, short circuit control forms, and stub calls • The Get_End procedure estimated testing time is 7 hours

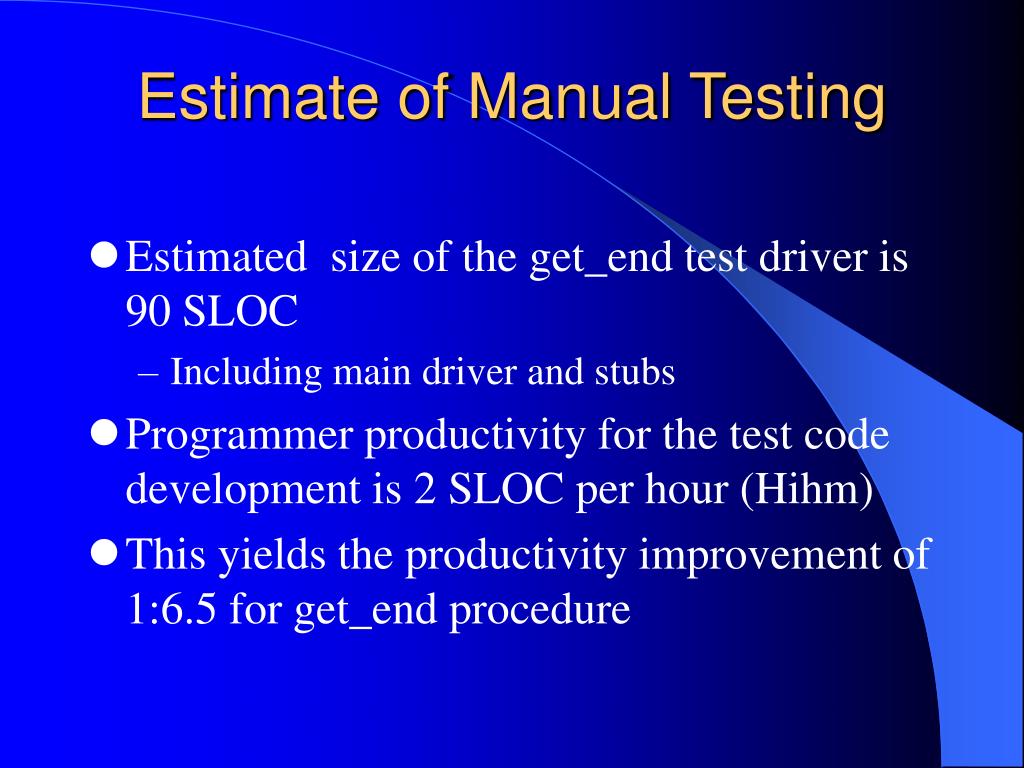

  16. Estimate of Manual Testing • Estimated size of the get_end test driver is 90 SLOC • Including main driver and stubs • Programmer productivity for the test code development is 2 SLOC per hour (Hihm) • This yields the productivity improvement of 1:6.5 for get_end procedure

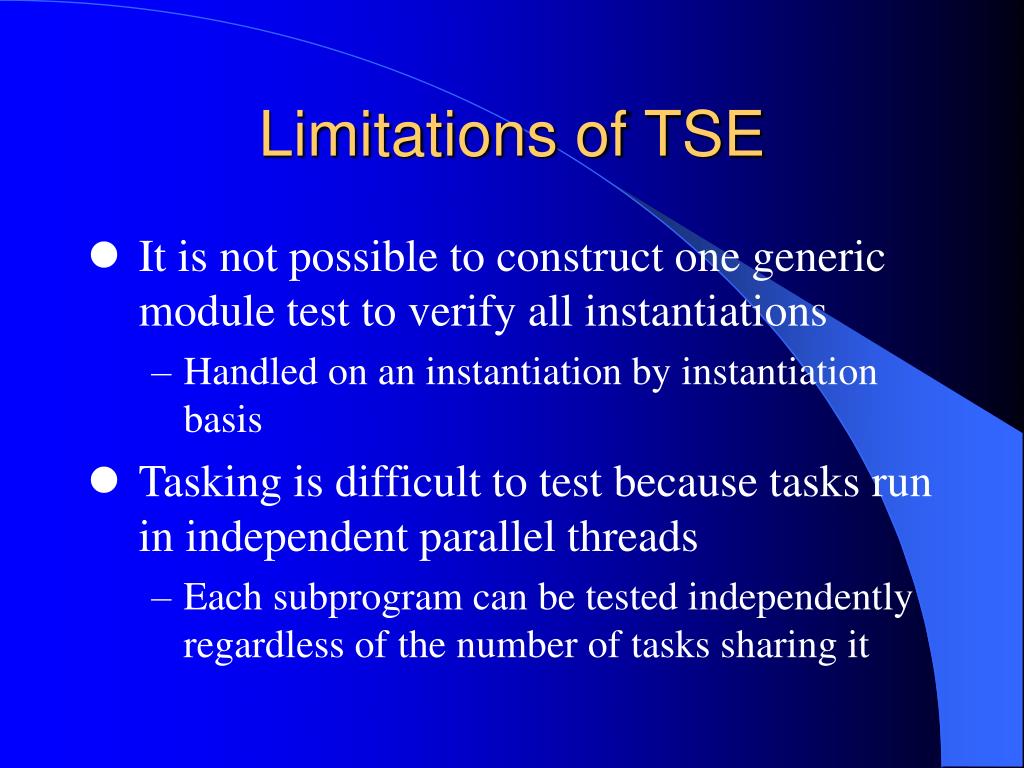

  17. Limitations of TSE • It is not possible to construct one generic module test to verify all instantiations • Handled on an instantiation by instantiation basis • Tasking is difficult to test because tasks run in independent parallel threads • Each subprogram can be tested independently regardless of the number of tasks sharing it

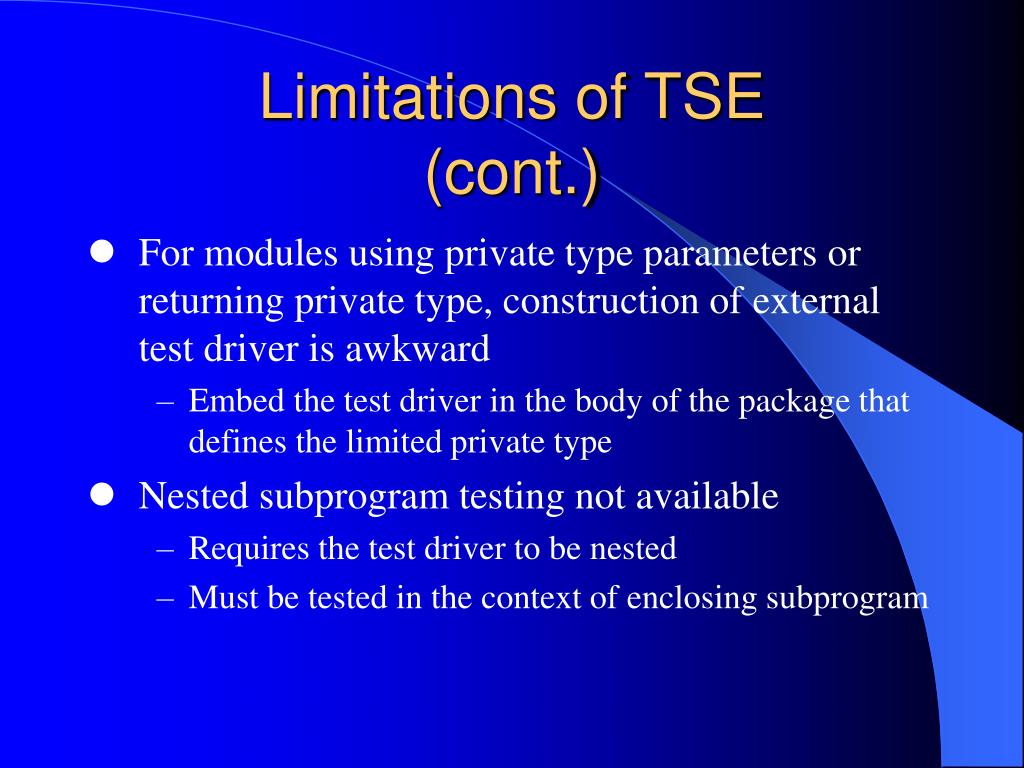

  18. Limitations of TSE(cont.) • For modules using private type parameters or returning private type, construction of external test driver is awkward • Embed the test driver in the body of the package that defines the limited private type • Nested subprogram testing not available • Requires the test driver to be nested • Must be tested in the context of enclosing subprogram

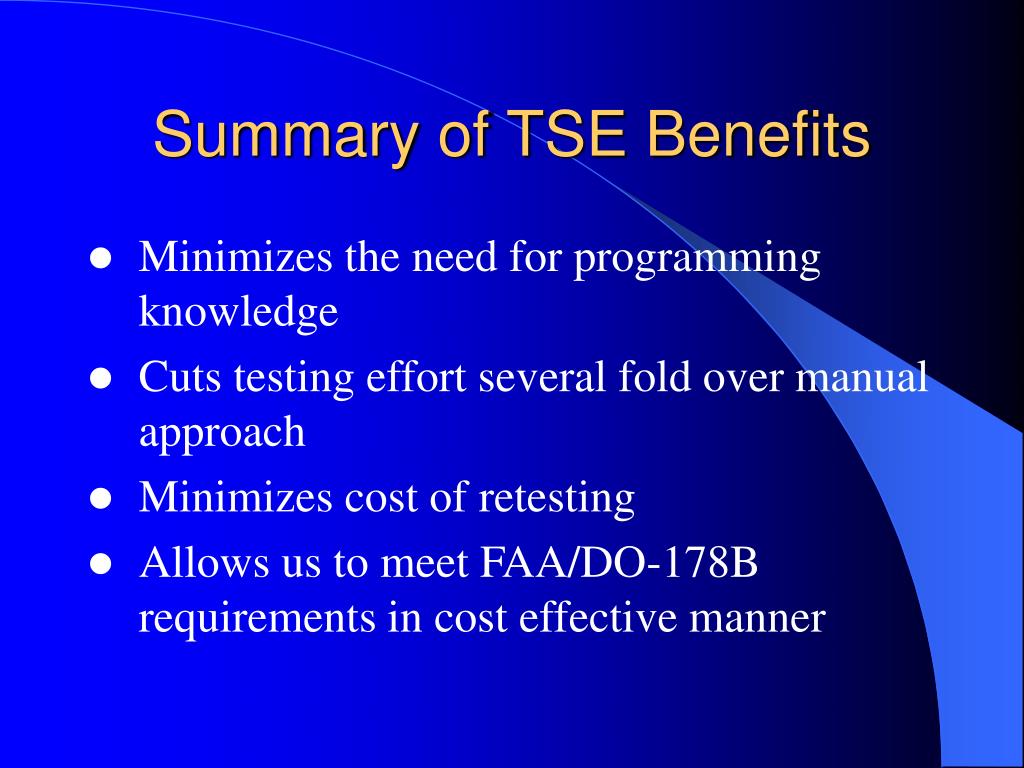

  19. Summary of TSE Benefits • Minimizes the need for programming knowledge • Cuts testing effort several fold over manual approach • Minimizes cost of retesting • Allows us to meet FAA/DO-178B requirements in cost effective manner
