  1. Pertemuan 17Overview of TCP/IP Error Message

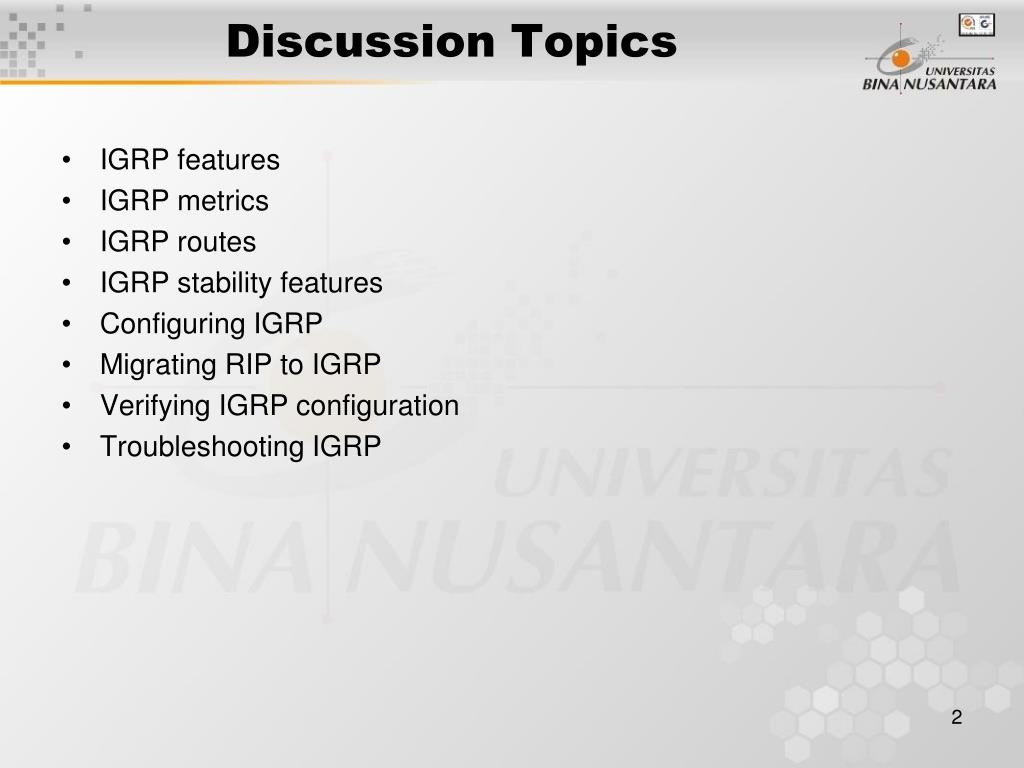

  2. Discussion Topics • IGRP features • IGRP metrics • IGRP routes • IGRP stability features • Configuring IGRP • Migrating RIP to IGRP • Verifying IGRP configuration • Troubleshooting IGRP

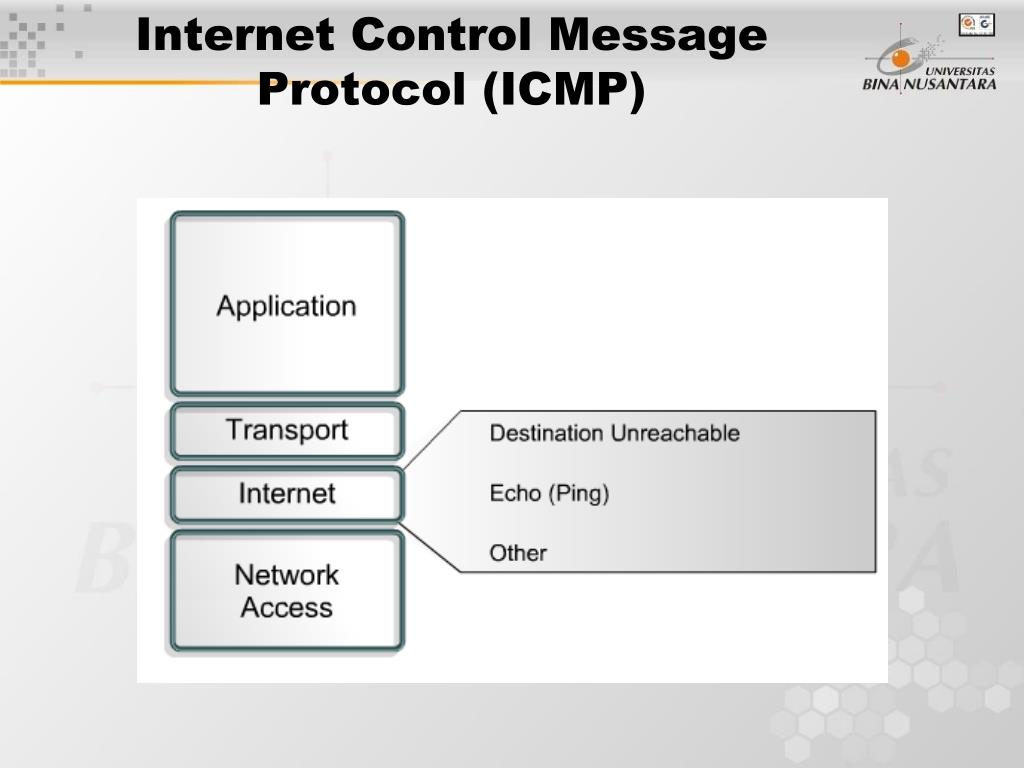

  3. Internet Control Message Protocol (ICMP)

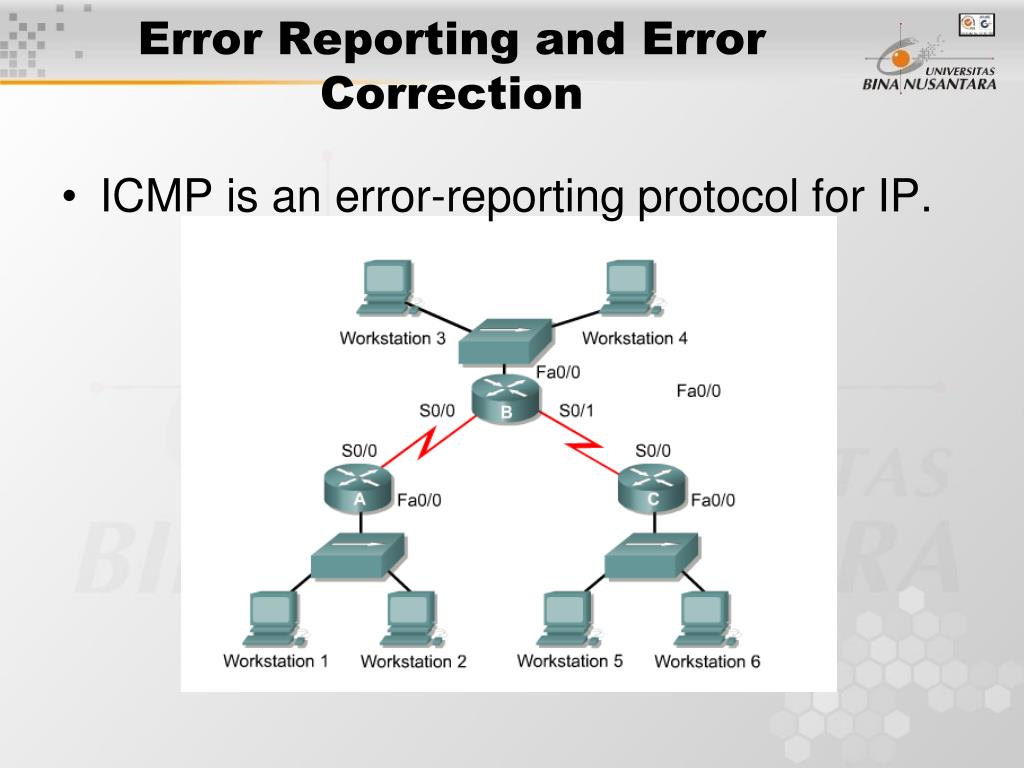

  4. Error Reporting and Error Correction • ICMP is an error-reporting protocol for IP.

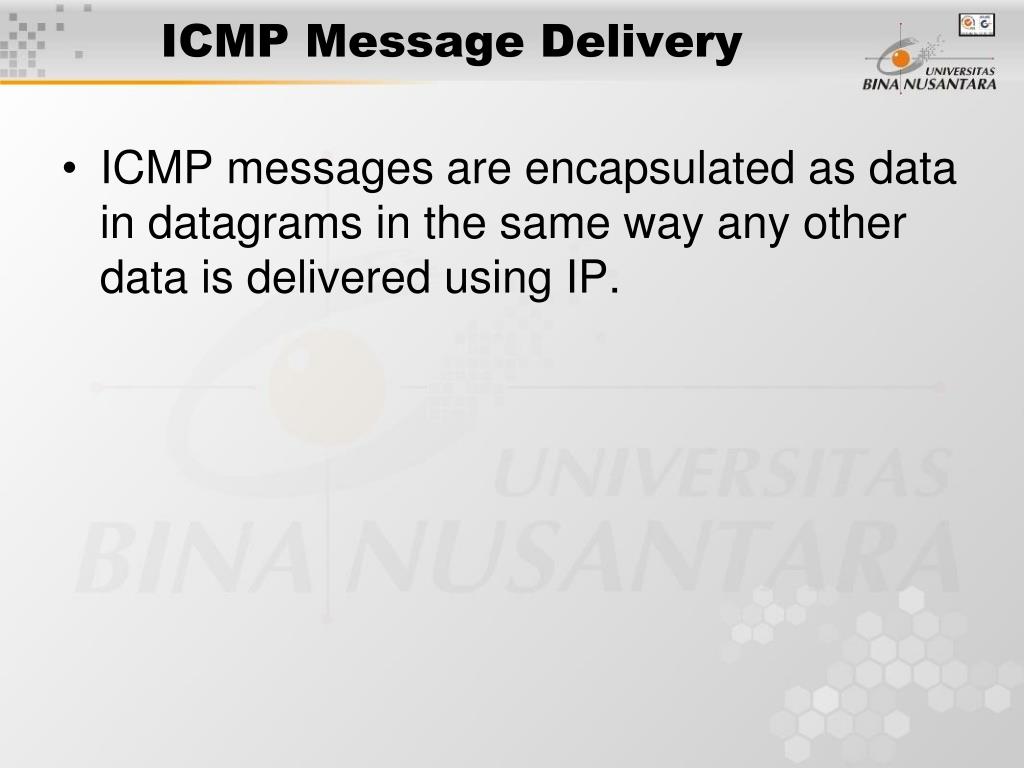

  5. ICMP Message Delivery • ICMP messages are encapsulated as data in datagrams in the same way any other data is delivered using IP.

  6. Unreachable Networks

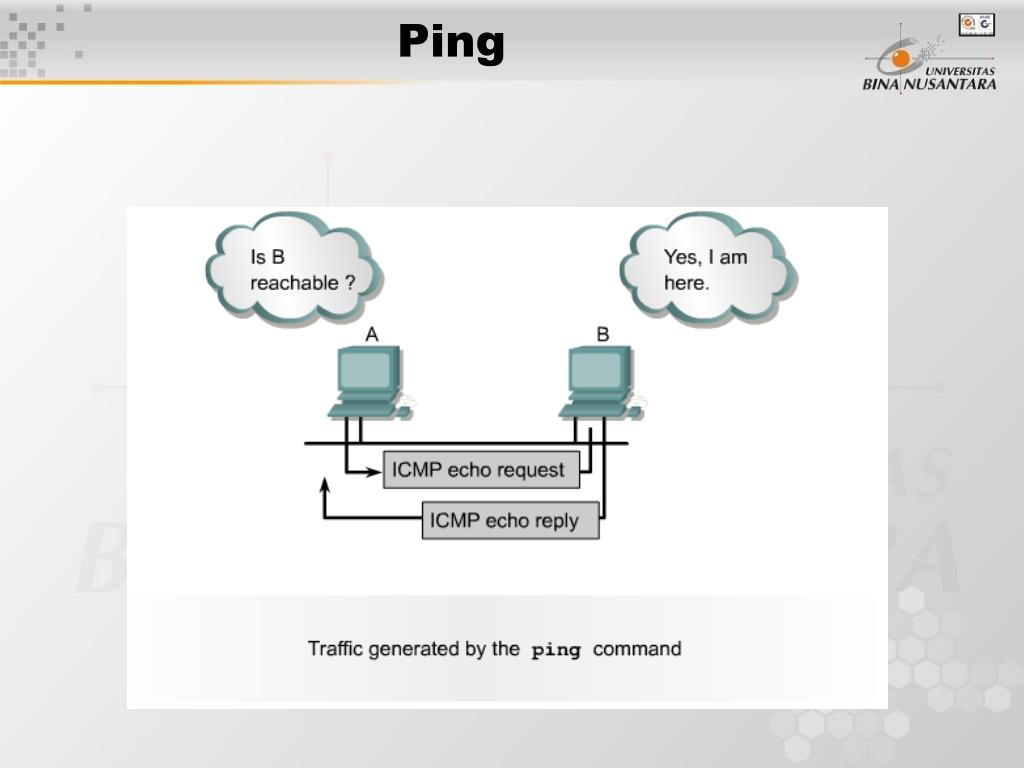

  7. Ping

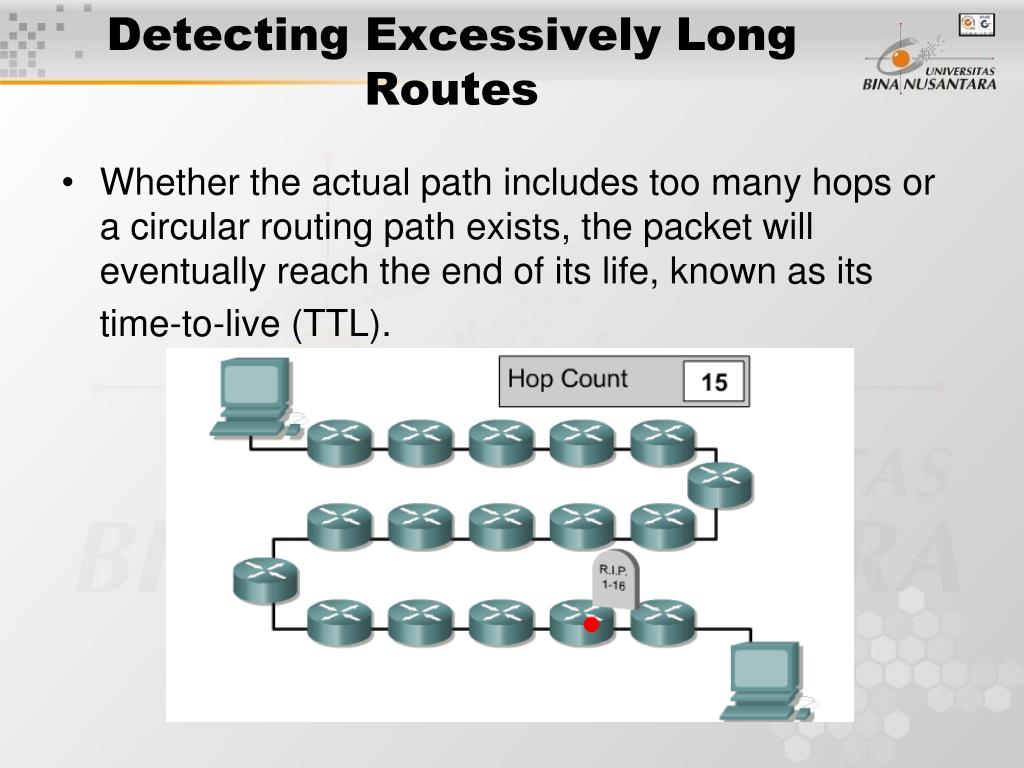

  8. Detecting Excessively Long Routes • Whether the actual path includes too many hops or a circular routing path exists, the packet will eventually reach the end of its life, known as its time-to-live (TTL).

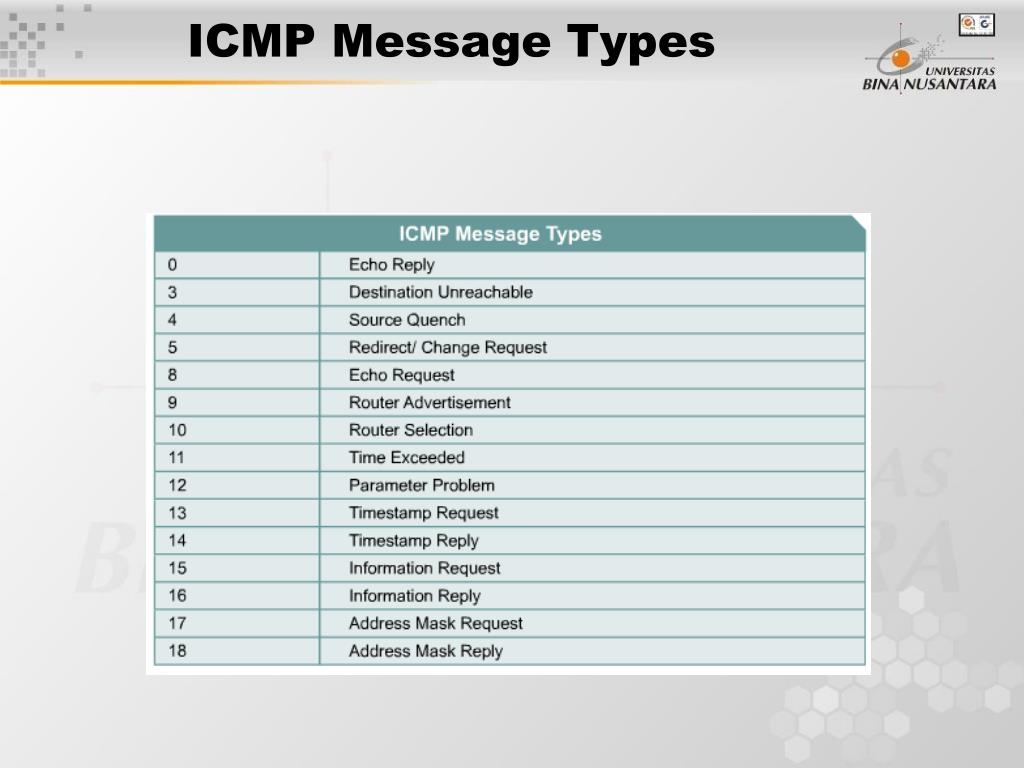

  9. ICMP Message Types

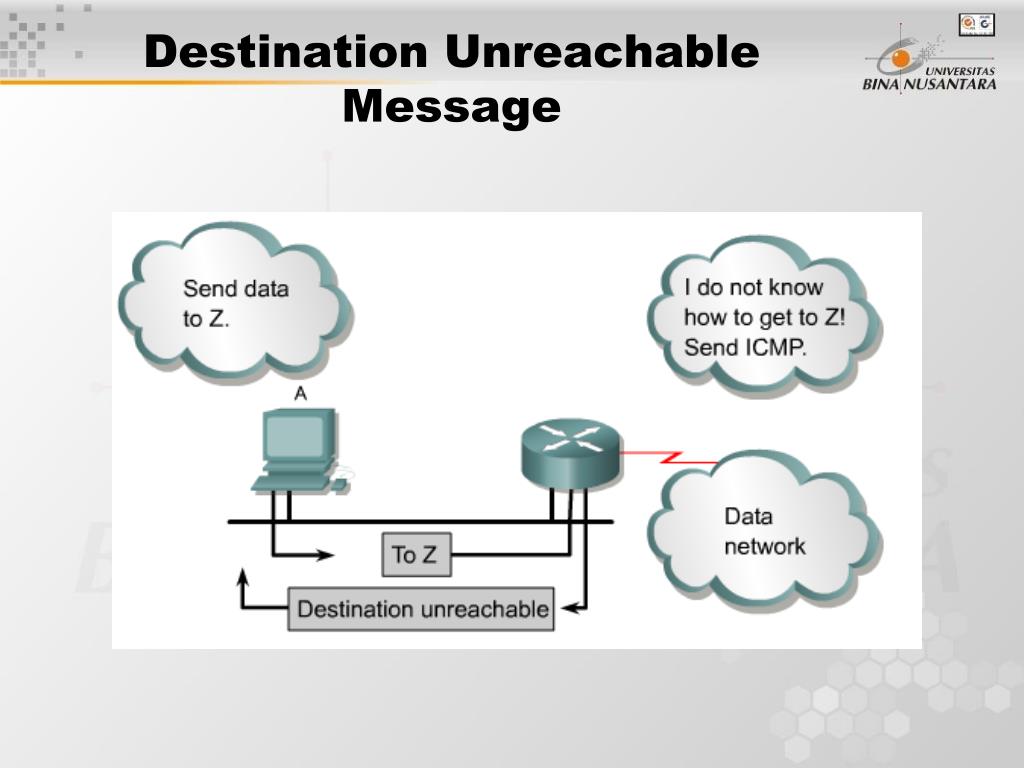

  10. Destination Unreachable Message

  11. Code Values for Destination Unreachable Messages

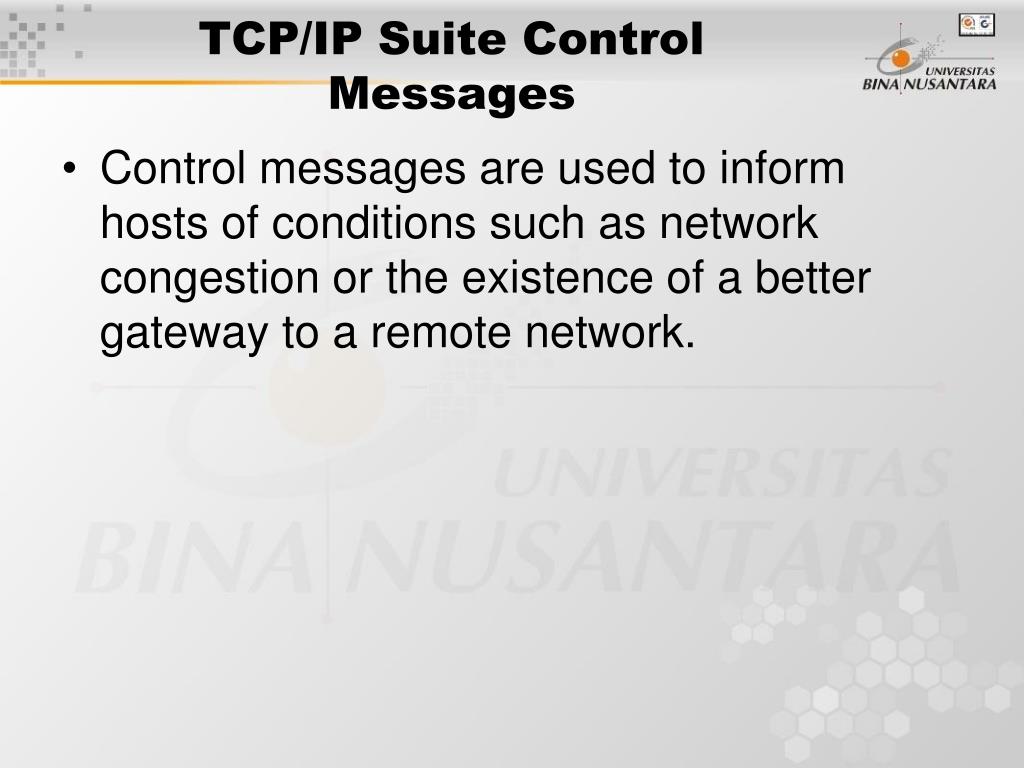

  12. TCP/IP Suite Control Messages • Control messages are used to inform hosts of conditions such as network congestion or the existence of a better gateway to a remote network.
