  1. Technologies 1 Solar Power

  2. Overview Solar Feasibility (Is solar an option?) Mounting Options Things to consider Module Options Inverter Options Interconnection Options Purchasing Options (PPA vs. Owner Finance)

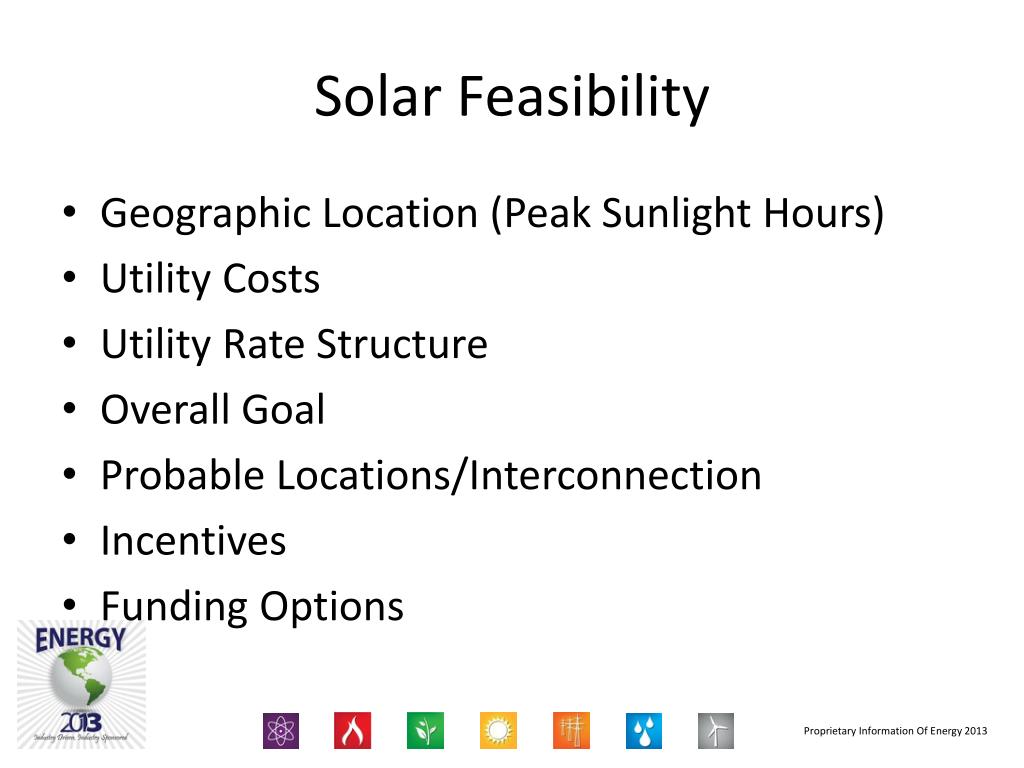

  3. Solar Feasibility Geographic Location (Peak Sunlight Hours) Utility Costs Utility Rate Structure Overall Goal Probable Locations/Interconnection Incentives Funding Options

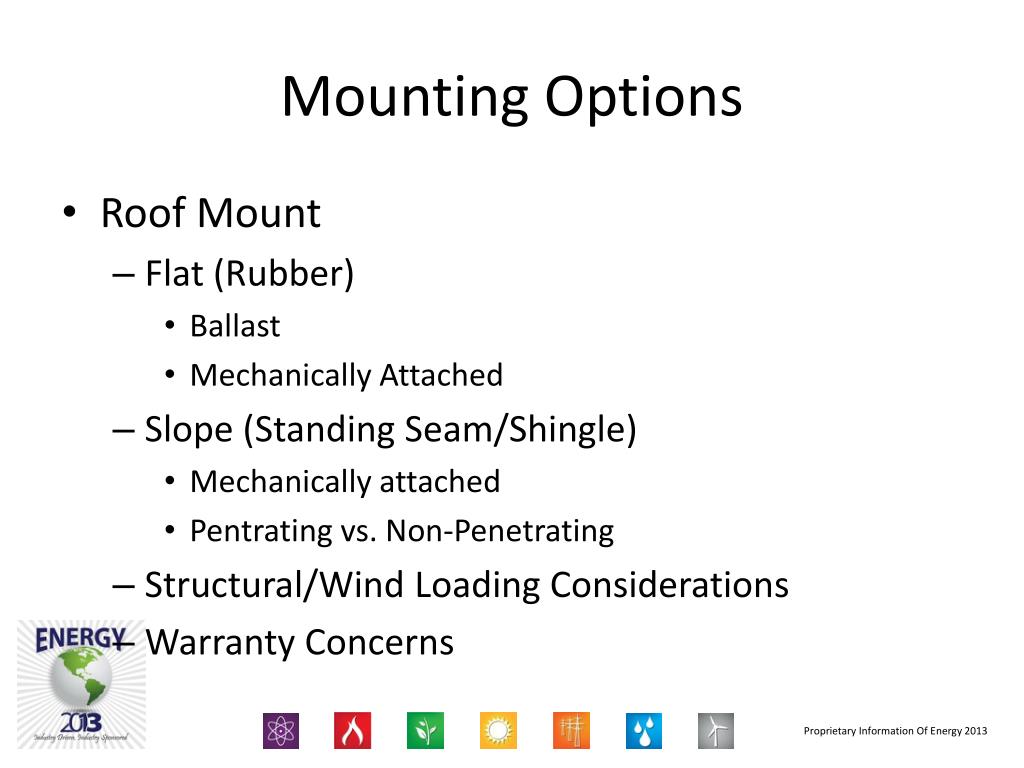

  4. Mounting Options • Roof Mount • Flat (Rubber) • Ballast • Mechanically Attached • Slope (Standing Seam/Shingle) • Mechanically attached • Pentrating vs. Non-Penetrating • Structural/Wind Loading Considerations • Warranty Concerns

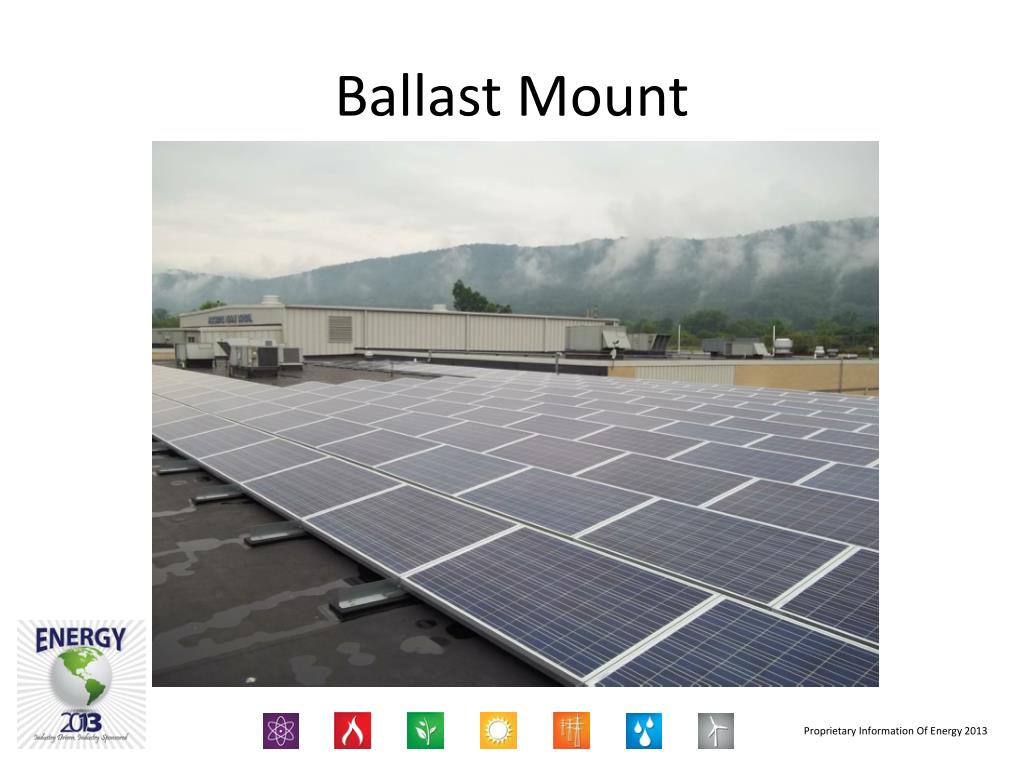

  5. Ballast Mount

  6. Mechanically Attached

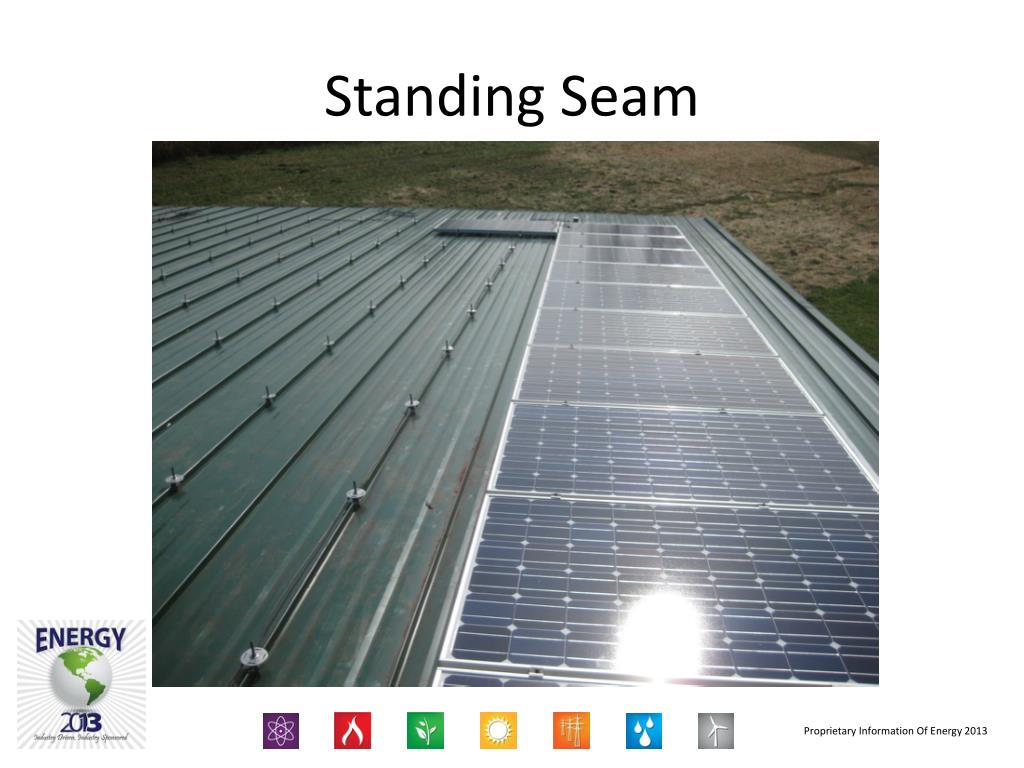

  7. Standing Seam

  8. Shingle

  9. Mounting Options • Ground • Ballast • Fixed Tilt • Top of Pole • Tracking • Single Axis • Dual Axis • Parking Canopy

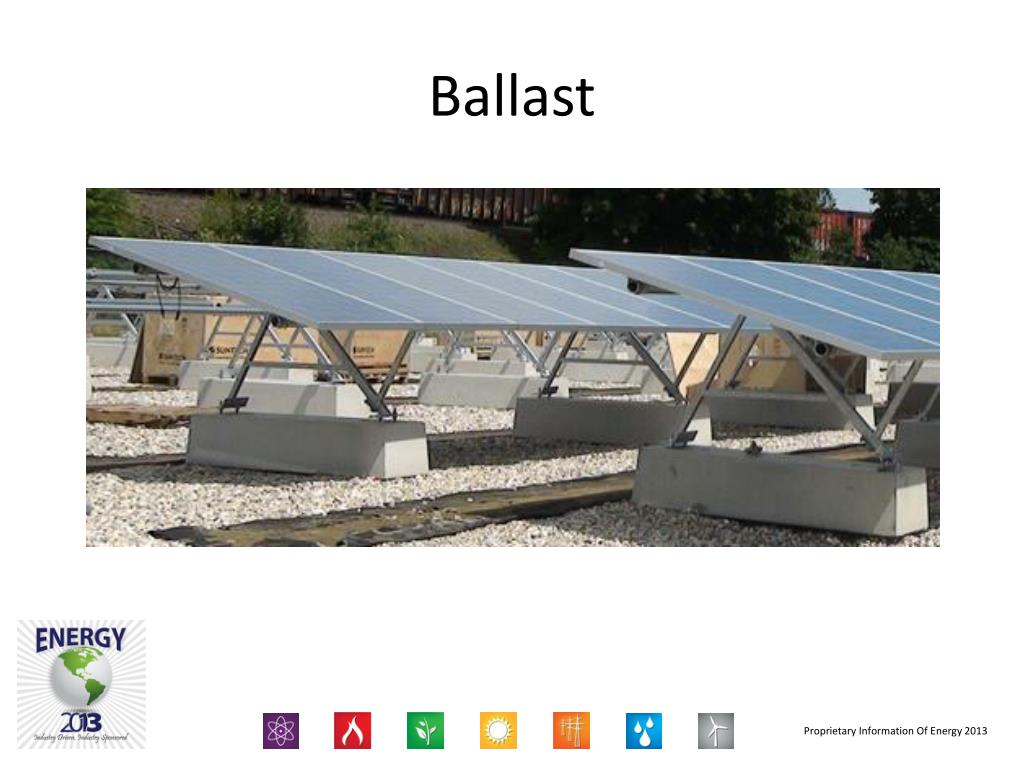

  10. Ballast

  11. Fixed Tilt

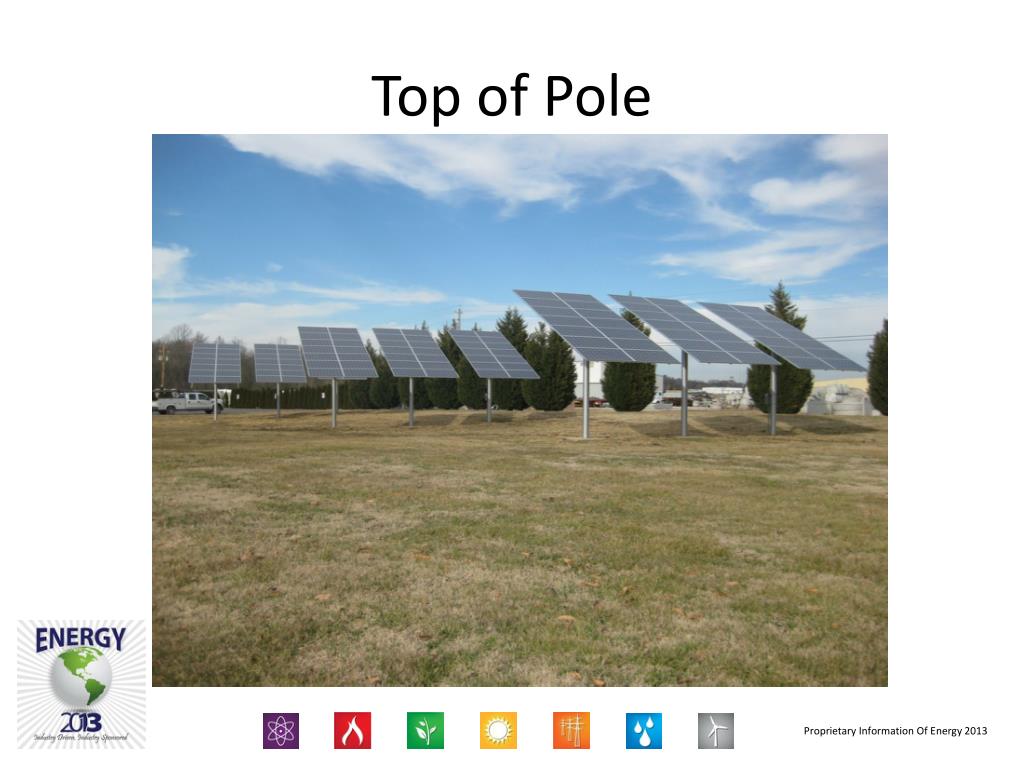

  12. Top of Pole

  13. Single Axis Tracking

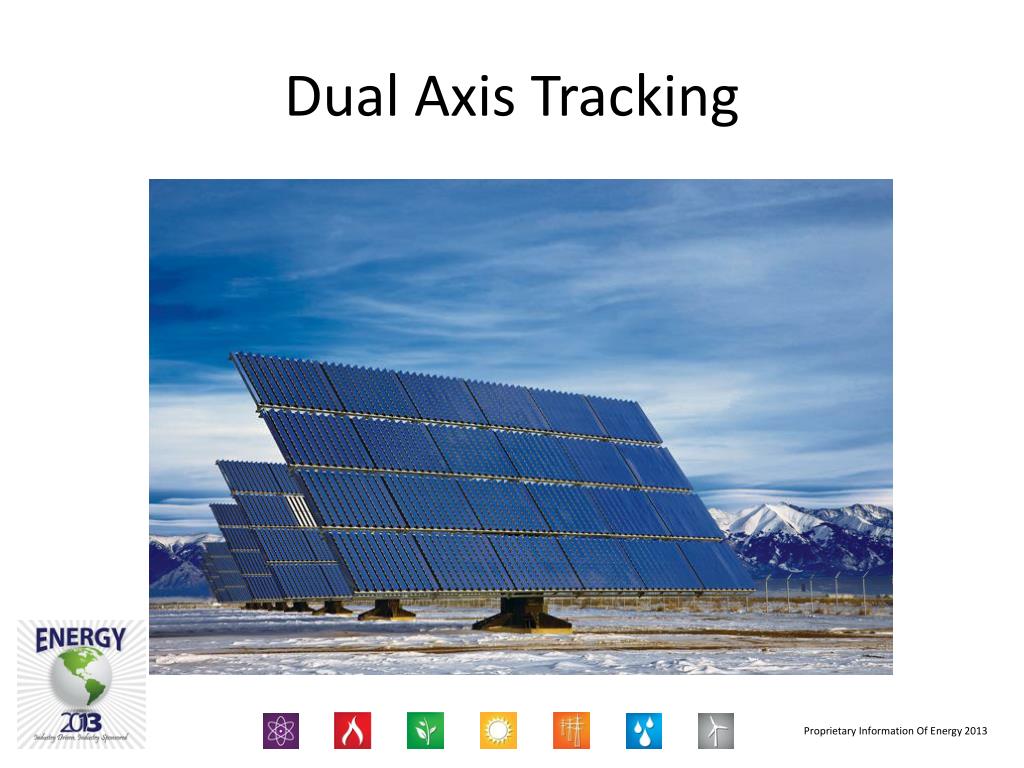

  14. Dual Axis Tracking

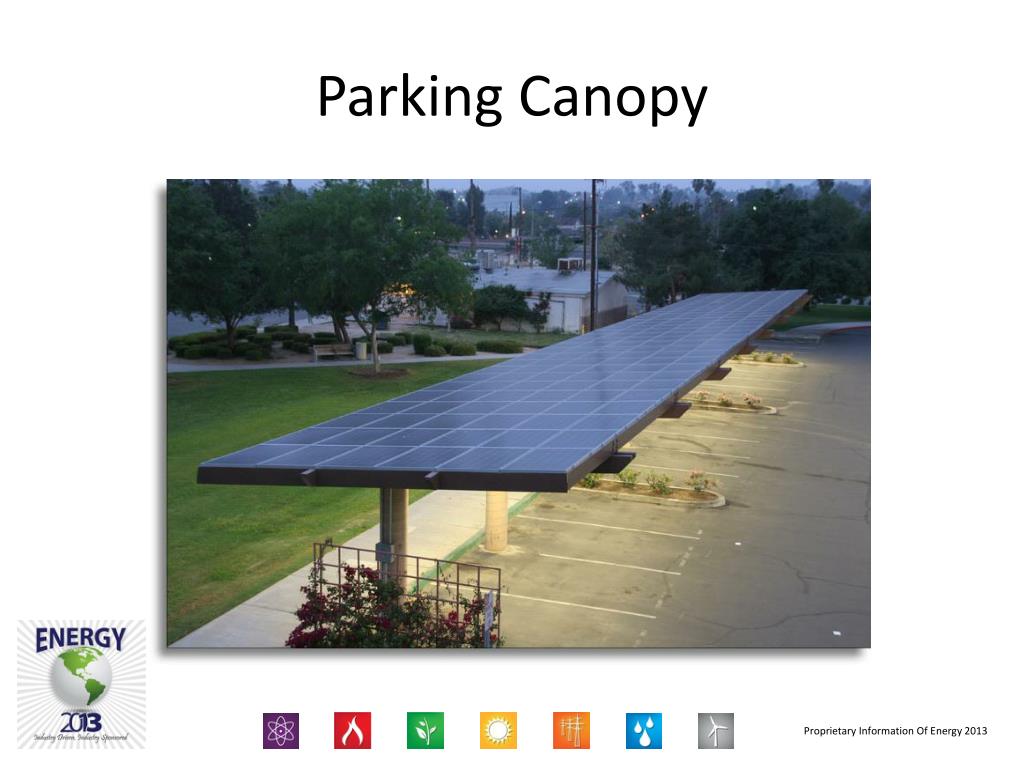

  15. Parking Canopy

  16. Things To Consider Accessibility Roof Condition/Warranty Interconnection Points/Voltage Source/Load Management

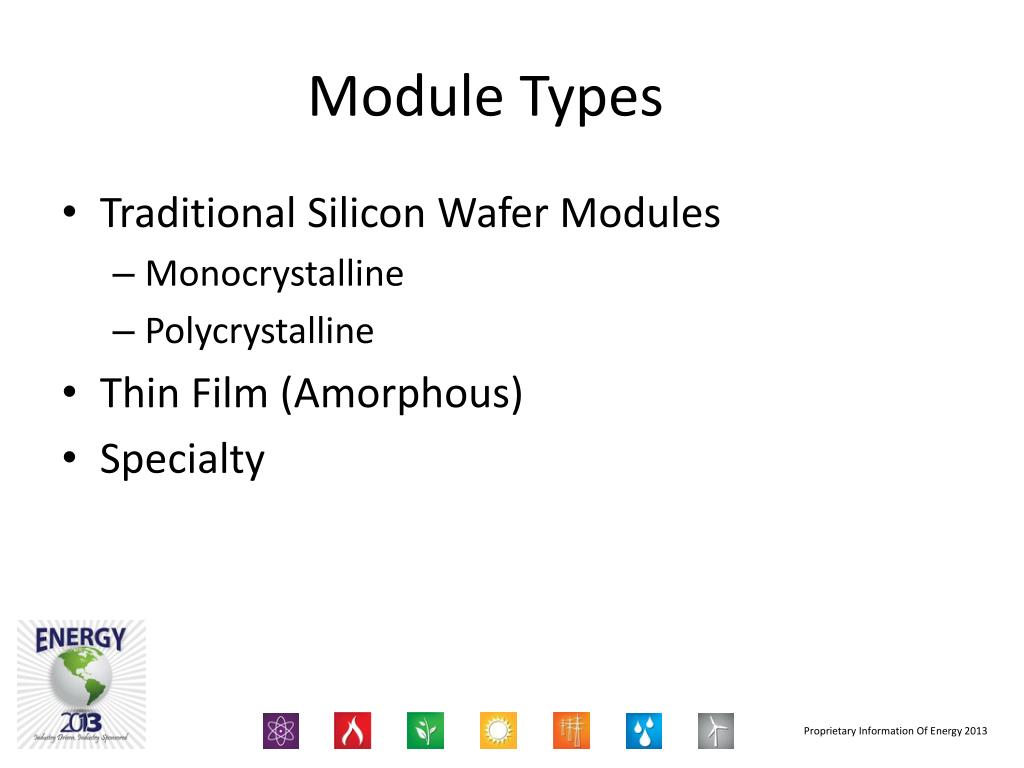

  17. Module Types • Traditional Silicon Wafer Modules • Monocrystalline • Polycrystalline • Thin Film (Amorphous) • Specialty

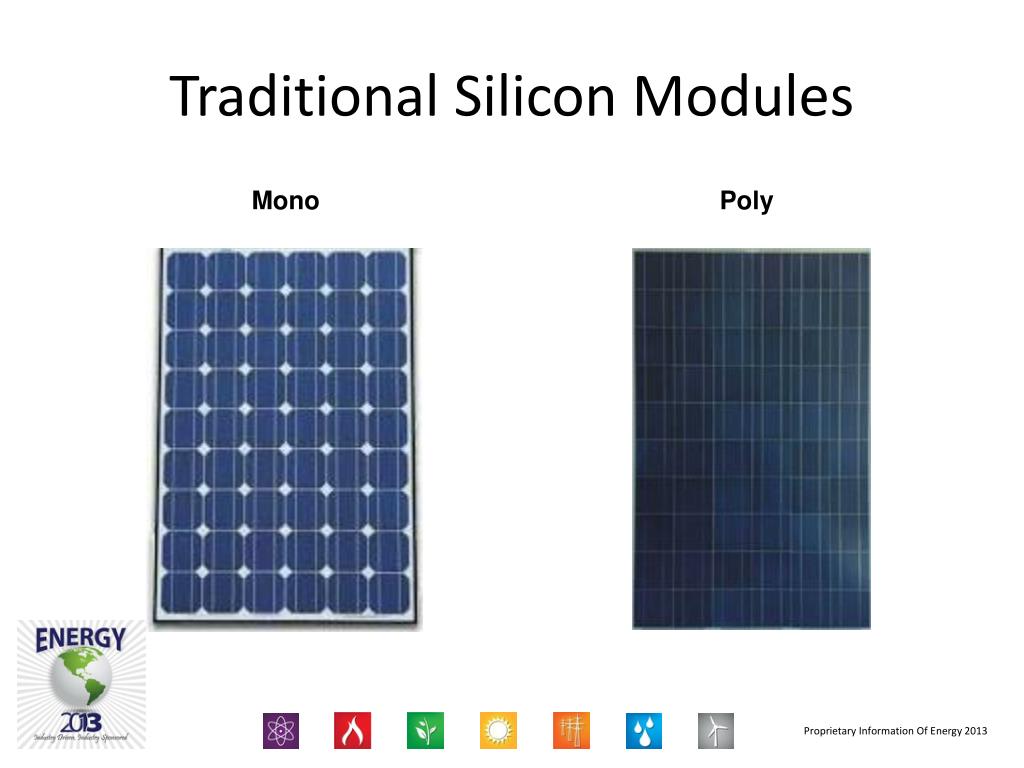

  18. Traditional Silicon Modules Mono Poly

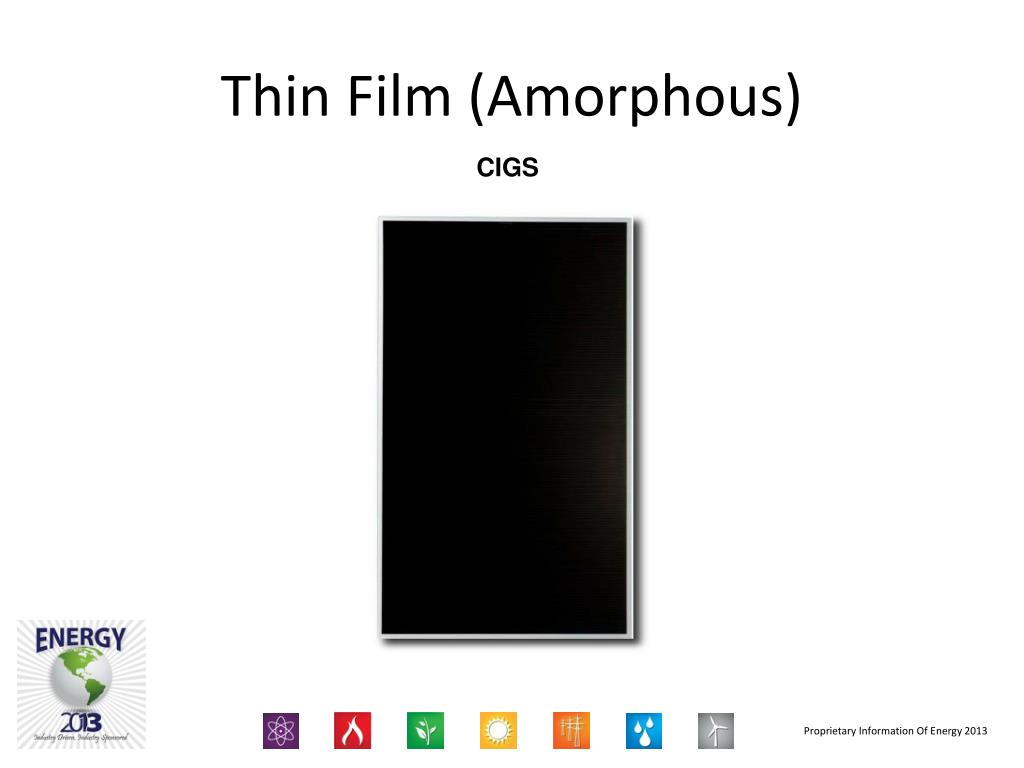

  19. Thin Film (Amorphous) CIGS

  20. Specialty Transparent/Frameless

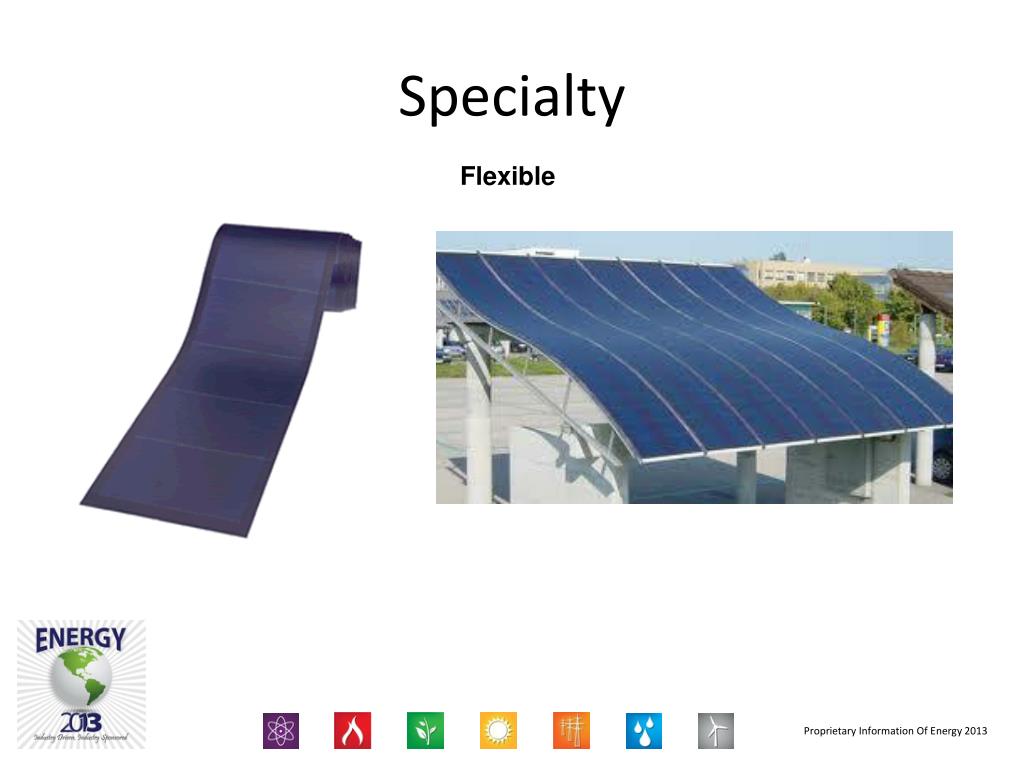

  21. Specialty Flexible

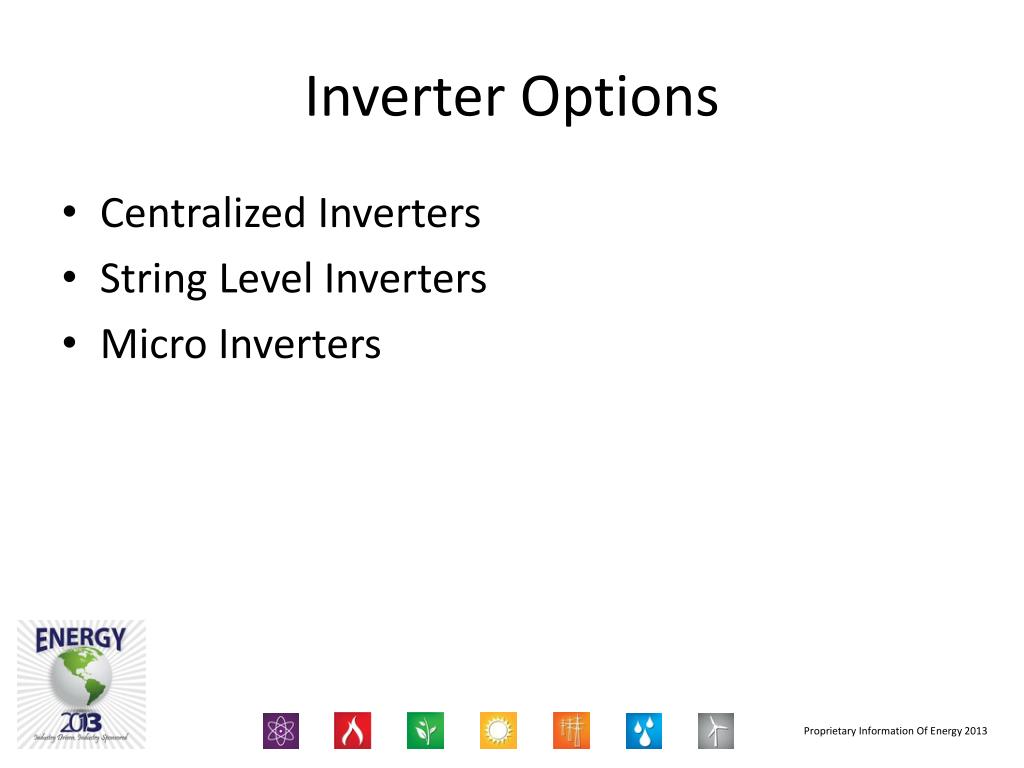

  22. Inverter Options Centralized Inverters String Level Inverters Micro Inverters

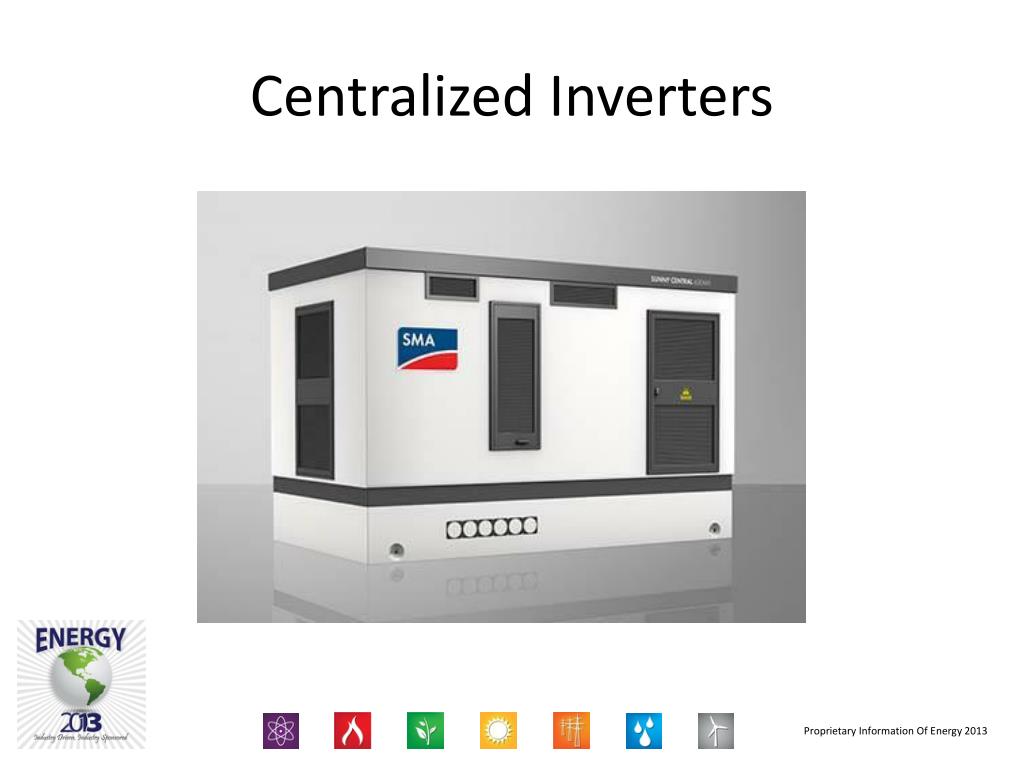

  23. Centralized Inverters

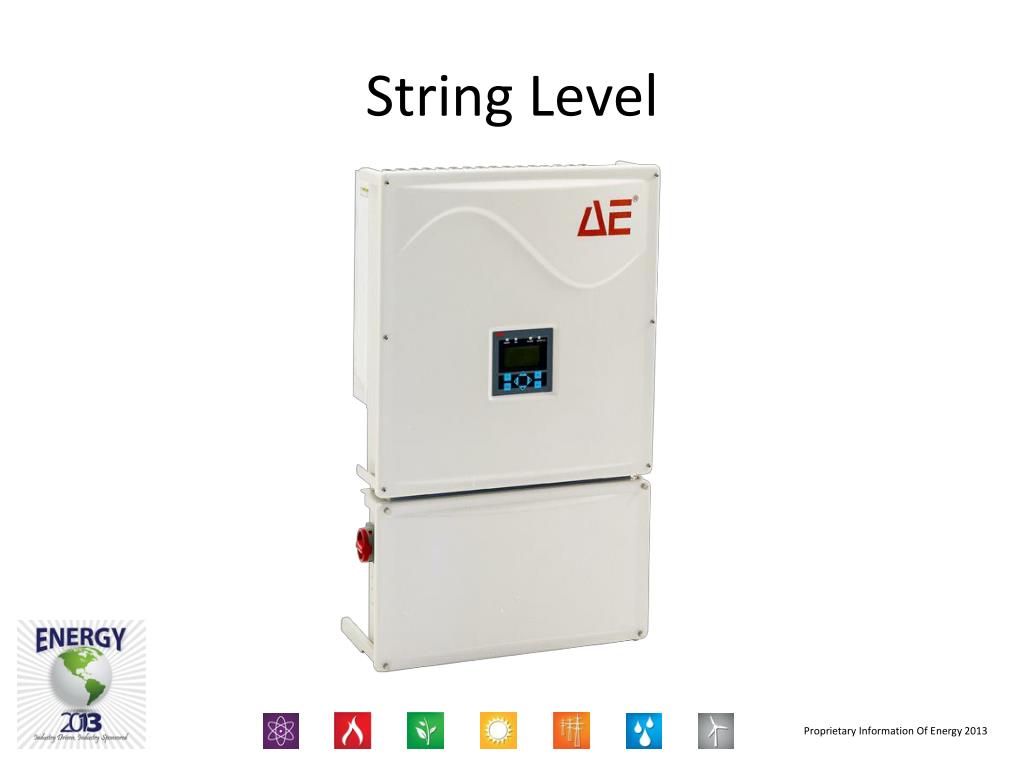

  24. String Level

  25. Micro Inverters

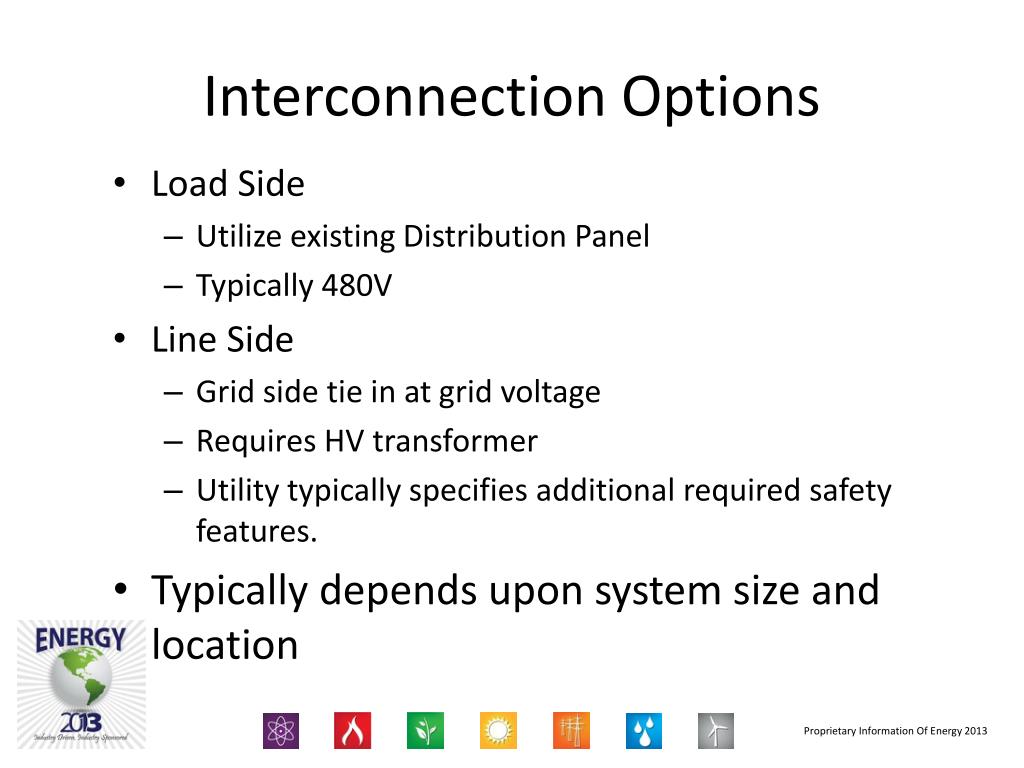

  26. Interconnection Options • Load Side • Utilize existing Distribution Panel • Typically 480V • Line Side • Grid side tie in at grid voltage • Requires HV transformer • Utility typically specifies additional required safety features. • Typically depends upon system size and location

  27. Financing Options • Power Purchase Agreement (PPA) • Property owner purchases the power at a reduced/premium rate under a long term contract. • Site Lease Agreement • Property owner leases the site to the system owner. System owner must finance the system. • Traditional Financing • Traditional loan • Bond Issue

  28. Questions?
