1. Transfer Chart Analysis of Iterative OFDM Receivers with Data Aided Channel EstimationStephan Sand, Christian Mensing, and Armin DammannGerman Aerospace Center (DLR)3rd COST 289 Workshop, Aveiro, Portugal, 12th July

2. Outline • System model • Frame structure • Channel estimation (CE) • Extrinisic information transfer (EXIT) Charts • Bit-error rate transfer (BERT) Charts • Comparison of BERT and EXIT charts • Simulation results • Conclusions & outlook

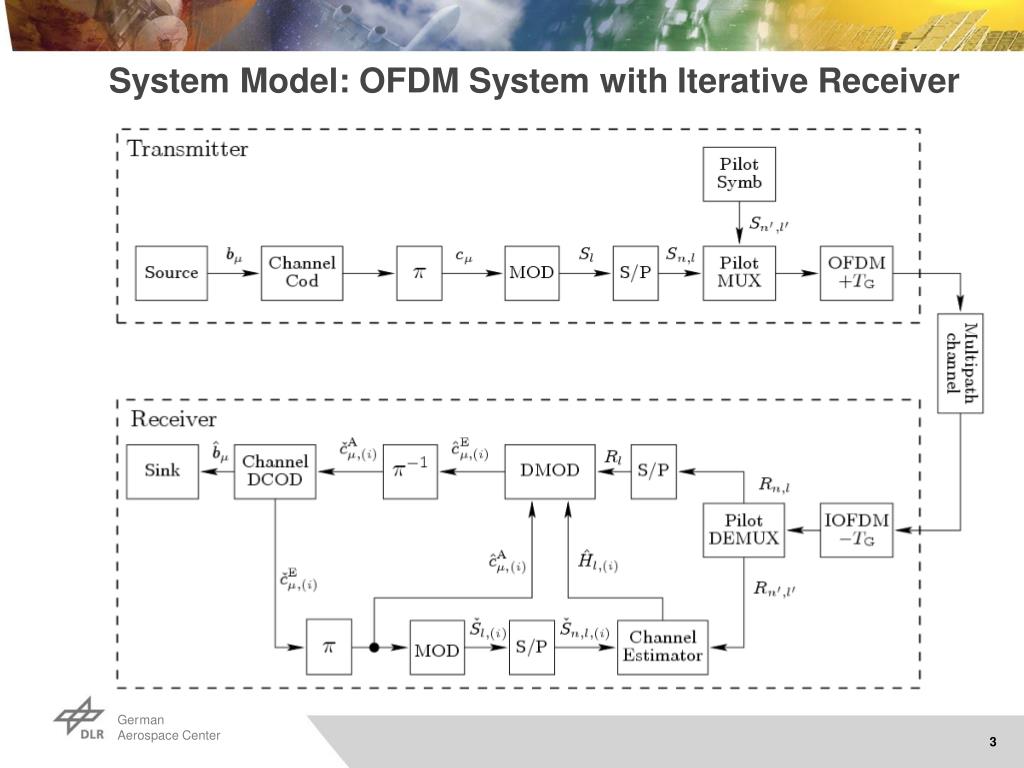

3. System Model: OFDM System with Iterative Receiver

4. Frame Structure • Burst transmission • Rectangular grid • Pilot distance in frequency direction: Nl=10 • Pilot distance between OFDM symbols: Nk=10

5. Channel Estimation (CE) • Initial iteration (i=0) only pilot symbols: • Pilot aided channel estimation (PACE) • Afterwards (i>0) additionally data estimates: • Pilot and data aided iterative channel estimation (ICE) • Localized estimates for the channel transfer function at pilot or data symbol positions, i.e., the least-squares (LS) estimate: • Replacing unknown Sn,l by the expectations (soft symbol and soft variance):

6. Channel Estimation (CE) • Filtering localized estimates yields final estimates of the complete CSI:where ωn’,l’,n,l,(i) is the shift-variant 2-D impulse response of the filter. Tn,l is the set of initial estimates that are actually used for filtering. • Filter design: • Knowledge of the Doppler and time delay power spectral densities (PSDs) optimal 2-D FIR Wiener filter • Separable Doppler and time delay PSDs two cascaded 1-D FIR Wiener filters perform similar than 2-D FIR Wiener filter

7. EXIT Charts • Benefits • Mutual information flow between inner and outer receiver • Independent computation for inner and outer receiver • Arbitrary combination of inner and outer receiver • Prediction of “turbo cliff“ position and BER possible • Assumptions • Log-likelihood ratio values (L-values): Gaussian distributed random variables • Interleaver depth large: uncorrelated L-values

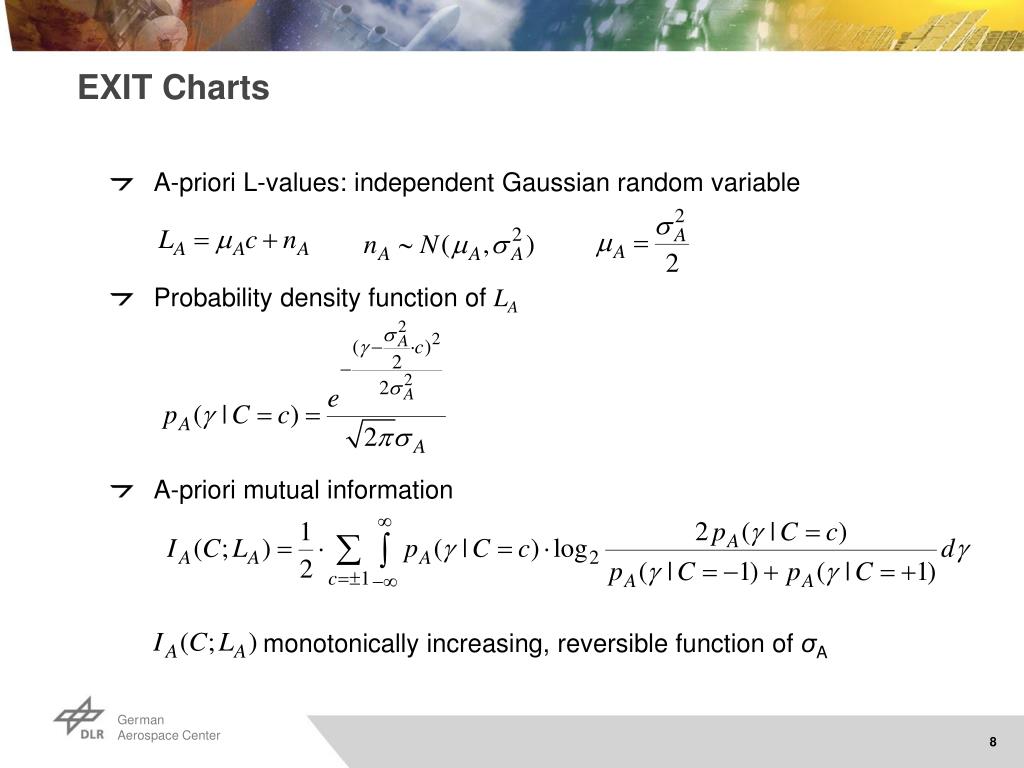

8. EXIT Charts • A-priori L-values: independent Gaussian random variable • Probability density function of LA • A-priori mutual information monotonically increasing, reversible function of σA

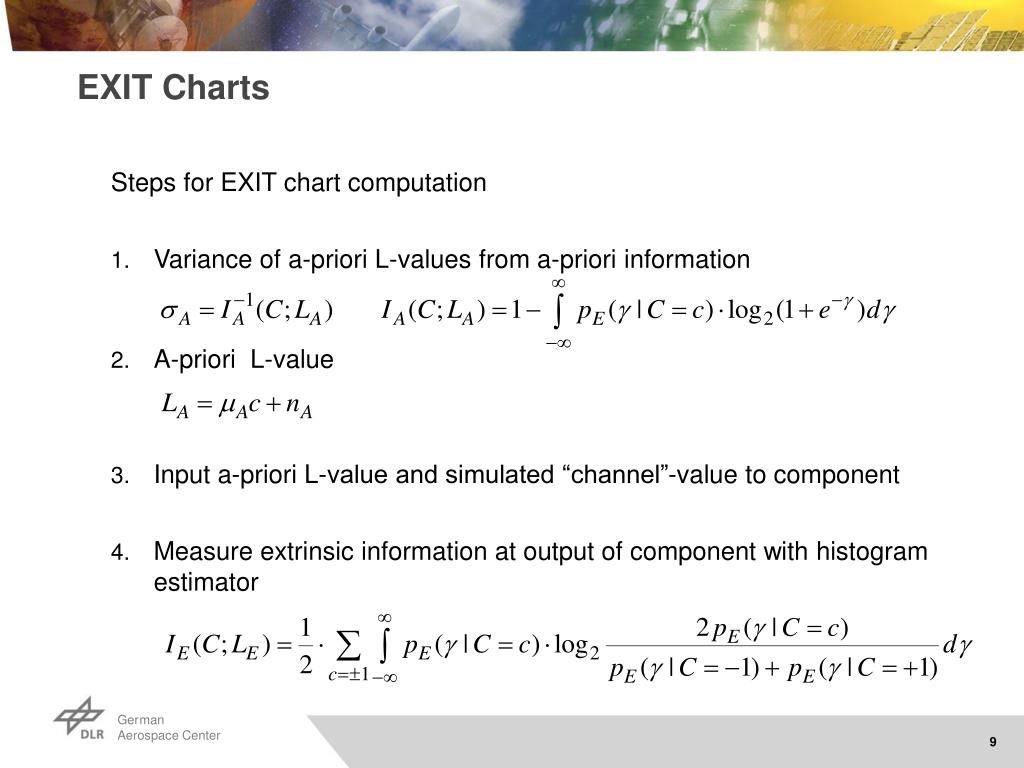

9. EXIT Charts Steps for EXIT chart computation • Variance of a-priori L-values from a-priori information • A-priori L-value • Input a-priori L-value and simulated “channel”-value to component • Measure extrinsic information at output of component with histogram estimator

10. BERT Charts • Benefits • BER flow between inner and outer receiver • Independent computation for inner and outer receiver • Arbitrary combination of inner and outer receiver • Prediction of “turbo cliff“ position and BER possible • Assumptions • Log-likelihood ratio values (L-values): Gaussian distributed random variables • Interleaver depth large: uncorrelated L-values

11. BERT Chart • A-priori L-values: independent Gaussian random variable • Probability density function of LA • A-priori BER monotonically increasing, reversible of σA

12. BERT Charts Steps for BERT chart computation • Variance of a-priori L-values from a-priori BER • A-priori L-value • Input a-priori L-value and simulated “channel”-value to component • Measure extrinsic BER at output of component by hard decision

13. Comparison of EXIT and BERT Charts EXIT chart computation BERT chart computation • Variance of a-priori L-values • A-priori L-value • Input a-priori L-value and simulated “channel”-value to component • Measure extrinsic BER / information at output of component

14. Simulation Results: Scenario Exponential Channel model with Jakes’ Doppler fading … time

15. Simulation Results: AWGN Channel BERT Acronyms: • PCE: perfect channel estimation • DMOD: demodulator • DCOD: decoder

16. Simulation Results: AWGN Channel EXIT Acronyms: • PCE: perfect channel estimation • DMOD: demodulator • DCOD: decoder

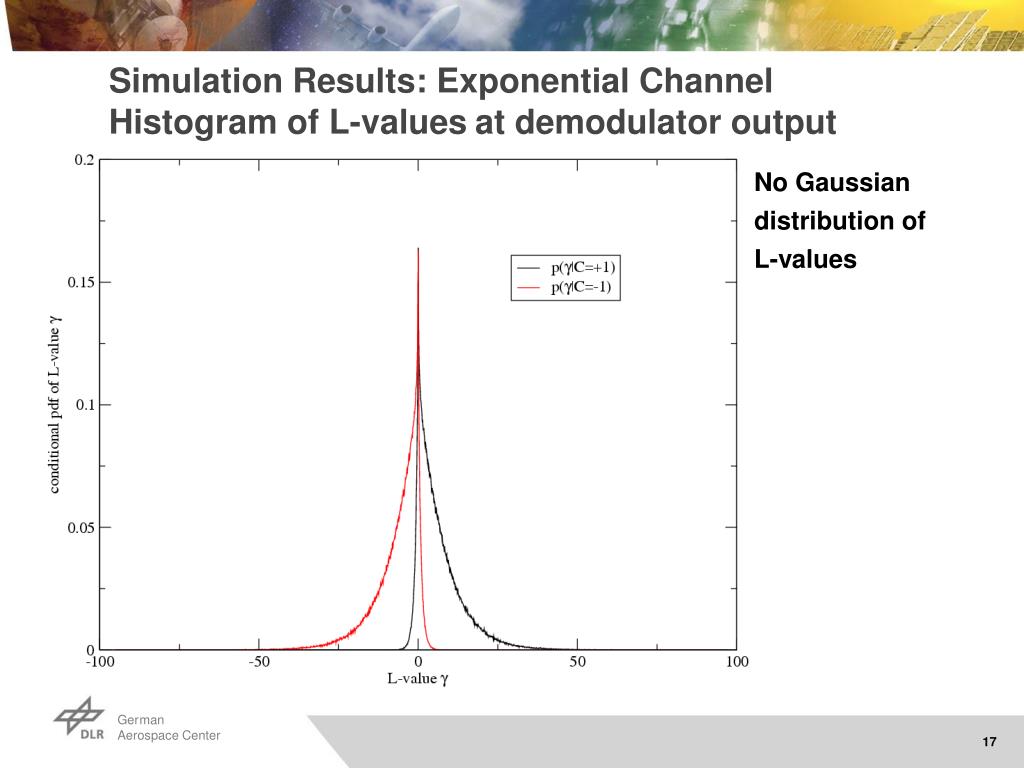

17. Simulation Results: Exponential ChannelHistogram of L-valuesat demodulator output No Gaussian distribution of L-values

18. Simulation Results: Exponential Channel BERT Acronyms: • PCE: perfect channel estimation • ICE: iterative channel estimation • DMOD: demodulator • DCOD: decoder BERT: DCOD too pessimistic due to Gaussian assumption!

19. Simulation Results: Exponential Channel EXIT Acronyms: • PCE: perfect channel estimation • ICE: iterative channel estimation • DMOD: demodulator • DCOD: decoder ICE system trajectory dies out: independence assumption violated

20. Simulation Results: Exponential Channel BER Plot Acronyms: • PACE: pilot aided channel estimation • PCE: perfect channel estimation • ICE: iterative channel estimation • DMOD: demodulator • DCOD: decoder @ 7dB: ICE reaches PCE after 5 iterations

21. Conclusions & Outlook • Iterative receiver including pilot and data aided channel estimation • BERT and EXIT charts: • simpler computation of BERT charts • direct prediction of BERs in BERT charts • Simulation results indicate: • BERT charts too pessimistic due to Gaussian assumption of decoder • EXIT charts more robust against Gaussian assumption • ICE reaches PCE after a few iterations • Outlook: • A-posteriori feedback in ICE to improve convergence Thank you!
