Most Powerful Solenoid Magnet

B. Most Powerful Solenoid Magnet. 18kA, 3.8T solenoid 3m radius, 15m length 2.5 GJ stored energy Can be discharged in a controlled fast dump in several minutes Tested successfully in 2006 and 2008 Effect of significant in-situ fringe fields necessitated additional securing of objects.

loc
Télécharger la présentation

Most Powerful Solenoid Magnet

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. B Most Powerful Solenoid Magnet • 18kA, 3.8T solenoid • 3m radius, 15m length • 2.5 GJ stored energy • Can be discharged in a controlled fast dump in several minutes • Tested successfully in 2006 and 2008 • Effect of significant in-situ fringe fields necessitated additional securing of objects D.Acosta

  2. CMS Completed!August 25, 2008 – 16 years after its Letter of Intent Ready for the LHC Some issues here D.Acosta 2

  3. B Huge Toroidal Magnet System D.Acosta

  4. Sept.10, 2008 D.Acosta

  5. Large Hadron Collider, near Geneva, Switzerland Geneva CMS CERN D.Acosta

  6. A Proton Collider (“Atom smasher”) D.Acosta

  7. The Large Hadron Collider (LHC) • 7 TeV on 7 TeV proton-proton collider, 27km ring • 7 times higher energy than the Tevatron at Fermilab • Aim for 5 TeV for 2008 • 100 times higher design luminosity than Tevatron (L=1034cm-2s-1) • 1232 superconducting 8.4T dipole magnets @ T=1.9ºK • Largest cryogenic structure, 40 ktons of mass to cool • 4 experiments • ATLAS, CMS • ALICE, LHCb • Start Date:Sept. 10,2008 D.Acosta

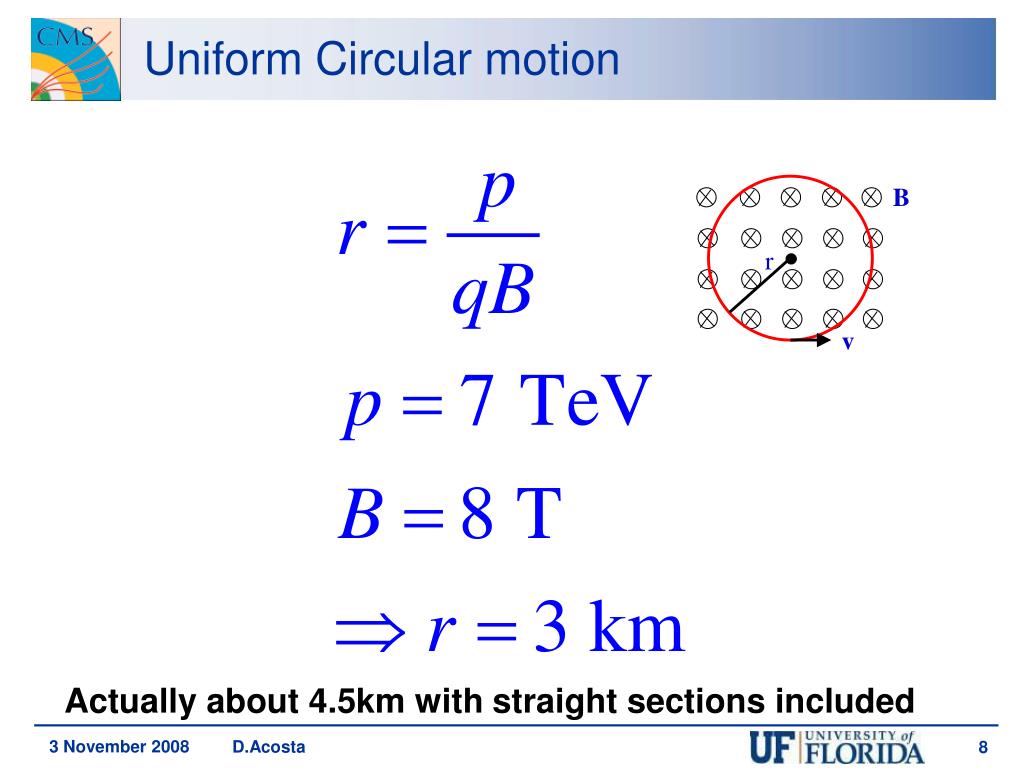

  8. B r v Uniform Circular motion Actually about 4.5km with straight sections included D.Acosta

  9. LHC Tunnel and Dipole Magnets • 15 m long magnets with unique single structure for 2 beams • Cooled with superfluid helium D.Acosta

  10. The Real Tunnel D.Acosta

  11. The Excitement of First LHC beams! D.Acosta

  12. Beam Splash Event D.Acosta

  13. UF Celebration in the CMS Control Room, 11pm D.Acosta

  14. Unfortunately… • An major malfunction on Sept.19, 2008 means that we’ll be restarting once again in Sept. 2009 Electrical arc vaporized beam pipe, released tons of helium, leading to chain reaction of forces… D.Acosta

  15. Some Misconceptions about the LHC Geneva tabloid

  16. Doomsday scenarios… • The LHC will create mini-black holes that will destroy the Earth • If more dimensions exist to allow their production, Hawking radiation will cause them to decay immediately • Collisions at energies above the LHC have occurred in our atmosphere over eons, so any BHs that are stable have been benign • See also: J. Ellis et al., “Review of the safety of LHC collisions”,J. Phys. G: Nucl. Part. Phys. 35 (2008) 115004 D.Acosta

  17. This is a work of fiction D.Acosta

  18. http://cern.ch • But the CERN laboratory has been very supportive of the upcoming movie (and offering clarifications…) D.Acosta
