  1. Regenerative Modellregion Harz

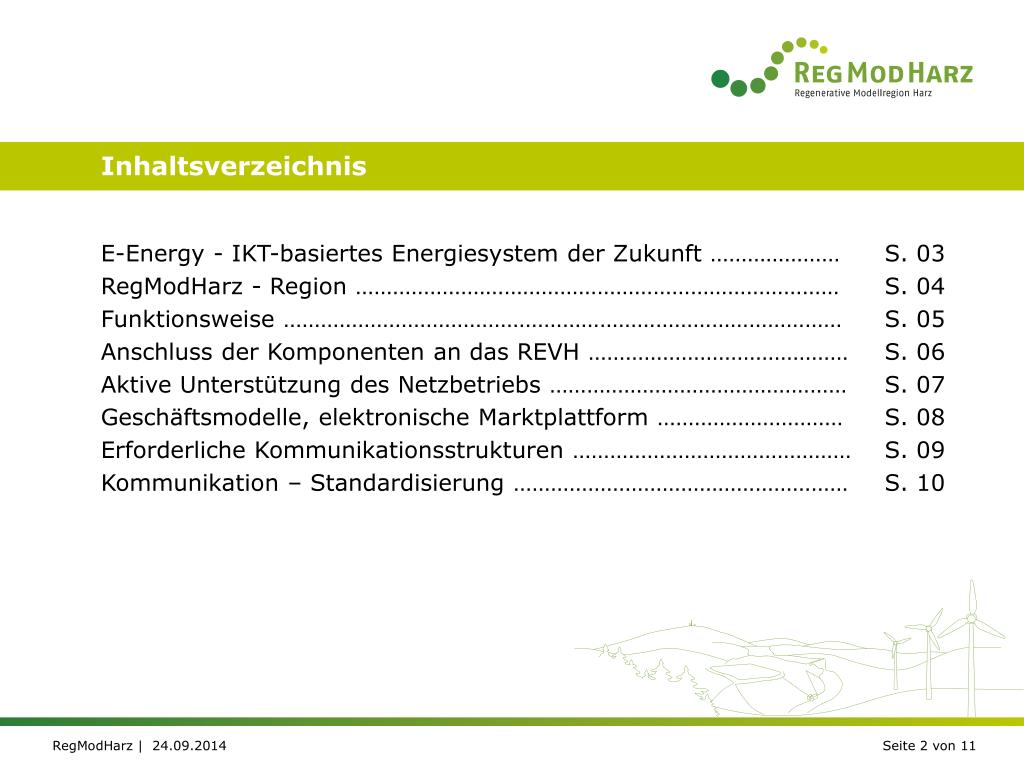

  2. Inhaltsverzeichnis • E-Energy - IKT-basiertes Energiesystem der Zukunft ………………… S. 03 • RegModHarz - Region …………………………………………………………………… S. 04 • Funktionsweise ……………………………………………………………………………… S. 05 • Anschluss der Komponenten an das REVH …………………………………… S. 06 • Aktive Unterstützung des Netzbetriebs ………………………………………… S. 07 • Geschäftsmodelle, elektronische Marktplattform ………………………… S. 08 • Erforderliche Kommunikationsstrukturen ……………………………………… S. 09 • Kommunikation – Standardisierung ……………………………………………… S. 10

  3. E-Energy - IKT-basiertes Energiesystem der Zukunft Intelligente Stromerzeugung Intelligente Stromnetze Intelligente Steuerung durch Echtzeitvernetzung aller Systemkomponenten Intelligente Speicherung Intelligenter Verbrauch IKT Wirtschaftlichkeit Versorgungs- sicherheit Klimaschutz

  4. RegModHarz - Region Bundesland: Sachsen-Anhalt Einwohner: 241017 Fläche: 2104 km² Gründungsjahr: 1.7.2007

  5. Funktionsweise • Unterschiedliche Steuerungsmöglichkeiten für das REVH (Regenera-tiver Energieverbund Harz) • Indirekt durch flexible Tarife • Direkte Steuerung durch die REVH-Leitwarte • Direkte Steuerung durch ÜNB bei Gefährdung der Netzsicherheit • Voraussetzung: IKT Kontrollkommunikation Markt- und Konfigurationskommunikation ∑ P REVH Δ P ∑ P

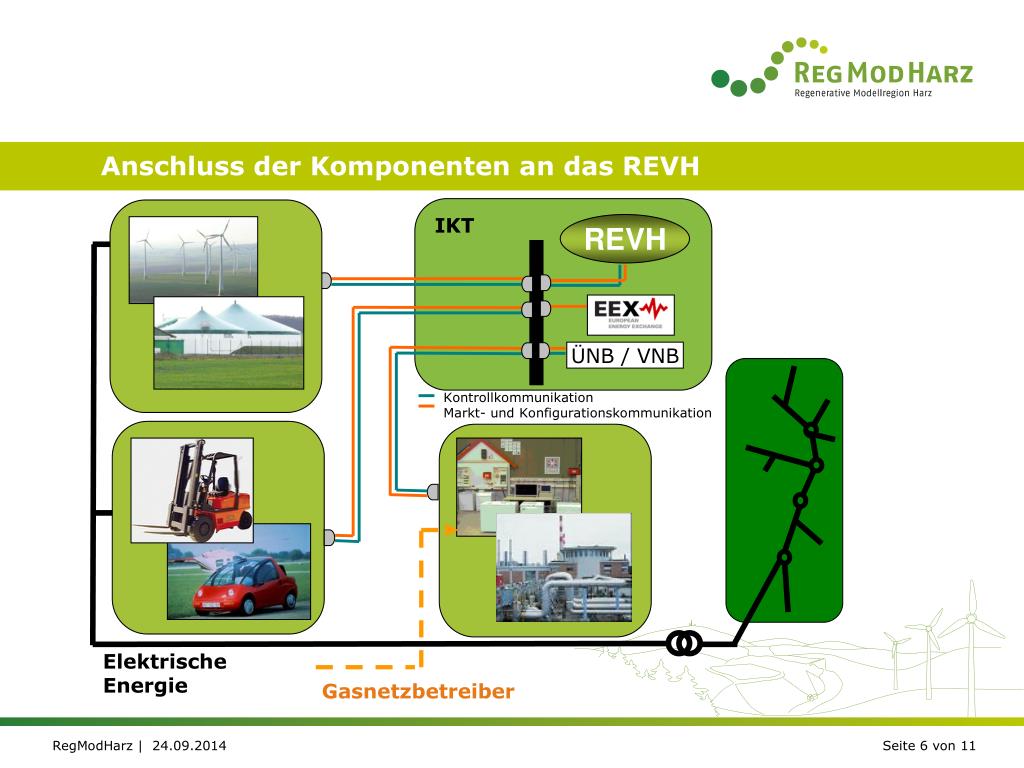

  6. Kontrollkommunikation Markt- und Konfigurationskommunikation Anschluss der Komponenten an das REVH IKT REVH ÜNB / VNB Elektrische Energie Gasnetzbetreiber

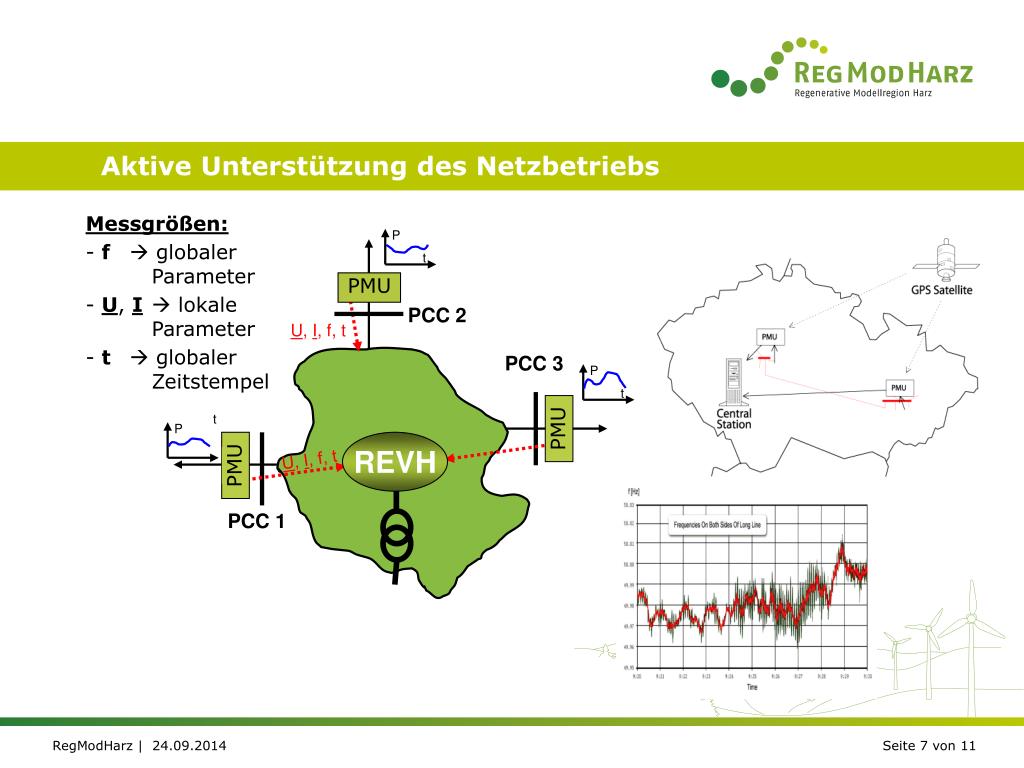

  7. PCC 3 PCC 2 P U, I, f, t t PMU PMU PMU P t Aktive Unterstützung des Netzbetriebs • Messgrößen: • f globaler Parameter • U, I lokale Parameter • t  globaler Zeitstempel t P REVH U, I, f, t PCC 1

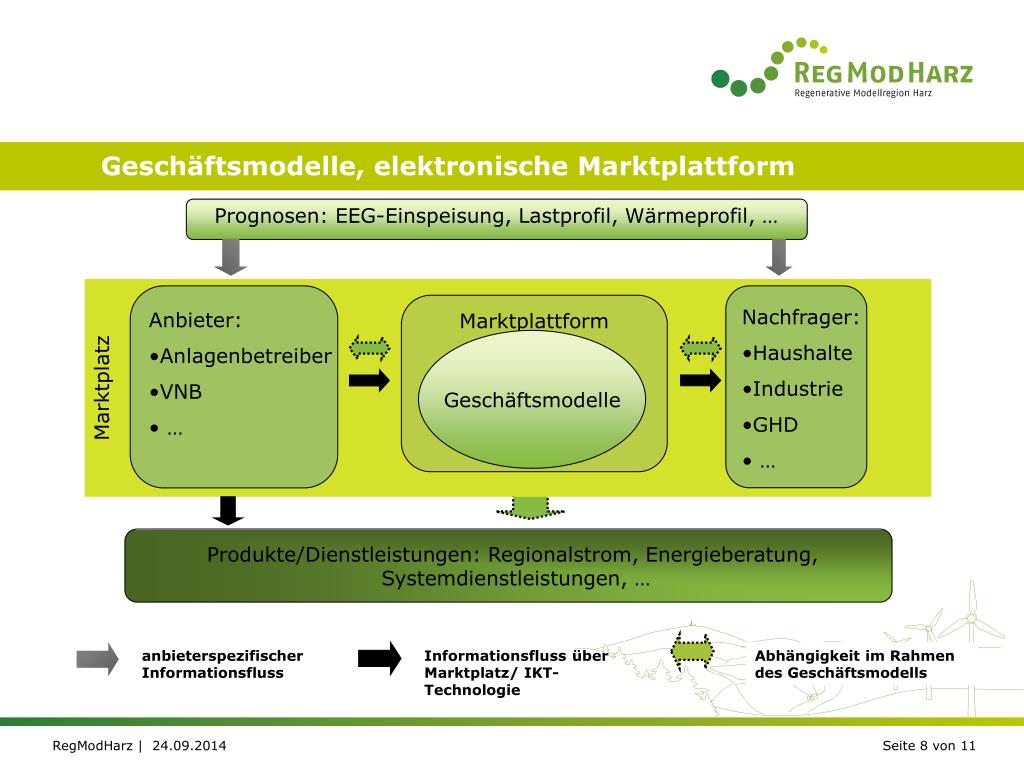

  8. Geschäftsmodelle, elektronische Marktplattform Prognosen: EEG-Einspeisung, Lastprofil, Wärmeprofil, … • Anbieter: • Anlagenbetreiber • VNB • … • Nachfrager: • Haushalte • Industrie • GHD • … Marktplattform Geschäftsmodelle Marktplatz Produkte/Dienstleistungen: Regionalstrom, Energieberatung, Systemdienstleistungen, … anbieterspezifischer Informationsfluss Informationsfluss über Marktplatz/ IKT-Technologie Abhängigkeit im Rahmen des Geschäftsmodells

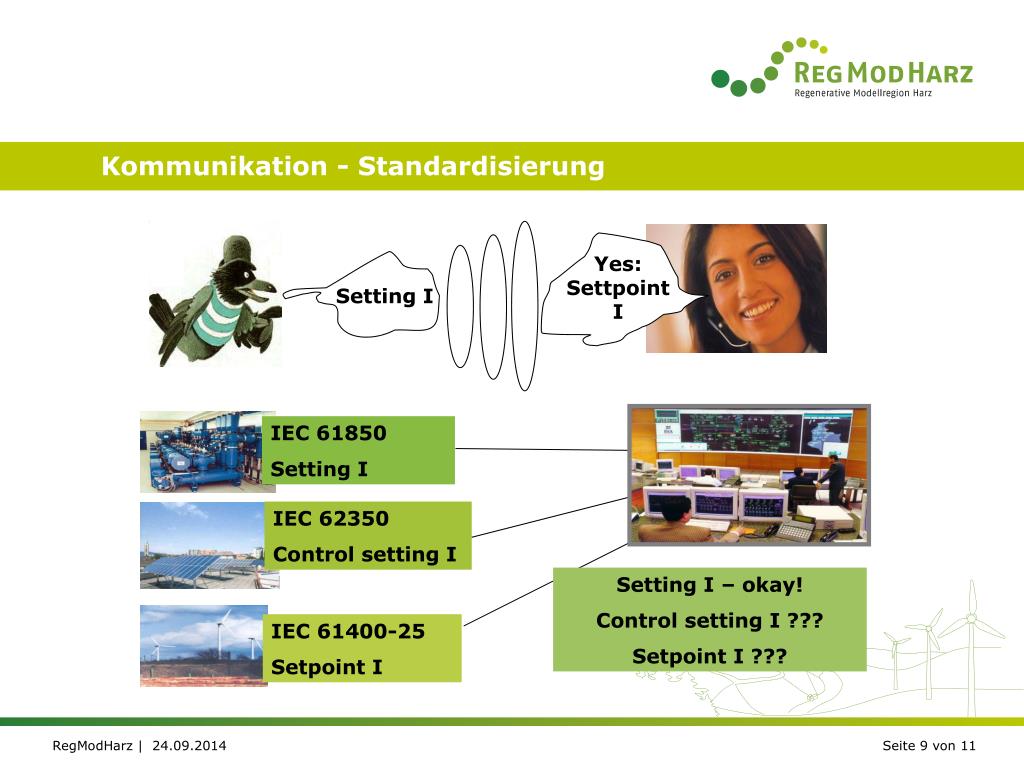

  9. Kommunikation - Standardisierung Yes: Settpoint I Setting I IEC 61850 Setting I IEC 62350 Control setting I Setting I – okay! Control setting I ??? Setpoint I ??? IEC 61400-25 Setpoint I

  10. G ... Mod. Mod. Mod. Mod. Mod. Mod. Z Z Z Z Z Z Erforderliche Kommunikationsstrukturen verteilte Lasten Zählerfernauslesung BiomasseKraftwerk Kommuni- kationsnetz Adapter Große virtuelle Windanlage PV-Anlage mit Batteriespeicher Webkommunikation (XML/http/ftp),WinCC Prozesskopplung (Simatic, OPC, Profibus), über Ethernet-LAN bzw. ISDN/Analog-Verbindung, Internet, LWL, Funk

  11. RegModHarz bedankt sich für Ihre Aufmerksamkeit
