  1. RDF: Data Description • With HTML, the Web is for reading • With XML, the Web is for processing • Necessary to know • who wrote this? • who owns it? • who authorised it? • when is it valid? • what rights are ascribed to it?

  2. RDF: Metadata • Data about data • information about documents • title, author, journal, date, keywords • information about people • role, history, salary, expertise • information about exhibits • catalogue number, price, date, artist • information about metadata • validity, purpose, compiler, authority

  3. Blue Mountain Content: Some hills, a lake and the sun Width Height Represents: peace tranquility Artist Title Types of Metadata • Catalogue information: artist, title, date acquired, size. • Syntactic content: colour, texture and shapes. • Semantic content: landscape or happiness.

  4. Standards for Metadata • What do you put in the metadata? • What is the syntax? • What is the semantics? • Where does the metadata go?

  5. RDF: Data Description • Simple semantic network • resources • properties • values • Schemas • Statements • Triples

  6. RDF Model http://www.w3c.org/Intro.html Author Tim Berners-Lee

  7. RDF Model http://www.w3c.org/Intro.html predicate Author subject Tim Berners-Lee object

  8. http://www.w3c.org/Intro.html predicate subject author object email name tbl@w3c.org Tim Berners-Lee RDF Model

  9. RDF Syntax <?xml version="1.0"?> <RDF> <Description about="http://www.ecs.soton.ac.uk/~lac"> …put some metadata in here!... </Description> </RDF> • But RDF doesn't know about any metadata!

  10. RDF Descriptions • Someone has to invent schemes for describing things • Schemas, ontologies, terminologies… • External authorities • Every term represented by URI • e.g.http://purl.oclc.org/dc#Title • use XML namespace to abbreviate • applies semantics and disambiguates

  11. RDF Descriptions • The title is "Trailblazing the literature" <Title> Trailblazing the literature </Title> • Who defines the title? Dublin Core! XML NamespaceDC= http://purl.oclc.org/dc# <DC:Title>Trailblazing the literature</DC:Title>

  12. Simple RDF Example <?xml version="1.0"?> <RDF xmlns:DC="http://elib.jisc.ac.uk/dublincore#" > <Description about="http://www.ecs.soton.ac.uk/~lac/ht99.pdf"> <DC:Title>Trailblazing the literature</DC:Title> </Description> </RDF> RDF has its own namespace which is not shown here. You really need to add the following to the RDF element xmlns="http://www.w3.org/1999/02/22-rdf-syntax-ns#" NB

  13. Simple RDF Example <?xml version="1.0"?> <RDF xmlns:DC="http://elib.jisc.ac.uk/dublincore#" > <Description about="http://www.ecs.soton.ac.uk/~lac/ht99.pdf"> <DC:Title>Trailblazing the literature</DC:Title> <DC:Creator>Leslie Carr</DC:Creator> </Description> </RDF>

  14. Simple RDF Example String <?xml version="1.0"?> <RDF xmlns:DC="http://elib.jisc.ac.uk/dublincore#" > <Description about="http://www.ecs.soton.ac.uk/~lac/ht99.pdf"> <DC:Title>Trailblazing the literature</DC:Title> <DC:Creator resource="http://www.ecs.soton.ac.uk/~lac" /> </Description> </RDF> AnotherResource Use this RDF to get youstarted in the exercises!

  15. RDF Collections • The students in course 6.001 are Amy, Tim, John, Mary, and Sue. • RDF provides • bag • sequence • alternative

  16. Why RDF? • But why yet another standard? • Any form of data can be modelled in plain XML. These slides are adapted from Tim Berners-Lee's Roadmap to the Semantic Web available at http://www.w3.org/DesignIssues/RDF-XML.html

  17. RDF vs XML • example RDF assertion • "The author of this page is Les". • triple(page, author, "Les") http://www.soton.ac.uk/~lac/XMLcourseSession6.ppt#slide19 author Les

  18. RDF vs XML • How would this information be typically be represented in XML? <author> <uri>http://...</uri> <name>Les</name> </author> • or <document href="http://..."> <author>Les</author> </document>

  19. RDF vs XML • or <document> <author> <uri>href="http://..."</uri> <details> <name>Les</name> </details> </author> </document> • or just <document href="http://..." author="Les" />

  20. RDF vs XML • They all seem the same • because we understand the tags • But how about these? <stuff> <x> <wotzit a="foo"/> <z> <thingy>bar</thingy> </z> </x> </stuff> <stuff> <thingy>bar</thingy> <x> <wotzit>foo</wotzit> </x> </stuff>

  21. RDF vs XML • Is a foo a thingy of a bar? • Or bar a wotzit of a foo? • There are grammatical questions we can ask of the XML structure… • e.g. does the x element contain a wotzit • …but not semantic ones • Because no XML semantics are defined

  22. RDF vs XML • IF a schema is defined • AND IF the schema limits the number of ways of making the same statement • THEN the questions • does x have a child foo with attribute a and value foo • who is the author of page • MAY BE similar

  23. RDF Schema • Standard to extend RDF statements • via types, classes, inheritance • Les is the author of this book • An author is a type of person • A book is an item of merchandise • Allows much richer sets of inferences

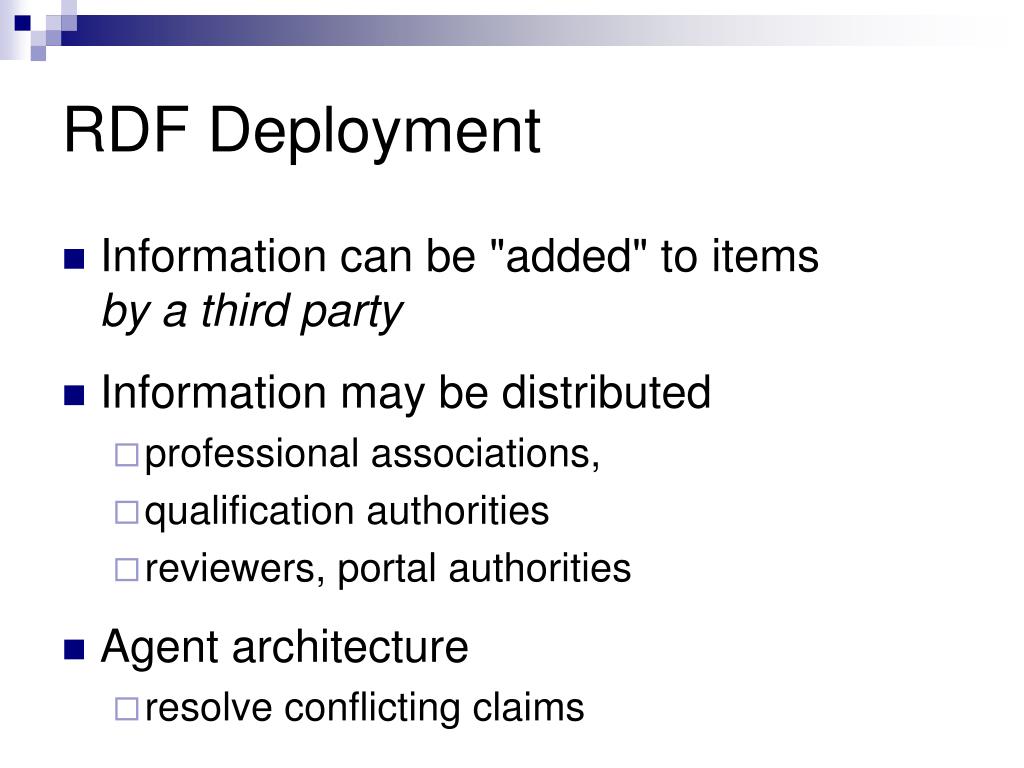

  24. RDF Deployment • Information can be "added" to itemsby a third party • Information may be distributed • professional associations, • qualification authorities • reviewers, portal authorities • Agent architecture • resolve conflicting claims

  25. RDF Deployment • Options for locating the metadata
