  1. "Clean Chemistry, Clean World" Nano offers the world’s fine Anti-static and Conducting Reagents for all kinds of Polymers 1. Anti-Static; Reactive Ion-complex type(Non-Surfactant) Range 106~108 /cm For Polyurethane, TPU, ABS, PVC, and fabrics 2. Conducting Polymers;Control from 10-2~105 /cm Soluble Polypyrrole, Polythiophenes , Polyanilines For coating and anti-corrosion 3. Reactive UV-Absorber;PS-bounded Formamidine For Polyurethane, PVC 4. Custom Synthesis; Thiophene monomers (EDOT) Muti-nitrobenzenes, and Hindered phenols 5. Technology Transfer; Organic Synthesis Tech.

  2. Characteristics for Commercial Materials Conducting Materials 1. Surfactanttype; Antistatic: 1010 - 1013 (Ω/□) 2. Ion-Complex type; Antistatic : 106 - 109 (Ω/□) 3. Conductive Polymer type; Conductive : 103 - 105 (Ω/□)

  3. Reactive “Ion-Complex Anti-Statics” Elecon®- series “Ion-complex anti-statics and conducting polymers” Korea Pat. 10-2003-0002201 1.Features: Reactive Ion-complex type(Non-Surfactant, Non-heavy metal) Li-Amide Complex and Ion Carrier with suitable solvents. 2. Properties: Colorless solution, Control Conductivity(105 - 108 ),Non-bleeding Stable to base, acid, thermal and alcohol. 3. Uses: Polyurethane; Anti-static shoes, roller, etc. TPU;Tile ABS; Carrying box for electronic Fabrics by spray; Anti-static clothes

  4. Elecon® Application Products ( Polynox-R ) Development Roller for Laser Printer • Base : Polyurethane or Rubber with 5% Elecon R • Uses : Development & Charge Rollers for Laser Printer Charge-discharge 100% • Manufacturer : Samsung • Surface res. (Ω/㎝): 104～106 • Resistance for solvent (IPA) • Hardness : 80 • Decay Time : 0.05 sec • Migration : None • ION detection: None • Particle : None

  5. Toner Cartridge in Laser Printer Laser Charge Roller Toner Supply Roller Development Roller Paper OPC Drum Transfer Roller

  6. Elecon® -1000 Application Product (Polynox-56) • Anti-Static SHOE SOLE • Base : Polyurethane • Use : Samsung, LG • Surface Res : 104～106Ω/□ • Resistance for solvent • Decay Time : 0.05 sec • Color : white or color • Migration : None • ION Detection: None • Particle : None

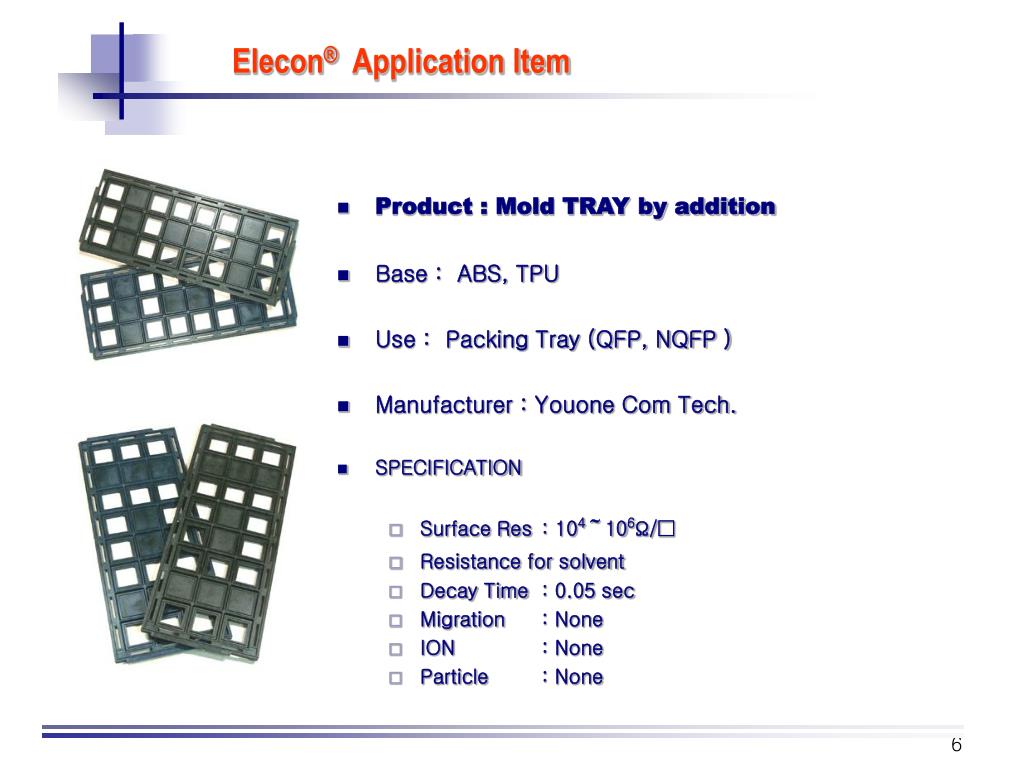

  7. Elecon® Application Item • Product : Mold TRAY by addition • Base : ABS, TPU • Use : Packing Tray (QFP, NQFP ) • Manufacturer : Youone Com Tech. • SPECIFICATION • Surface Res: 104～106Ω/□ • Resistance for solvent • Decay Time : 0.05 sec • Migration : None • ION : None • Particle : None

  8. Polarizer Protection Film for LCD Anti-Static Protective Film Protect LCD-Polarizer when it peel off. ■ Features - Excellent Anti-Static Property ( below 1010Ω/□) - Low Peeling static voltage ( below 500 V ) - Permanent Anti-Static Effect - Excellent Durability (No Migration) - No particle, No residue after peel off. ■ Applications - TFT-LCD Polarizer , Module -      - Cellular phone Window

  9. Nanof ®PT (Polarizer Protection Film) Excellent Anti-Static Property ( below 1018Ω/□) Low Peeling static voltage ( below 100 V ) Permanent Anti-Static Effect No Migration, No Residue, No Ion-detection Manufactured in Clean Room (1,000 class) Base : PET + Acryl, PU (10m) + Elcon Uses:LCD, PCB, LCD, Wafer Protection film Peeling ESD 100V Surface Res.: 108～1010Ω/□ Color : Trasparency Migration, Particle, Ion : None

  10. Commercial Conducting Polymers

  11. Advanced Conducting Polymer; Polythiopene Feature 1. Highly soluble; regularity, Super Conductivity < 102/cm2 2. Transparency by Alkoxy group 3. Stable to base, acid, thermal and alcohol Fields of application for Thiotron 1. High Capacitor electrode. 2. Anti-static and ESD coating 3. Through-hole plating of PCBs (printed circuit board)

  12. NANOS-GW ® ( Green Conductive PET Sheet) Sheet Coated by Water soluble Polyaniline solution (PACON-GW ®) • Bases : A-PET, Soft-PVC • Uses : Molding Trays for carrying cases Static Dissipative Curtain in Electronic Co • Sizes • Thickness: 0.5- 2 mm • Width: Variable • SPECIFICATION • Surface Res: 105～107Ω/□ (before molding) • Resistance for solvent • Hardness : 1H • Decay Time : 0.05 sec • Transparency: 85% • Color : Green • Migration, ION , & Particle : None

  13. NANOS-W3® (Transparent Conducting Sheet) Sheet Coated by Water soluble Baytron solution (PACON-W3 ®) • Bases : A-PET, Soft- PVC, PC, PS • Uses : High Quality Molding Trays for carrying cases Static Dissipative Curtain in Electronic Co. • SPECIFICATION After 3-times Molding… • Surface Res : 105～106Ω • Resistance for solvent, Ultrasonic, rubbing etc… • Hardness : 1H • Decay Time : 0.05 sec • Transparency: 95% • Color : Clear • Migration, ION , & Particle : None

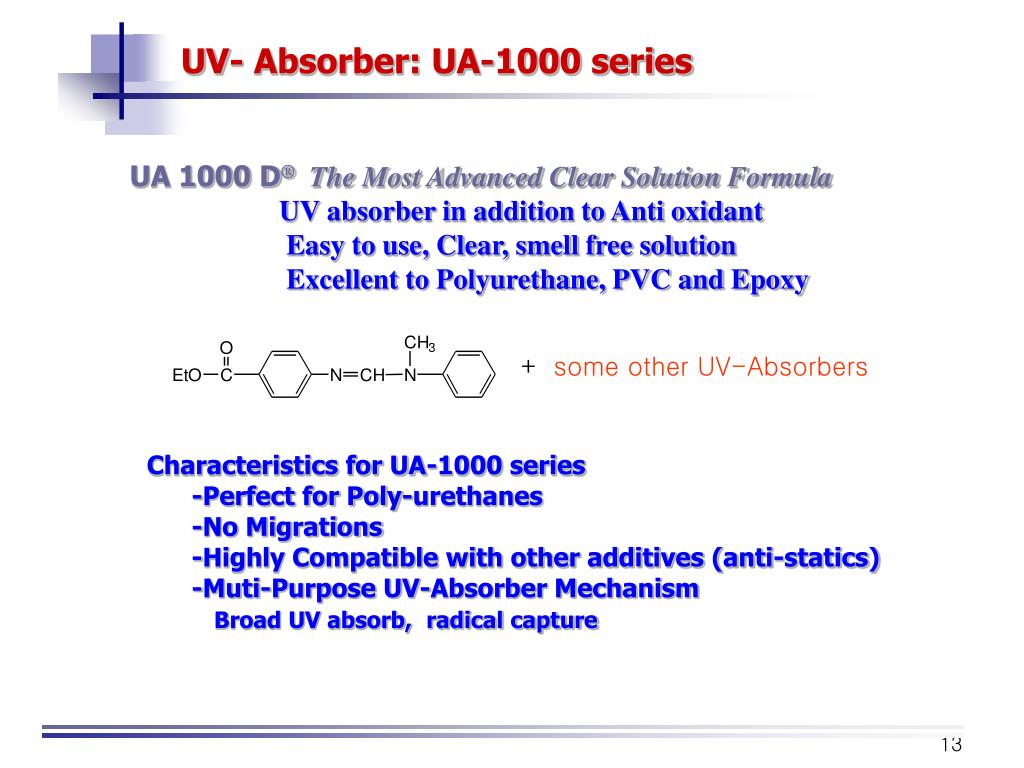

  14. UV- Absorber: UA-1000 series UA 1000 D® The Most Advanced Clear Solution Formula UV absorber in addition to Anti oxidant Easy to use, Clear, smell free solution Excellent to Polyurethane, PVC and Epoxy + some other UV-Absorbers Characteristics for UA-1000 series -Perfect for Poly-urethanes -No Migrations -Highly Compatible with other additives (anti-statics) -Muti-Purpose UV-Absorber Mechanism Broad UV absorb, radical capture
