  1. Spring 2009 ISAM 4635.02/5635.02 Project Identification - Design Phase Cocktail Stuffers

  2. Project Sponsor & Members Project Sponsor: • Mohammad A. Rob, Ph.D. Project Members: • Mark Hammond • Richard Meyer • Andrei Zhuchenko

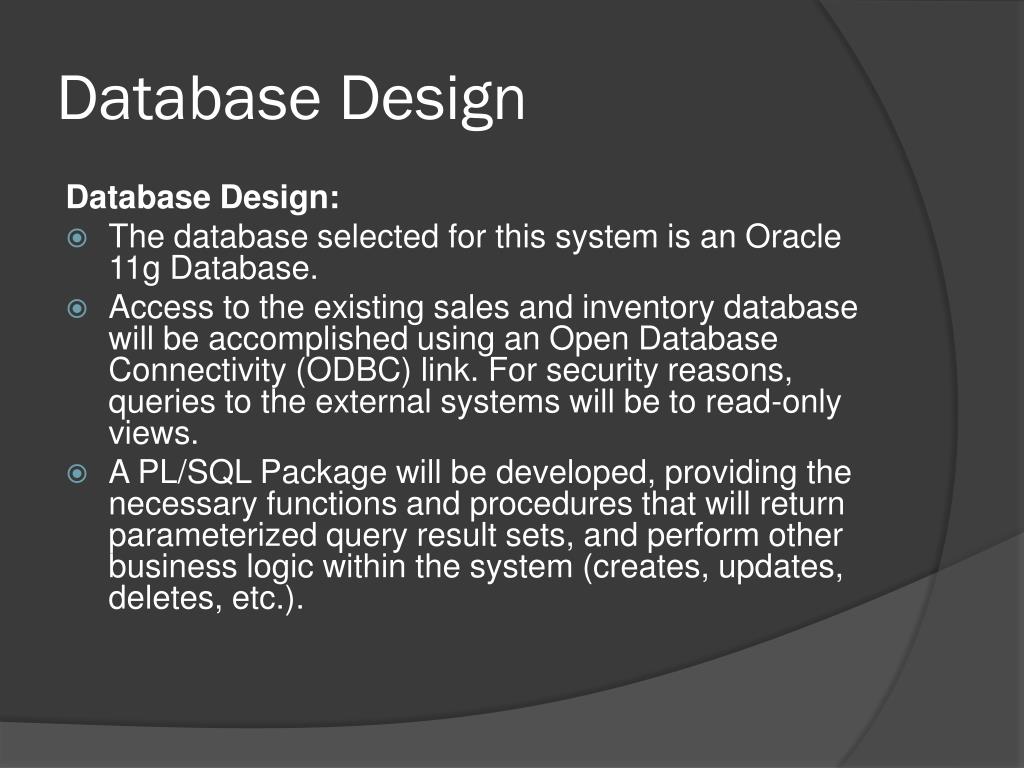

  3. Database Design Database Design: • The database selected for this system is an Oracle 11g Database. • Access to the existing sales and inventory database will be accomplished using an Open Database Connectivity (ODBC) link. For security reasons, queries to the external systems will be to read-only views. • A PL/SQL Package will be developed, providing the necessary functions and procedures that will return parameterized query result sets, and perform other business logic within the system (creates, updates, deletes, etc.).

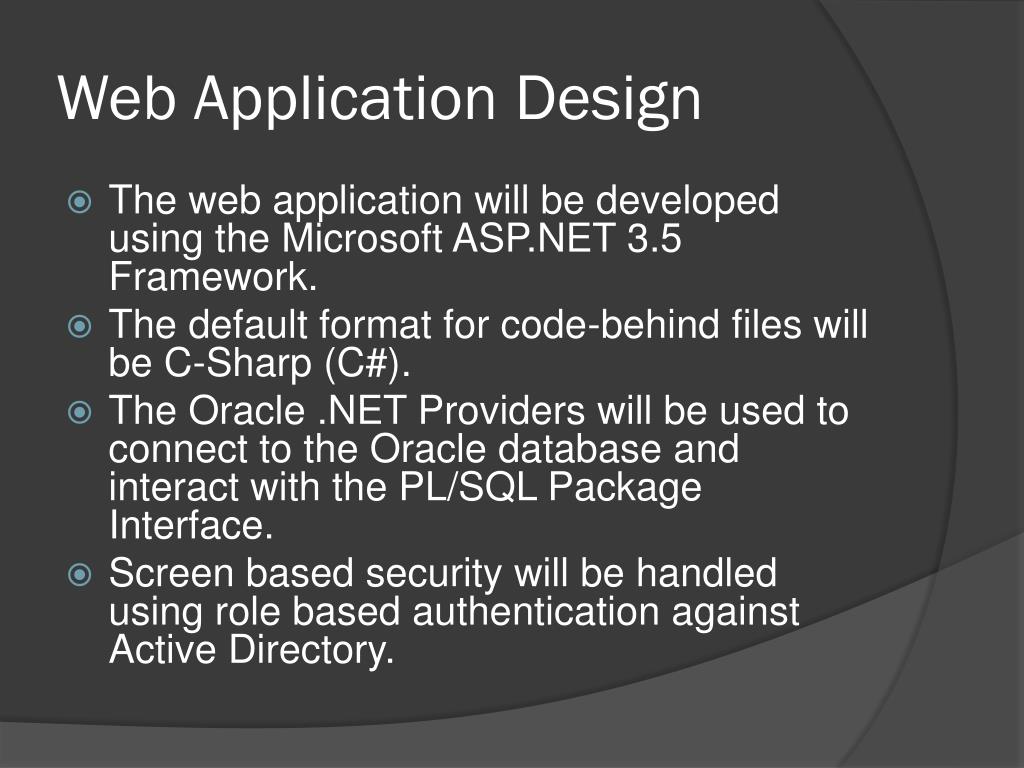

  4. Web Application Design • The web application will be developed using the Microsoft ASP.NET 3.5 Framework. • The default format for code-behind files will be C-Sharp (C#). • The Oracle .NET Providers will be used to connect to the Oracle database and interact with the PL/SQL Package Interface. • Screen based security will be handled using role based authentication against Active Directory.

  5. System Authentication Design • The internal web application shall authenticate users against the currently installed Active Directory environment.

  6. Network Design • The network will consist of managed switches that support VLANs. • VLAN 1 will consist of user/staff workstations. • VLAN 2 will consist of servers. • Access between the two VLANs will be controlled by a managed router, with only the required ports to interact with the web application server and database open to the users/staff.

  7. Non-Functional Reqs. Cont.

  8. System Component Diagram

  9. Structure Chart

  10. Entity Relationship Diagram

  11. Internal System Menu Design

  12. Manage Recipes Screen Design

  13. Create/Update Recipe Screen Design

  14. Recipe Details Screen Design

  15. Recipe Search Screen Design

  16. Questions & Comments Thanks, Cocktail Stuffers
