  1. Network Virtualization: Recent Developments Washington University in Saint LouisSaint Louis, MO 63130Jain@cse.wustl.edu CSE 770 Networking Research Seminar at WUSTLJanuary 28, 2013 These slides and audio/video recordings are available at:http://www.cse.wustl.edu/~jain/cs770-13/virtual.htm

  2. Overview • Virtualization: Why, How? • Recent Networking Virtualization Technologies • Software Defined Networking • Our Research: Open Application Delivery

  3. Virtualization of Life • Internet Þ Virtualization • No need to get out for • Office • Shopping • Entertainment • Education • Virtual Workplace • Virtual Shopping • Virtual Education • Virtual Sex • Virtual Computing

  4. Switch Switch Switch Switch Why Virtualize? • Sharing: Break up a large resourceLarge Capacity or high-speed • Isolation: Protection from other tenants • Aggregating: Combine many resources in to one • Dynamics: Fast allocation, Change/Mobility, load balancing • Ease of Management  Cost Savings • Mobility for fault tolerance 10Gb

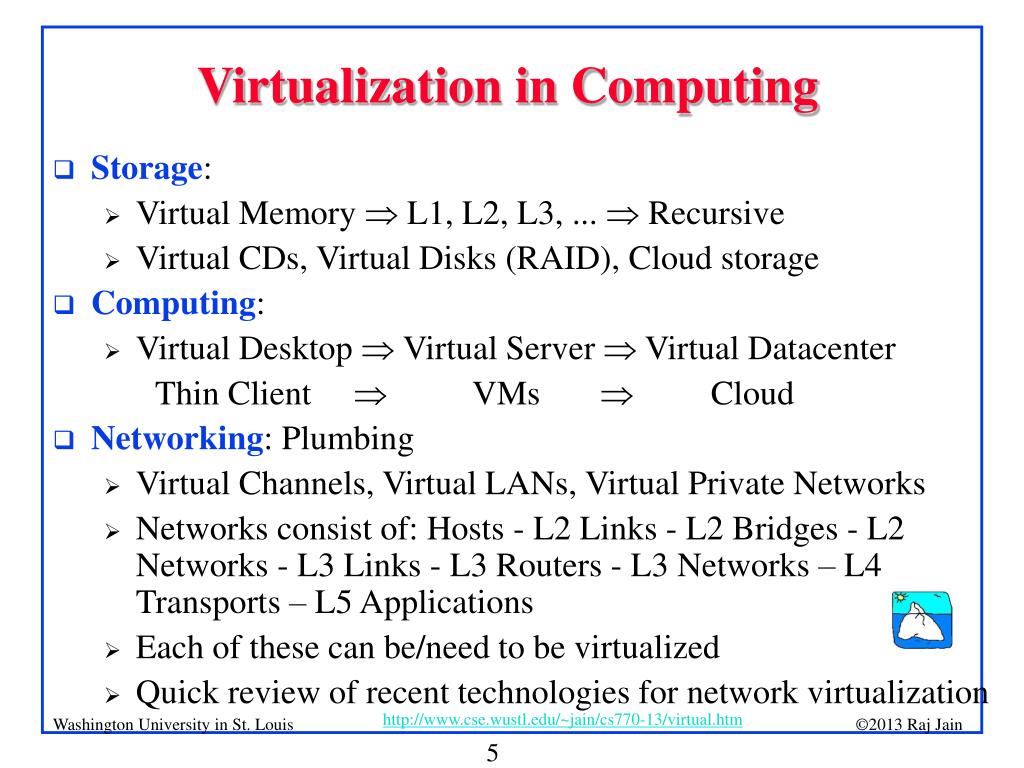

  5. Virtualization in Computing • Storage: • Virtual Memory  L1, L2, L3, ...  Recursive • Virtual CDs, Virtual Disks (RAID), Cloud storage • Computing: • Virtual Desktop  Virtual Server  Virtual Datacenter Thin Client  VMs  Cloud • Networking: Plumbing • Virtual Channels, Virtual LANs, Virtual Private Networks • Networks consist of: Hosts - L2 Links - L2 Bridges - L2 Networks - L3 Links - L3 Routers - L3 Networks – L4 Transports – L5 Applications • Each of these can be/need to be virtualized • Quick review of recent technologies for network virtualization

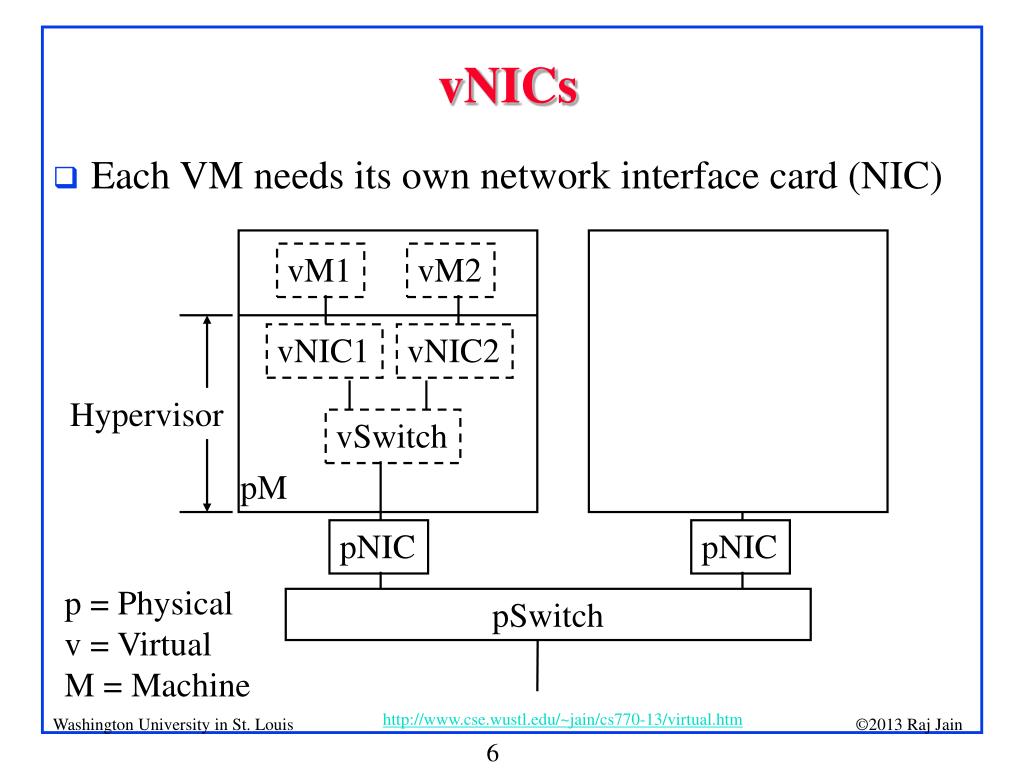

  6. vNICs • Each VM needs its own network interface card (NIC) vM1 vM2 vNIC1 vNIC2 Hypervisor vSwitch pM pNIC pNIC p = Physical v = Virtual M = Machine pSwitch

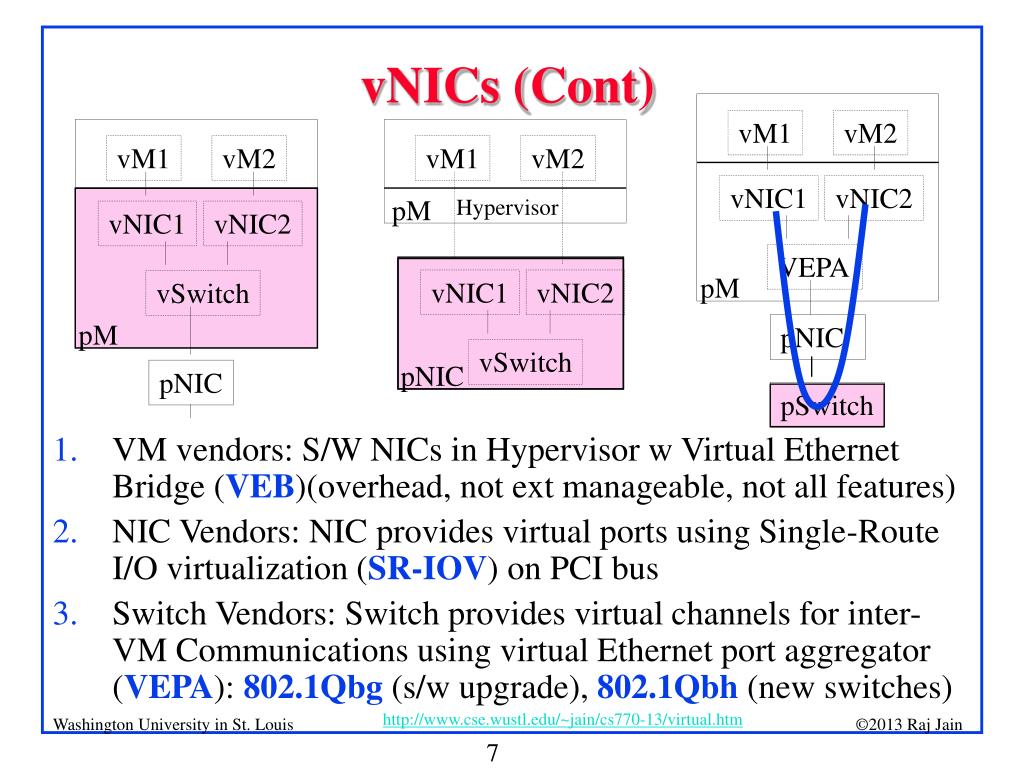

  7. vNICs (Cont) vM1 vM2 vM1 vM2 vM1 vM2 • VM vendors: S/W NICs in Hypervisor w Virtual Ethernet Bridge (VEB)(overhead, not ext manageable, not all features) • NIC Vendors: NIC provides virtual ports using Single-Route I/O virtualization (SR-IOV) on PCI bus • Switch Vendors: Switch provides virtual channels for inter-VM Communications using virtual Ethernet port aggregator (VEPA): 802.1Qbg (s/w upgrade), 802.1Qbh (new switches) vNIC1 vNIC2 pM Hypervisor vNIC1 vNIC2 VEPA pM vNIC1 vNIC2 vSwitch pM pNIC vSwitch pNIC pNIC pSwitch

  8. Bridge Bridge Bridge Bridge Bridge Bridge Bridge Port Extension • Multiple physical bridges to make a single virtual bridge with a large number of ports Þ Easy to manage and configure • IEEE 802.1BR Bridge Bridge

  9. Multi-Tenants • Each tenant needs its own networking domain with its VLAN IDs • Virtual Extensible Local Area Networks (VXLAN) • Network Virtualization using Generic Routing Encapsulation (NVGRE) • Stateless Transport Tunneling Protocol (STT) Þ Network Virtualization over L3 (NVO3) group in IETF Server 1 Server 2 VM1-1VNI 22 VM1-2VNI 34 VM2-1VNI 34 VM2-2VNI 74 VM1-3VNI 74 VM1-4VNI 98 VM2-3VNI 98 VM2-4VNI 22 L3 Networks Hypervisor VTEP IP1 Hypervisor VTEP IP2

  10. Multi-Site • Better to keep VM mobility in a LAN(IP address changes if subnet changes) • Solution: IP encapsulation • Transparent Interconnection of Lots of Links (TRILL)

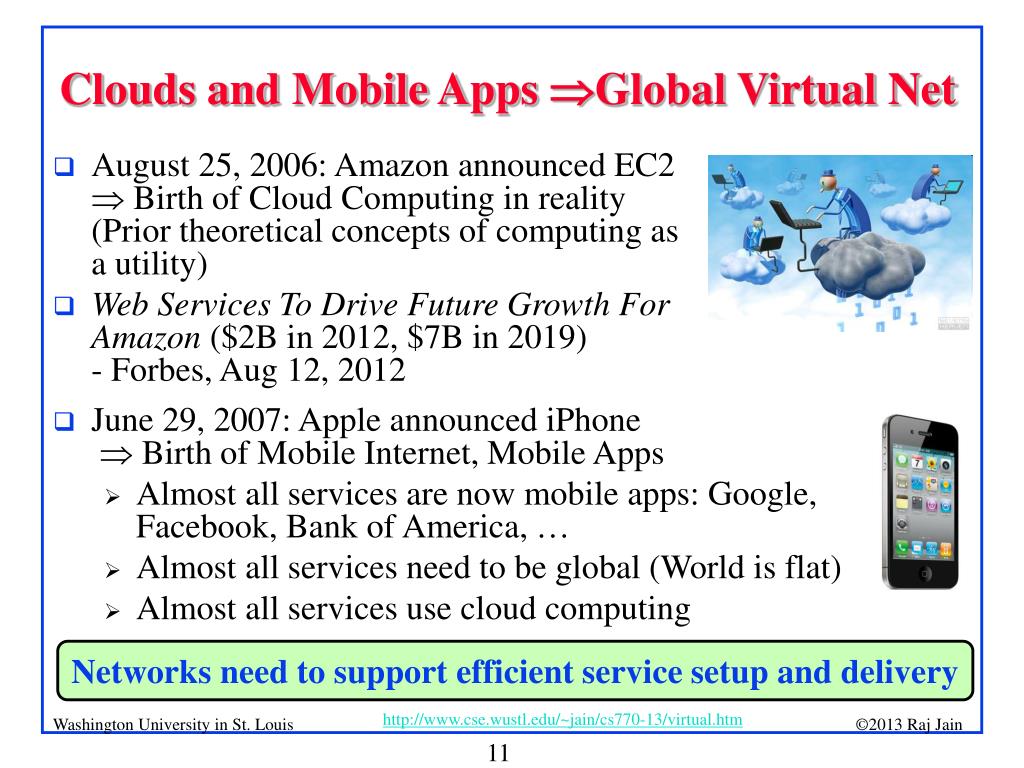

  11. Clouds and Mobile Apps Global Virtual Net • June 29, 2007: Apple announced iPhoneÞ Birth of Mobile Internet, Mobile Apps • Almost all services are now mobile apps: Google, Facebook, Bank of America, … • Almost all services need to be global (World is flat) • Almost all services use cloud computing • August 25, 2006: Amazon announced EC2 Þ Birth of Cloud Computing in reality(Prior theoretical concepts of computing as a utility) • Web Services To Drive Future Growth For Amazon ($2B in 2012, $7B in 2019) - Forbes, Aug 12, 2012 Networks need to support efficient service setup and delivery

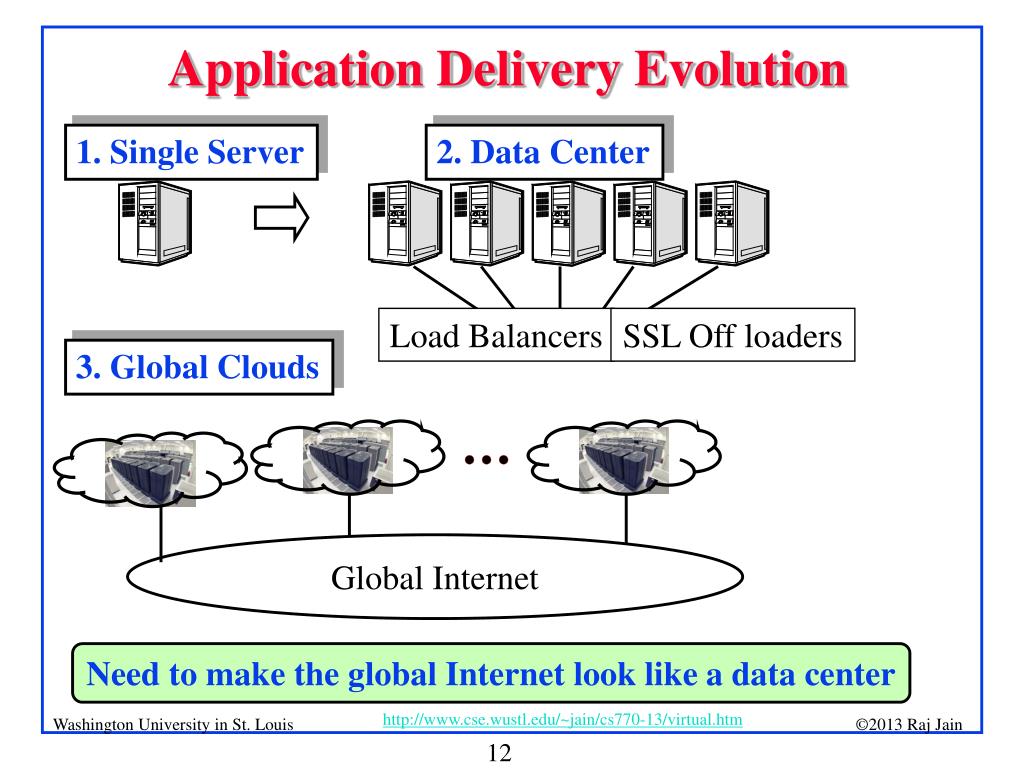

  12. Application Delivery Evolution 1. Single Server 2. Data Center Load Balancers SSL Off loaders 3. Global Clouds Global Internet Need to make the global Internet look like a data center

  13. Google WAN Google L7 Proxy • Google appliances in Tier 3 ISPs • Details of Google WAN are not public • ISPs can not use it: L7 proxies require app msg reassembly Network POP Google Data Center #1 Access ISP Google WAN Access ISP Google Data Center #2 Google L7 Proxy

  14. Our Solution: OpenADN • Open Application Delivery Networking PlatformPlatform = OpenADN aware clients, servers, switches, and middle-boxes • Allows Application Service Providers (ASPs) to quickly setup services on Internet using cloud computingÞ Global datacenter ServersA2 Servers A1, B1 OpenADNSwitches OpenADNmiddle-box Internet Legacy Routers Access ISP Access ISP Clients Clients

  15. Development 1: Centralization of Control Plane Control • Control = Prepare forwarding table • Data Plane: Forward using the table • Forwarding table is prepared by a central controller • Protocol between the controller and the forwarding element: OpenFlow • Centralized control of policies • Switches are simple. Controller can be complexCan use powerful CPUs • Lots of cheap switches = Good for large datacenters Switch Data Forwarding Element Forwarding Element OpenFlow Forwarding Element Forwarding Element Ref: [MCK08] ``OpenFlow: Enabling Innovation in Campus Networks," OpenFlow Whitepaper, March 2008http://www.openflow.org/documents/openflow-wp-latest.pdf

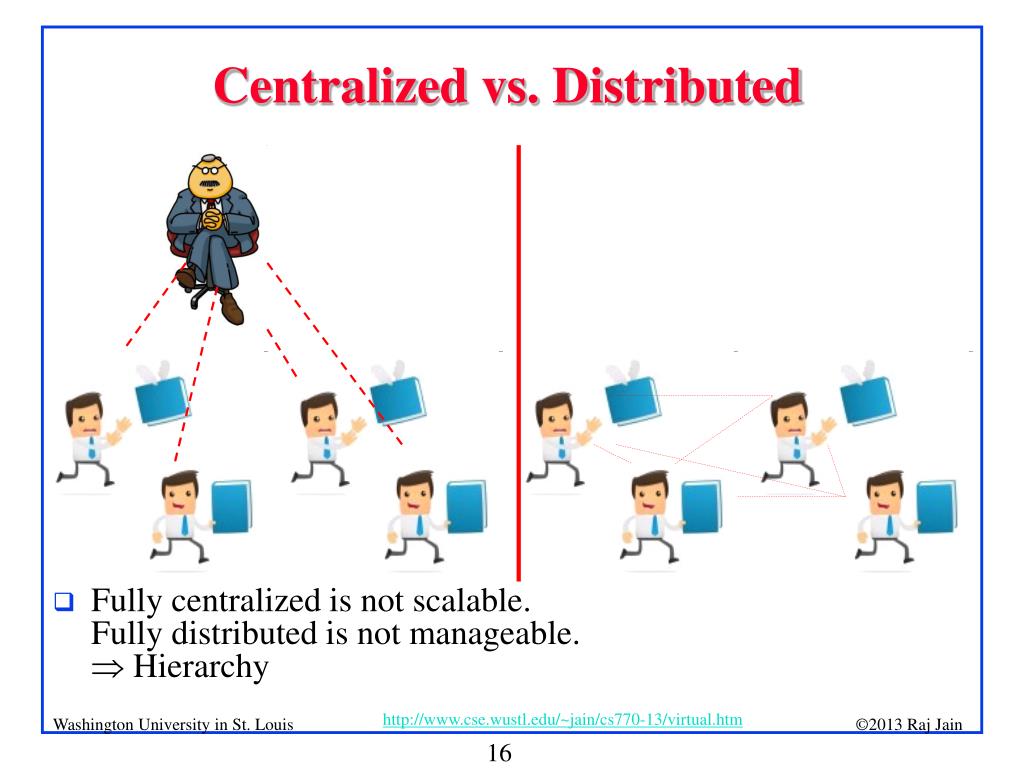

  16. Centralized vs. Distributed • Fully centralized is not scalable. Fully distributed is not manageable.Þ Hierarchy

  17. Development 2: Standardized Abstractions • The routers are expensive because there is no standard implementation. • Every vendor has its own hardware, operating/ management system, and proprietary protocol implementations. • Similar to Mainframe era computers. No cross platform operating systems (e.g., Windows) or cross platform applications (java programs). OSPF BGP DHCP Cisco IOSJuniper JUNOS Network Operating System Proprietary fast forwarding hardware Ref: http://www.itc23.com/.../K1_McKeown-ITC_Keynote_Sept_2011.pdf

  18. Scientific Business Batch OS360 Operating System IBM 360 HW, Storage, … VM1 VM2 VM3 Hypervisor Physical HW Example: PC Paradigm Shift • Computing became cheaper because of clear division of hardware, operating system, and application boundaries with well defined APIs between them • Virtualization  simple management + multi-tenant isolation MSOffice OpenOffice 1981 DOS Windows LINUX Intel AMD ARM 1998

  19. Software Defined Networking • Layered abstractions with standardized APIs Enterprise 1 Enterprise 2 Enterprise 3 Applications Multicasting Mobility App1 App2 Network OS1 Network OS2 Network OS3 Network OS Network Virtualization Virtualization Forwarding HW Forwarding HW Forwarding Forwarding HW Forwarding HW Ref: http://opennetsummit.org/archives/oct11/shenker-tue.pdf

  20. SDN’s Layered Abstraction ASP1 ASP2 ASP3 Application Level Control (ASP) • SDN provides standardized mechanisms for distribution of control information OpenADN OpenADN OpenADN Northbound Network Level Control (ISP) Net App3 Net App1 Net App2 Network OS Network OS1 Network OS2 Network OS3 Network Virtualization Virtualization Southbound Forwarding HW Forwarding OpenFlow Forwarding HW Forwarding HW

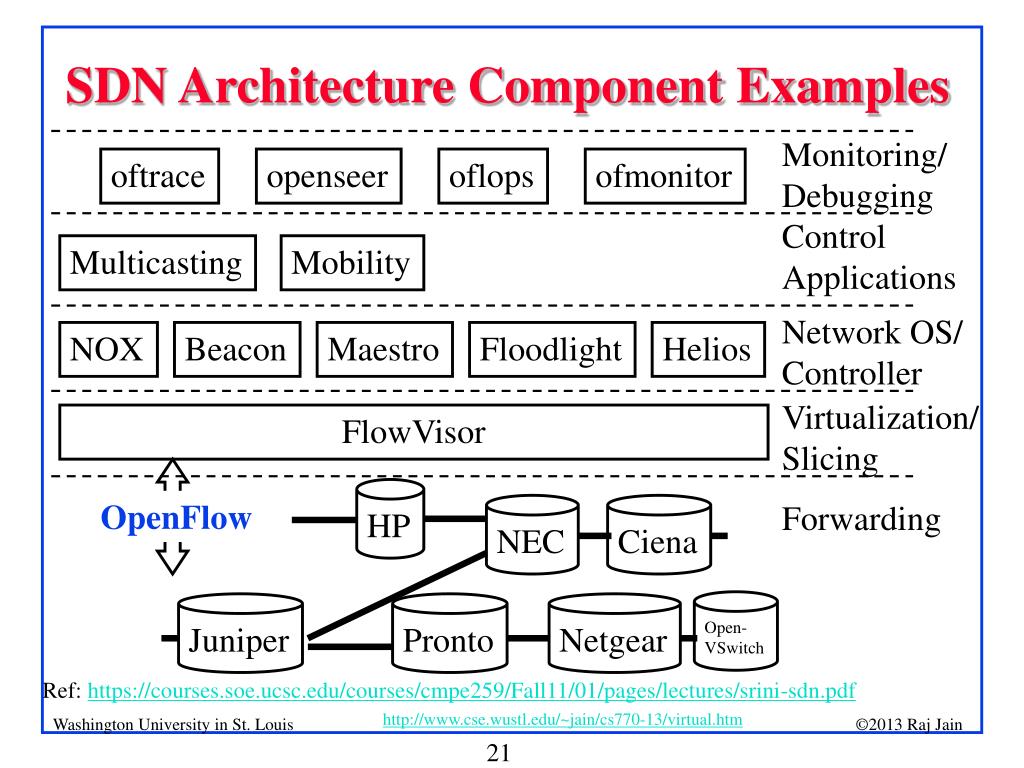

  21. SDN Architecture Component Examples Monitoring/Debugging oftrace openseer oflops ofmonitor Control Applications Multicasting Mobility Network OS/Controller NOX Beacon Maestro Floodlight Helios Virtualization/Slicing FlowVisor HP OpenFlow Forwarding NEC Ciena Open-VSwitch Juniper Pronto Netgear Ref: https://courses.soe.ucsc.edu/courses/cmpe259/Fall11/01/pages/lectures/srini-sdn.pdf

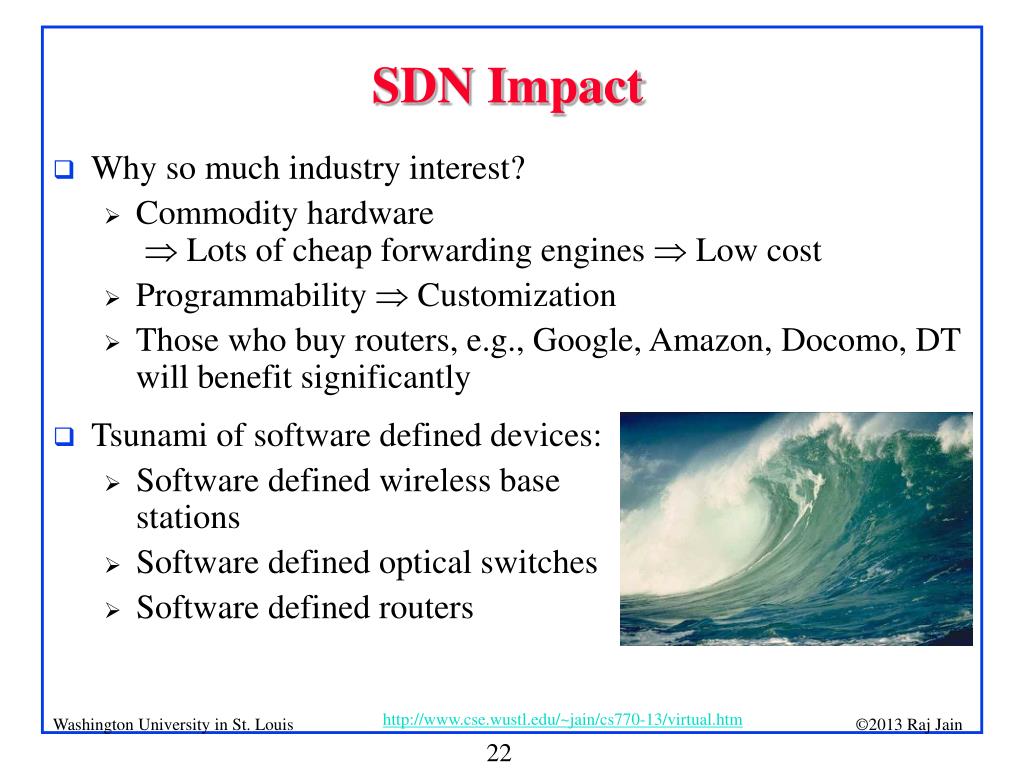

  22. SDN Impact • Why so much industry interest? • Commodity hardware  Lots of cheap forwarding engines  Low cost • Programmability  Customization • Those who buy routers, e.g., Google, Amazon, Docomo, DT will benefit significantly • Tsunami of software defined devices: • Software defined wireless base stations • Software defined optical switches • Software defined routers

  23. Life Cycles of Technologies MPLS Potential SDN ATM Time Research Hype Disillusionment Success orFailure

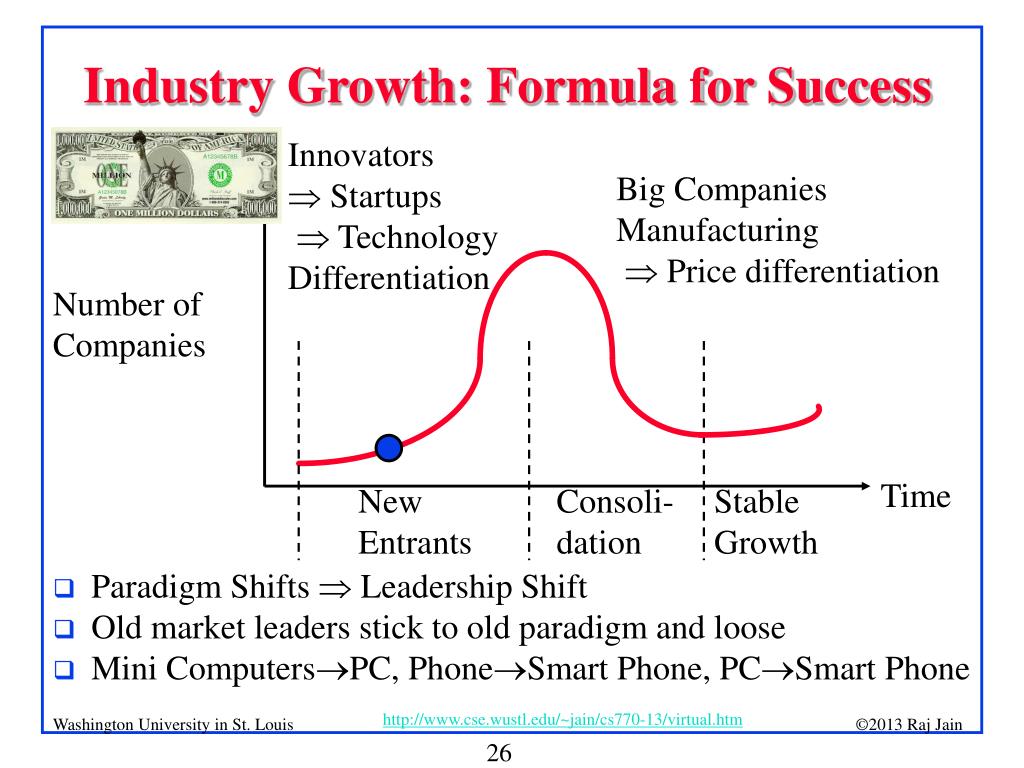

  24. Industry Growth: Formula for Success Innovators Startups TechnologyDifferentiation • Paradigm Shifts  Leadership Shift • Old market leaders stick to old paradigm and loose • Mini ComputersPC, PhoneSmart Phone, PCSmart Phone Big CompaniesManufacturing Price differentiation Number of Companies Time NewEntrants Consoli-dation StableGrowth

  25. OpenADN in SDN’s Layered Abstraction ASP1 ASP2 ASP3 Application Level Control (ASP) • SDN provides standardized mechanisms for distribution of control information OpenADN OpenADN OpenADN Network Level Control (ISP) App4 App1 App2 App3 Network OS Network OS1 Network OS2 Network OS3 Network Virtualization Virtualization Forwarding HW Forwarding OpenADN Aware OpenFlow Forwarding HW Forwarding HW

  26. Key Features of OpenADN • Edge devices only.Core network can be current TCP/IP based, OpenFlow or future SDN based • Coexistence (Backward compatibility): Old on New. New on Old • Incremental Deployment • Economic Incentive for first adopters • Resource owners (ISPs) keep complete control over their resources Most versions of Ethernet followed these principles. Many versions of IP did not.

  27. Summary • Cloud computing Þ Virtualization of computing, storage, and networkingÞ Numerous recent standards related to networking virtualization both in IEEE and IETF • Recent Networking Architecture Trends: • Centralization of Control plane • Standardization of networking abstractions Software Defined Networking (SDN) • Most networking devices will be software defined • OpenADN enables delivery of applications using North-bound SDN API
