Presentation Transcript

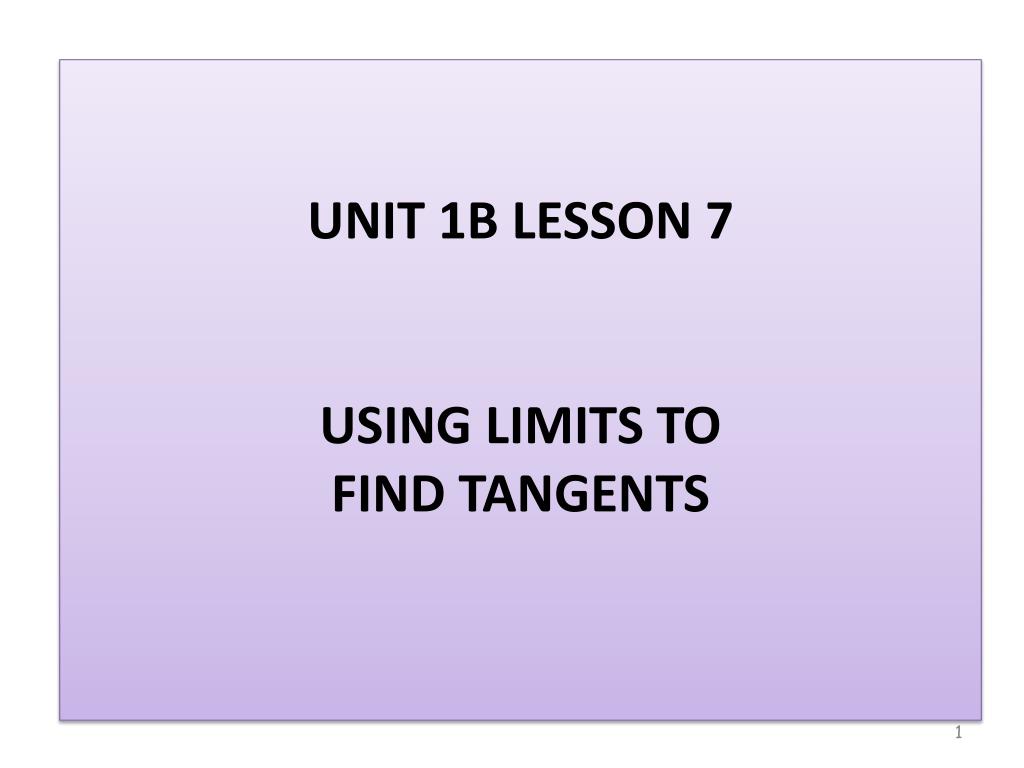

  1. UNIT 1B LESSON 7USING LIMITS TOFIND TANGENTS

  2. Slopes of Secant Lines The slope of secant PQ is given by

  3. Slopes of Tangent Lines As the difference in the x values of points P and Q approaches ZERO we can express the slope of a tangent line as the following limit.

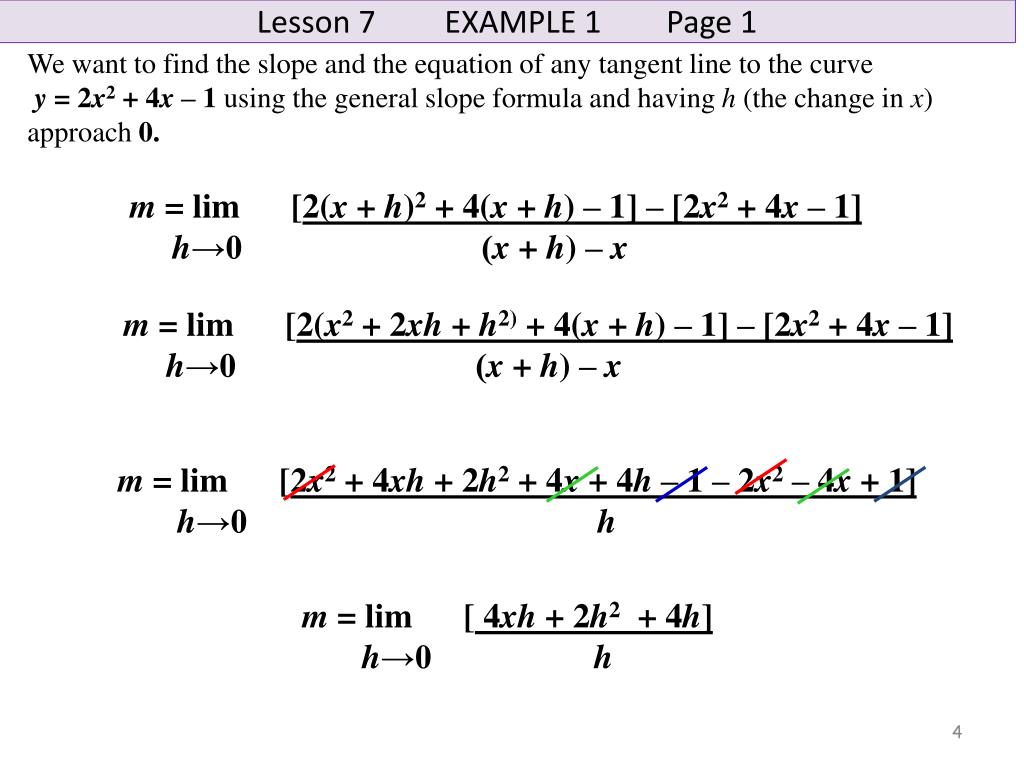

  4. Lesson 7 EXAMPLE 1 Page 1 We want to find the slope and the equation of any tangent line to the curve y = 2x2 + 4x – 1using thegeneral slope formula and having h (the change in x) approach 0. m = lim [2(x + h)2 + 4(x + h) – 1] – [2x2 + 4x – 1] h→0 (x + h) – x m = lim [2(x2 + 2xh + h2)+ 4(x + h) – 1] – [2x2 + 4x – 1] h→0 (x + h) – x m = lim [2x2 + 4xh + 2h2 + 4x + 4h – 1 – 2x2 – 4x + 1] h→0 h m = lim[ 4xh+ 2h2+ 4h] h→0 h

  5. Lesson 7 EXAMPLE 1 (continued) Page 1 m = lim[ 4xh+ 2h2+ 4h] h→0 h m = limh(4x+ 2h+ 4) h→0 h m = lim [4x + 2h + 4] h→0 m=[4x + 2(0) + 4] m = 4x + 4 The equation for the slope of any tangent line = m = 4x + 4

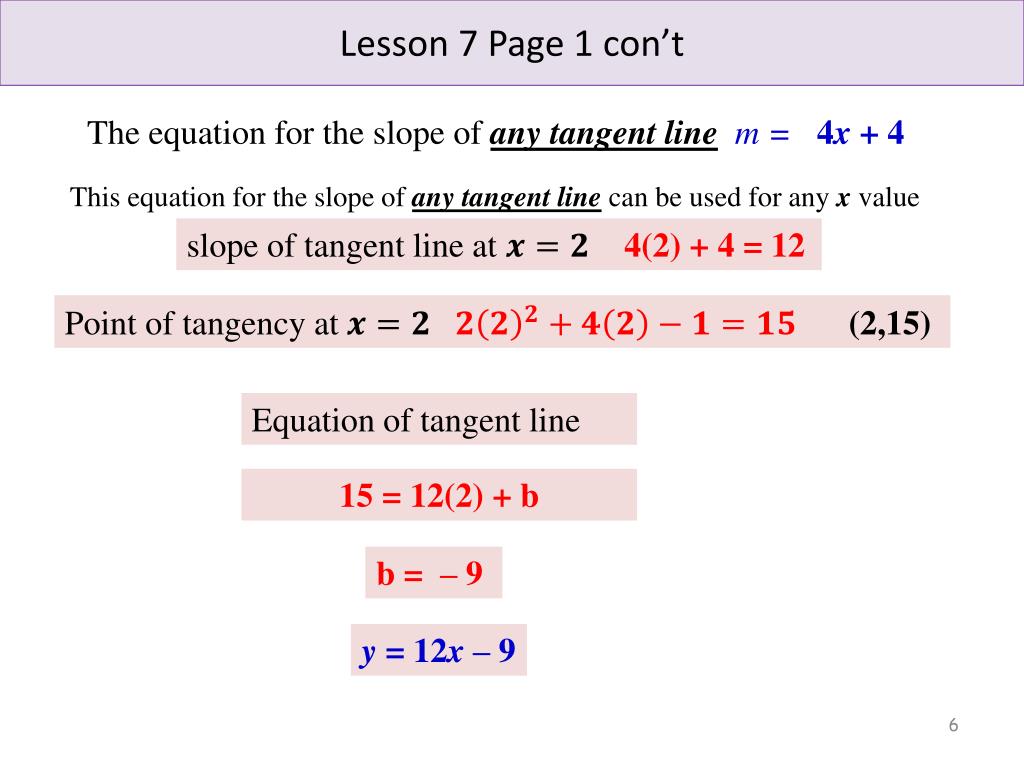

  6. Lesson 7 Page 1 con’t The equation for the slope of any tangent linem = 4x + 4 This equation for the slope of any tangent linecan be used for any x value slope of tangent line at 4(2) + 4 = 12 Point of tangency at (2,15) Equation of tangent line 15 = 12(2) + b • b = – 9 • y = 12x – 9

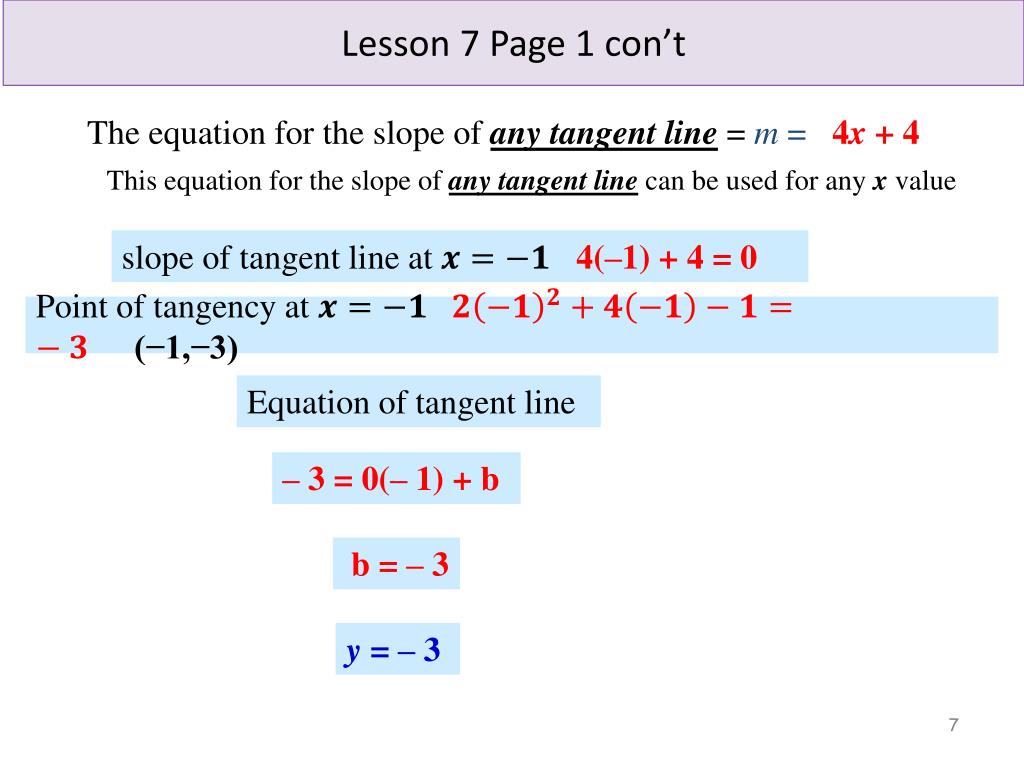

  7. Lesson 7 Page 1 con’t The equation for the slope of any tangent line = m = 4x + 4 This equation for the slope of any tangent linecan be used for any x value slope of tangent line at 4(–1) + 4 = 0 Point of tangency at • Equation of tangent line – 3 = 0(– 1) + b • b = – 3 • y = – 3

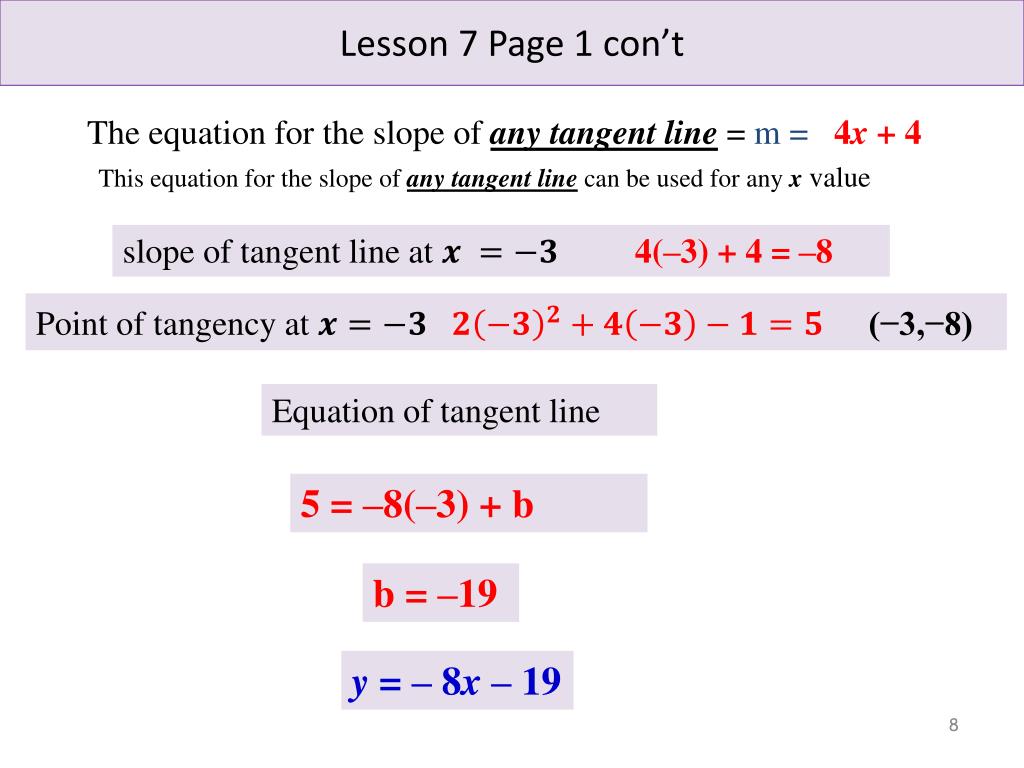

  8. Lesson 7 Page 1 con’t The equation for the slope of any tangent line = m = 4x + 4 This equation for the slope of any tangent linecan be used for any x value slope of tangent line at 4(–3) + 4 = –8 Point of tangency at Equation of tangent line • 5 = –8(–3) + b • b = –19 • y = – 8x– 19

  9. Practice Question #1 Find the equation for the slope of the tangent line to the parabola y = 2x – x2 m = lim [2(x + h) – (x + h)2] – [2x– x2] h→0 (x + h) – x m = lim2x + 2h – x2 – 2xh – h2– 2x + x2 h→0h m = lim 2h – 2xh – h2 h→0 h m = lim2 – 2x – h = 2 – 2x – 0 = 2 – 2x h→0

  10. Practice Question #1a Find the equation the tangent line to the parabola y = 2x – x2 when x = 2 Slope = m = 2 – 2x = 2 – 2(2) = – 2 Point of tangency (2, 0) 0 = – 2(2) + b b = 4 y = –2 x + 4

  11. Practice Question #1b Find the equation the tangent line to the parabola y = 2x – x2 when x = –3 Slope = m = 2 – 2x = 2 – 2(–3 ) = 8 Point of tangency (-3, -15) –15 = 8(–3) + b b = 9 y = 8x + 9

  12. Practice Question #1c Find the equation the tangent line to the parabola y = 2x – x2 when x = 0 Slope = m = 2 – 2x = 2 – 2(0) = 2 Point of tangency (0, 0) 0= – 2(0) + b b = 0 y = 2x

  13. Practice Question #2a Find the equation for the slope of the tangent line to the parabola y = x2 + 4x – 1 m = lim[(x + h)2 + 4(x + h) – 1 ] – [x2 + 4x – 1] h→0 (x + h) – x m = limx2+ 2xh + h2 + 4x + 4h – 1 – x2 – 4x + 1 h→0 h m = lim2xh + h2+ 4h h→0 h m = lim2x + h + 4 h→0 Slope = m =2x + 0 + 4 = 2x + 4

  14. Practice Question #2 a Find the equation of the tangent line to the parabola y = x2 + 4x – 1 when x = –3 Slope = m = 2x + 4 = 2(–3) + 4 = –2 y = (–3)2 + 4(–3) – 1 = – 4 Point of tangency (-3, –4) – 4 = –2(–3) + b b = – 10 y = –2x – 10

  15. Practice Question #2 b Find the equation of the tangent line to the parabola y = x2 + 4x – 1 when x = –2 Slope = m = 2x + 4 = 2(–2) + 4 = 0 y = (–2)2 + 4(–2) – 1 = – 5 Point of tangency (-2, –5) – 5 = 0(–2) + b b = –5 y = –5

  16. Practice Question #2 c Find the equation of the tangent line to the parabola y = x2 + 4x – 1 when x = 0 Slope = m = 2x + 4 = 2(0) + 4 = 4 y = (0)2 + 4(0) – 1 = – 1 Point of tangency (0, – 1 ) – 1 = 4(0) + b b = – 1 y = 4x – 1

  17. Lesson 7 Page 4 Consider this:

  18. Working with Compound fractions OR OR

  19. Lesson 7 Page 4 Example 2 Find the slope of the tangent to at the point where x = 3. continued→

  20. Lesson 7 Page 4 Example 2 con’t so at x = 3 the slope of the tangent is

  21. PRACTICE QUESTION 3 Find the slope of the tangent to at the point where x = 5. = continued→

  22. Practice question 3 con’t = so at x = 5 the slope of the tangent is

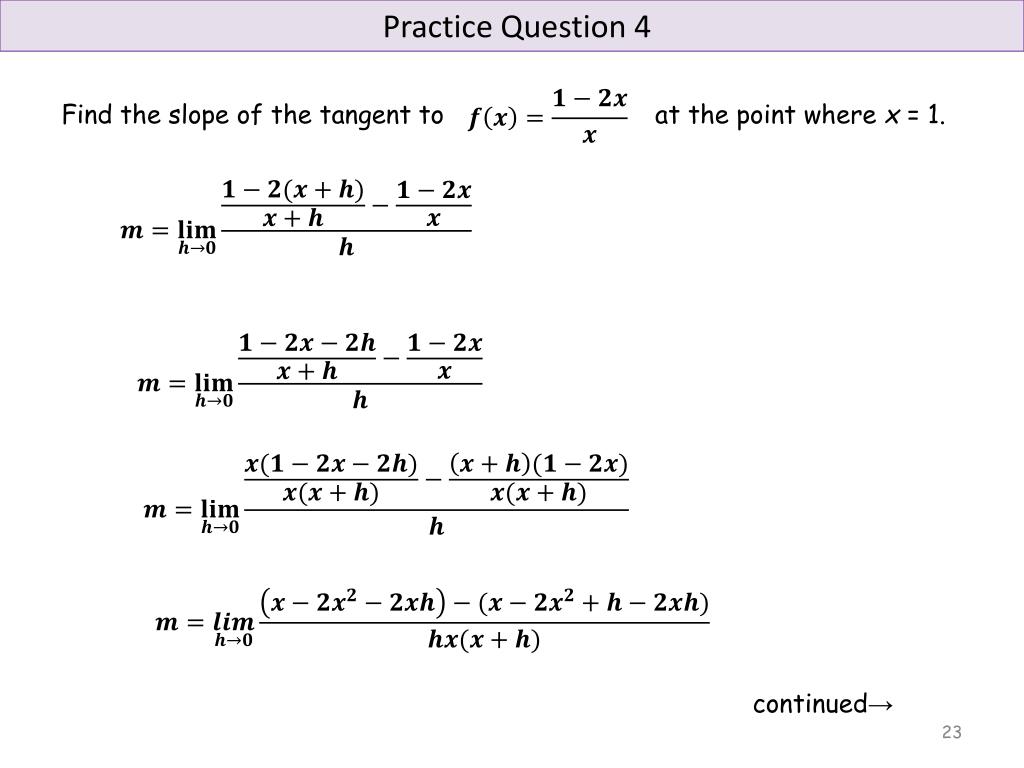

  23. Practice Question 4 Find the slope of the tangent to at the point where x = 1. continued→

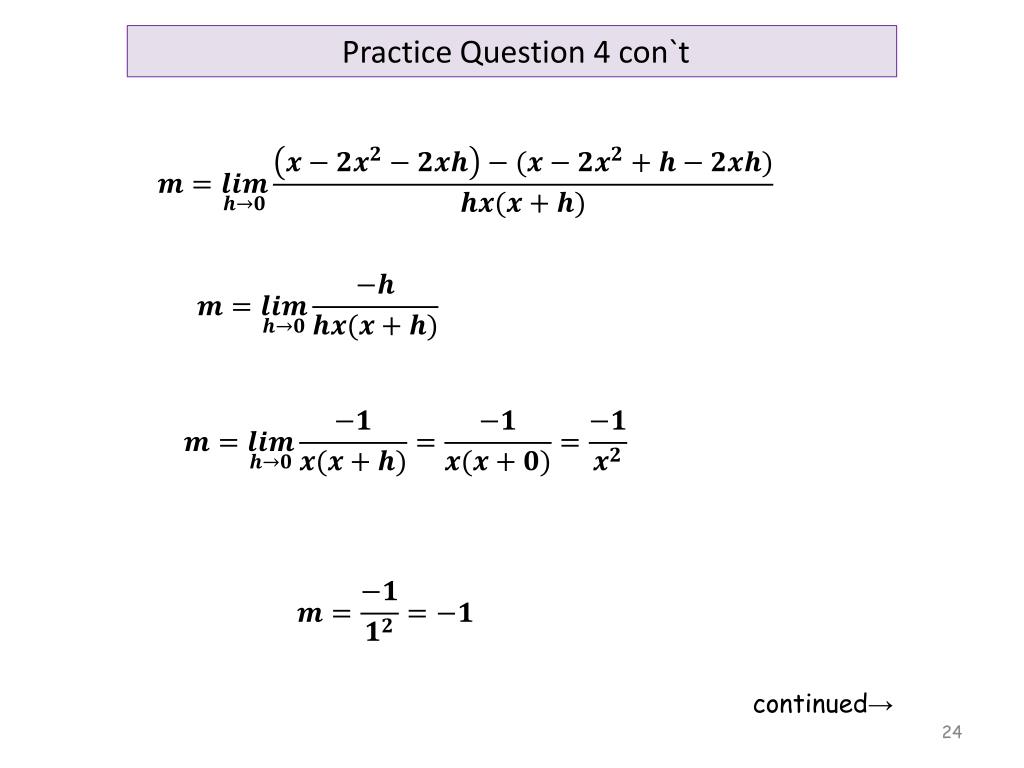

  24. Practice Question 4 con`t continued→
