Geo-synthetic Clay Liner

Geo-synthetic Clay Liner. Geotextile. Bentonite. Polyethylene Geo-Film. Geotextile. Location of Slurry Wall and GCL. Re-graded. C. L. Slope of 3H:1V. Saw Cut Asphalt Concrete Pavement . Existing Pipe. ∆ 3.5 ft. 4FT. 2 FT(Typ.). 1.5 FT. 2 FT. Proposed Elevation. Slurry Wall.

lori
Télécharger la présentation

Geo-synthetic Clay Liner

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Geo-synthetic Clay Liner Geotextile Bentonite Polyethylene Geo-Film Geotextile

  2. Location of Slurry Wall and GCL

  3. Re-graded C L Slope of 3H:1V

  4. Saw Cut Asphalt Concrete Pavement Existing Pipe ∆ 3.5 ft 4FT 2 FT(Typ.) 1.5 FT 2 FT ProposedElevation Slurry Wall Not To Scale

  5. 12 inch seams GCL 15 ft Existing Pipe Slurry Wall Not To Scale

  6. ∆ 3.5 ft Join AC Pavement 4 ft 2 ft of 90% Compacted Soil 2 ft 1.5 ft GCL 2 ft Not To Scale

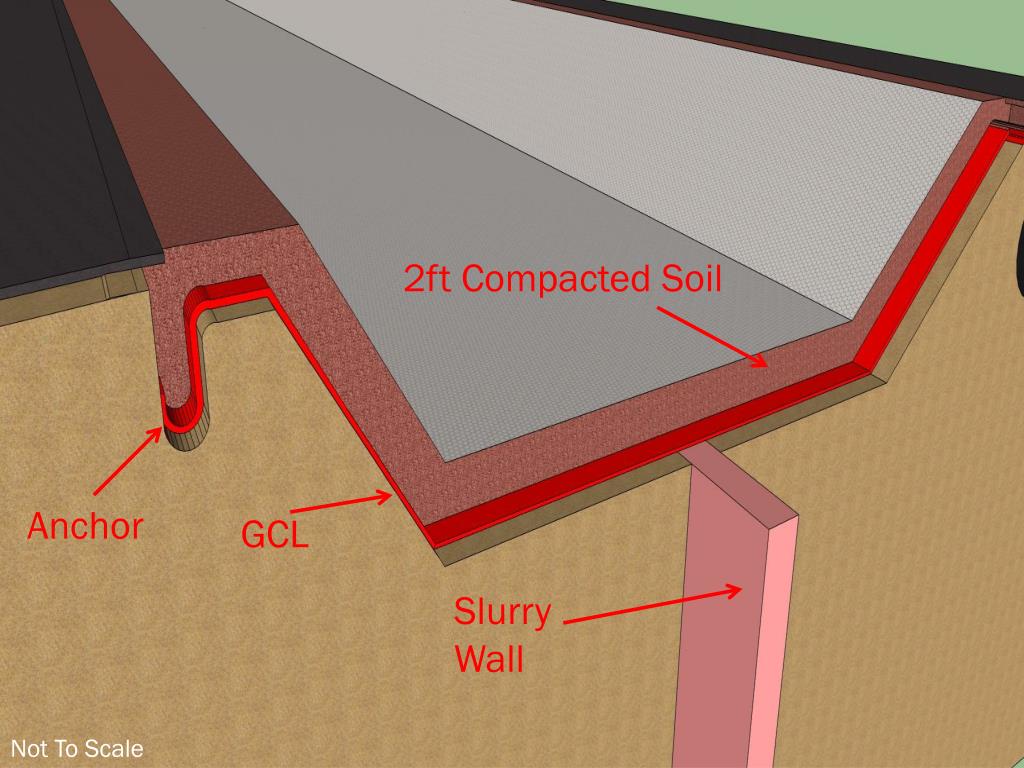

  7. 2ft Compacted Soil Anchor GCL Slurry Wall Not To Scale

  8. Feasibility • Calculating Cover Thickness • Vertical stress due to circular loading • Assuming HS-20 loading • Final thickness: 2 ft. • Calculating Slope Stability • Average of cross-sections located at north and south end of canal • Liner tension must fall under 312 lbs/ft or negative.

  9. Performance Re-graded C L Slope of 3H:1V

  10. Performance AFTER qDESIGN=2.55 ft3/day 40% reduction of seepage • BEFORE • qCRITICAL= 4.44 ft3/day

  11. Cost Total Cost: $700,000
