Frontal sinus

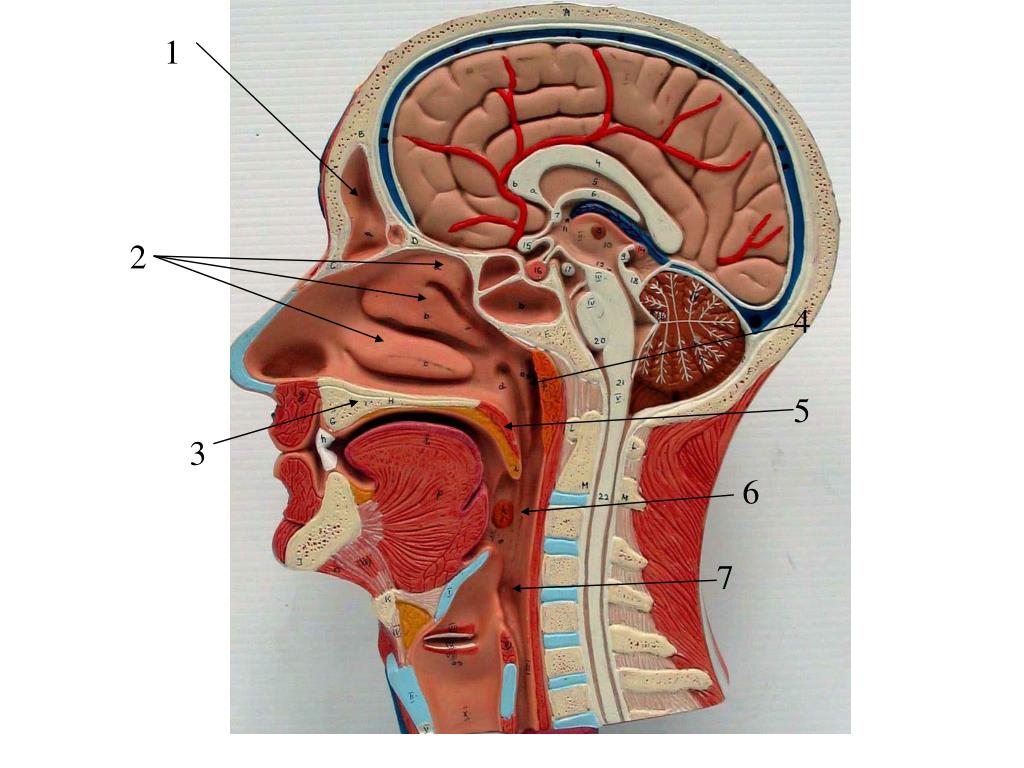

1. 2. 4. 5. 3. 6. 7. Frontal sinus. Conchae with meatuses below. Nasopharynx. Soft palate. Hard Palate. Oropharynx. Laryngopharynx. 3. 1. 4. 5. 2. 6. 7. Sphenoidal sinus. Eustachian / auditory Tube opening. Nasopharyngeal tonsil. Uvula. Internal nares. Palatine tonsil.

loring
Télécharger la présentation

Frontal sinus

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. 1 2 4 5 3 6 7

  2. Frontal sinus Conchae with meatuses below Nasopharynx Soft palate Hard Palate Oropharynx Laryngopharynx

  3. 3 1 4 5 2 6 7

  4. Sphenoidal sinus Eustachian / auditory Tube opening Nasopharyngeal tonsil Uvula Internal nares Palatine tonsil Lingual tonsil

  5. 1 2 3 4 5 6 7 8

  6. Cribiform plate Internal nares Nasal cavity External nares Palatoglossal arch Palatopharyngeal arch Oral vestibule Palatine tonsil

  7. 1 2 3

  8. Pharyngeal tonsil / Adenoids Palatine tonsil Lingual tonsil

  9. 5 1 2 3 4

  10. External nares Eustachian / Auditory tube Nasopharynx Oropharynx Laryngopharynx

  11. 3 4 1 2 5

  12. Hyoid bone Laryngeal prominence Thyroid cartilage Cricoid cartilage Thyroid gland

  13. Cartilages: 1 2 3 4 5 6

  14. Cartilages: Epiglottis Thyroid Corniculate Arytenoid Cricoid Tracheal ring

  15. 1 2 3 4 5

  16. Epiglottis Hyoid bone Corniculate cartilage Arytenoid cartilage (True) vocal cord

  17. 1 2 3 4

  18. Thyroid cartilage Corniculate cartilage Arytenoid cartilage Cricoid cartilage

  19. 1 2 3 4 5 6

  20. Epiglottis Cunneiform cartilage under the mucosa Arytenoid covered by muscle Ventricular / false vocal cord True vocal cord Cricoid cartilage

  21. 1 2 3

  22. Laryngeal ventricle (space) Thyroid cartilage Trachea

  23. 1 2

  24. Thyroid cartilage Cricoid cartilage

  25. 3 4 1 2 5

  26. Epiglottis False / ventricular vocal cord Opened up Wall of the esophagus True vocal cord Cricoid cartilage

  27. 1 2 3

  28. Epiglottis False vocal cords Cricoid cartilage

  29. 1 2

  30. Epiglottis False vocal cords

  31. 1 2 3

  32. Epiglottis False vocal cords True vocal cords

  33. 1 2 3 4 5

  34. Trachea Right Primary Bronchus note: wider and more vertical Left Primary Bronchus Note: narrower and more angular Secondary Bronchi Tertiary Bronchi

  35. 1 2 3

  36. Trachealis Muscle Right Primary Bronchus Secondary Bronchi

  37. 1 2 3

  38. Terminal bronchiole Respiratory bronchiole Visceral pleura/ Pulmonary pleura

  39. 1 2

  40. Exchange (pulmonary) capillaries Alveolar sac

  41. 1 2

  42. Alveoli Visceral pleura

  43. 1 2 3

  44. Apex of the lung Hilus / root of lung Diaphragmatic surface or base of the lung

  45. ?surface

  46. Costal surfaces of the lung

  47. 1 Right or left?

  48. Cardiac notch Left

  49. Right or left?

  50. Right Lung
