Diving Emergencies

Pressure Laws. Boyle's law: PV=KAs pressure ?, volume ?As pressure ?, volume ?Dalton's law: Pt = P02 PN2 PxTotal pressure of gas mixture is sum of partial pressures of its componentsHenry's law: Pressure of a gas in liquid is proportional to its pressure in the atmosphere. Barotrauma. Injury caused by compression or expansion of gas in body spaces.

lotus
Télécharger la présentation

Diving Emergencies

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

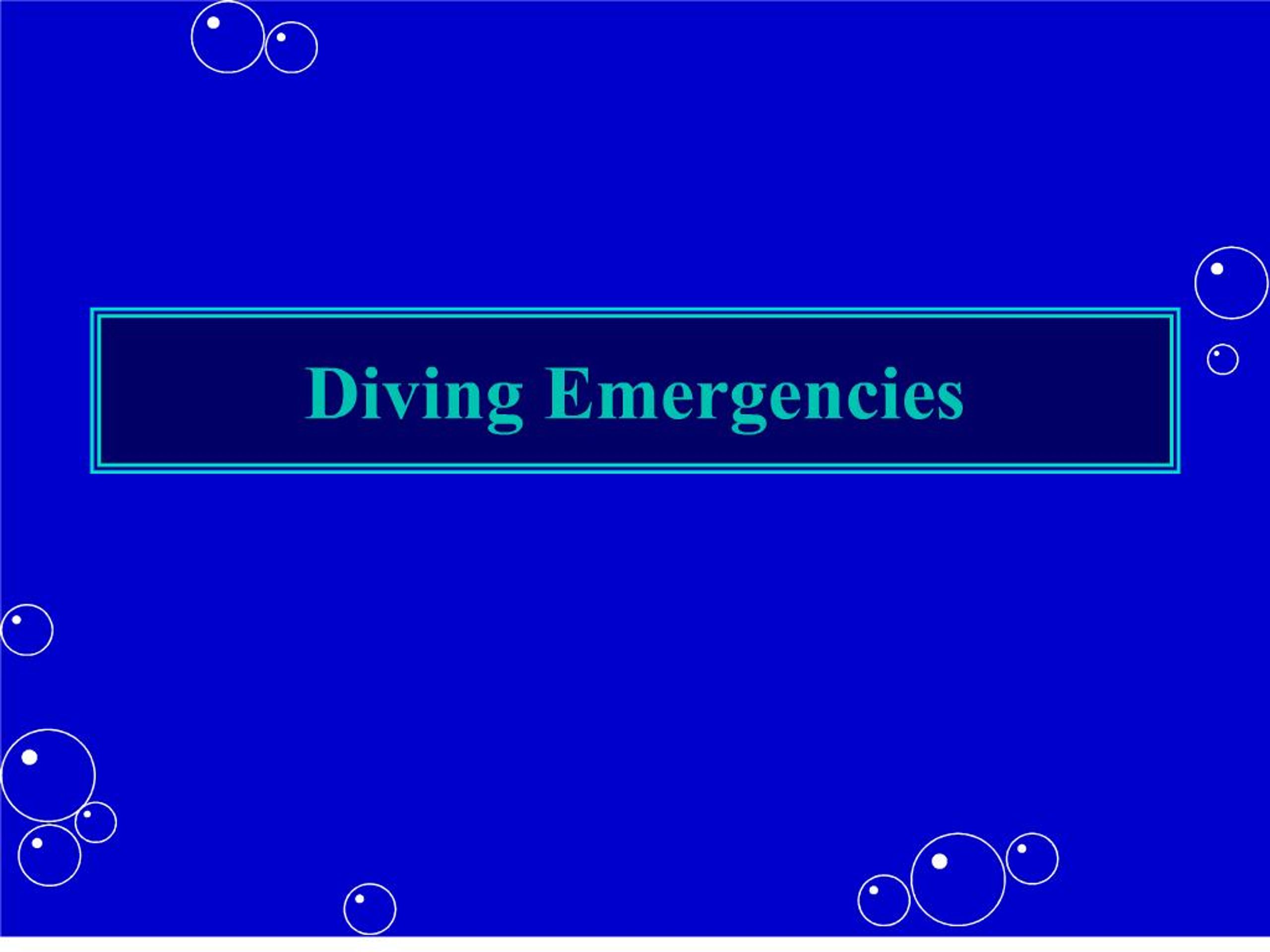

    1. Diving Emergencies

    3. Barotrauma Injury caused by compression or expansion of gas in body spaces

    4. Barotrauma Ear squeeze Sinus squeeze Lung trauma (pulmonary overpressure) Arterial air embolism

    5. Ear Squeeze Pressure does not equalize in middle ear through Eustachian tube Common when diving with URI Severe pain Potential for ear drum rupture Water enters middle ear; vertigo/incapacitation

    6. Sinus Squeeze Pressure does not equalize in frontal or maxillary sinus Common when diving with URI Severe pain

    7. Lung Trauma Pulmonary Overpressure Syndrome (POPS) Breath-holding during ascent Compressed air in lungs expands Lung tissue ruptures, resulting in: Pneumothorax/tension pneumothorax Pneumomediastinum Subcutaneous emphysema Arterial air embolism

    8. Lung Trauma May occur in shallow depths Signs/Symptoms Respiratory distress Substernal chest pain Diminished breath sounds Treatment Rest Oxygen Treat pneumothorax

    9. Arterial Air Embolism Caused by breath-holding during ascent Lung tissue tears/air enters pulmonary circulation Air enters left heart, is pumped to systemic circulation Air bubbles enter, clog cerebral circulation

    10. Arterial Air Embolism Rapid onset of: Alterations in consciousnessusually within 10 minutes Hemiplegia Unequal pupils Cardiopulmonary failure Vertigo Visual disturbances

    11. Arterial Air Embolism Management ABCs 100% oxygen, assist ventilations as needed Supine (Left side 300 head down) IV with NS, LR Transport to decompression chamber Steroids on medical control orders

    12. Decompression Sickness

    13. Decompression Sickness Diver breathes compressed air Nitrogen dissolves in blood Diver does not surface at correct rate to allow nitrogen to escape from blood Nitrogen bubbles form in tissue, small blood vessels Occludes circulation in small vessels

    14. Decompression Sickness Cutaneous bends Itching Mottled rash

    15. Decompression Sickness Musculoskeletal DCS (Bends) Dull ache in muscles/joints Movement worsens pain Fatigue Inflating BP cuff over area relieves pain

    16. Decompression Sickness Central nervous system DCS Brain involvement CVA like symptoms Paresthesias Staggers Spinal cord involvement Paralysis

    17. Decompression Sickness Pulmonary DCS --Chokes Chest pain Cough Dyspnea Pulmonary edema

    18. DCS Management ABCs 100% Oxygen IV with LR Lateral recumbent position if air embolism suspected Transport to recompression chamber Steroids on Medical Control orders

    19. Nitrogen Narcosis Rapture of the Deep Pressurized nitrogen toxic effects on CNS Anesthetic effect due to lipid solubility of N2 Result is intoxication Other injury may result from impaired judgment Affects most divers to some degree Usually on dives 70-100 feet

    20. Nitrogen Narcosis Signs and Symptoms Euphoria Confusion Disorientation Slowed motor response Treatment Surfacing corrects problem Consider possibility of CO toxicity

    21. Diving Incident Assessment When was last dive? How many dives that day? What depths? Did diver ascend quickly? Why? Did diver make decompression stops during ascent? Symptoms? Onset of symptoms? Divers appearance immediately after dive?

    22. Divers Alert Network (919) 684-8111 (emergency) www.diversalertnetwork.org (919) 684-2948 (non-emergency)
