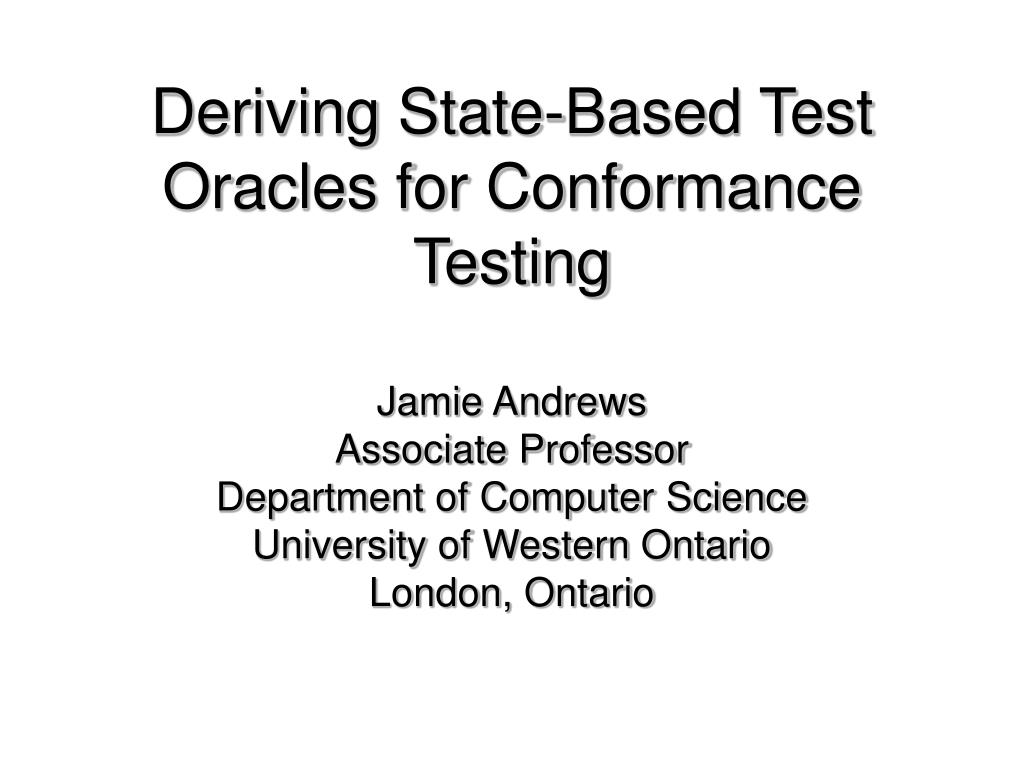

  1. Deriving State-Based Test Oracles for Conformance Testing Jamie Andrews Associate Professor Department of Computer Science University of Western Ontario London, Ontario

  2. Plan for Talk • Testing background • Log file analysis (LFA) • Process for developing artifacts • Refinement of process

  3. Testing Background • 3 main tasks to testing: • Selecting test inputs • Running tests • Checking test outputs • Checking test output not always trivial Test Input Software Under Test Test Output

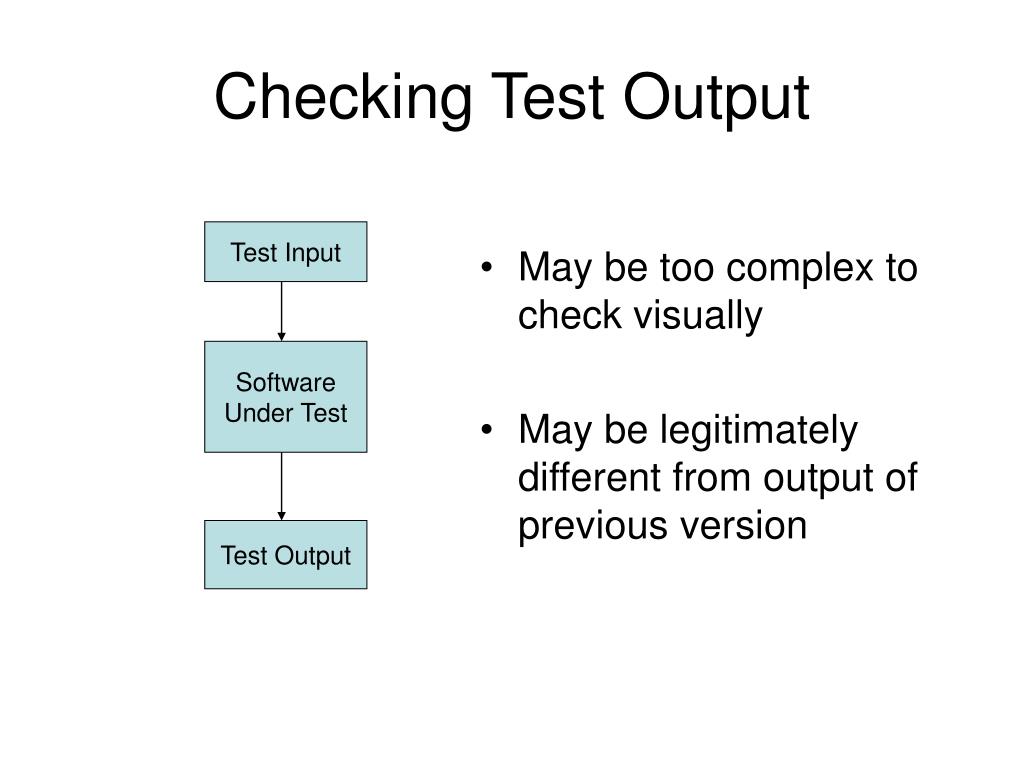

  4. Checking Test Output • May be too complex to check visually • May be legitimately different from output of previous version Test Input Software Under Test Test Output

  5. Test Oracles Test Input • Programs that check the output of other programs Software Under Test Test Output Test Oracle Pass/Fail

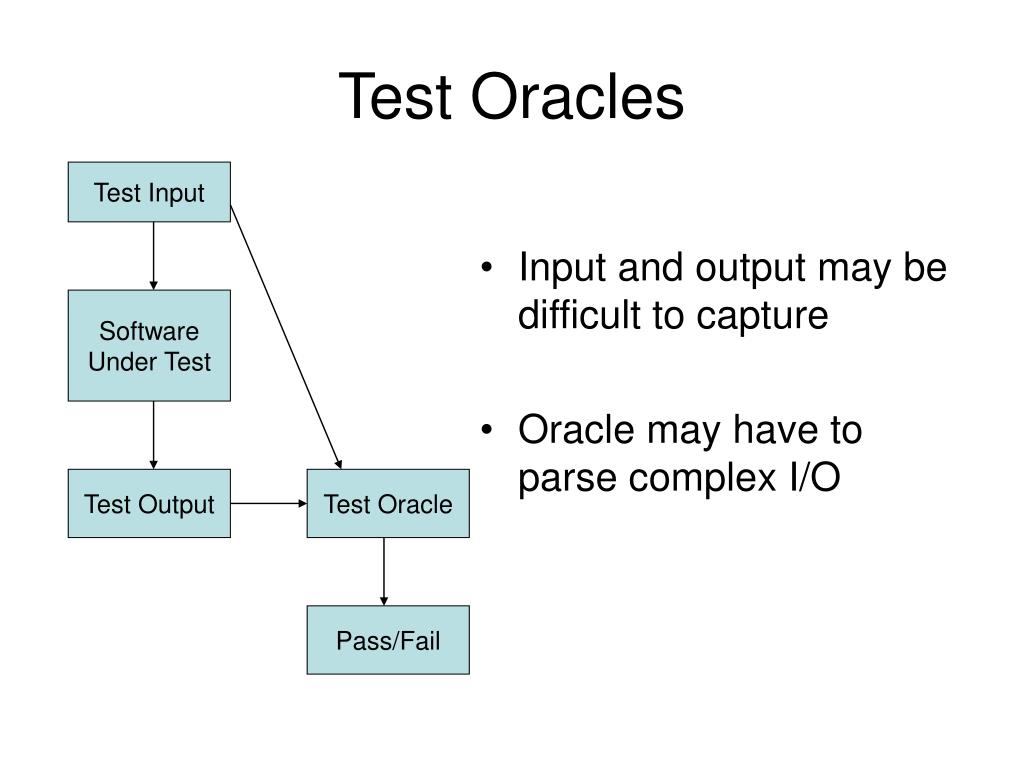

  6. Test Oracles Test Input • Input and output may be difficult to capture • Oracle may have to parse complex I/O Software Under Test Test Output Test Oracle Pass/Fail

  7. Log File Analysis (LFA) Test Input • Log file: simple text output • LFA: dynamic analysis for conformance checking Software Under Test Log File Test Output Log File Analyzer Pass/Fail

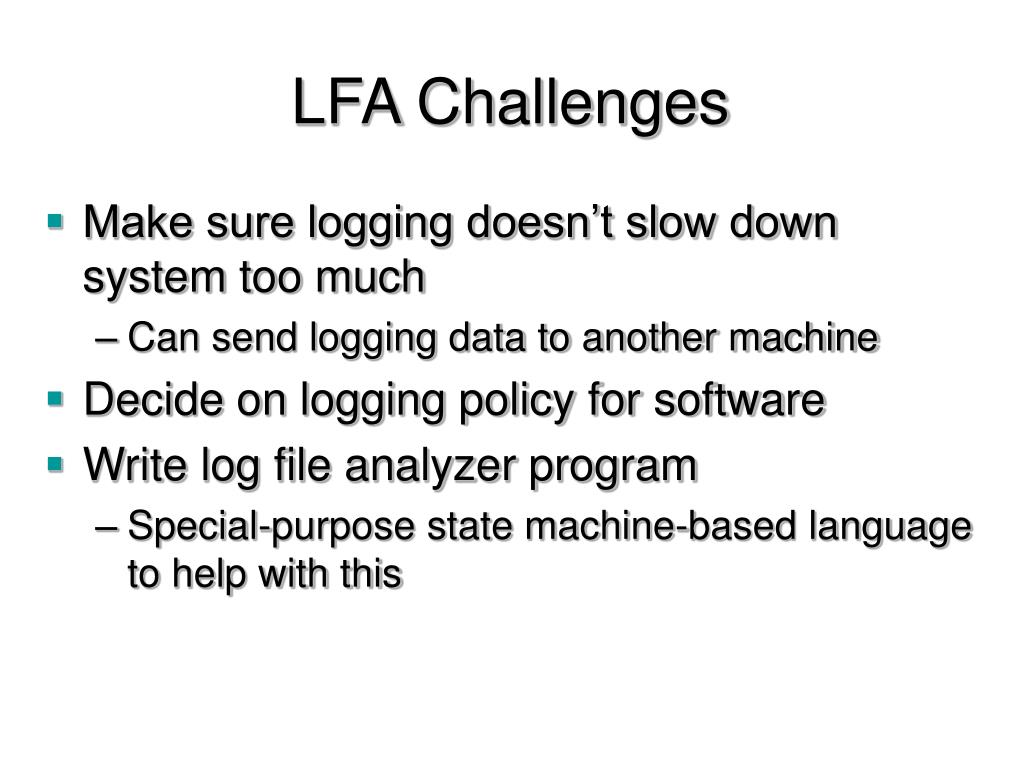

  8. LFA Challenges • Make sure logging doesn’t slow down system too much • Can send logging data to another machine • Decide on logging policy for software • Write log file analyzer program • Special-purpose state machine-based language to help with this

  9. Log File Analysis Language (LFAL) • Analyzer = collection of state machines • Each machine notices some log file lines, ignores others • Log file lines trigger transitions • Machine reports error if it: • Notices a line • Does not have a legal transition on it

  10. Processes • Need a process for getting • From requirements • To logging instrumentation, analyzer • “Big-step” process: • Used and taught to students • “Small-step” process: • Suggested refinement

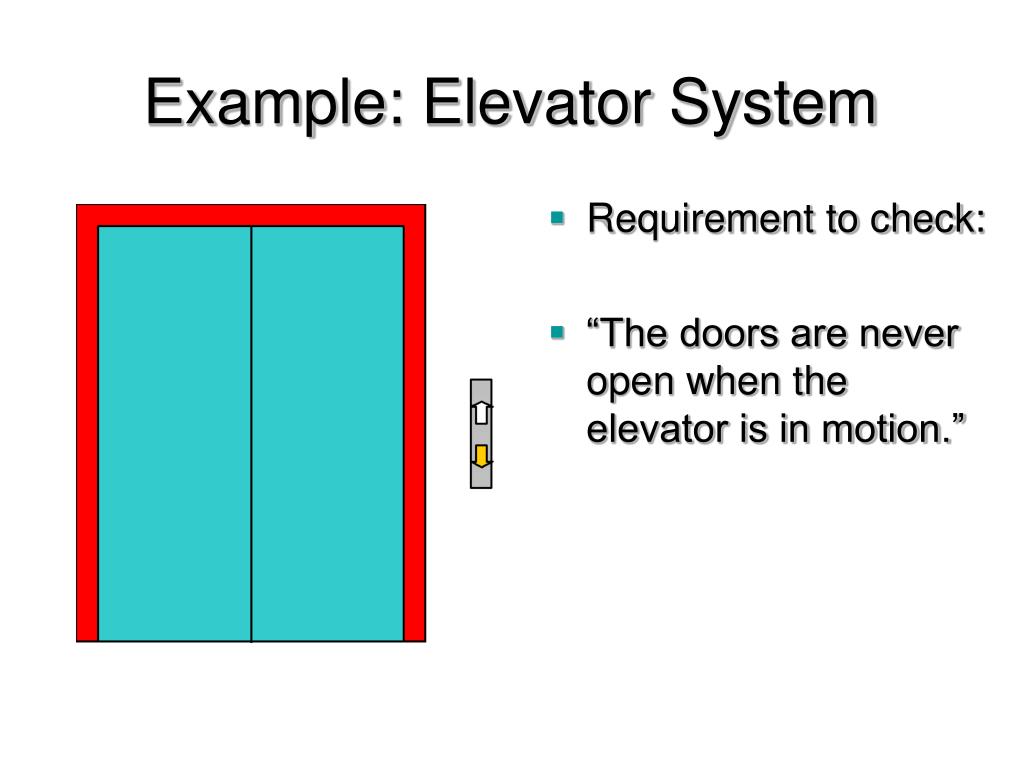

  11. Example: Elevator System • Requirement to check: • “The doors are never open when the elevator is in motion.”

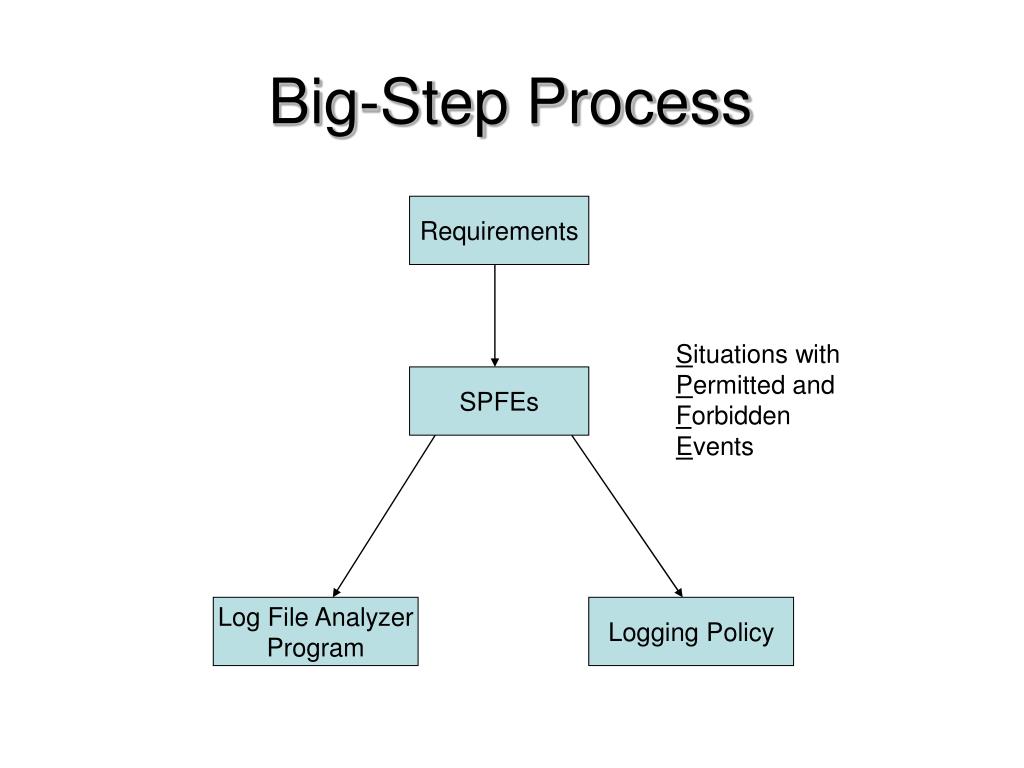

  12. Big-Step Process Requirements Situations with Permitted and Forbidden Events SPFEs Log File Analyzer Program Logging Policy

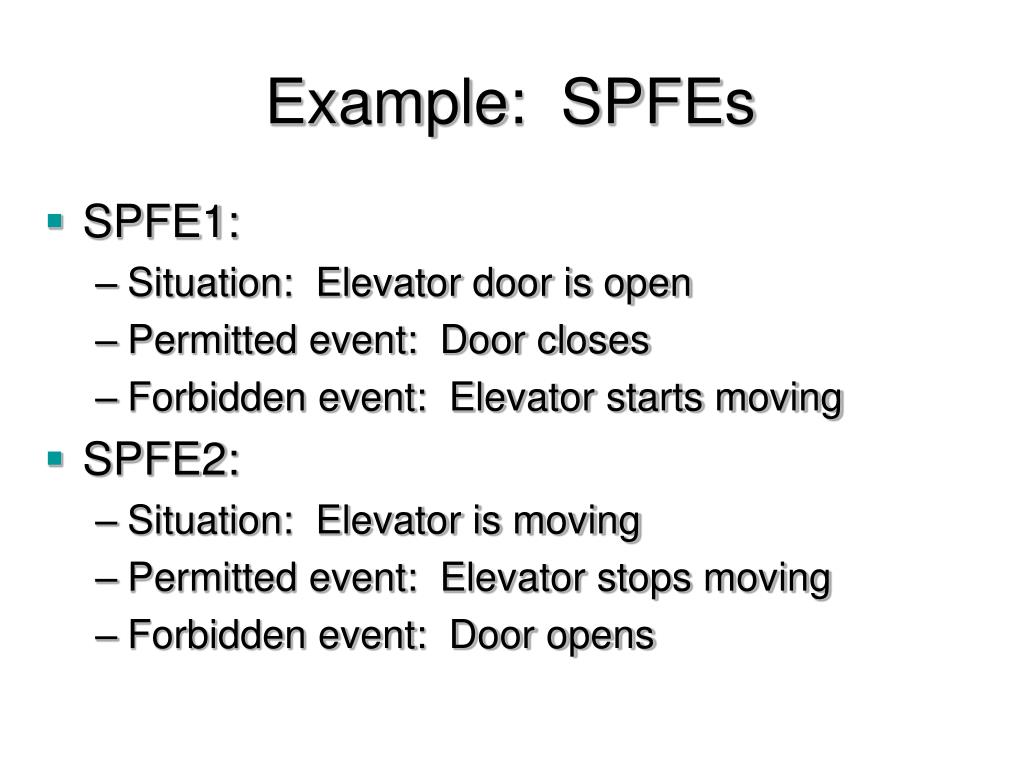

  13. Example: SPFEs • SPFE1: • Situation: Elevator door is open • Permitted event: Door closes • Forbidden event: Elevator starts moving • SPFE2: • Situation: Elevator is moving • Permitted event: Elevator stops moving • Forbidden event: Door opens

  14. Relationships • SPFEs should re-express requirements to be checked • Logging policy should specify that we log all events that allow us to determine: • Whether we are in each Situation • Whether each Permitted/Forbidden Event has happened

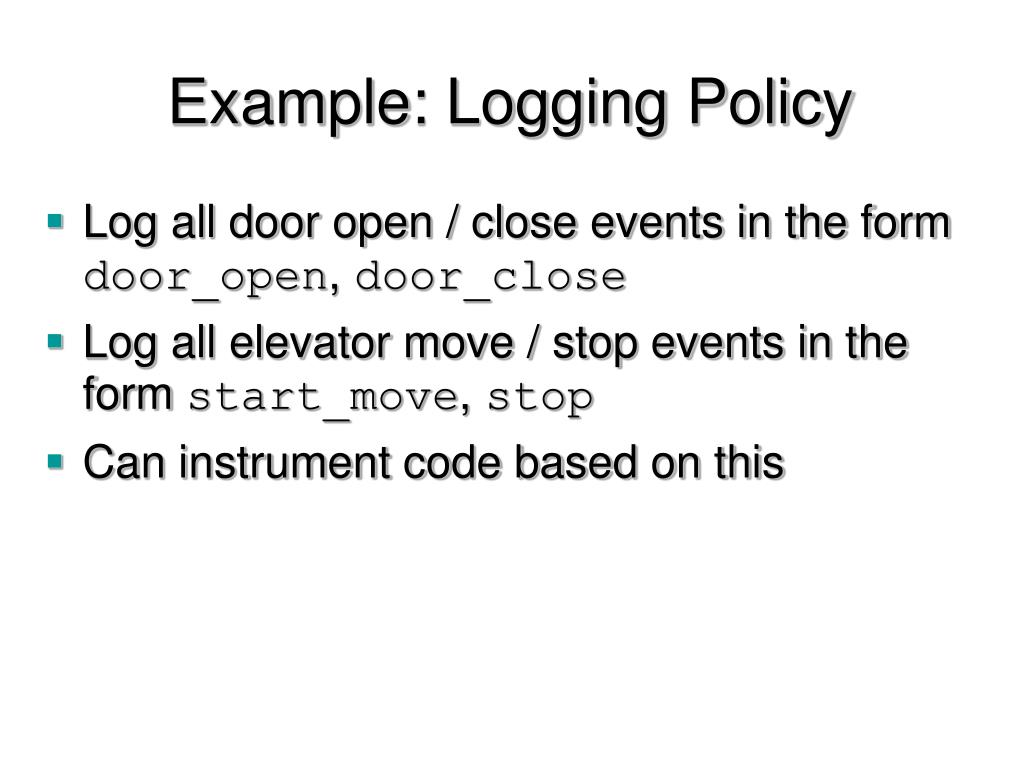

  15. Example: Logging Policy • Log all door open / close events in the form door_open, door_close • Log all elevator move / stop events in the form start_move, stop • Can instrument code based on this

  16. From SPFEs to Analyzer • Situations correspond to states • Permitted events correspond to transitions • Forbidden events should not have any corresponding transition

  17. Example: LFAL Analyzer moving start_move closed_stopped stop door_open open door_close machine door_safety; initial_state closed_stopped; from closed_stopped, on start_move, to moving; from moving, on stop, to closed_stopped; from closed_stopped, on door_open, to open; from open, on door_close, to closed_stopped; final_state Any.

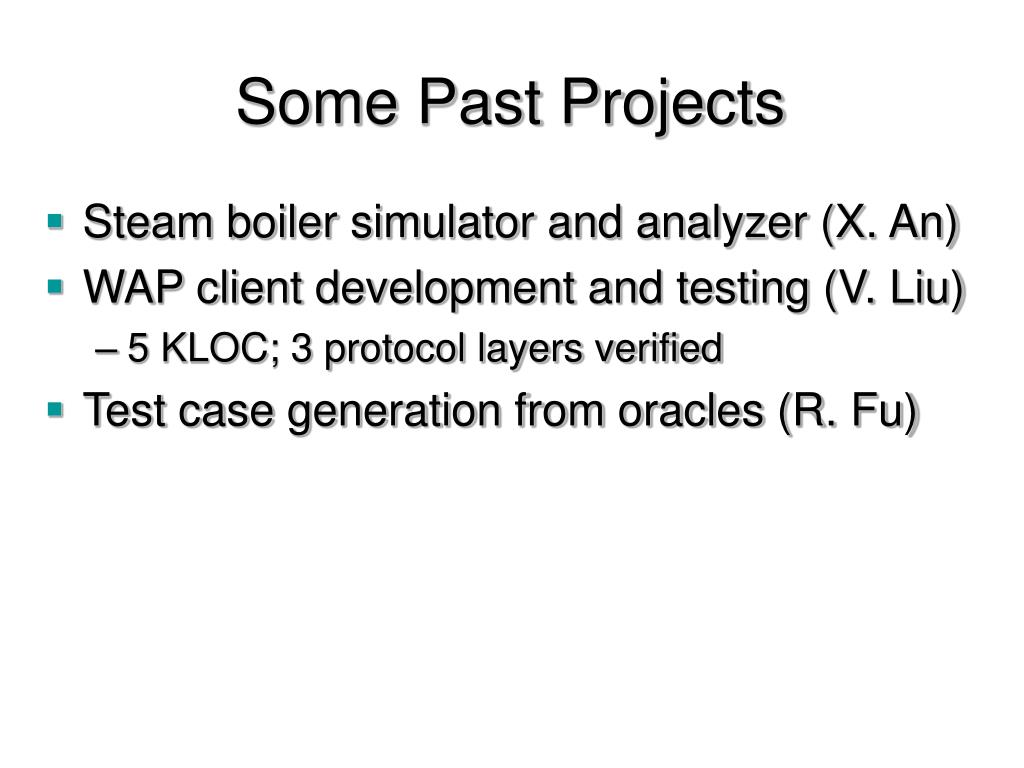

  18. Some Past Projects • Steam boiler simulator and analyzer (X. An) • WAP client development and testing (V. Liu) • 5 KLOC; 3 protocol layers verified • Test case generation from oracles (R. Fu)

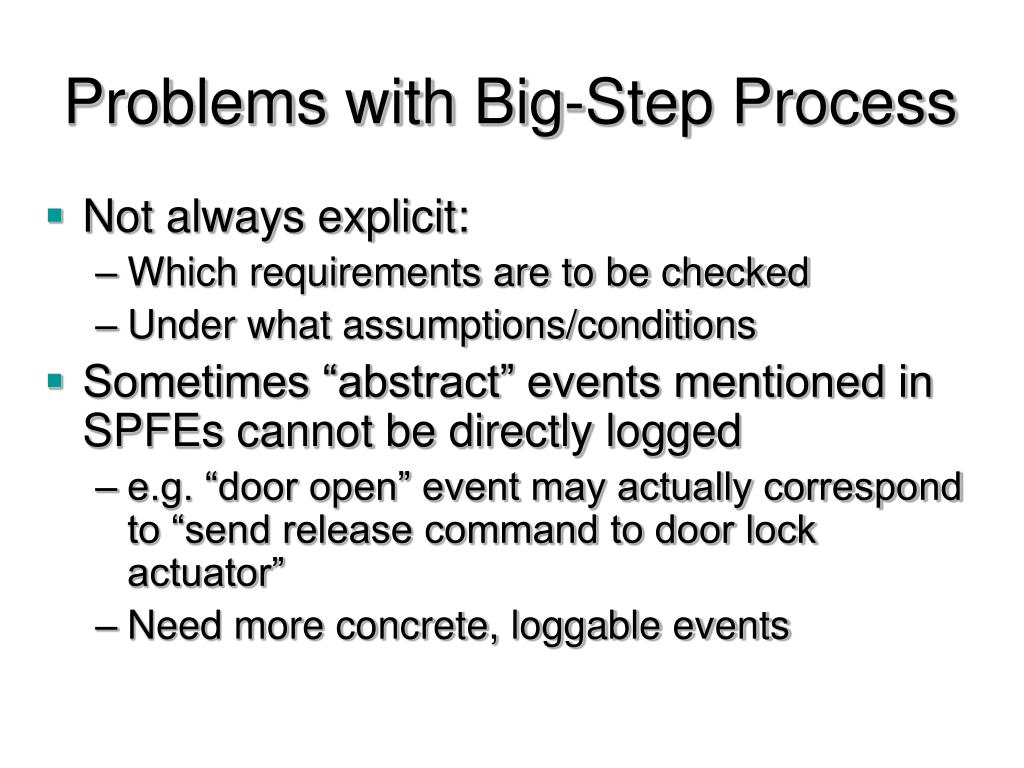

  19. Problems with Big-Step Process • Not always explicit: • Which requirements are to be checked • Under what assumptions/conditions • Sometimes “abstract” events mentioned in SPFEs cannot be directly logged • e.g. “door open” event may actually correspond to “send release command to door lock actuator” • Need more concrete, loggable events

  20. Small-Step Process Requirements to be Checked Checking Assumptions SPFEs Abstract Events Concrete Events Log File Analyzer Program Logging Policy

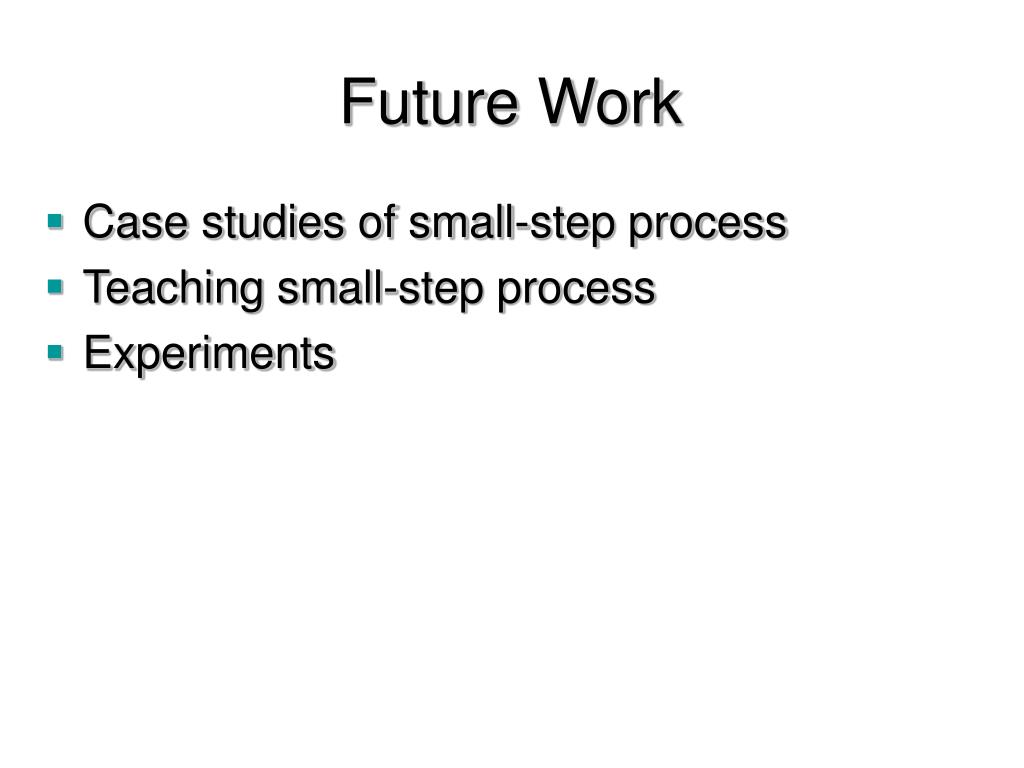

  21. Future Work • Case studies of small-step process • Teaching small-step process • Experiments

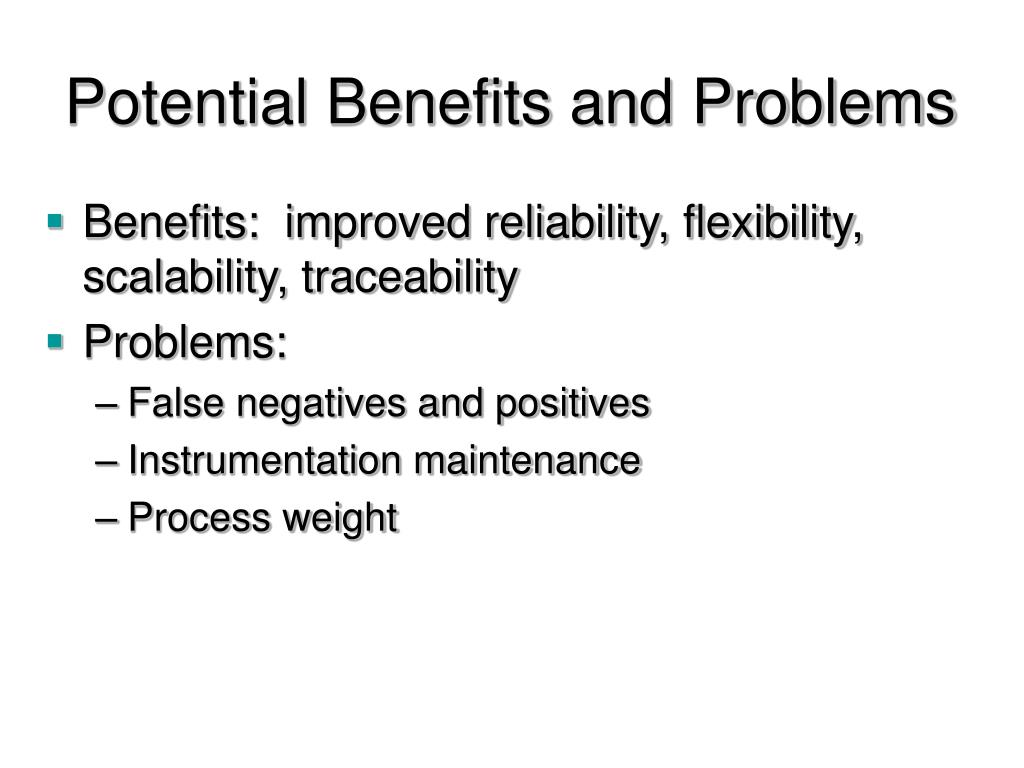

  22. Potential Benefits and Problems • Benefits: improved reliability, flexibility, scalability, traceability • Problems: • False negatives and positives • Instrumentation maintenance • Process weight

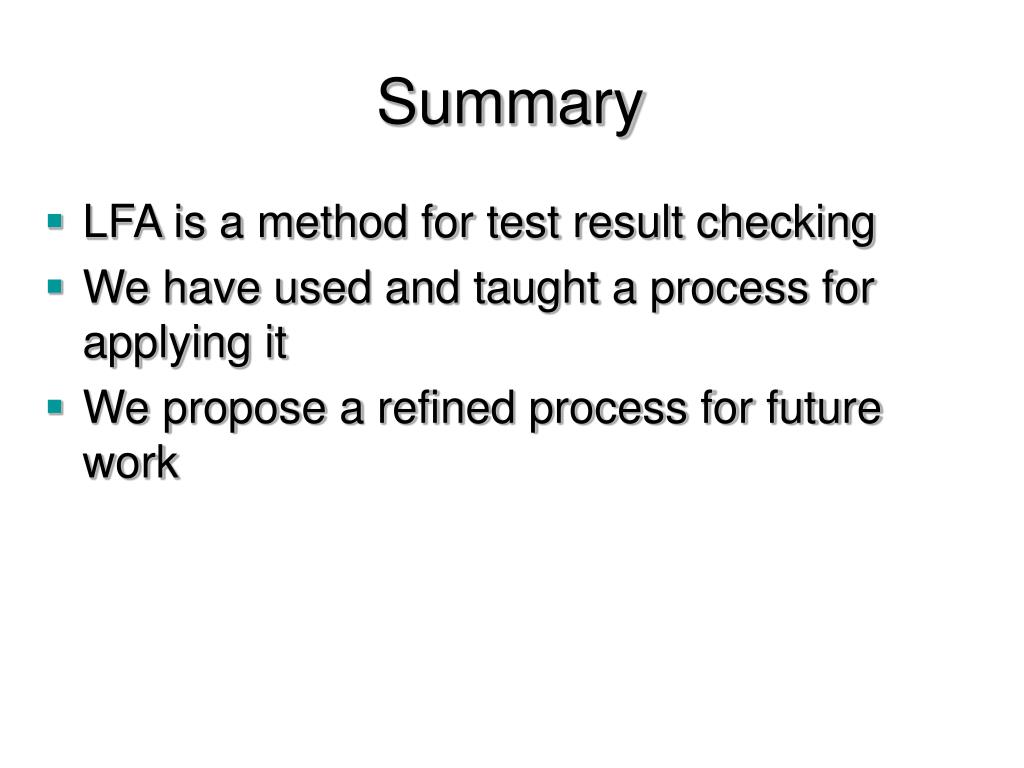

  23. Summary • LFA is a method for test result checking • We have used and taught a process for applying it • We propose a refined process for future work

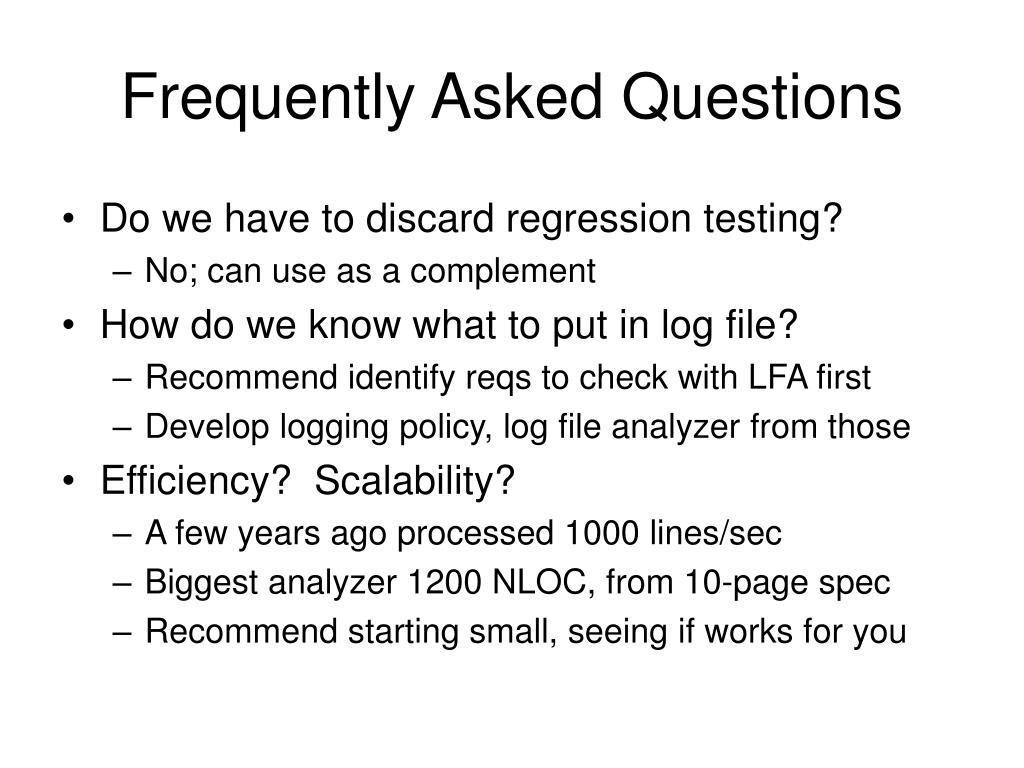

  24. Frequently Asked Questions • Do we have to discard regression testing? • No; can use as a complement • How do we know what to put in log file? • Recommend identify reqs to check with LFA first • Develop logging policy, log file analyzer from those • Efficiency? Scalability? • A few years ago processed 1000 lines/sec • Biggest analyzer 1200 NLOC, from 10-page spec • Recommend starting small, seeing if works for you
