  1. Chapter 33 Foundation Systems

  2. Introduction • All structures are required to have a foundation • Provides a base to distribute weight onto soil • Must be evenly distributed to prevent it from compressing the soil • Must resist floods, winds, earthquakes, and floodwater debris

  3. Soil Considerations • Soil texture • Affects ability to resist load of foundation • Bearing capacity must be known • Structures built low bearing capacity soil require footings

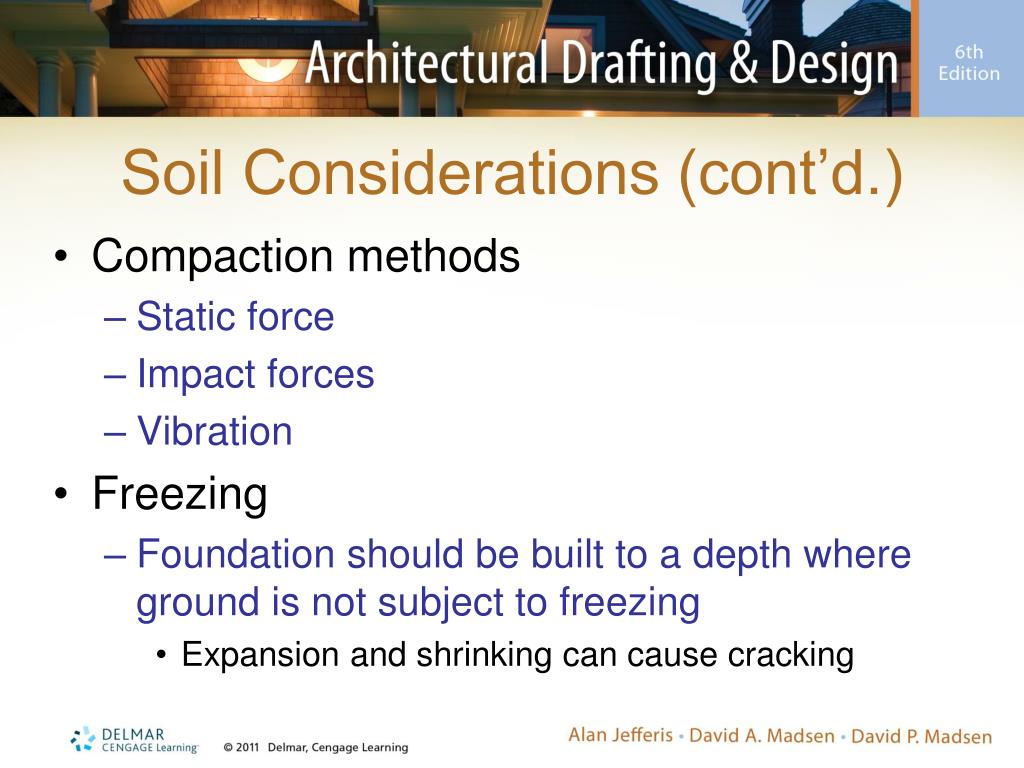

  4. Soil Considerations (cont’d.) • Compaction methods • Static force • Impact forces • Vibration • Freezing • Foundation should be built to a depth where ground is not subject to freezing • Expansion and shrinking can cause cracking

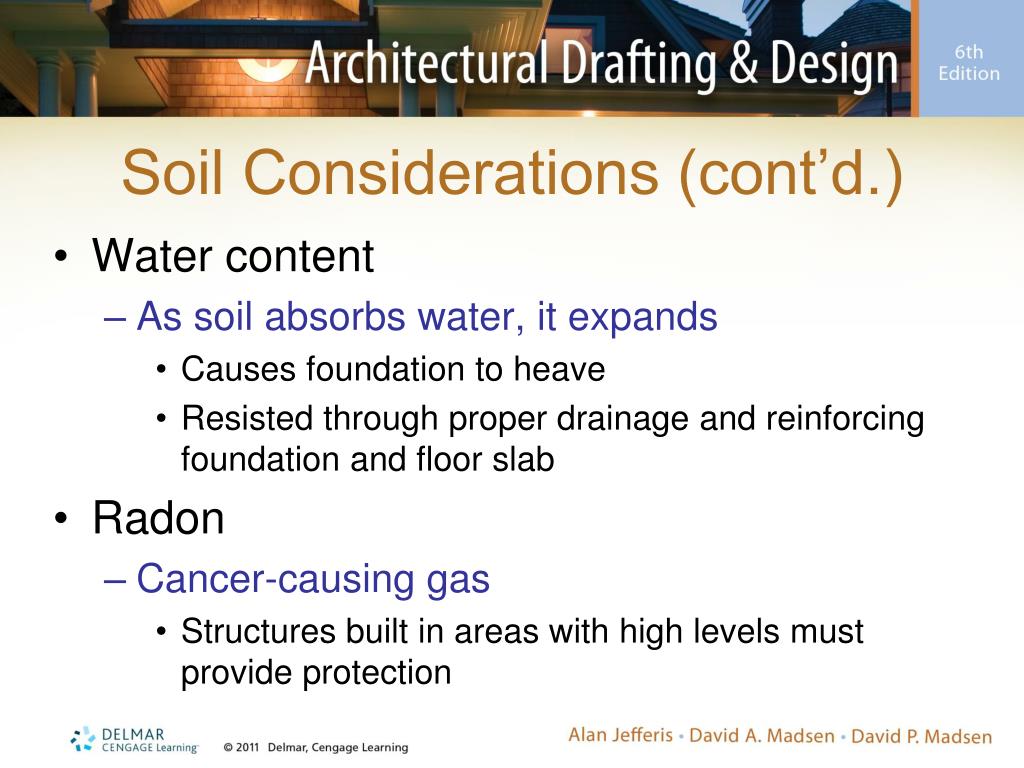

  5. Soil Considerations (cont’d.) • Water content • As soil absorbs water, it expands • Causes foundation to heave • Resisted through proper drainage and reinforcing foundation and floor slab • Radon • Cancer-causing gas • Structures built in areas with high levels must provide protection

  6. Types of Foundations • Piling foundation system • Beams are placed between vertical supports (i.e., piling) to support structural loads • Steep hillsides • Where structure load exceeds soil bearing capacity • Sites subject to flooding or natural forces that cause large amounts of soil to be removed

  7. Types of Foundations (cont’d.) • Continuous or spread foundation • Most common for residential construction • Consists of a footing and wall • Concrete strength must be specified • For areas of soft soil or fill material, reinforcement steel (i.e., rebar) is used

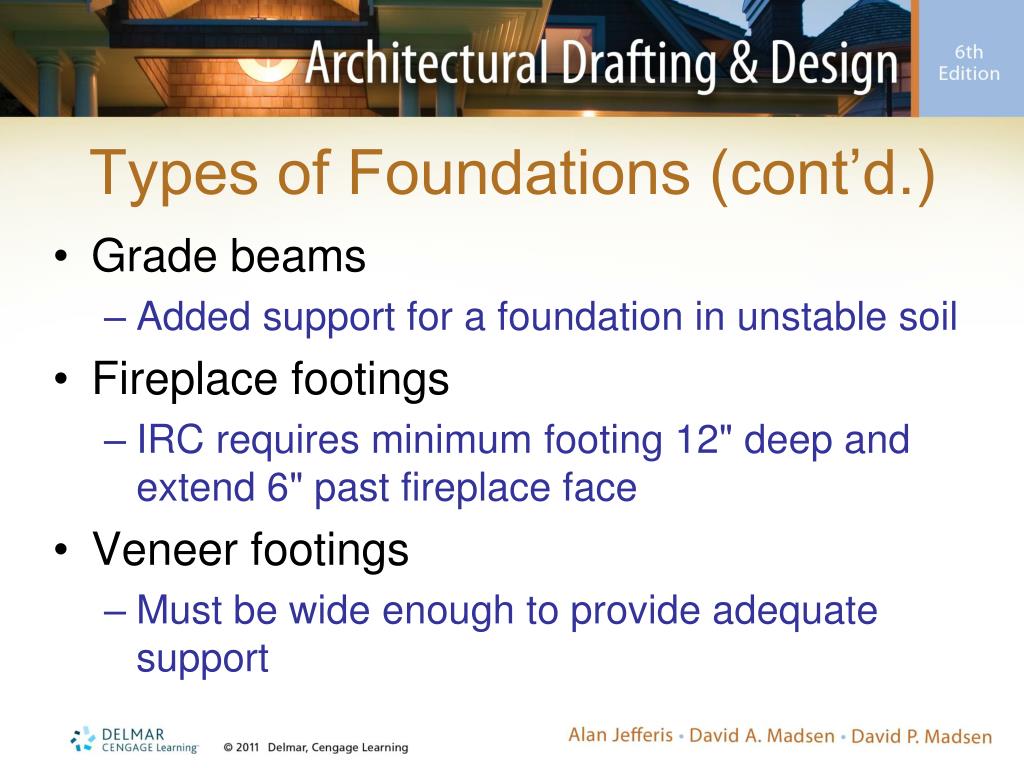

  8. Types of Foundations (cont’d.) • Grade beams • Added support for a foundation in unstable soil • Fireplace footings • IRC requires minimum footing 12" deep and extend 6" past fireplace face • Veneer footings • Must be wide enough to provide adequate support

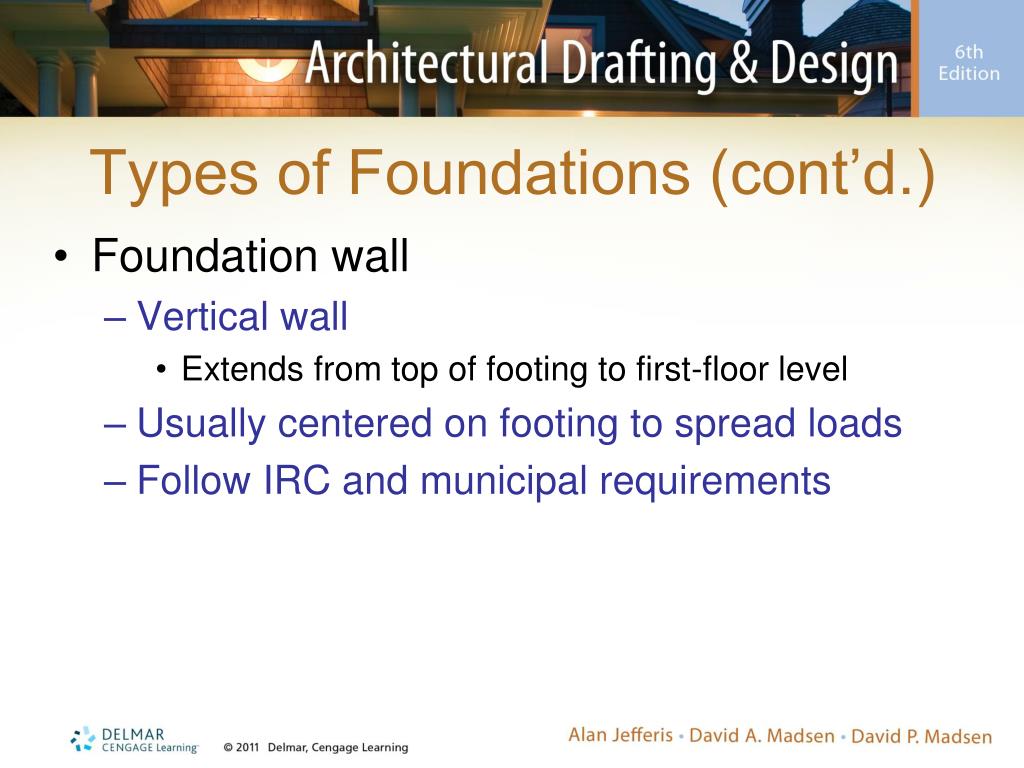

  9. Types of Foundations (cont’d.) • Foundation wall • Vertical wall • Extends from top of footing to first-floor level • Usually centered on footing to spread loads • Follow IRC and municipal requirements

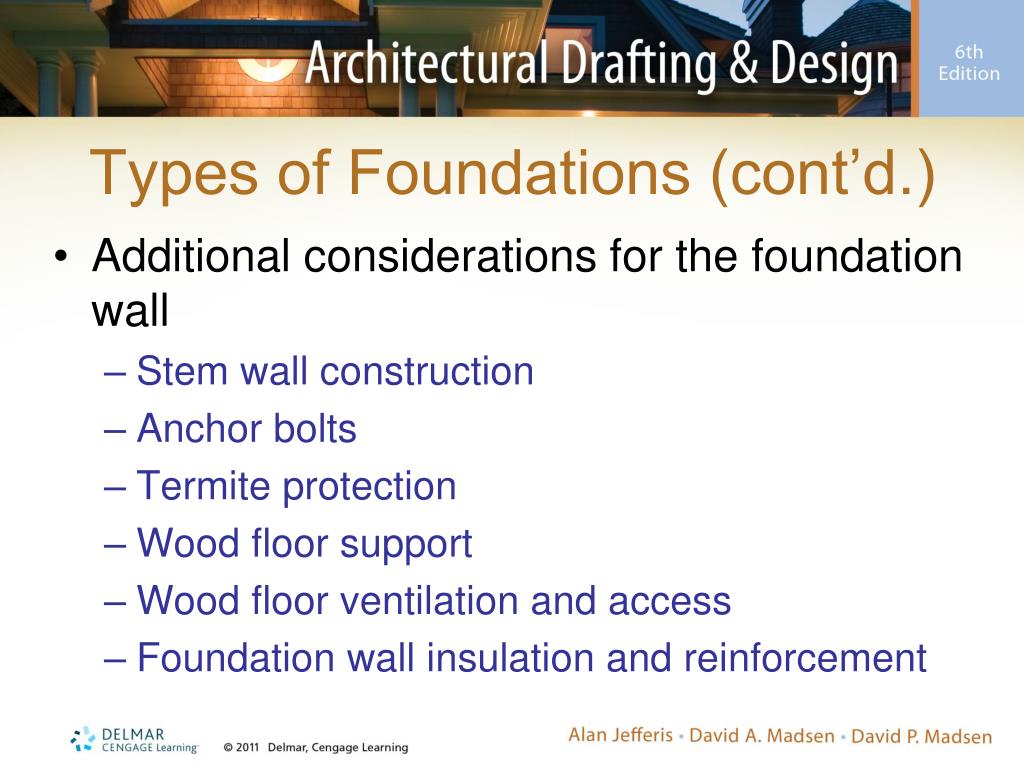

  10. Types of Foundations (cont’d.) • Additional considerations for the foundation wall • Stem wall construction • Anchor bolts • Termite protection • Wood floor support • Wood floor ventilation and access • Foundation wall insulation and reinforcement

  11. Types of Foundations (cont’d.) • Retaining or basement walls • Extends full height between basement floor and main floor level • Primarily made of concrete blocks, poured concrete, or concrete-filled insulated concrete foam blocks • Material used will depend on area trends

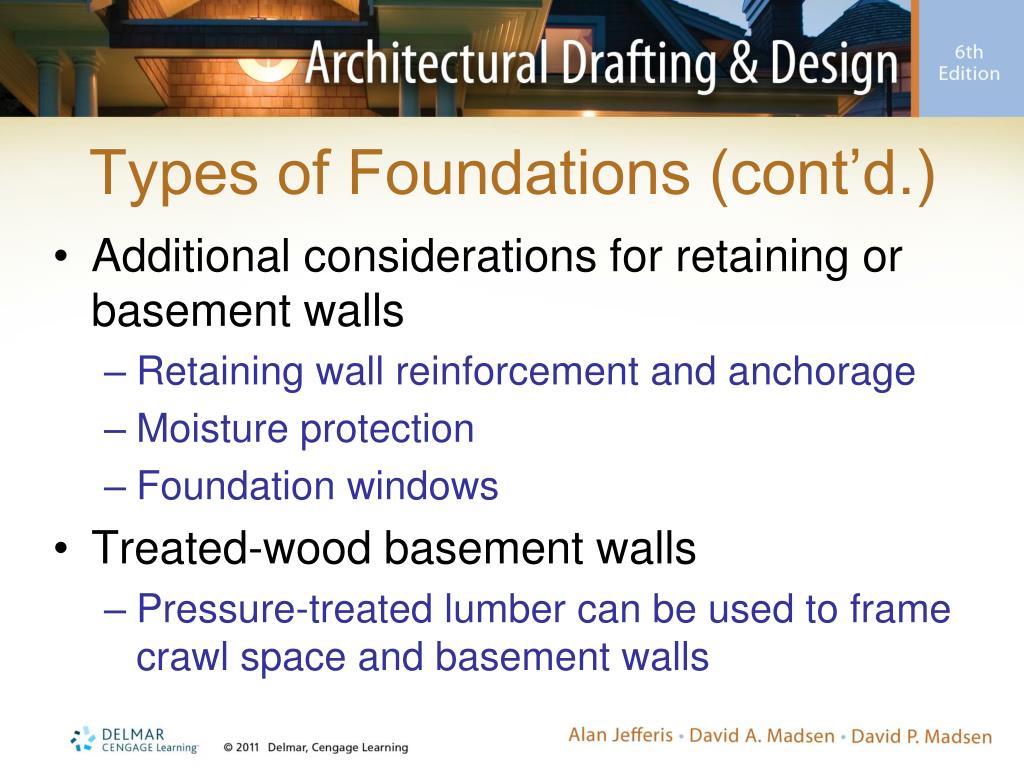

  12. Types of Foundations (cont’d.) • Additional considerations for retaining or basement walls • Retaining wall reinforcement and anchorage • Moisture protection • Foundation windows • Treated-wood basement walls • Pressure-treated lumber can be used to frame crawl space and basement walls

  13. Types of Foundations (cont’d.) • Partial-height retaining walls • When a structure is built on a sloping site, retaining wall will not need to be full height • More problems are encountered

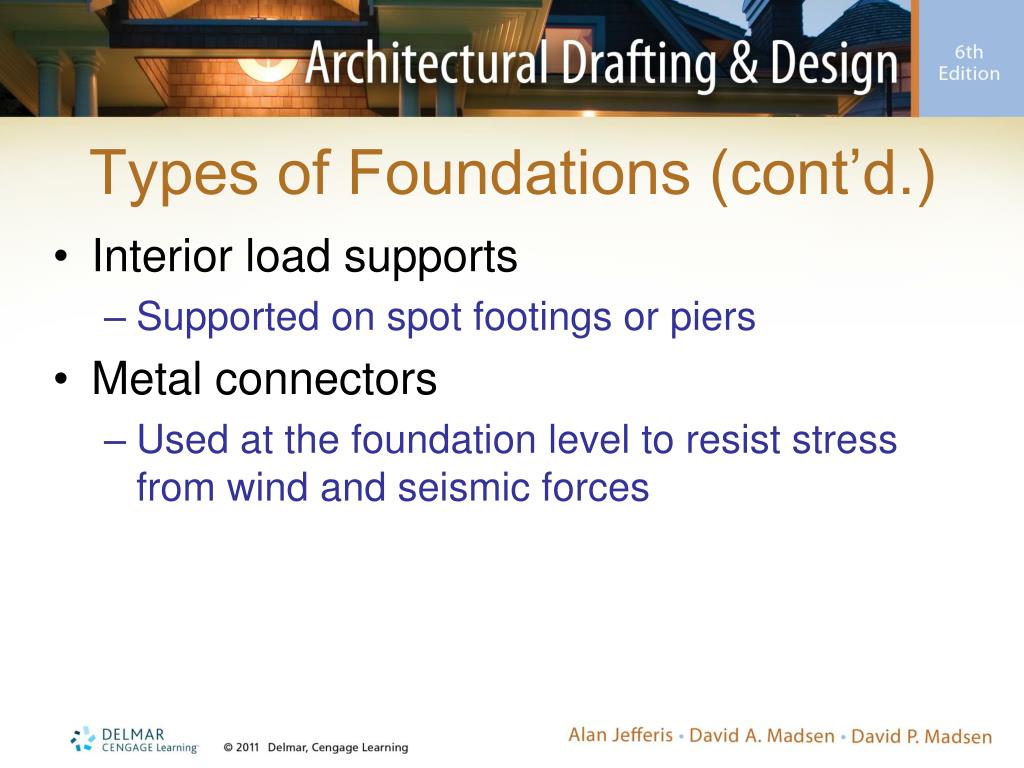

  14. Types of Foundations (cont’d.) • Interior load supports • Supported on spot footings or piers • Metal connectors • Used at the foundation level to resist stress from wind and seismic forces

  15. Dimensioning Foundation Components
