  1. SBTSeries Swingbeam Shears

  2. Capacities • ¼” to ¾” • 10’ and 13’ Lengths Standard Equipment • Touch Screen Control • Programmable Back Gauge Positions • Program Storage • Programmable Stroke Length • 39” High Speed Back Gauge • Swing Away or Up Back Gauge Bar • 60” Squaring Arm • T-Slotted Support Arms with Disappearing Stops (2/10’ – 2/13’) • Tabletop Ball Transfers • Quickset Blade Clearance Setting Optional Equipment Shown with Rear Support System • High Speed Package • Rear Pneumatic Sheet Supports • Conveying & Stacking Systems • Protractor • Longer Support & Squaring Arms

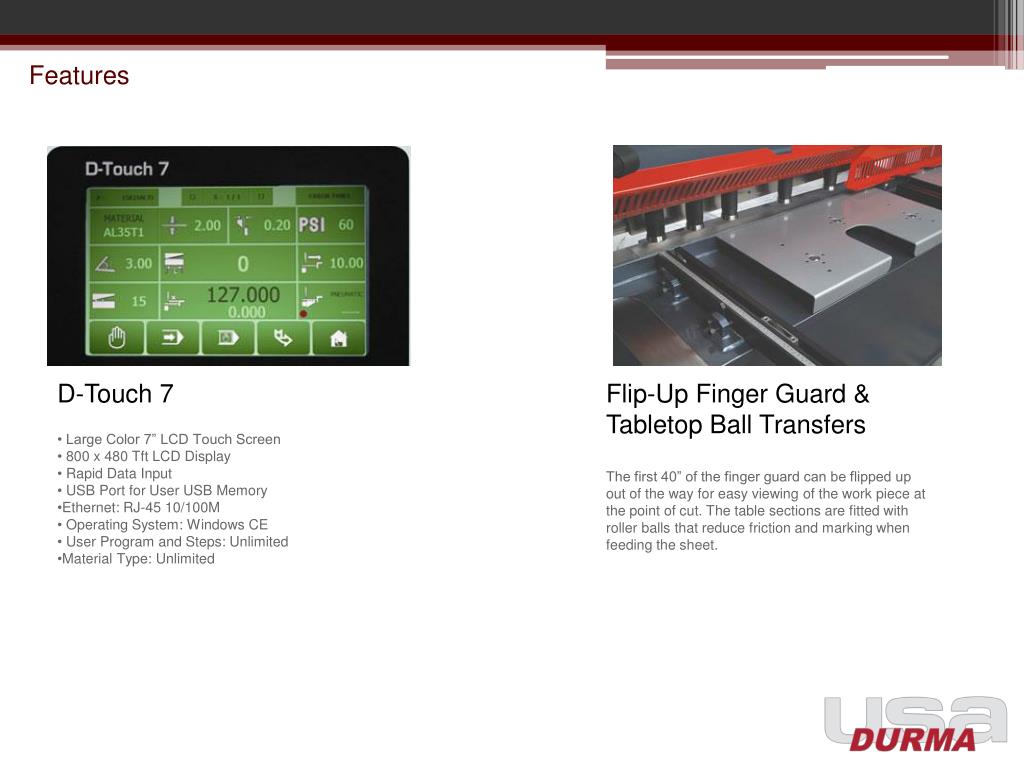

  3. Features D-Touch 7 Flip-Up Finger Guard & Tabletop Ball Transfers • Large Color 7” LCD Touch Screen • 800 x 480 Tft LCD Display • Rapid Data Input • USB Port for User USB Memory • Ethernet: RJ-45 10/100M • Operating System: Windows CE • User Program and Steps: Unlimited • Material Type: Unlimited The first 40” of the finger guard can be flipped up out of the way for easy viewing of the work piece at the point of cut. The table sections are fitted with roller balls that reduce friction and marking when feeding the sheet.

  4. Features Fast Programmable Back Gauge Single Point Blade Clearance The fast programmable back gauge positions via ball screws. It can be used either in a “touch and go” mode or multiple step program held in storage under program number. Depending on the model, the gauge bar either flips up out of the way at the end of its travel, or is of the swing away type. Standard in 10 gauge, optional for 11, 12 or 14 gauge. A quickset single point blade gap adjustment is conveniently located on the side frame of the machine. The operator can easily and quickly change this setting as the material type and thickness demands, for a high quality blank. The different material thicknesses are clearly marked for quick and easy adjustment.

  5. Optional Features Rear Pneumatic Sheet Supports Protractor An optional feature, when shearing long drop pieces of thin material the sheet can droop before it reaches the gauge bar, making it hard to gauge accurately. Support arms are pneumatically activated to support the sheet while gauging, then automatically move away for shearing after the sheet is securely clamped and gauged. This eliminates the need to front gauge and the need to manually support the sheet from the rear side of the machine, which is not only costly but unsafe. This device allows easy and fast angle cutting of the sheet. Calibrated in degrees, the operator can position the sheet at the angle of cut desired.

  6. Optional Features Large Gap High Speed Option Large gaps (minimum 13.7”) in the side frames allow shearing of sheets longer than the blade length. This feature also assists in blade rotations and changes. If processing only thin sheets, sometimes quicker strokes per minute on full length sheets can be of value.

  7. Learn More Datasheets View Online Printer-Friendly Version

  8. Durma Aims for Continuous Development DURMA’s large investment in machining centers and production equipment, as well as its ISO-certified factories totaling 1,350,000 square feet and 1,000 employees, make one of the world’s largest, efficient and most contemporary facilities in the world. In order to offer customer solutions and further develop patents, the DURMA Research and Development center opened in 2010. Fifty engineers were added over the last two years. Designed and engineered with modern technology, DURMA products are equipped with high quality and proven readily available components. Established in 1956, DURMA has vast experience in building and supplying quality products. With over 60,000 machines delivered worldwide, DURMA has earned the reputation as a supplier of innovative, “value oriented” solutions. Your partner today, tomorrow and forever.
