Presentation Transcript

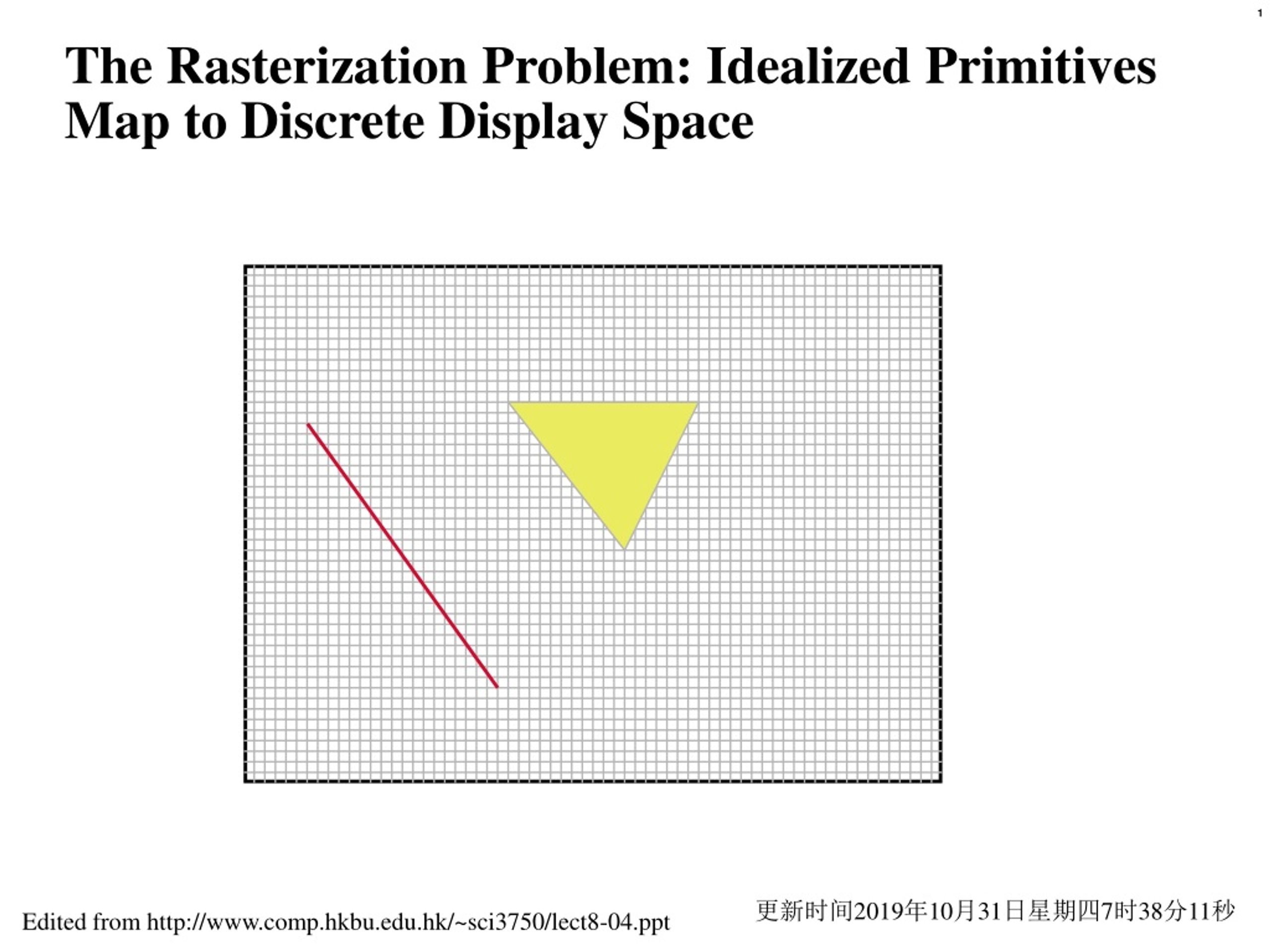

  1. The Rasterization Problem: Idealized PrimitivesMap to Discrete Display Space Edited from http://www.comp.hkbu.edu.hk/~sci3750/lect8-04.ppt 更新时间2019年10月31日星期四7时38分11秒

  2. Solution Involves Selection of DiscreteRepresentation Values Edited from http://www.comp.hkbu.edu.hk/~sci3750/lect8-04.ppt

  3. Scan Converting Lines:Characterizing the Problem ideal line i.e. for each x, choose y i.e. for each y, choose x Edited from http://www.comp.hkbu.edu.hk/~sci3750/lect8-04.ppt

  4. Scan Converting Lines:The Strategy • Pick pixels closest to endpoints • Select in between pixels “closest” to ideal line • Objective: To minimize the required calculations. • Pixels can be displayed in multiple shapes and sizes. • In OpenGL, the centers of pixels are located at values halfway between intergers. Edited from http://www.comp.hkbu.edu.hk/~sci3750/lect8-04.ppt

  5. Calculate ideal line equation Starting at leftmost point: for each xi Calculate Select pixel at Scan Converting Lines:DDA (Digital Differential Analyzer) Algorithm Selected Not Selected Edited from http://www.comp.hkbu.edu.hk/~sci3750/lect8-04.ppt

  6. Scan Converting Lines:DDA Algorithm, Incremental Form Therefore, rather than recomputing y in each step, simply add m. The Algorithm: void Line(int x0, int y0, int xn, int yn) { int x; float dy, dx, y, m; dy = yn - y0; dx = xn - x0; m = dy/dx; y = y0; for (x = x0; x<=xn,x++){ WritePixel(x, round(y)); y += m; } } Edited from http://www.comp.hkbu.edu.hk/~sci3750/lect8-04.ppt

  7. We assume m ≤1 in the above. • For larger slope, the separation between pixels can be large, generating an unacceptable rendering of the line segment. • We swap the roles of x and y for line segments with larger slopes. Edited from http://www.comp.hkbu.edu.hk/~sci3750/lect8-04.ppt

  8. Not Allowed Option NE 0 <= Slope <= 1 Option E Last Selection Bresenham’s Algorithm:Allowable Pixel Selections • DDA requires a floating-point addition. • Bresenham derived an algorithm that avoids all floating-point claculations. Edited from http://www.comp.hkbu.edu.hk/~sci3750/lect8-04.ppt

  9. Bresenham’s Algorithm:Iterating 0 <= Slope <= 1 Select E Select NE Edited from http://www.comp.hkbu.edu.hk/~sci3750/lect8-04.ppt

  10. Bresenham’s AlgorithmDecision Function: (implicit equation of the line) Edited from http://www.comp.hkbu.edu.hk/~sci3750/lect8-04.ppt

  11. Bresenham’s Algorithm:Calculating the Decision Function Edited from http://www.comp.hkbu.edu.hk/~sci3750/lect8-04.ppt

  12. Option NE Option E Bresenham’s Algorithm:Incremental Calculation of di Edited from http://www.comp.hkbu.edu.hk/~sci3750/lect8-04.ppt

  13. Bresenham’s Algorithm:The Code void BresenhamLine(int x0, int y0, int xn, int yn) { int dx,dy,incrE,incrNE,d,x,y; dx=xn-x0; dy=yn-y0; d=2*dy-dx; /* initial value of d */ incrE=2*dy; /* decision funct incr for E */ incrNE=2*dy-2*dx; /* decision funct incr for NE */ x=x0; y=y0; DrawPixel(x,y) /* draw the first pixel */ while (x<xn){ if (d<=0){ /* choose E */ d+=incrE; x++; /* move E */ }else{ /* choose NE */ d+=incrNE; x++; y++; /* move NE */ } DrawPixel (x,y); } } Edited from http://www.comp.hkbu.edu.hk/~sci3750/lect8-04.ppt

  14. Bresenham’s AlgorithmAn example 12 11 10 9 8 7 4 5 6 7 8 9 Edited from http://www.comp.hkbu.edu.hk/~sci3750/lect8-04.ppt

  15. Bresenham’s AlgorithmAn example 12 11 10 9 8 7 4 5 6 7 8 9 Edited from http://www.comp.hkbu.edu.hk/~sci3750/lect8-04.ppt

  16. Bresenham’s AlgorithmAn example 12 11 10 9 8 7 4 5 6 7 8 9 Edited from http://www.comp.hkbu.edu.hk/~sci3750/lect8-04.ppt

  17. Another derivation: comparing d1 and d2 Not Allowed Option NE 0 <= Slope <= 1 d1 d2 Last Selection Option E Ref. [HA], Section 3.2.2 Edited from http://www.comp.hkbu.edu.hk/~sci3750/lect8-04.ppt
