  1. DNA Computing Zhe Wang

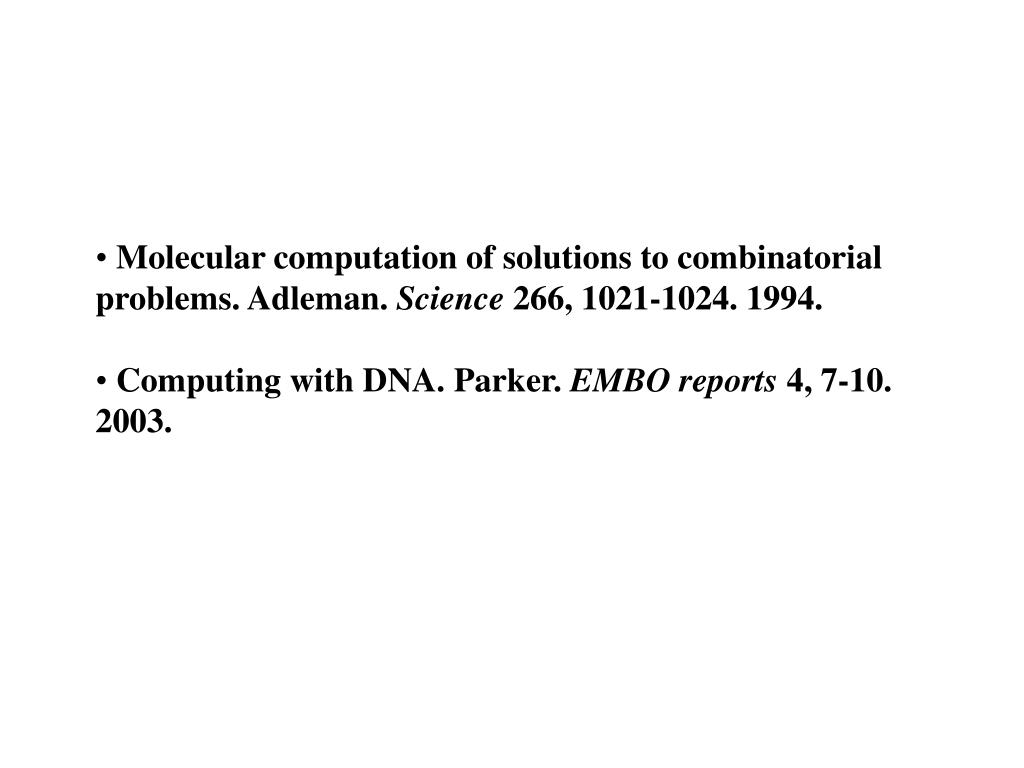

  2. Molecular computation of solutions to combinatorial • problems. Adleman. Science 266, 1021-1024. 1994. • Computing with DNA. Parker. EMBO reports 4, 7-10. • 2003.

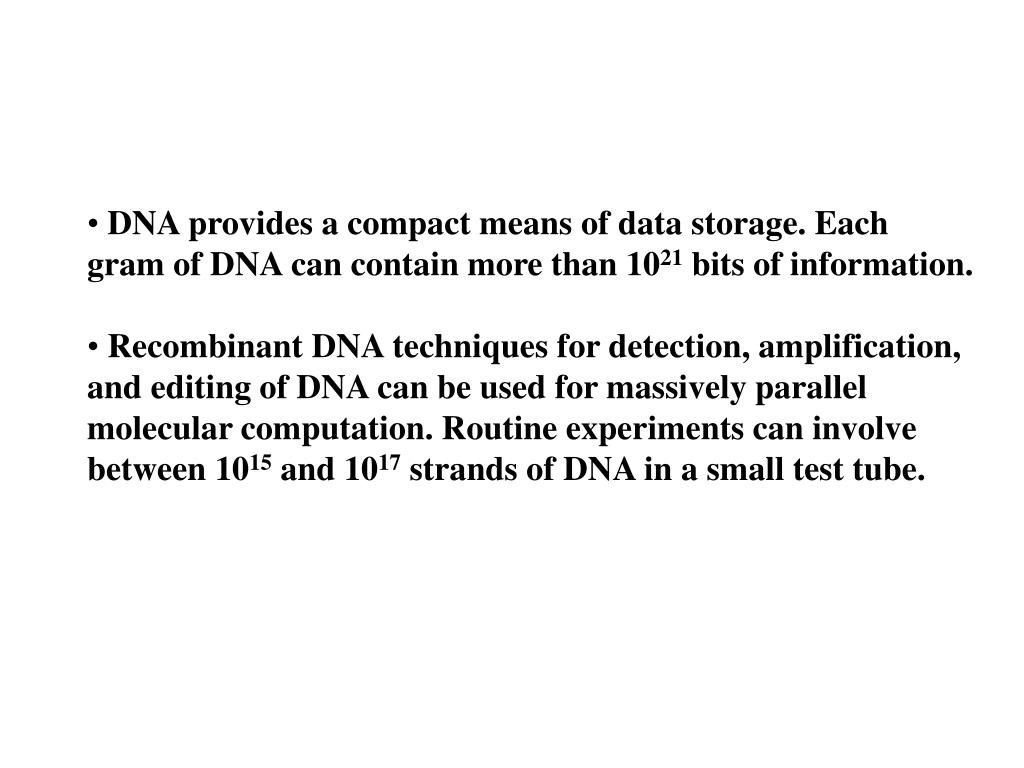

  3. DNA provides a compact means of data storage. Each • gram of DNA can contain more than 1021 bits of information. • Recombinant DNA techniques for detection, amplification, • and editing of DNA can be used for massively parallel • molecular computation. Routine experiments can involve • between 1015 and 1017 strands of DNA in a small test tube.

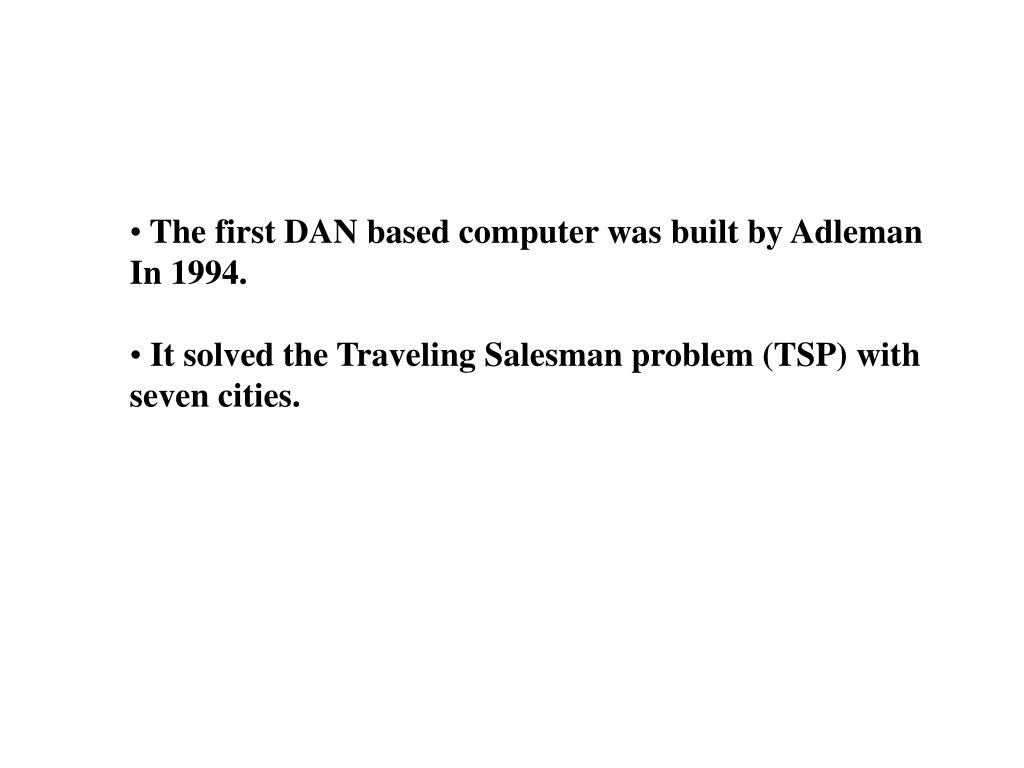

  4. The first DAN based computer was built by Adleman • In 1994. • It solved the Traveling Salesman problem (TSP) with • seven cities.

  5. TSP is a Hamiltonian path problem and NP-complete problem. There is a unique Hamiltonian path (01, 12, 23, 34, 45, 56) that begins with city 0 and ends with city 6.

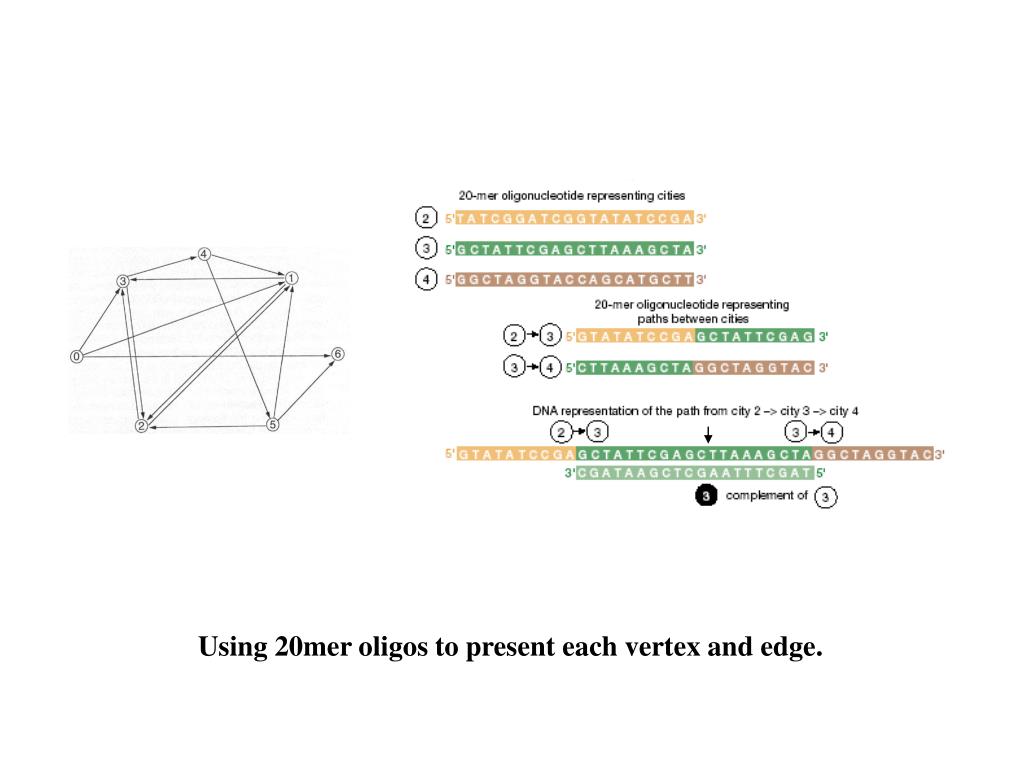

  6. Using 20mer oligos to present each vertex and edge.

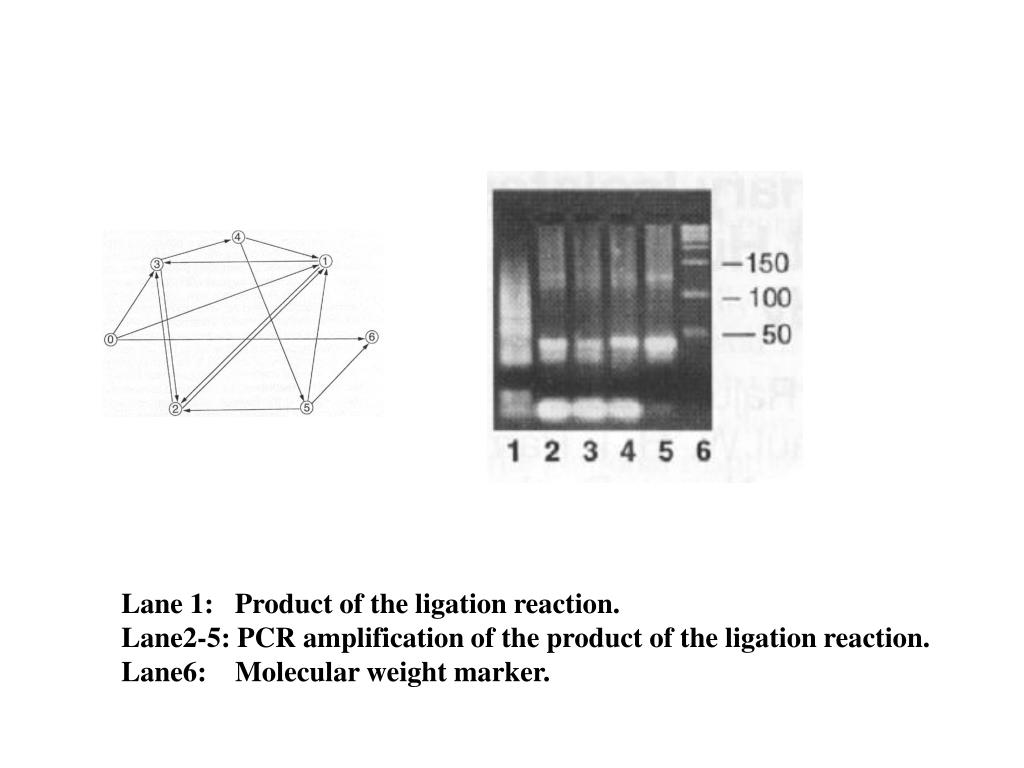

  7. Lane 1: Product of the ligation reaction. Lane2-5: PCR amplification of the product of the ligation reaction. Lane6: Molecular weight marker.

  8. Printing out the results by Graduated PCR. (Bands of 40, 60, 80, 100, 120, 140 bp in successive lanes represent a Hamiltonian path.)

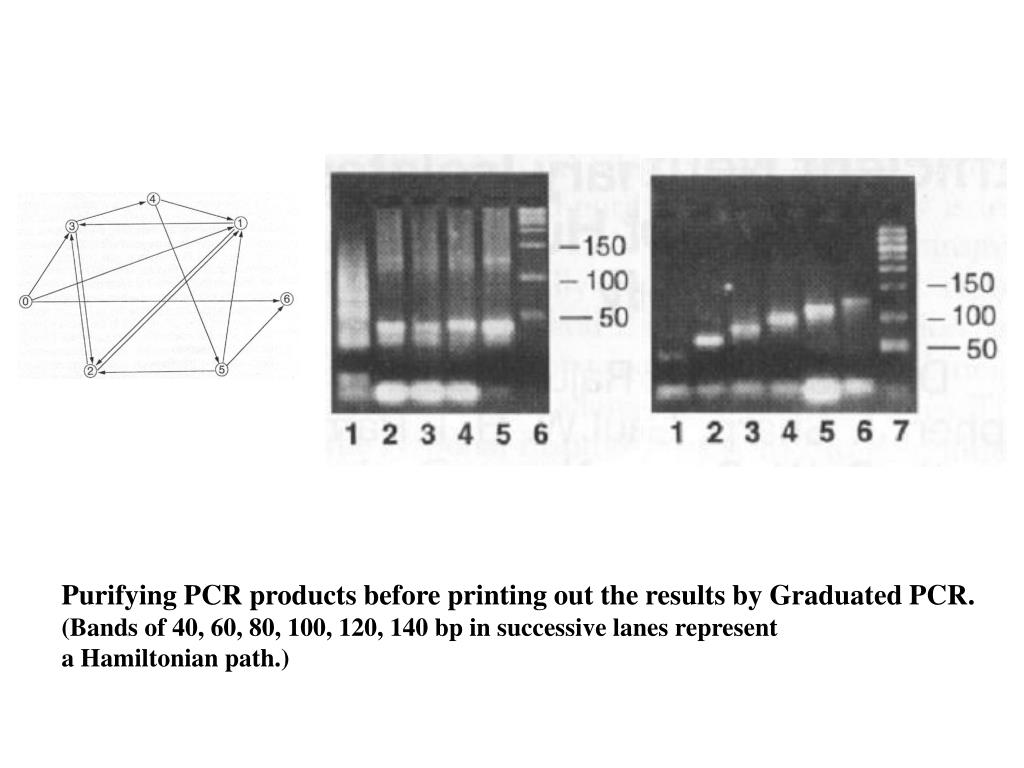

  9. Purifying PCR products before printing out the results by Graduated PCR. (Bands of 40, 60, 80, 100, 120, 140 bp in successive lanes represent a Hamiltonian path.)

  10. DNA computing - Advantages • Computing with DNA has massive advantages over silicon-based machine. • Adleman’s DNA computer did 1,014 operations per second, a rate of 100 Trilion floating point operations per second (100 Teraflops). The world’s fastest supercomputer, Earth Simulator, runs at just 35.8 Teraflops. • Another advantage is the potential of information storage .

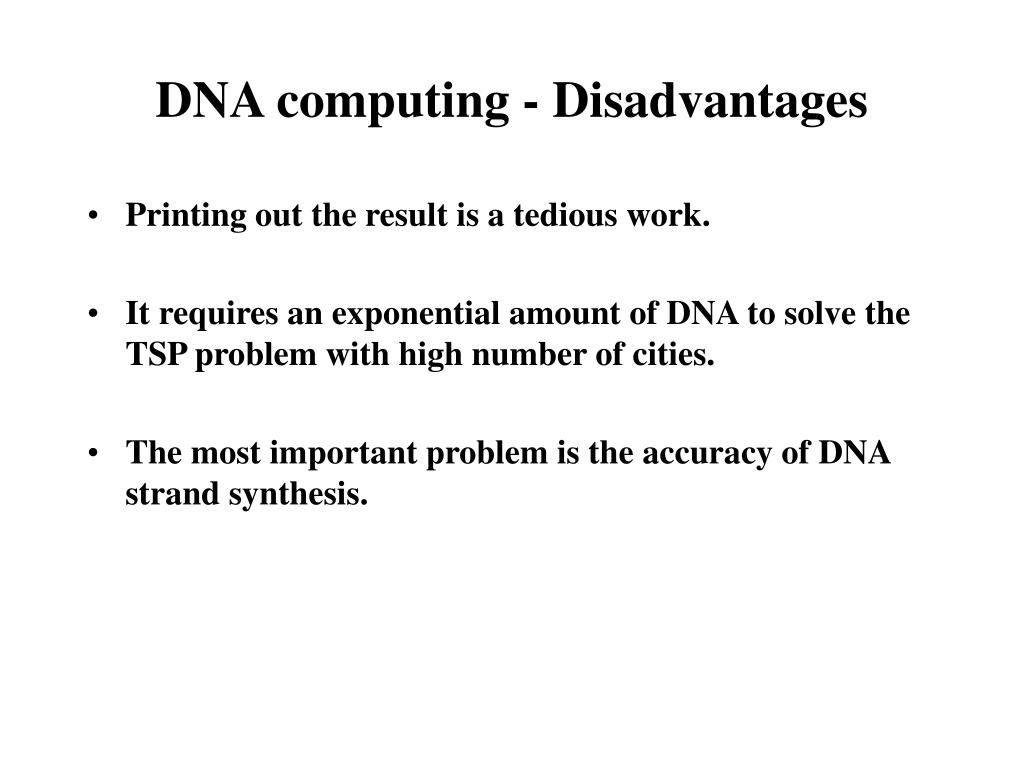

  11. DNA computing - Disadvantages • Printing out the result is a tedious work. • It requires an exponential amount of DNA to solve the TSP problem with high number of cities. • The most important problem is the accuracy of DNA strand synthesis.

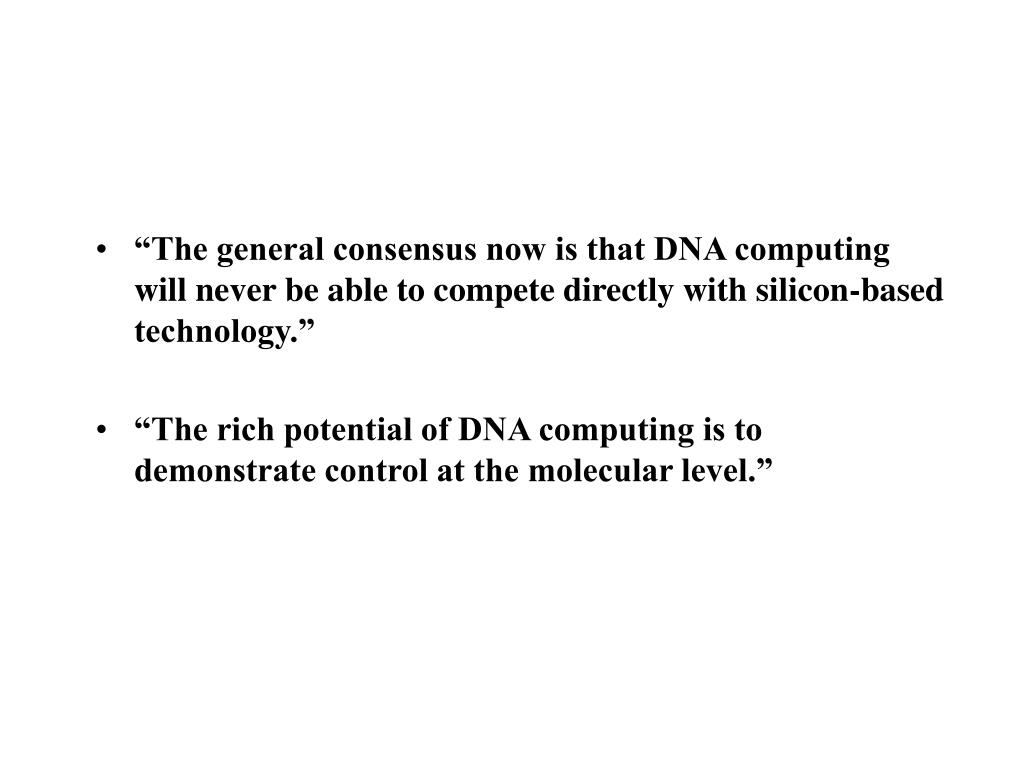

  12. “The general consensus now is that DNA computing will never be able to compete directly with silicon-based technology.” • “The rich potential of DNA computing is to demonstrate control at the molecular level.”
