  1. BBT Technology Bader Al-Yousif Bader Halwani Thamer Al-Mutairi

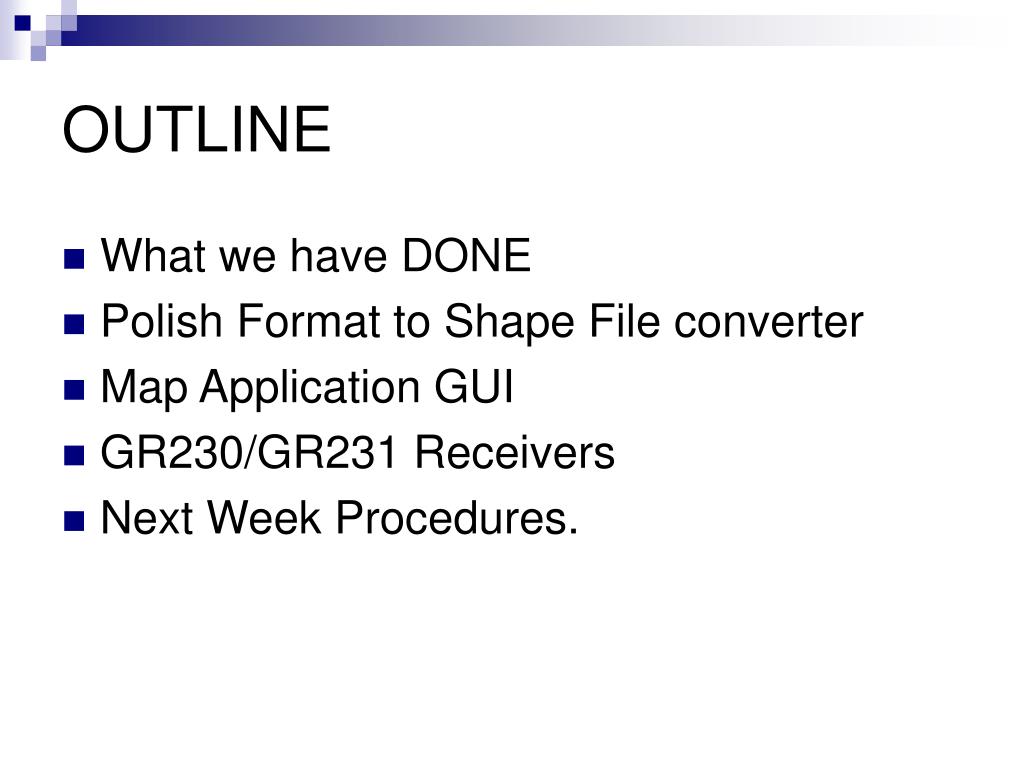

  2. OUTLINE • What we have DONE • Polish Format to Shape File converter • Map Application GUI • GR230/GR231 Receivers • Next Week Procedures.

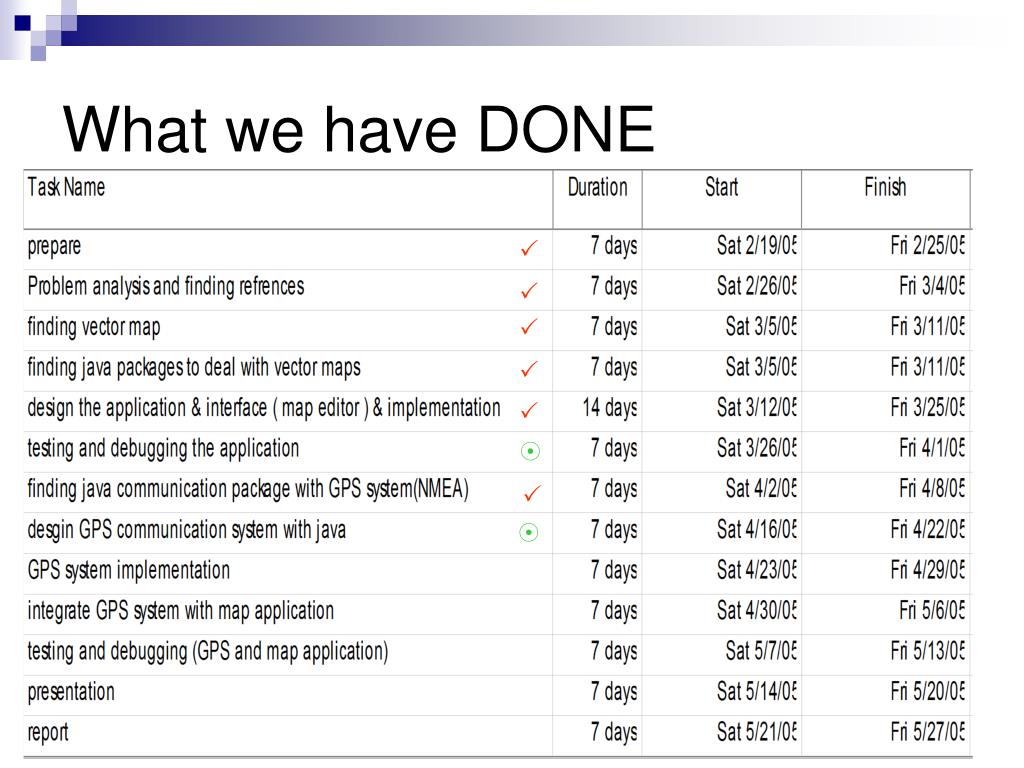

  3. P P P P P 8 P 8 What we have DONE

  4. Polish to Shape Converter • cGpsMapper Software (without GUI). • This software makes it possible to create vectors maps which can be downloaded to Garmin GPS receivers.It can convert the polish format (mp) to ESRI Shape files (shp) and Garmin image file (img). • http://gps.chrisb.org/en/download.htm

  5. Map Application GUI

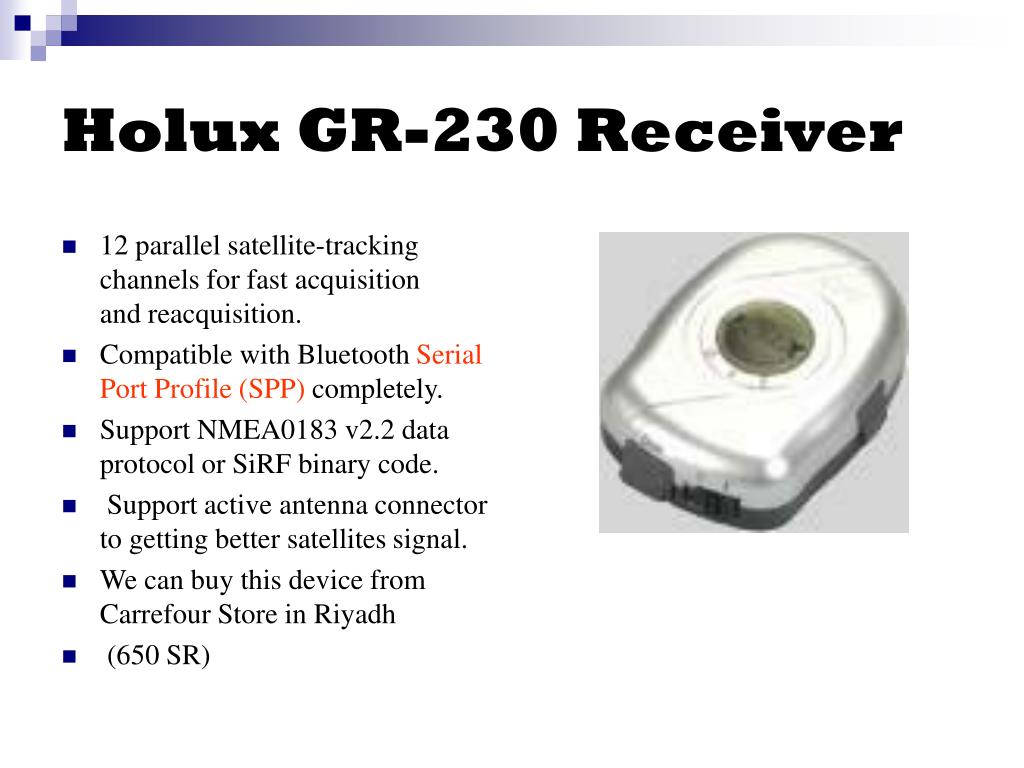

  6. Holux GR-230 Receiver • 12 parallel satellite-tracking channels for fast acquisition and reacquisition. • Compatible with Bluetooth Serial Port Profile (SPP) completely. • Support NMEA0183 v2.2 data protocol or SiRF binary code. • Support active antenna connector to getting better satellites signal. • We can buy this device from Carrefour Store in Riyadh • (650 SR)

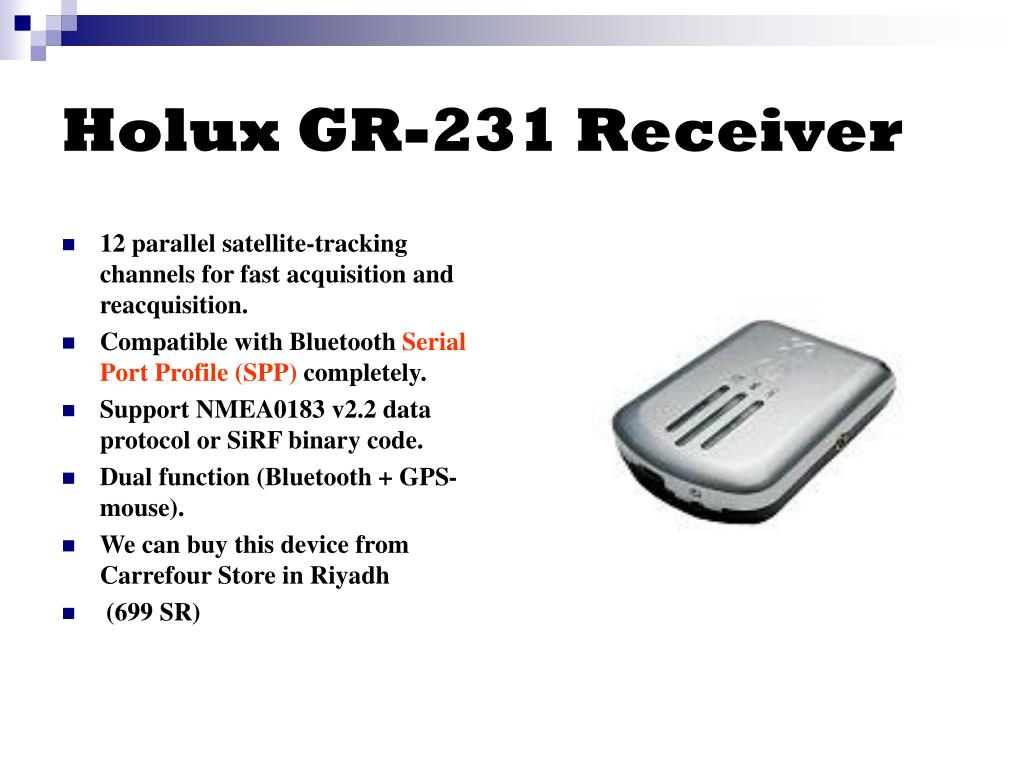

  7. Holux GR-231 Receiver • 12 parallel satellite-tracking channels for fast acquisition and reacquisition. • Compatible with Bluetooth Serial Port Profile (SPP) completely. • Support NMEA0183 v2.2 data protocol or SiRF binary code. • Dual function (Bluetooth + GPS-mouse). • We can buy this device from Carrefour Store in Riyadh • (699 SR)

  8. How Can we Attach them By using this connecter : USB to Serial Port

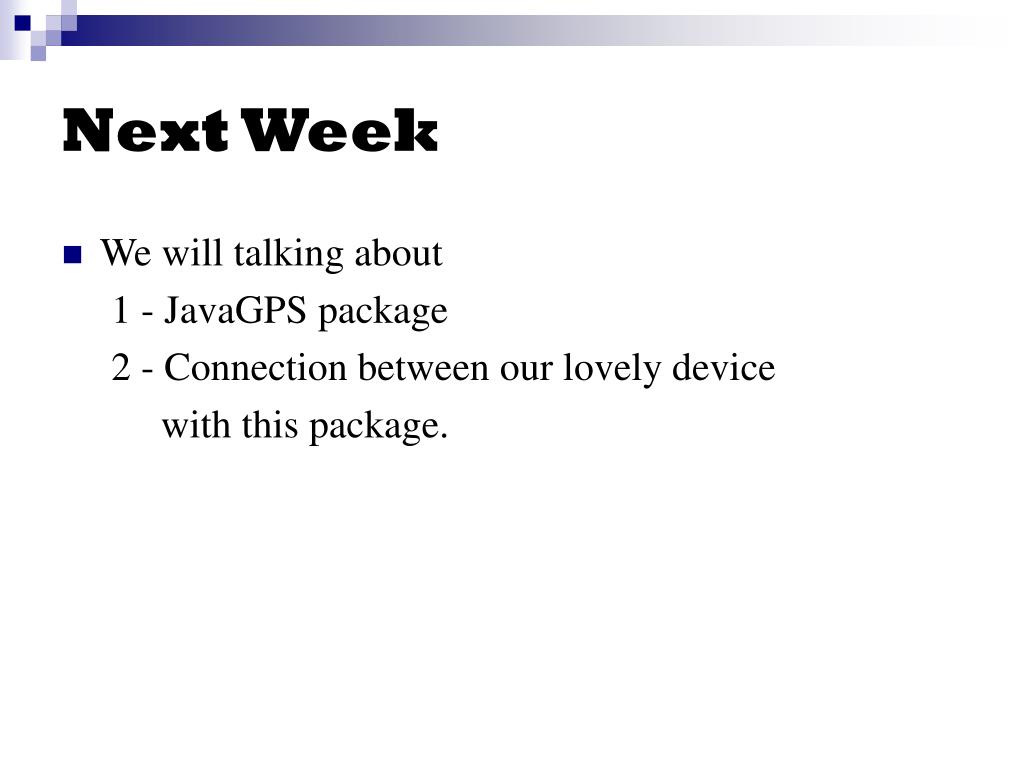

  9. Next Week • We will talking about 1 - JavaGPS package 2 - Connection between our lovely device with this package.
