Evolution of Teamwork in Multiagent Systems

1. Evolution of Teamwork in Multiagent Systems Research Preparation Examination by Jacob Schrum

2. Why Multiple Agents? • Many applications • Physical World • Robotics • Autonomous automobiles • Military applications • Network Systems • Artificial World • Games • Graphics • Entertainment • Artificial Life

3. Why Multiagent Perspective? • Decentralized control • Failure recovery • Individual agents simpler than whole • Some environments don’t support central control • Human interaction • Humans are also agents • Agents interacting with humans are in MAS

4. Teamwork in Multiagent Systems • Problem divided amongst many agents • Teamwork often required for success • Communication sometimes an issue • How to learn teamwork: open question

5. Direct Approach: Careful Design • Hand code everything • Benefits: • Understand end product • Drawbacks: • Not general • Difficult • Programmer time • Common in: • Robotics • Video games • Most deployed systems • What if no one knows how to program it?

6. Learn it: Reinforcement Learning • Environment is Markov Decision Process • Learn optimal policy • Depends on value function (TD methods) • Proven convergence in tabular case • Function approximation needed for bigger problems • Problems with Partially Observable MDPs • Successes in • Pred/Prey Scenarios (Tan 1993) • Soccer keep away (Kalyanakrishnan, Stone 2009) • Robocup soccer (many…)

7. Breed it: Evolution • Based on evolution via natural selection • Benefits: • Less restrictive policy representation • Demonstrated success in POMDP domains • Drawbacks: • Computationally intensive • Time intensive • Focus of talk

8. Evolution Basics • Initialize population P • Evaluate all p in P (assign fitness) • Derive P’ by selecting/modifying members of P based on their fitness scores • Repeat from step 2 with P’ as P until done • P’ is usually similar to P, but slightly better • Many variations: • Genetic Algorithms, Evolution Strategies, etc.

9. Evolution in Multiagent Systems • Team Composition • Homogeneous • Heterogeneous • Heterogeneous from Subpopulations • Entire population • Type of Selection • Individual • Team • Self-Selection • Multiple Objectives Pick one member from each subpopulation to make a team

10. 1.A. Homogeneous Teams • Team members share same policy • Members know what to expect from team members • One individual evaluated per trial • Evaluations reliable because of consistent team composition

11. 1.B. Heterogeneous Teams • Team composed of several policies • Uncertainty as to who teammates will be • Multiple individuals evaluated per trial • Evaluation differs depending on choice of team members

12. 1.C. Subpopulations • Each slot filled by representative from specific subpopulation • Subpopulations specialize • Individuals know what to expect of members in each slot • Team composition is still heterogeneous

13. 1.D. Entire Population • The entire population is seen as a cooperating team • Team level selection not possible • Population may divide into competing subpopulations • Mating restrictions • Genetic/Tag-based recognition

14. 2.A. Individual Selection • Individuals selected based on own fitness • Commonly used with heterogeneous teams • Can result in selfish behaviors • Altruism relevant • sacrificing own fitness to raise fitness of another • Reciprocity relevant • helping another to get help in return

15. 2.B. Team Selection • Individuals selected based on team fitness • Common fitness, sum, average, etc. • Commonly used with homogeneous teams • Enables slackers in heterogeneous teams • Altruism and reciprocity have no meaning • No credit assignment problems between members

16. 2.C. Self-Selection • Individuals choose when and with whom to mate • Common in Artificial Life simulations • AL studies emergence of biological phenomena • Usually involves a spatial component • Extinction is possible • Auto restart • Spawn new members

17. 3. Multiple Objectives • Assume individual has fitness scores: • F = (f1,…,fN) in objectives 1 through N • Which values of F are best? • Traditional approach • fitness(F) = f1*w1 + … + fN*wN for weights w1,…,wN • Pareto-based approach • Partition population into non-dominated Pareto fronts • Assign fitness based on Pareto-front

18. Pareto Front Example • Each point represents an individual’s scores • Point dominates other points in its box • 3 Pareto fronts of non-dominated points

19. Case Studies • Review State of the Art • For each study: • Classify type of selection • Classify team composition • Identify unanswered questions • Future research directions

20. AntFarm • Evolve foraging behavior • Pheromones to communicate • Individual selection • Entire population as a team • No cooperative foraging! • Likely cause: individual selection • Individual selection offers less incentive for teamwork • Teamwork especially difficult when there is only one team * AntFarm: Towards Simulated Evolution. Collins, Jefferson. 1991

21. Evolving Communication • Exploration task • Pheromones to communicate • Team selection • Homogeneous teams vs. static bots • Pairs of objectives, Pareto-based • Different behaviors in different runs • Compromise strategy • Blocking strategy • Teamwork possible with homogeneous teams • Need to move beyond grid-worlds • Move beyond two objectives * Emergence of Communication in Competitive Multi-Agent Systems: A Pareto Multi-Objective Approach. McPartland, Nolfi, Abbass. 2005

22. SwarmEvolveTags • Birds visit food stations • Energy can be shared • Sharing based on tags • Self-selection • Entire population as team • Competing subpopulations emerged • Cooperation in entire population without team selection • Altruism via aiding similar individuals • Teamwork as a result of subpopulation homogeneity * Evolution of cooperation without reciprocity. Riolo, Cohen, Axelrod. 2001 * Tags and the Evolution of Cooperation in Complex Environments. Spector, Klein, Perry. 2004

23. Legion-I • Roman legions defend countryside and cities • Team level selection • Homogeneous teams • Multi-modal behavior • Defend city • Pursue barbarians • Homogeneous team members must fill all roles • Could not learn more complicated/strategic tasks • Example: building roads to speed up travel * Neuroevolution for Adaptive Teams. Bryant, Miikkulainen. 2003

24. Role-Based Cooperation • Toroidal predator/prey grid world • Individual selection • Team fitness shared by team members • Multi-Agent ESP: subpopulation based • Simple non-communicating method outperforms communicating method • Teamwork without homogeneity • Communication not always needed • May only apply to simple domains • Still need to scale up complexity • Get away from grid worlds * Coevolution of Role-Based Cooperation in Multi-Agent Systems. Yong, Miikkulainen. 2007

25. NERO • Machine Learning game • Human interaction via fitness function • Individual selection • Entire population is team • Multiple objectives • User defines weights dynamically • Maintenance of fitness function • Old behaviors can be forgotten when learning new ones • Need to learn multiple tasks simultaneously * Evolving Neural Network Agents in the NERO Videogame. Stanley, Bryant, Miikkulainen. 2005

26. Pareto Multi-objective NPCs • Evolved monsters vs. bot with stick • Individual selection • Large heterogeneous teams of 15 • Third of entire population • Multiple objectives, Pareto-based • Credit assignment trick • Learns multiple objectives simultaneously • Different runs can lead to very different results • Different areas of trade-off surface • Population becomes mostly homogeneous * Constructing Complex NPC Behavior via Multi-Objective Neuroevolution. Schrum, Miikkulainen. 2008

27. Dead End Game • Human prey vs. predators • Offline evolution vs. bot • Team level selection • Homogeneous teams • Online evolution vs. human • Individual selection • Small heterogeneous team • Different configurations appropriate at different levels • Sometimes the domain leaves no choice * Interactive Opponents Generate Interesting Games. Yannakakis, Hallam. 2004

28. Cooperating Robots • Retrieve tokens • Simulation → Robots • Compared selection levels • Individual vs. Team • Compared team compositions • Homogeneous vs. heterogeneous • Homogeneous better with teamwork and altruism • Homogeneous best with team selection • Heterogeneous best with individual selection • Did not consider subpopulations • Tasks only involved foraging (no other objectives) * Genetic Team Composition and Level of Selection in the Evolution of Cooperation. Waibel, Keller, Floreano. 2008

29. Summary of Issues • More complexity • Move beyond grid worlds • Need multiple contradictory objectives • Act in continuous, real-time world • Best evolutionary configuration • More comparisons between team compositions • Especially subpopulation-based method • Task/configuration pairings? • Credit assignment issues • Multi-modal behavior • What to do and when

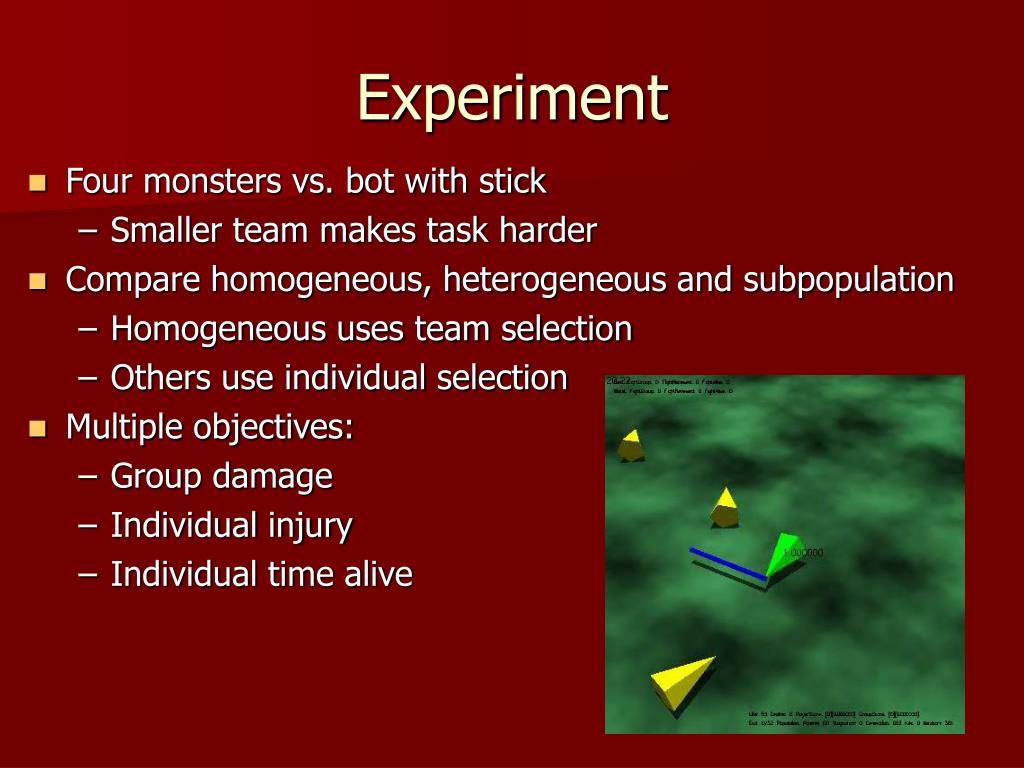

30. Experiment • Four monsters vs. bot with stick • Smaller team makes task harder • Compare homogeneous, heterogeneous and subpopulation • Homogeneous uses team selection • Others use individual selection • Multiple objectives: • Group damage • Individual injury • Individual time alive

31. Heterogeneous Results • Many generations (600+) • Not that long in real time • Mostly selfish • Good teamwork can arise though (Baiting) • Teamwork depends on population being homogeneous Selfish Teamwork

32. Homogeneous Results • Fewer Generations (100-200) • Actually longer in real time • Always some form a teamwork • Baiting • Timed Assault Time Assault Baiting

33. Subpopulations Results • Many Generations (400+) • Each generation takes a lot of real time • Easy for slacker subpopulation to persist • Limited teamwork • Only some members participate Cooperating Pair

34. Discussion • Can subpopulation method do better? • Better credit assignment • Team level selection (how?) • Speed up homogeneous and subpopulations • Heterogeneous: discourage selfishness

35. Future Research Questions • Credit assignment issues • Cooperating individuals cannot be identified • Objectives define best evolutionary configuration? • Complex domains/real problems • Many objectives • Continuous, real-time • Potential challenge domains • Robocup Soccer • Unreal Tournament

36. Conclusion • Teamwork in Multiagent Systems important area • Evolution has been successful • Better understand why • Team configuration • Level of selection • Presence/absence of credit assignment problems • Apply to harder domains • Real-time • Continuous/noisy • Multiple contradictory objectives

37. Questions? schrum2@cs.utexas.edu

38. Auxiliary Slides

39. Cooperation Without Reciprocity • Abstract study of the evolution of cooperation • Donor/recipient model • 3 random pairings with option of donating fitness c so that recipient can gain fitness b • Choice to donate based on similarity of tags • Individual selection with entire population as team • Subpopulations emerged based on tags • Donation rate changes cyclically, but generally stays high (73%) for c < b • Need to apply in actual domain requiring teamwork * Evolution of cooperation without reciprocity. Riolo, Cohen, Axelrod. 2001

40. Cooperation Without Reciprocity Results

41. Team Composition in MAS • Taxonomy proposed by Stone*: • Definition of communication is broad: • Message passing, blackboard, information sharing, etc. * Multiagent Systems: A Survey from a Machine Learning Perspective. Stone. 2000
