  1. VMware Product Updates Sárándi Attila - MOL Lovas Balázs - DNS

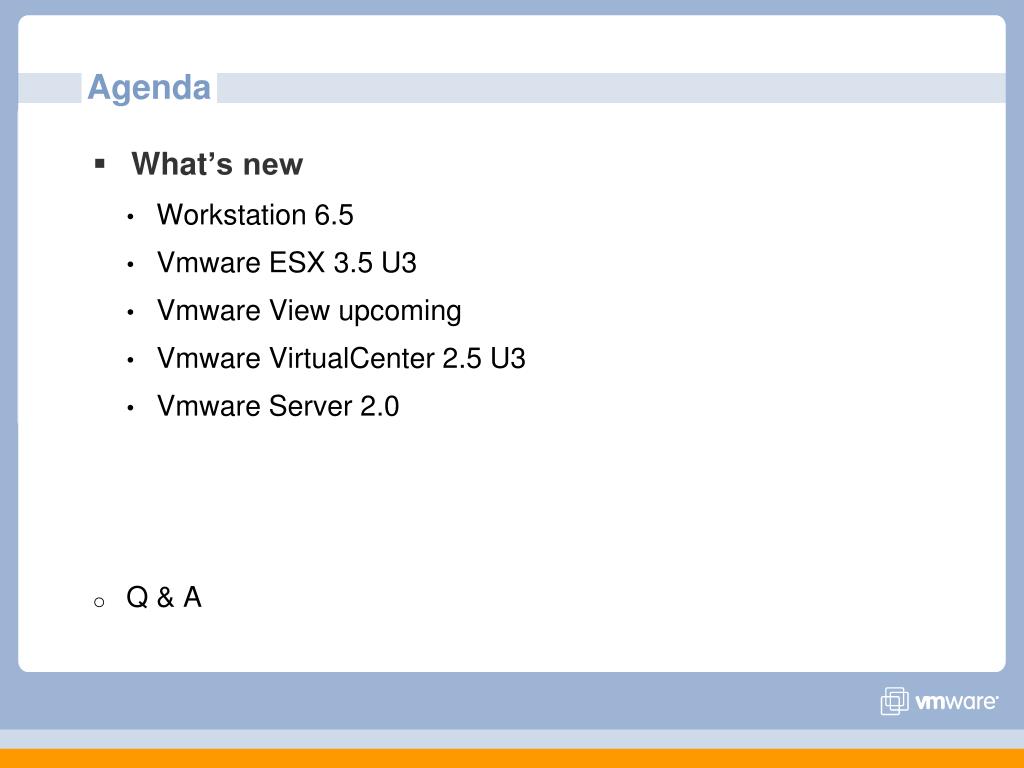

  2. Agenda • What’s new • Workstation 6.5 • Vmware ESX 3.5 U3 • Vmware View upcoming • Vmware VirtualCenter 2.5 U3 • Vmware Server 2.0 • Q & A

  3. Workstation 6.5

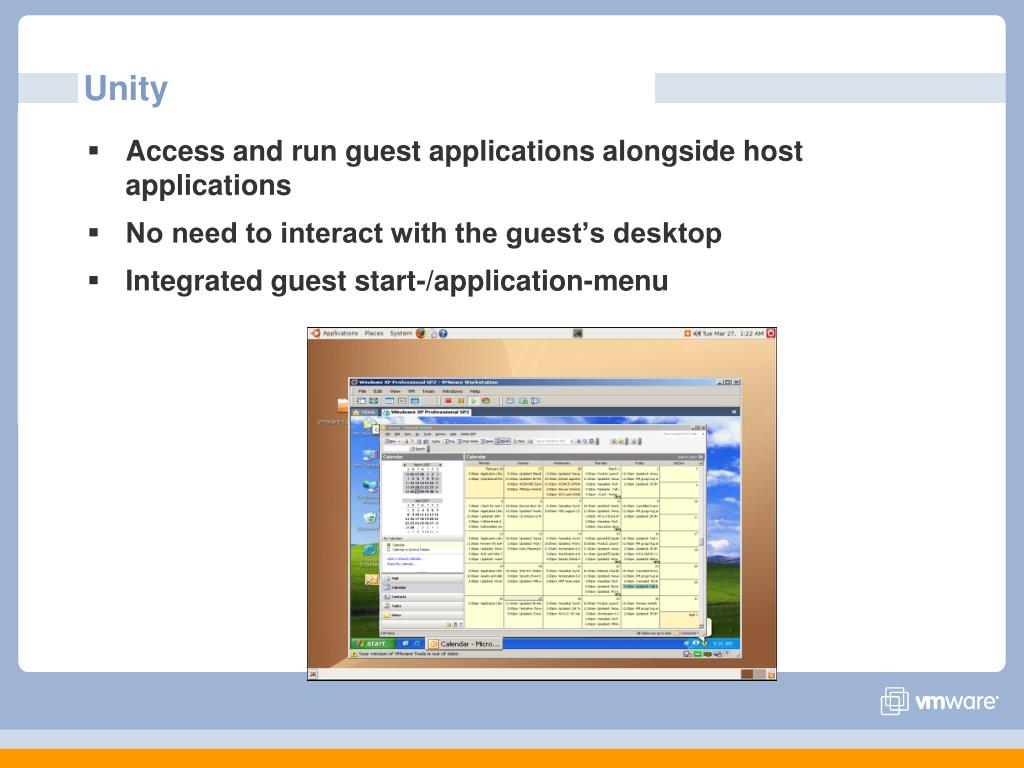

  4. Unity • Access and run guest applications alongside host applications • No need to interact with the guest’s desktop • Integrated guest start-/application-menu

  5. Unity Demo

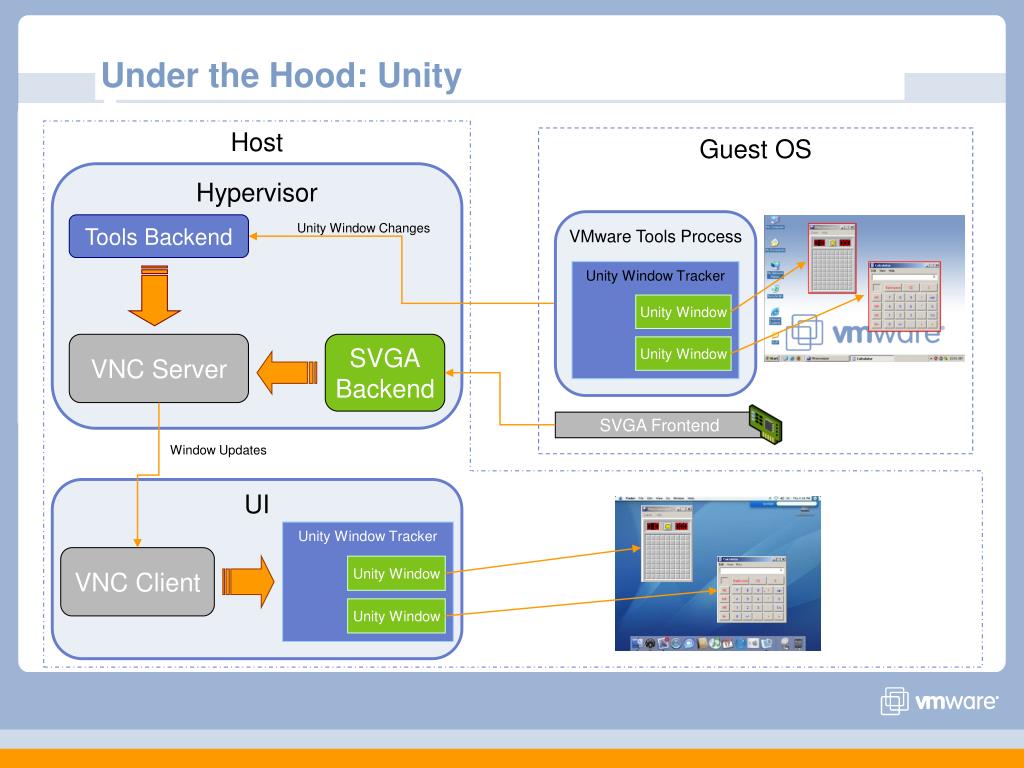

  6. Under the Hood: Unity VMware Tools Process Guest OS Unity Window Tracker Unity Window Tracker Unity Window Unity Window Unity Window Unity Window SVGA Frontend Host Hypervisor Tools Backend Unity Window Changes VNC Server SVGA Backend Window Updates UI VNC Client

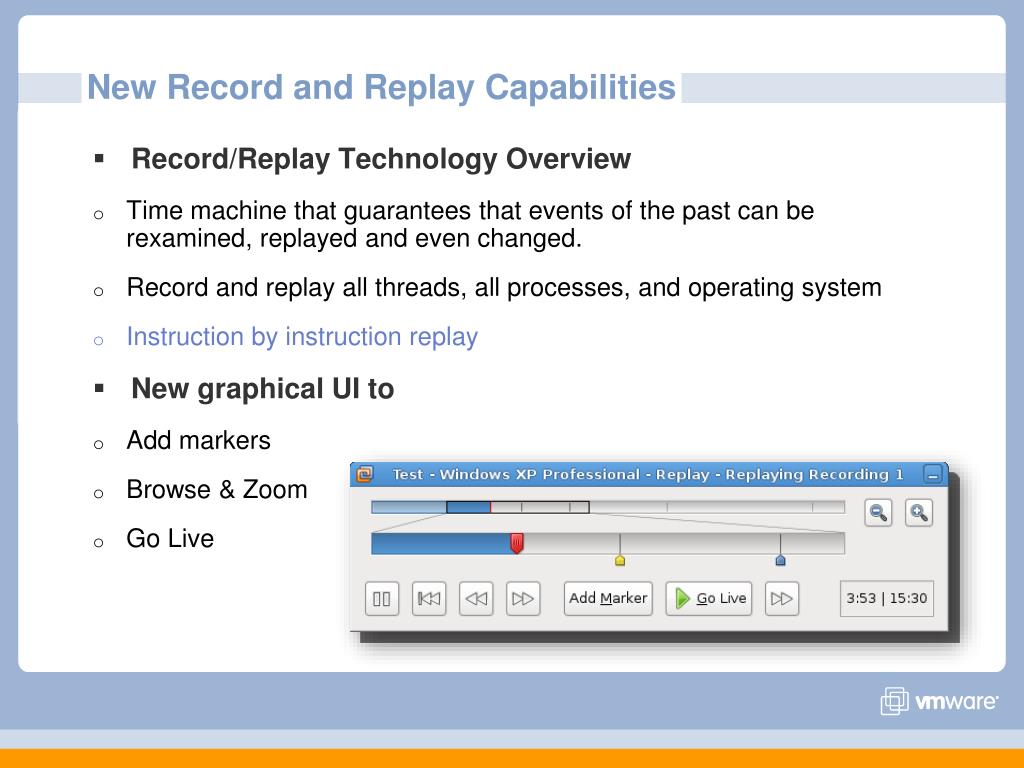

  7. New Record and Replay Capabilities • Record/Replay Technology Overview • Time machine that guarantees that events of the past can be rexamined, replayed and even changed. • Record and replay all threads, all processes, and operating system • Instruction by instruction replay • New graphical UI to • Add markers • Browse & Zoom • Go Live

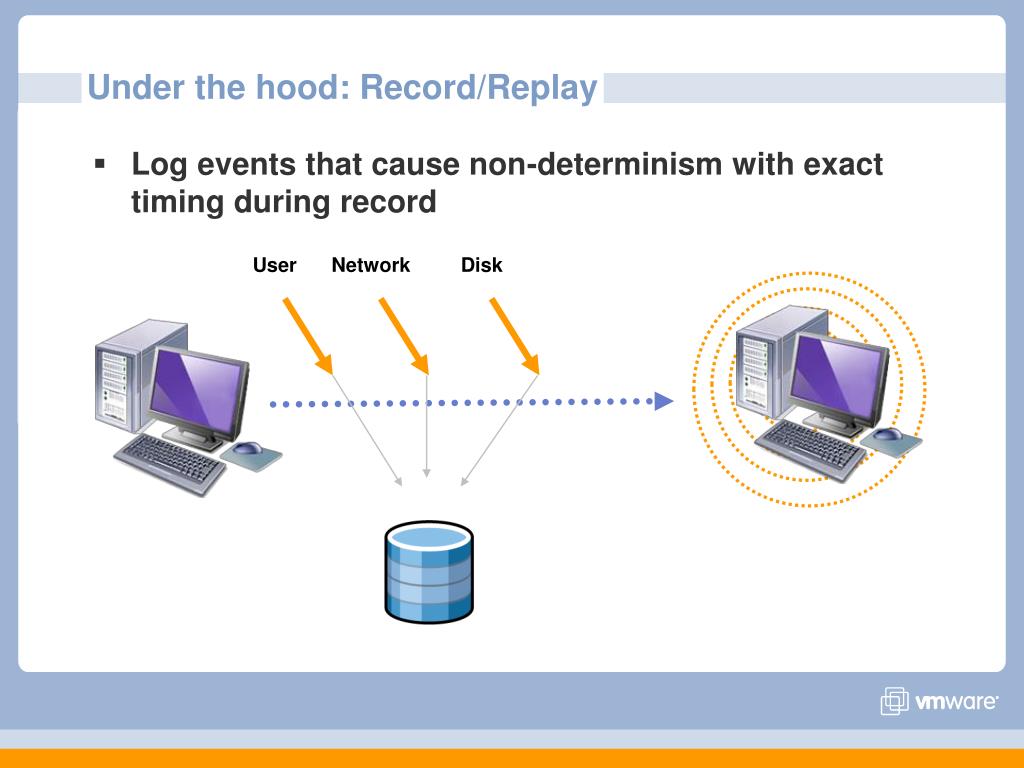

  8. Under the hood: Record/Replay • Log events that cause non-determinism with exact timing during record User Network Disk

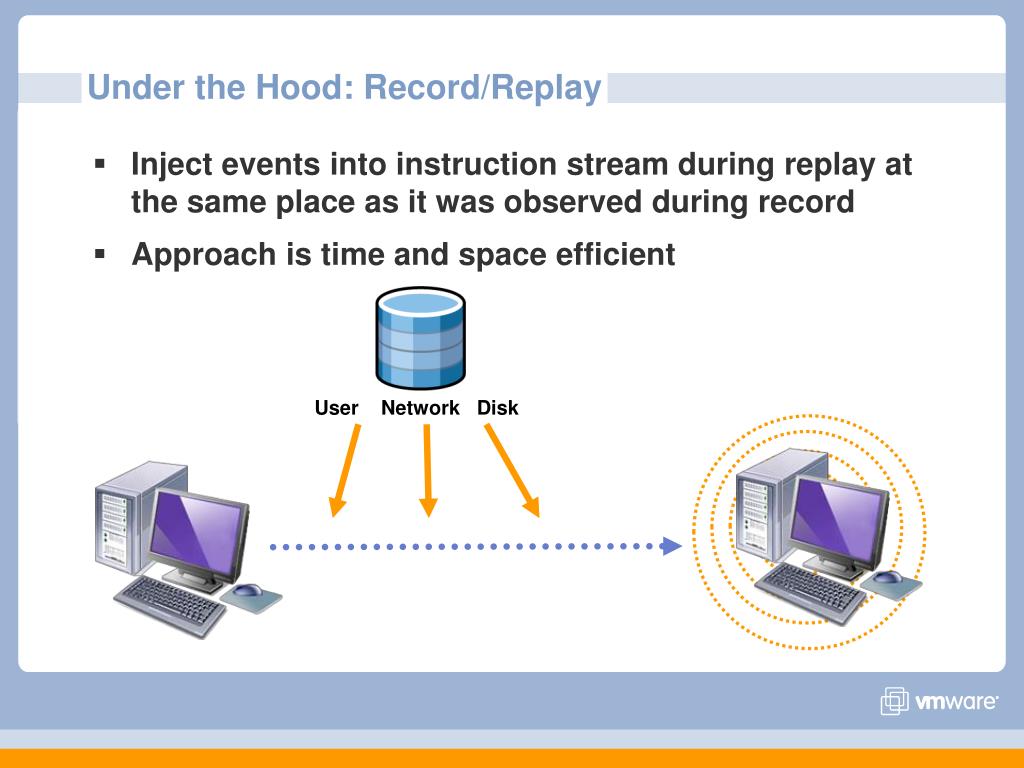

  9. Under the Hood: Record/Replay • Inject events into instruction stream during replay at the same place as it was observed during record • Approach is time and space efficient User Network Disk

  10. Enhanced ACE for Management & Control Encryption • Full AES-128 encryption of the virtual disk and configuration files ACE Features (available in Workstation now) Copy Protection • Locks an ACE instance to a • specific computer or device Activation/Deactivation • Validates users before first launch • Allows administrators to remotely disable • Expiration based on date X Device Control • Determines what types of devices can be attached to the virtual machine Network Quarantine • Controls access to network resources on both the guest and host.

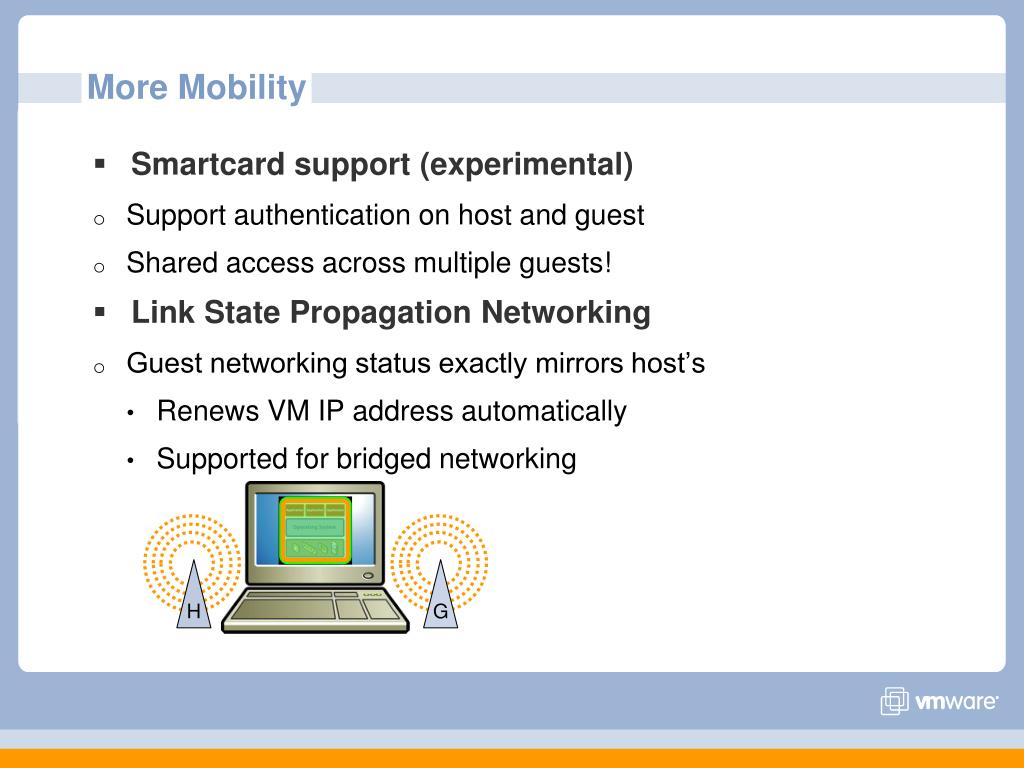

  11. More Mobility • Smartcard support (experimental) • Support authentication on host and guest • Shared access across multiple guests! • Link State Propagation Networking • Guest networking status exactly mirrors host’s • Renews VM IP address automatically • Supported for bridged networking H G

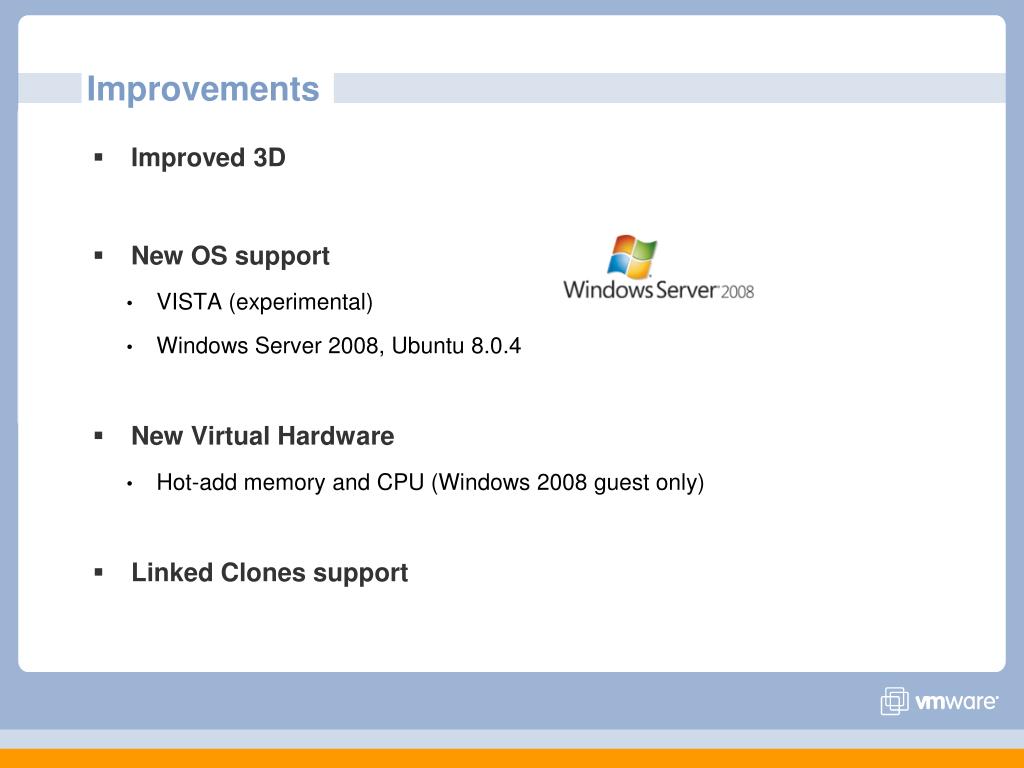

  12. Improvements • Improved 3D • New OS support • VISTA (experimental) • Windows Server 2008, Ubuntu 8.0.4 • New Virtual Hardware • Hot-add memory and CPU (Windows 2008 guest only) • Linked Clones support

  13. Linked Clones Demo

  14. Vmware ESX 3.5 U3 What’s new

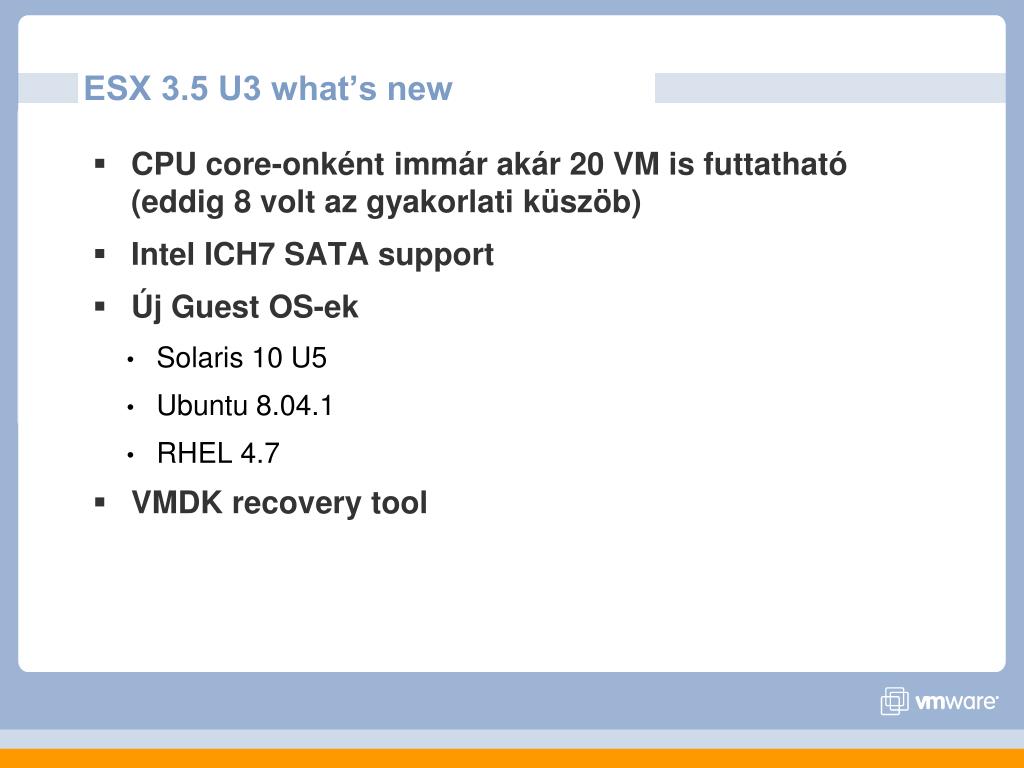

  15. ESX 3.5 U3 what’s new • CPU core-onként immár akár 20 VM is futtatható (eddig 8 volt az gyakorlati küszöb) • Intel ICH7 SATA support • Új Guest OS-ek • Solaris 10 U5 • Ubuntu 8.04.1 • RHEL 4.7 • VMDK recovery tool

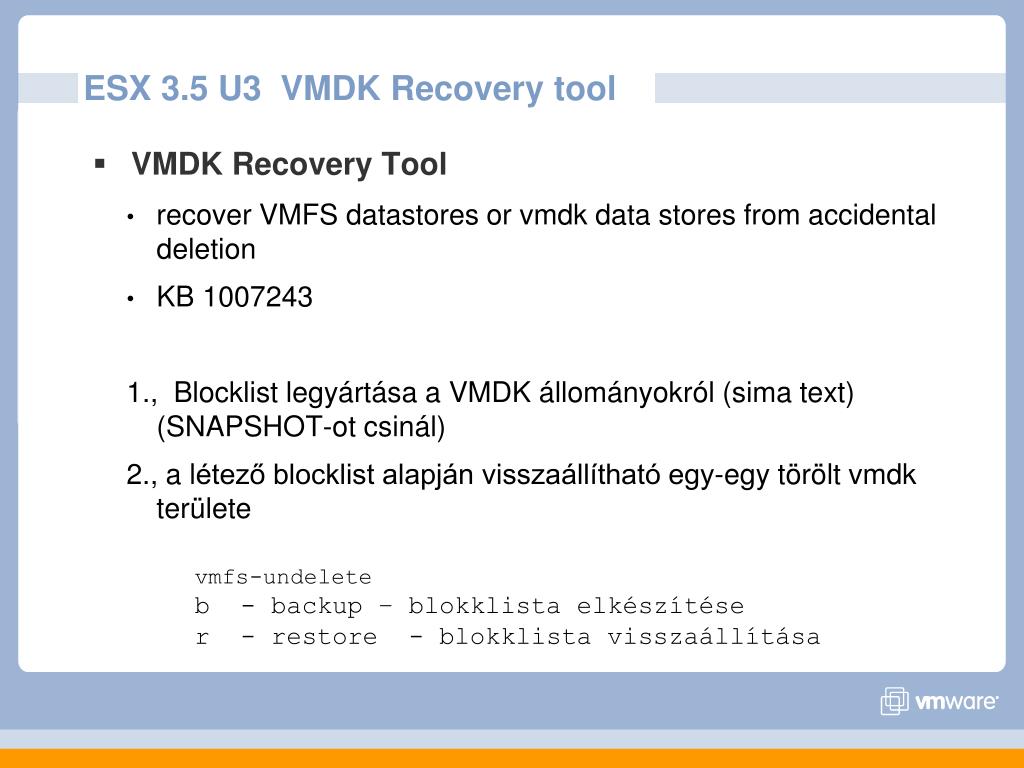

  16. ESX 3.5 U3 VMDK Recovery tool • VMDK Recovery Tool • recover VMFS datastores or vmdk data stores from accidental deletion • KB 1007243 1., Blocklist legyártása a VMDK állományokról (sima text) (SNAPSHOT-ot csinál) 2., a létező blocklist alapján visszaállítható egy-egy törölt vmdk területe • vmfs-undelete • b - backup – blokklista elkészítése • r - restore - blokklista visszaállítása

  17. Vmware VIEW

  18. What’s new with VMware View 3 VMware View 3 Unified Access ThinApp Offline Desktop (experimental) View Composer Virtual Printing

  19. Question and Answers
