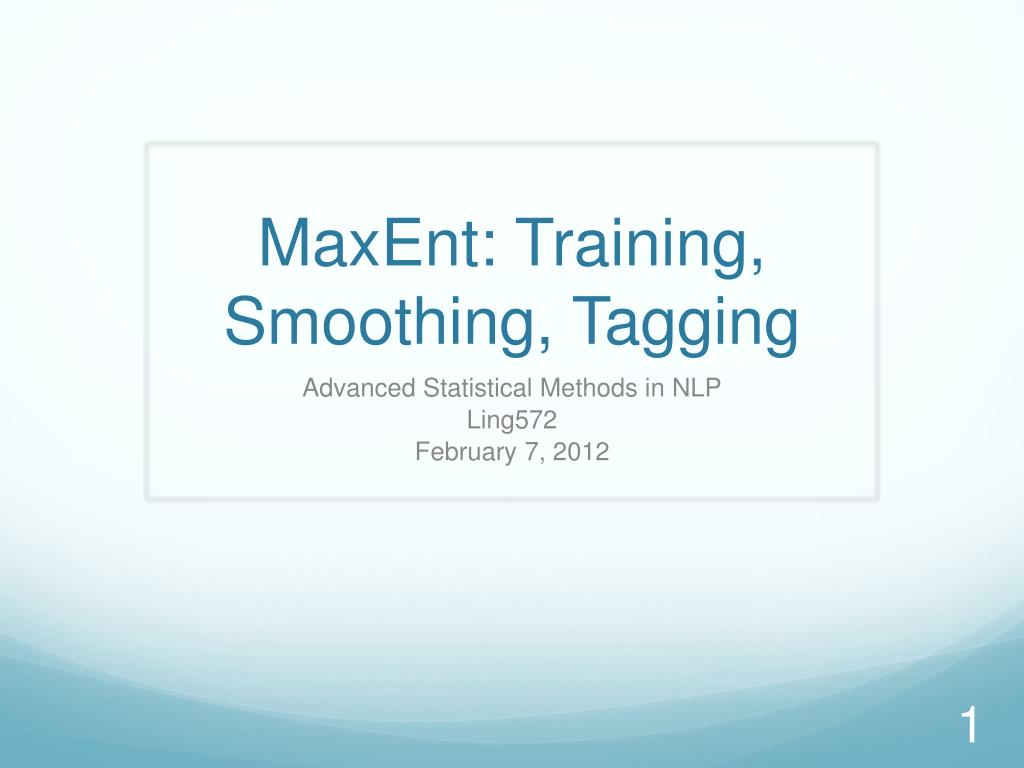

  1. MaxEnt: Training, Smoothing, Tagging Advanced Statistical Methods in NLP Ling572 February 7, 2012

  2. Roadmap • Maxent: • Training • Smoothing • Case study: • POS Tagging (redux) • Beam search

  3. Training

  4. Training • Learn λs from training data

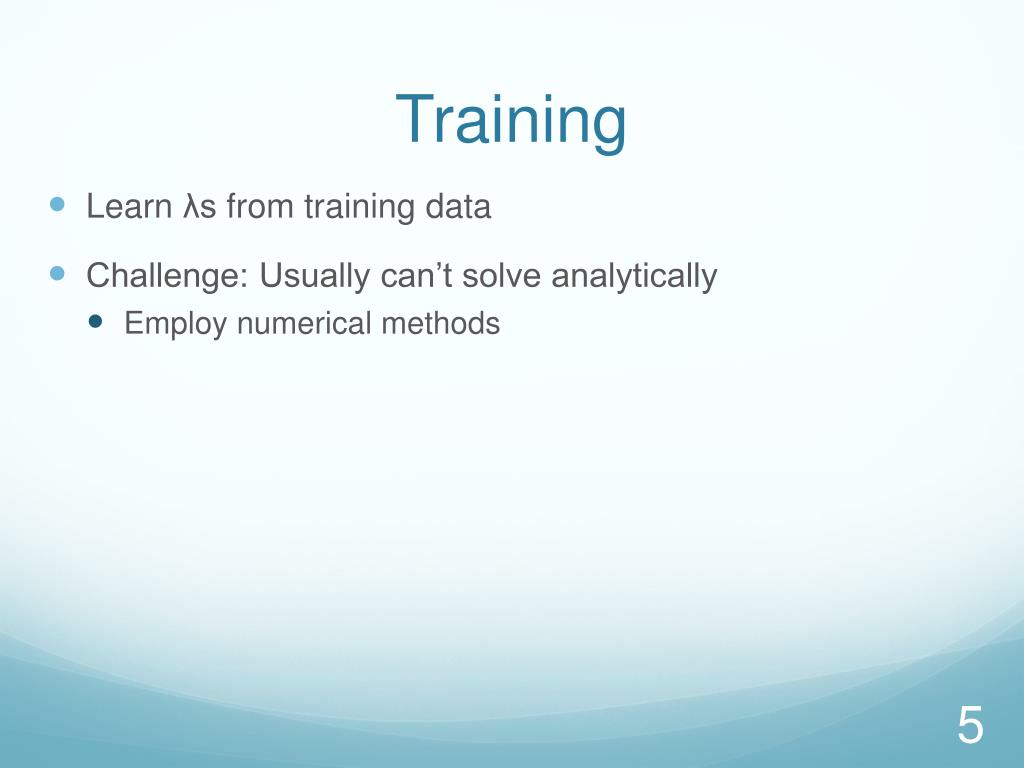

  5. Training • Learn λs from training data • Challenge: Usually can’t solve analytically • Employ numerical methods

  6. Training • Learn λs from training data • Challenge: Usually can’t solve analytically • Employ numerical methods • Main different techniques: • Generalized Iterative Scaling (GIS, Darroch &Ratcliffe, ‘72) • Improved Iterative Scaling (IIS, Della Pietra et al, ‘95) • L-BFGS,…..

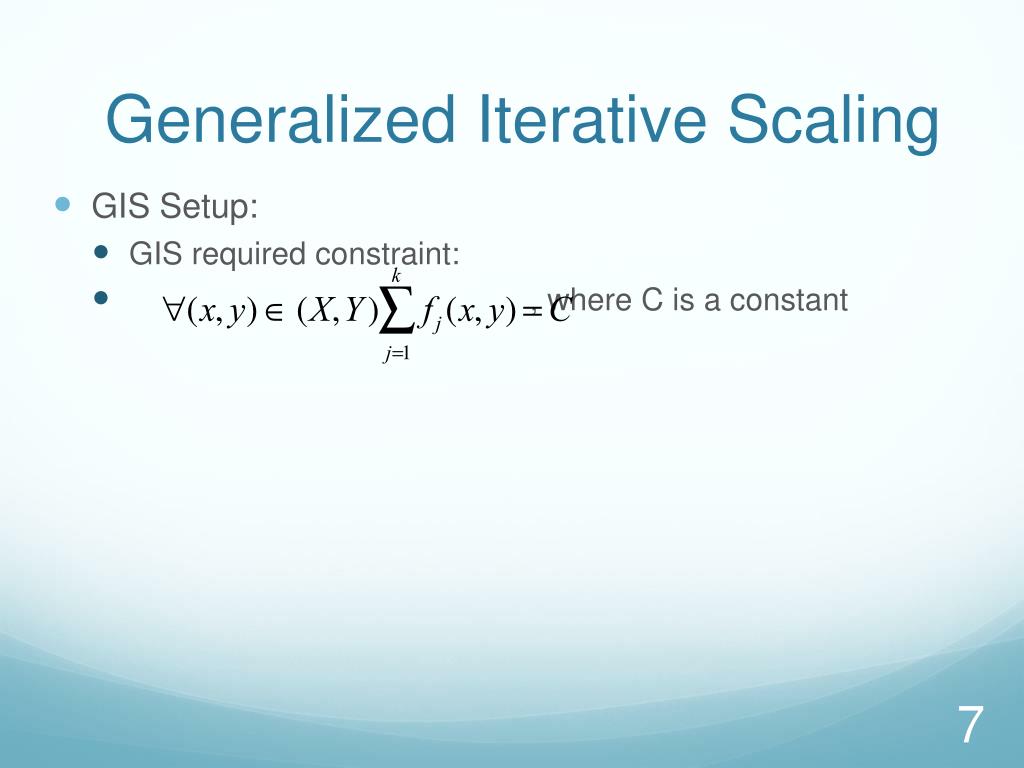

  7. Generalized Iterative Scaling • GIS Setup: • GIS required constraint: • , where C is a constant

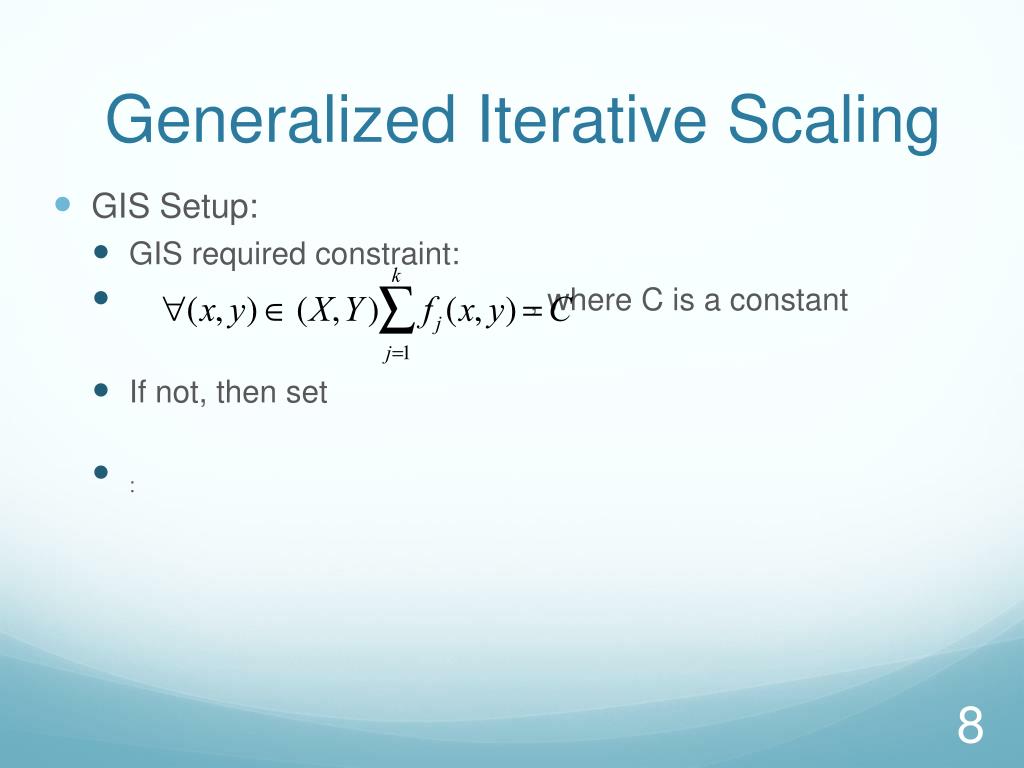

  8. Generalized Iterative Scaling • GIS Setup: • GIS required constraint: • , where C is a constant • If not, then set • :

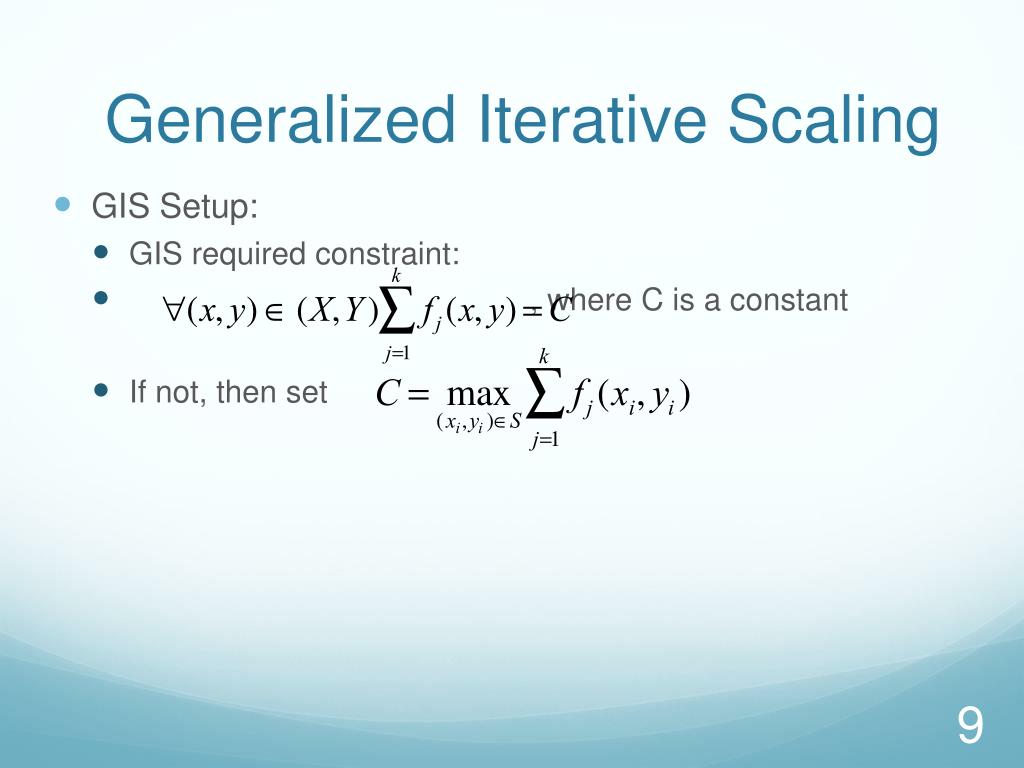

  9. Generalized Iterative Scaling • GIS Setup: • GIS required constraint: • , where C is a constant • If not, then set

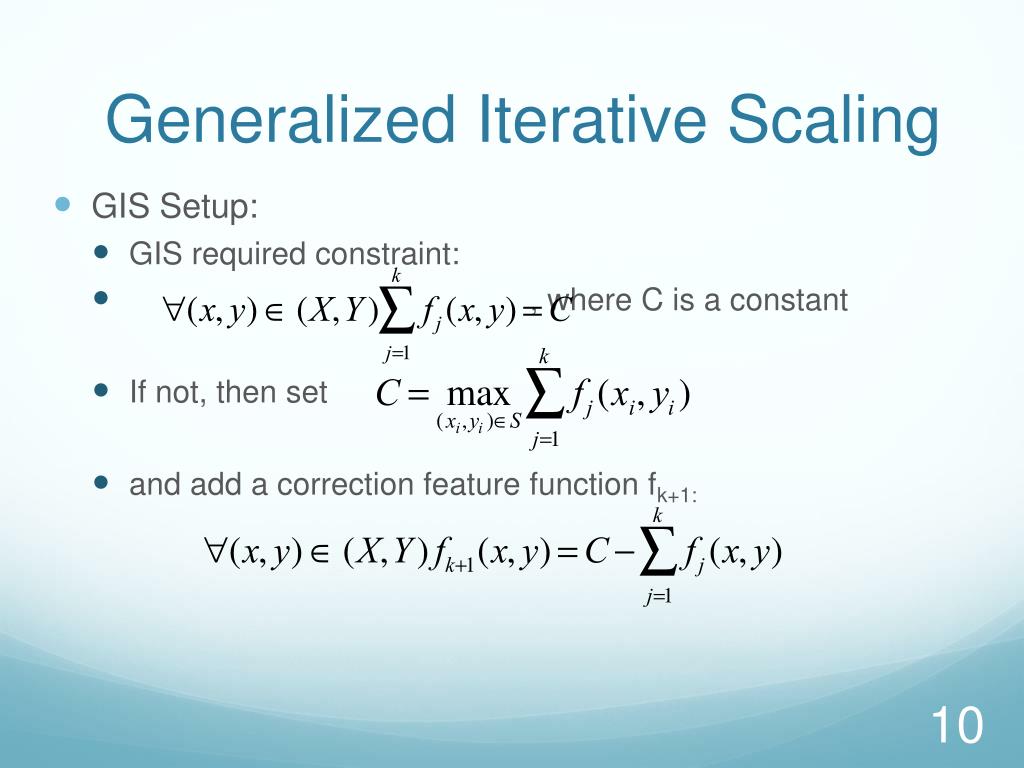

  10. Generalized Iterative Scaling • GIS Setup: • GIS required constraint: • , where C is a constant • If not, then set • and add a correction feature function fk+1:

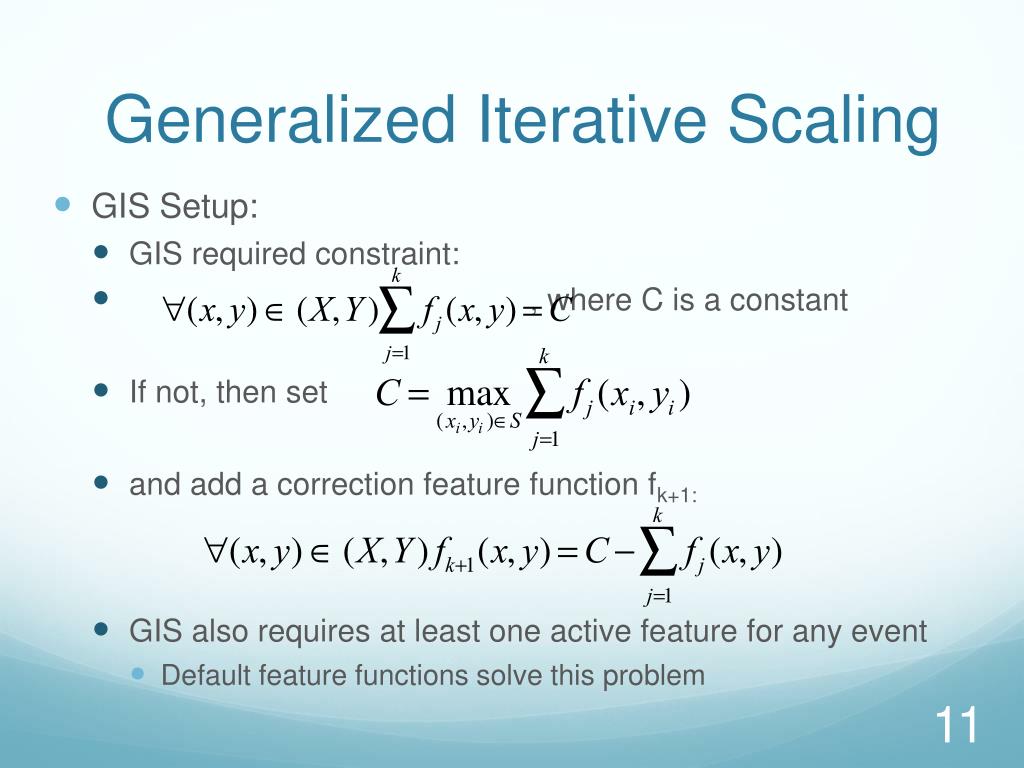

  11. Generalized Iterative Scaling • GIS Setup: • GIS required constraint: • , where C is a constant • If not, then set • and add a correction feature function fk+1: • GIS also requires at least one active feature for any event • Default feature functions solve this problem

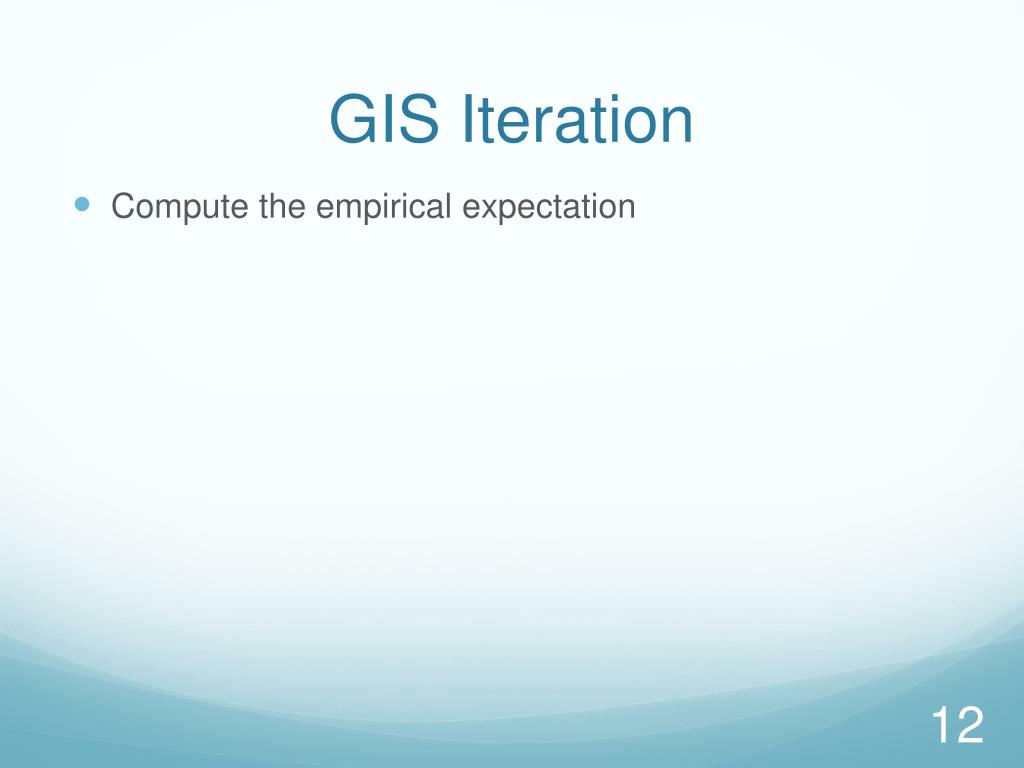

  12. GIS Iteration • Compute the empirical expectation

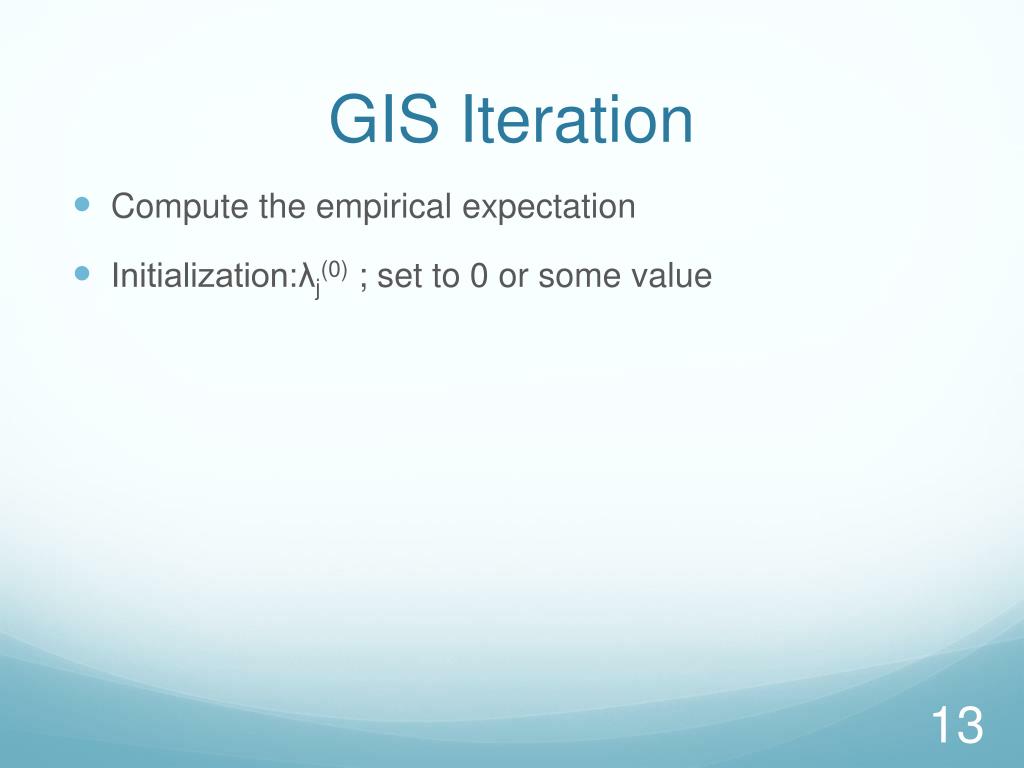

  13. GIS Iteration • Compute the empirical expectation • Initialization:λj(0) ; set to 0 or some value

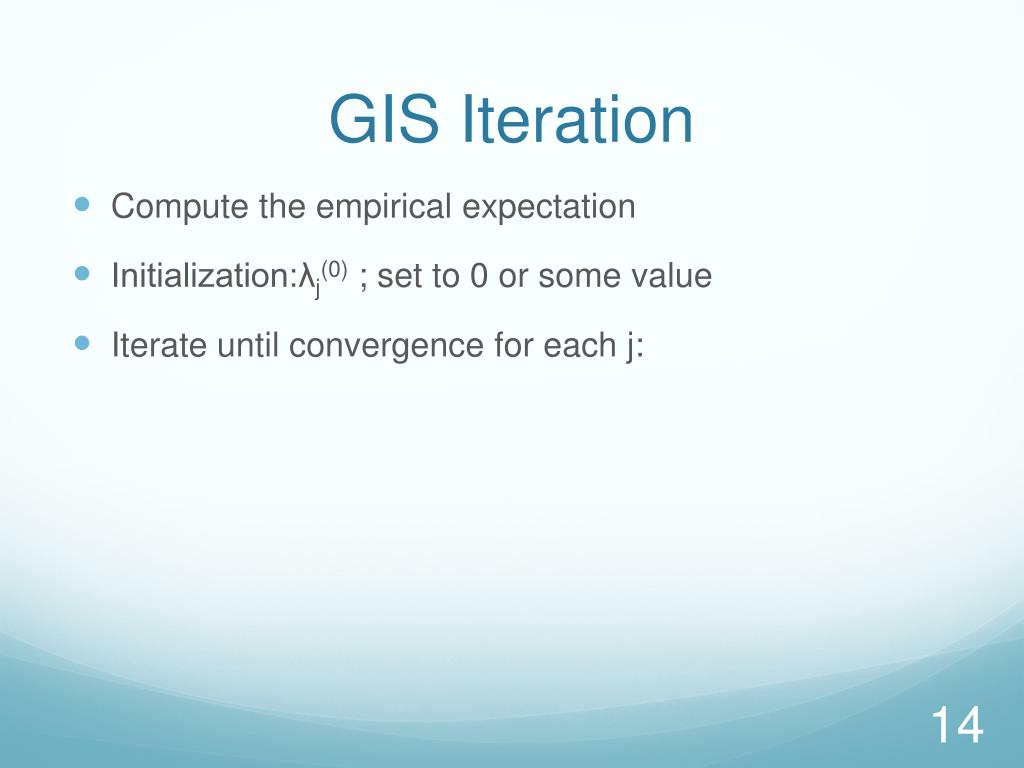

  14. GIS Iteration • Compute the empirical expectation • Initialization:λj(0) ; set to 0 or some value • Iterate until convergence for each j:

  15. GIS Iteration • Compute the empirical expectation • Initialization:λj(0) ; set to 0 or some value • Iterate until convergence for each j: • Compute p(y|x) under the current model

  16. GIS Iteration • Compute the empirical expectation • Initialization:λj(0) ; set to 0 or some value • Iterate until convergence for each j: • Compute p(y|x) under the current model • Compute model expectation under current model

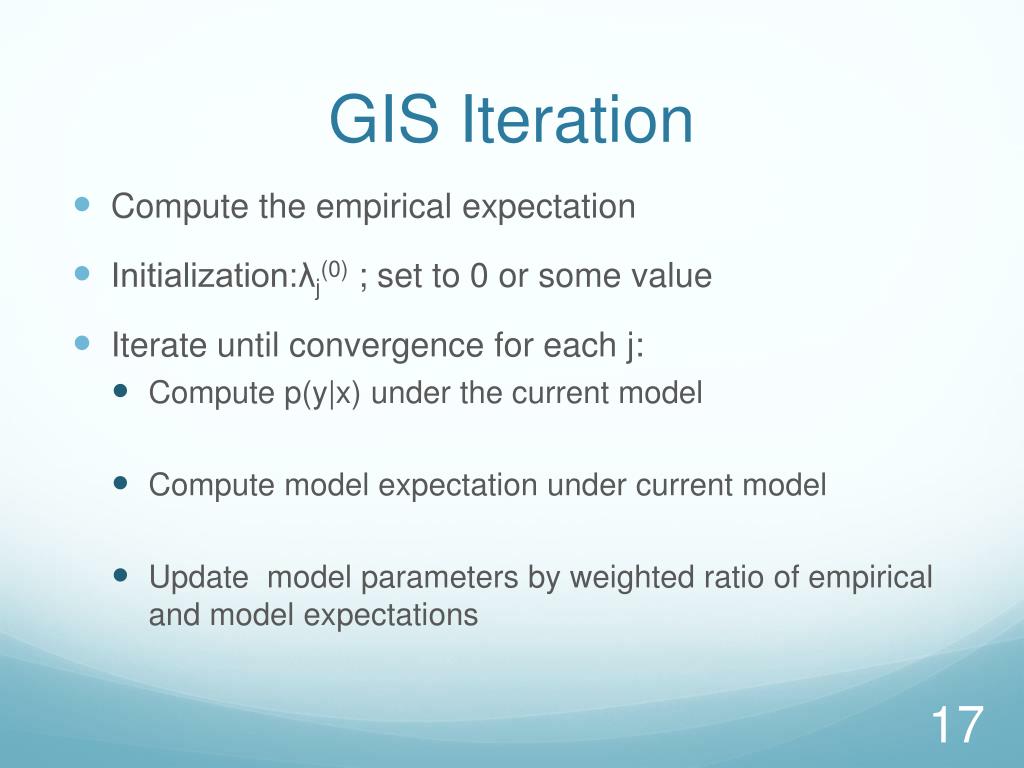

  17. GIS Iteration • Compute the empirical expectation • Initialization:λj(0) ; set to 0 or some value • Iterate until convergence for each j: • Compute p(y|x) under the current model • Compute model expectation under current model • Update model parameters by weighted ratio of empirical and model expectations

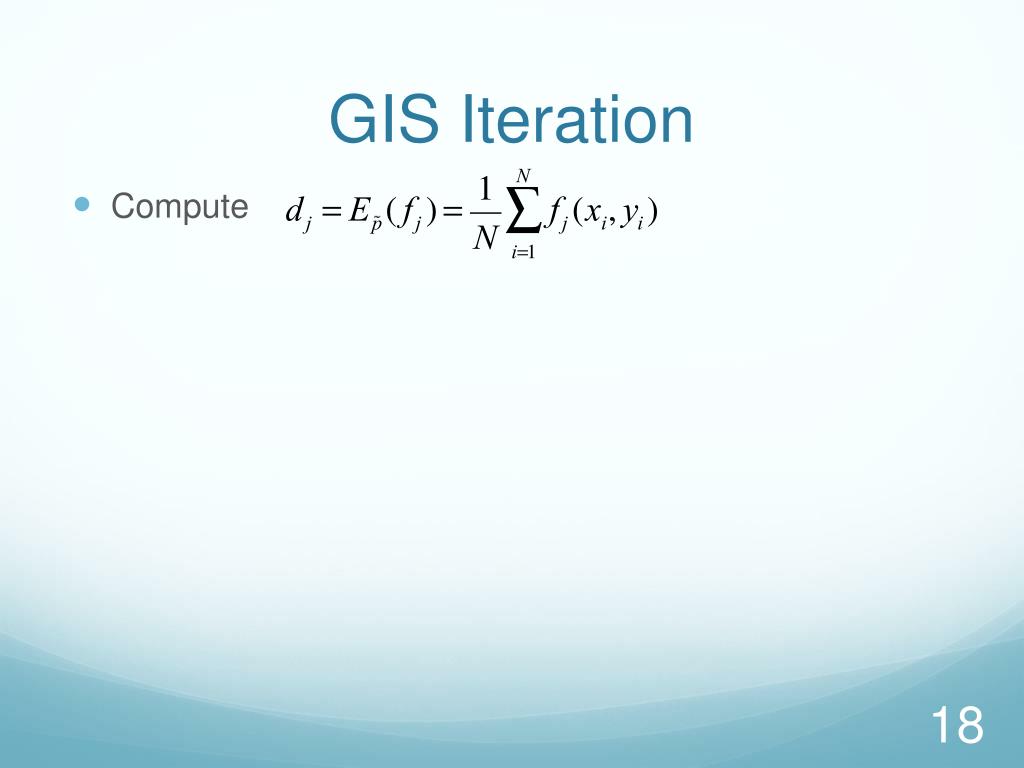

  18. GIS Iteration • Compute

  19. GIS Iteration • Compute • Initialization:λj(0) ; set to 0 or some value

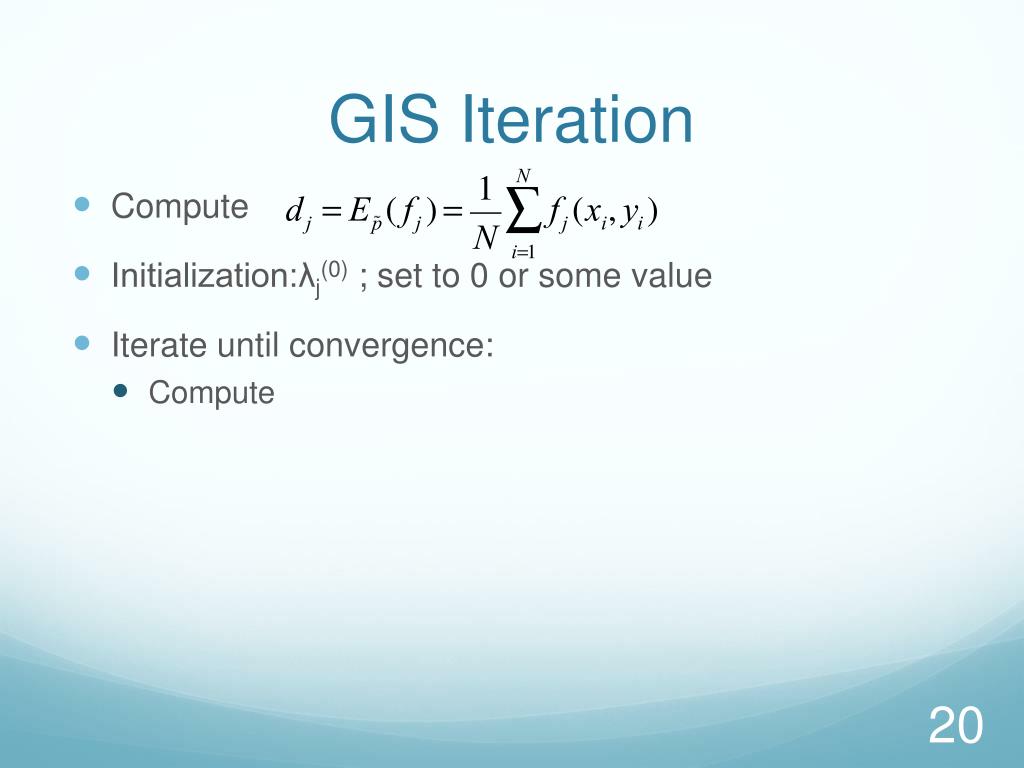

  20. GIS Iteration • Compute • Initialization:λj(0) ; set to 0 or some value • Iterate until convergence: • Compute

  21. GIS Iteration • Compute • Initialization:λj(0) ; set to 0 or some value • Iterate until convergence: • Compute p(n)(y|x)=

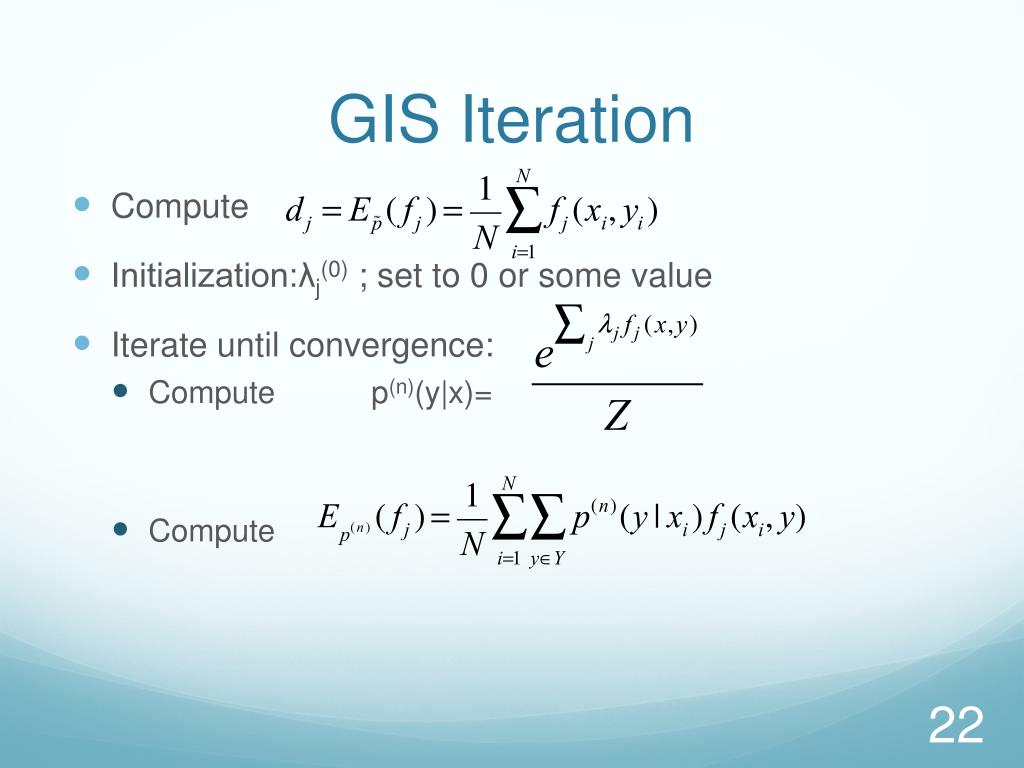

  22. GIS Iteration • Compute • Initialization:λj(0) ; set to 0 or some value • Iterate until convergence: • Compute p(n)(y|x)= • Compute

  23. GIS Iteration • Compute • Initialization:λj(0) ; set to 0 or some value • Iterate until convergence: • Compute p(n)(y|x)= • Compute • Update

  24. Convergence • Methods have convergence guarantees

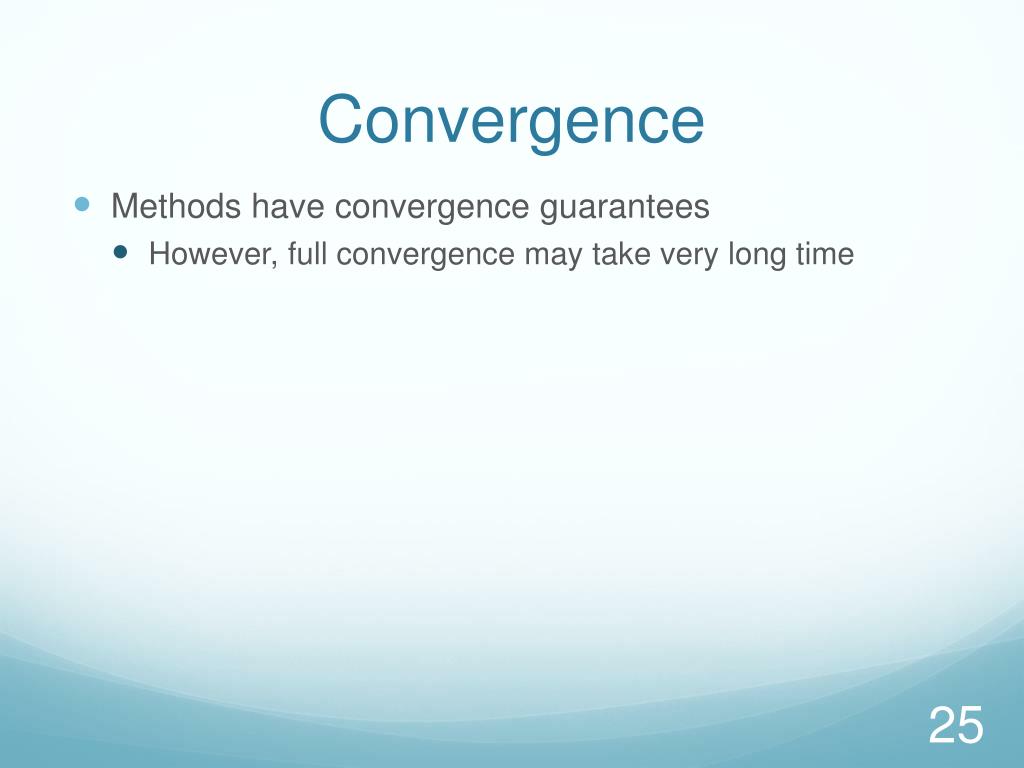

  25. Convergence • Methods have convergence guarantees • However, full convergence may take very long time

  26. Convergence • Methods have convergence guarantees • However, full convergence may take very long time • Frequently use threshold

  27. Convergence • Methods have convergence guarantees • However, full convergence may take very long time • Frequently use threshold

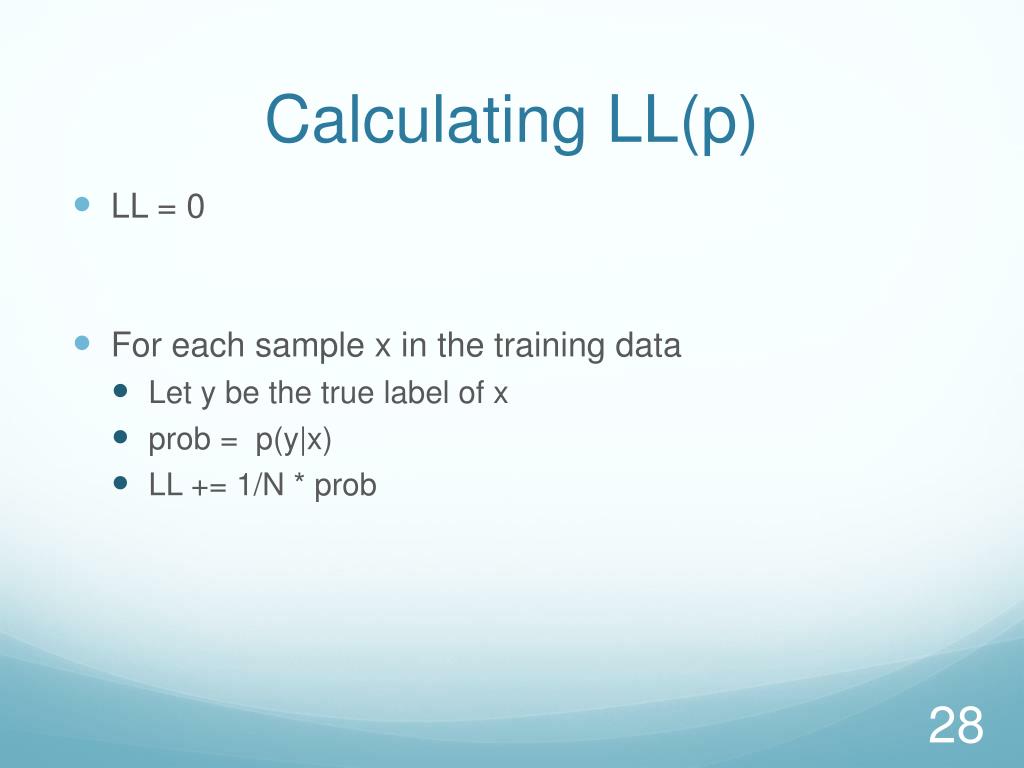

  28. Calculating LL(p) • LL = 0 • For each sample x in the training data • Let y be the true label of x • prob = p(y|x) • LL += 1/N * prob

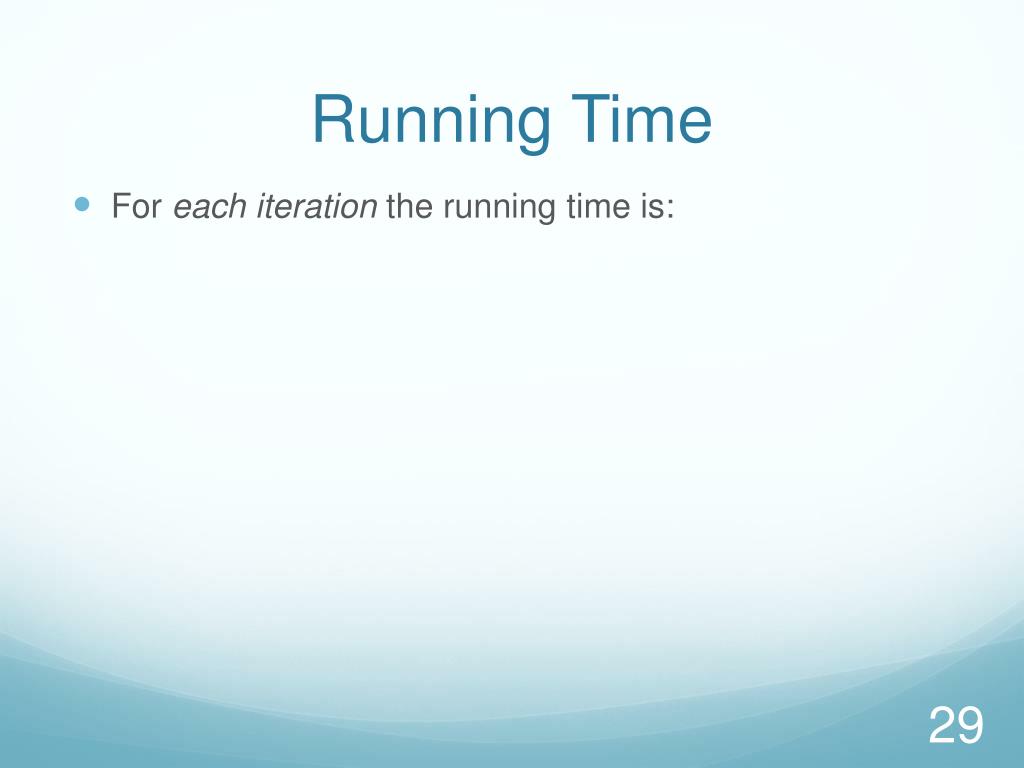

  29. Running Time • For each iteration the running time is:

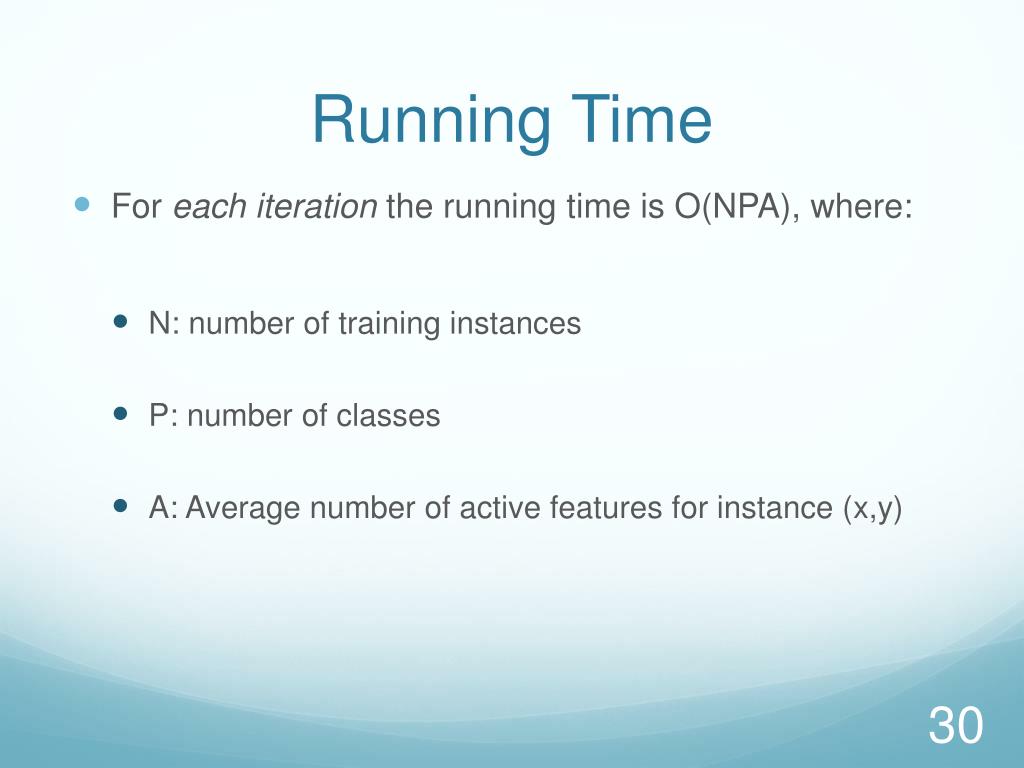

  30. Running Time • For each iteration the running time is O(NPA), where: • N: number of training instances • P: number of classes • A: Average number of active features for instance (x,y)

  31. L-BFGS • Limited-memory version of • Broyden–Fletcher–Goldfarb–Shanno (BFGS) method

  32. L-BFGS • Limited-memory version of • Broyden–Fletcher–Goldfarb–Shanno (BFGS) method • Quasi-Newton method for unconstrained optimization

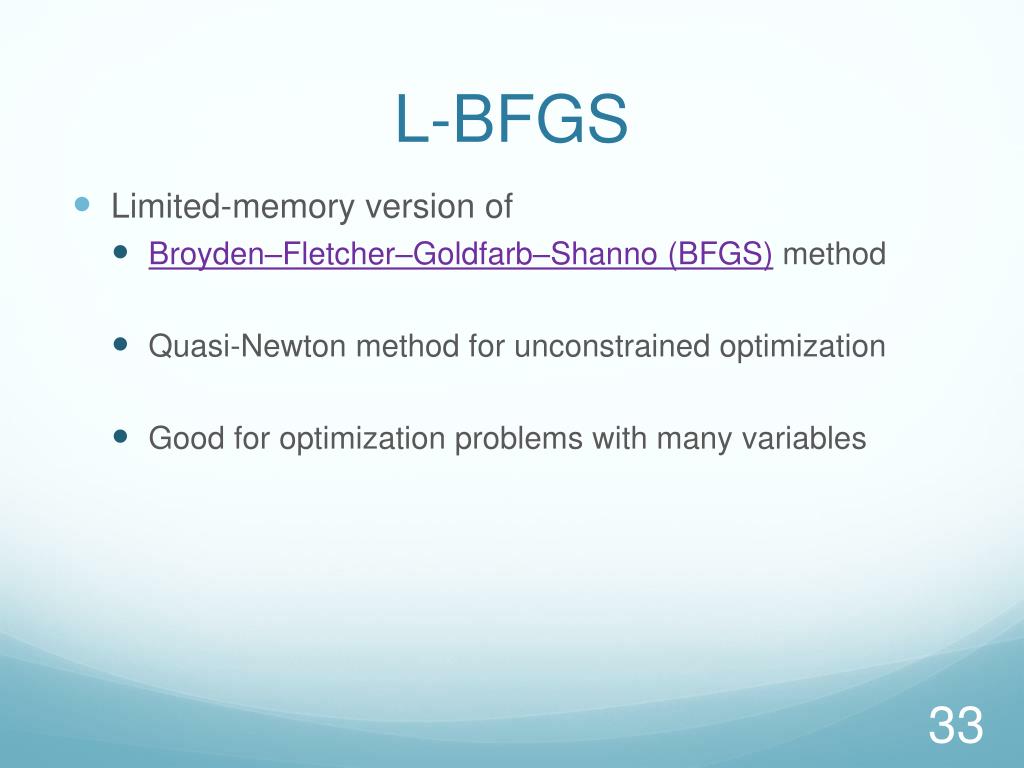

  33. L-BFGS • Limited-memory version of • Broyden–Fletcher–Goldfarb–Shanno (BFGS) method • Quasi-Newton method for unconstrained optimization • Good for optimization problems with many variables

  34. L-BFGS • Limited-memory version of • Broyden–Fletcher–Goldfarb–Shanno (BFGS) method • Quasi-Newton method for unconstrained optimization • Good for optimization problems with many variables • “Algorithm of choice” for MaxEnt and related models

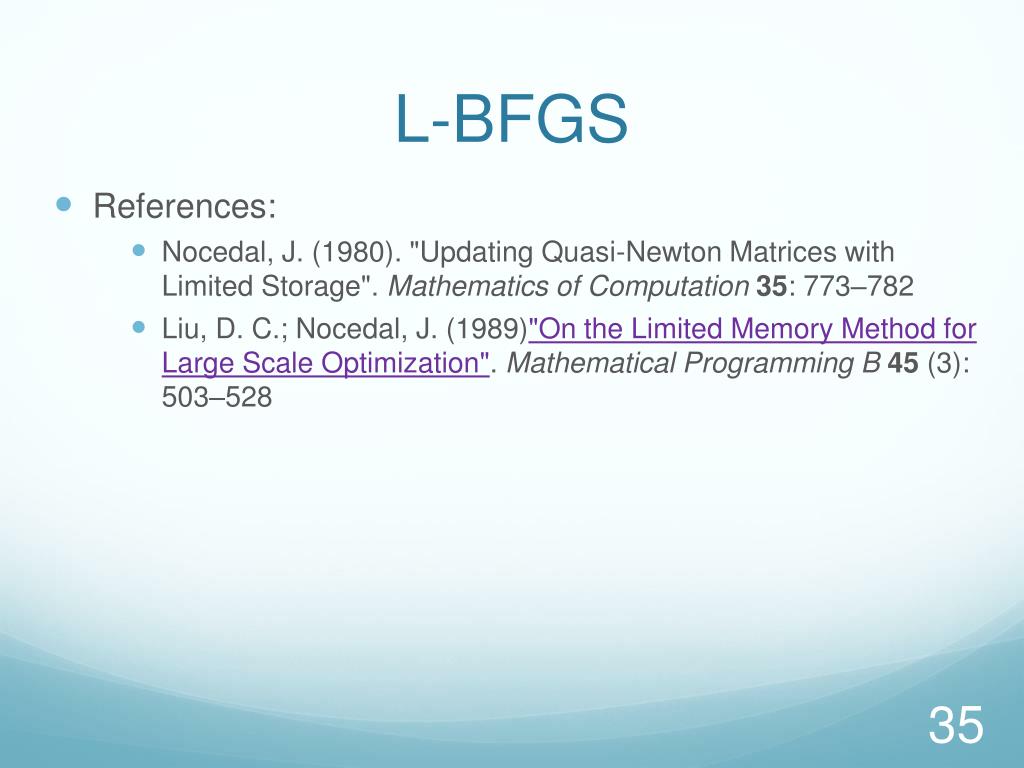

  35. L-BFGS • References: • Nocedal, J. (1980). "Updating Quasi-Newton Matrices with Limited Storage". Mathematics of Computation35: 773–782 • Liu, D. C.; Nocedal, J. (1989)"On the Limited Memory Method for Large Scale Optimization". Mathematical Programming B45 (3): 503–528

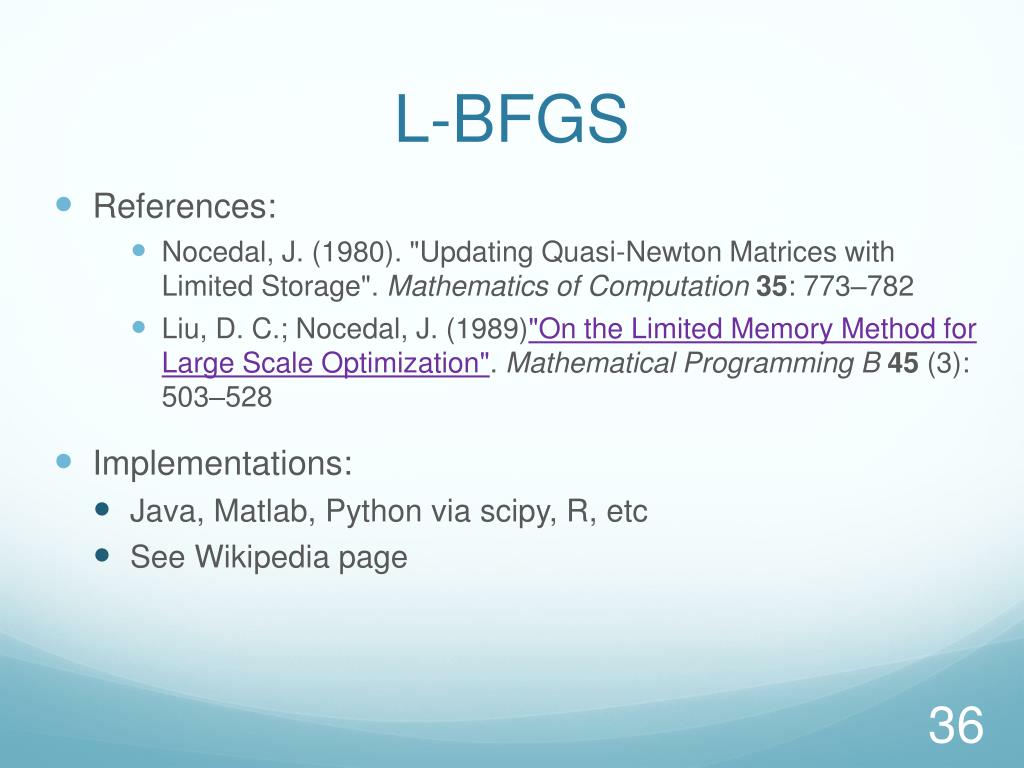

  36. L-BFGS • References: • Nocedal, J. (1980). "Updating Quasi-Newton Matrices with Limited Storage". Mathematics of Computation35: 773–782 • Liu, D. C.; Nocedal, J. (1989)"On the Limited Memory Method for Large Scale Optimization". Mathematical Programming B45 (3): 503–528 • Implementations: • Java, Matlab, Python via scipy, R, etc • See Wikipedia page

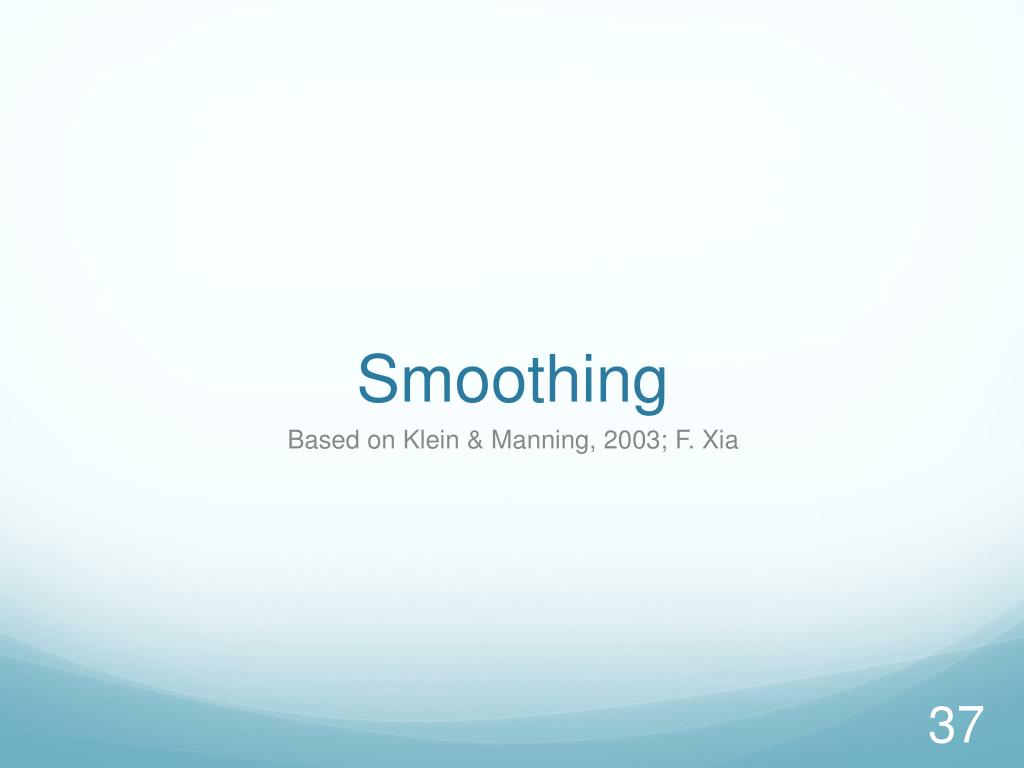

  37. Smoothing Based on Klein & Manning, 2003; F. Xia

  38. Smoothing • Problems of scale:

  39. Smoothing • Problems of scale: • Large numbers of features • Some NLP problems in MaxEnt 1M features • Storage can be a problem

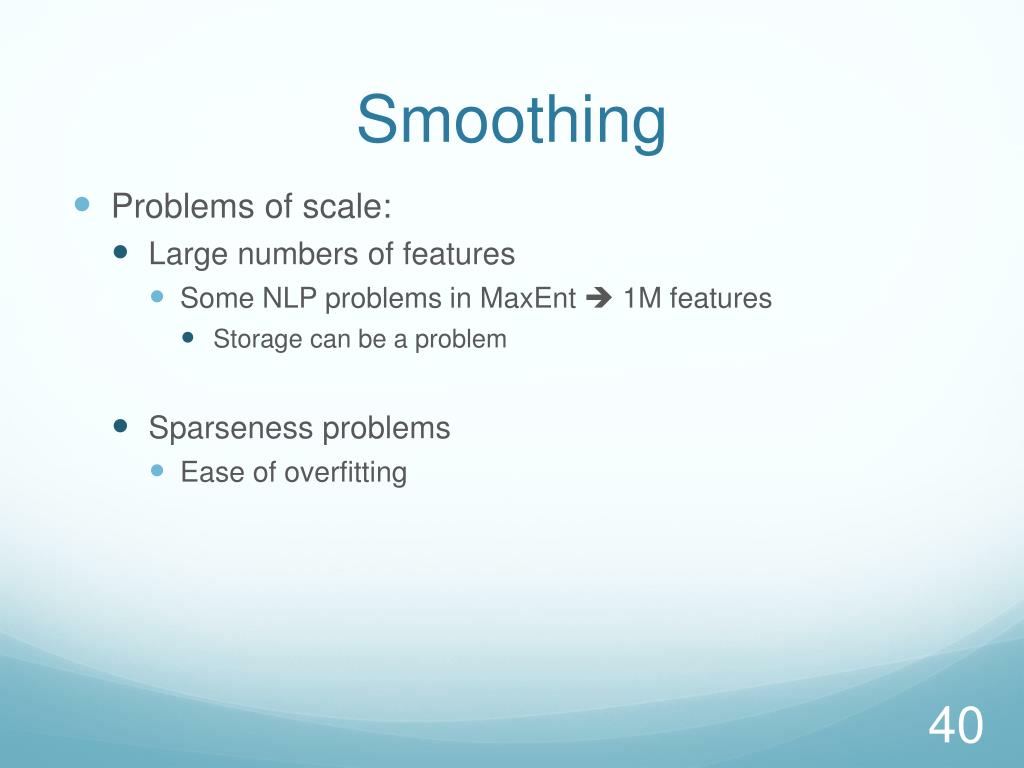

  40. Smoothing • Problems of scale: • Large numbers of features • Some NLP problems in MaxEnt 1M features • Storage can be a problem • Sparseness problems • Ease of overfitting

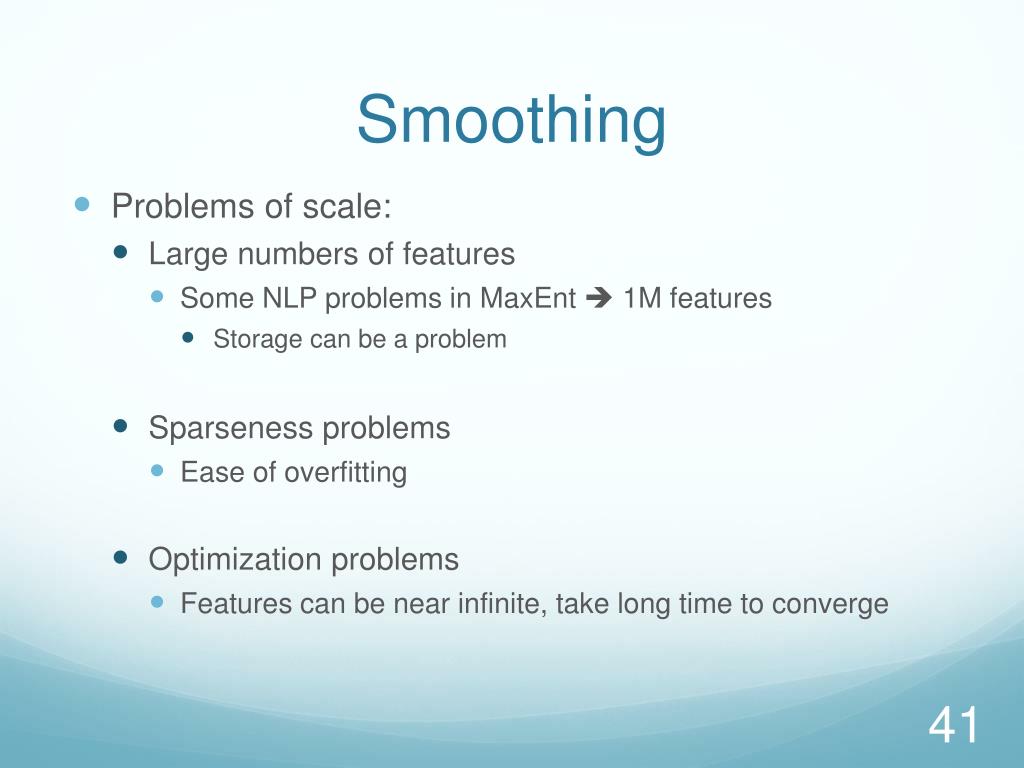

  41. Smoothing • Problems of scale: • Large numbers of features • Some NLP problems in MaxEnt 1M features • Storage can be a problem • Sparseness problems • Ease of overfitting • Optimization problems • Features can be near infinite, take long time to converge

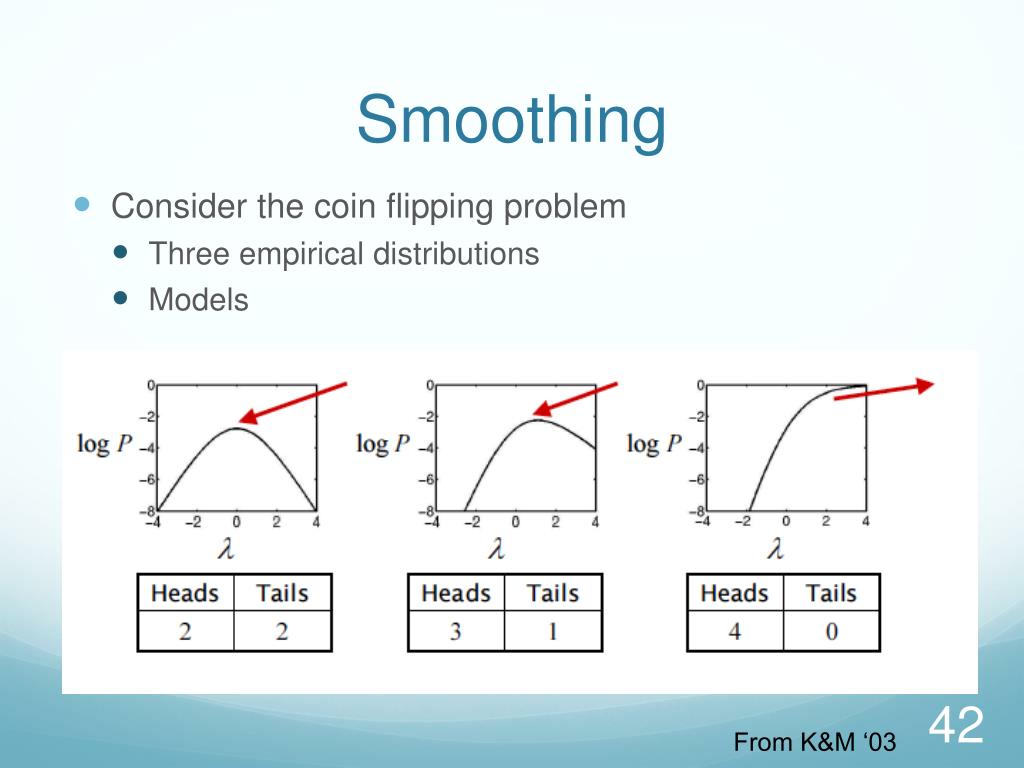

  42. Smoothing • Consider the coin flipping problem • Three empirical distributions • Models From K&M ‘03

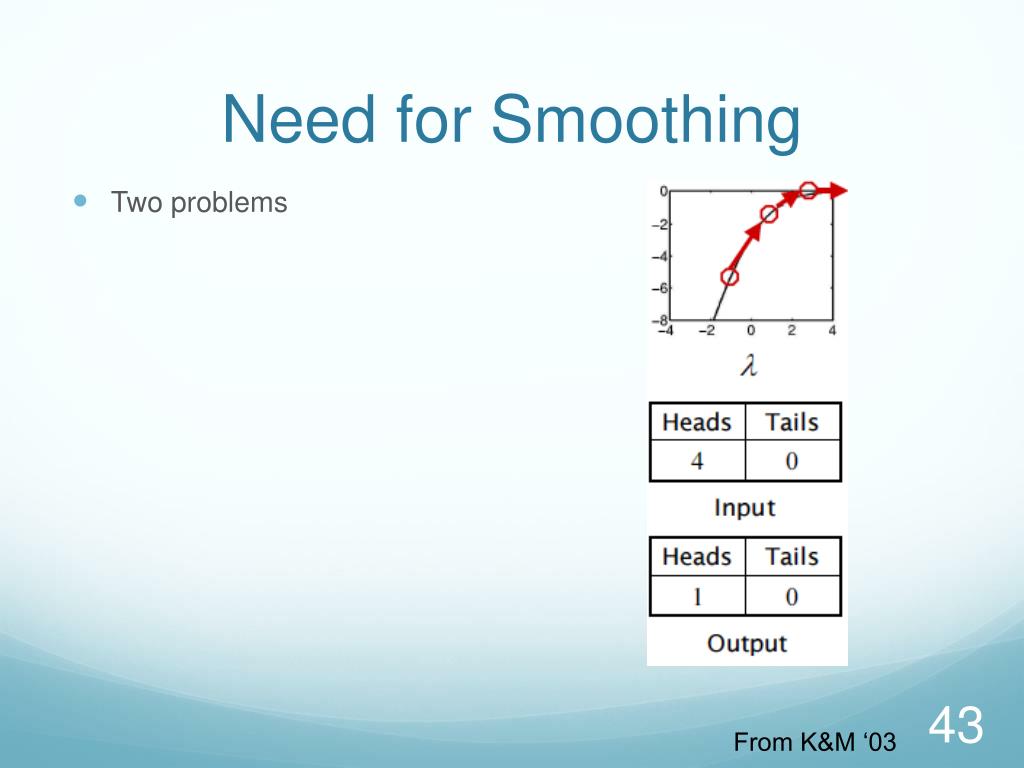

  43. Need for Smoothing • Two problems From K&M ‘03

  44. Need for Smoothing • Two problems • Optimization: • Optimal value of λ? ∞ • Slow to optimize From K&M ‘03

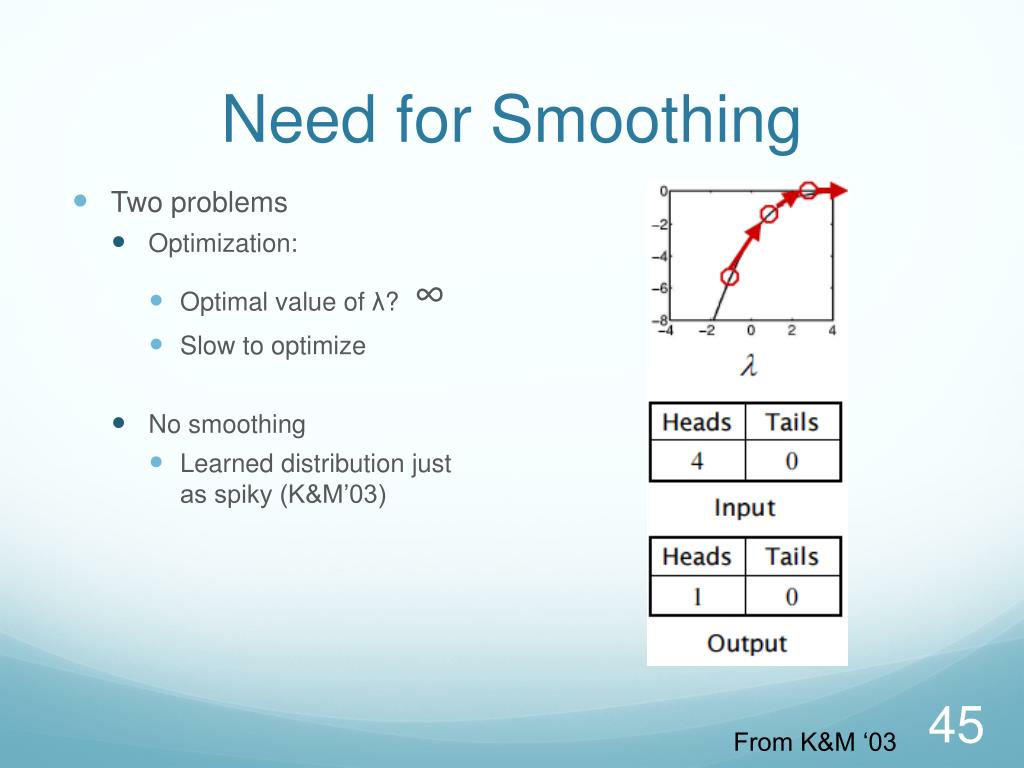

  45. Need for Smoothing • Two problems • Optimization: • Optimal value of λ? ∞ • Slow to optimize • No smoothing • Learned distribution just as spiky (K&M’03) From K&M ‘03

  46. Possible Solutions

  47. Possible Solutions • Early stopping • Feature selection • Regularization

  48. Early Stopping • Prior use of early stopping

  49. Early Stopping • Prior use of early stopping • Decision tree heuristics

  50. Early Stopping • Prior use of early stopping • Decision tree heuristics • Similarly here • Stop training after a few iterations • λwill have increased • Guarantees bounded, finite training time
