Aim: How can we distinguish between a vector and scalar quantity?

Aim: How can we distinguish between a vector and scalar quantity?. Do Now: What is the distance from A to B? Describe how a helicopter would know how to travel from A to B Distance = 10 km (scalar) Displacement = 10 km East (vector). A. B. N. W. E. 1 unit = 2 km. S. Scalar.

macey-nunez
Télécharger la présentation

Aim: How can we distinguish between a vector and scalar quantity?

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

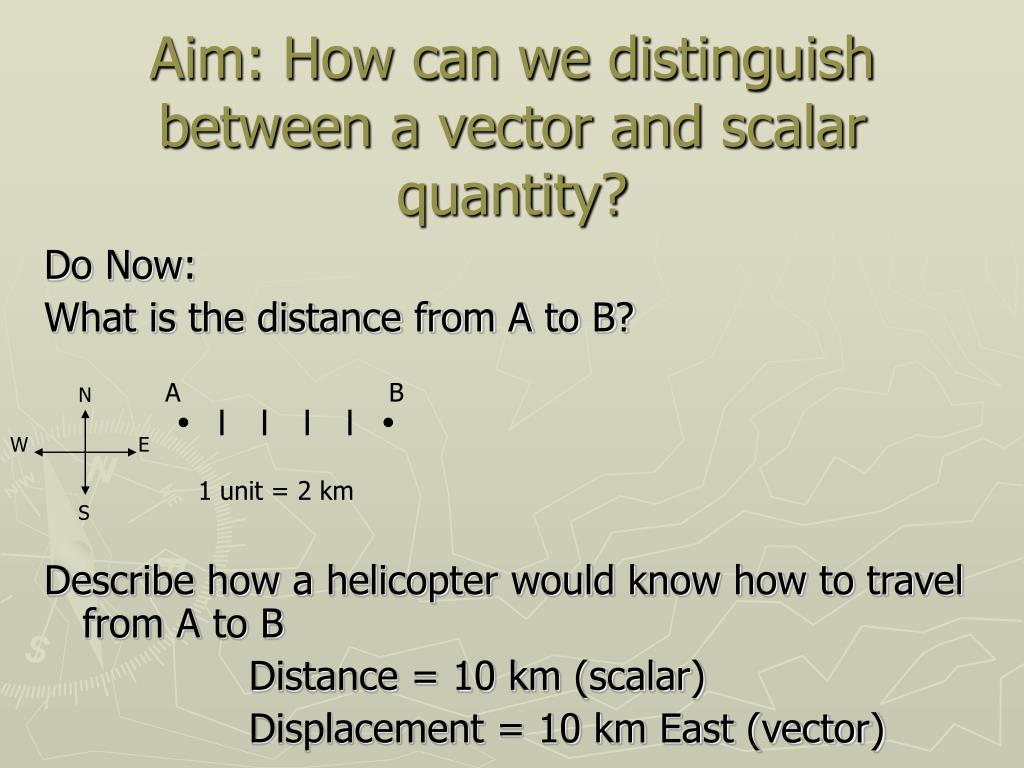

  1. Aim: How can we distinguish between a vector and scalar quantity? Do Now: What is the distance from A to B? Describe how a helicopter would know how to travel from A to B Distance = 10 km (scalar) Displacement = 10 km East (vector) A B N W E 1 unit = 2 km S

  2. Scalar • Quantities having only magnitude (a number) • Ex: • Distance – 10 m • Mass – 5 kg • Time – 30 s • Speed – 50 m/s • Energy – 500 J

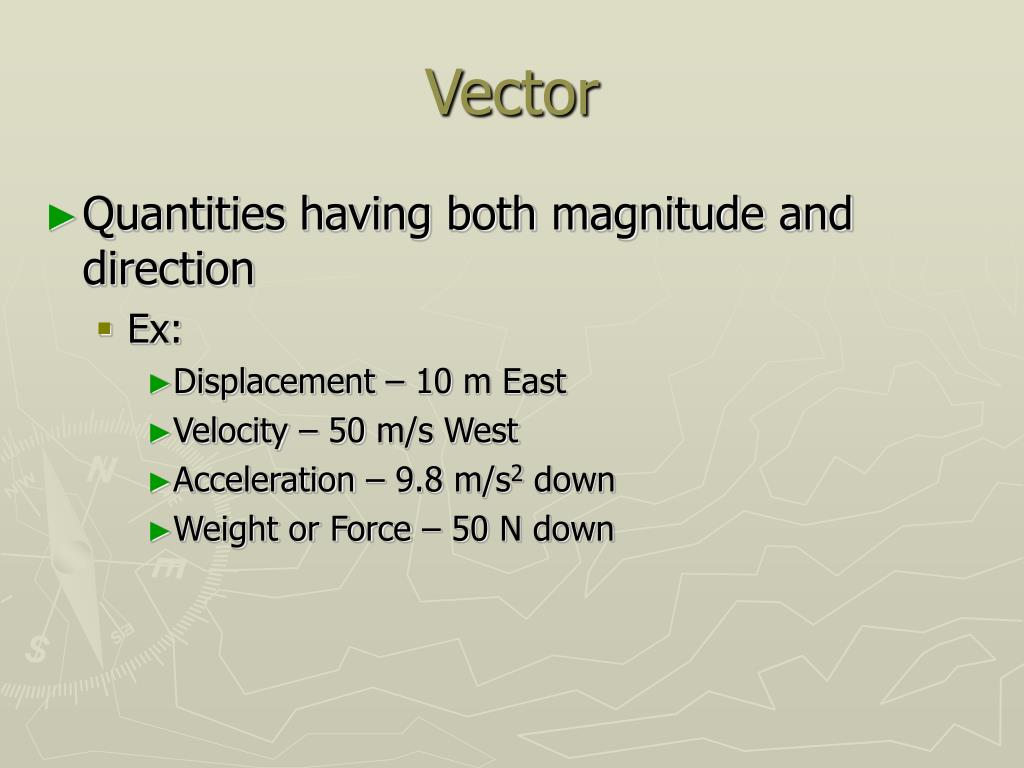

  3. Vector • Quantities having both magnitude and direction • Ex: • Displacement – 10 m East • Velocity – 50 m/s West • Acceleration – 9.8 m/s2 down • Weight or Force – 50 N down

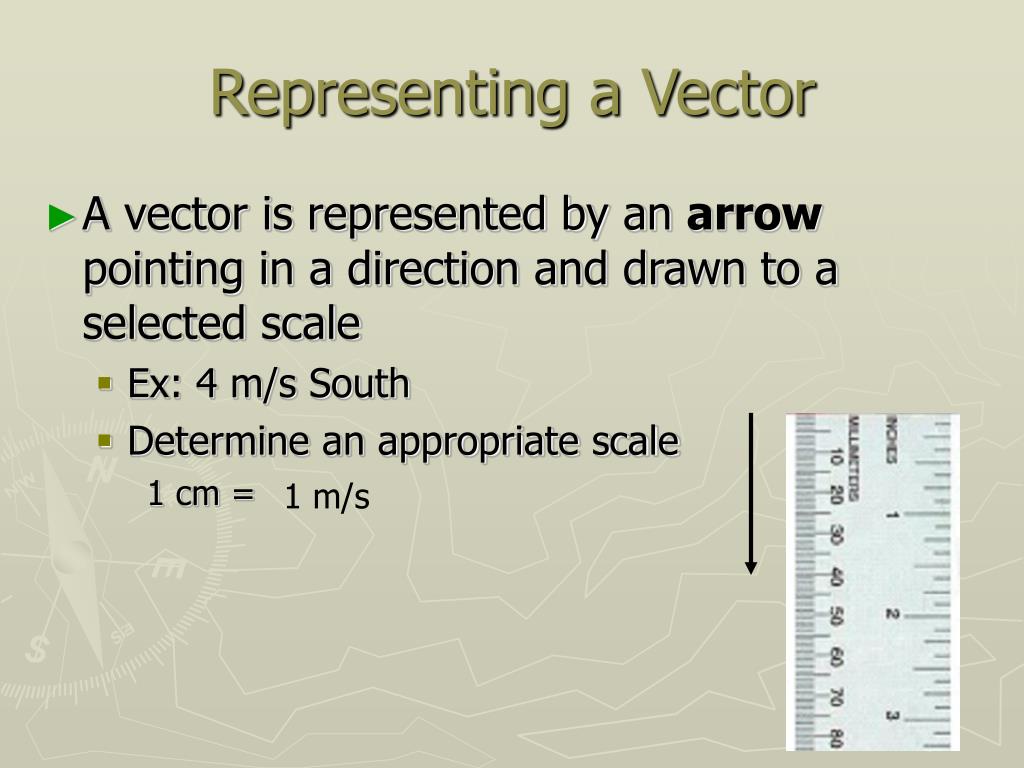

  4. Representing a Vector • A vector is represented by an arrow pointing in a direction and drawn to a selected scale • Ex: 4 m/s South • Determine an appropriate scale 1 cm = 1 m/s

  5. How can we determine angles? N East of North West of North North of East North of West W E South of East South of West West of South East of South S

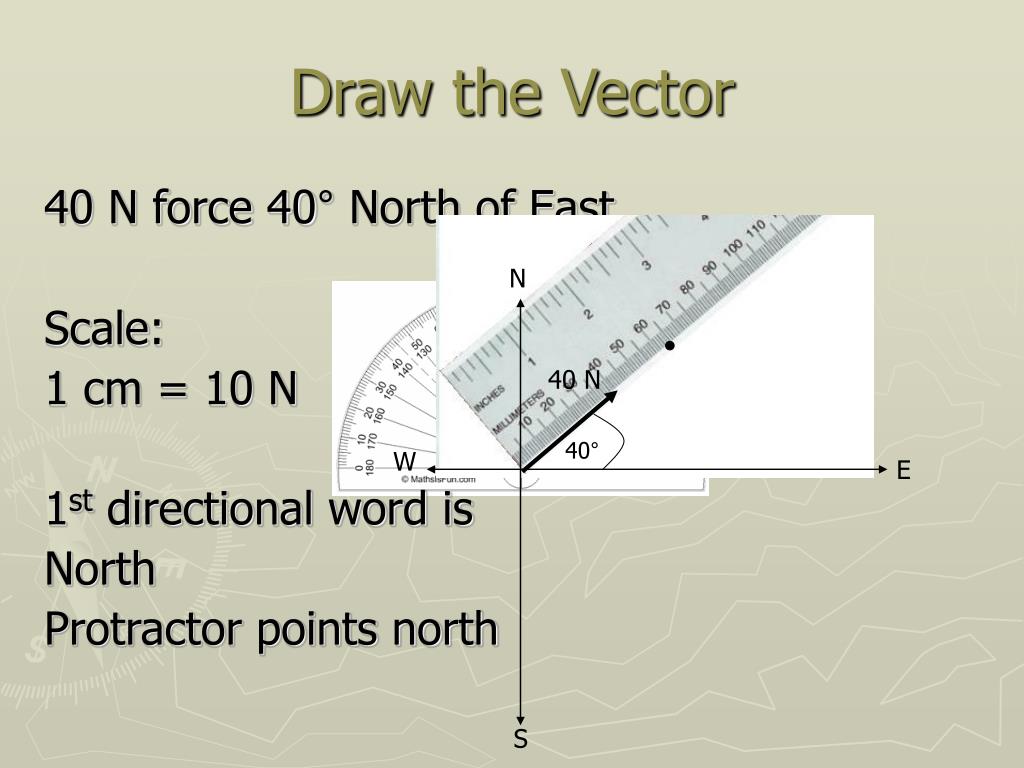

  6. Draw the Vector 40 N force 40° North of East Scale: 1 cm = 10 N 1st directional word is North Protractor points north N 40 N 40° W E S

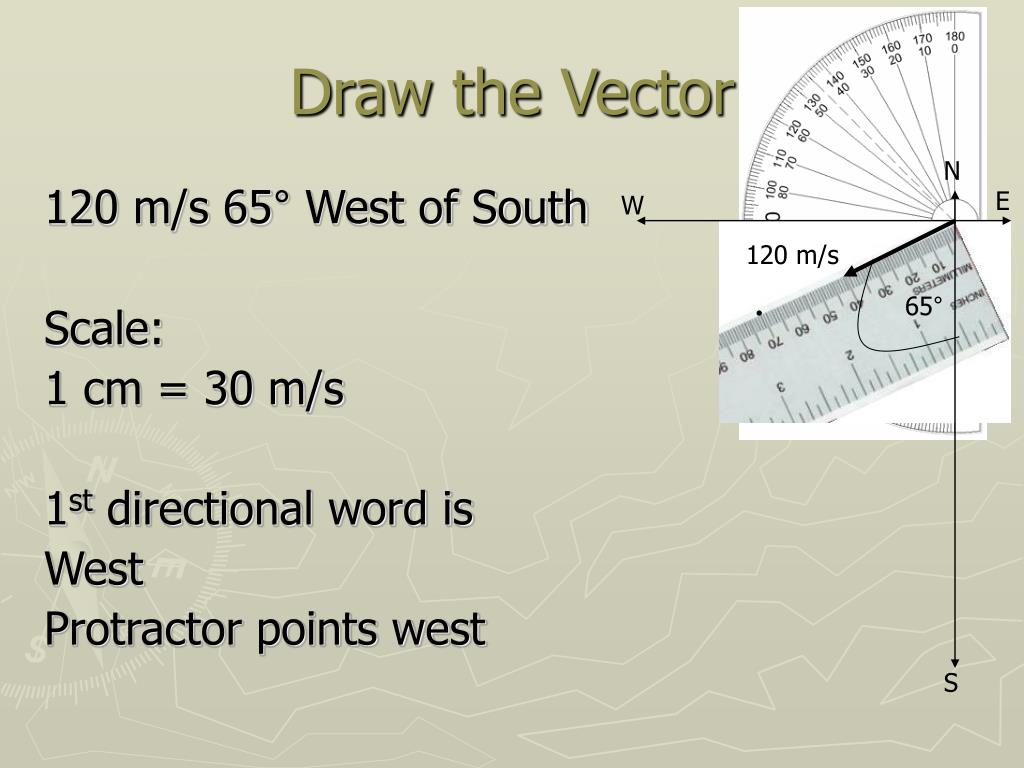

  7. Draw the Vector N 120 m/s 65° West of South Scale: 1 cm = 30 m/s 1st directional word is West Protractor points west E W 120 m/s 65° S
