  1. Computational Steering Sathish Vadhiyar Sources/Credits: CUMULVS web sites and papers

  2. Introduction • Parameters of the computation are adjusted on-the-fly to gain understanding of the problem • Respond to simulation results as they occur by manipulating the input parameters • For carrying out “what if” analysis • For experimenting with program characteristics whose effects are not easily understood • Allows interactive exploration of simulation in time and/or space

  3. Motivation: Falcon Molecular Dynamics (MD) • Simulation of system containing 4800 particles representing an alkane film layered on 2700 particles representing a crystalline base • Simulation steps • Obtain location information from neighboring particles • Calculate intra-molecular forces • Calculate inter-molecular forces • Apply forces to yield new particle position • Publish particle’s new position • Other steps • Determining system-wide characteristics such as atomic temperature • Performing on-line data analysis and visualization • Simulation algorithm • Domain decomposition • Domains assigned to parallel processors • Cut-off radius in force calculation

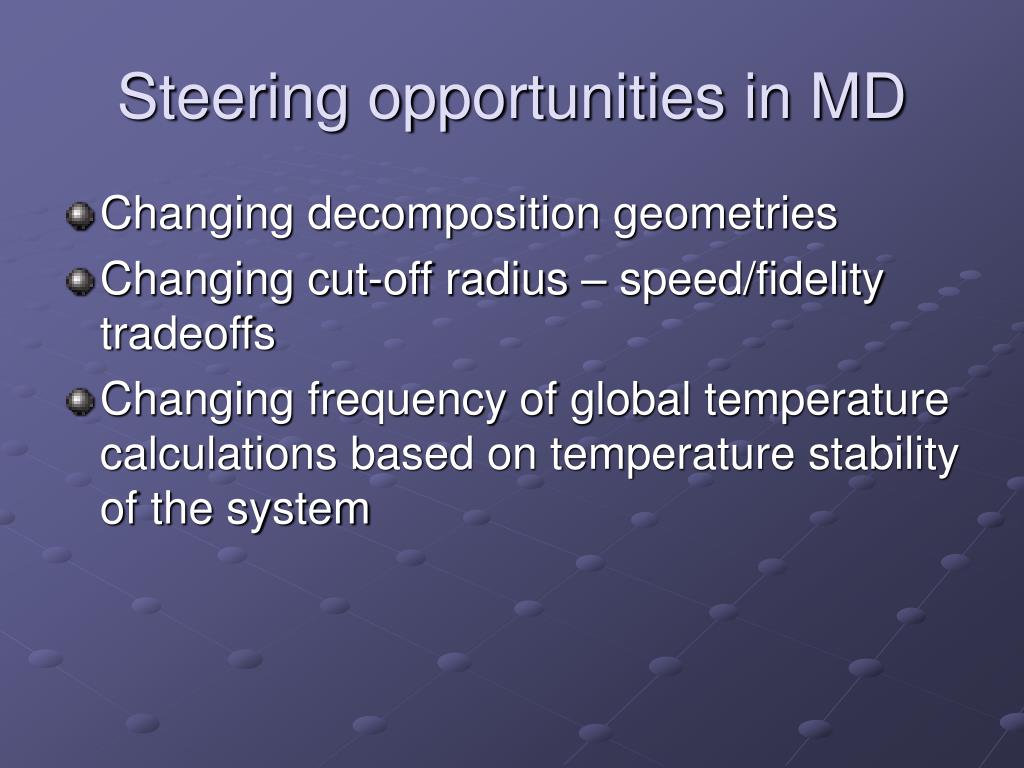

  4. Steering opportunities in MD • Changing decomposition geometries • Changing cut-off radius – speed/fidelity tradeoffs • Changing frequency of global temperature calculations based on temperature stability of the system

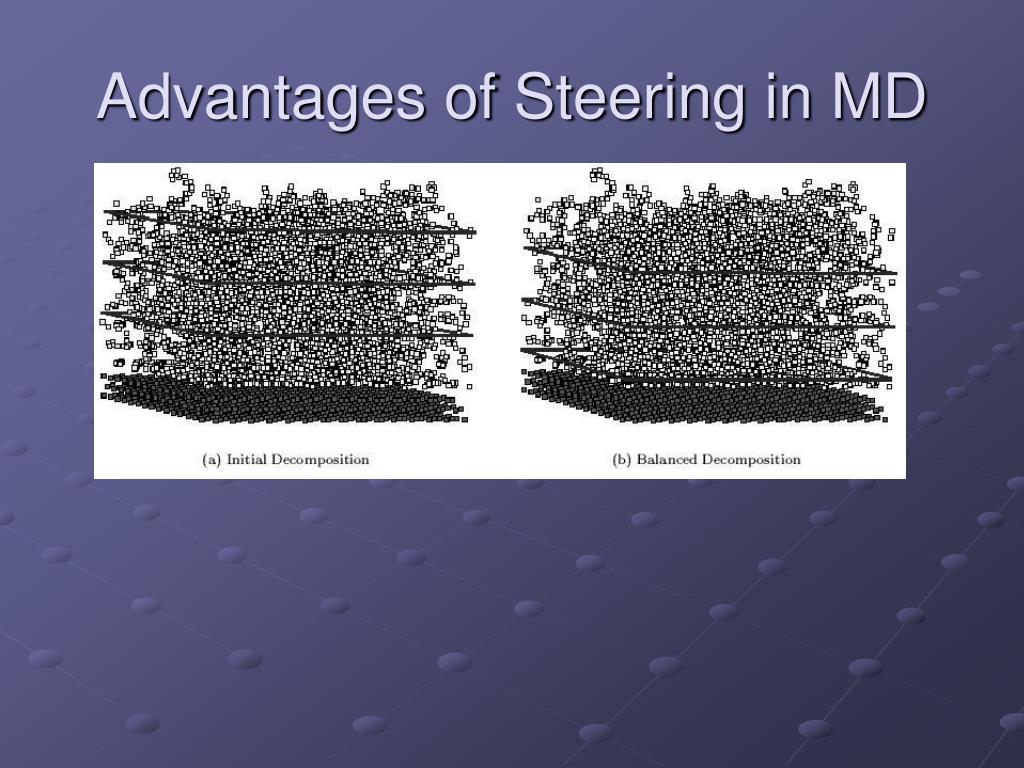

  5. Advantages of Steering in MD

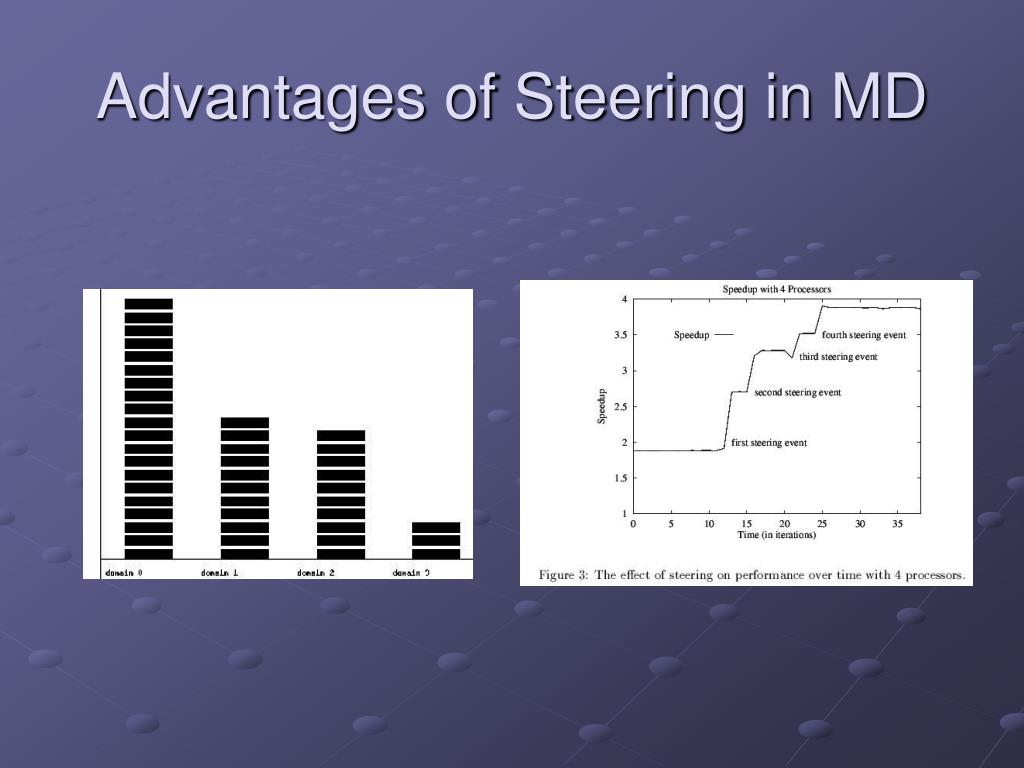

  6. Advantages of Steering in MD

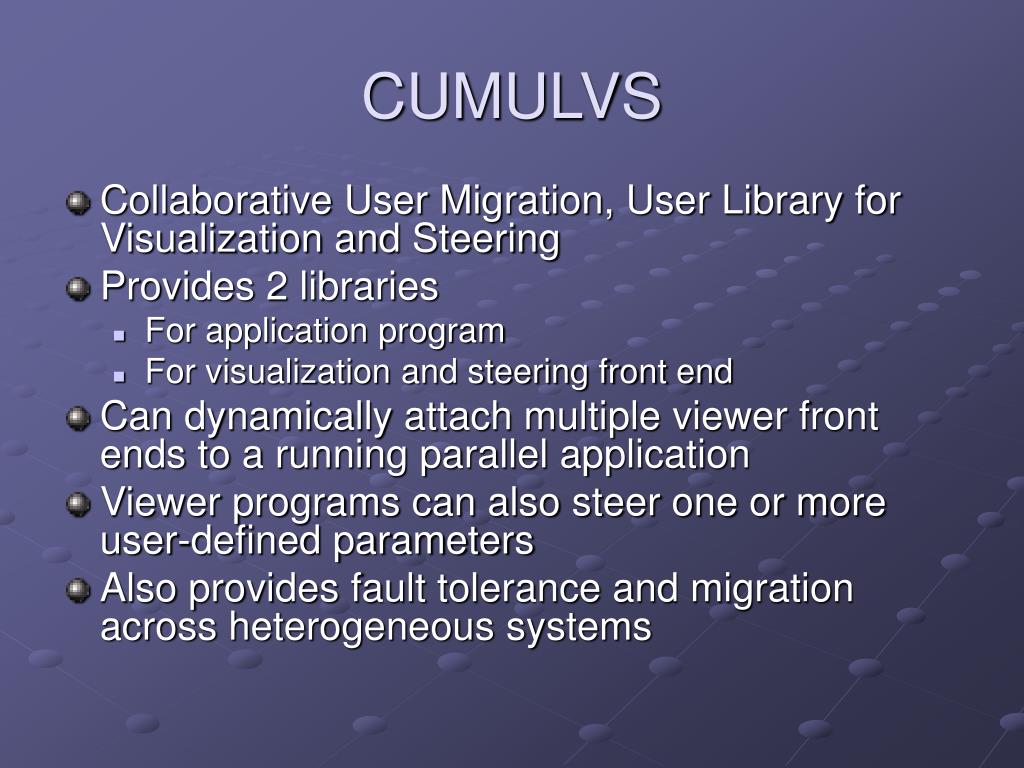

  7. CUMULVS • Collaborative User Migration, User Library for Visualization and Steering • Provides 2 libraries • For application program • For visualization and steering front end • Can dynamically attach multiple viewer front ends to a running parallel application • Viewer programs can also steer one or more user-defined parameters • Also provides fault tolerance and migration across heterogeneous systems

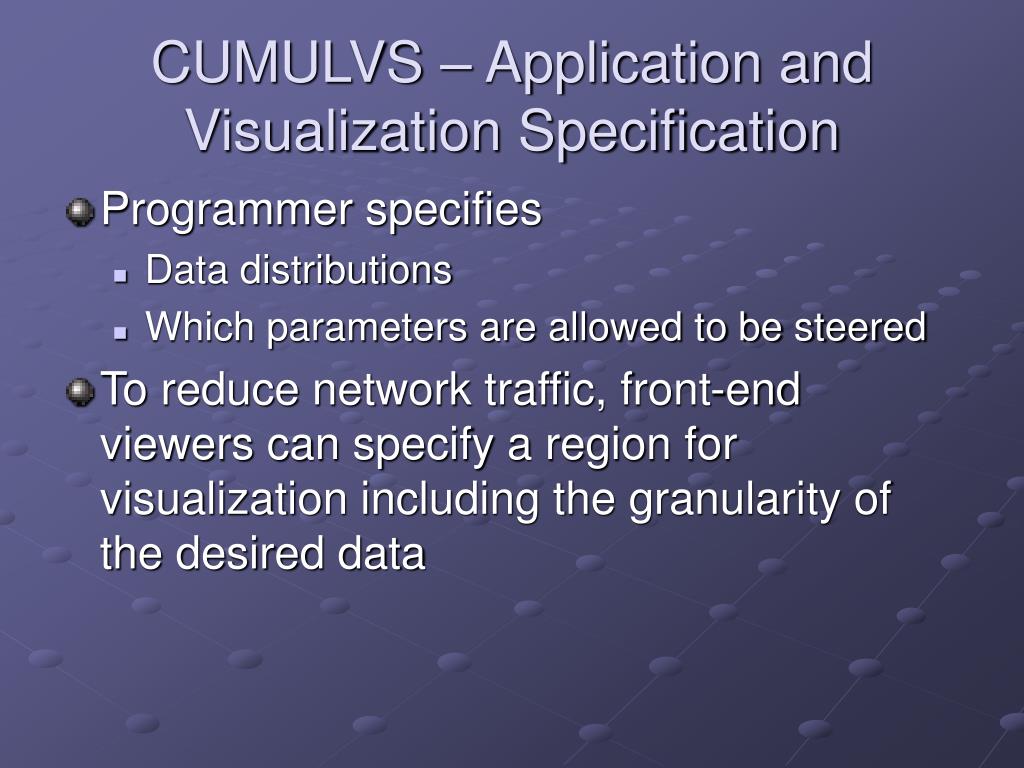

  8. CUMULVS – Application and Visualization Specification • Programmer specifies • Data distributions • Which parameters are allowed to be steered • To reduce network traffic, front-end viewers can specify a region for visualization including the granularity of the desired data

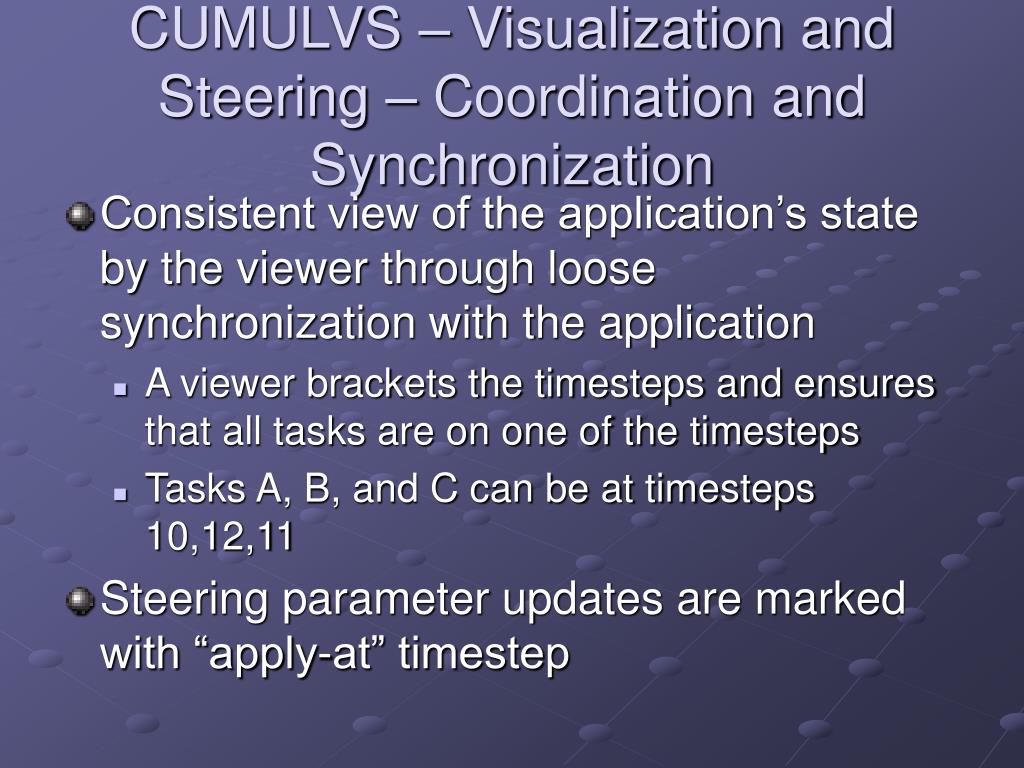

  9. CUMULVS – Visualization and Steering – Coordination and Synchronization • Consistent view of the application’s state by the viewer through loose synchronization with the application • A viewer brackets the timesteps and ensures that all tasks are on one of the timesteps • Tasks A, B, and C can be at timesteps 10,12,11 • Steering parameter updates are marked with “apply-at” timestep

  10. Execution order

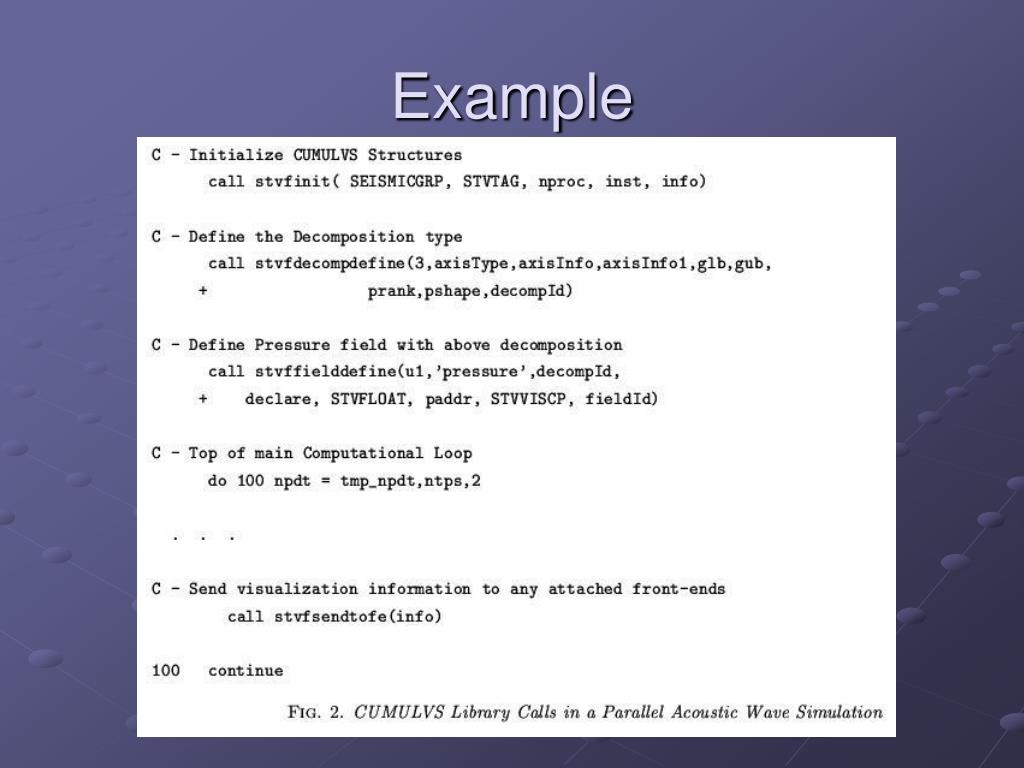

  11. Example

  12. Interface Descriptions

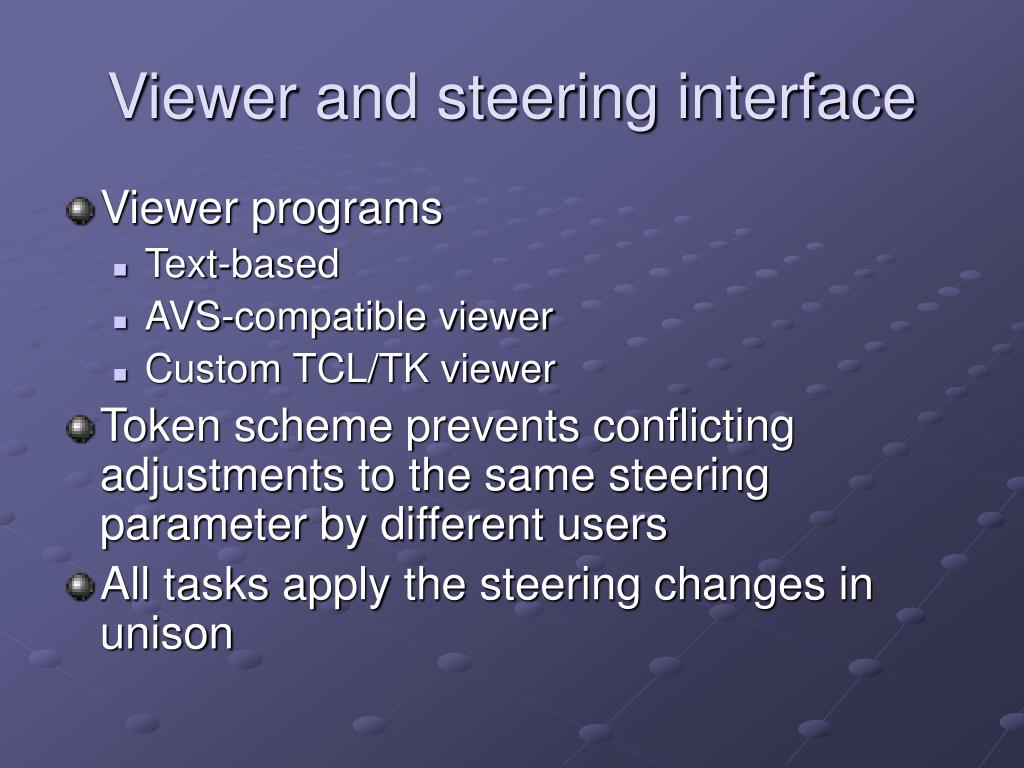

  13. Viewer and steering interface • Viewer programs • Text-based • AVS-compatible viewer • Custom TCL/TK viewer • Token scheme prevents conflicting adjustments to the same steering parameter by different users • All tasks apply the steering changes in unison

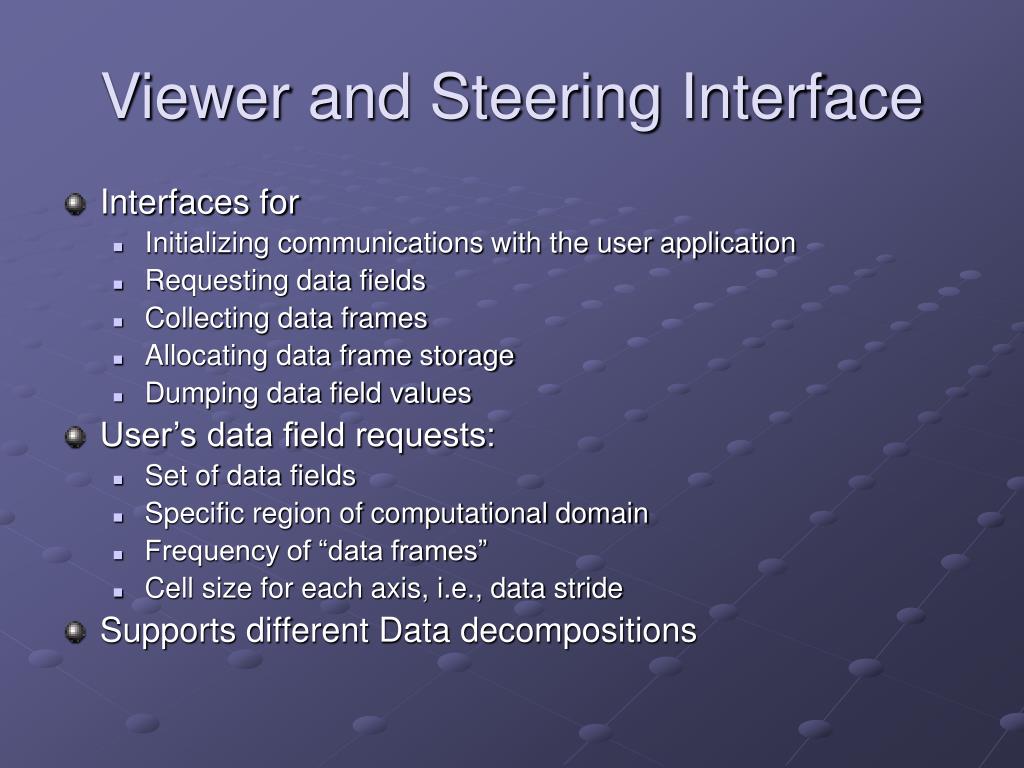

  14. Viewer and Steering Interface • Interfaces for • Initializing communications with the user application • Requesting data fields • Collecting data frames • Allocating data frame storage • Dumping data field values • User’s data field requests: • Set of data fields • Specific region of computational domain • Frequency of “data frames” • Cell size for each axis, i.e., data stride • Supports different Data decompositions

  15. Viewer interfaces • stv_viewer_init • Initializes link with a specific user application • Gathers information about the data fields and parameters that are available from that application • Returns instance identifying a particular application • Another call for selecting data fields and specifying visualization regions • Data type and storage order can be specified • Set of fields specified in a single field request is called “view field group” • Also specifies visualization regions – bounds and cell sizes of data fields

  16. Viewer Interfaces • stv_viewer_request_field() • Field request • Returns VFG instance that represents the group of data fields requested • stv_viewer_send_XON • Sends “XON” to the application • Application waits for XON message, polls for permission to continue with the next iteration

  17. Viewer Interfaces - Miscellanious • stv_viewer_set_VisRegion() • For modifying visualization region of a VFG on the fly • Records new set of visualization bounds and cell sizes and sends update to the application • set_viewer_set_VisFrequency() • Controlling frequency of data frames

  18. Steering interfaces • For iterative control • stv_viewer_steering_init • Creates loosely synchronized connection with the user application • Performs equivalent of special data field request • stv_viewer_steering_request • Obtains steering token for a particular parameter • If token unavailable, i.e. another viewer possesses it • When the possessing viewer releases the token, CUMULVS will broadcast a message informing all the requesting viewers

  19. Steering Interfaces • stv_viewer_steer_parameter, stv_viewer_steer_vparameter • Changes values of parameters • The routines copy viewer data to an internal data structure • stv_viewer_send_NewParams() • Changed parameters are sent • stv_viewer_steering_release • Will relinquish steering token

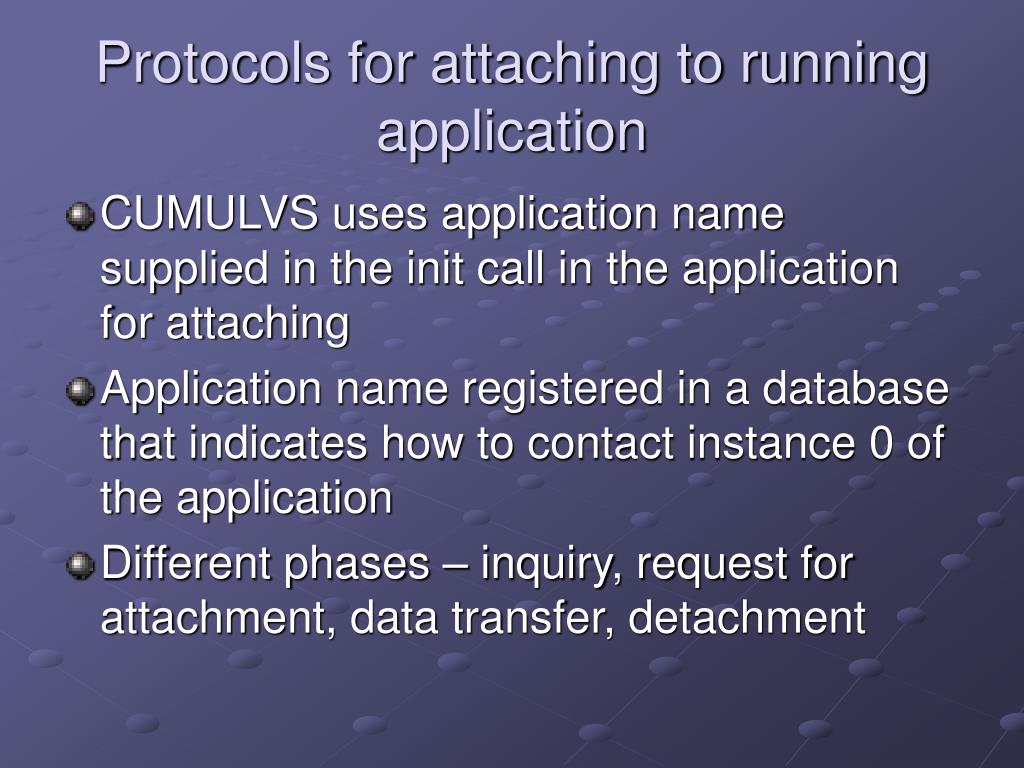

  20. Protocols for attaching to running application • CUMULVS uses application name supplied in the init call in the application for attaching • Application name registered in a database that indicates how to contact instance 0 of the application • Different phases – inquiry, request for attachment, data transfer, detachment

  21. Protocols - Inquiry • Inquiry • Viewer looks up the application name, message context • Sends init0 message to task 0. • Task0 reply: total number of tasks, data decompositions, steering parameter particulars, current time step • Task0 forwards init0 message to other tasks • Other tasks contact the viewer and send their data and steering parameters

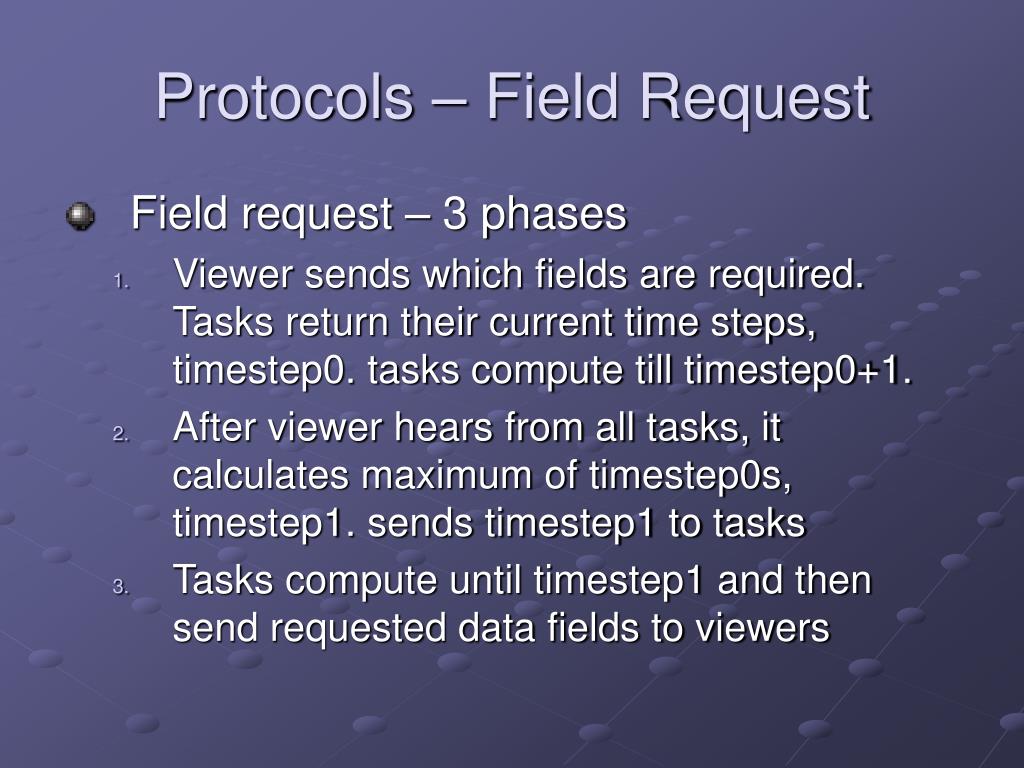

  22. Protocols – Field Request • Field request – 3 phases • Viewer sends which fields are required. Tasks return their current time steps, timestep0. tasks compute till timestep0+1. • After viewer hears from all tasks, it calculates maximum of timestep0s, timestep1. sends timestep1 to tasks • Tasks compute until timestep1 and then send requested data fields to viewers

  23. Example • Simulating propagation of an acoustic signal through a heterogeneous media • Solved by finite difference equations • Equation has pressure fields and sources • CUMULVS used to introduce arbitrary “thumps”

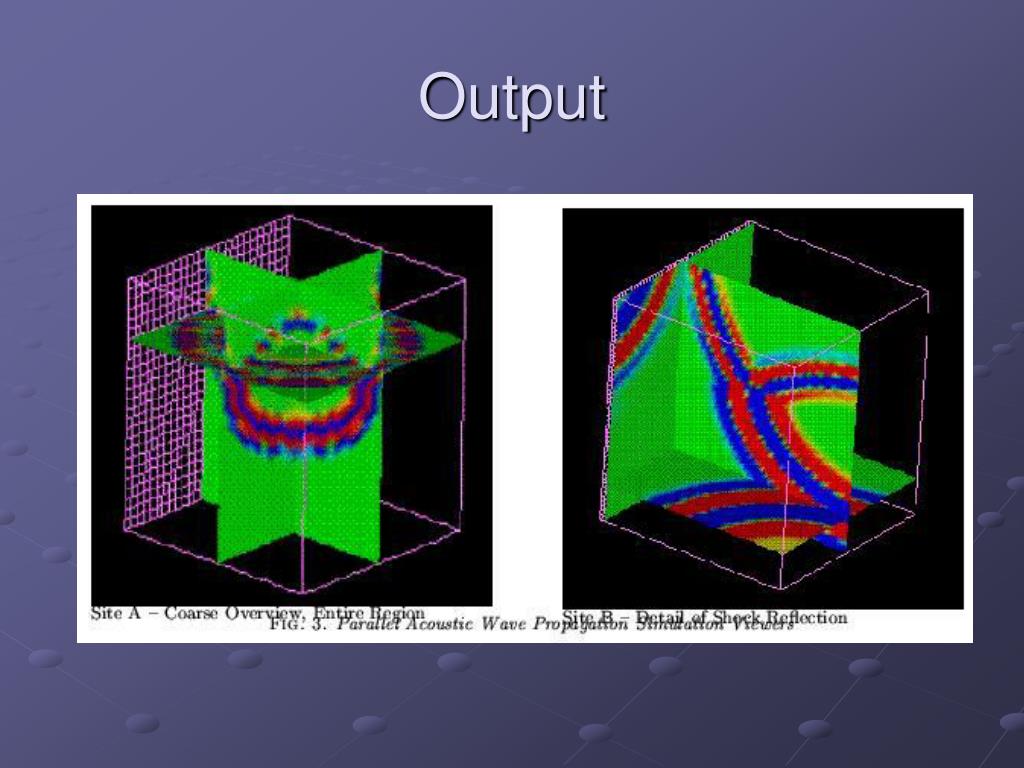

  24. Output

  25. Example – CFD code Supercomputing Conference (from CUMULVS web site) CFD code for simulation of airflow over jet wing Peak in residual field due to an omitted column in computation

  26. References / Sources / Credits • P. M. Papadopoulos, J. A. Kohl, B. D. Semeraro, ``CUMULVS: Extending a Generic Steering and Visualization Middleware for Application Fault-Tolerance,'' Proceedings of the 31st Hawaii International Conference on System Sciences (HICSS-31), Kona, Hawaii, January 1998. • G. A. Geist, J. A. Kohl, P. M. Papadopoulos, ``CUMULVS: Providing Fault-Tolerance, Visualization and Steering of Parallel Applications,'' International Journal of High Performance Computing Applications, Volume 11, Number 3, August 1997, pp. 224-236. • Falcon: On-line Monitoring and Steering of Parallel Programs, Weiming Gu, Greg Eisenhauer and Karsten Schwan, submitted to the IEEE Transactions on Parallel and Distributed Systems November 1994, revised September 1995.
