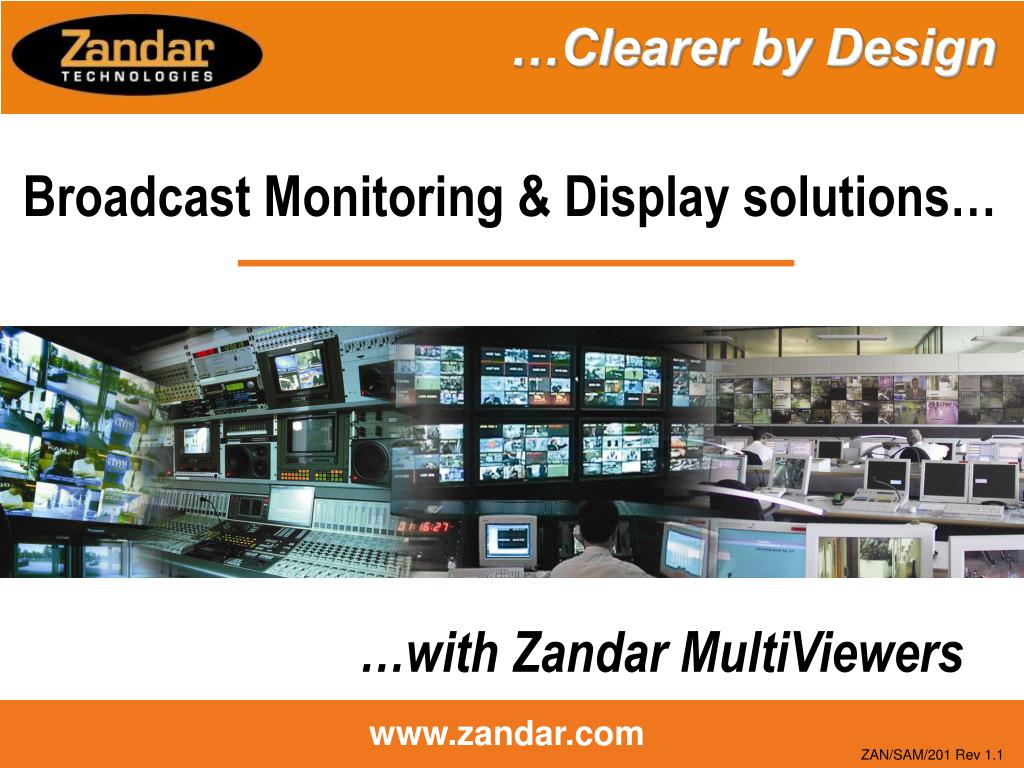

  1. …Clearer by Design Broadcast Monitoring & Display solutions… …with Zandar MultiViewers ZAN/SAM/201 Rev 1.1

  2. At a Glance … • Providers of Multi-Source Display Processors • Wide range of High Quality MultiViewer solutions • Provide Virtual Monitor Wall functionality • Highest quality image processing

  3. MultiViewer Summary • FusionPro+ Series – Modular, High Resolution Display Processors in 3RU and 1RU racks • Predator Series – Fixed Configuration, High Resolution MultiViewers for HD and SD sources • DX Series – Analog/SDI MultiViewers with High Quality Video Output • MX Series – Analog Video Screen Splitters

  4. Broadcast Monitoring Applications • Virtual Monitor Walls • Master Control Rooms • Network Operation Centers • Presence Monitoring • Outside Broadcast Units

  5. Video Sources in Computer Sources in Audio Out Audio in Display out Router I/f Control I/f Timecode In GPIO New! FusionPro+ 3RU • Up to 26 scalable windows • Composite, YC, SDI, HD-SDI, RGBHV & DVI inputs • New! Display Processing Engine with DVI-I output • New! ZdH Dual Head outputs, with spanning • Dynamic UMD & Tally display • Audio & Video Monitoring and Alarms • Various Control Interfaces – Front Panel, Serial, GPIO, Ethernet, ZRP • New! Z-Configurator user software for set-up & control

  6. New! ZdH Display Option • New Display Processing engine with Single Output or Dual Head Mode • Single Output Mode drives DVI-I devices up to 1080p, WUXGA • Dual Head Option, ZdH, drives two displays as single monitor wall • Any input to any output, including spanning across both displays • Redundancy – switch all inputs to one display during display downtime • Provides cost savings – drive two displays from one chassis

  7. Predator HD4 • Predator 1RU - HD4 Quad • 4 HD or SDI inputs, with autodetect • 1080i, 720p, SDI 525, SDI 625 • Multiple Single Output Resolutions – to DVI-I WUXGA • Audio Monitoring, Audio & Video Alarms, UMD/Tally • Front Panel/OSD, Serial, GPI, Ethernet, ZRP

  8. New! Predator HD8 • Predator 1RU – HD8 MultiViewer • 8 HD or SDI inputs, with autodetect • 1080i, 720p, SDI 525, SDI 625 • Multiple Single Output Resolutions – to DVI-I WUXGA • ZdH Dual Head Operation supplied as standard • Audio Monitoring, Audio & Video Alarms, UMD/Tally • Front Panel/OSD, Serial, GPI, Ethernet, ZRP, Z-Configurator, ZdH Predator HD8 in DualQuad Mode

  9. New! FusionPro+ 1RU Audio Mon Out Video Sources in Computer Sources in Audio in Display out GPIO Control I/f Router I/f • From 2 to 8 scalable windows • Composite, YC, SDI, HD-SDI, RGBHV & DVI inputs • New! Display Processing Engine with DVI-I output • New! ZdH Dual Head outputs, with spanning • Audio & Video Monitoring – with fault detection and alarms • Dynamic UMD & Tally display • Various Control Interfaces – Front Panel, Serial, GPIO, Ethernet, ZRP • New! Z-Configurator user software for set-up & control

  10. New! Z-Configurator • New look and feel Windows software • Intuitive GUI • Preset layout selection • Simple system set-up • Drag & drop functionality • Offline & online layout editing • Flexible configuration of all source views • Interface via RS-232, RS-485 or TCP-IP • For use with FusionPro+ and Predator Series MultiViewers

  11. DX Series • Compact 1RU chassis – for 4, 8, 12 or 16 inputs • Auto detect of composite & digital SDI inputs • Choice of digital & analog video outputs, VGA output • Layout editing with Z-Editor • Audio monitoring & alarms • Video alarms for black & frozen picture detection • ZRP Remote Panel for single touch layout recall

  12. MX Series • 4, 8, 12 or 16 composite inputs • Various preset displays • Custom layouts on request • Video, VGA outputs • Compact 1RU chassis • ZRP Remote Panel for single touch layout recall

  13. Zandar Remote Panel • ZRP Desktop Console • RS-232 or RS-422/485 interface • Layout Recall • Full Screen or Big Picture select • Audio Output select • Alarms on/off, and more ….

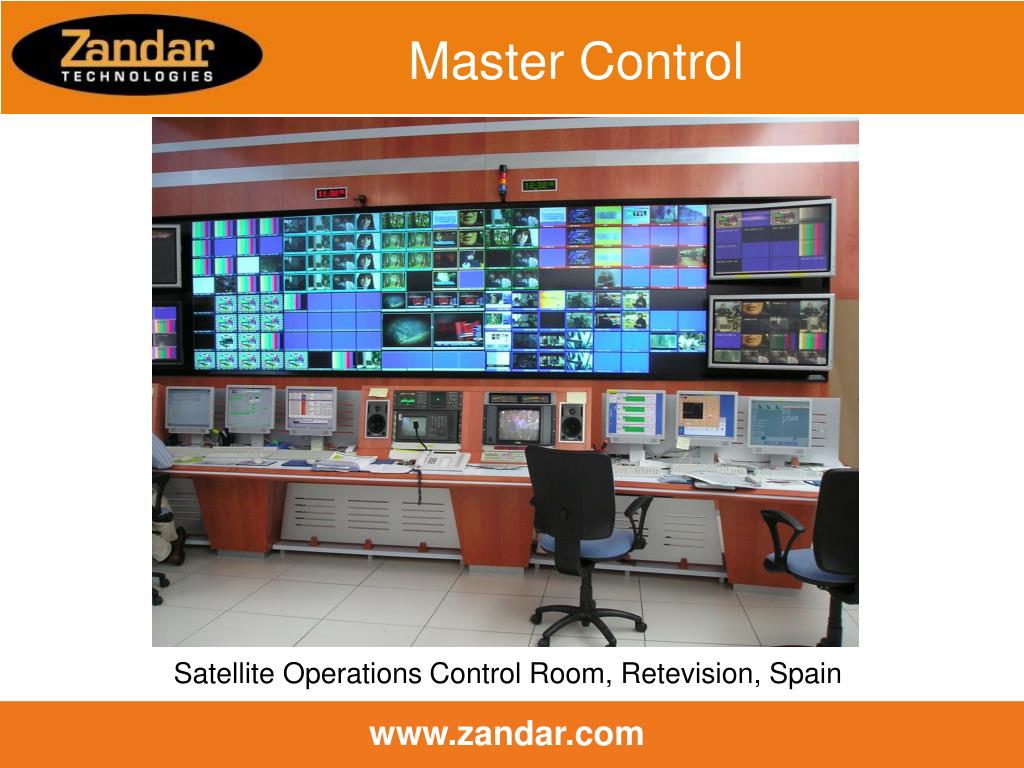

  14. Master Control Satellite Operations Control Room, Retevision, Spain

  15. HDTV Studio Monitoring VTM HDTV Studio, Belgium

  16. Interactive & Mosaic Channel Via Digital Interactive News, Spain

  17. Outside Broadcast tpc OB Van, Switzerland

  18. Outside Broadcast ZDF OB Van, Germany

  19. Outside Broadcast Alfacam/OB4, Belgium

  20. AV Display Euronext Stock Exchange Amsterdam
