  1. Maintaining Variance and k-Medians over Data Stream Windows Brian Babcock, Mayur Datar, Rajeev Motwani, Liadan O’Callaghan Stanford University

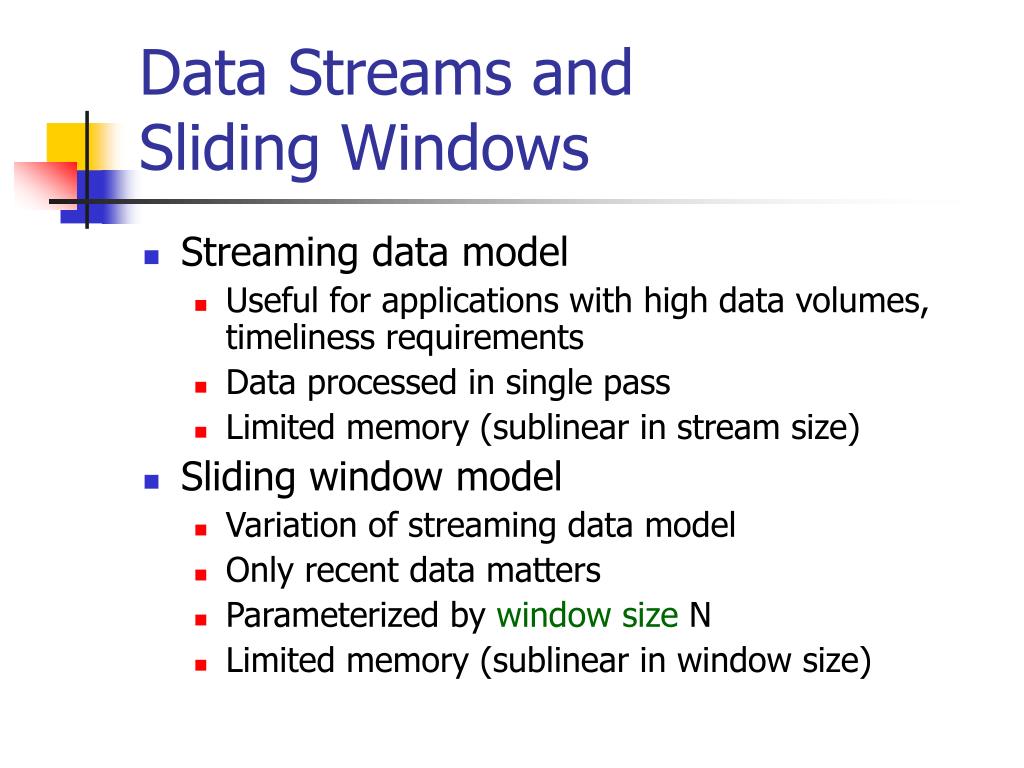

  2. Data Streams andSliding Windows • Streaming data model • Useful for applications with high data volumes, timeliness requirements • Data processed in single pass • Limited memory (sublinear in stream size) • Sliding window model • Variation of streaming data model • Only recent data matters • Parameterized by window size N • Limited memory (sublinear in window size)

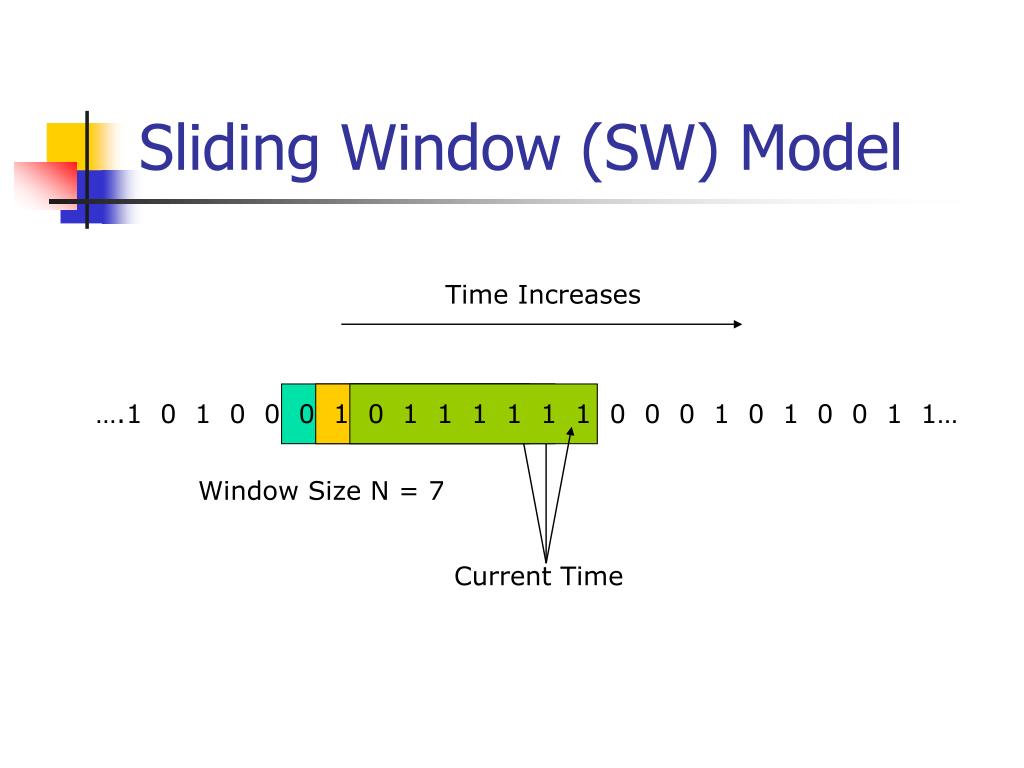

  3. Sliding Window (SW) Model Time Increases ….1 0 1 0 0 0 1 0 1 1 1 1 1 1 0 0 0 1 0 1 0 0 1 1… Window Size N = 7 Current Time

  4. Variance and k-Medians • Variance: Σ(xi – μ)2, μ = Σ xi/N • k-median clustering: • Given: N points (x1… xN) in a metric space • Find k points C = {c1, c2, …, ck} that minimize Σ d(xi, C) (the assignment distance)

  5. Previous Results in SW Model • Count of non-zero elements /Sum of positive integers [DGIM’02] • (1 ± ε) approximation • Space: θ((1/ε)(log N)) words θ((1/ε)(log2 N)) bits • Update time: θ(log N) worst case, θ(1) amortized • Improved to θ(1) worst case by [GT’02] • Exponential Histogram (EH) data structure • Generalized SW model [CS’03] (previous talk)

  6. Results – Variance • (1 ± ε) approximation • Space: O((1/ε2) log N) words • Update Time: O(1) amortized, O((1/ε2) log N) worst case

  7. Results – k-medians • 2O(1/τ)approximation of assignment distance (0 < τ < ½) • Space: O((k/τ4)N2τ) • Update time: O(k) amortized, O((k2/τ3)N2τ) worst case • Query time: O((k2/τ3)N2τ) ~ ~ ~ ~

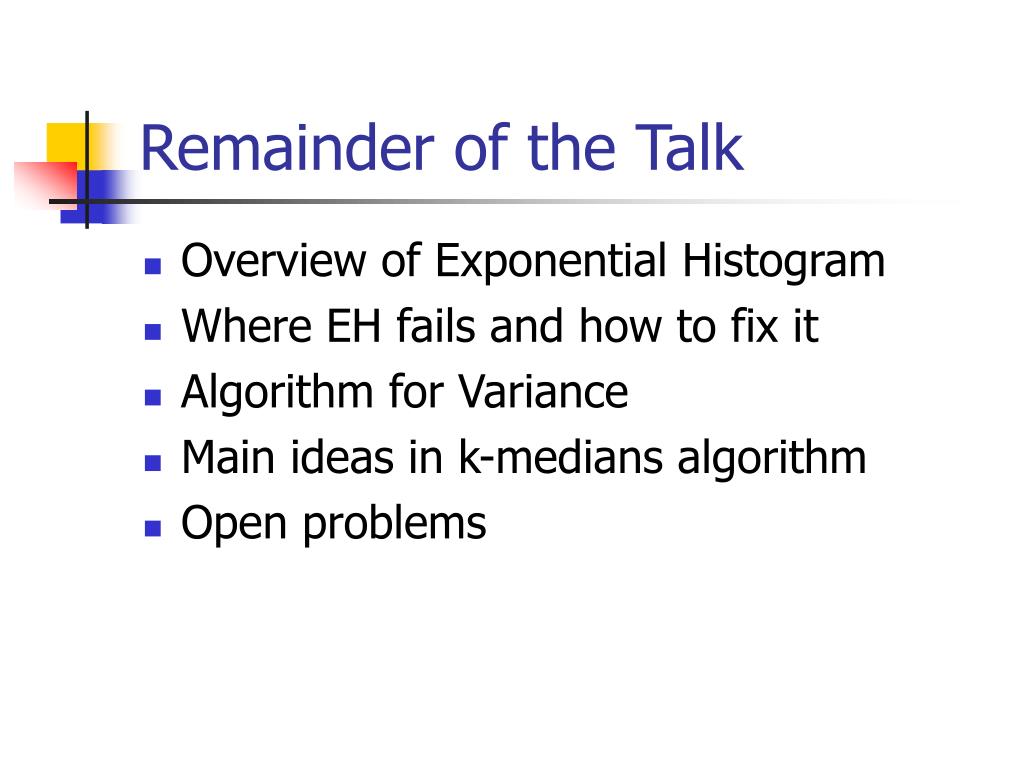

  8. Remainder of the Talk • Overview of Exponential Histogram • Where EH fails and how to fix it • Algorithm for Variance • Main ideas in k-medians algorithm • Open problems

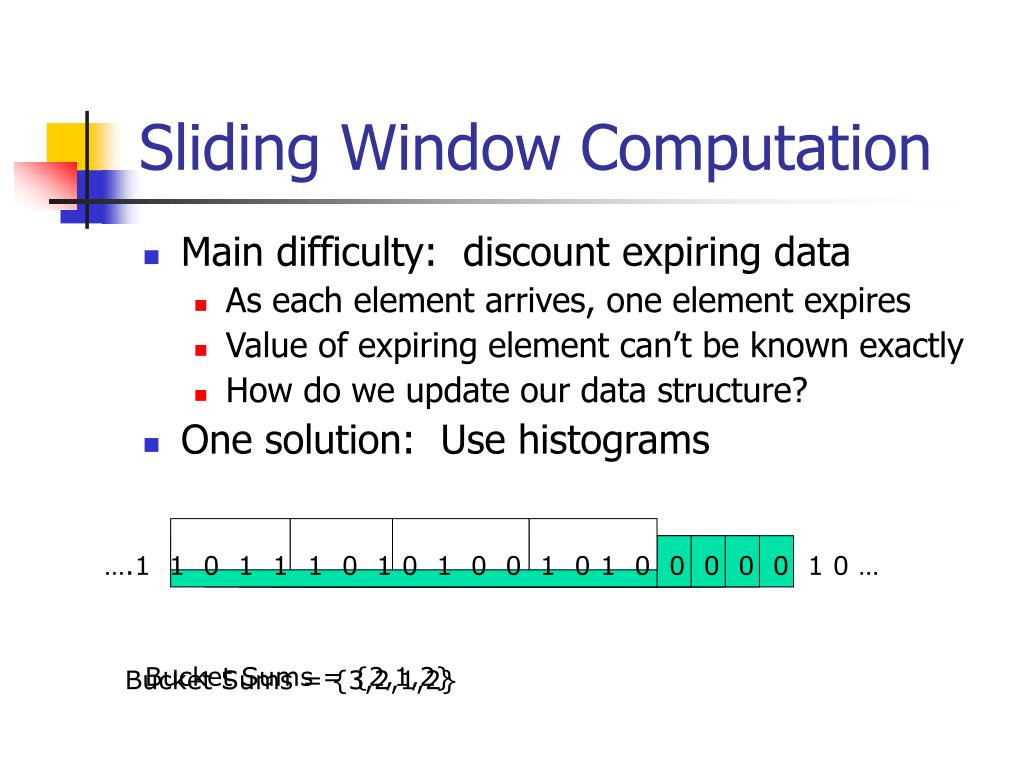

  9. Sliding Window Computation • Main difficulty: discount expiring data • As each element arrives, one element expires • Value of expiring element can’t be known exactly • How do we update our data structure? • One solution: Use histograms ….1 1 0 1 1 1 0 1 0 1 0 0 1 0 1 0 0 0 0 0 1 0 … Bucket Sums = {2,1,2} Bucket Sums = {3,2,1,2}

  10. Containing the Error • Error comes from last bucket • Need to ensure that contribution of last bucket is not too big • Bad example: … 1 1 0 0 1 1 1 1 1 1 1 1 0 1 1 0 0 0 0 0 0 0 0 0 0… Bucket Sums = {4,4,4} Bucket Sums = {4}

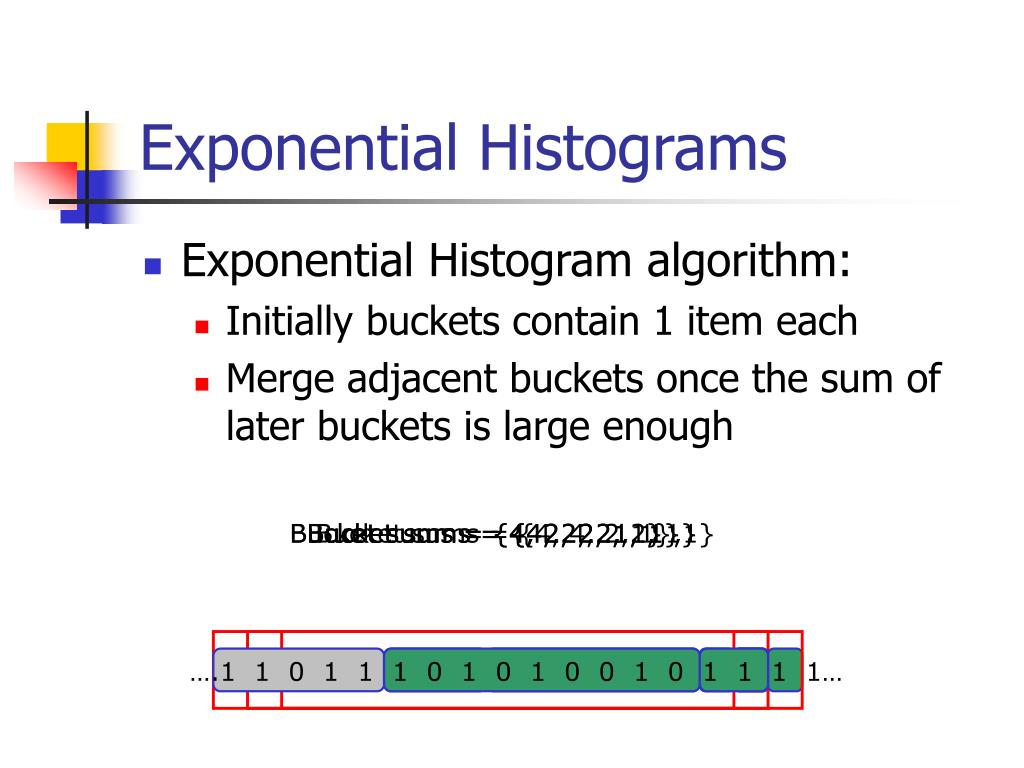

  11. Exponential Histograms • Exponential Histogram algorithm: • Initially buckets contain 1 item each • Merge adjacent buckets once the sum of later buckets is large enough Bucket sums = {4, 2, 2, 1, 1} Bucket sums = {4, 2, 2, 1, 1 ,1} Bucket sums = {4, 2, 2, 1} Bucket sums = {4, 2, 2, 2, 1} Bucket sums = {4, 4, 2, 1} ….1 1 0 1 1 1 0 1 0 1 0 0 1 0 1 1 1 1…

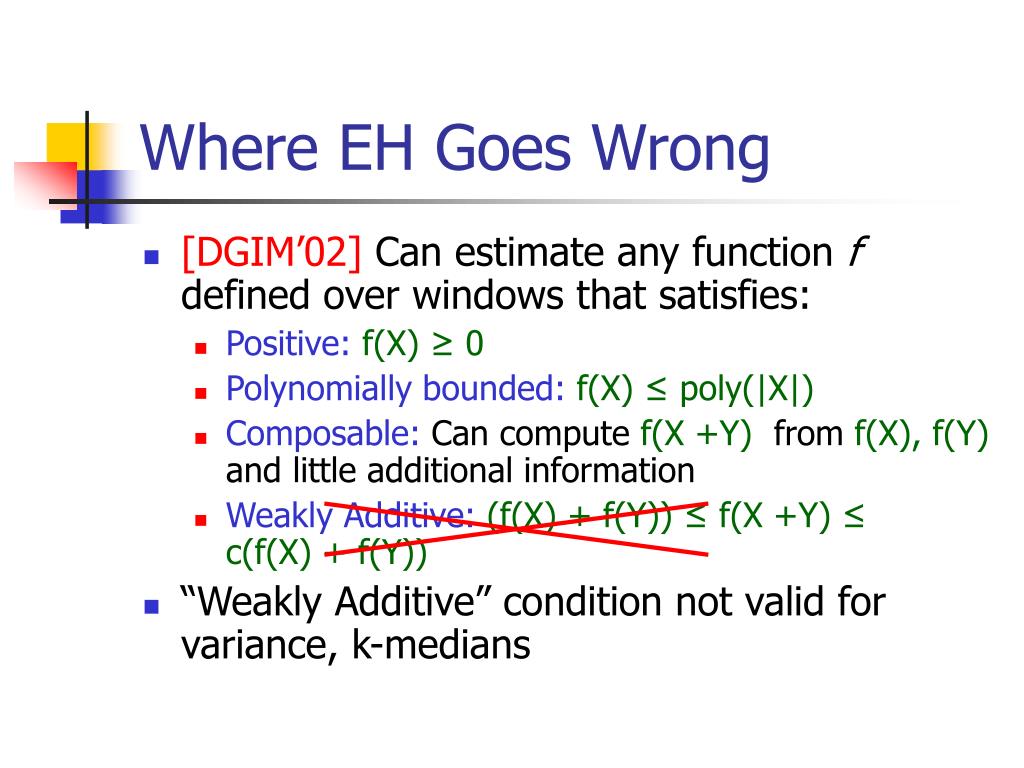

  12. Where EH Goes Wrong • [DGIM’02] Can estimate any function f defined over windows that satisfies: • Positive:f(X) ≥ 0 • Polynomially bounded:f(X) ≤ poly(|X|) • Composable: Can compute f(X +Y) from f(X), f(Y) and little additional information • Weakly Additive:(f(X) + f(Y)) ≤ f(X +Y) ≤ c(f(X) + f(Y)) • “Weakly Additive” condition not valid for variance, k-medians

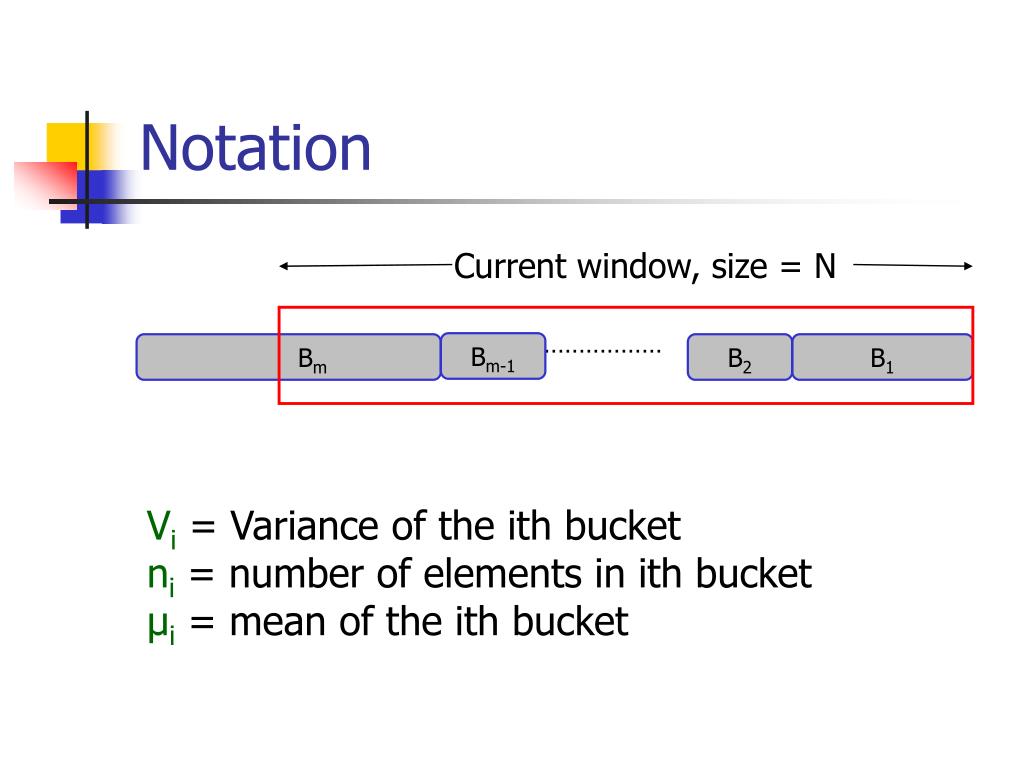

  13. Notation Current window, size = N ……………… Bm-1 Bm B2 B1 Vi = Variance of the ith bucket ni = number of elements in ith bucket μi = mean of the ith bucket

  14. Variance – composition • Bi,j = concatenation of buckets i and j

  15. Variance of each bucket is small Cannot afford to neglect contribution of last bucket Failure of “Weak Additivity” Value Variance of combinedbucket is large Time

  16. Main Solution Idea • More careful estimation of last bucket’s contribution • Decompose variance into two parts • “Internal” variance: within bucket • “External” variance: between buckets Internal Varianceof Bucket i External Variance Internal Varianceof Bucket j

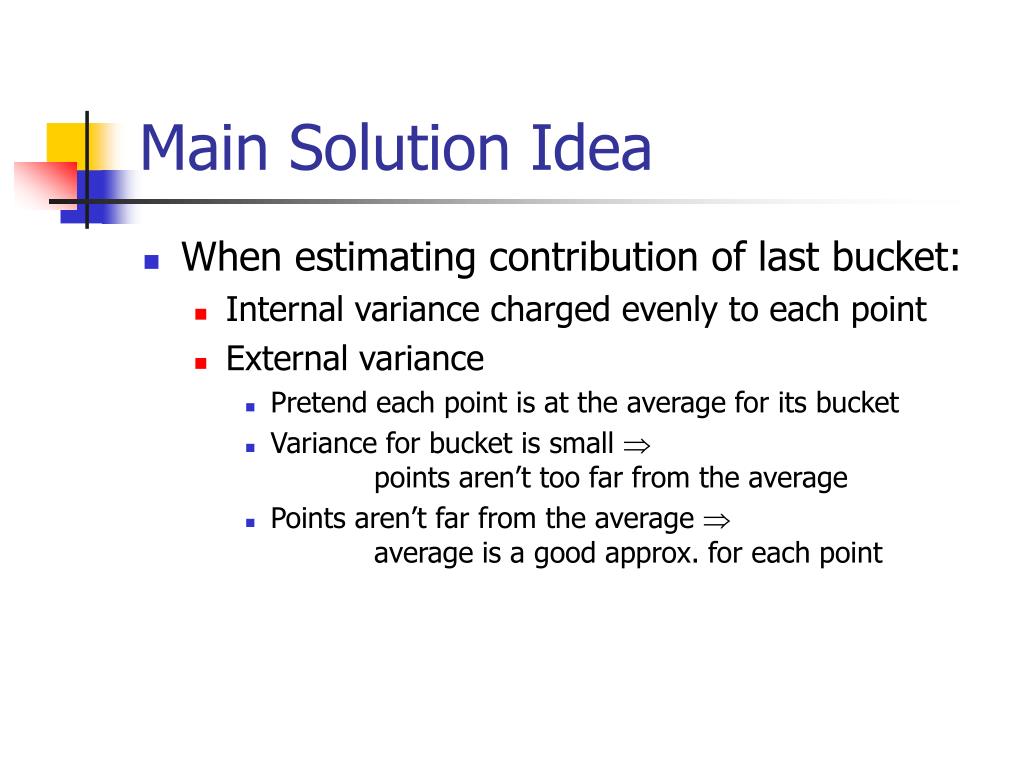

  17. Main Solution Idea • When estimating contribution of last bucket: • Internal variance charged evenly to each point • External variance • Pretend each point is at the average for its bucket • Variance for bucket is small  points aren’t too far from the average • Points aren’t far from the average  average is a good approx. for each point

  18. Main Idea – Illustration • Spread is small  external variance is small • Spread is large  error from “bucket averaging” insignificant Value Spread Time

  19. Variance – error bound Current window, size = N • Theorem: Relative error ≤ ε, provided Vm ≤ (ε2/9) Vm* • Aim: Maintain Vm ≤ (ε2/9) Vm*using as few buckets as possible ……………… Bm-1 Bm B2 B1 Bm*

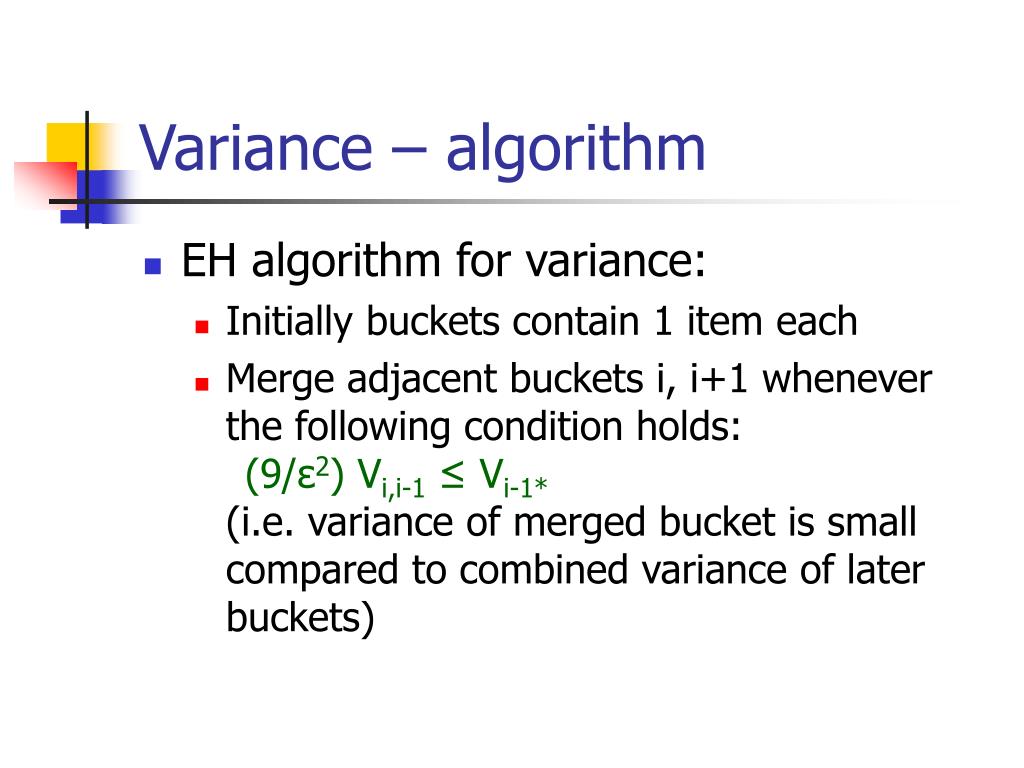

  20. Variance – algorithm • EH algorithm for variance: • Initially buckets contain 1 item each • Merge adjacent buckets i, i+1 whenever the following condition holds: (9/ε2)Vi,i-1 ≤ Vi-1*(i.e. variance of merged bucket is small compared to combined variance of later buckets)

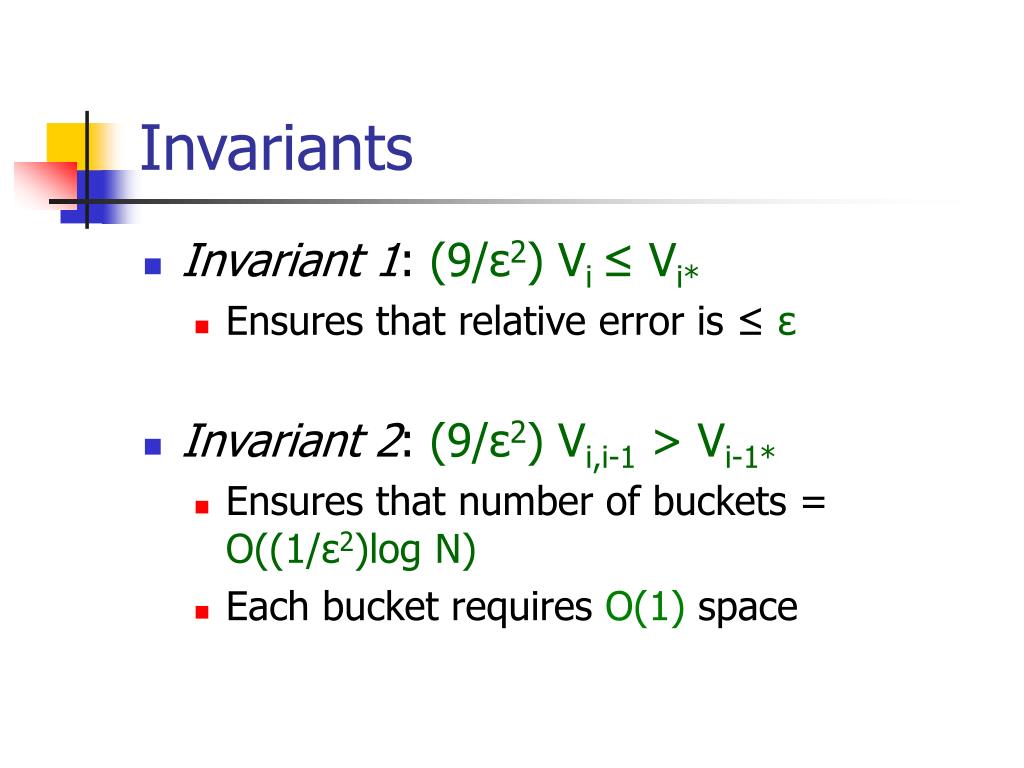

  21. Invariants • Invariant 1: (9/ε2)Vi ≤ Vi* • Ensures that relative error is ≤ ε • Invariant 2: (9/ε2)Vi,i-1 > Vi-1* • Ensures that number of buckets = O((1/ε2)log N) • Each bucket requires O(1) space

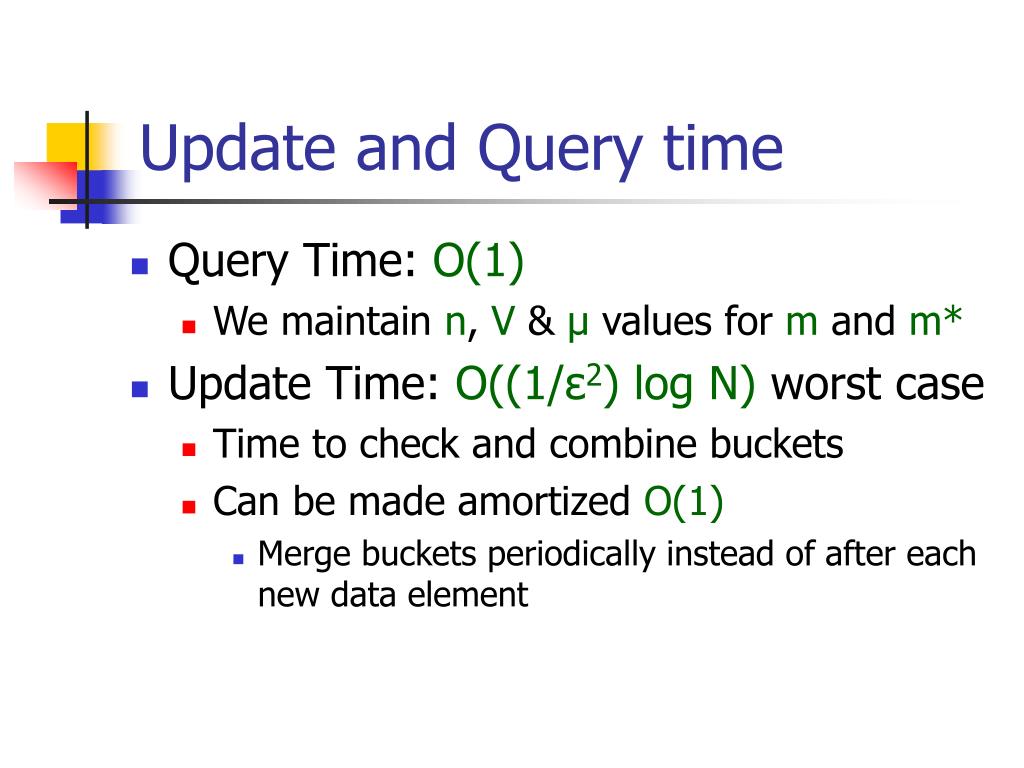

  22. Update and Query time • Query Time: O(1) • We maintain n, V & μ values for m and m* • Update Time: O((1/ε2) log N) worst case • Time to check and combine buckets • Can be made amortized O(1) • Merge buckets periodically instead of after each new data element

  23. k-medians summary (1/2) • Assignment distance substitutes for variance • Assignment distance obtained from an approximate clustering of points in the bucket • Use hierarchical clustering algorithm [GMMO’00] • Original points cluster to give level-1 medians • Level-i medians cluster to give level-(i+1) medians • Medians weighted by count of assigned points • Each bucket maintains a collection of medians at various levels

  24. k-medians summary (2/2) • Merging buckets • Combine medians from each level i • If they exceed Nτin number, cluster to get level i+1 medians. • Estimation procedure • Weighted clustering of all medians from all buckets to produce k overall medians • Estimating contribution of last bucket • Pretend each point is at the closest median • Relies on approximate counts of active points assigned to each median • See paper for details!

  25. Open Problems • Variance: • Close gap between upper and lower bounds (1/ε log N vs. 1/ε2 log N) • Improve update time from O(1) amortized to O(1) worst-case • k-median clustering: • [COP’03] give polylog N space approx. algorithm in streaming data model • Can a similar result be obtained in the sliding window model?

  26. Conclusion • Algorithms to approximately maintain variance and k-median clustering in sliding window model • Previous results using Exponential Histograms required “weak additivity” • Not satisfied by variance or k-median clustering • Adapted EHs for variance and k-median • Techniques may be useful for other statistics that violate “weak additivity”
