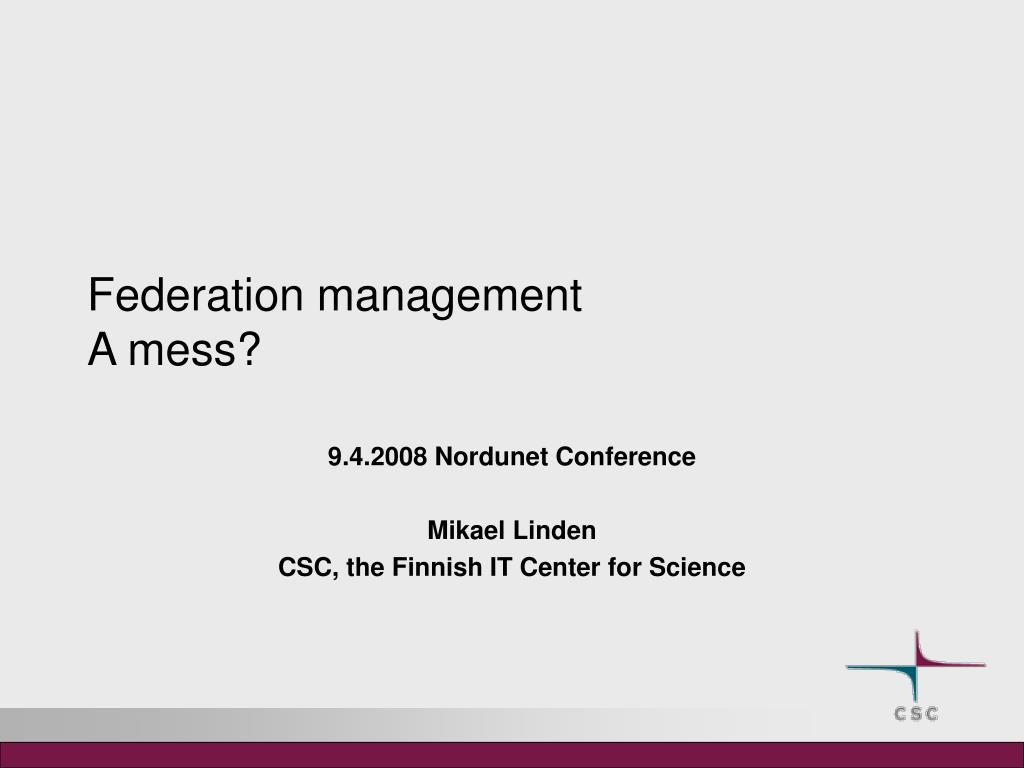

  1. Federation managementA mess? 9.4.2008 Nordunet Conference Mikael Linden CSC, the Finnish IT Center for Science

  2. 3. Username: bsmith Password: 95iEfHw What is Federated Identity technology? 1. HTTP ”Let me in to http://moodle.utu.fi/” Service Provider SP(University of Turku) Moodle Learning Management System 2. HTTP redirectSAML authentication request ”Someone from HUT wants to log in to our Moodle. Authenticate him.” Home Organisation(Helsinki U of Technology)Identity Provider IdP 4. HTTP POST SAML Authentication response ”Let me in to http://moodle.utu.fi/My home organisation has authenticated me and asserts that my name is Bob Smith and I’m a student at Helsinki University of Technology” Let him in.

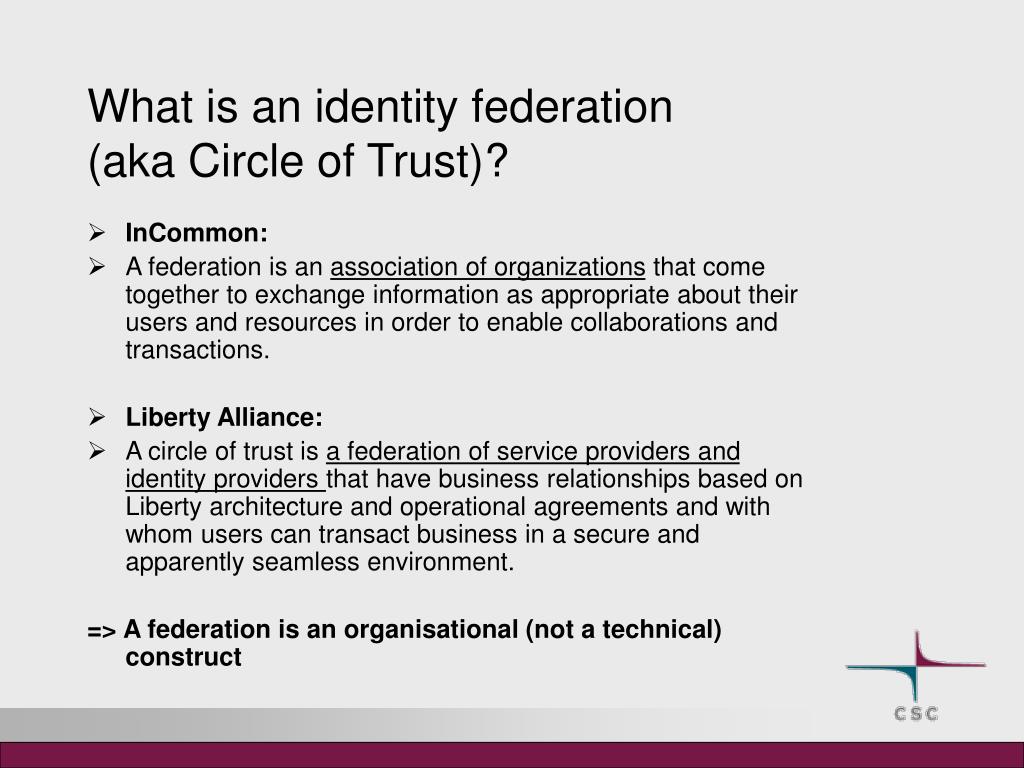

  3. What is an identity federation (aka Circle of Trust)? • InCommon: • A federation is an association of organizations that come together to exchange information as appropriate about their users and resources in order to enable collaborations and transactions. • Liberty Alliance: • A circle of trust is a federation of service providers and identity providers that have business relationships based on Liberty architecture and operational agreements and with whom users can transact business in a secure and apparently seamless environment. => A federation is an organisational (not a technical) construct

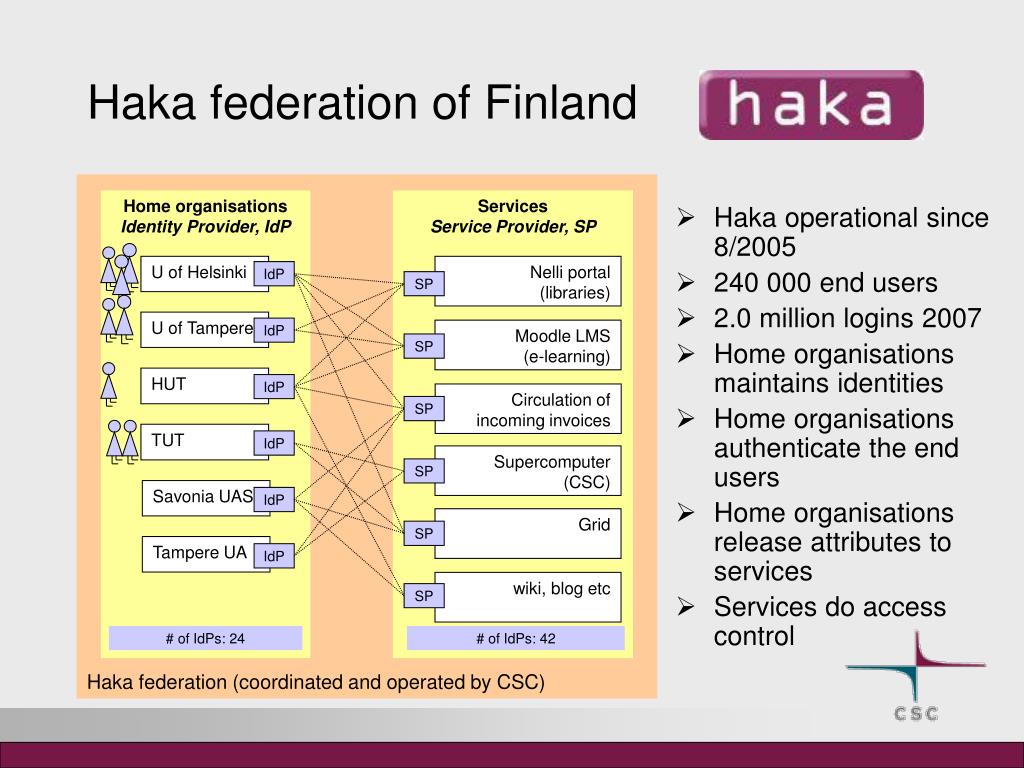

  4. Haka federation of Finland Haka federation (coordinated and operated by CSC) Home organisationsIdentity Provider, IdP ServicesService Provider, SP • Haka operational since 8/2005 • 240 000 end users • 2.0 million logins 2007 • Home organisations maintains identities • Home organisations authenticate the end users • Home organisations release attributes to services • Services do access control U of Helsinki Nelli portal (libraries) IdP SP U of Tampere IdP Moodle LMS(e-learning) SP HUT IdP Circulation ofincoming invoices SP TUT IdP Supercomputer(CSC) SP Savonia UAS IdP Grid SP Tampere UA IdP wiki, blog etc SP # of IdPs: 24 # of IdPs: 42

  5. Do we need a federation?Case Higher education • There are often end users from several IdPs using the same SP • The IdPs and SPs don’t necessarily have business relationships => YES Nelli library portal 3/2008, 119 582 Haka logins

  6. Do we need a federation?Case B2B • In Business-to-business world:use of federated identity management is based on business relationships • Business relationships are typically bilateral • Not necessarily • Identities can be federated between organisations on a bilateral basis

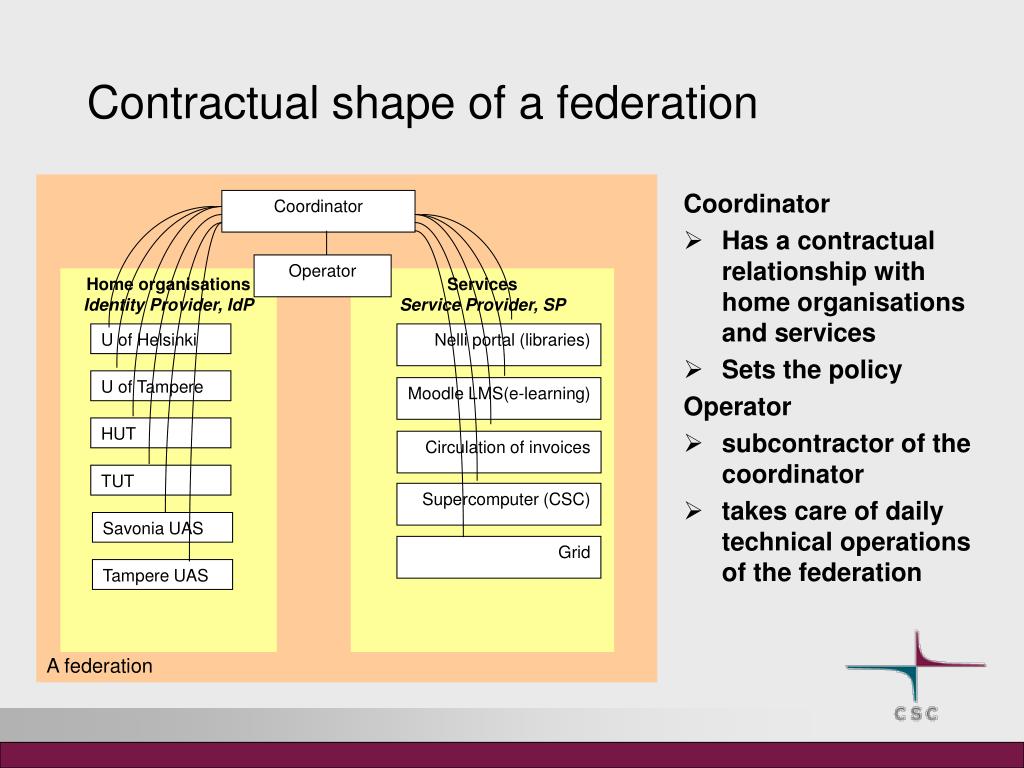

  7. Contractual shape of a federation A federation Coordinator Coordinator • Has a contractual relationship with home organisations and services • Sets the policy Operator • subcontractor of the coordinator • takes care of daily technical operations of the federation Operator Home organisationsIdentity Provider, IdP ServicesService Provider, SP U of Helsinki Nelli portal (libraries) U of Tampere Moodle LMS(e-learning) HUT Circulation of invoices TUT Supercomputer (CSC) Savonia UAS Grid Tampere UAS

  8. An IdP centric view to a federation SP SP • A federation is seen as a set of IdPs which have deployed similar policies • SPs not considered as part of the federation but as a consumer of the federation service • SPs need not to have contractual relationship with the federation • The data protection directive binds also the SPs anyway IdP SP SP IdP IdP Oper ator IdP IdP SP IdP SP SP SP

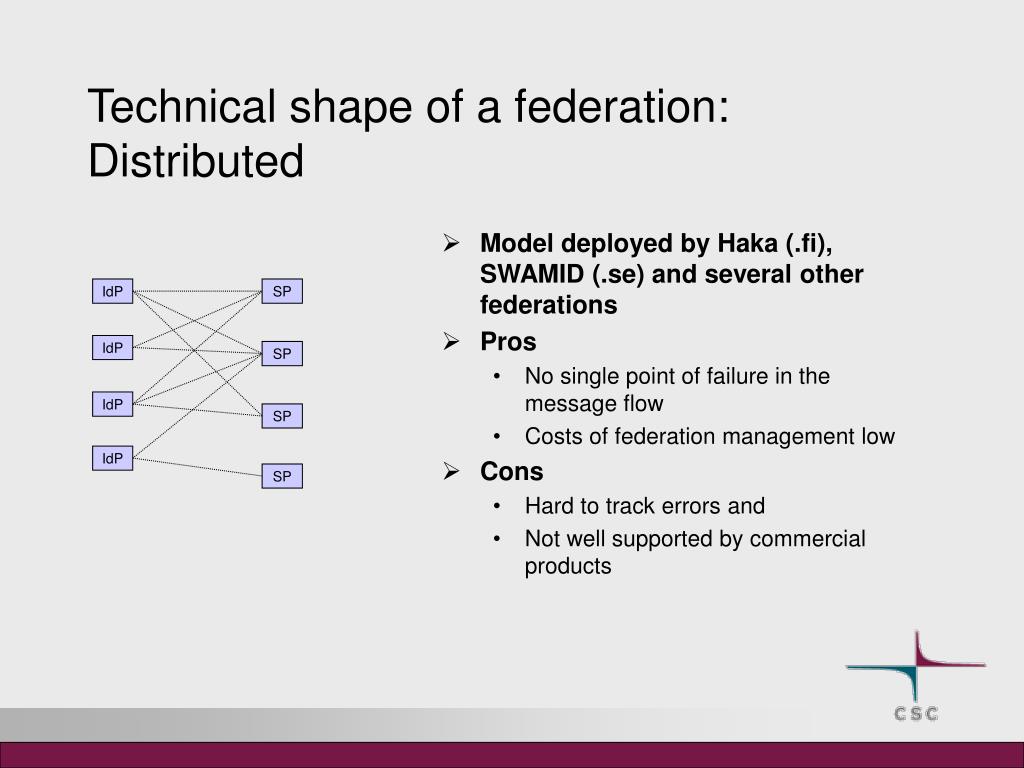

  9. Technical shape of a federation:Distributed • Model deployed by Haka (.fi), SWAMID (.se) and several other federations • Pros • No single point of failure in the message flow • Costs of federation management low • Cons • Hard to track errors and • Not well supported by commercial products IdP SP IdP SP IdP SP IdP SP

  10. Technical shape of a federation: Centralised • Model deployed by Feide (.no) and WAYF (.dk) • Pros • A single point where to locate problems and introduce new features • Economics of scale • Cons • A single point of failure • Everyone needs to trust the IdP in the middle IdP SP IdP SP IdP proxy IdP SP IdP SP

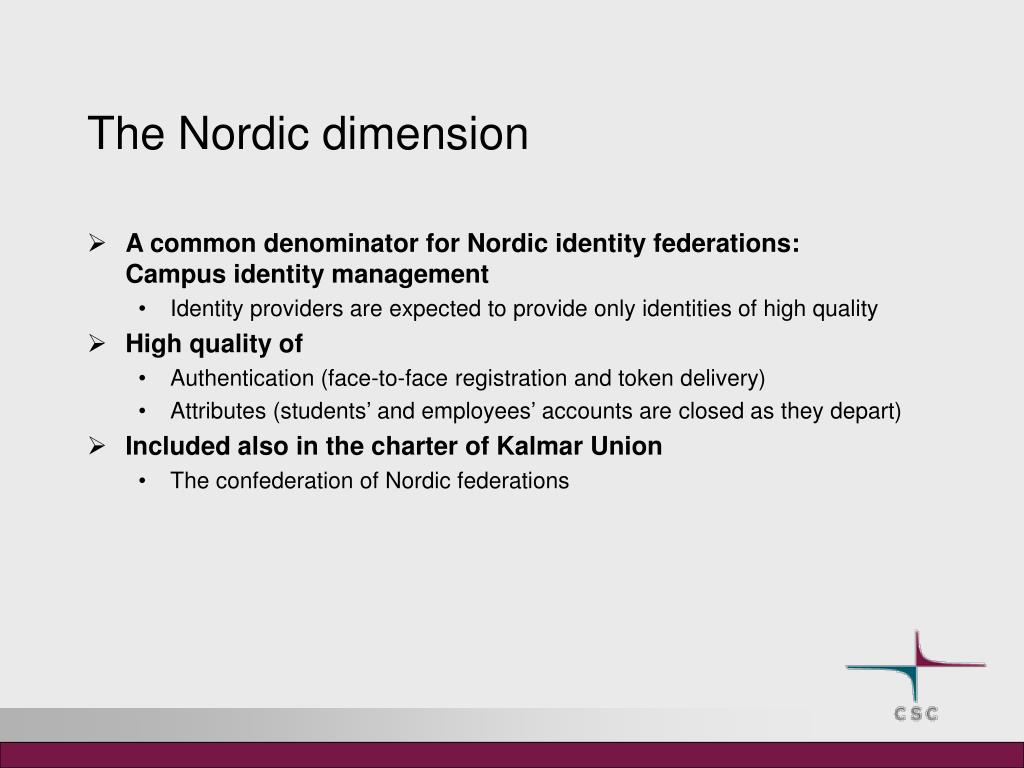

  11. The Nordic dimension • A common denominator for Nordic identity federations:Campus identity management • Identity providers are expected to provide only identities of high quality • High quality of • Authentication (face-to-face registration and token delivery) • Attributes (students’ and employees’ accounts are closed as they depart) • Included also in the charter of Kalmar Union • The confederation of Nordic federations

  12. Coordinations of a federation: leadership in a network of organisations • Understanding universities’ needs and limitations • Understanding the possibilities of the technology • Steering the development of the federation. Making organisations involved …without having a mandate to dictate anything • Changes are slow and difficult to drive in a federation • Communications with different players in the academia
