An Auditory Scene Analysis Approach to Speech Segregation

1. An Auditory Scene Analysis Approach to Speech Segregation DeLiang Wang Perception and Neurodynamics Lab The Ohio State University

2. Outline of presentation • Introduction • Speech segregation problem • Auditory scene analysis (ASA) approach • Voiced speech segregation based on pitch tracking and amplitude modulation analysis • Ideal binary mask as CASA goal • Unvoiced speech segregation • Auditory segmentation • Neurobiological basis of ASA

3. Real-world audition What? • Source type Speech message speaker age, gender, linguistic origin, mood, … Music Car passing by Where? • Left, right, up, down • How close? Channel characteristics Environment characteristics • Room configuration • Ambient noise

4. Humans versus machines Additionally: • Car noise is not a very effective speech masker • At 10 dB • At 0 dB • Human word error rate at 0 dB SNR is around 1% as opposed to 100% for unmodified recognisers (around 40% with noise adaptation) Source: Lippmann (1997)

5. Speech segregation problem • In a natural environment, speech is usually corrupted by acoustic interference. Speech segregation is critical for many applications, such as automatic speech recognition and hearing prosthesis • Most speech separation techniques, e.g. beamforming and blind source separation via independent analysis, require multiple sensors. However, such techniques have clear limits • Suffer from configuration stationarity • Can’t deal with single-microphone mixtures orsituations where multiple sounds arrive from close directions • Most speech enhancement developed for monaural situation can deal with only stationary acoustic interference

6. Auditory scene analysis (Bregman’90) • Listeners are able to parse the complex mixture of sounds arriving at the ears in order to retrieve a mental representation of each sound source • Ball-room problem, Helmholtz, 1863 (“complicated beyond conception”) • Cocktail-party problem, Cherry’53 • Two conceptual processes of auditory scene analysis (ASA): • Segmentation. Decompose the acoustic mixture into sensory elements (segments) • Grouping. Combine segments into groups, so that segments in the same group are likely to have originated from the same environmental source

7. Computational auditory scene analysis • Computational ASA (CASA) systems approach sound separation based on ASA principles • Weintraub’85, Cooke’93, Brown & Cooke’94, Ellis’96, Wang & Brown’99 • CASA progress: Monaural segregation with minimal assumptions • CASA challenges • Broadband high-frequency mixtures • Reliable pitch tracking of noisy speech • Unvoiced speech

8. Outline of presentation • Introduction • Speech segregation problem • Auditory scene analysis (ASA) approach • Voiced speech segregation based on pitch tracking and amplitude modulation analysis • Ideal binary mask as CASA goal • Unvoiced speech segregation • Auditory segmentation • Neurobiological basis of ASA

9. Resolved and unresolved harmonics • For voiced speech, lower harmonics are resolved while higher harmonics are not • For unresolved harmonics, the envelopes of filter responses fluctuate at the fundamental frequency of speech • Our model (Hu & Wang’04) applies different grouping mechanisms for low-frequency and high-frequency signals: • Low-frequency signals are grouped based on periodicity and temporal continuity • High-frequency signals are grouped based on amplitude modulation (AM) and temporal continuity

10. Diagram of the Hu-Wang model

11. Cochleogram: Auditory peripheral model Spectrogram Spectrogram • Plot of log energy across time and frequency (linear frequency scale) Cochleogram • Cochlear filtering by the gammatone filterbank (or other models of cochlear filtering), followed by a stage of nonlinear rectification; the latter corresponds to hair cell transduction by either a hair cell model or simple compression operations (log and cube root) • Quasi-logarithmic frequency scale, and filter bandwidth is frequency-dependent • Previous work suggests better resilience to noise than spectrogram Cochleogram

12. Mid-level auditory representations • Mid-level representations form the basis for segment formation and subsequent grouping • Correlogram extracts periodicity and AM from simulated auditory nerve firing patterns • Summary correlogram is used to identify global pitch • Cross-channel correlation between adjacent correlogram channels identifies regions that are excited by the same harmonic or formant

13. Correlogram • Short-term autocorrelation of the output of each frequency channel of the cochleogram • Peaks in summary correlogram indicate pitch periods (F0) • A standard model of pitch perception Correlogram & summary correlogram of a double vowel, showing F0s

14. Cross-channel correlation (a) Correlogram and cross-channel correlation of hair cell response to clean speech (b) Corresponding representations for response envelopes

15. Initial segregation • Segments are formed based on temporal continuity and cross-channel correlation • Segments generated in this stage tend to reflect resolved harmonics, but not unresolved ones • Initial grouping into a foreground (target) stream and a background stream according to global pitch using the oscillatory correlation model of Wang and Brown (1999)

16. Pitch tracking • Pitch periods of target speech are estimated from the segregated speech stream • Estimated pitch periods are checked and re-estimated using two psychoacoustically motivated constraints: • Target pitch should agree with the periodicity of the time-frequency units in the initial speech stream • Pitch periods change smoothly, thus allowing for verification and interpolation

17. Pitch tracking example (a) Global pitch (Line: pitch track of clean speech) for a mixture of target speech and ‘cocktail-party’ intrusion (b) Estimated target pitch

18. T-F unit labeling • In the low-frequency range: • A time-frequency (T-F) unit is labeled by comparing the periodicity of its autocorrelation with the estimated target pitch • In the high-frequency range: • Due to their wide bandwidths, high-frequency filters respond to multiple harmonics. These responses are amplitude modulated due to beats and combinational tones (Helmholtz, 1863) • A T-F unit in the high-frequency range is labeled by comparing its AM repetition rate with the estimated target pitch

19. AM example (a) The output of a gammatone filter (center frequency:2.6 kHz) in response to clean speech (b) The corresponding autocorrelation function

20. AM repetition rates • To obtain AM repetition rates, a filter response is half-wave rectified and bandpass filtered • The resulting signal within a T-F unit is modeled by a single sinusoid using the gradient descent method. The frequency of the sinusoid indicates the AM repetition rate of the corresponding response

21. Final segregation • New segments corresponding to unresolved harmonics are formed based on temporal continuity and cross-channel correlation of response envelopes (i.e. common AM). Then they are grouped into the foreground stream according to AM repetition rates • Other units are grouped according to temporal and spectral continuity

22. Ideal binary mask for performance evaluation • Within a T-F unit, the ideal binary mask is 1 if target energy is stronger than interference energy, and 0 otherwise • Motivation: Auditory masking - stronger signal masks weaker one within a critical band • We have suggested to use ideal binary masks as ground truth for CASA performance evaluation • Consistent with recent speech intelligibility results (Roman et al.’03; Brungart et al.’05)

23. Ideal binary mask illustration

24. Voiced speech segregation example

25. Systematic SNR results • Evaluation on a corpus of 100 mixtures (Cooke, 1993): 10 voiced utterances x 10 noise intrusions (see next slide) • Average SNR gain: 12.3 dB; 5.2 dB better than the Wang-Brown model (1999), and 6.4 dB better than the spectral subtraction method SNR (in dB) Hu-Wang model

26. CASA progress on voiced speech segregation • 100 mixture set used by Cooke (1993) • 10 voiced utterances mixed with 10 noise intrusions (N0: tone, N1: white noise, N2: noise bursts, N3: ‘cocktail party’, N4: rock music, N5: siren, N6: telephone, N7: female utterance, N8: male utterance, N9: female utterance) Wang & Brown (1999) Original mixture of voiced speech Cooke (1993) Ellis (1996) Hu & Wang (2004) + telephone + male + female

27. Outline of presentation • Introduction • Speech segregation problem • Auditory scene analysis (ASA) approach • Voiced speech segregation based on pitch tracking and amplitude modulation analysis • Ideal binary mask as CASA goal • Unvoiced speech segregation • Auditory segmentation • Neurobiological basis of ASA

28. Segmentation and unvoiced speech segretation • To deal with unvoiced speech segregation, we (Hu & Wang’04) proposed a model of auditory segmentation that applies to both voiced and unvoiced speech • The task of segmentation is to decompose an auditory scene into contiguous T-F regions, each of which should contain signal from the same sound source • The definition of segmentation does not distinguish between voiced and unvoiced sounds • This is equivalent to identifying onsets and offsets of individual T-F regions, which generally correspond to sudden changes of acoustic energy • The segmentation strategy is based on onset and offset analysis

29. Scale-space analysis for auditory segmentation • From a computational standpoint, auditory segmentation is similar to image (visual) segmentation • Visual segmentation: Finding bounding contours of visual objects • Auditory segmentation: Finding onset and offset fronts of segments • Onset/offset analysis employs scale-space theory, which is a multiscale analysis commonly used in image segmentation • Smoothing • Onset/offset detection and onset/offset front matching • Multiscale integration

30. Example of auditory segmentation

31. Speech segregation • The general strategy for speech segregation is to first segregate voiced speech using the pitch cue, and then deal with unvoiced speech • To segregate unvoiced speech, we perform auditory segmentation, and then group segments that correspond to unvoiced speech

32. Segment classification • For nonspeech interference, grouping is in fact a classification task – to classify segments as either speech or non-speech • The following features are used for classification: • Spectral envelope • Segment duration • Segment intensity • Training data • Speech: Training part of the TIMIT database • Interference: 90 natural intrusions including street noise, crowd noise, wind, etc. • A Gaussian mixture model is trained for each phoneme, and for interference as well which provides the basis for a likelihood ratio test

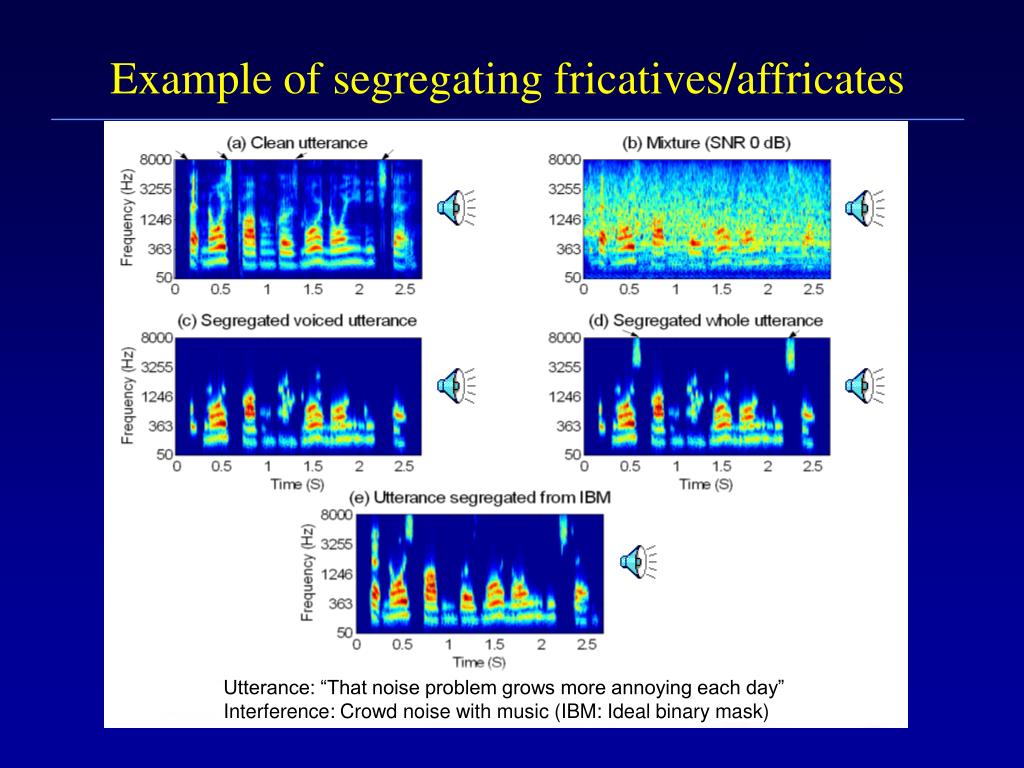

33. Example of segregating fricatives/affricates Utterance: “That noise problem grows more annoying each day” Interference: Crowd noise with music (IBM: Ideal binary mask)

34. Example of segregating stops Utterance: “A good morrow to you, my boy” Interference: Rain

35. Outline of presentation • Introduction • Speech segregation problem • Auditory scene analysis (ASA) approach • Voiced speech segregation based on pitch tracking and amplitude modulation analysis • Ideal binary mask as CASA goal • Unvoiced speech segregation • Auditory segmentation • Neurobiological basis of ASA

36. How does the auditory system perform ASA? • Information about acoustic features (pitch, spectral shape, interaural differences, AM, FM) is extracted in distributed areas of the auditory system • Binding problem: How are these features combined to form a perceptual whole (stream)? • Hierarchies of feature-detecting cells exist, but do not seem to constitute a solution to the binding problem

37. Oscillatory correlation theory for ASA • Neural oscillators are used to represent auditory features • Oscillators representing features of the same source are synchronized, and are desynchronized from those representing different sources • Originally proposed by von der Malsburg & Schneider (1986), and further developed by Wang (1996) • Supported by growing experimental evidence

38. Oscillatory correlation representation FD: Feature Detector

39. Oscillatory correlation for ASA • LEGION dynamics (Terman & Wang’95) provides a computational foundation for the oscillatory correlation theory • The utility of oscillatory correlation has been demonstrated for speech segregation (Wang-Brown’99), modeling auditory attention (Wrigley-Brown’04), etc.

40. Summary • CASA approach to monaural speech segregation • Performs substantially better than previous CASA systems for voiced speech segregation • AM cue and target pitch tracking are important for performance improvement • Early steps for unvoiced speech segregation • Auditory segmentation based on onset/offset analysis • Segregation using speech classification • Oscillatory correlation theory for ASA

41. Acknowledgment • Joint work with Guoning Hu • Funded by AFOSR/AFRL and NSF
