  1. Hemodynamics Dr. AmelEassawi

  2. OBJECTIVES Thestudentshouldbeableto: • Know and understand the structure and basic function of different parts of the vascular system. • Describe laminar and turbulentbloodflow. • Explainfactors affecting peripheralresistance.

  3. Hemodynamics • Hemodynamics refers to the principle that govern the blood flow in the cardiovascular system. • Blood is transported to all parts of the body through blood vessels. • Blood vessel bring Oxygen and nutrition and remove waste product.

  4. Distribution of Cardiac Output at Rest

  5. Hemodynamics Distribution of Cardiac Output: • Blood is constantly reconditioned so composition remains relatively constant • Digestive organ, kidney, skin receive blood in excess of their own needs, therefore, can survive better when blood flow is reduced. • Brain suffers irreparable damage when blood supply is not there for more than 4mins. If oxygen is not supplied to brain, permanent damage occurs.

  6. Hemodynamics Blood Flow: • Flow rate through a vessel (volume of blood passing through per unit of time): • Directly proportional to the pressure gradient • Inversely proportional to vascular resistance

  7. Hemodynamics Pressure Gradient: • Pressure Gradient is difference in pressure between the beginning and end of vessel. • Blood flows from area of high pressure to an area of low pressure, down the pressure gradient. • When heart contracts, it gives pressure to the blood, which is main driving force for flow through a vessel. • Due to resistance in the vessel, the pressure drops as blood flows.

  8. Relationship of flow to Pressure Gradient

  9. Vascular RESISTANCE It is the resistance offered by the blood vessels to the flow of the blood. Factors affecting the resistance to blood flow: 1- Directly proportional to the length of the blood vessel. The greater the length of the B.V. the greater will be the resistance. 2- Directly proportional to the viscosity of the blood. The greater the viscosity of the blood the greater will be the resistance. 3- Inversely proportional to fourth power of the radius of the blood vessel.

  10. Vascular Resistance

  11. Vascular RESISTANCE 1.Viscosity of Blood • Viscosity refers to the friction, which is developed between the molecules of fluid as they slide over each other during flow of fluid. • Blood viscosity is determined by number of circulating RBC, blood viscosity is increased in Polycythemia and decreased in Anaemia. 2. Length of a Blood Vessel • When blood flows through a vessel, blood rubs against the vessel wall, greater the vessel surface area in contact with the blood , greater will be the resistance to the flow. 3.Radius of the vessel • Fluid passes more readily through a large vessel. • Slight change in radius of a vessel brings great change to flow because Resistance is inversely proportional to the fourth power of the Radius

  12. Relationship of Resistance and Flow to Vessel Radius

  13. Vascular Tree • Closed system of vessels • Consists of • Arteries • Carry blood away from heart to tissues • Arterioles • Smaller branches of arteries • Capillaries • Smaller branches of arterioles • Smallest of vessels across which all exchanges are made with surrounding cells • Venules • Formed when capillaries rejoin • Return blood to heart • Veins • Formed when venules merge • Return blood to heart

  14. Basic Organization of the Cardiovascular System

  15. Arteries as a Pressure Reservoir

  16. Arteries • Specialized to • Serve as rapid-transit passageways for blood from heart to organs • Due to large radius, arteries offer little resistance to blood flow • Act as pressure reservoir to provide driving force for blood when heart is relaxing • Arterial connective tissue contains • Collagen fibers • Provide tensile strength • Elastin fibers • Provide elasticity to arterial walls

  17. Arterioles Major Resistance vessels: • Because their radius is small. • As arteriolar resistance is high, it causes marked drop in mean pressure as blood flows through arteriole. • Mean Arterial Blood Pressure [ABP] of 93mm Hg in arteries falls to mean ABP of 37mm Hg as blood leaves the arteriole and enters the capillaries. • Mean Arterial Pressure Average pressure driving blood forward into tissues throughout cardiac cycle

  18. Arteries as a Pressure Reservoir

  19. Arterioles Mechanisms involved in adjusting arteriolar resistance • Vasoconstriction • Refers to narrowing of a vessel • Vasodilation • Refers to enlargement in circumference and radius of vessel • Results from relaxation of smooth muscle layer • Leads to decreased resistance and increased flow through that vessel

  20. Arteriolar Vasoconstriction and Vasodilation

  21. Arteries take blood from the heart Veins return blood to the heart Capillaries 1.Connect arteries & veins 2. Site where gasses, nutrients & wastes are exchanged between blood and tissues

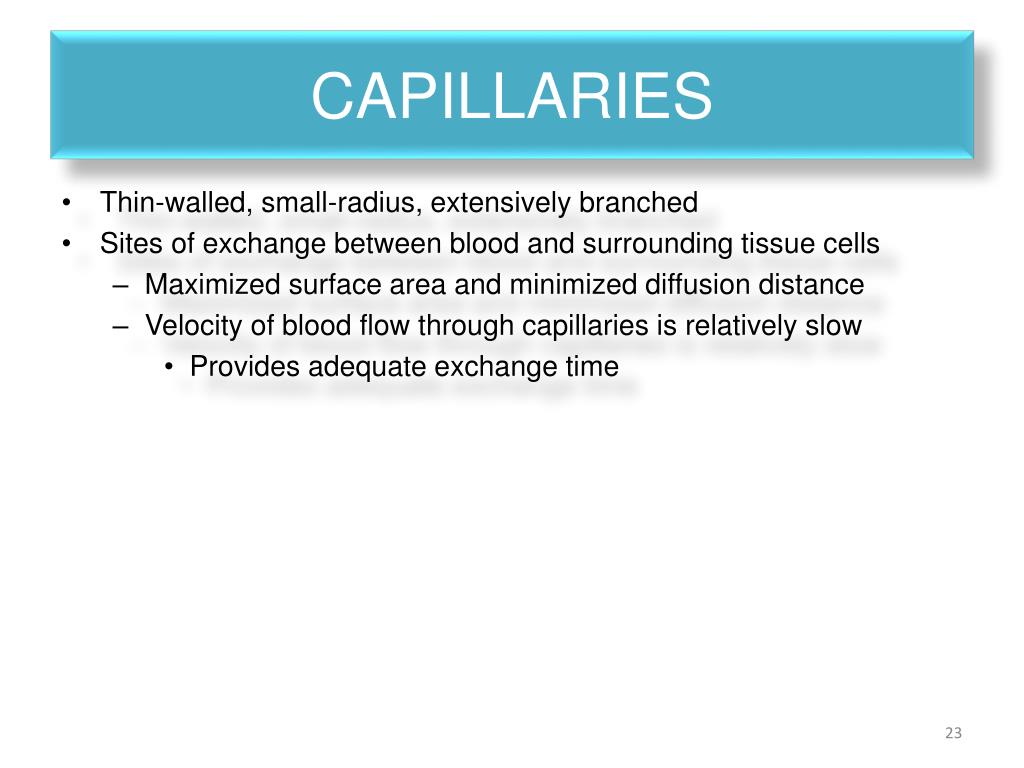

  22. Capillaries • Thin-walled, small-radius, extensively branched • Sites of exchange between blood and surrounding tissue cells • Maximized surface area and minimized diffusion distance • Velocity of blood flow through capillaries is relatively slow • Provides adequate exchange time

  23. Veins • Venous system transports blood back to heart • Capillaries drain into venules • Venules converge to form small veins that exit organs • Smaller veins merge to form larger vessels • Veins • Large radius offers little resistance to blood flow • Also serve as blood reservoir

  24. References • Human physiology, Lauralee Sherwood, seventh edition. • Text book physiology by Guyton &Hall,11th edition. • Physiology by Berne and Levy, sixth edition.
