  1. Interior Elevations - Pre-fab Cabinets/ Bathroom Elevations

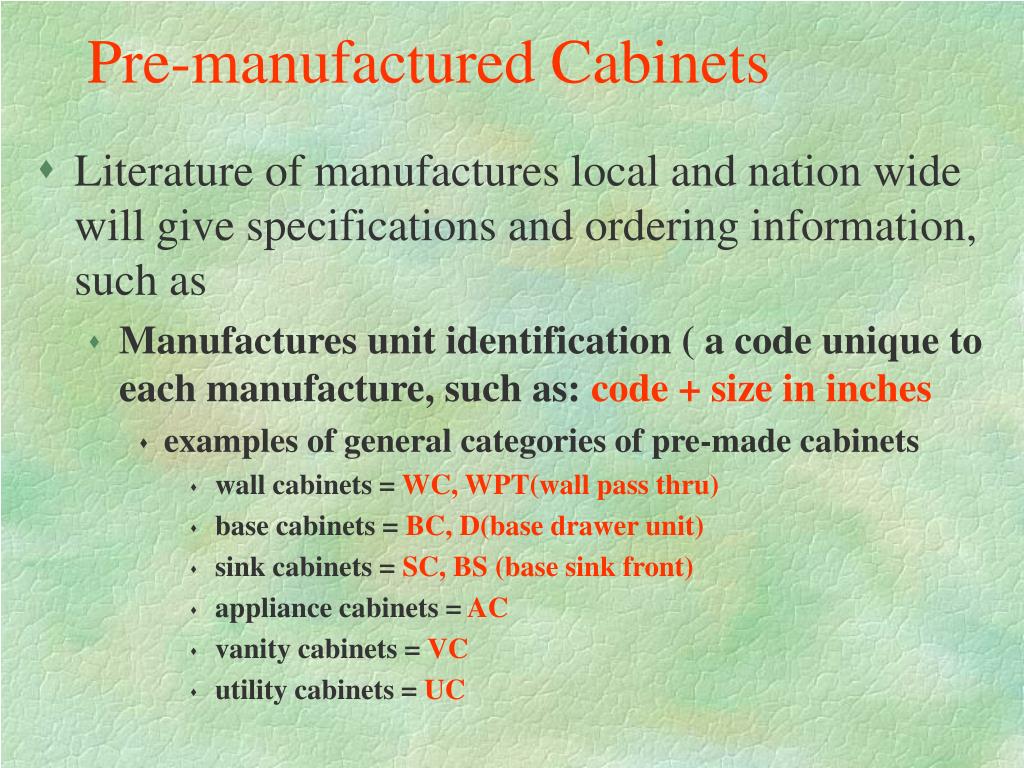

  2. Pre-manufactured Cabinets • Literature of manufactures local and nation wide will give specifications and ordering information, such as • Manufactures unit identification ( a code unique to each manufacture, such as: code + size in inches • examples of general categories of pre-made cabinets • wall cabinets = WC, WPT(wall pass thru) • base cabinets = BC, D(base drawer unit) • sink cabinets = SC, BS (base sink front) • appliance cabinets = AC • vanity cabinets = VC • utility cabinets = UC

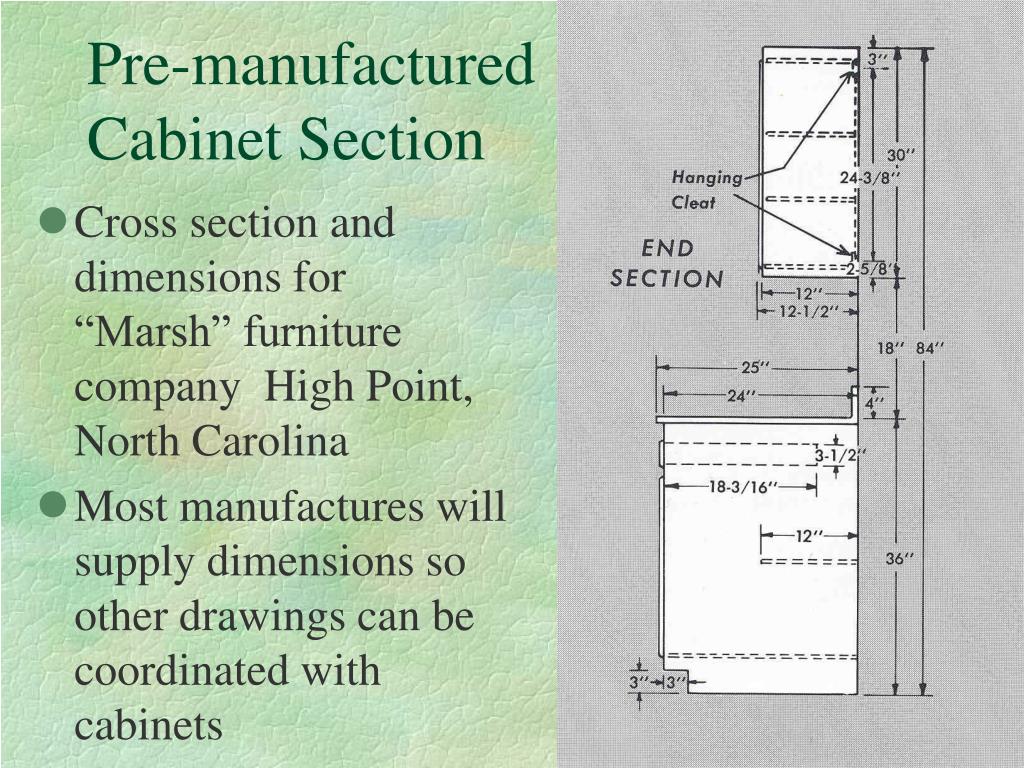

  3. Pre-manufactured Cabinet Section • Cross section and dimensions for “Marsh” furniture company High Point, North Carolina • Most manufactures will supply dimensions so other drawings can be coordinated with cabinets

  4. Catalog examples - Wall Cabinets

  5. Catalog examples - Base Cabinets • Olympia Cab Manuf, Salt Lake City, Utah

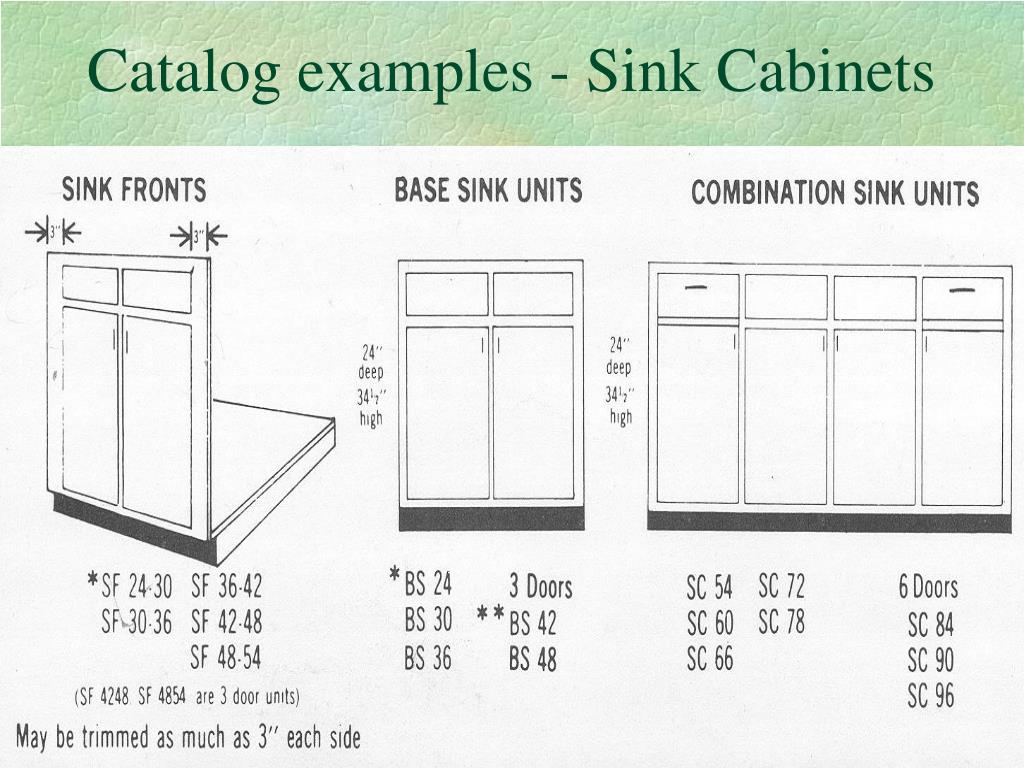

  6. Catalog examples - Sink Cabinets

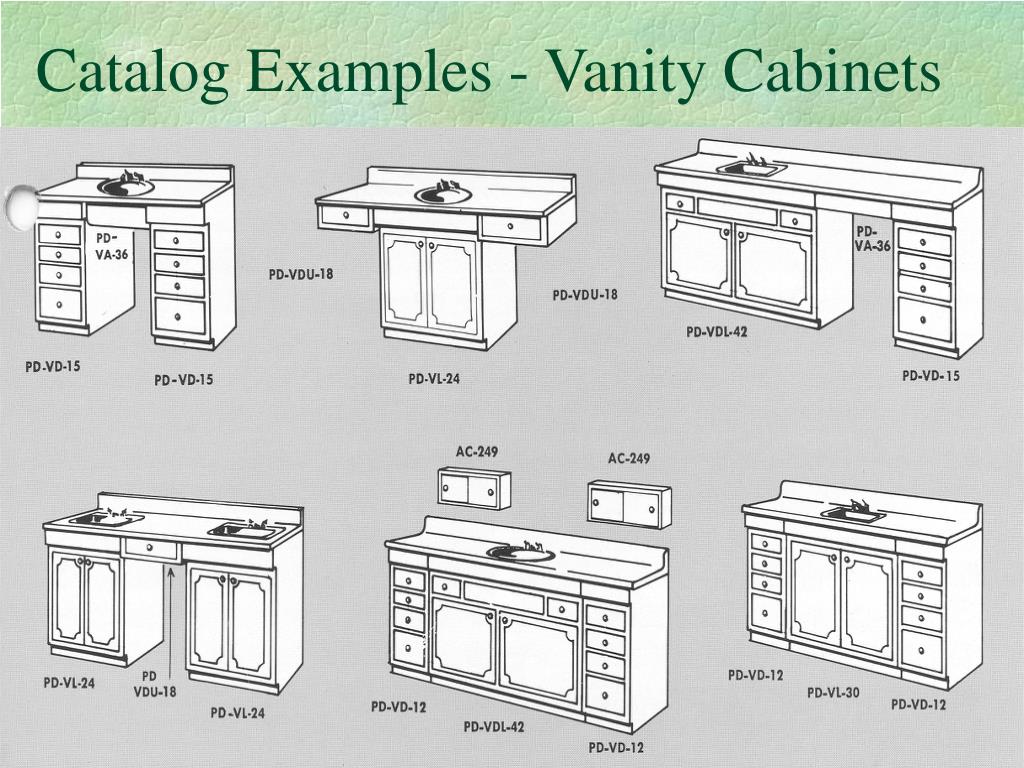

  7. Catalog Examples - Vanity Cabinets

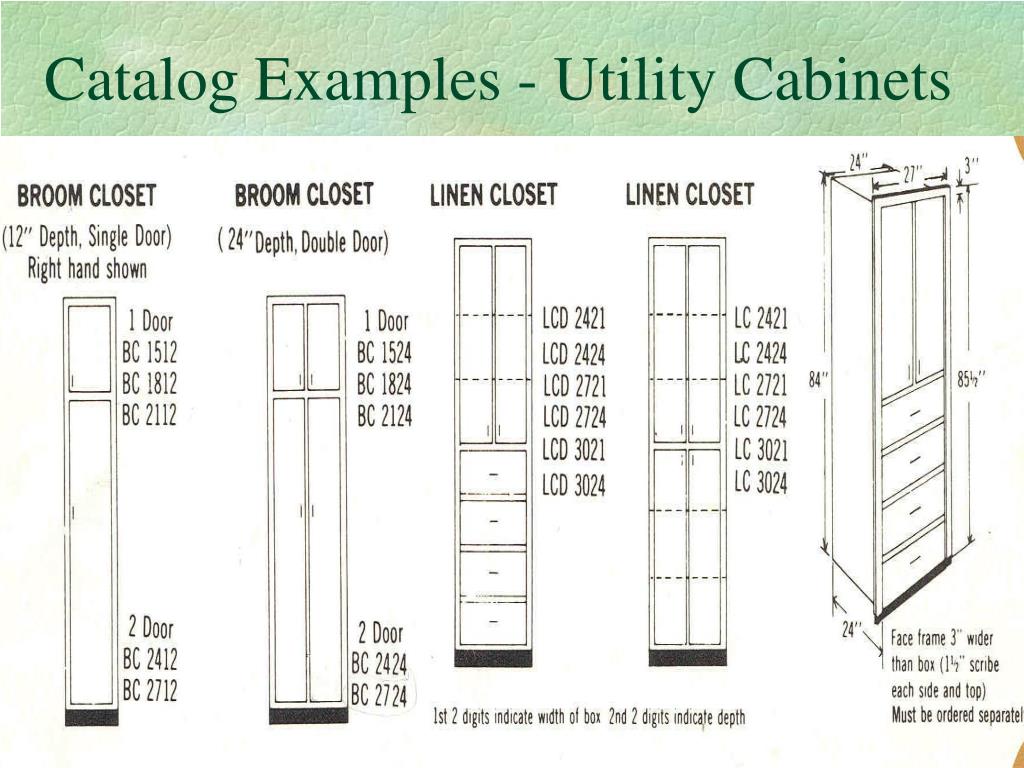

  8. Catalog Examples - Utility Cabinets

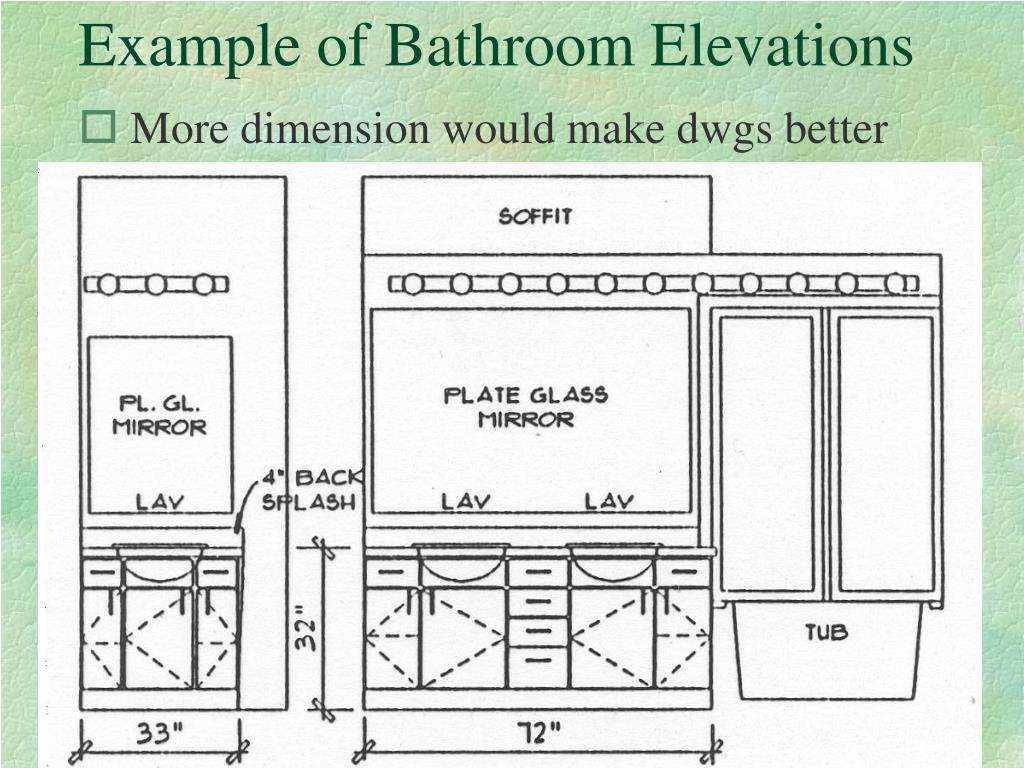

  9. Example of Bathroom Elevations • More dimension would make dwgs better

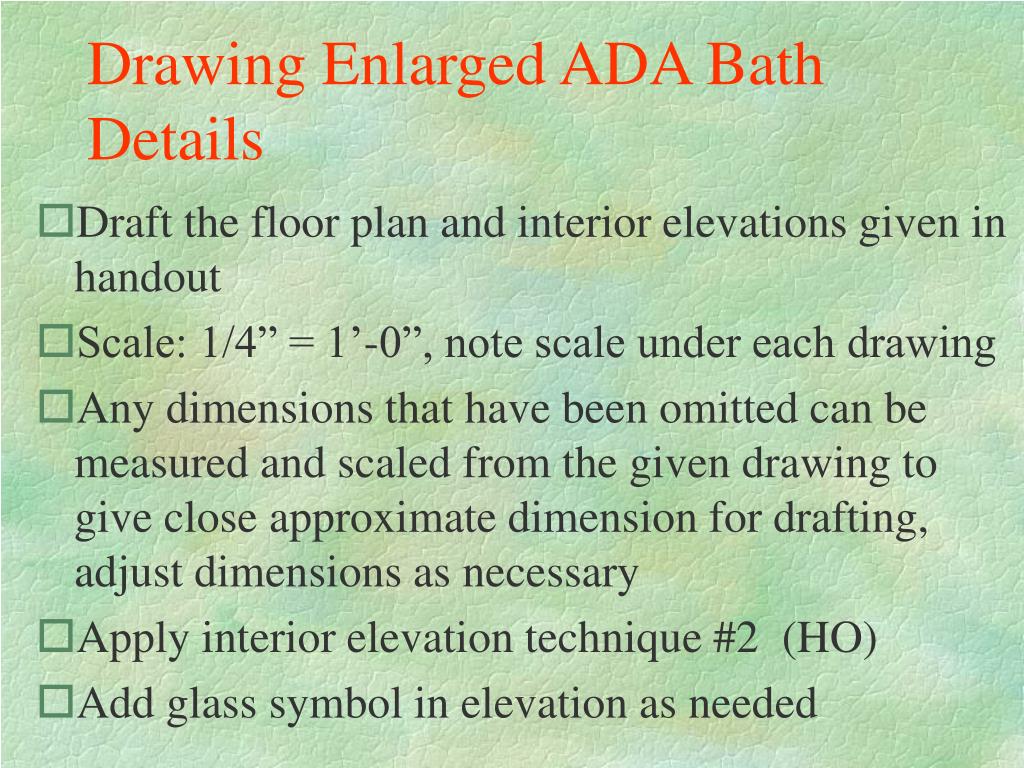

  10. Drawing Enlarged ADA Bath Details • Draft the floor plan and interior elevations given in handout • Scale: 1/4” = 1’-0”, note scale under each drawing • Any dimensions that have been omitted can be measured and scaled from the given drawing to give close approximate dimension for drafting, adjust dimensions as necessary • Apply interior elevation technique #2 (HO) • Add glass symbol in elevation as needed
