  1. Ervaring CBD

  2. Main software production accents • Quality • Effort • Turn-around time

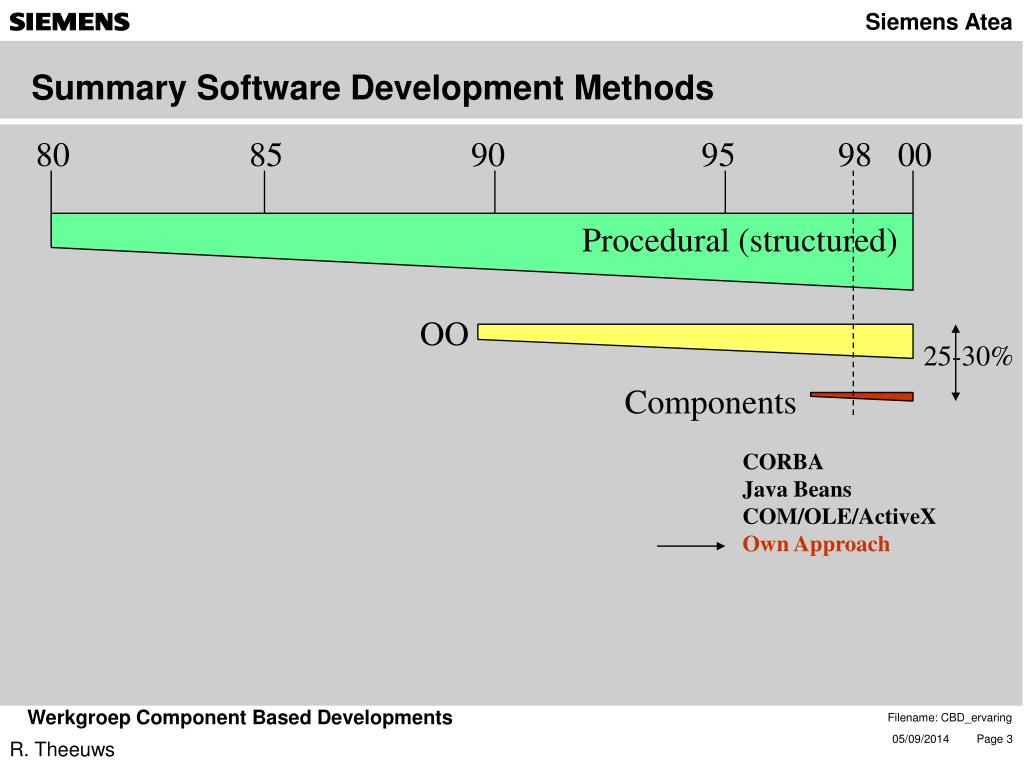

  3. Summary Software Development Methods 80 85 90 95 98 00 Procedural (structured) OO 25-30% Components CORBA Java Beans COM/OLE/ActiveX Own Approach

  4. Software Engineering and Production BOS - Business Opportunity Scanning Analysis Phase Requirements definition Design Phase • independent of development method • 10 … 1000 designers • ISO • Individual phases filled Implementation Phase Integration Test Phase System Test Phase Design Maintenance

  5. (Traditional) Procedural development • Use of SDL/CHILL (15 - 20 years experience), C and assembler • structured - modular • evolving (OO flavours) • very well described development & quality rules • Full set of Siemens tools • CM, error tracking • development tools, compilers • debugging tools • Siemens OS, software frameworks, hardware platforms • Most projects are “Huge projects” (200 - 4000 MY) • Relative long turn around times per software release • High quality • Known risks

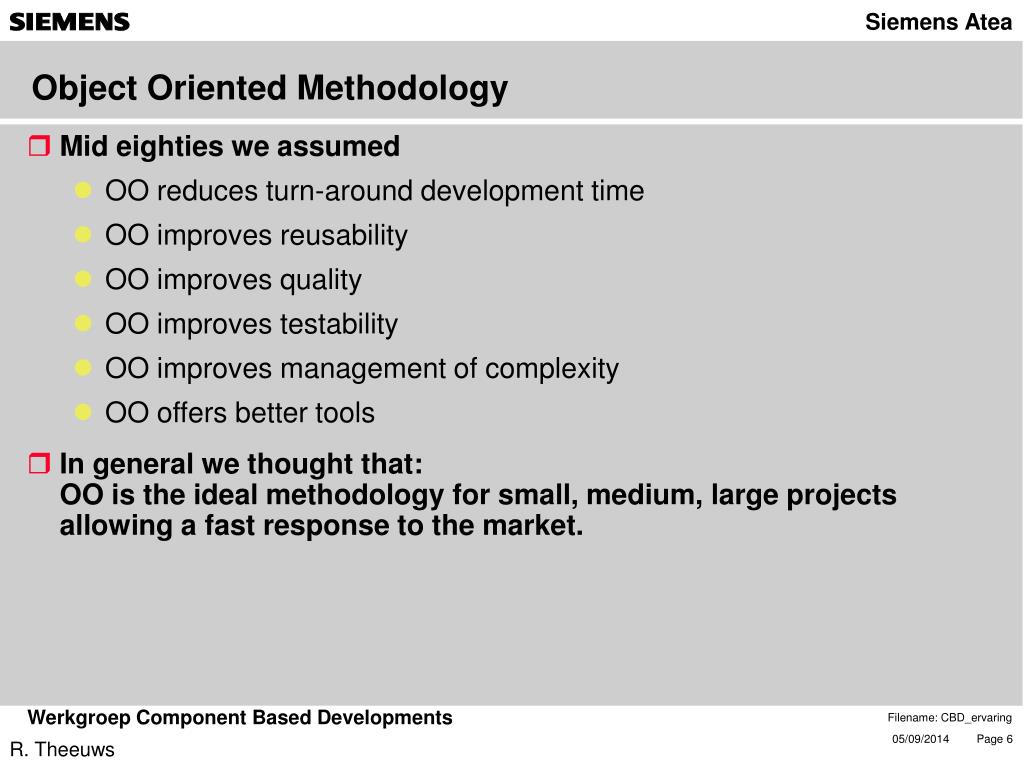

  6. Object Oriented Methodology • Mid eighties we assumed • OO reduces turn-around development time • OO improves reusability • OO improves quality • OO improves testability • OO improves management of complexity • OO offers better tools • In general we thought that:OO is the ideal methodology for small, medium, large projects allowing a fast response to the market.

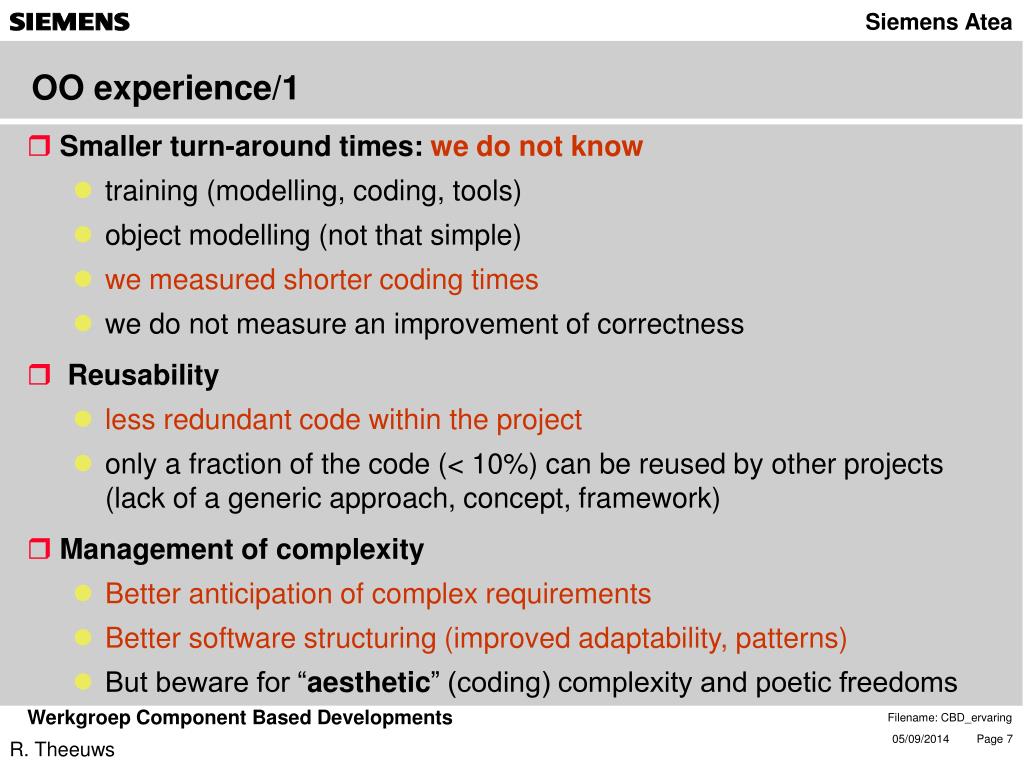

  7. OO experience/1 • Smaller turn-around times: we do not know • training (modelling, coding, tools) • object modelling (not that simple) • we measured shorter coding times • we do not measure an improvement of correctness • Reusability • less redundant code within the project • only a fraction of the code (< 10%) can be reused by other projects (lack of a generic approach, concept, framework) • Management of complexity • Better anticipation of complex requirements • Better software structuring (improved adaptability, patterns) • But beware for “aesthetic” (coding) complexity and poetic freedoms

  8. OO experience/2 • Quality • source code reuse is limited • OO/OOP enables to realise software products of increasing complexity but with the same quality expectations. Quality is largely independent of the programming languageex. first release of software product: • C - implementation: 2.4 errors/1000 LOCS • C++ - implementation: 2.9 errors/1000 LOCS source: datanews, • Improved testability • correct: improved and simplified methods • but : OO does not necessarily guaranties correctness and compliance of imposed requirements. • Tools: ??? • Training, type of project, constraints, limitations, complexity, user interface, ….

  9. OO experience: conclusions by consensus • OO is NOT a revolution. As such it does not free you from traditional development, management and quality problems. Neither does it ensure a faster turn-around time. • OOP as part of OO offers a substantial number of benefits but only covers the aspects “programming” and “testing”. • Abstraction, encapsulation • inheritance • polymorphism (dynamic binding) • patterns • Moving towards OO development requires an extensive amount of training and coaching • The main reason to advocate OO is the fact that OO enables you to challenge complex software systems, in a more conforming way than traditional methodologies

  10. Improving development turn-around time and quality • Improvements turn-around time, cost and quality are limited • despite of methodology • despite of improved training of the design team • despite of tools • But can possibly be improved by • reuse of existing and well-proven source code • usage of existing and well-proven binaries • I.e. components

  11. Component definition Is an encapsulated piece of code (source or binary) which complies with a well defined and known set of generic and specific rules and functions. • Generic rules/functions refer to the need for a “framework” • initialisation • configuration • monitoring • exception handling • interworking with other components • persistency • real time behaviour • memory utilisation • portability • Specific rules refer to the expected behaviour

  12. Experience : commercial software packages/1 • Specific functions : OK • we save time: we don’t have to worry about specifications and standards • but : we need time for evaluation and selection • Quality : OK • correctness: good • interoperability: good • Framework • no standardisation (vendor specific) • training is needed • a lot of glue code is needed • portability depends on a limited number of operating systems • a lot of time is needed to get the packages up and running

  13. Experience : commercial software packages/2 • Effort gain (at medium to long term) • design maintenance • rich(er) feature palette from the beginning • synchronisation with evolving standardisation (including de-facto standards) • Turn-around time to get first release up and running • may not be under-estimated • environment aspects not covered by the package • lack of a standard framework • but you will save time at medium to long term • Main risks • vendor stops supports the product • vendor redesigns the basic concept

  14. Experience: component frameworks • Non real time applications • CORBA • application for multi-level service integration for large networks • small turn-around time and a complex multi-hosted application • (limited : activeX, beans) • real time applications • no commercial approach • use of own-defined frameworks (limitations) • based on experience: set of rules, patterns, code, tools • improved portability and reuse of software (within product gamma) • improved integration turn-around time • improved testability

  15. Experience with own defined frameworks • A lot of time and effort is needed to realise a stable specification • Acceptance is not obvious • Training is required • Impact on performance • But once accepted • better focus on the requirements • improved work-split • improved off-line testability • improved integration • We expect • improved robustness • less design maintenance

  16. Advocating a standard framework • High quality software • component specialisation • application specialisation • Lower application specialisation turn-around time • reuse of standard components • de-coupling between component and application • At long term : lower development effort
