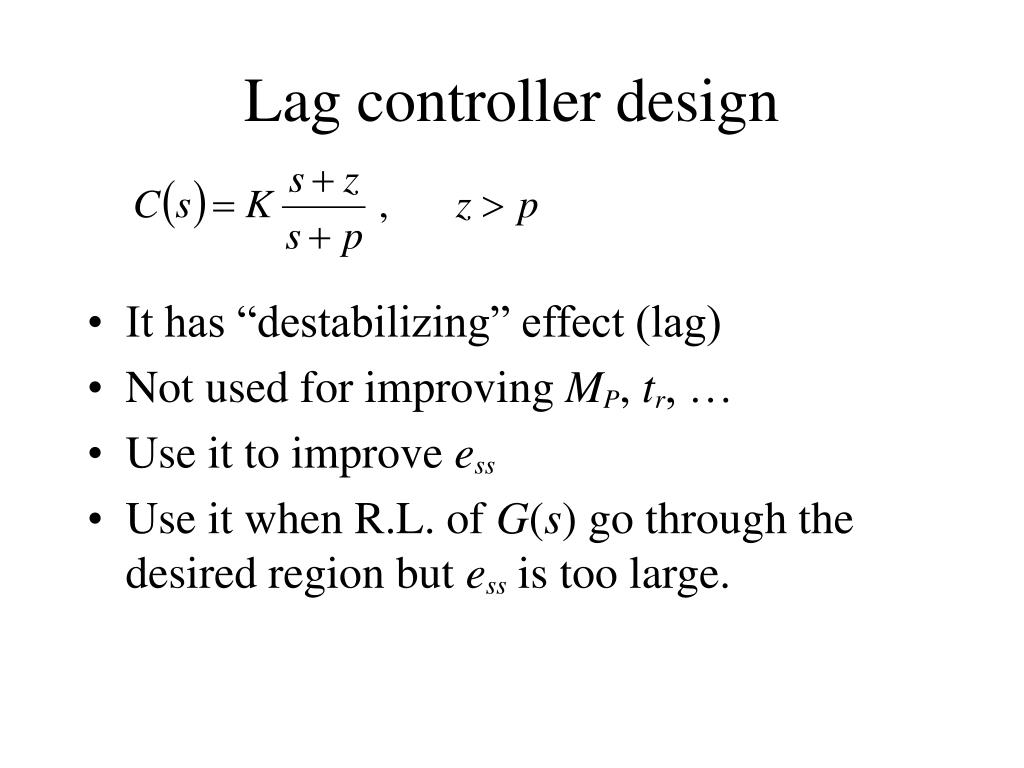

  1. Lag controller design • It has “destabilizing” effect (lag) • Not used for improving MP, tr, … • Use it to improve ess • Use it when R.L. of G(s) go through the desired region but ess is too large.

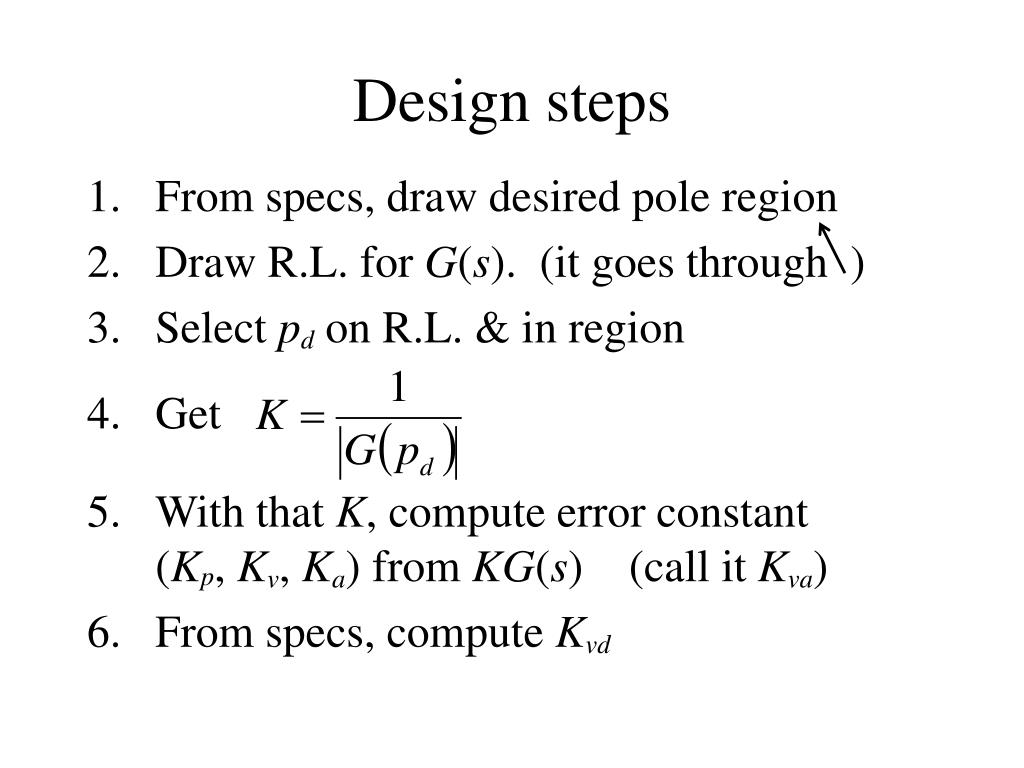

  2. Design steps • From specs, draw desired pole region • Draw R.L. for G(s). (it goes through ) • Select pd on R.L. & in region • Get • With that K, compute error constant(Kp, Kv, Ka) from KG(s) (call it Kva) • From specs, compute Kvd

  3. If Kva > Kvd , doneelse: pick • Re-compute • Closed-loop simulation & tuning as necessary

  4. Example: Want: Solution:

  5. Draw region

  6. Draw R.L. • Pick pd on R.L. & in Region pick pd = – 0.35 + j0.5 • Since there is one in G(s)

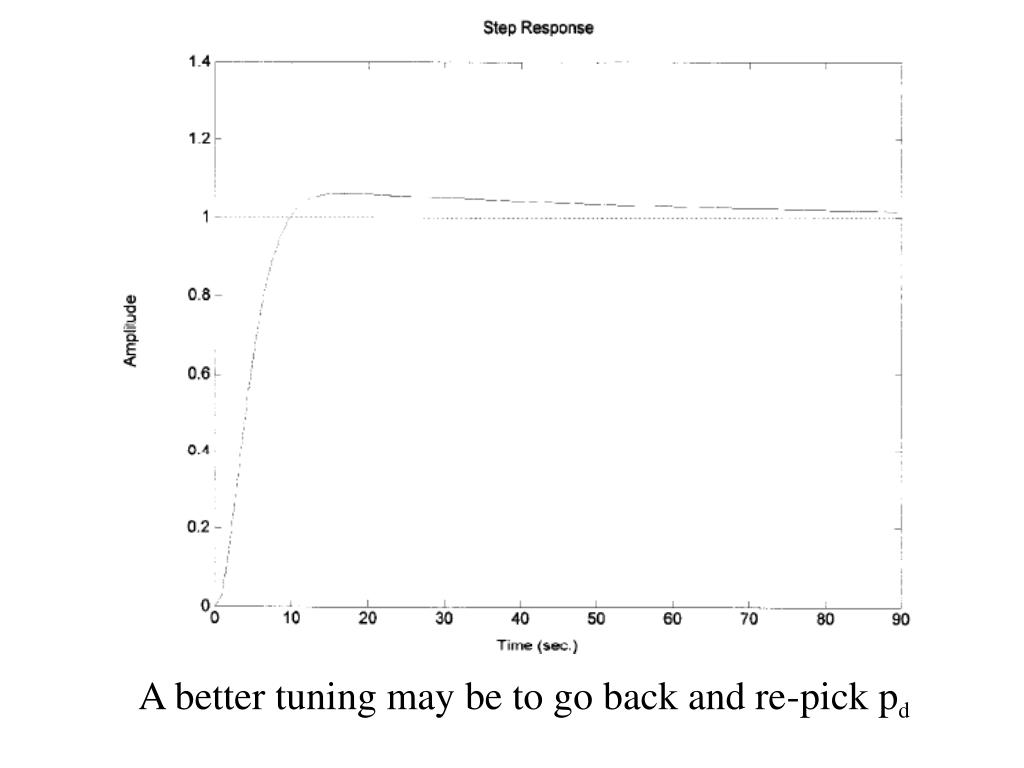

  7. A better tuning may be to go back and re-pick pd

  8. Lag control can improve ess, but cannot eliminate ess • Use PI control to eliminate ess • PI :

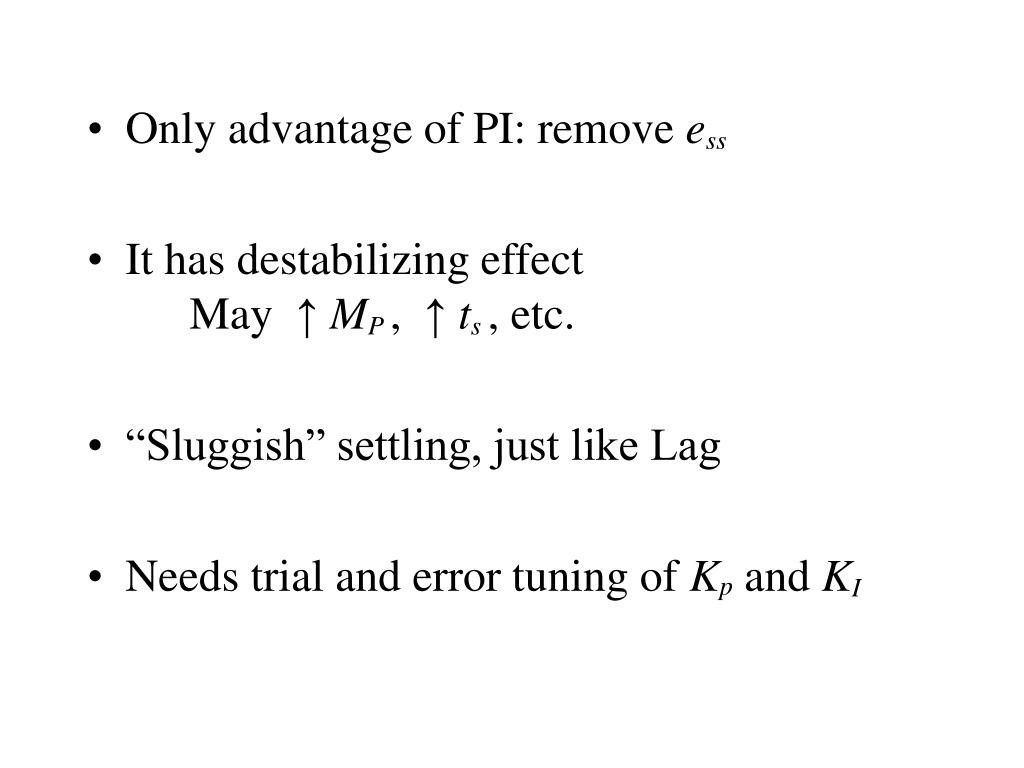

  9. Only advantage of PI: remove ess • It has destabilizing effect May ↑ MP , ↑ts , etc. • “Sluggish” settling, just like Lag • Needs trial and error tuning of Kp and KI

  10. This way, just use your PDdesign program.

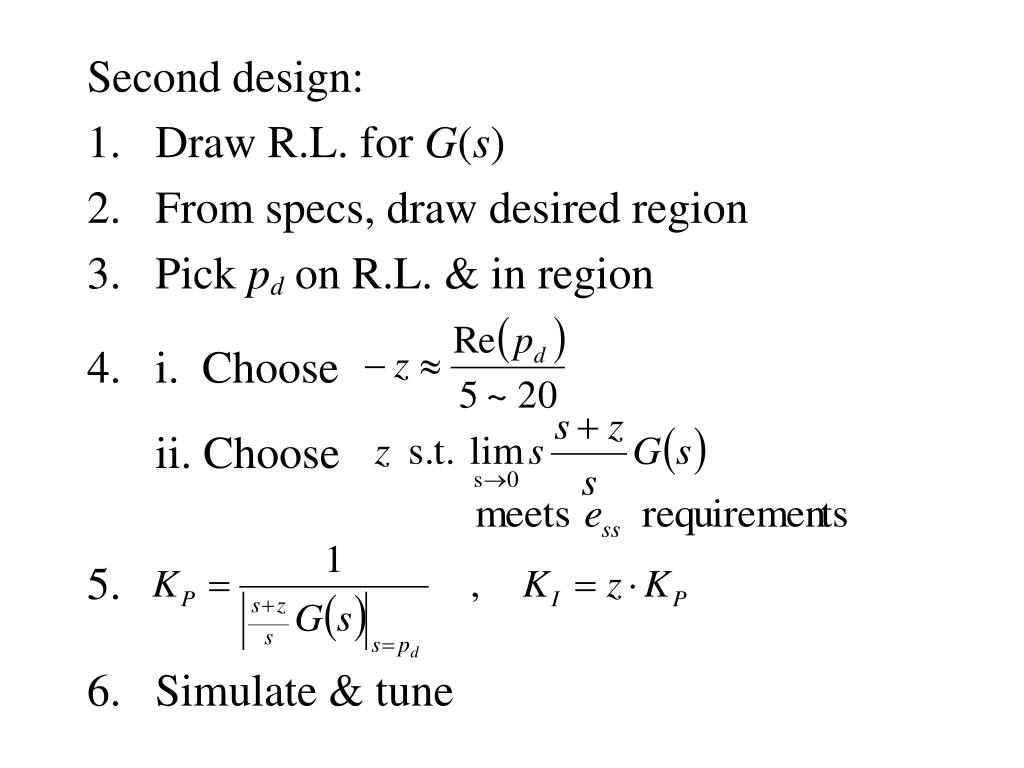

  11. Second design: • Draw R.L. for G(s) • From specs, draw desired region • Pick pd on R.L. & in region • i. Chooseii. Choose • Simulate & tune

  12. Example: Want: Solution: Draw R.L.

  13. Clearly, R.L. pass through desired region. Pick (right on boundary) Choose

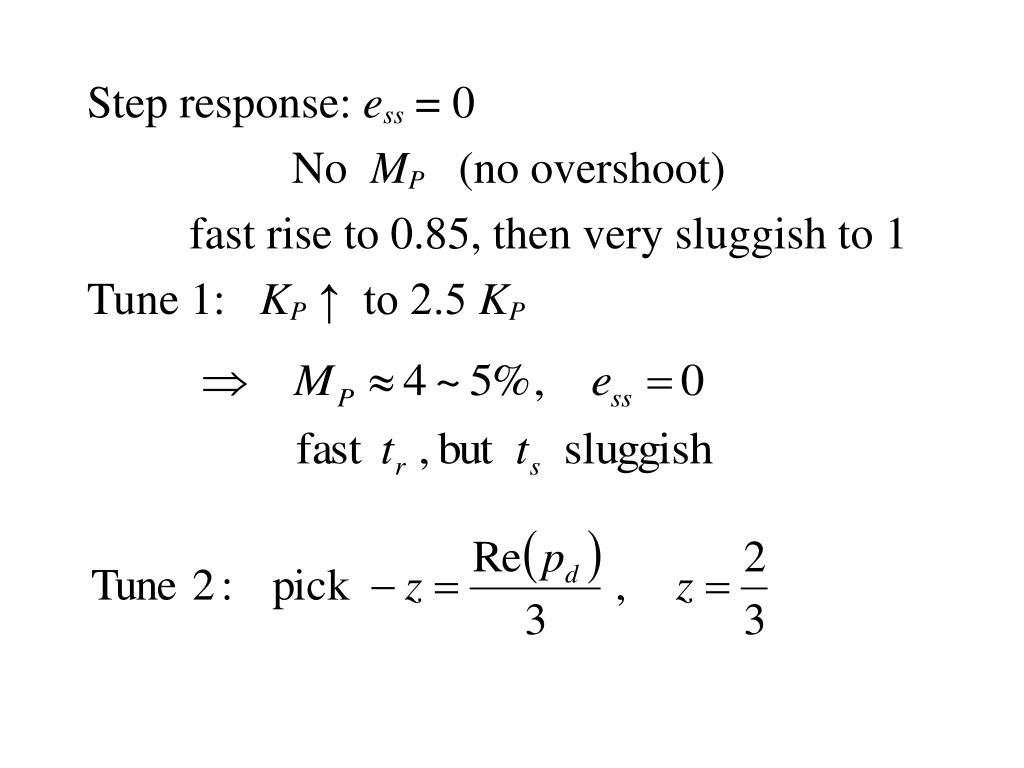

  14. Step response: ess = 0 No MP (no overshoot) fast rise to 0.85, then very sluggish to 1 Tune 1: KP↑ to 2.5 KP

  15. None unique solution • Design is a creative process based on science

  16. Example: Want:

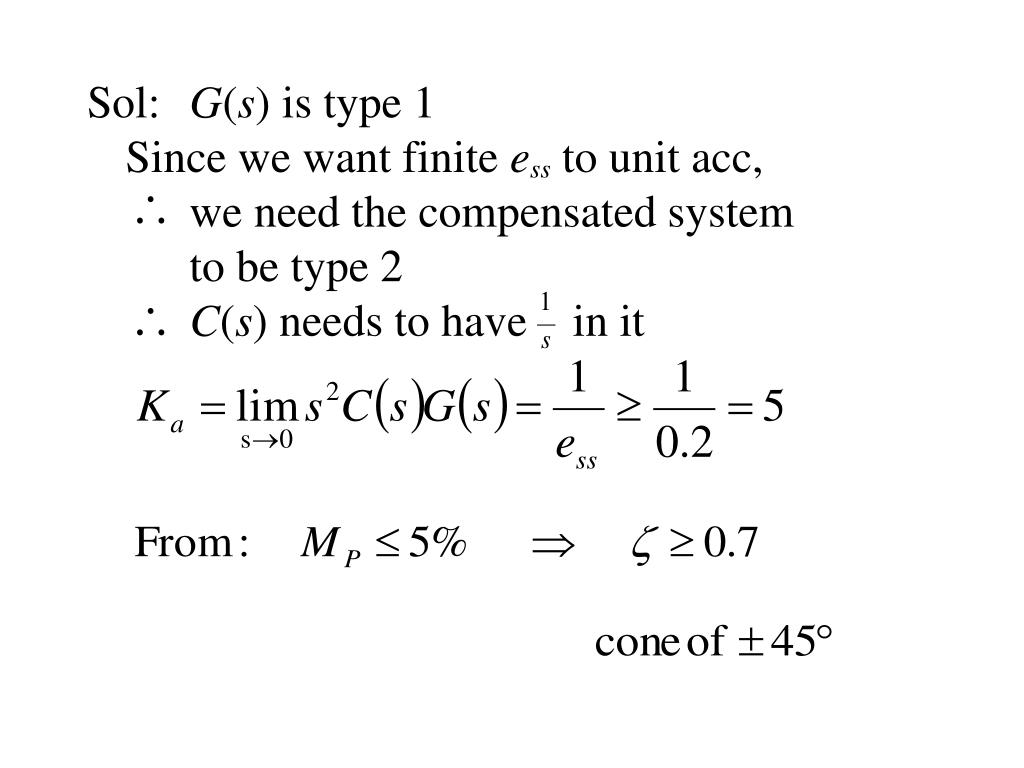

  17. Sol: G(s) is type 1Since we want finite ess to unit acc, we need the compensated system to be type 2C(s) needs to have in it

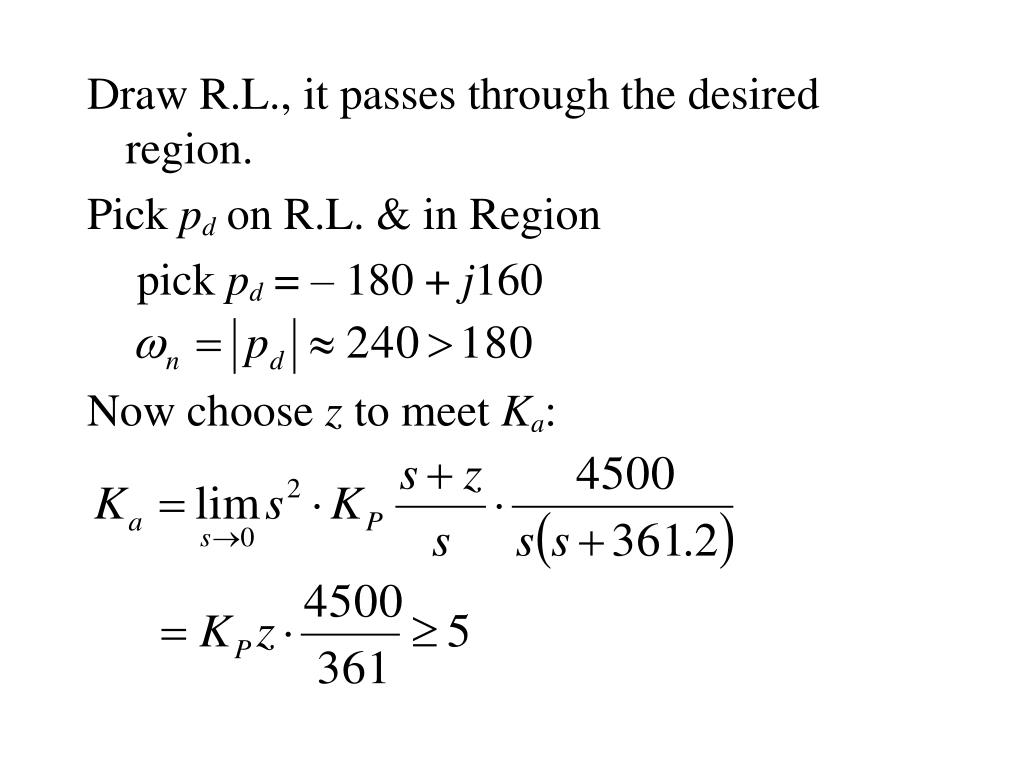

  18. Draw R.L., it passes through the desired region. Pick pd on R.L. & in Region pick pd = – 180 + j160 Now choose z to meet Ka:

  19. Also:

  20. Pick z = 0.03 Do step resp. of closed-loop: Is it good enough?

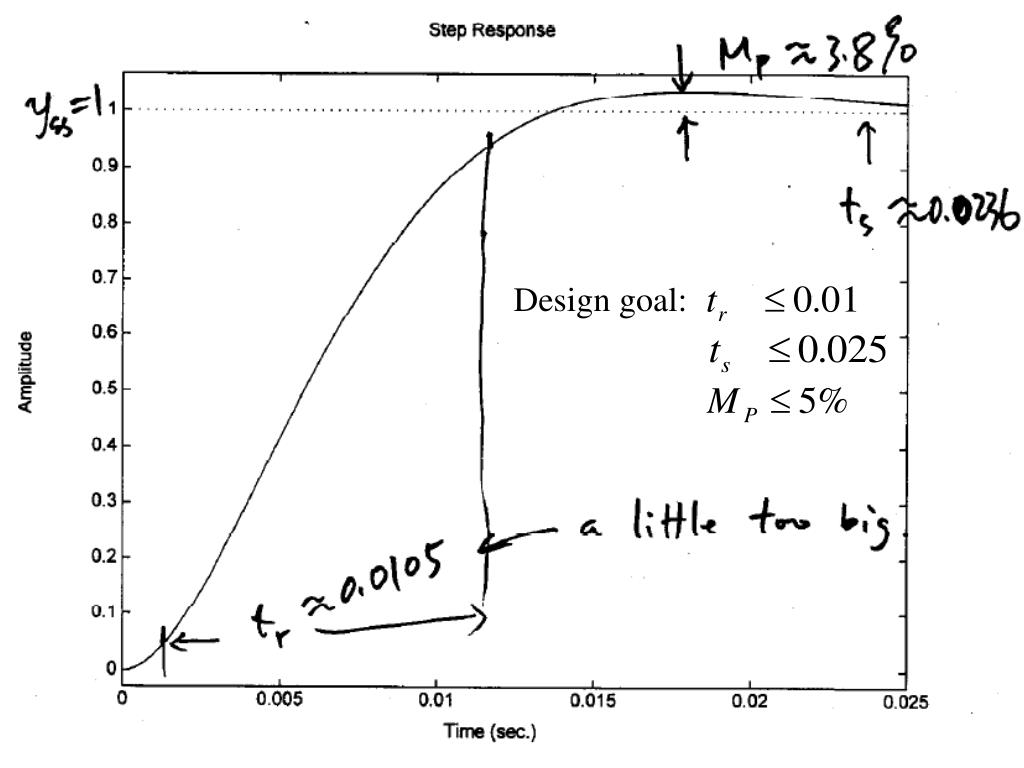

  21. Design goal:

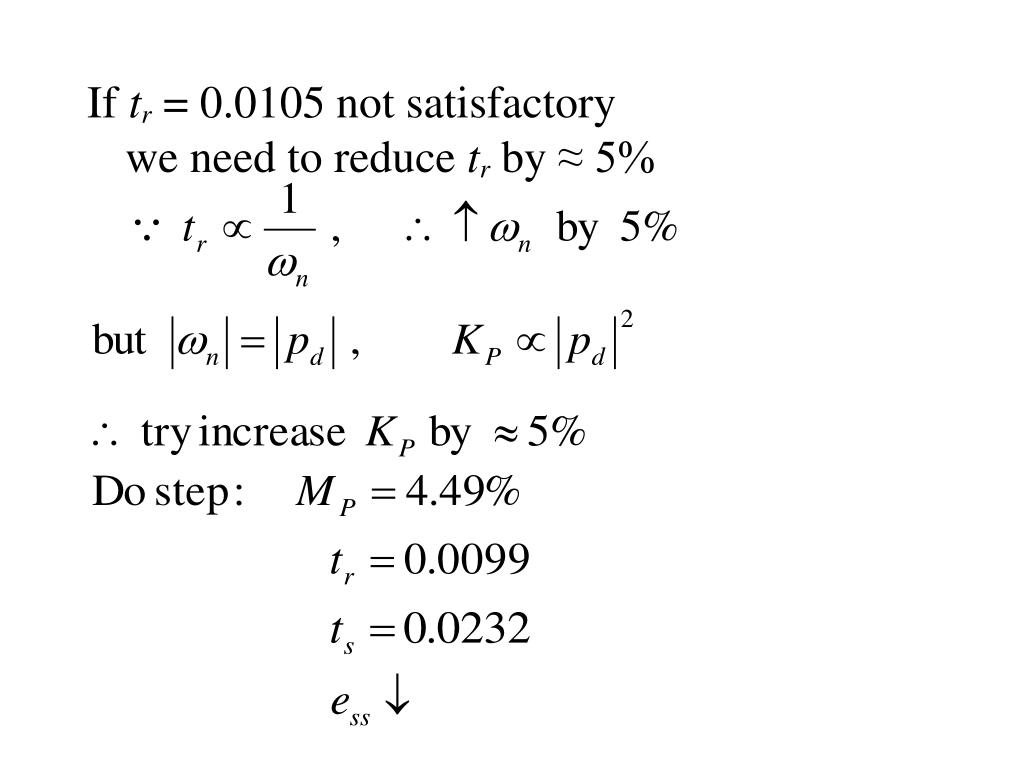

  22. If tr = 0.0105 not satisfactorywe need to reduce tr by ≈ 5%
