  1. Structure of thin films by electron diffraction János L. Lábár

  2. Usage of diffraction data in structure determination • Identifying known structures • Solving unknown structures • Structure determination • Unit cell dimensions • Space group symmetry • Unit cell content (atoms and their appr. coordinates) • Structure refinement • More accurate atomic coordinates • Validation of the structure (attainable match)

  3. Structure determination • Periodic functions  Fourier coefficients • Amplitude : diffraction the phase problem • Phase : real space (HRTEM, fragment) reciprocal space (Direct methods) • Single crystal diffraction • X-rays, neutrons  electrons • Powder diffraction • X-rays, neutrons  electrons

  4. Single crystal diffraction • Tilting experiments • Identification of reflections: indexing • Unit cell dimensions • Space group symmetry (XRD, SAED, CBED) • Integration of individual intensities • Background • Phases (real  reciprocal space) • Dynamic intensities in SAED

  5. Single crystal diffraction • XRD: • Up to 2000 atoms in the asymmetric unit • Up to 100 atoms: guaranteed success • Rule of thumb: # refl > 10 * # atoms • SAED: • CRISP, ELD  Direct methods (EDM) • Dynamic intensities in SIR97 • Up to 30 atoms in the asymmetric unit • Size, image

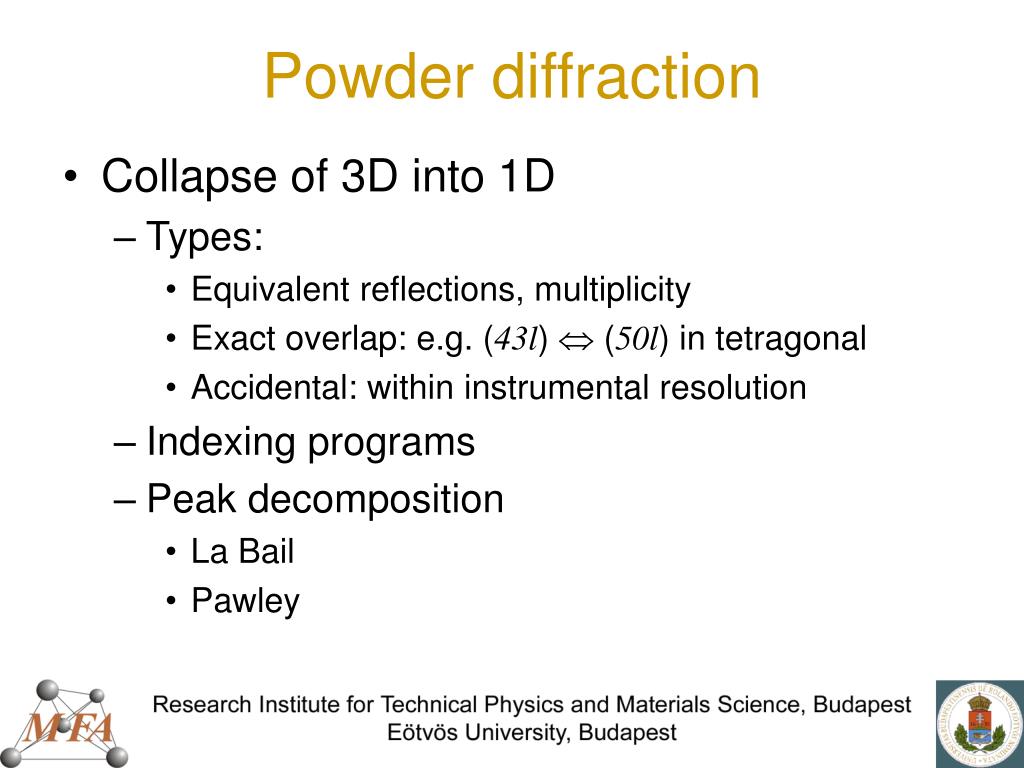

  6. Powder diffraction • Collapse of 3D into 1D • Types: • Equivalent reflections, multiplicity • Exact overlap: e.g. (43l)  (50l) in tetragonal • Accidental: within instrumental resolution • Indexing programs • Peak decomposition • La Bail • Pawley

  7. Powder diffraction • Degree of overlap: Resolution • Background • Instability: negative peaks / oscillating int. • XRD (+ refinement from neutrons) : • Synchrotron: 60 atoms in asymmetric unit • Laboratory:  30 atoms in asymmetric unit • Neutron: better for refinement • SAED: instrumental resolution limit, BKG

  8. Powder diffraction: SAED resolution (peak width) • Beam convergence • Elliptical distortion • OL spherical aberration  size of selected area

  9. Powder diffraction: SAED elliptical distortion

  10. Powder diffraction: SAED spherical aberration

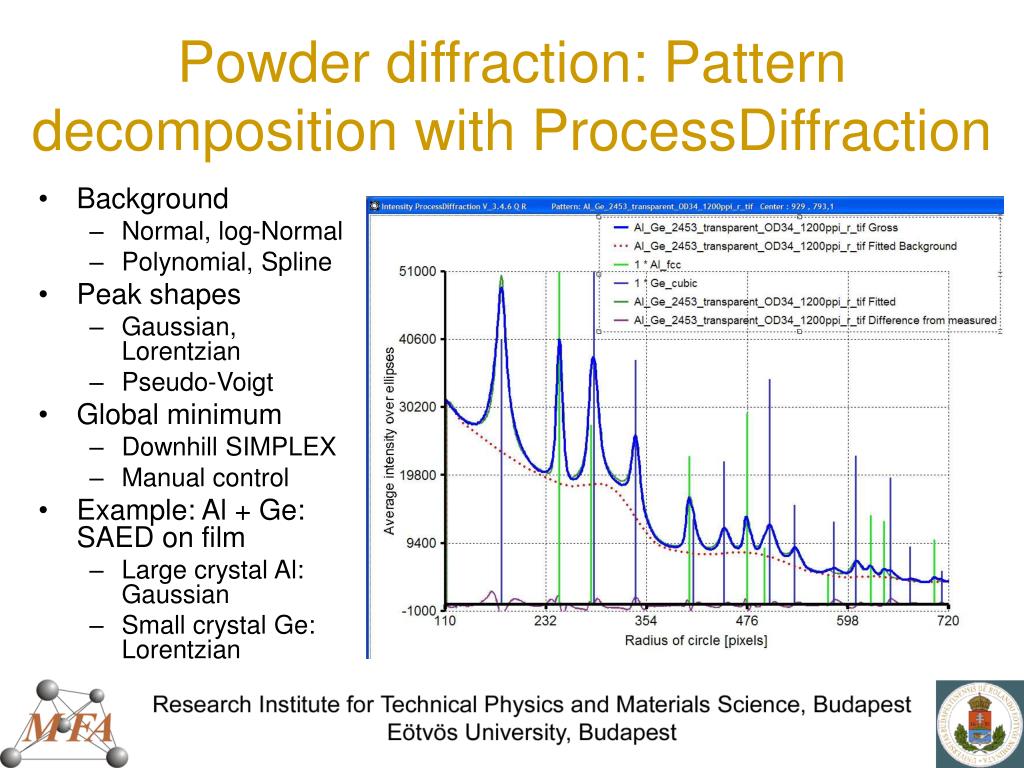

  11. Powder diffraction: Pattern decomposition with ProcessDiffraction • Background • Normal, log-Normal • Polynomial, Spline • Peak shapes • Gaussian, Lorentzian • Pseudo-Voigt • Global minimum • Downhill SIMPLEX • Manual control • Example: Al + Ge: SAED on film • Large crystal Al: Gaussian • Small crystal Ge: Lorentzian

  12. Pattern decomposition with ProcessDiffraction

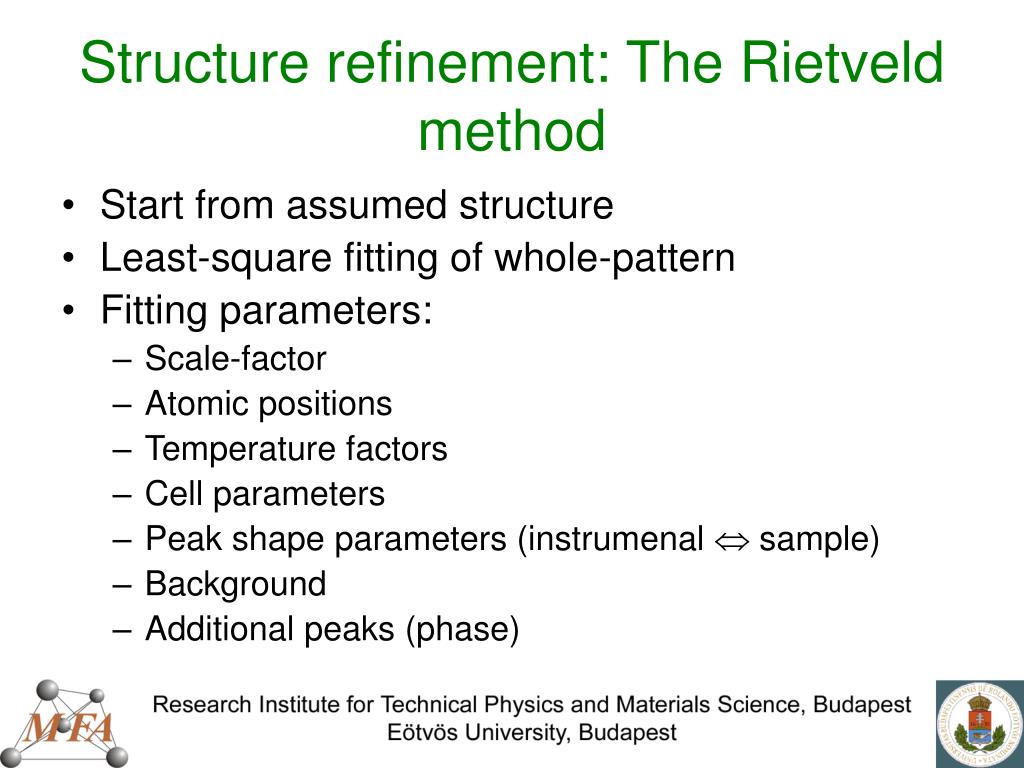

  13. Structure refinement: The Rietveld method • Start from assumed structure • Least-square fitting of whole-pattern • Fitting parameters: • Scale-factor • Atomic positions • Temperature factors • Cell parameters • Peak shape parameters (instrumenal  sample) • Background • Additional peaks (phase)

  14. The Rietveld method • Most known structures from Rietveld refinement • Scaling factors  Quantitative phase analysis (volume fractions) • Neutrons: no angle dependence  best for refinement • Resolution (peak width) is less important  SAED can also be used efficiently for refinement • SAED: Cell parameters  camera length

  15. Quantitative phase analysis for nanocrystalline thin films from SAED • Example: 100 Å Al + 100Å NiO • Measured volume fraction by ProcessDiffraction: 51% Al + 49% NiO • Fitted parameters: peak parameters, L, scaling factors, DW

  16. Structure refinement from SAED • Integrated intensities: • ELD • ProcessDiffraction • Refinement: • FullProf • ProcessDiffraction • Simple example: TiO2 – Anatase • Selection of origin  transform „z” before compare

  17. Structure refinement with ProcessDiffraction • Structure definition modul • Checks: coordinates  site symmetry • Options modul checks • if selected site is „refinable” (variation of coordinate value does not change site symmetry) • If selected options are reasonable • Cross-checking for nanocrystalline samples • Pair correlation function (differentmodels  measured)

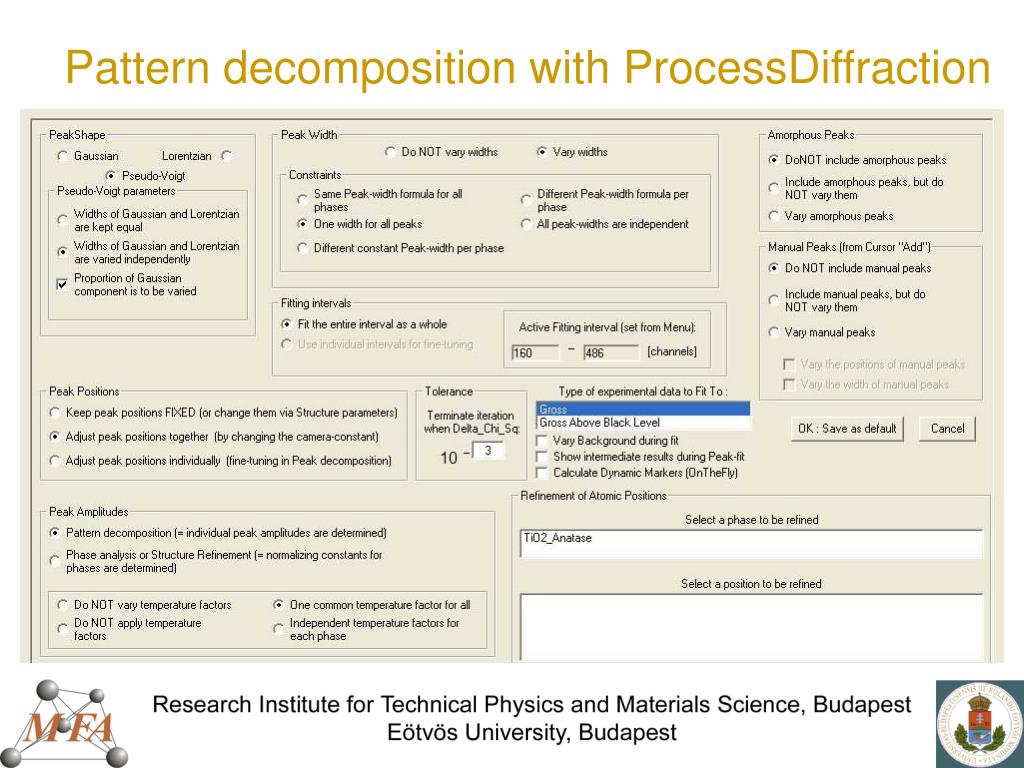

  18. ProcessDiffraction: Options for refinement

  19. Structure refinement with ProcessDiffraction • Example: Anatase 4 nm powder • Acceptable match • Refined position of oxygen: z=0.217 • Compare to z=0.2064 (Pearson’s) z=0.2094 (Weirich transformed)

  20. Is the example result acceptable?Independent test • Pair correlation function • Measured • Calculated for both structures • Refined result is in agreement with g(r)

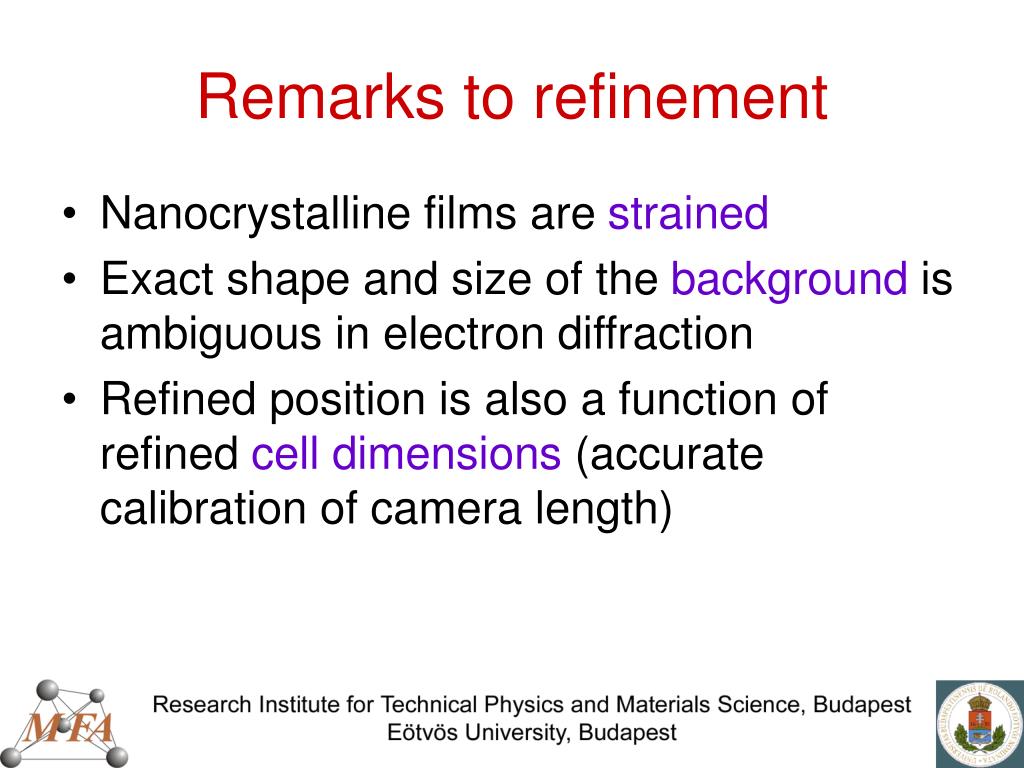

  21. Remarks to refinement • Nanocrystalline films are strained • Exact shape and size of the background is ambiguous in electron diffraction • Refined position is also a function of refined cell dimensions (accurate calibration of camera length)

  22. Conclusions: structure of thin films by electron diffraction • Phase identification from both single crystal and powder patterns • Quantitative phase analysis from nanocrystalline powder patterns • Structure determination from single crystal patterns (SAED, CBED) • Structure refinement from nanocrystalline powder patterns • Limits are still to be examined
