  1. Beginning • Basic step-by-step demonstration for: • Obtaining Basefile from CORS or local GPS web sites • Using basefiles for Differential Correction of Trimble Rover files (.ssf) using Pathfinder Office

  2. overview Differential correction compares and corrects your Rover file using a Base file, from a stationary base station receiver (at a known location) for the exact same time as your Rover file. The first step is to obtain a base file. The most common source are CORS web sites. Even though we may not use a CORS site, it is important to be familiar with the CORS format…

  3. 4 CORS home

  4. 5 CORS data

  5. 6 CORS selected

  6. Use skagit instead HOWEVER: For local GPS work (within Whatcom County), the Skagit County GPS base station is supperior: Closer 5 second sampling interval (Whidbey CORS is 30 second) So… use their site instead

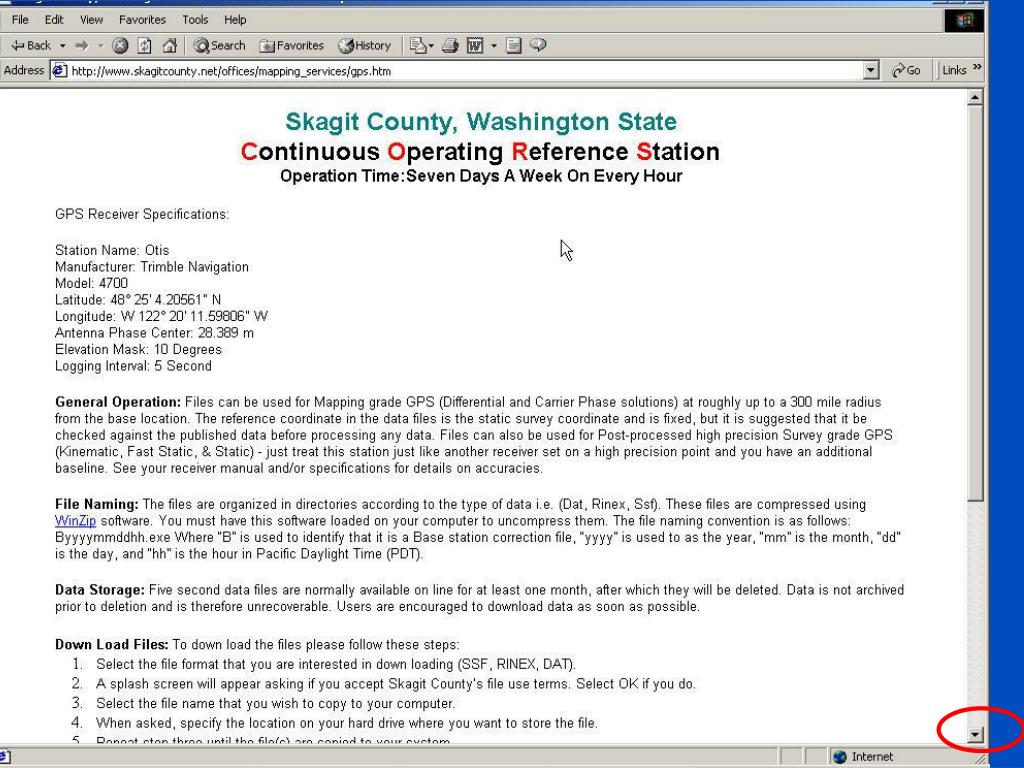

  7. 7 skagit cors

  8. 8 skagit ssf

  9. 9 skagit ssf list

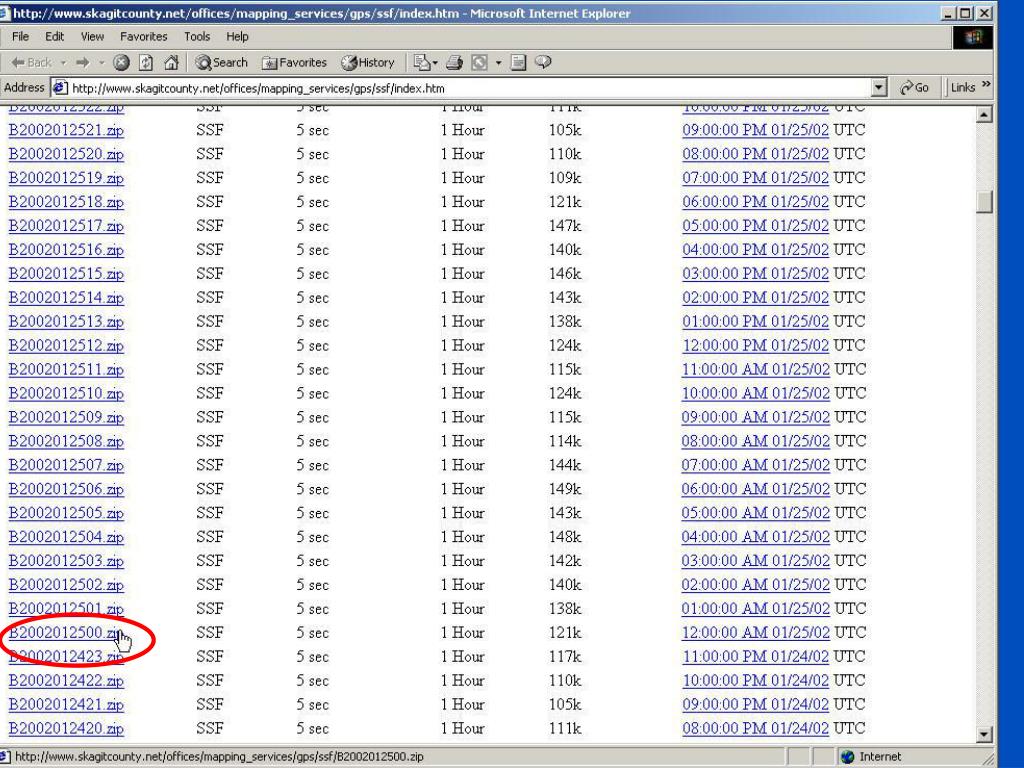

  10. 10 skagit ssf select

  11. 11 skagit download

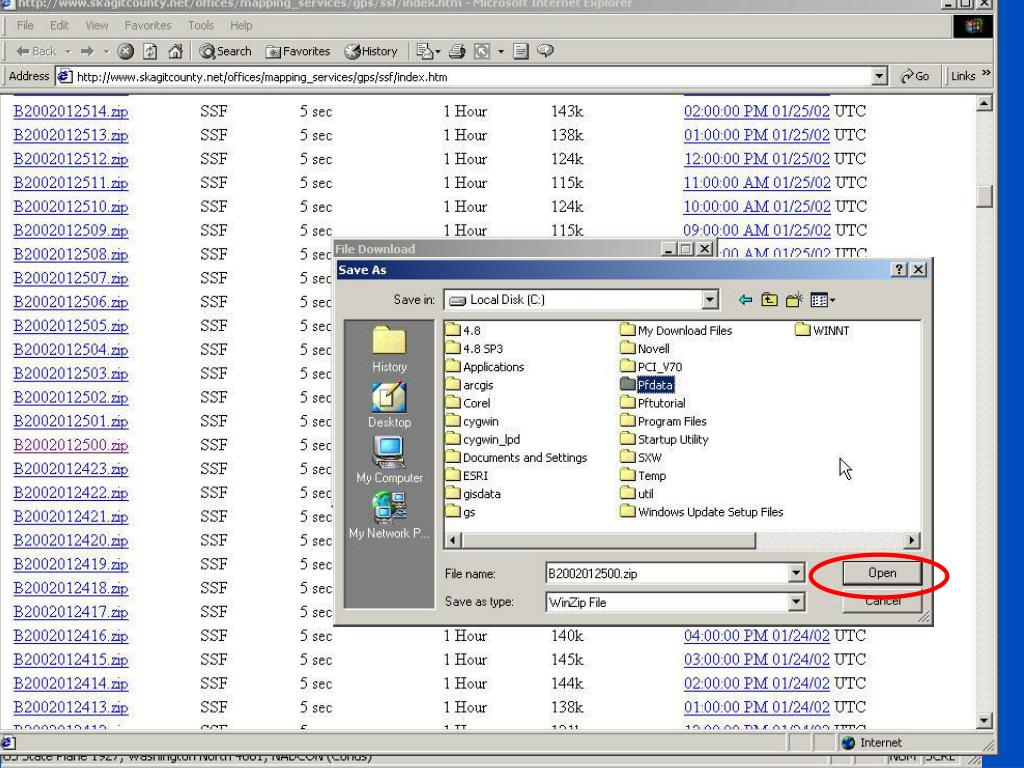

  12. 12 c:/pfdata

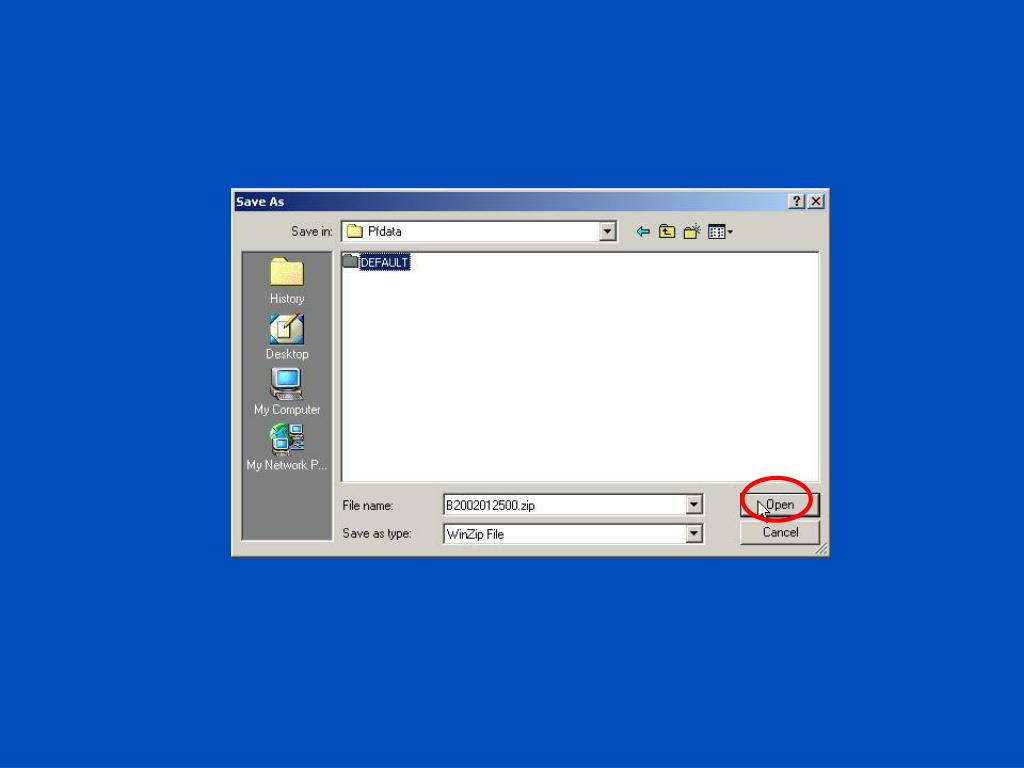

  13. 13 pfdata/default

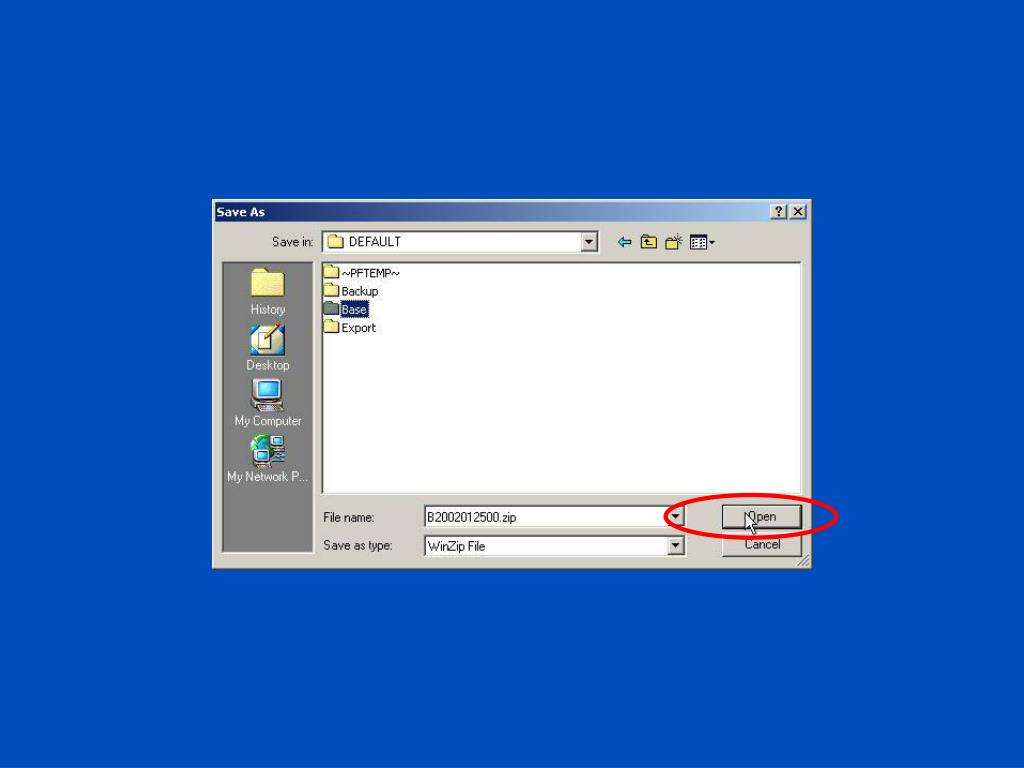

  14. 14 File open

  15. 15 zip file Double click to open

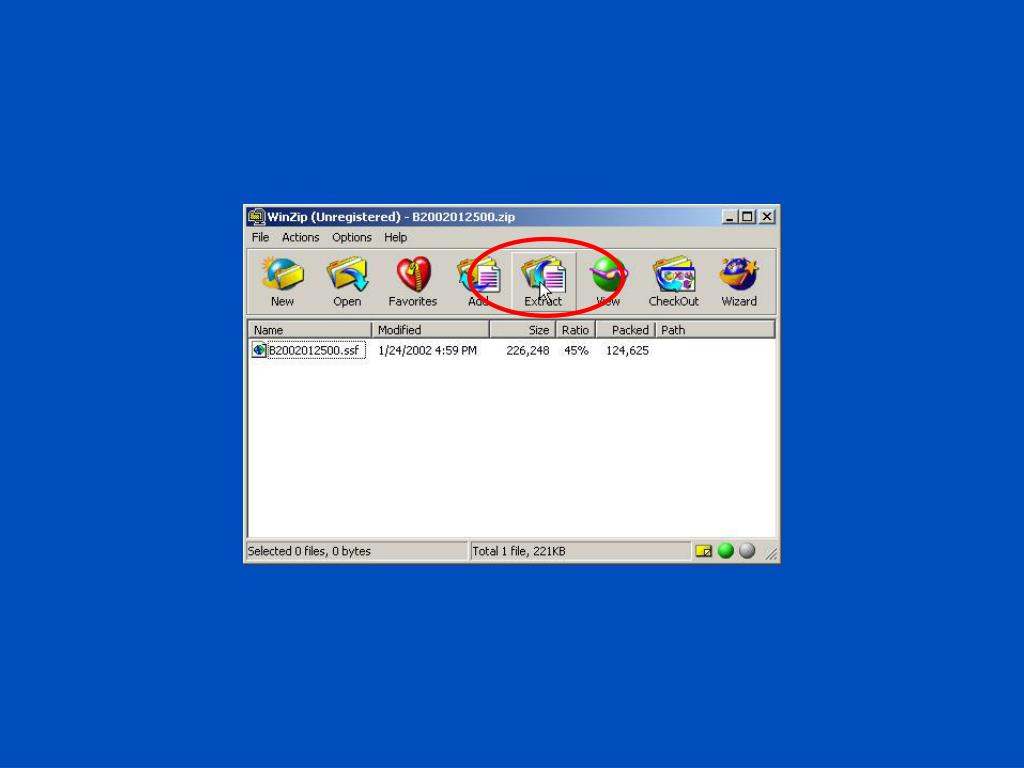

  16. 16 extract

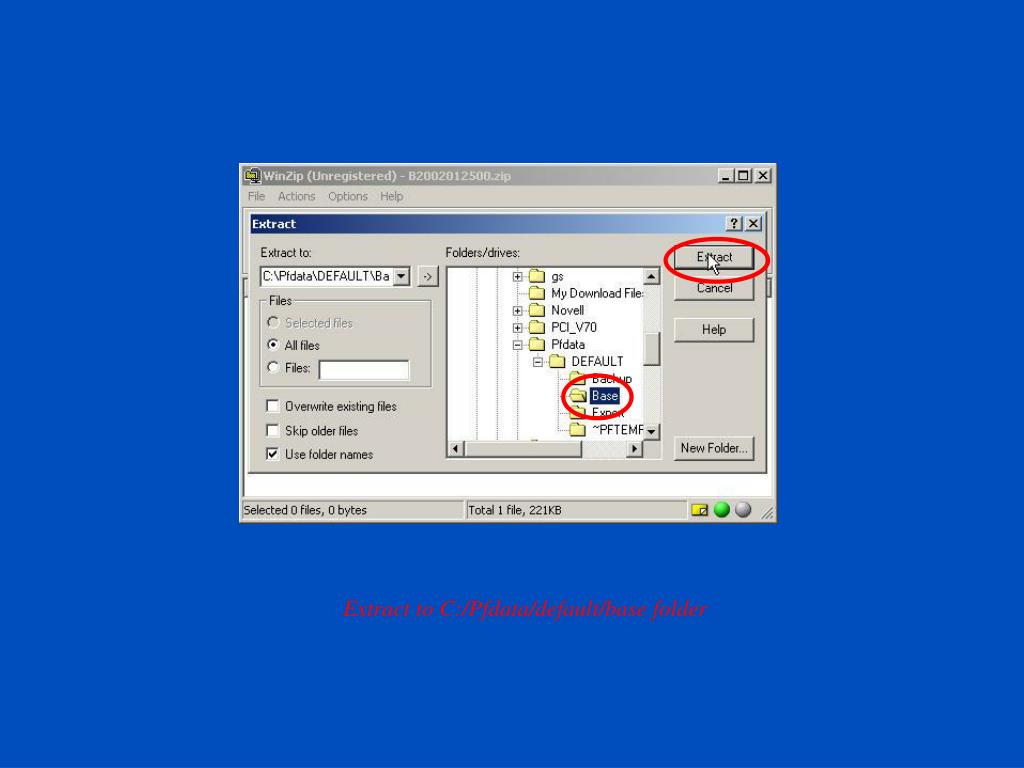

  17. 17 extract to base Extract to C:/Pfdata/default/base folder

  18. 18 base file Base file in Base folder…

  19. Pathfinder Now, having downloaded a base file for the correct time period, a Rover file can be corrected using Pathfinder office…

  20. 1 Windows Open Pathfinder office

  21. 2 Start Pathfinder

  22. 3 Default

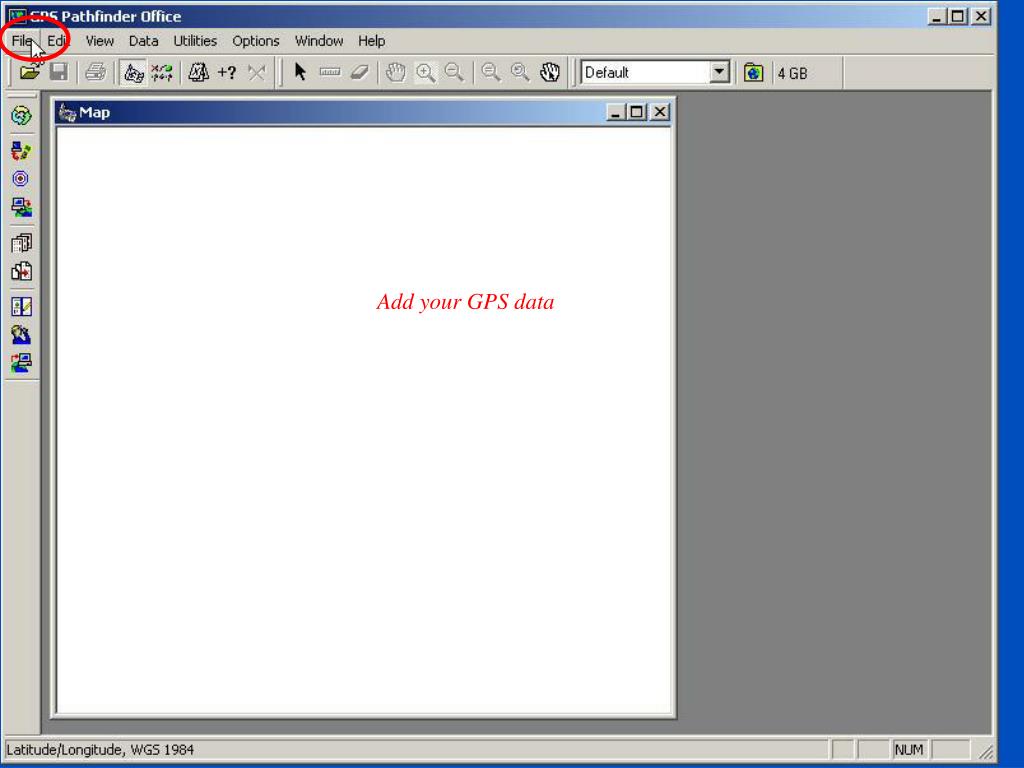

  23. 19 Pathfinder Add your GPS data

  24. 19 Opened file

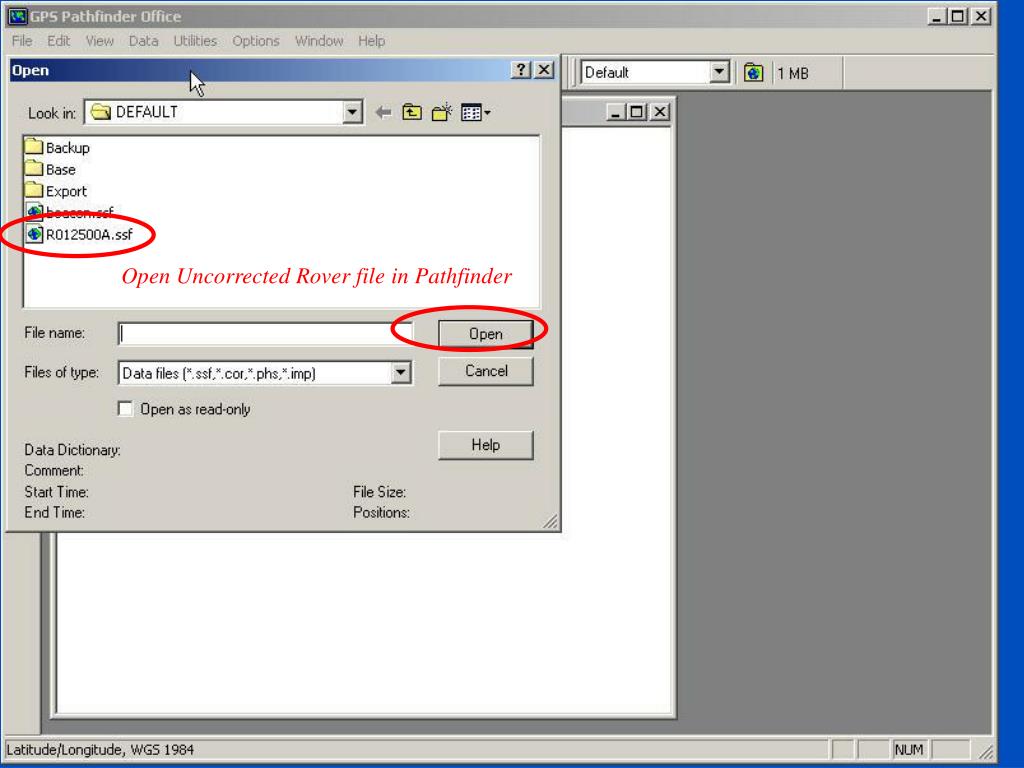

  25. 19 open Rover file Open Uncorrected Rover file in Pathfinder

  26. 19 Opened file Uncorrected Rover file

  27. 20 Util Differentially correct your Rover file using the corresponding base file

  28. 21 diff correction

  29. wait Wait for the Differential Correction window to open… for some reason this seems to take a few minutes.

  30. 22 Local search

  31. 22 Local search in base

  32. 23 matching files

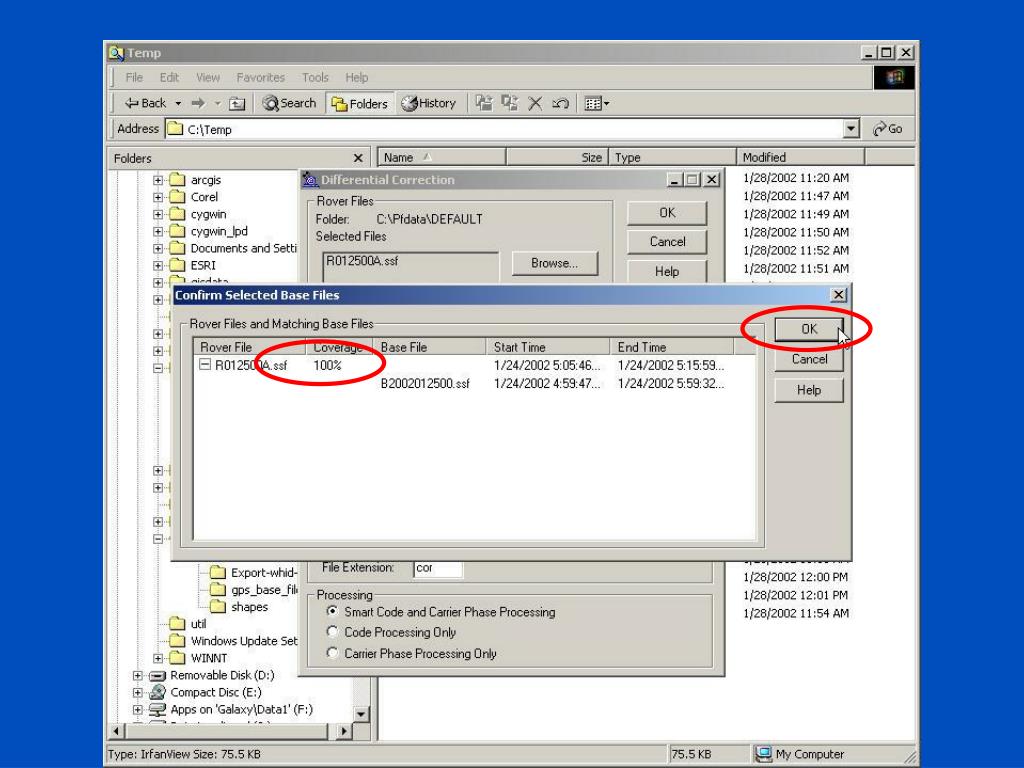

  33. 24 base data ok

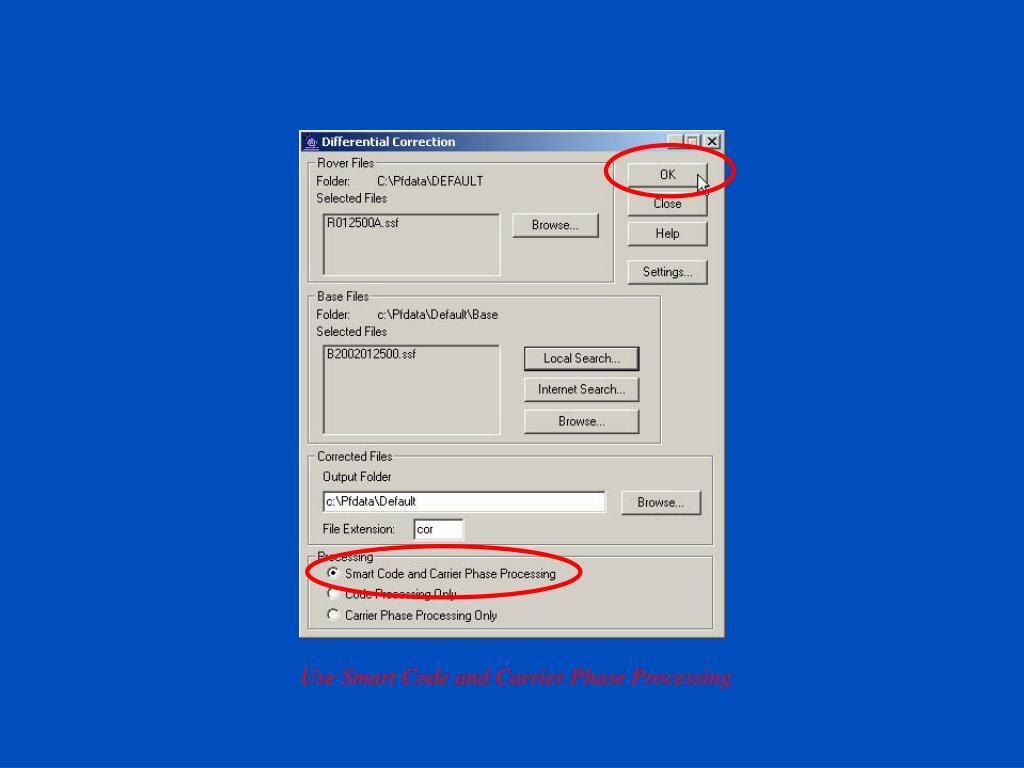

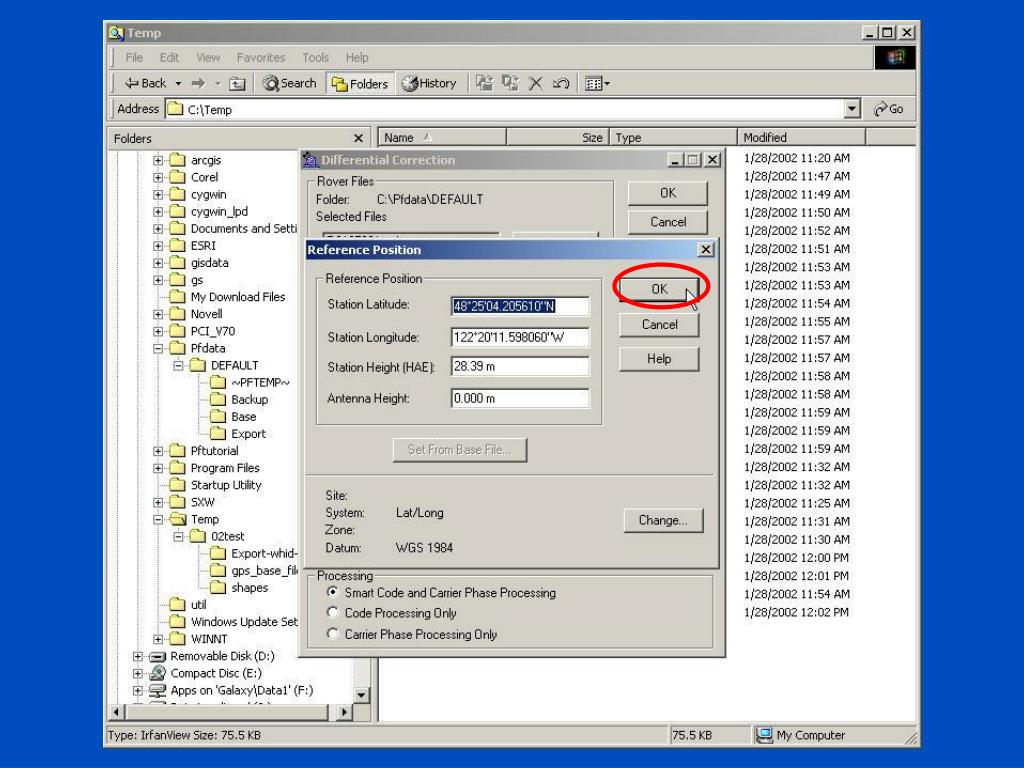

  34. 25 smart code ok Use Smart Code and Carrier Phase Processing

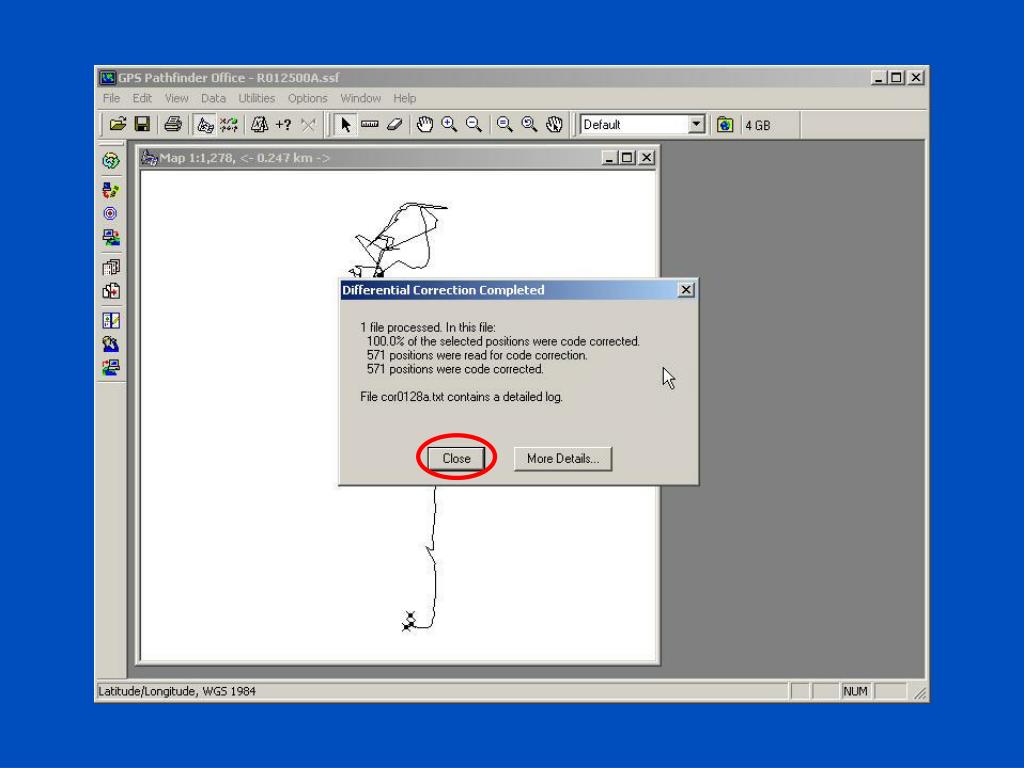

  35. 26 diff cor done

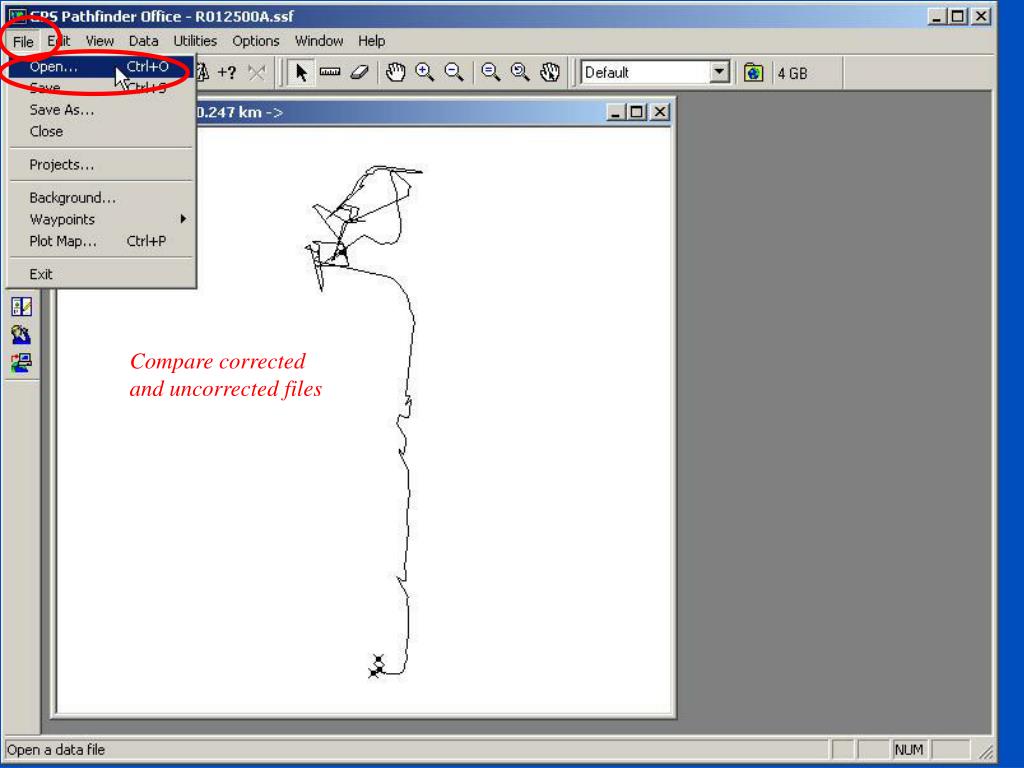

  36. 27 open files Compare corrected and uncorrected files

  37. 28 Open both files Open both original Uncorrected rover file And corrected file for comparison.

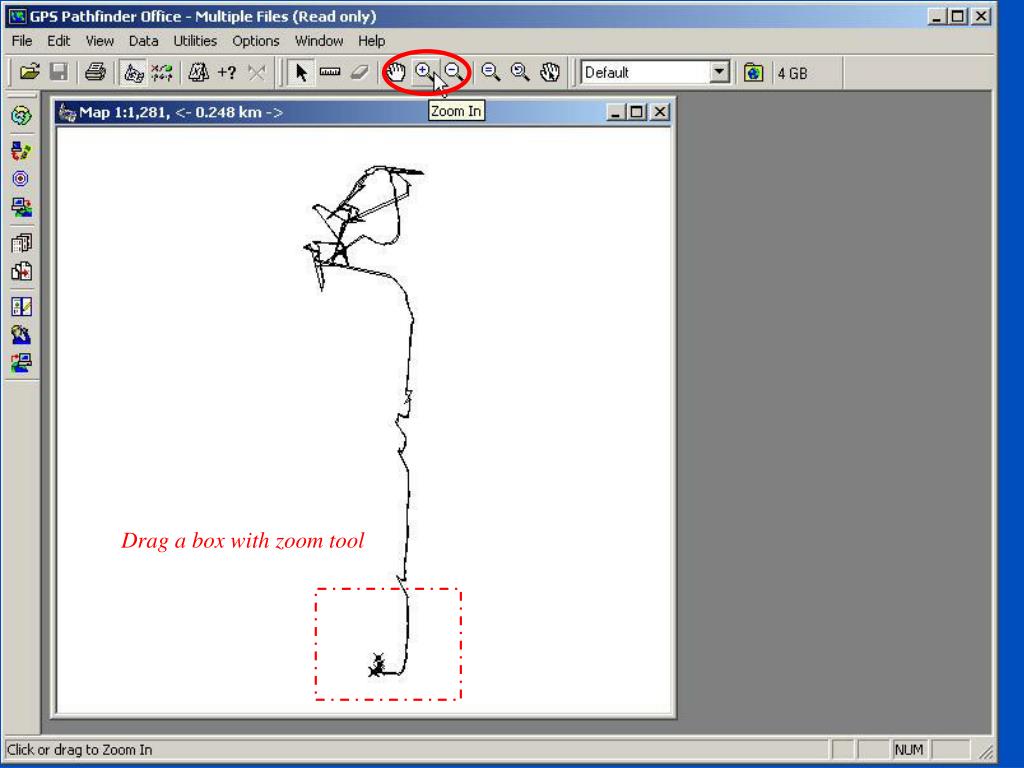

  38. 29 zoom Drag a box with zoom tool

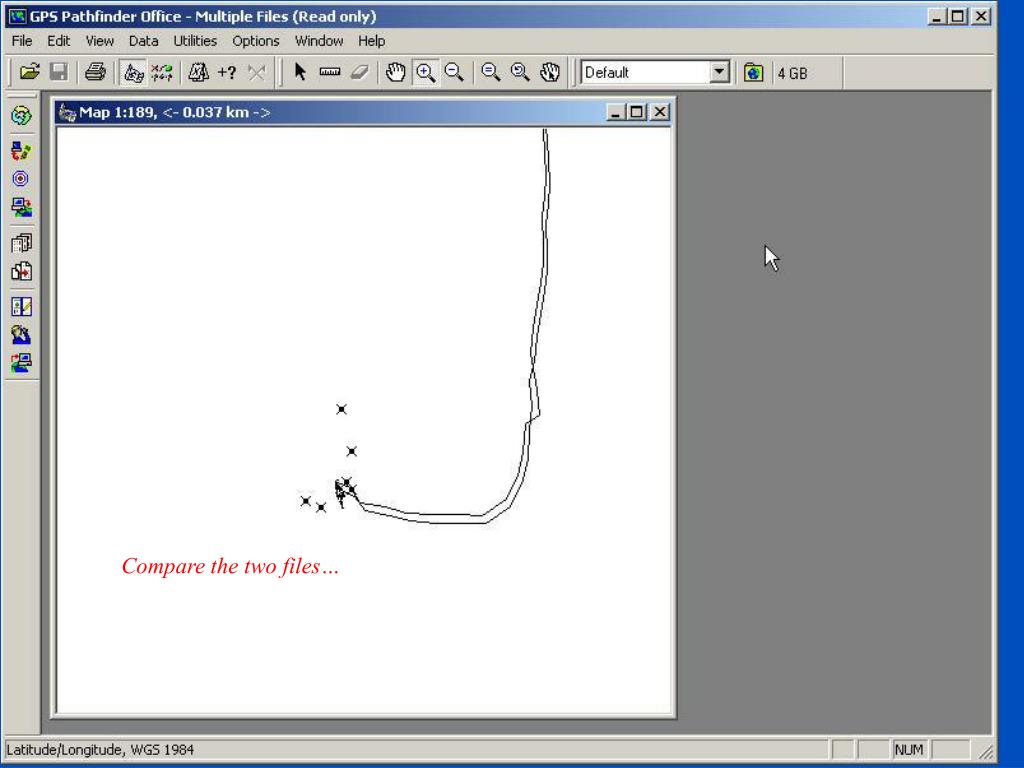

  39. 30 close up of both Compare the two files…

  40. Export ‘em Both the uncorrected Rover file and the corrected file can be exported to ArcView shapefiles for GIS use and spatial analysis… (see GPS_PF-AV_demo.ppt…)
