  1. OTA DESIGN and COMPENSATION Two stage CMOS Feedback and Compensation

  2. Basic Two Stage OTA/OPAMP • Avol = Av1 * Av2 • GBP = gm1/CL • Lower input Noise than Folded Cascode • Compensation- Miller and Pole-Zero cancellation • Open Loop gain comparable to Folded Cascoded • Wider Output Swing than Folded Cascode • Lower GBP than Folded Cascode

  3. General Observations regarding OpAmps

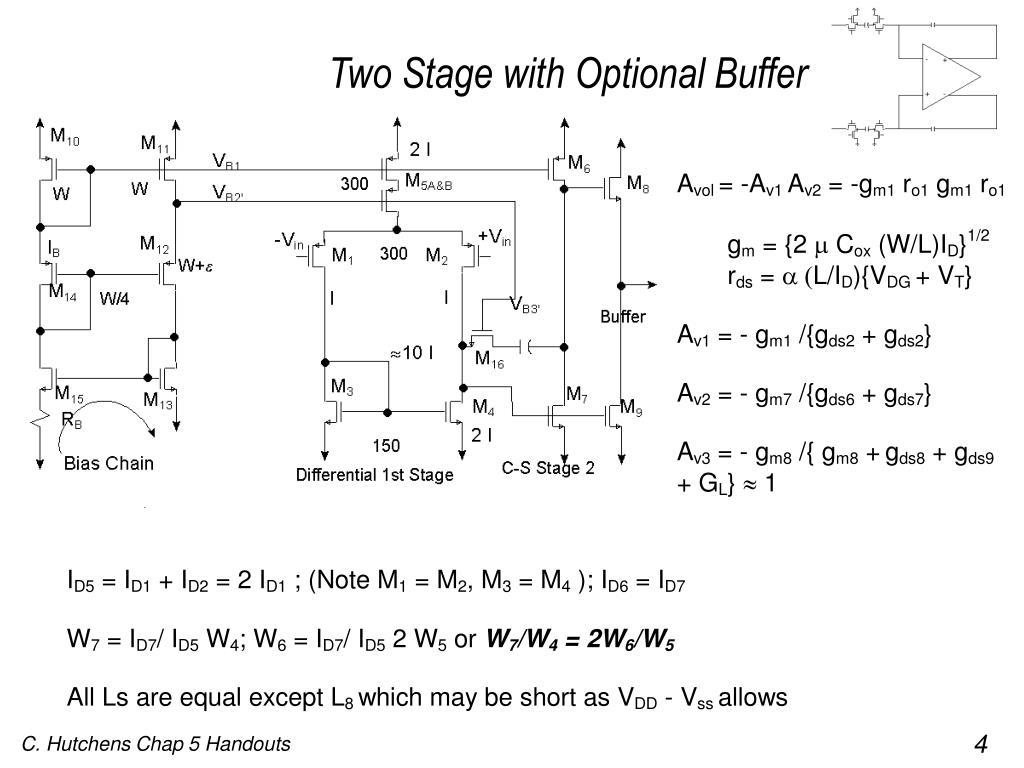

  4. Two Stage with Optional Buffer

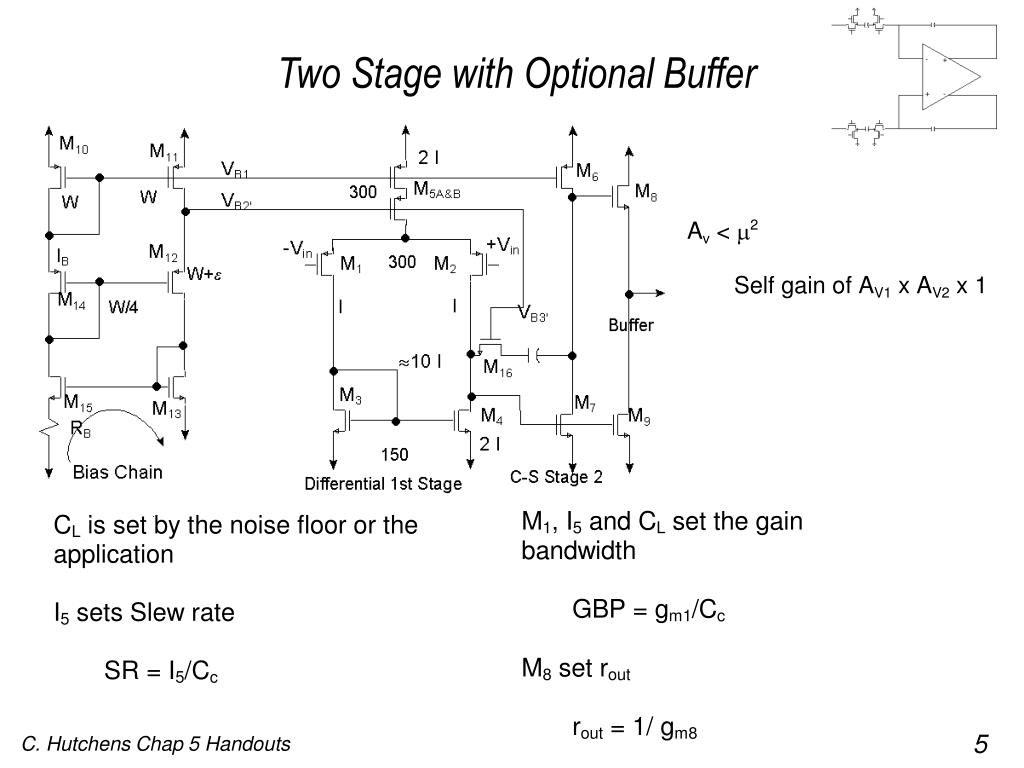

  5. Two Stage with Optional Buffer

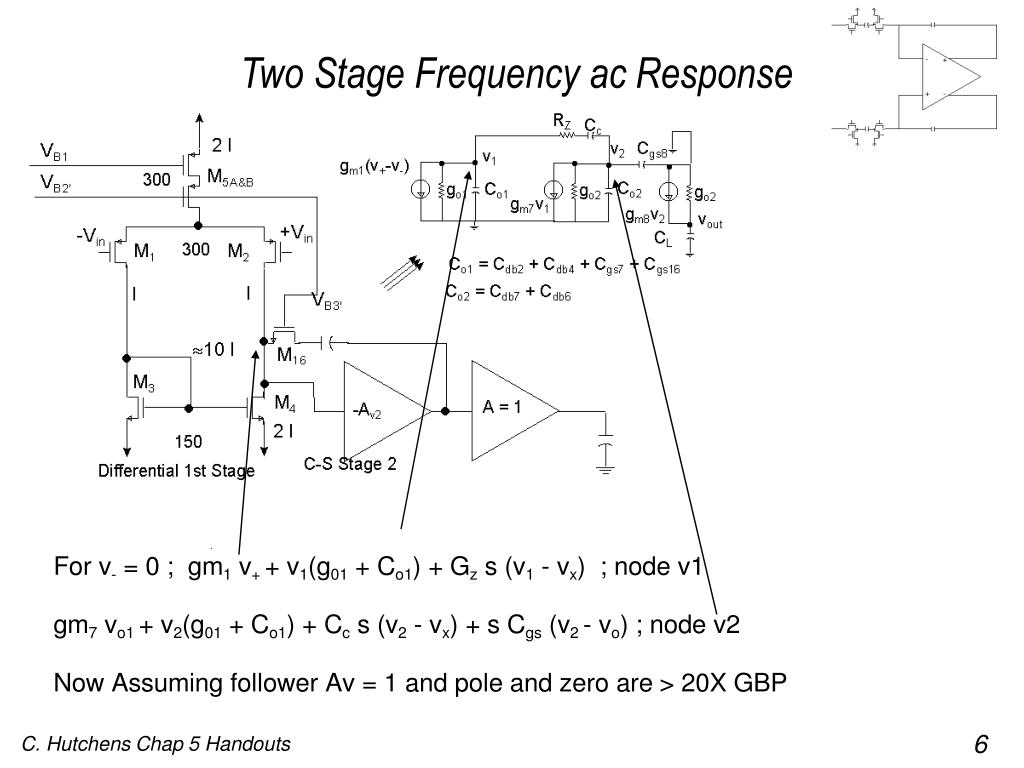

  6. Two Stage Frequency ac Response

  7. Pole-Zero and Miller compensation

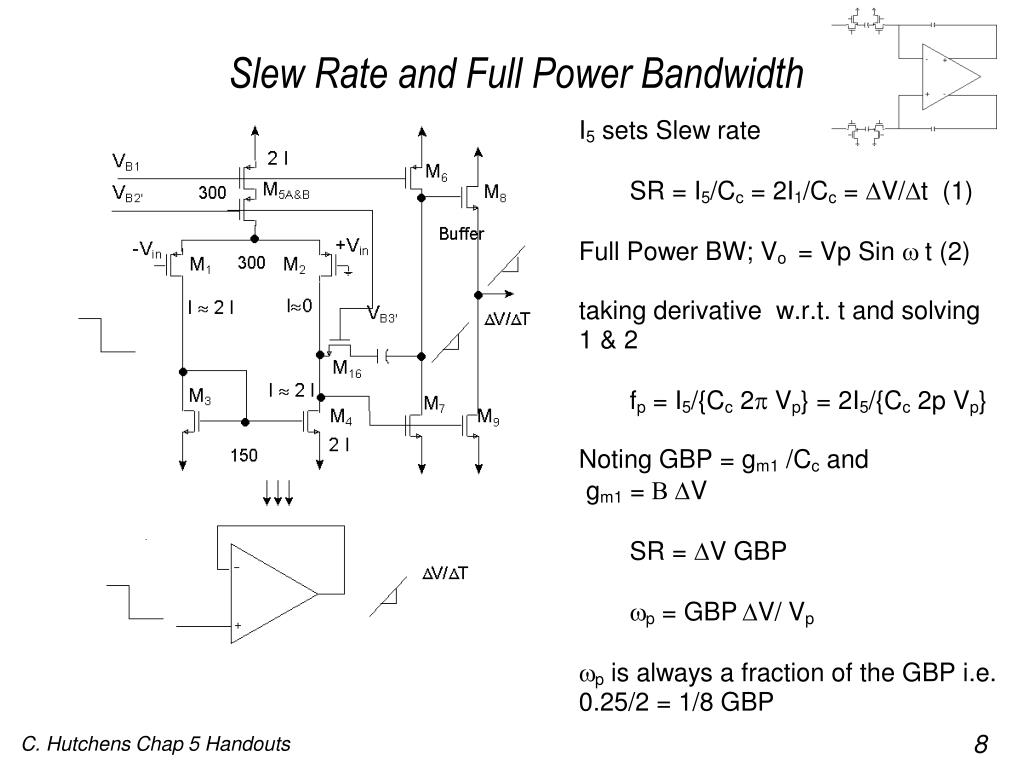

  8. Slew Rate and Full Power Bandwidth

  9. p vs n Diff pair • best SR/ mW • Allows follower and gain stages poles further separation from the GBP • Improved Noise performance due to 1/f behavior of PMOS vs NMOS • In n-well processes n-follower can not be body tied

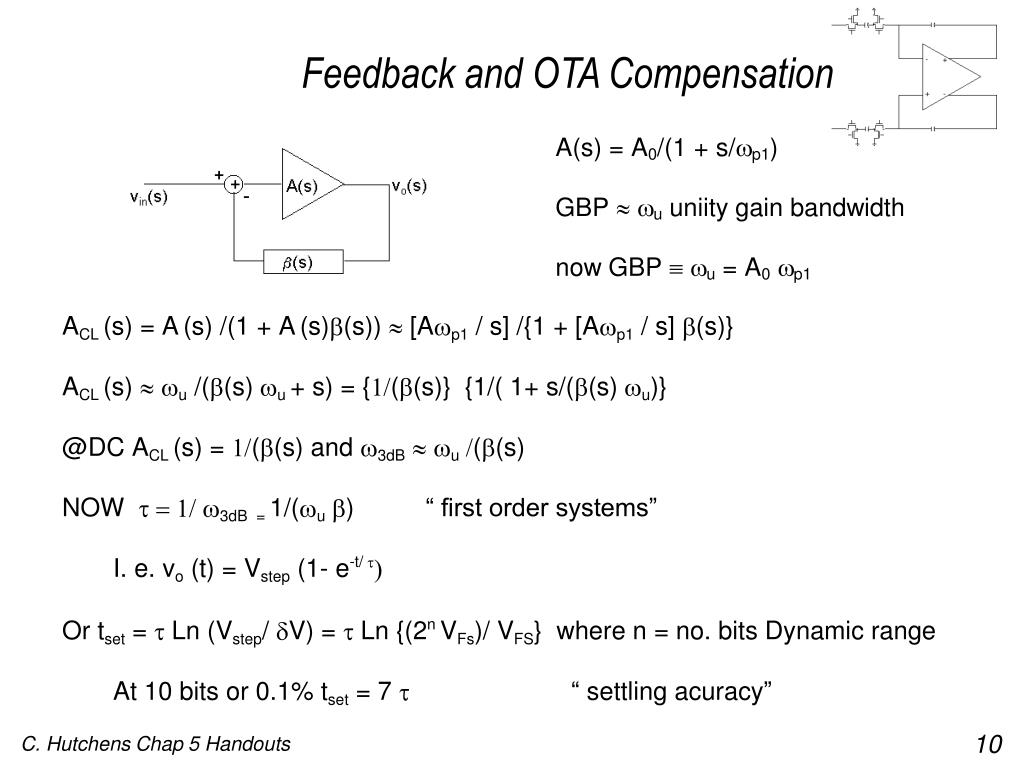

  10. Feedback and OTA Compensation

  11. Feedback and OTA

  12. OTA Compensation – pole splitting

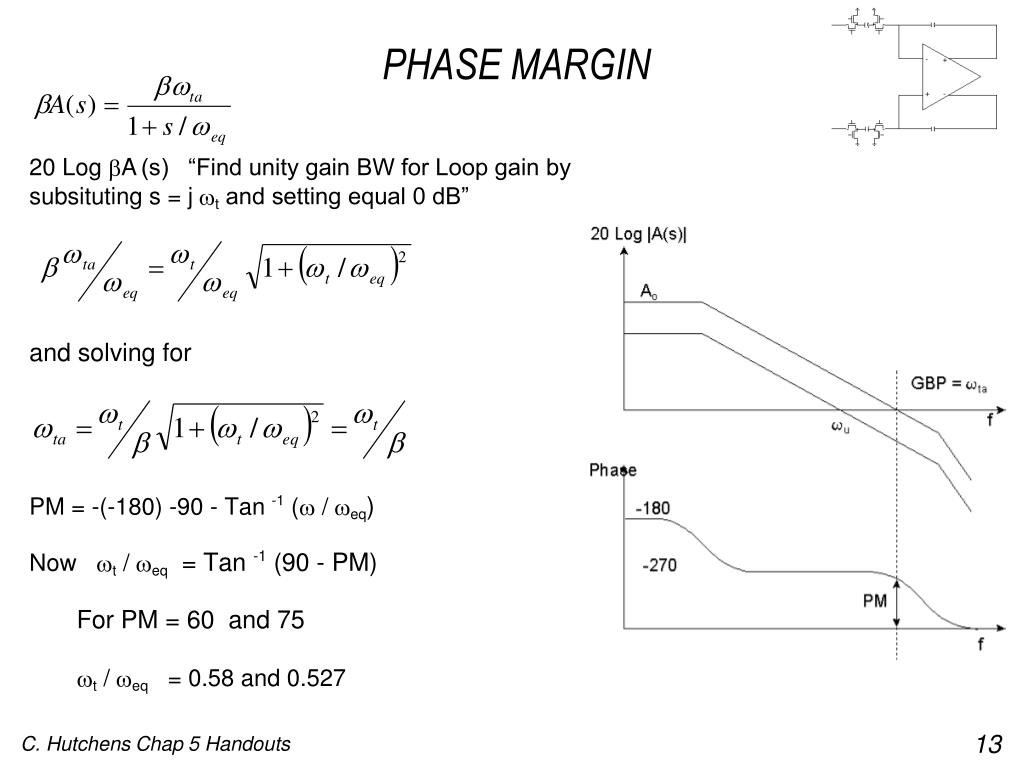

  13. PHASE MARGIN

  14. REVIEW of 2ND ORDER SYSTEMS

  15. Pole-Zero Cancelation Model

  16. Pole-Zero Cancellation Model-2

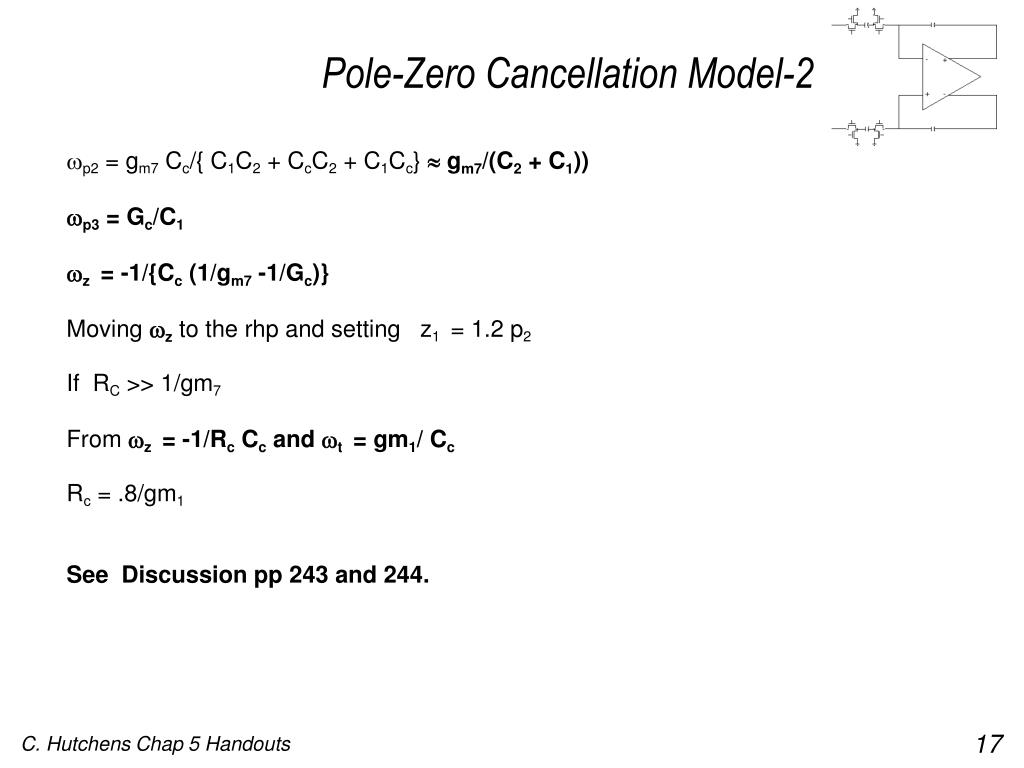

  17. Pole-Zero Cancellation Model-2

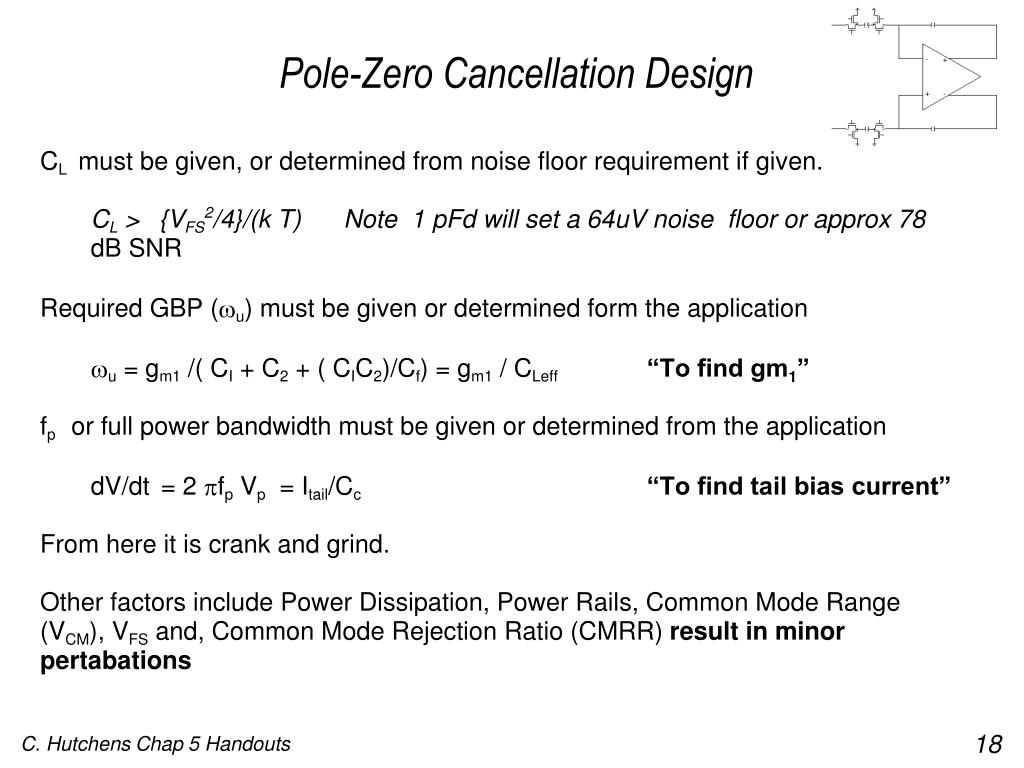

  18. Pole-Zero Cancellation Design
