  1. Sensitivity to convective parameterization in regional climate models Raymond W. Arritt Iowa State University, Ames, Iowa USA ICTP Regional Climate, 2-6 June 2003

  2. Acknowledgments • Zhiwei Yang • PIRCS organizing team: William J. Gutowski, Jr., Eugene S. Takle, Zaitao Pan • PIRCS Participants • funding from NOAA, EPRI, NSF ICTP Regional Climate, 2-6 June 2003

  3. Overview • Survey of convective parameterizations • Sensitivity to specification of closure parameters in the RegCM2 implementation of the Grell scheme • Sensitivity to the choice of cumulus parameterization in regional climate simulations using MM5 ICTP Regional Climate, 2-6 June 2003

  4. Survey of some commonly used convective parameterizations in regional models • Kuo-Anthes • RegCM2, RAMS, MM5 • Kain-Fritsch • MM5, RAMS (being implemented) • Grell • RegCM2, MM5 • Betts-Miller • Eta, MM5 ICTP Regional Climate, 2-6 June 2003

  5. Survey of cumulus parameterization methods • History and variants • Mode of action: • What is the fundamental assumption linking the grid scale and cumulus scale? • Cloud model, trigger, etc. ICTP Regional Climate, 2-6 June 2003

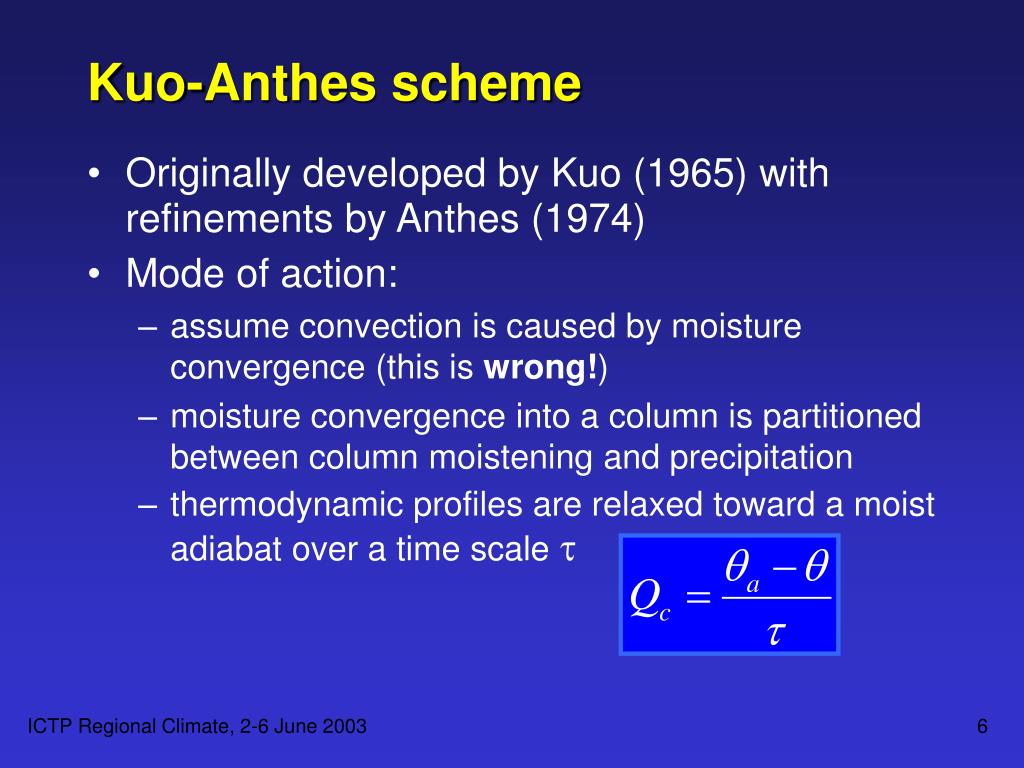

  6. Kuo-Anthes scheme • Originally developed by Kuo (1965) with refinements by Anthes (1974) • Mode of action: • assume convection is caused by moisture convergence (this is wrong!) • moisture convergence into a column is partitioned between column moistening and precipitation • thermodynamic profiles are relaxed toward a moist adiabat over a time scale t ICTP Regional Climate, 2-6 June 2003

  7. Partitioning of moisture convergence in the Kuo scheme column moistening = b× moisture convergence precipitation = (1-b)× moisture convergence Anthes: parameter b varies (inversely) with column relative humidity moisture convergence ICTP Regional Climate, 2-6 June 2003

  8. Grell scheme • Simplification of the Arakawa and Schubert (1974) scheme • there is only a single dominant cloud type instead of a spectrum of cloud types • Mode of action: • convective instability is produced by the large scale (grid scale) • convective instability is dissipated by the small scale (cumulus scale) on a time scale t • there is a quasi-equilibrium between generation and dissipation of instability ICTP Regional Climate, 2-6 June 2003

  9. Grell scheme • Lifting depth trigger: • vertical distance between the lifted condensation level and the level of free convection becomes smaller than some threshold depth Dp • default Dp = 150 mb in RegCM2 and default Dp = 50 mb in MM5 LFC Dp LCL ICTP Regional Climate, 2-6 June 2003

  10. Kain-Fritsch scheme • Refinement of the approach by Fritsch and Chappell (1980, J. Atmos. Sci.) • the only scheme originally developed for mid-latitude mesoscale convective systems • Mode of action: Instantaneous convective instability (CAPE) is consumed during a time scale t • makes no assumptions about relation between grid-scale destabilization rate and convective-scale stabilization rate ICTP Regional Climate, 2-6 June 2003

  11. Kain-Fritsch scheme • Trigger: Parcel at its lifted condensation level can reach its level of free convection • a parcel must overcome negative buoyancy between LCL and LFC • a temperature perturbation is added that depends on the grid-scale vertical velocity • Detailed and flexible cloud model: • updrafts and downdrafts, ice phase • entrainment and detrainment using a buoyancy sorting function ICTP Regional Climate, 2-6 June 2003

  12. Entrainment and detrainment in the Kain-Fritsch scheme mix cloud and environmental parcels, then evaluate buoyancy positively buoyant parcels are entrained negatively buoyant parcels are detrained ICTP Regional Climate, 2-6 June 2003

  13. Betts-Miller scheme • based mainly on tropical maritime observations, e.g., GATE • variant Betts-Miller-Janjic used in the Eta model • mode of action: when convective instability is released, grid-scale profiles of T and q are relaxed toward equilibrium profiles • equilibrium profiles are slightly unstable below freezing level • basic version of the scheme has different equilibrium profiles for land and water; this can cause problems (see Berbery 2001) ICTP Regional Climate, 2-6 June 2003

  14. Questions • Within a given cumulus parameterization scheme, how sensitive are results to specification of the closure parameters? • Within a given regional climate model, how sensitive are results to the choice of cumulus parameterization scheme? ICTP Regional Climate, 2-6 June 2003

  15. Sensitivity to closure parameters • Perform an ensemble of simulations each using a different value for a closure parameter or parameters • must truly be an adjustable parameter; e.g., don’t vary gravitational acceleration or specific heat • parameter value should be reasonable; e.g., convective time scale can't be too long • Present study: in the Grell scheme of RegCM2, vary Dp (lifting depth threshold for trigger) t (time scale for release of convective instability) ICTP Regional Climate, 2-6 June 2003

  16. Closure parameter ensemble matrix Dp t ICTP Regional Climate, 2-6 June 2003

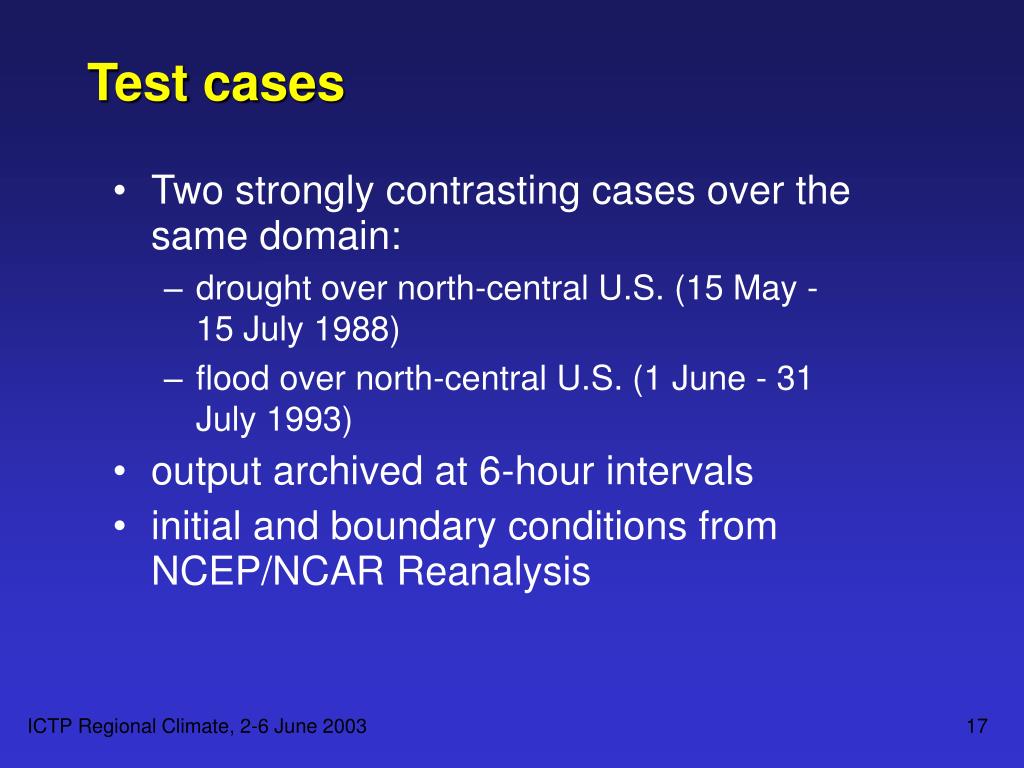

  17. Test cases • Two strongly contrasting cases over the same domain: • drought over north-central U.S. (15 May - 15 July 1988) • flood over north-central U.S. (1 June - 31 July 1993) • output archived at 6-hour intervals • initial and boundary conditions from NCEP/NCAR Reanalysis ICTP Regional Climate, 2-6 June 2003

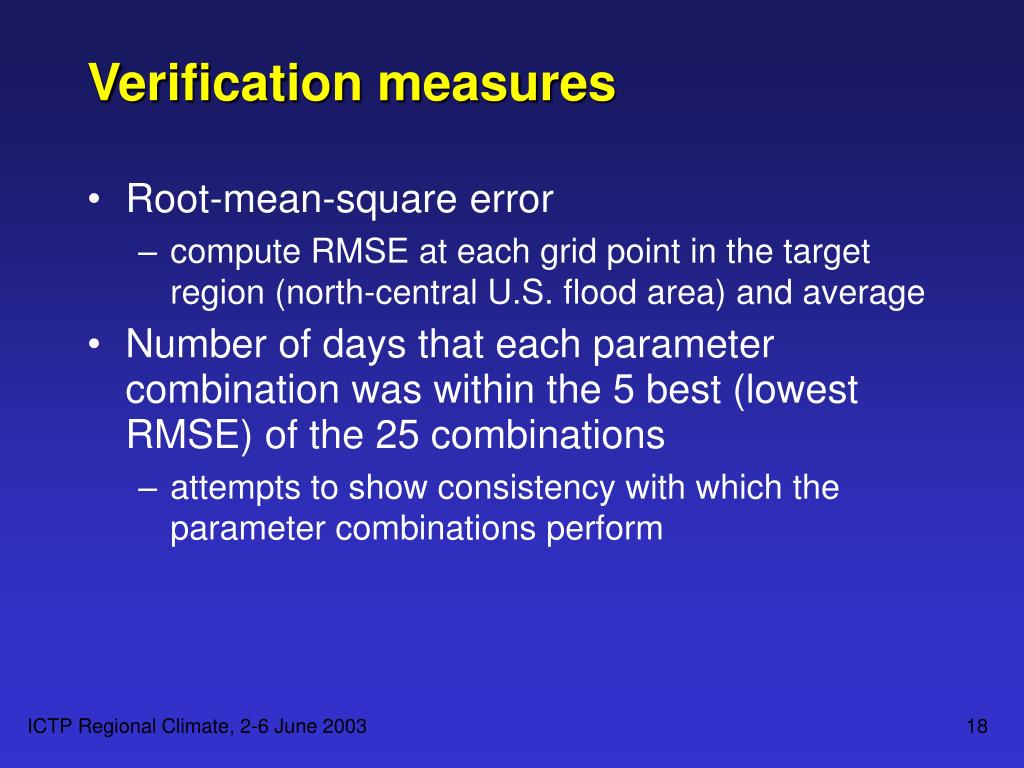

  18. Verification measures • Root-mean-square error • compute RMSE at each grid point in the target region (north-central U.S. flood area) and average • Number of days that each parameter combination was within the 5 best (lowest RMSE) of the 25 combinations • attempts to show consistency with which the parameter combinations perform ICTP Regional Climate, 2-6 June 2003

  19. 150 mb 125 mb 100 mb 75 mb 50 mb 7200 s 129 108 114 113 131 5400 s 121 122 119 116 111 3600 s 122 129 121 114 115 1800 s 125 127 121 123 114 600 s 157 154 128 130 137 low values of Dp tend to perform well Flood case: RMS precipitation error (mm) over the north-central U.S. ICTP Regional Climate, 2-6 June 2003

  20. 150 mb 125 mb 100 mb 75 mb 50 mb 7200 s 79 78 73 65 75 5400 s 70 85 84 70 62 3600 s 77 84 81 77 76 1800 s 85 88 117 96 60 600 s 71 62 67 57 73 Drought case: RMS precipitation error (mm) over the north-central U.S. ICTP Regional Climate, 2-6 June 2003

  21. 150 mb 125 mb 100 mb 75 mb 50 mb 7200 s 23 21 17 13 17 5400 s 14 13 13 12 21 3600 s 7 10 8 10 20 1800 s 8 5 5 4 7 600 s 9 11 12 10 15 Flood case: number of days for which each ensemble member was among the 5 members with lowest RMSE ICTP Regional Climate, 2-6 June 2003

  22. 150 mb 125 mb 100 mb 75 mb 50 mb 7200 s 14 9 10 20 22 5400 s 14 12 10 12 15 3600 s 15 7 9 6 7 1800 s 5 13 8 10 16 600 s 19 14 17 12 9 Drought case: number of days for which each ensemble member was among the 5 members with lowest RMSE ICTP Regional Climate, 2-6 June 2003

  23. Variability with different convective schemes: A mixed-physics ensemble • How much variability can be attributed to differences in physical parameterizations? • Perform a number of simulations each using different cloud parameterizations: • convective parameterization: Kain-Fritsch, Betts-Miller, Grell • shallow convection on or off ICTP Regional Climate, 2-6 June 2003

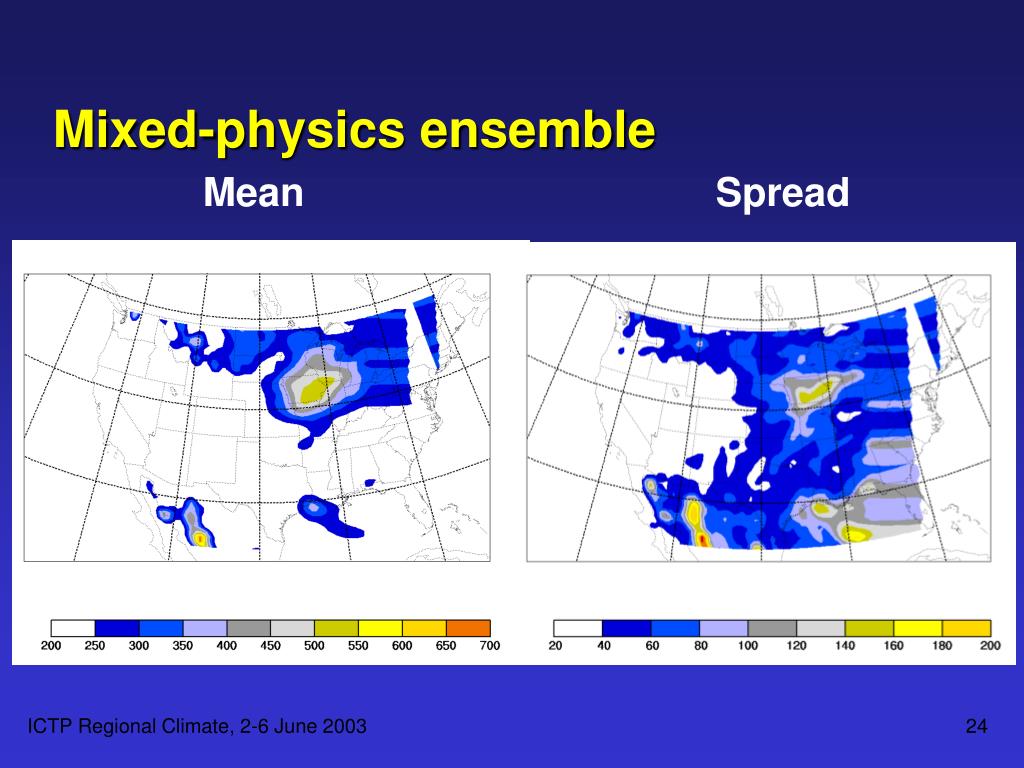

  24. Mixed-physics ensemble Mean Spread ICTP Regional Climate, 2-6 June 2003

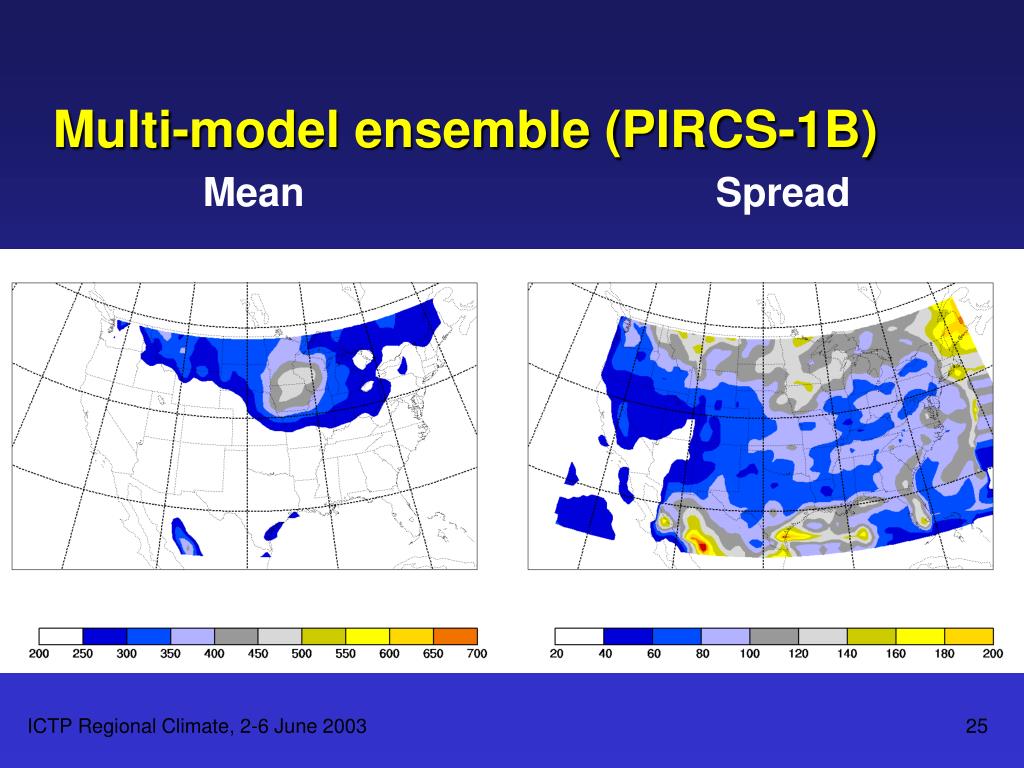

  25. Multi-model ensemble (PIRCS-1B) Mean Spread ICTP Regional Climate, 2-6 June 2003

  26. Area-averaged precipitation in the north-central U.S. Mixed Physics Multi-Model (PIRCS 1B) ICTP Regional Climate, 2-6 June 2003

  27. Preliminary findings • Results can be sensitive to choice of closure parameters • best value of closure parameter varies depending on the situation: it is not realistic to expect a single best value • Use of different cumulus parameterizations produced about as much variability as use of completely different models: • Beware of statements such as “MM5 (RAMS, RegCM2 etc.) has been verified...” without reference to the exact configuration! • There may be potential for this variability to aid in generating ensemble forecasts: it is easier to run one model with different parameterizations than to run a suite of different codes ICTP Regional Climate, 2-6 June 2003

  28. Preliminary findings ICTP Regional Climate, 2-6 June 2003
