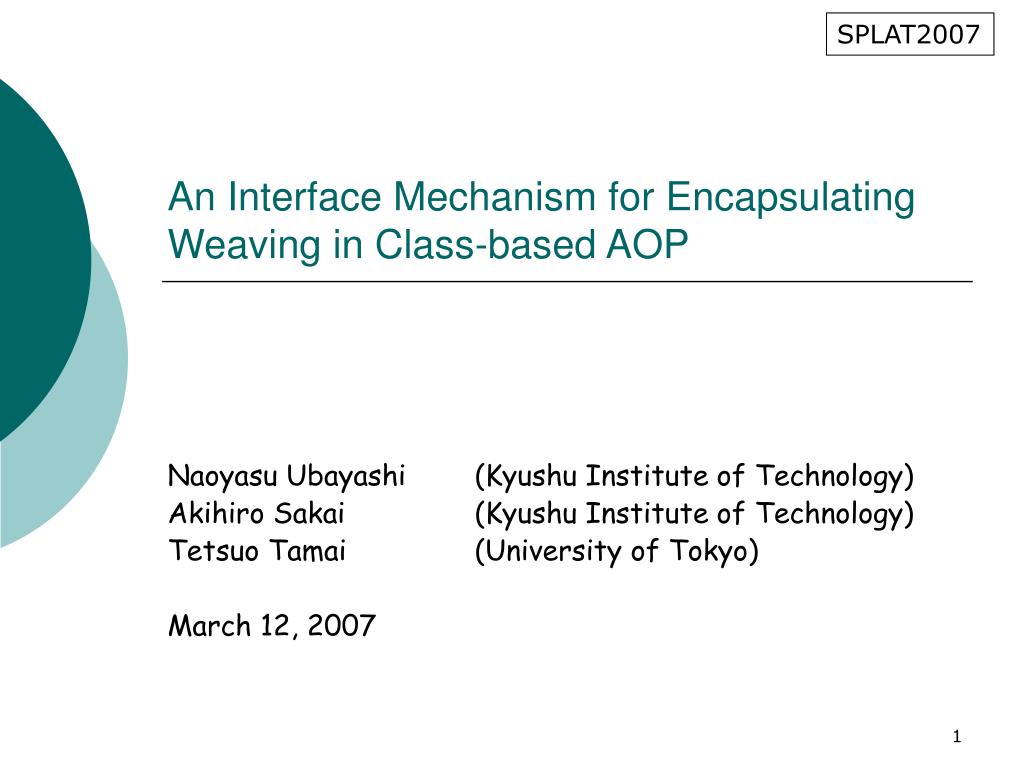

  1. SPLAT2007 An Interface Mechanism for Encapsulating Weaving in Class-based AOP Naoyasu Ubayashi (Kyushu Institute of Technology) Akihiro Sakai (Kyushu Institute of Technology) Tetsuo Tamai (University of Tokyo) March 12, 2007

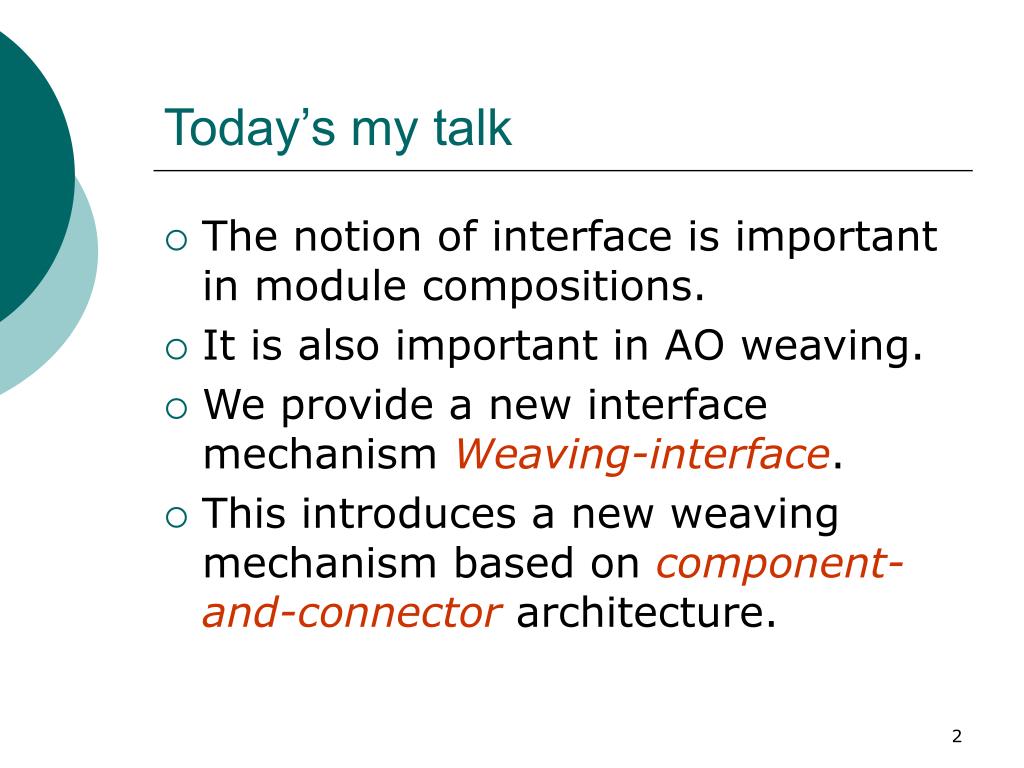

  2. Today’s my talk • The notion of interface is important in module compositions. • It is also important in AO weaving. • We provide a new interface mechanism Weaving-interface. • This introduces a new weaving mechanism based on component-and-connector architecture.

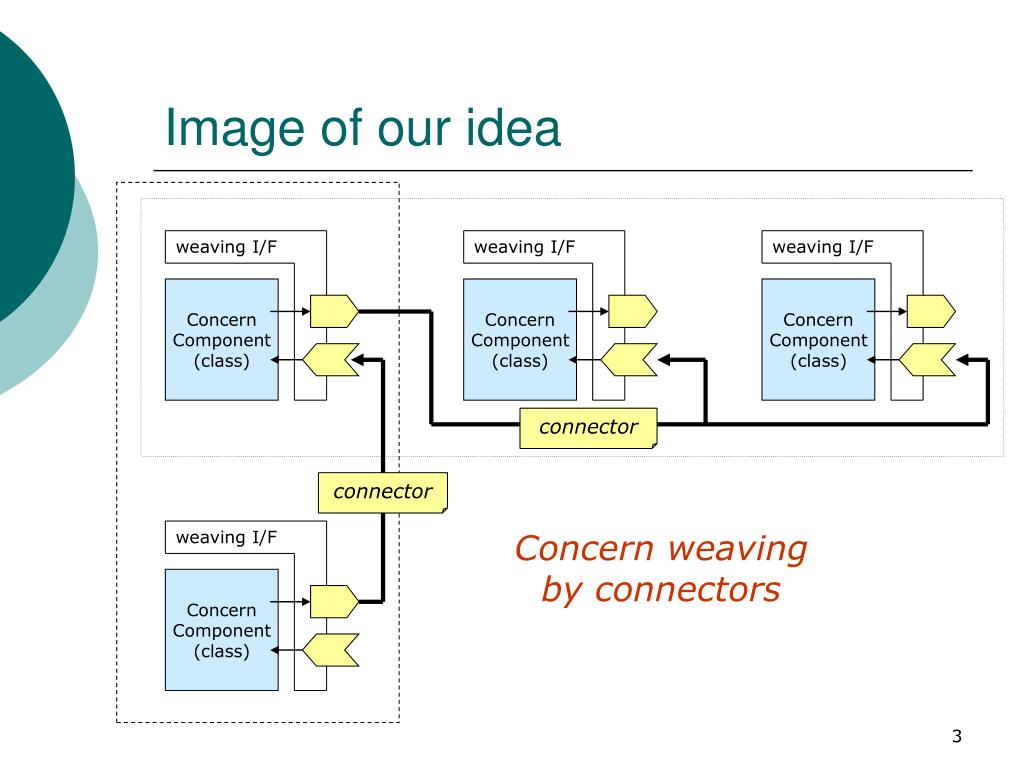

  3. Image of our idea weaving I/F weaving I/F weaving I/F Concern Component (class) Concern Component (class) Concern Component (class) connector connector weaving I/F Concern weaving by connectors Concern Component (class)

  4. Outline • Motivation • Weaving-interface & ccJava • Example programs • Implementation • Related work • Conclusion

  5. 1. Motivation

  6. Interface in OOP • A client of a class has only to be aware of methods exposed by an interface of the class. • A class can be modified without being aware of the client if the class does not change the interface. component (class) programmer interface client of a class interface component (class) programmer

  7. However, in AOP … • It is not necessarily easy for a programmer to understand the overall behavior of a woven program because a weaving modifies the behavior of a method defined in a class.

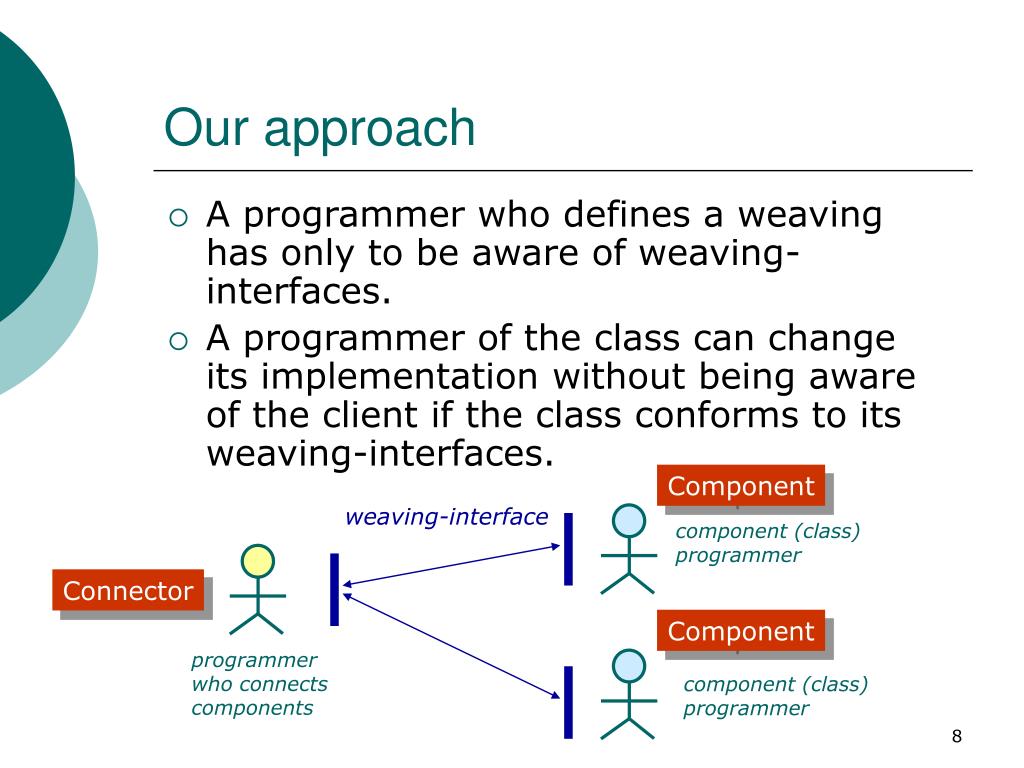

  8. Our approach • A programmer who defines a weaving has only to be aware of weaving-interfaces. • A programmer of the class can change its implementation without being aware of the client if the class conforms to its weaving-interfaces. Component weaving-interface component (class) programmer Connector Component programmer who connects components component (class) programmer

  9. 2. Weaving-interface & ccJava

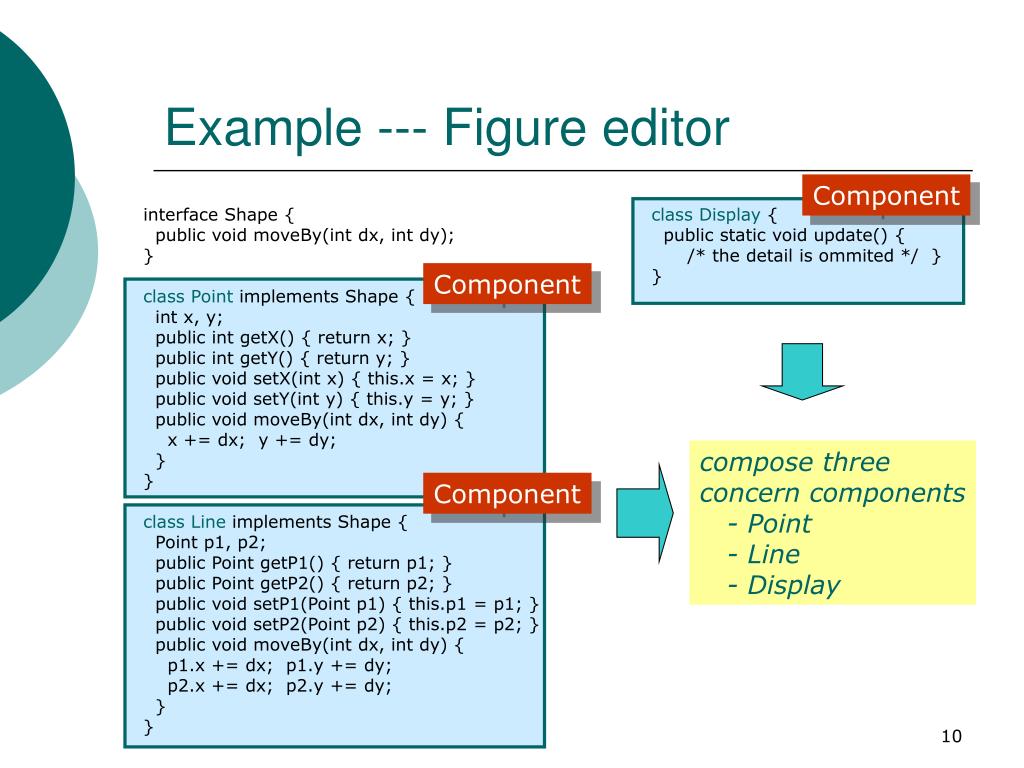

  10. Example --- Figure editor Component interface Shape { public void moveBy(int dx, int dy); } class Point implements Shape { int x, y; public int getX() { return x; } public int getY() { return y; } public void setX(int x) { this.x = x; } public void setY(int y) { this.y = y; } public void moveBy(int dx, int dy) { x += dx; y += dy; } } class Line implements Shape { Point p1, p2; public Point getP1() { return p1; } public Point getP2() { return p2; } public void setP1(Point p1) { this.p1 = p1; } public void setP2(Point p2) { this.p2 = p2; } public void moveBy(int dx, int dy) { p1.x += dx; p1.y += dy; p2.x += dx; p2.y += dy; } } class Display { public static void update() { /* the detail is ommited */ } } Component compose three concern components - Point - Line - Display Component

  11. AO weaving based oncomponent-connector architecture export program points (update) wDisplay wPoint wLine class Display class Point class Line Component redraw import program points (at set*, moveBy) logging wLogging Connector class Logging Weaving-interface

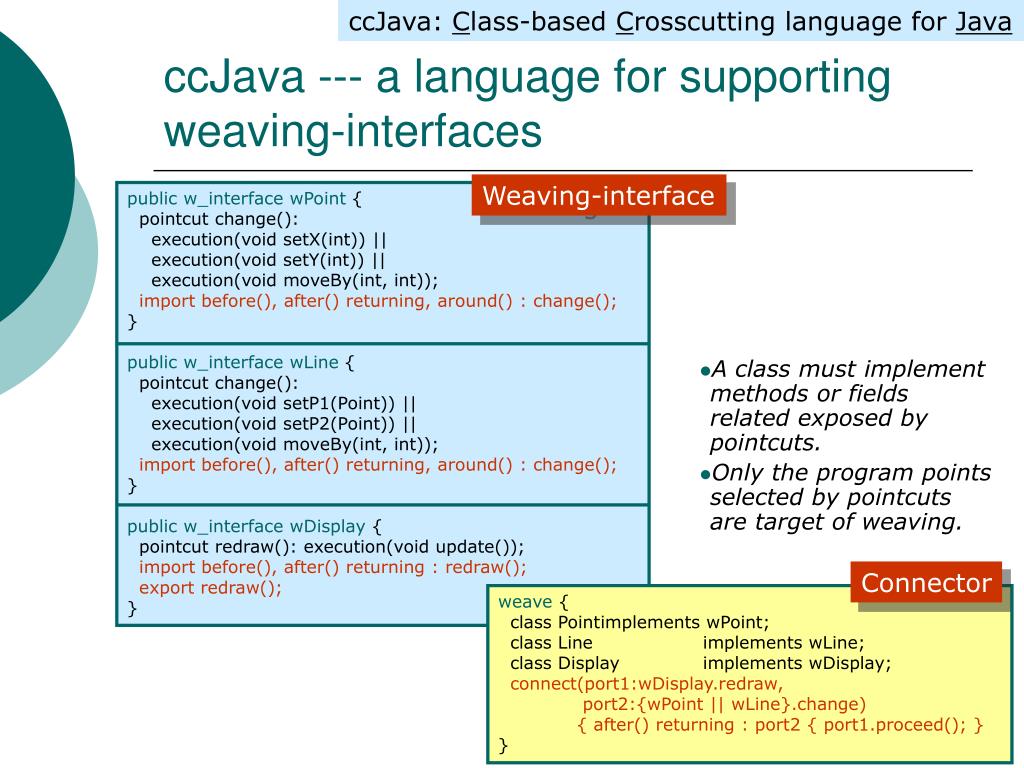

  12. ccJava: Class-based Crosscutting language for Java ccJava --- a language for supporting weaving-interfaces Weaving-interface public w_interface wPoint { pointcut change(): execution(void setX(int)) || execution(void setY(int)) || execution(void moveBy(int, int)); import before(), after() returning, around() : change(); } public w_interface wLine { pointcut change(): execution(void setP1(Point)) || execution(void setP2(Point)) || execution(void moveBy(int, int)); import before(), after() returning, around() : change(); } public w_interface wDisplay { pointcut redraw(): execution(void update()); import before(), after() returning : redraw(); export redraw(); } • A class must implement methods or fields related exposed by pointcuts. • Only the program points selected by pointcuts are target of weaving. Connector weave { class Point implements wPoint; class Line implements wLine; class Display implements wDisplay; connect(port1:wDisplay.redraw, port2:{wPoint || wLine}.change) { after() returning : port2 { port1.proceed(); } }

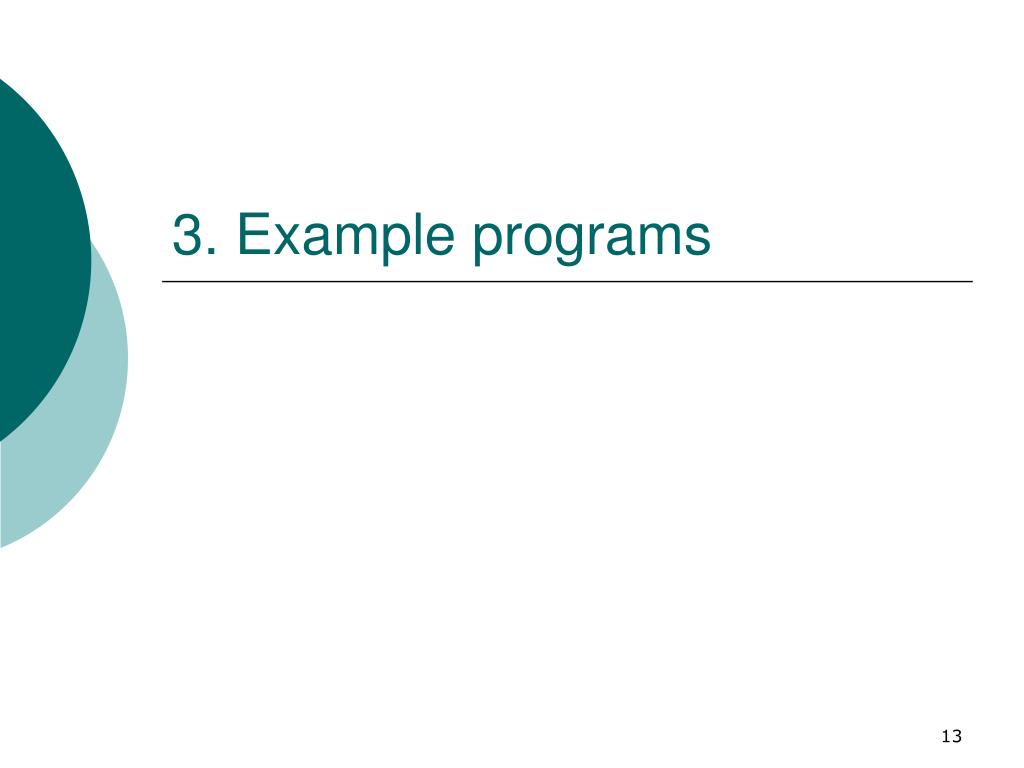

  13. 3. Example programs

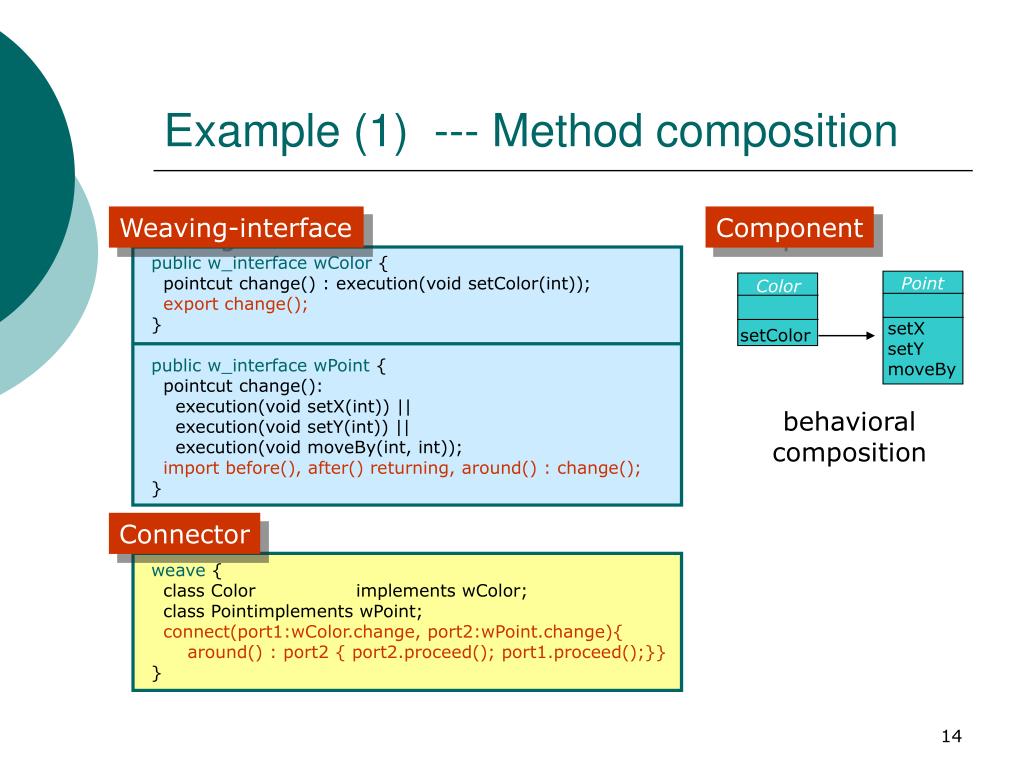

  14. Example (1) --- Method composition Weaving-interface Component public w_interface wColor { pointcut change() : execution(void setColor(int)); export change(); } public w_interface wPoint { pointcut change(): execution(void setX(int)) || execution(void setY(int)) || execution(void moveBy(int, int)); import before(), after() returning, around() : change(); } weave { class Color implements wColor; class Point implements wPoint; connect(port1:wColor.change, port2:wPoint.change){ around() : port2 { port2.proceed(); port1.proceed();}} } Point Color setX setY moveBy setColor behavioral composition Connector

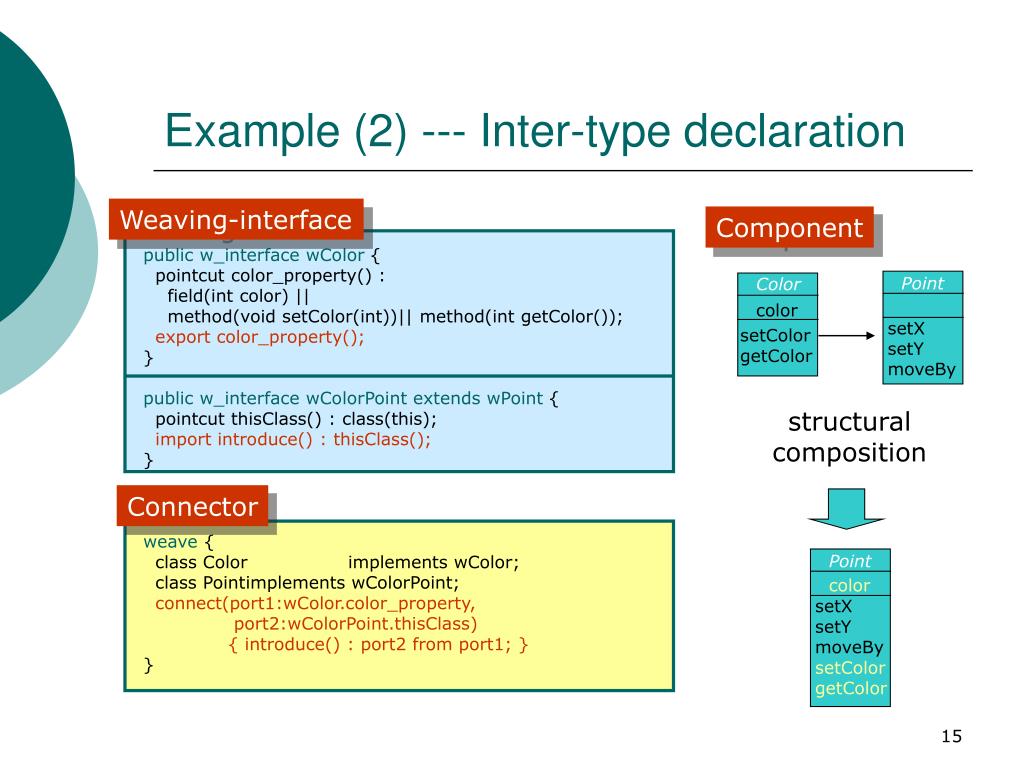

  15. Example (2) --- Inter-type declaration Weaving-interface Component public w_interface wColor { pointcut color_property() : field(int color) || method(void setColor(int))|| method(int getColor()); export color_property(); } public w_interface wColorPoint extends wPoint { pointcut thisClass() : class(this); import introduce() : thisClass(); } weave { class Color implements wColor; class Point implements wColorPoint; connect(port1:wColor.color_property, port2:wColorPoint.thisClass) { introduce() : port2 from port1; } } Point Color color setX setY moveBy setColor getColor structural composition Connector Point color setX setY moveBy setColor getColor

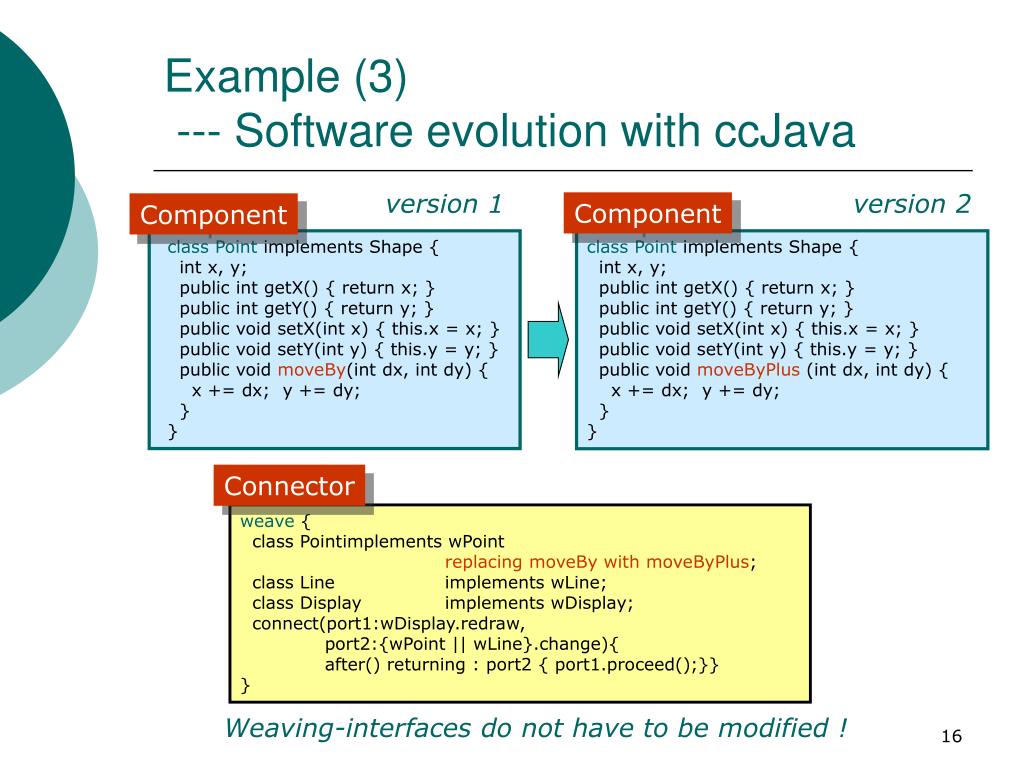

  16. Example (3) --- Software evolution with ccJava version 1 version 2 Component Component class Point implements Shape { int x, y; public int getX() { return x; } public int getY() { return y; } public void setX(int x) { this.x = x; } public void setY(int y) { this.y = y; } public void moveBy(int dx, int dy) { x += dx; y += dy; } } class Point implements Shape { int x, y; public int getX() { return x; } public int getY() { return y; } public void setX(int x) { this.x = x; } public void setY(int y) { this.y = y; } public void moveByPlus (int dx, int dy) { x += dx; y += dy; } } Connector weave { class Point implements wPoint replacing moveBy with moveByPlus; class Line implements wLine; class Display implements wDisplay; connect(port1:wDisplay.redraw, port2:{wPoint || wLine}.change){ after() returning : port2 { port1.proceed();}} } Weaving-interfaces do not have to be modified !

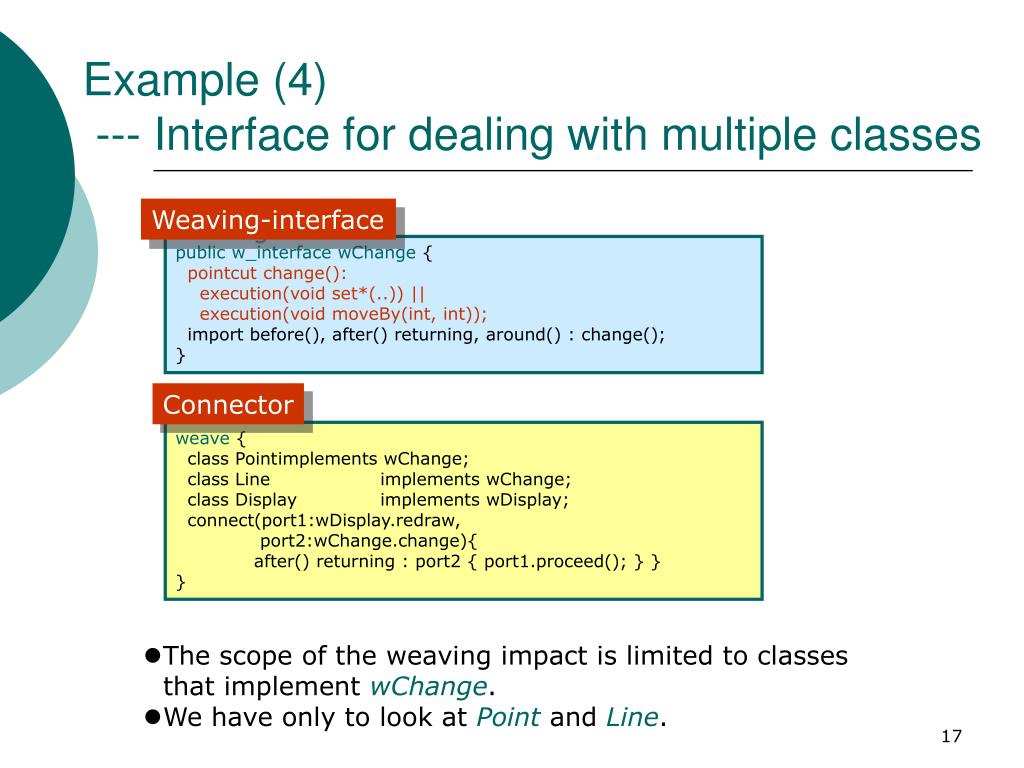

  17. Example (4) --- Interface for dealing with multiple classes Weaving-interface public w_interface wChange { pointcut change(): execution(void set*(..)) || execution(void moveBy(int, int)); import before(), after() returning, around() : change(); } Connector weave { class Point implements wChange; class Line implements wChange; class Display implements wDisplay; connect(port1:wDisplay.redraw, port2:wChange.change){ after() returning : port2 { port1.proceed(); } } } • The scope of the weaving impact is limited to classes that implement wChange. • We have only to look at Point and Line.

  18. 4. Implementation

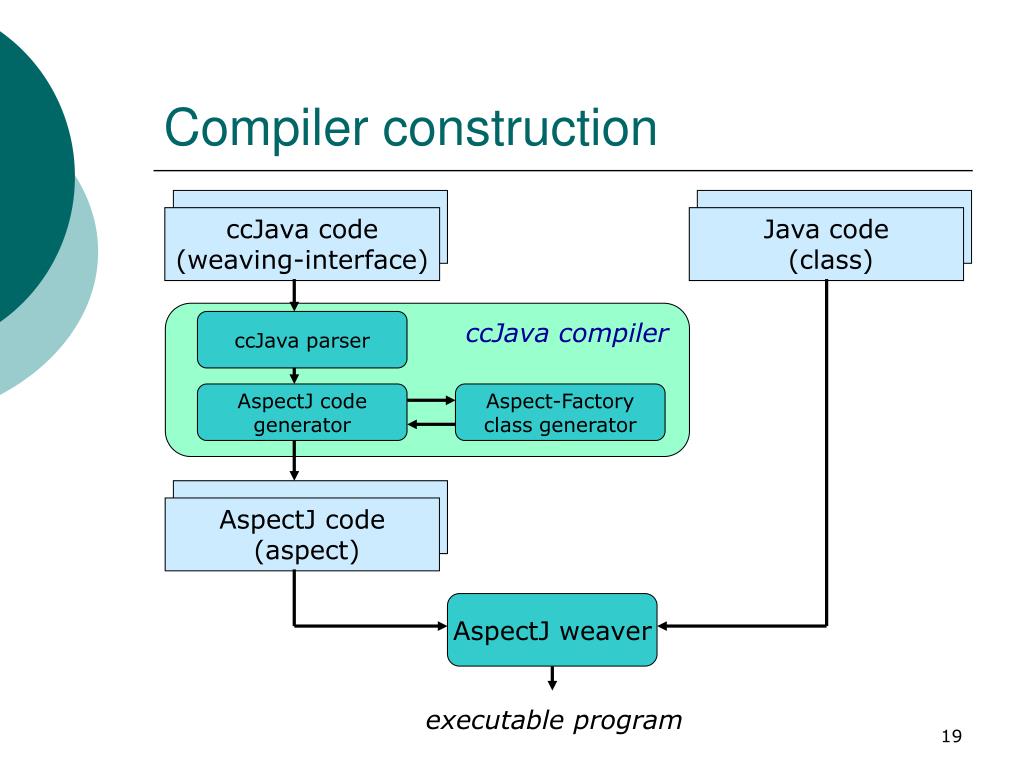

  19. Compiler construction ccJava code (weaving-interface) Java code (class) ccJava parser ccJava compiler AspectJ code generator Aspect-Factory class generator AspectJ code (aspect) AspectJ weaver executable program

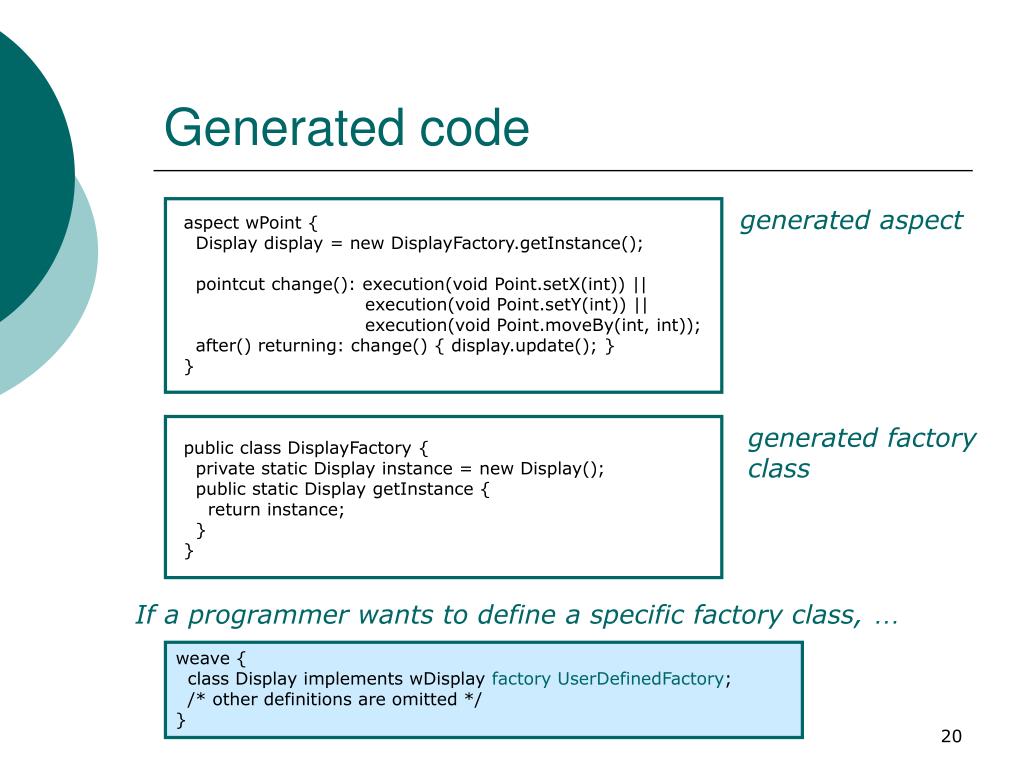

  20. Generated code generated aspect aspect wPoint { Display display = new DisplayFactory.getInstance(); pointcut change(): execution(void Point.setX(int)) || execution(void Point.setY(int)) || execution(void Point.moveBy(int, int)); after() returning: change() { display.update(); } } public class DisplayFactory { private static Display instance = new Display(); public static Display getInstance { return instance; } } generated factory class If a programmer wants to define a specific factory class, … weave { class Display implements wDisplay factory UserDefinedFactory; /* other definitions are omitted */ }

  21. 5. Related work

  22. Related work • Aspect-aware interface [Kiczales, et al. 2005] • Open modules [Aldrich2005] • Crosscutting programming interface (XPI) [Sullivan, et al. 2005]

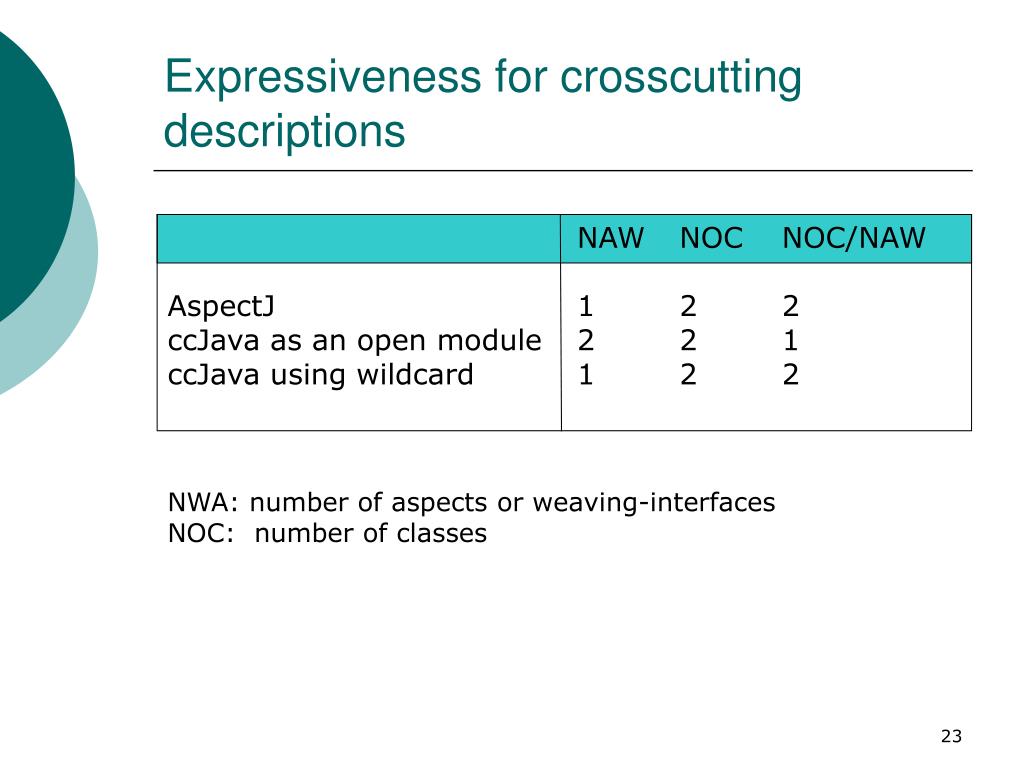

  23. Expressiveness for crosscutting descriptions NAW NOC NOC/NAW AspectJ 1 2 2 ccJava as an open module 2 2 1 ccJava using wildcard 1 2 2 NWA: number of aspects or weaving-interfaces NOC: number of classes

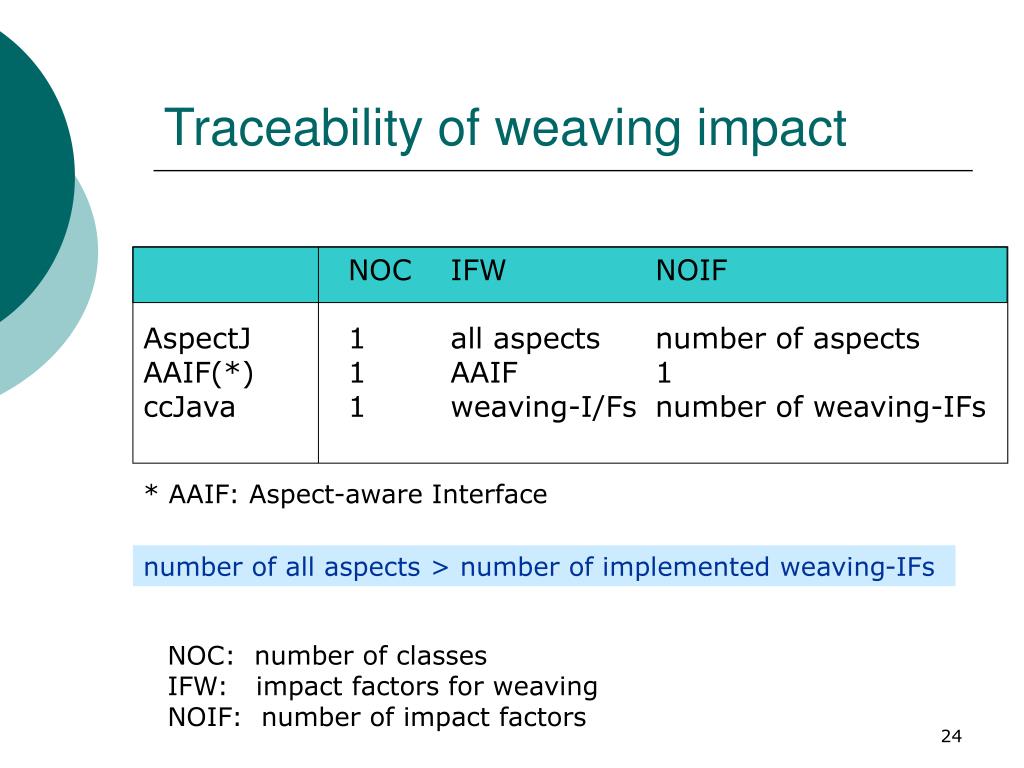

  24. Traceability of weaving impact NOC IFW NOIF AspectJ 1 all aspects number of aspects AAIF(*) 1 AAIF 1 ccJava 1 weaving-I/Fs number of weaving-IFs * AAIF: Aspect-aware Interface number of all aspects > number of implemented weaving-IFs NOC: number of classes IFW: impact factors for weaving NOIF: number of impact factors

  25. 6. Conclusion

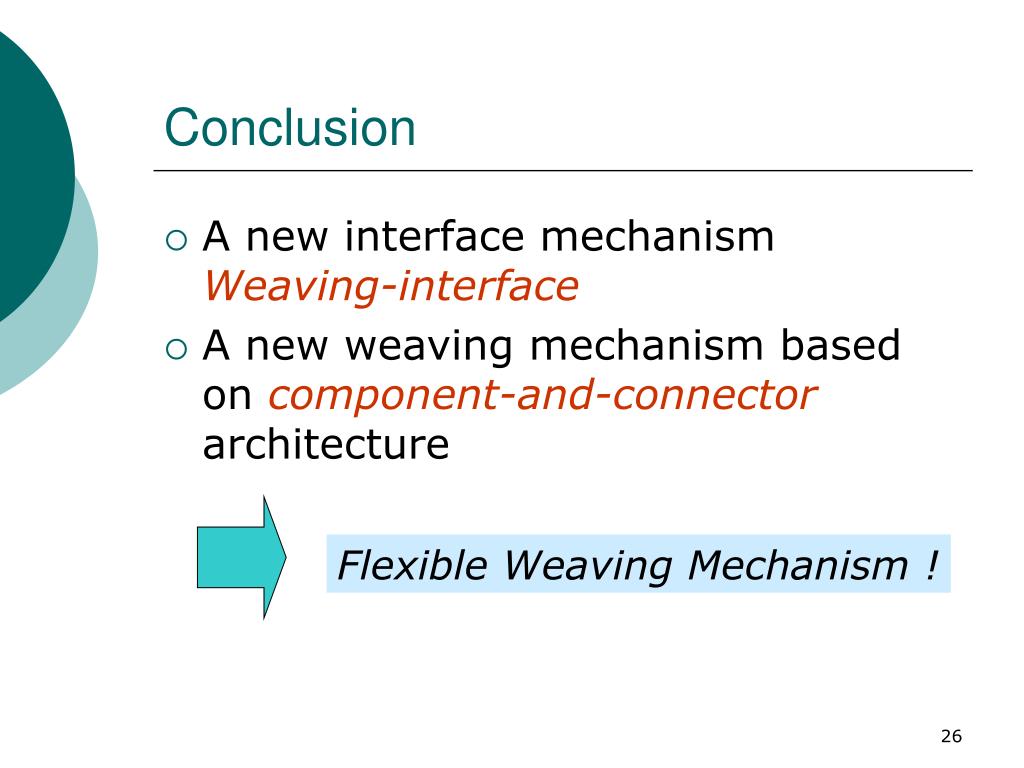

  26. Conclusion • A new interface mechanism Weaving-interface • A new weaving mechanism based on component-and-connector architecture Flexible Weaving Mechanism !
