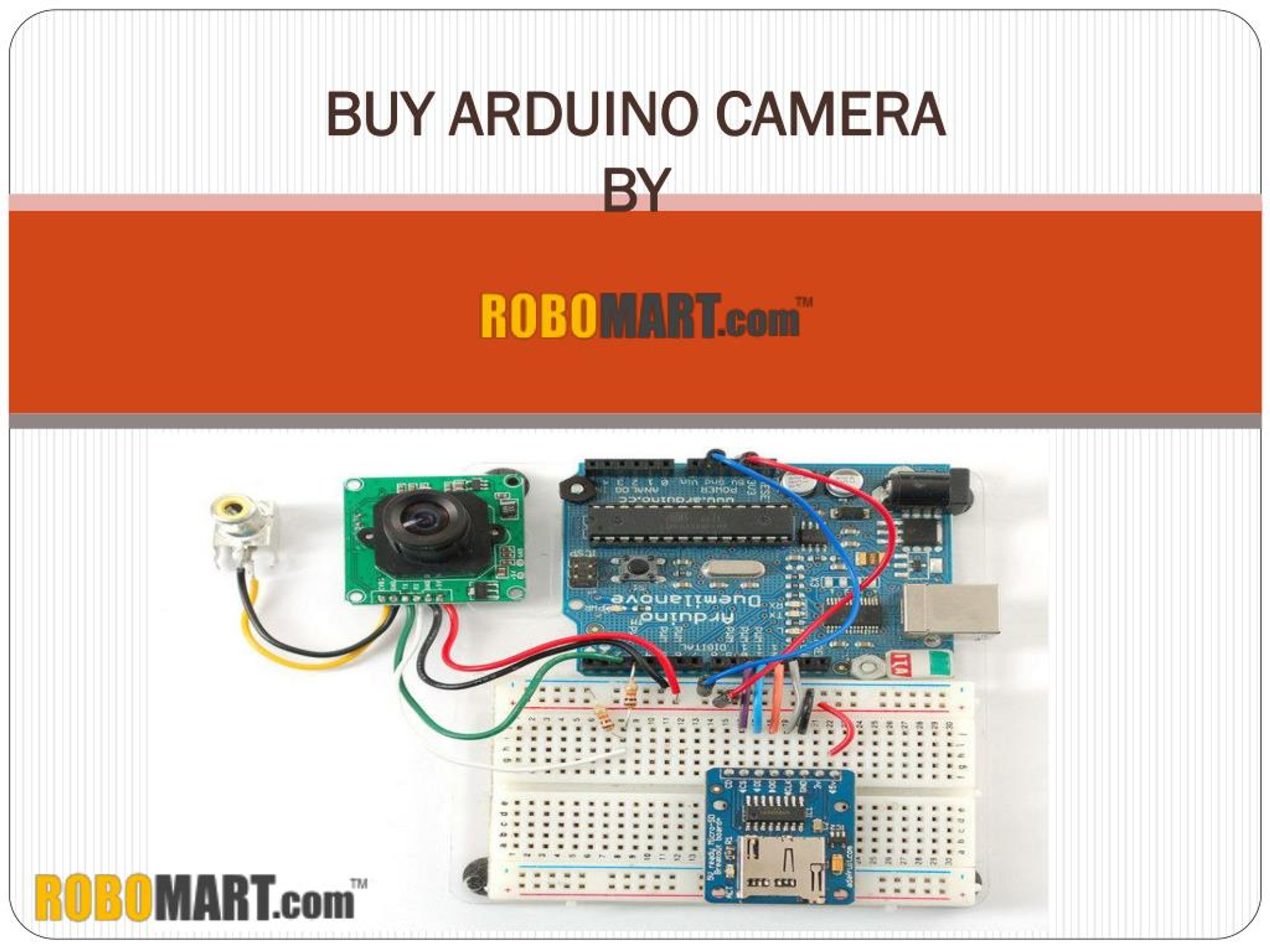

  1. BUY ARDUINO CAMERABY

  2. CMOS CAMERA MODULE • This is a high-quality color CMOS camera module. • Power the module, hook up any display, monitor, or LCD screen with an RCA inputand get vivid color video at 640x480 resolution. • Module is easily mountable and has a wide operating voltage (5V to 15V). Comes with high quality optics, all the on board circuitry to output RCA signal, and cable harness.

  3. HOW IT LOOKSProduct Code: RM0670

  4. SPECIFICATIONS OF CMOS CAMERA MODULE • Pixel: 1.3 mega pixel. • Resolution: 640 x 480 / 1280 x 1024. • Color: 24 bit. • Transmission rate: 30/15 fps. • Input: 5V to 15V. • Current: 50mA (at 12V). • Switchable NTSC and PAL output using a jumper.

  5. FEATURES OF CMOS CAMERA MODULE • Low voltage suitable for embedded applications. • Standard SCCB interface compatible with I2C interface. • Raw Rgb to RGB (GRB4: 2:2, RGB565/555/444), YUV (4:2:2) and ycbcr (4:2:2)output format support VGA, • CIF, and from CIF to 40x30 the size. • Eliminate light stripes, automatic black level calibration image quality control including color. • Saturation, hue, gamma, sharpness ANTI_BLOOM. • ISP has eliminate noise and dead pixel compensation function. • Support image scaling. • The lens is the loss of light compensation. • 50/60Hz detection.

  6. APPLICATIONS OF CMOS CAMERA MODULE • It is used as a camera. • AVR/Arduino/Raspberry-pi based camera interfacing project.

  7. CONTACT US B5, C-Block, Above IOB Bank, Sec-31, Noida-201301(UP) India 0120-4317229 +91-8744000555 admin@robomart.com www.robomart.com

  8. Thank you!!!
