Pedigrees. Woof Woof. The Royal Hemophiliacs. Last class we brought up hemophilia, a disease where the blood doesn’t clot normally A famous case occurred in the Royal family. How can we trace the inheritance and predict who will be affected?. Another example: Race Horses.

maree
Télécharger la présentation

Pedigrees

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

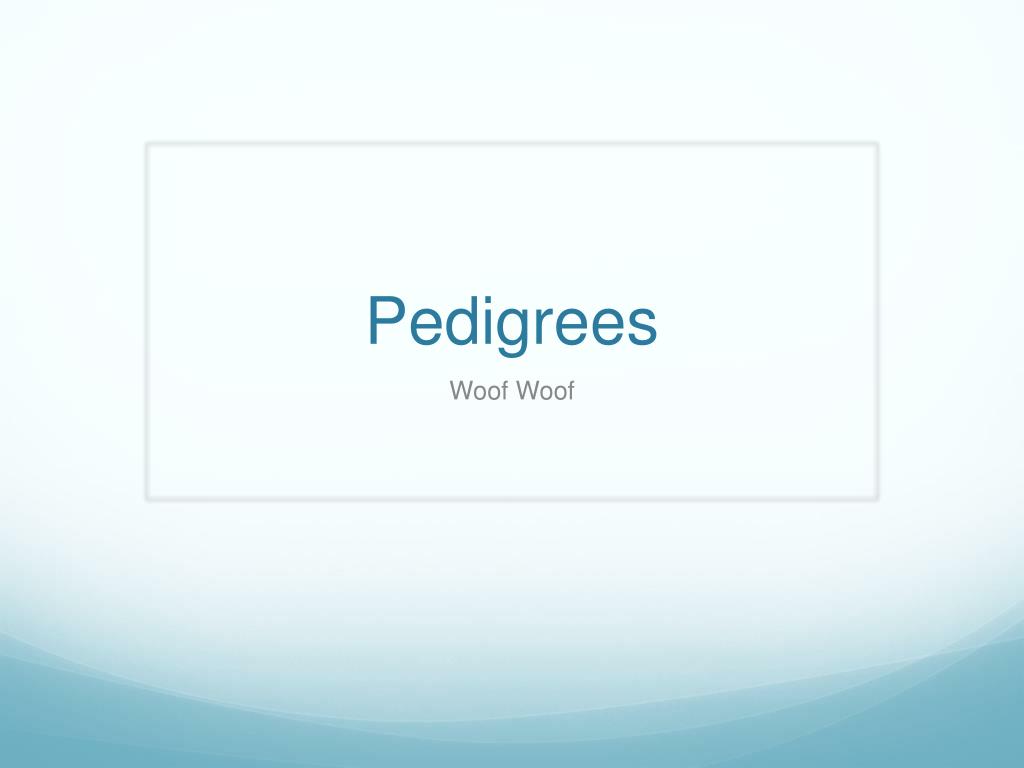

  1. Pedigrees Woof Woof

  2. The Royal Hemophiliacs • Last class we brought up hemophilia, a disease where the blood doesn’t clotnormally • A famous case occurred in the Royal family

  3. How can we trace the inheritance and predict who will be affected?

  4. Another example: Race Horses • Horse Racing is HUGE industry with lots of money at stake • Owners want to invest in a horse that will win. They will pay big money to get a horse born from a ‘winning’ dam and sire. • How can you followthe mating of several horses to determinewhich horses will make a prize-winning foal?

  5. A Pedigree is a chart that traces the inheritance of a trait amongst members of a family • It shows ancestry, and is often usedto look at the inheritance of a particulartrait, often a disease • It is used to breed plants and animalsto optimize ‘good traits’ and lose ‘bad’traits

  6. The Basics of a Pedigree • Each person is represented by a symbol • Birth order is from left to right (oldest youngest)

  7. How are we related? I 1 2 II 1 2 3 4 5 6 7 8 III 1 2 3 4 5 6 7 8 9

  8. 4 Main types of Inheritance • Autosomal Dominant • Autosomal Recessive • Sex-Linked Dominant • Sex Linked Recessive Also, holandric (Y-linked), and diseases can be sporadic (not genetic) But how can we use a pedigree to figure out inheritance?

  9. How can we use a pedigree to understand inheritance • Use our knowledge of genetics and Punnett Squares • i.e What is the genotype of II-1if he expresses an autosomalrecessive disorder for the gene‘r’? • What are his parents genotypes? • What possible genotypes doeshis sister have?

  10. If I-2 is a carrier for male pattern baldness, what do we expect to be the phenotype of her children?

  11. Determining Genotype • What are the genotypes of all the individuals listed if the mutation for colourblindness is inherited in a sex-linked recessive manner? XbY XBXB XBY XBY XBY XBXb XbY XBY

  12. Patterns of Inheritance

  13. Autosomal Dominant • Affected individuals have one affected allele and one normal allele • Each offspring has a 50% chance of inheriting the mutant gene

  14. Autosomal Recessive • Affected only when have TWO copies of the mutant gene • 1 mutant copy/1 normal = carrier • Females and males are equally affected

  15. Autosomal Recessive • When 2 carriers mate: • 25% homozygous unaffected, • 50% carriers, 25% affected

  16. X-Linked Recessive • All females who have it are carriers but look normal • All males who have it are affected • No father to son transmission but if a father is affected, his daughter will be a carrier

  17. X-linked Dominant • No father to son transmission • All of an affected man’s daughters will be affected • 50% of an affected woman’s children will be affected

  18. What mode of inheritance? Autosomal Dominant!

  19. Assemble and interpret the pedigrees • Each table group is given a sheet that outlines some of the individuals in a family • Draw a proper pedigree on chart paper • Determine the mode of inheritance • Determine the phenotype/genotype of several individuals

  20. Your Pedigree must have: • Generation numbers • Individual numbers • Affected/Deceased/Carriers are marked • For this example, I also want you to include the genotype of each person once you figure out the mode of inheritance
