Conduction of action potential

Conduction of action potential. Conduction of action potential (AP). Initially AP only occurs on a particular area of the nerve cell In order for nerve impulse to travel along the neuron, the AP must be conducted along the neuron

marek
Télécharger la présentation

Conduction of action potential

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Conduction of action potential

  2. Conduction of action potential (AP) • Initially AP only occurs on a particular area of the nerve cell • In order for nerve impulse to travel along the neuron, the AP must be conducted along the neuron • When Na+ flows into the neuron as a result of open sodium gates, the positive charge inside causes the next sodium gate to open, causing another AP • This occurs over ad over again, until the end of the neuron

  3. Once sodium gates have opened and closed, they cannot be activated for a short time (refractory period) thus impulse can only move forward, not backwards • The impulse moves even faster in myelinatedfibres because the impulse (AP) jumps from node to node (node=exposed axon)

  4. Brain break!!!

  5. The Schwann cells make up the myelin sheath • Most long fibers (both axons and dendrites) are covered by myelin sheath • Invertebrates do not have myelinated fibers, therefore move very slowly

  6. Threshold • Stimuli for initiation of AP can be anything, depending on the type of receptor • But, stimulus must have a certain intensity for nerve to fire – called the threshold • If stimulus is below the threshold nerve does not fire • (called “all-or-none” response) • Therefore speed and intensity of nerve impulse never vary

  7. …. However, the frequency of the impulse and the number of nerves firing will vary • These are both dependent on the intensity of the stimulus • Also, different nerves will have different thresholds • Since nerves are in bundles this means that a warm plate will fire some nerves in the bundle but not others, whereas a hot plate will fire far more nerves

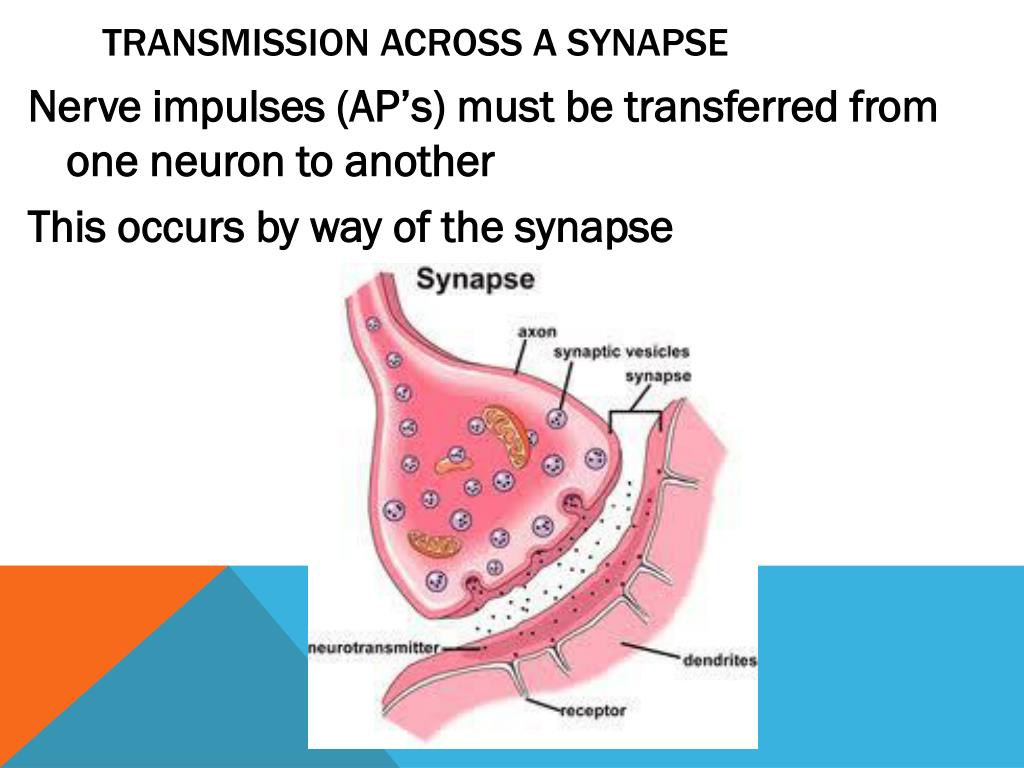

  8. Transmission across a synapse • Nerve impulses (AP’s) must be transferred from one neuron to another • This occurs by way of the synapse

  9. When a nerve impulse travels to a synaptic ending Ca2+ flows to ending • Causes synaptic vesicles to fuse with a pre-synaptic membrane and secrete neurotransmitter substances into the synaptic cleft (by exocytosis) • Neurotransmitter diffuses across the synaptic cleft • Transmitters (ex. Acetyl-choline: parasympathetic and Noradrenalin: sympathetic) bind to receptor sites on post-synaptic membrane

  10. An enzyme (cholinesterase) is released after the neurotransmitter is released to destroy it • Otherwise, the Na+ gate wouldn’t close and the nerve could not fire • Insecticides block cholinesterase • The neurotransmitter substances can either excite or inhibit the next neuron • Whether or not the neuron “fires” depends on the amount of excitation compared to the amount of inhibition
