Chapter 6 – Schedules or Reinforcement and Choice Behavior

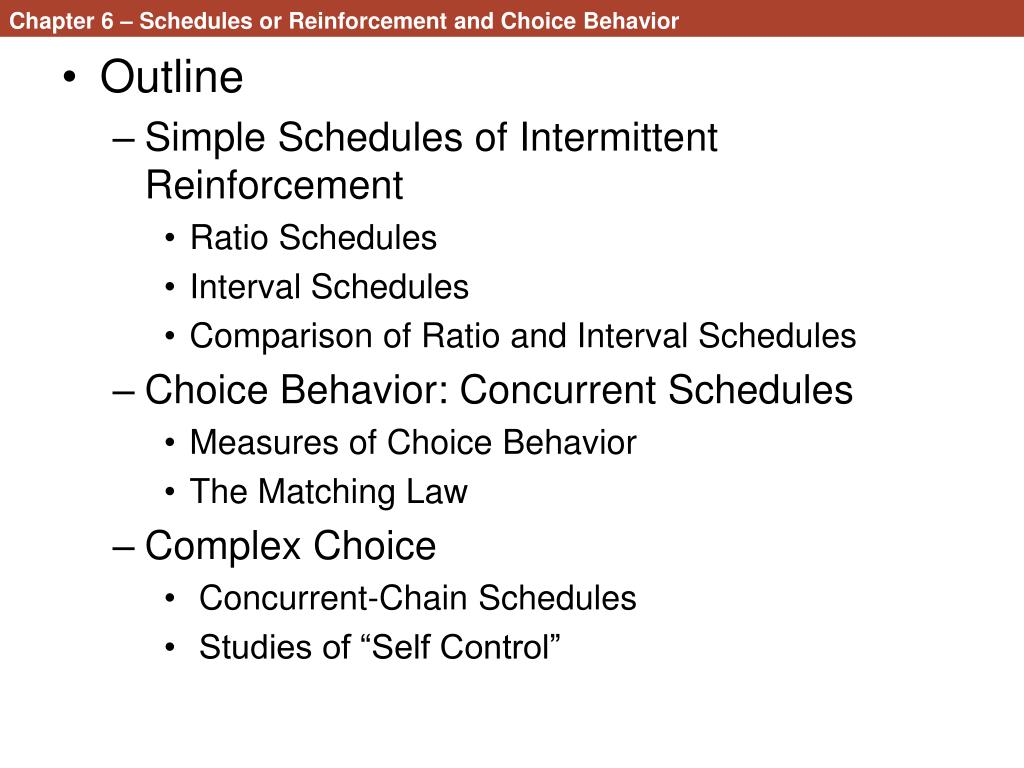

1. Chapter 6 – Schedules or Reinforcement and Choice Behavior • Outline • Simple Schedules of Intermittent Reinforcement • Ratio Schedules • Interval Schedules • Comparison of Ratio and Interval Schedules • Choice Behavior: Concurrent Schedules • Measures of Choice Behavior • The Matching Law • Complex Choice • Concurrent-Chain Schedules • Studies of “Self Control”

2. Simple Schedules of Intermittent Reinforcement • Ratio Schedules • RF depends only on the number of responses performed • Continuous reinforcement (CRF) • each response is reinforced • barpress = food • key peck = food • CRF is rare outside the lab. • Partial or intermittent RF

3. Partial or intermittent Schedules of Reinforcement • FR (Fixed Ratio) • fixed number of operants (responses) • CRF is FR1 • FR 10 = every 10th response  RF • originally recorded using a cumulative record • Now computers • can be graphed similarly

5. The cumulative record represents responding as a function of time • the slope of the line represents rate of responding. • Steeper = faster

6. Responding on FR scheds. • Faster responding = sooner RF • So responding tends to be pretty rapid • Postreinforcement pause • Postreinforcement pause is directly related to FR. • Small FR = shorter pauses • FR 5 • large FR = longer pauses • FR 100 • wait a while before they start working. • Domjan points out this may have more to do with the upcoming work than the recent RF • Pre-ratio pause?

9. how would you respond if you received $1 on an FR 5 schedule? • FR 500? • Post RF pauses? • RF history explanation of post RF pause • Contiguity of 1st response and RF • FR 5 • 1st response close to RF • only 4 more • FR 100 • 1st response long way from RF • 99 more

10. VR (Variable ratio schedules) • Number of responses still critical • Varies from trial to trial • VR 10 • reinforced on average for every 10th response. • sometimes only 1 or 2 responses are required • other times 15 or 19 responses are required.

11. Example (# = response requirement) VR10FR10 • 19  RF 10  RF • 2  RF 10  RF • 8  RF 10  RF • 18  RF 10  RF • 5  RF 10  RF • 15  RF 10  RF • 12  RF 10  RF • 1  RF 10  RF • VR 10 • (19+2+8+18+5+15+12+1)/8 = 10

12. VR = very little postreinforcement pause • why would this be? • Slot machines • very lean schedule of RF • But - next lever pull could result in a payoff.

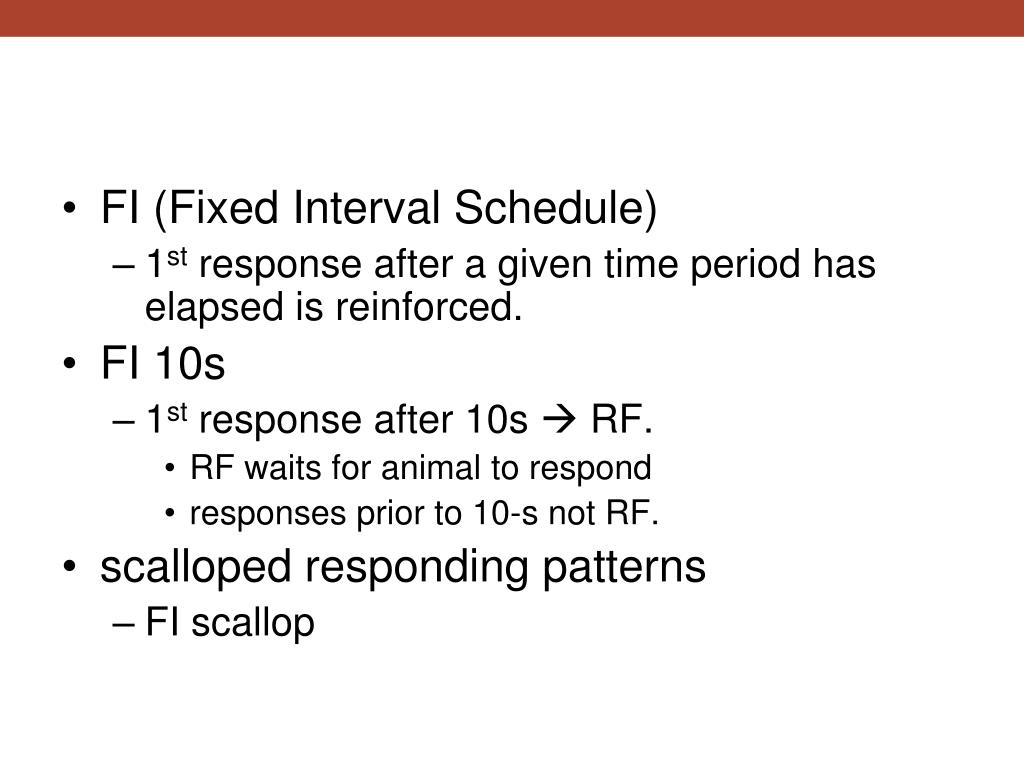

13. FI (Fixed Interval Schedule) • 1st response after a given time period has elapsed is reinforced. • FI 10s • 1st response after 10s  RF. • RF waits for animal to respond • responses prior to 10-s not RF. • scalloped responding patterns • FI scallop

16. Similarity of FI scallop and post RF pause? • FI 10s? • FI 120s? • The FI scallop has been used to assess animals’ ability to time.

17. VI (variable interval schedule) • Time is still the important variable • However, time elapse requirement varies around a set average • VI 120s • time to RF can vary from a few seconds to a few minutes • $1 on a VI 10 minute schedule for button presses? • Could be RF in seconds • Could be 20 minutes • post reinforcement pause?

18. Produces stable responding at a constant rate • peck..peck..peck..peck..peck • sampling whether enough time has passed • The rate on a VI schedule is not as fast as on an FR and VR schedule • why? • ratio schedules are based on response. • faster responding gets you to the response requirement quicker, regardless of what it is? • On a VI schedule # of responses don’t matter, • steady even pace makes sense.

19. Interval Schedules and Limited Hold • Limited hold restriction • Must respond within a certain amount of time of RF setup • Like lunch at school • Too late you miss it

20. Comparison of Ratio and Interval Schedules • What if you hold RF constant • Rat 1 = VR • Rat 2 = Yoked control rat on VI • RF is set up when Rat 1 gets to his RF • If Rat 1 responds faster, RF will set up sooner for Rat2 • If Rat 1 is slower, RF will be delayed

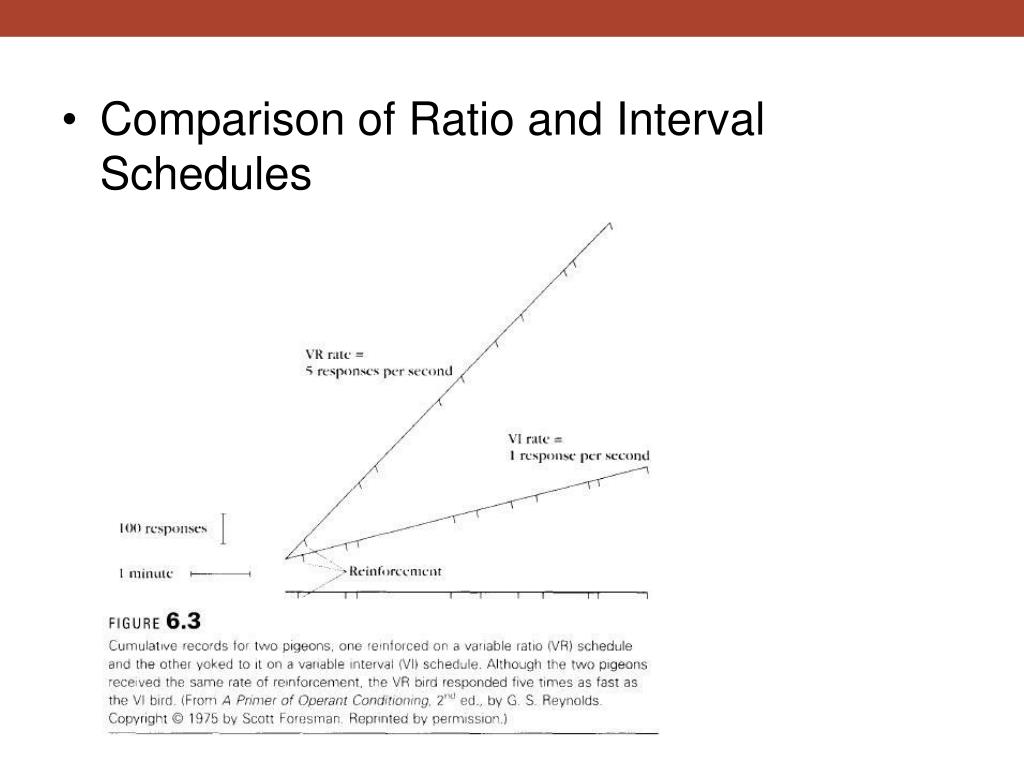

21. Comparison of Ratio and Interval Schedules

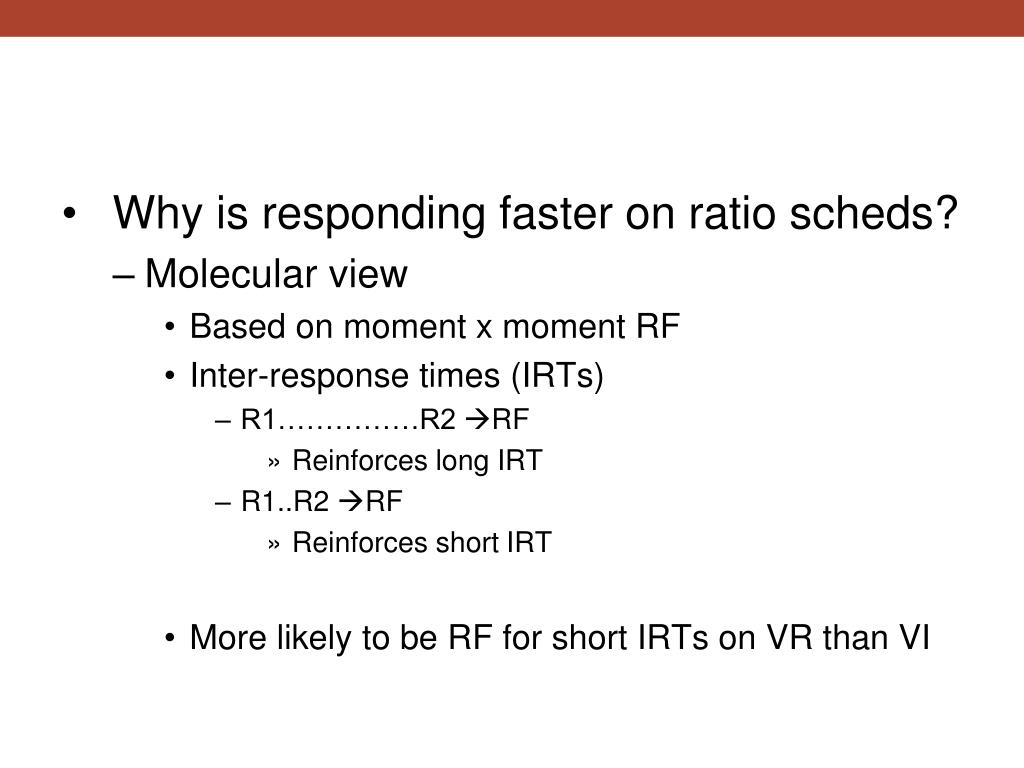

22. Why is responding faster on ratio scheds? • Molecular view • Based on moment x moment RF • Inter-response times (IRTs) • R1……………R2 RF • Reinforces long IRT • R1..R2 RF • Reinforces short IRT • More likely to be RF for short IRTs on VR than VI

23. Molar view • Feedback functions • Average RF rate during the session is the result of average response rates • How can the animal increase reinforcement in the long run (across whole session)? • Ratio - Respond faster = more RF for that day • FR 30 • Responding 1 per second RF at 30s • Respond 2 per second RF at 15s

24. Molar view continued • Interval - No real benefit to responding faster • FI 30 • Responding 1 per second RF at 30 or 31 (30.5) • What if 2 per second 30 or 30.5 (30.25) • Pay • Salary? • Clients?

25. Choice Behavior: Concurrent schedules • The responding that we have discussed so far has involved schedules where there is only one thing to do. • In real life we tend to have choices among various activities • Concurrent schedules • examines how an animal allocates its responding among two schedules of reinforcement? • The animals are free to switch back and forth

27. Measures of choice behavior • Relative rate of responding • for left key BL. (BL + BR) • BL = Behavior on left • BR = Behavior on right We are just dividing left key responding by total responding.

28. This computation is very similar to the computation for the suppression ratio. • If the animals are responding equally to each key what should our ratio be? 20 . = .50 20+20 • If they respond more to the left key? 40 . = .67 40+20 • If they respond more to the right key? 20 . = .33 20+40

29. Relative rate of responding for right key • Will be reciprocal of left key responding, but also can be calculated with the same formula BR. (BR + BL) • Concurrent schedules? • If VI 60 VI 60 • The relative rate of responding for either key will be .5 • Split responding equally among the two keys

30. What about the relative rate of reinforcement? • Left key? • Simply divide the rate of reinforcement on the left key by total reinforcement. rL. (rL + rR) • VI 60 VI 60? • If animals are dividing responding equally? • .50 again

31. The Matching Law • relative rate of responding matches relative rate of RF when the same VI schedule is used • .50 and .50 • What if different schedules of RF are used on each key?

32. Left key = VI 6 min (10 per hour) • Right key = VI 2 min (30 per hour) Left key relative rate of responding BL. = rL .10 =.25 left (BL + BR) (rL + rR) 40 Right key? simply the reciprocal .75 Can be calculated though BR. = rR .30 =.75 right (BR + BL) (rR + rL) 40 Thus - three times as much responding on right key .25x3 = .75

33. Matching Law continued: Simpler computation. BL. = rL. BRrR 10 30 again – three times as much responding on right key

34. Herrnstein (1961) compared various VI schedules • Matching Law. • Figure 6.5 in your book

36. Application of the matching law • The matching law indicates that we match our behaviors to the available RF in the environment. • Law,Bulow, and Meller (1998) • Predicted adolescent girls that live in RF barren environments would be more likely to engage in sexual behaviors • Girls that have a greater array of RF opportunities should allocate their behaviors toward those other activities • Surveyed girls about the activities they found rewarding and their sexual activity • The matching law did a pretty good job of predicting sexual activity • Many kids today have a lot of RF opportunities. • May make it more difficult to motivate behaviors you want them to do • Like homework • X-box • Texting friends • TV

37. Complex Choice • Many of the choices we make require us to live with those choices • We can’t always just switch back and forth • Go to college? • Get a full-time job? • Sometimes the short-term and long-term consequences (RF) of those choices are very different • Go to college • Poor now; make more later • Get a full-time job • Money now; less earning in the long run

38. Concurrent-Chain Schedules • Allows us to examine these complex choice behaviors in the lab • Example • Do animals prefer a VR or a FR? • Variety is the spice of life?

40. Choice of A • 10 minutes on VR 10 • Choice of B • 10 minutes on FR 10 • Subjects prefer the VR10 over the FR10 • How do we know? • Subjects will even prefer VR schedules that require somewhat more responding than the FR • Why do you think that happens?

41. Studies of Self control • Often a matter of delaying immediate gratification (RF) in order to obtain a greater reward (RF) later. • Study or go to party? • Work in summer to pay for school or enjoy the time off?

42. Self control in pigeons? • Rachlin and Green (1972) • Choice A = immediate small reward • Coice B = 4s Delay  large reward • Direct choice procedure • Pigeons choose immediate, small reward • Concurrent-chain procedure • Could learn to choose the larger reward • Only if a long enough delay between initial choice and the next link.

44. This idea that imposing a delay between a choice and the eventual outcomes helps organisms make “better” (higher RF) outcomes works for people to. • Value-discounting function V = M . (1+KD) • V-value of RF • M- magnitude of RF • D – delay of reward • K – is a correction factor for how much the animal is influenced by the delay • All this equation is saying is that the value of a reward is inversely affected by how long you have to wait to receive it. • IF there is no delay D=0 • Then it is simply magnitude over 1

45. If I offer you • $50 now or $100 now? 50 . = 50 100 . = 100 (1+1x0) (1+1x0) • $50 now or $100 next year? 50 . = 50 100 . = 7.7 (1+1x0) (1+1x12)

47. As noted above K is a factor that allows us to correct these delay functions for individual differences in delay-discounting • People with steep delay discounting functions will have a more difficult time delaying immediate gratification to meet long-term goals • Young children • Drug abusers • Madden, Petry,Badger, and Bickel (1997) • Two Groups • Heroin-dependent patients • Controls • Offered hypothetical choices • $ smaller – now • $ more – later • Amounts varied • $1,000, $990, $960, $920, $850, $800, $750, $700, $650, $600, $550, $500, $450, $400, $350, $300,$250, $200, $150, $100, $80, $60, $40, $20, $10, $5, and $1 • Delays varied • 1 week, 2 weeks, 2 months, 6 months, 1 year, 5 years, and 25 years.

50. It has been described mathematically in the following way (Baum, 1974) • RA = b rAa • RB rB • RA and RB refer to rates of responding on keys A and B (i.e. left and right) • rA and rB refer to the rates of reinforcement on those keys • When the value of exponent a is equal to 1.0 a simple matching relationship occurs where the ratio of responses perfectly match the ratio of reinforcers obtained. • The variable b is used to adjust for response effort differences between A an B when they are unequal, or if the reinforcers for A and B were unequal.
