Formal Synthesis and Code Generation of Embedded Real-Time Software

1. Formal Synthesis and Code Generation of Embedded Real-Time Software Pao-Ann Hsiung National Chung Cheng University Chiayi-621, Taiwan, ROC. 9th ACM/IEEE International Symposium on Hardware-Software Codesign, Copenhagen, Denmark, April 25-27, 2001.

2. Contents • Embedded Real-Time Software • Model and Problem • Synthesis Algorithm • Code Generation • Example • Conclusions

3. Bounded Memory Execution • Real-Time Constraints Quasi-Static Data Scheduling (QSDS) Dynamic Real-Time Scheduling (DRTS) Embedded Real-Time Software • Two Main Issues: Proposed Solutions

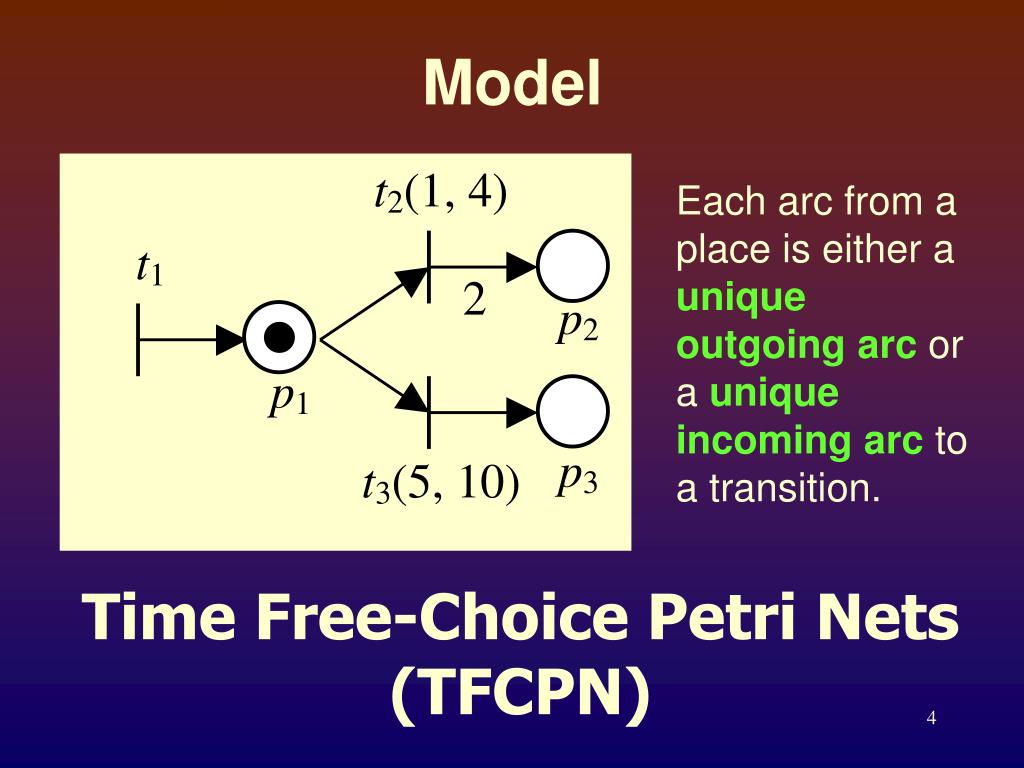

4. Model Each arc from a place is either a uniqueoutgoingarc or a uniqueincoming arc to a transition. Time Free-Choice Petri Nets (TFCPN)

5. Synthesis Problem • Given a set of TFCPNs, an upper-bound on memory use, and a set of real-time constraints, a software code is to be generated such that: • it can be executed on a single processor, • its memory usage does not exceed the upper bound, and • it satisfies all real-time constraints.

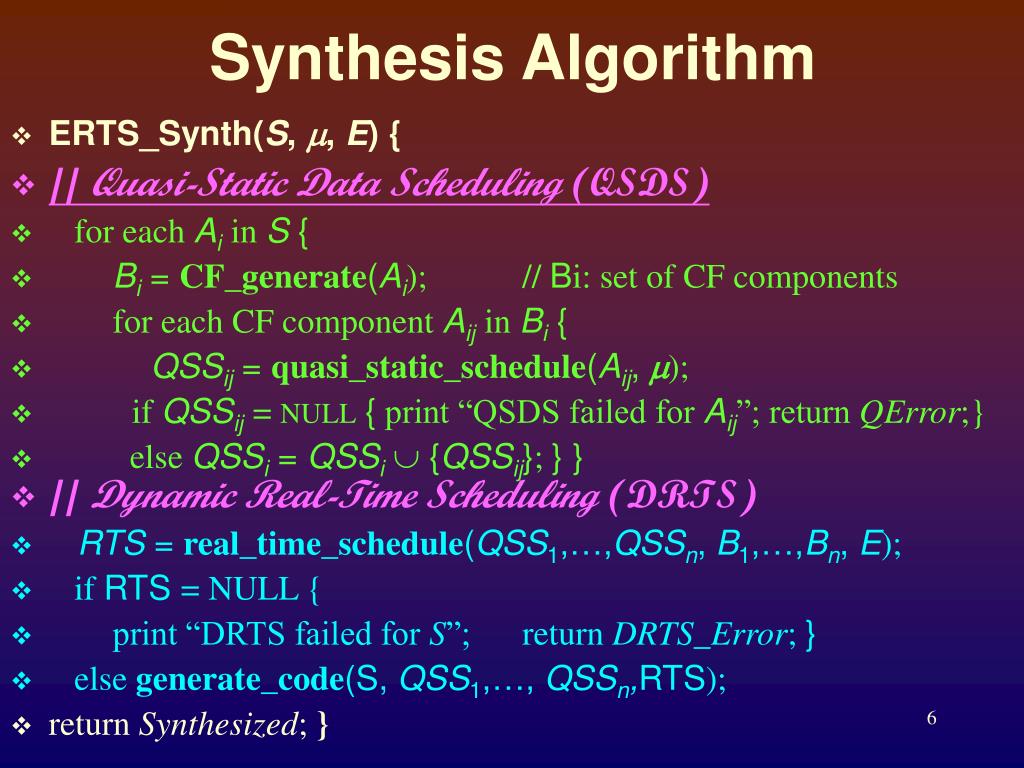

6. Synthesis Algorithm • ERTS_Synth(S, ,E) { • // Quasi-Static Data Scheduling (QSDS) • for each Aiin S { • Bi = CF_generate(Ai); // Bi: set of CF components • for each CF component Aijin Bi { • QSSij = quasi_static_schedule(Aij, ); • if QSSij= NULL{ print “QSDS failed for Aij”; return QError;} • else QSSi = QSSi {QSSij}; } } • // Dynamic Real-Time Scheduling (DRTS) • RTS = real_time_schedule(QSS1,…,QSSn, B1,…,Bn, E); • if RTS = NULL { • print “DRTS failed for S”; return DRTS_Error; } • else generate_code(S, QSS1,…, QSSn,RTS); • return Synthesized; }

7. net decomposition Finite Complete Cycle Deadlock-Free Quasi-Static Data Scheduling Conflict-Free Components TFCPN Quasi-Static Data Scheduled CF-Components

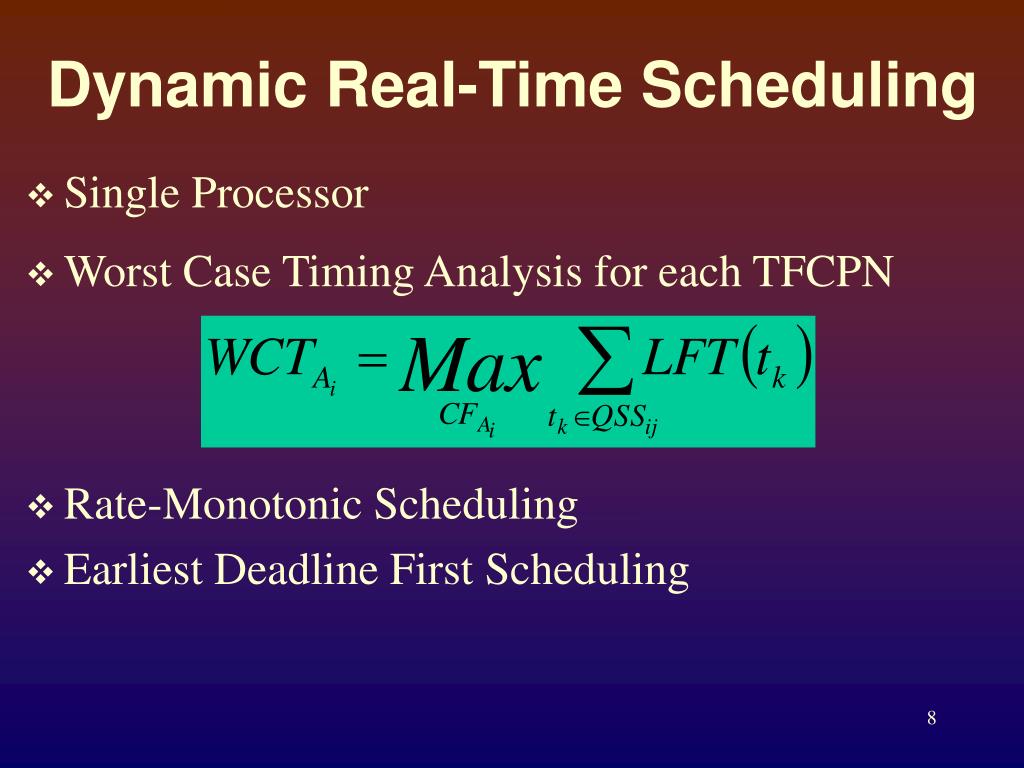

8. Dynamic Real-Time Scheduling • Single Processor • Worst Case Timing Analysis for each TFCPN • Rate-Monotonic Scheduling • Earliest Deadline First Scheduling

9. Code Generation • generate_code(S, QSS1, QSS2, …, QSSn, RTS) { • for i = 1, …, n { • Di = create_process(QSSi); • for j = 1, …, IFR(Ai) { • dij = create_task(QSSi); • generate_task_code(dij); • add_task(dij, Di);}} • create_main(); • output “for(i=0, i<length(RTS); i++) {”; • for k = 1, …, RTS output_code(Dik); • output “}”; } IFR(Ai): # transitions in Aiwith independent firing rates

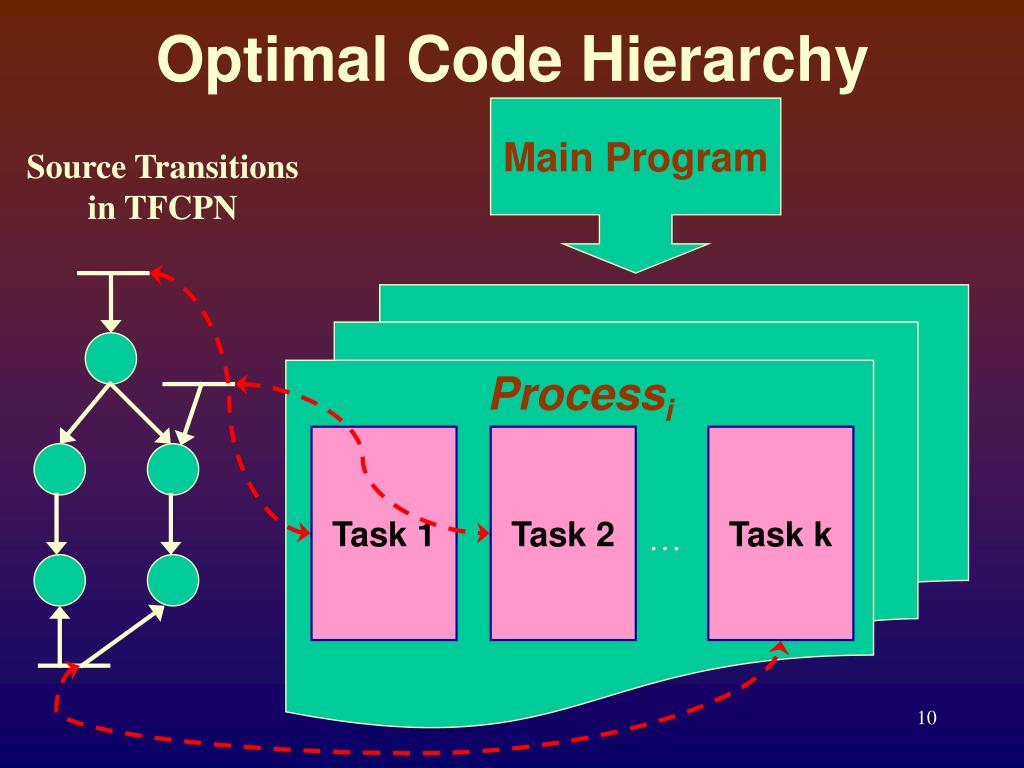

10. Processi Task 1 Task 2 Task k … Main Program Optimal Code Hierarchy Source Transitions in TFCPN

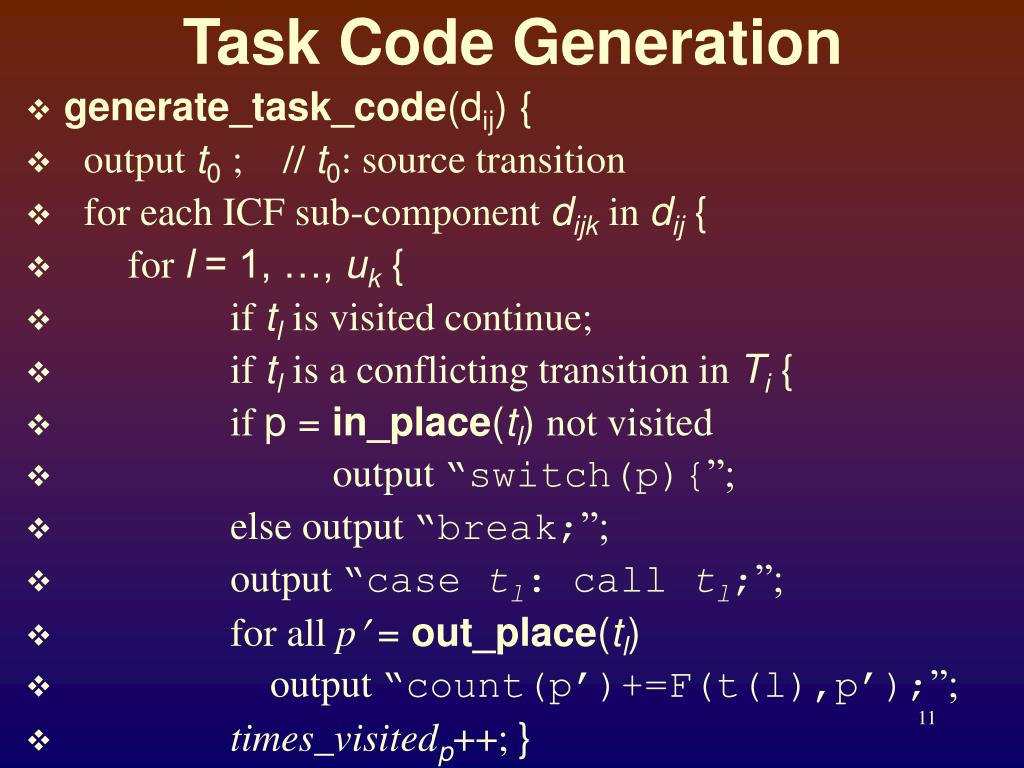

11. Task Code Generation • generate_task_code(dij) { • output t0; // t0: source transition • for each ICF sub-component dijkin dij { • for l = 1, …, uk { • if tlis visited continue; • if tlis a conflicting transition in Ti { • if p = in_place(tl) not visited • output “switch(p){”; • else output “break;”; • output “case tl: call tl;”; • for all p = out_place(tl) • output “count(p’)+=F(t(l),p’);”; • times_visitedp++; }

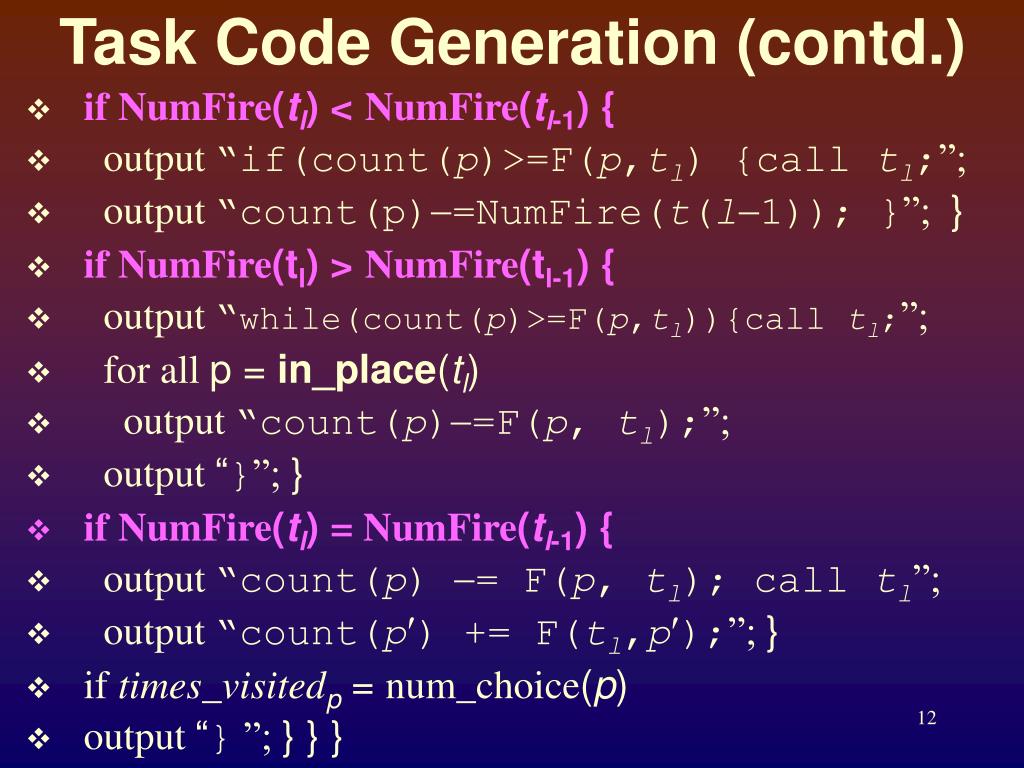

12. Task Code Generation (contd.) • if NumFire(tl) < NumFire(tl-1) { • output “if(count(p)>=F(p,tl) {call tl;”; • output “count(p)=NumFire(t(l1)); }”; } • if NumFire(tl) > NumFire(tl-1) { • output “while(count(p)>=F(p,tl)){call tl;”; • for all p = in_place(tl) • output “count(p)=F(p, tl);”; • output “}”; } • if NumFire(tl) = NumFire(tl-1) { • output “count(p) = F(p, tl); call tl”; • output “count(p) += F(tl,p);”; } • if times_visitedp = num_choice(p) • output “}”; } } }

13. Example S = {F1, F2}

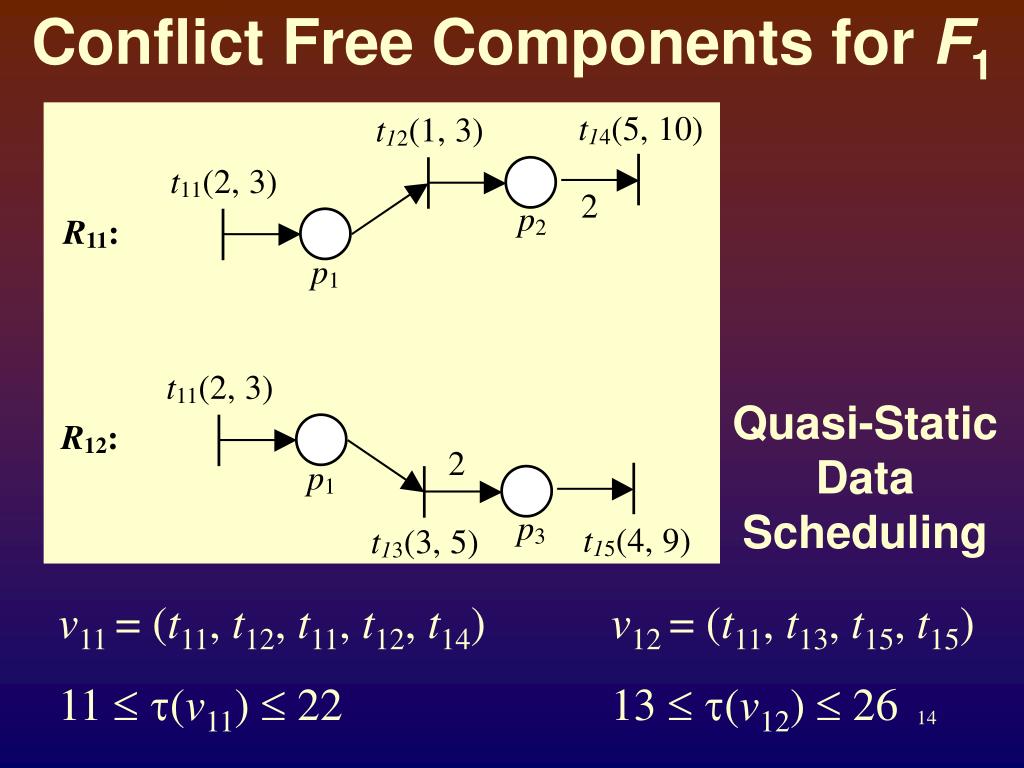

14. Conflict Free Components for F1 Quasi-Static Data Scheduling v11 = (t11, t12, t11, t12, t14) 11  (v11)  22 v12 = (t11, t13, t15, t15) 13  (v12)  26

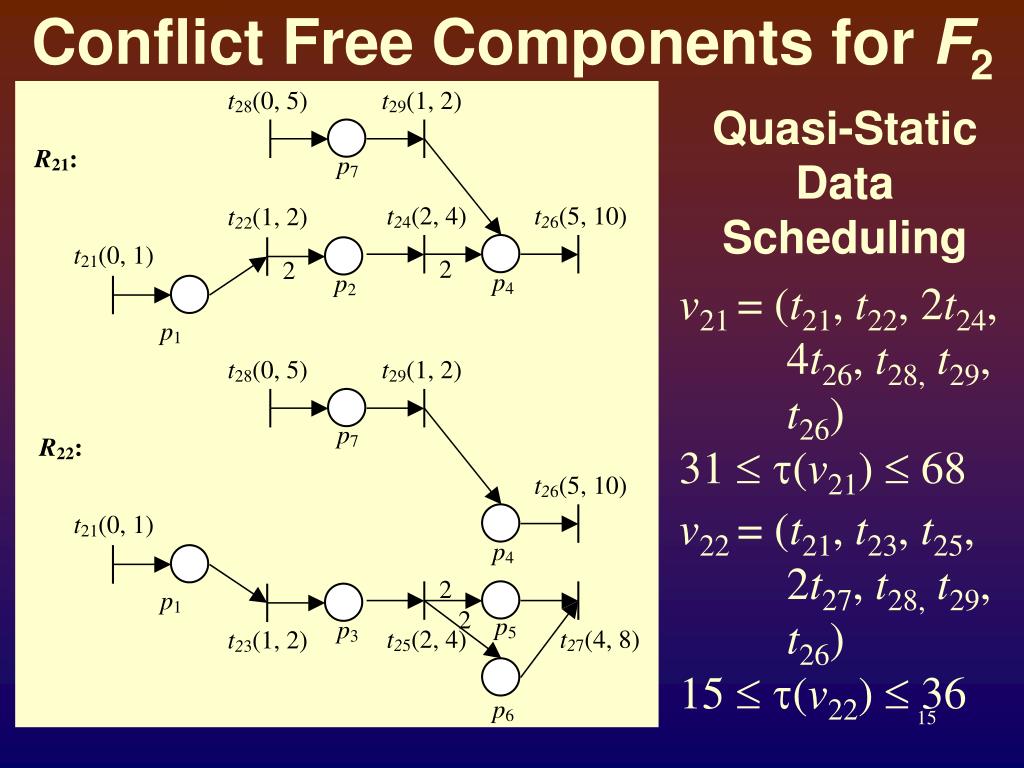

15. Quasi-Static Data Scheduling Conflict Free Components for F2 v21 = (t21, t22, 2t24, 4t26, t28,t29, t26)31  (v21)  68 v22 = (t21, t23, t25, 2t27, t28,t29, t26)15  (v22)  36

16. Dynamic Real-Time Scheduling 1 = {v11, v12} 2 = {v12, t11 t12 k  v12 t11 t12 t14, k  1}

17. ERTS Code for task11 • task11( ) {// d11 = {t11, t12, t14, t13, t15} • call t11; • switch(p1) { • case t12: call t12; count(p2) + = 1; • if(count(p2) 2) • { call t14; count(p2) = 2; } • break; • case t13: call t13; count(p3) += 2; • while(count(p3) 1) • { call t15; count(p3) =1; } • break; } • }

18. ERTS Code for task21 • task21( ) { // d21 = {t21, t22, t24, t26, t23, t25, t27} • call t21; • switch(p1) { • case t22: call t22; count(p2) += 2; • while(count(p2) 1) { • count(p4) += 2; call t24; count(p2) =1;} • while(count(p4) 1) { • call t26; count(p4) =1;} break; • case t23: call t23 ; count(p3 ) += 1; count(p3) =1; • call t25 ; count(p5 ) += 2; count(p6 ) += 2; • while(count(p5)  1 count(p6)  1) { • call t27; count(p5) =1; count(p6) =1; } • break; } }

19. ERTS Code for task22 and main() • task22( ) { // d22 = {t28, t29, t26} • call t28; call t29; call t26; • } • main( ) { • k11 = k21 = k22 = 0; // iteration numbers • while true { • if(now()11k11 100) { task11(); k11++;} • if(now()21k21110) { task21(); k21++;} • if(now()22k22110) { task22(); k22++;} } • }

20. Conclusions • An algorithm proposed for synthesizing Embedded Real-Time Software • Bounded Memory Execution Quasi-Static Data Scheduling • Real-Time Constraints Dynamic Real-Time Scheduling • Code Generation  Optimal # of tasks • Future Work: Exception Handling, Verification, Theory on Separation of Concerns
