  1. Accounting, Group Quotas, and User Priorities

  2. Why are you here? • To learn about • How Condor chooses the next job to run • How you can change which job will run • How you can prioritize jobs by project instead of by user • How you can group users into different projects • How you can assign usage minimums to groups of users

  3. What job runs next? • A condor “queue” is not FIFO! • Determined by a balancing the wants & needs of three entities • The user (schedd) • The pool administrator (negotiator) • The machine owner (startd) • All comes together in the negotiation cycle

  4. negotiator collector startd startd schedd schedd startd 1. Startds send machine ads 2. Schedds send submittor ads

  5. Machine Ads MachineMyType = "Machine" TargetType = "Job" Name = "vm6@romano.cs.wisc.edu" Machine = "romano.cs.wisc.edu“ Requirements = LoadAvg < 0.5 Rank = 0.0 Disk = 2019048 LoadAvg = 0.000000 KeyboardIdle = 1018497 Memory = 512 Cpus = 1 Mips = 124122 condor_status –l romano.cs.wisc.edu

  6. Submittor Ads MyType = "Submitter" TargetType = "" Machine = "rosalind.cs.wisc.edu" ScheddIpAddr = "<128.105.166.39:42190>" Name = “matthew@cs.wisc.edu” RunningJobs = 1 IdleJobs = 1 HeldJobs = 0 MaxJobsRunning = 500 StartSchedulerUniverse = TRUE MonitorSelfImageSize = 9164.000000 MonitorSelfResidentSetSize = 2432 condor_status -sub matthew@wisc.edu -l

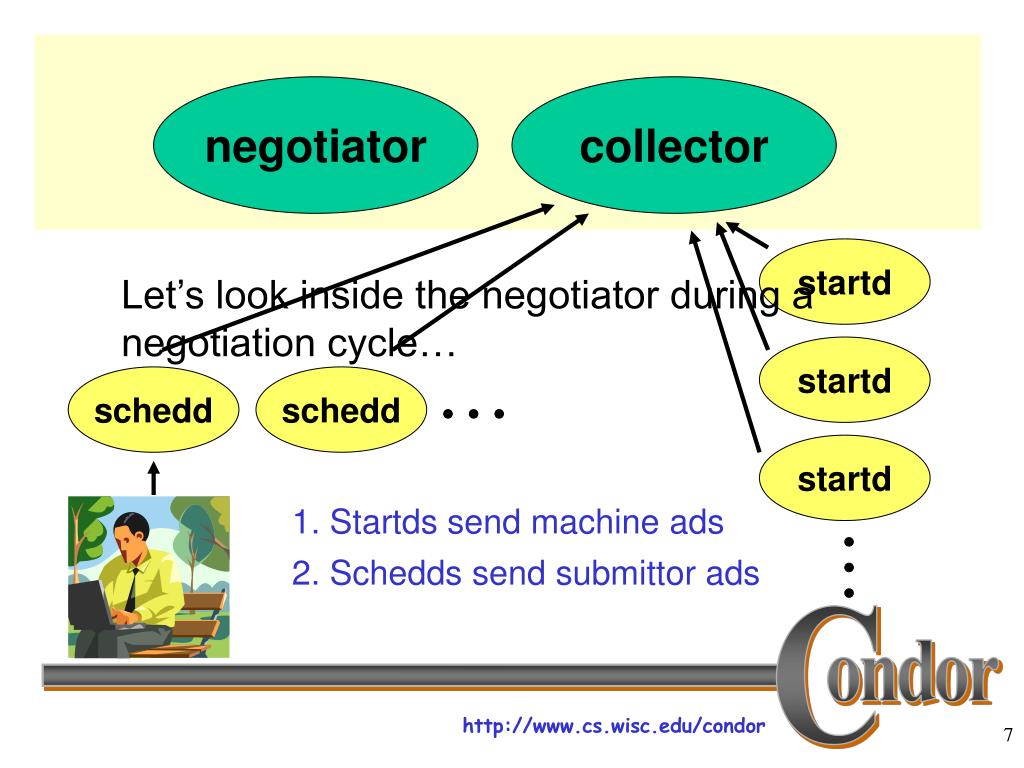

  7. negotiator collector startd Let’s look inside the negotiator during a negotiation cycle… startd schedd schedd startd 1. Startds send machine ads 2. Schedds send submittor ads

  8. Inside the Negotiator…

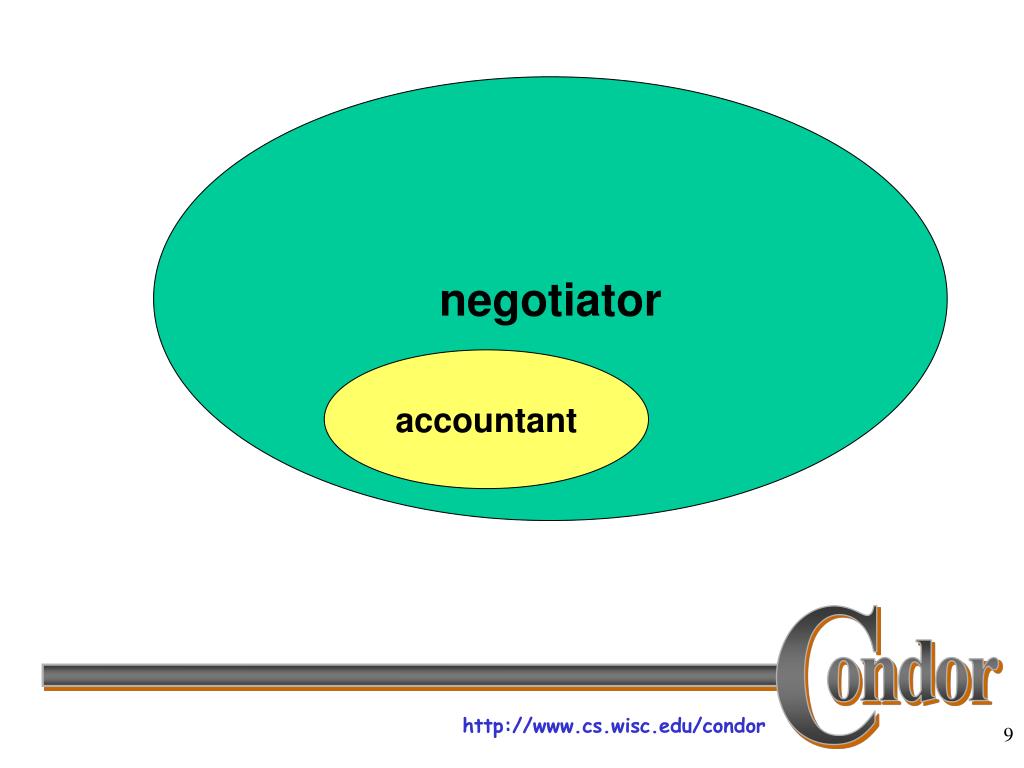

  9. negotiator accountant

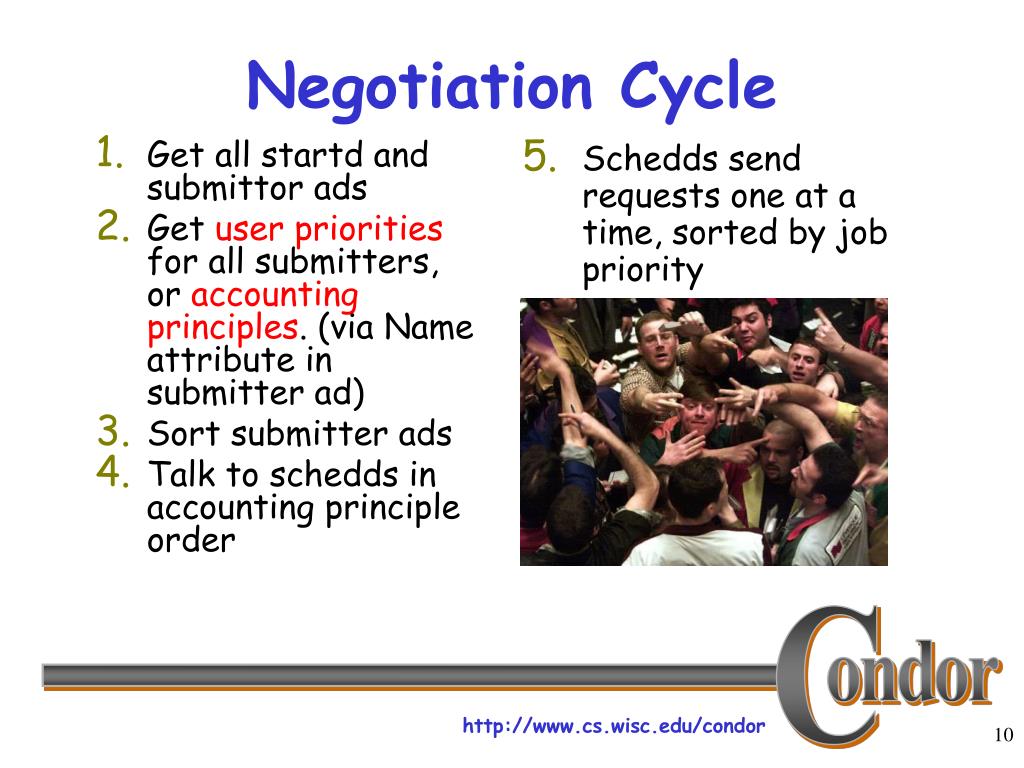

  10. Negotiation Cycle • Schedds send requests one at a time, sorted by job priority • Get all startd and submittor ads • Get user priorities for all submitters, or accounting principles. (via Name attribute in submitter ad) • Sort submitter ads • Talk to schedds in accounting principle order

  11. For Each Job: • Find all machine ads that match • Sort machine ads that match by:  NEGOTIATOR_PRE_JOB_RANK  Job Ad’sRANK  NEGOTIATOR_POST_JOB_RANK • Is the machine ad candidate already running a job? Priority preemption if PREEMPTION_REQUIREMENTS evaluates to True. • Give the schedd the match, or tell it no match found. Schedd responds w/ next request (maybe skipping to the current AutoCluster).

  12. Some observations • Job priority (condor_prio) will not allow one user to run ahead of another user. • Job priority is specific per user per schedd.

  13. Examples Job says : Rank = Memory Config file does not define: NEGOTIATOR_PRE_JOB_RANK User will then ALWAYS get the highest memory machine, even if already being used by a lower priority user.

  14. Examples Job says : Rank = Memory Config file says: NEGOTIATOR_PRE_JOB_RANK = RemoteUser =?= UNDEFINED User will then get the highest IDLE memory machine, and will only preempt a user if there are no idle machines match.

  15. Accounting Groups I don’t care about WHO submitted the job. How do I change the accounting principle?

  16. Account Groups, cont • In job submit file executable = foo universe = vanilla +AccountingGroup = “Project44” queue

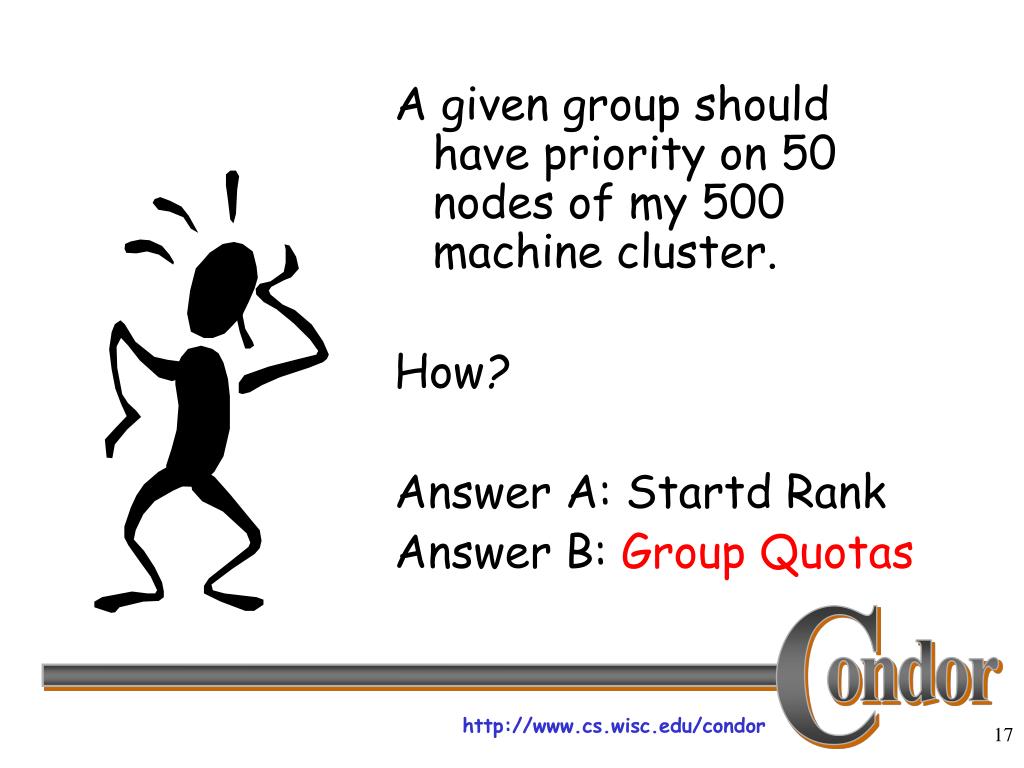

  17. A given group should have priority on 50 nodes of my 500 machine cluster. How? Answer A: Startd Rank Answer B: Group Quotas

  18. Group Quotas – Config Params GROUP_NAMES - list the recognized group names.Example:      GROUP_NAMES = group-cms, group-infn GROUP_QUOTA_<groupname> - the number of machines 'owned' by this group.    Example:      GROUP_QUOTA_group-cms = 10      GROUP_QUOTA_group-cms = 5 GROUP_AUTOREGROUP - set this to either True or False.  Defaults to     false.  If true, then users who submitted to a specific group     will also negotiate a second time with the "none" group, allowing     group jobs to be matched w/ idle machines even if the group is     overquota.

  19. Negotiation w/ Group Quotas • Matchmaker first negotiates for groups, sorted by how far they are under quota. • Negotiation within a group follows the exact same algorithm as before. • THEN, negotiate for all users that are not in a group as before.

  20. Lots o “tools” to get what you want • USER: Job Requirements, Job Rank • ADMIN: user priorities, accounting groups, accounting group quotas, preemption_requirements, negotiator_pre|post_job_rank. • OWNER: Machine Requirements, Machine Rank.

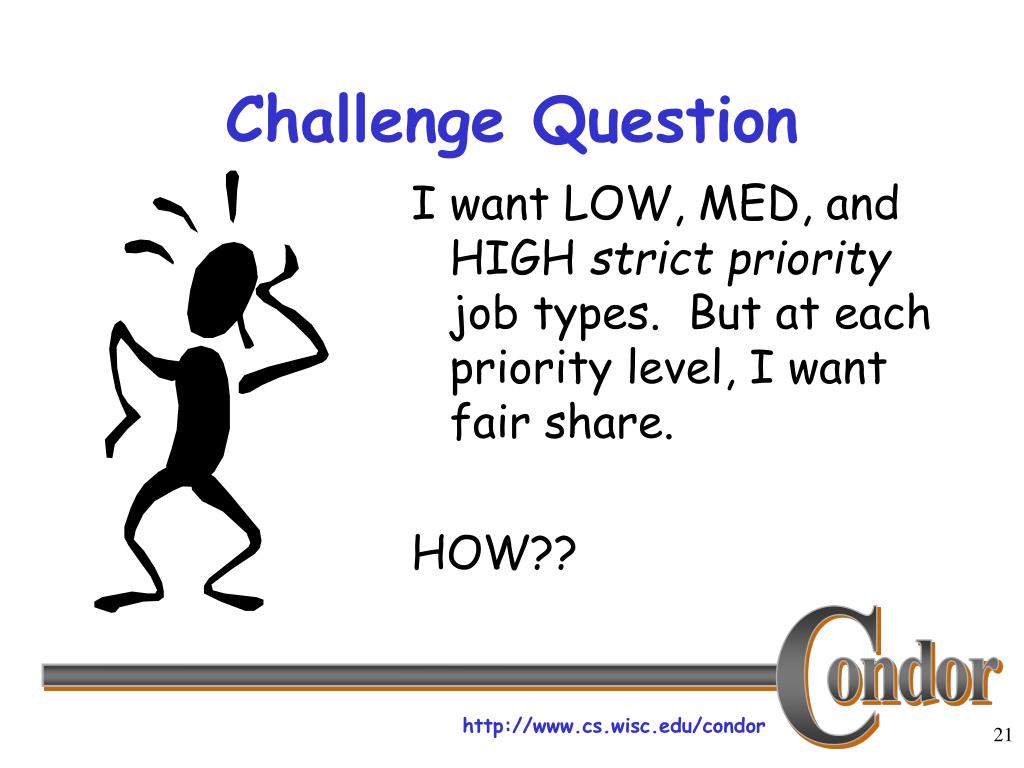

  21. Challenge Question I want LOW, MED, and HIGH strict priority job types. But at each priority level, I want fair share. HOW??

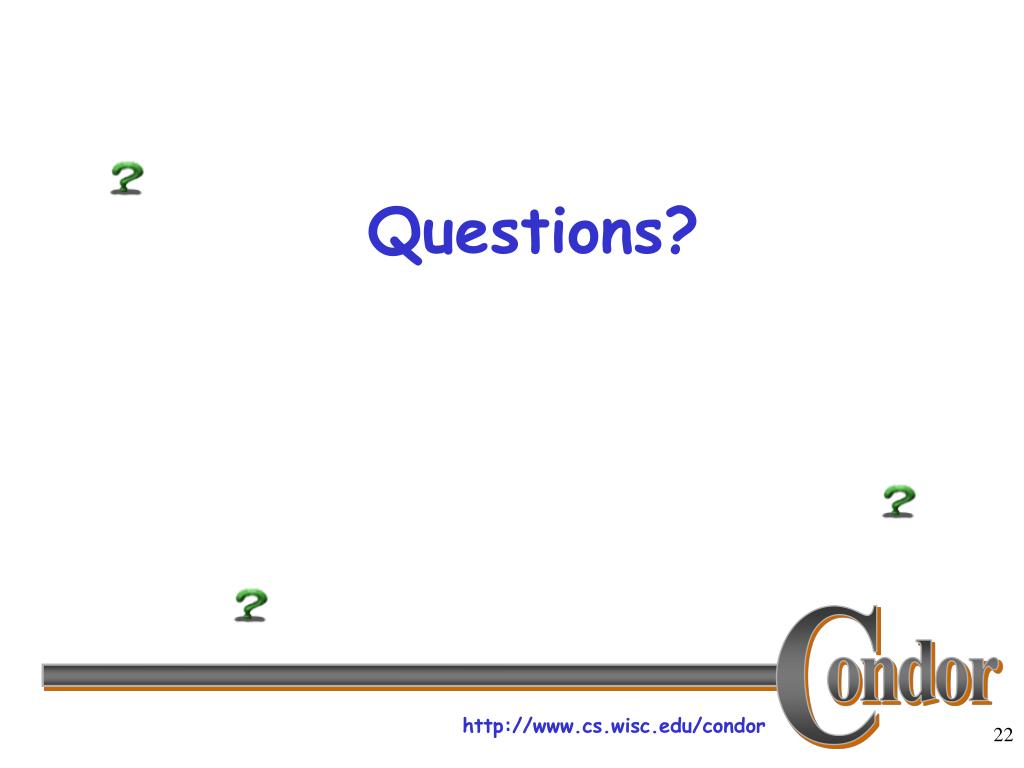

  22. Questions?
