  1. CrowdLab An Architecture for Volunteer Mobile Testbeds Eduardo Cuervo Peter Gilbert Bi Wu Landon P. Cox Duke University

  2. Smartphones: disruptive technology Evaluating ideas for new applications requires multi-device experimentation • Powerful computers • Always-on, mostly-connected • Constant proximity to owner • Place computation everywhere (cafes, cars, campus)

  3. Mobile experimentation is hard • Mobility is fundamental but difficult to model • Location affects system behavior • Connectivity can be unpredictable • Devices are power constrained

  4. Internet experimentation • Large-scale testbeds for distributed systems • e.g., PlanetLab • Nodes located all over the globe • Experiment instances run as virtual machines • Expose experiments to live Internet phenomena • As mobile researchers, we want a mobile PlanetLab

  5. Existing approaches • Programmed mobility • e.g., Orbit • Limited mobility • Vehicular mobility • e.g., CarTel, DieselNet • Limited locations • Human mobility • e.g., AnonySense • Limited access to resources

  6. What do we want? • Want experiments in any location • Cafes, shops, airports, etc • Want to observe all levels of the stack • OS, drivers and applications • Want local interactions • Ad-hoc network, sensing

  7. How can we get there? • Want experiments in any location • Rely on volunteer devices • Want to observe all levels of the stack • Rely on hypervisor for isolation • Want local interactions • Need coordination among devices

  8. CrowdLab • Expose mobile apps to real mobile human contexts like PlanetLab exposes systems to the real Internet • Low-level access to wireless state • Dual mode wireless abstraction • Supports gang-scheduled instances • Can support multiple architectures (x86 & ARM)

  9. CrowdLab architecture

  10. Roadmap • Motivation • CrowdLab • Hypervisor requirements • Dual-mode wireless scheduling • Evaluation • Conclusions

  11. Mobile hypervisor • Simple, virtualized peripherals • Disk and Ethernet NIC • Simple read/write interfaces • Relatively easy to isolate guests from host • Wi-Fi is different • Low-level access necessary for many experiments • Need more than read/write interface

  12. Wireless multiplexing • Originally considered fine-grained switching • Virtual Wi-Fi • Guests assigned a slice in Virtual Wi-Fi schedule • Switching synchronized across DAs • Appealing abstraction • Multiplexing hidden from guests • Guests can scan for and connect to APs • DAs coordinate during their slice in schedule

  13. Virtual Wi-Fi B C A A B C 0 100ms 200ms 300ms 400ms

  14. Virtual Wi-Fi B C A A B C 0 100ms 200ms 300ms 400ms

  15. Virtual Wi-Fi B C A A B C 0 100ms 200ms 300ms 400ms

  16. Virtual Wi-Fi B C A A B C 0 100ms 200ms 300ms 400ms

  17. Problems with Virtual Wi-Fi • Cost of transparent sharing too great • Measurements: inaccurate due to switching • Energy: no opportunities to sleep card • Instead, use coarse-grained switching • Leverage PCI-passthrough of hypervisors • Guests temporarily load custom driver • DAs reload trusted driver

  18. Dual-mode wireless scheduling • Managed mode (DAs in control) • DAs establish ad-hoc network • DAs task devices, schedule experiments • Allows experiment policies to be enforced • Unmanaged mode (guests in control) • Accurate measurement: direct access to Wi-Fi • Energy efficient: opportunities to enter PSM

  19. Managed mode B C A A B C 0 5min 10min 15min 20min

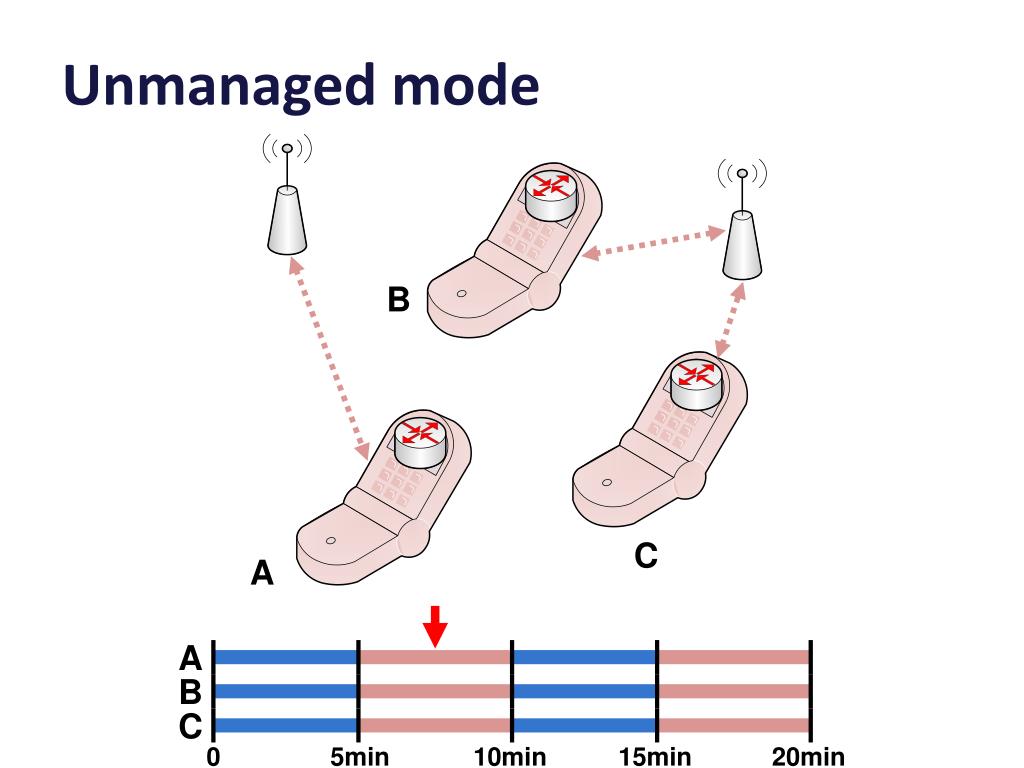

  20. Unmanaged mode B C A A B C 0 5min 10min 15min 20min

  21. Managed mode B C A A B C 0 5min 10min 15min 20min

  22. Unmanaged mode B C A A B C 0 5min 10min 15min 20min

  23. API for guest experiments • timeToNextEpoch • Returns expected time to epoch switch • Allows guest to prepare to give up radio • getCoordinator • Returns IP address of coordinator guest • Allows guests to coordinate their actions

  24. More details in the paper • Fault-tolerant state (site directory) • Tasking services • Naming services • Custom N810 ARM Xen

  25. Roadmap • Motivation • CrowdLab • Hypervisor requirements • Dual-mode wireless scheduling • Evaluation • Conclusions

  26. CrowdLab Prototypes 12 X86 laptops 5 N810 tablets Nokia Maemo Custom ARM Xenbased on Samsung’s port • Ubuntu 7.10 on Dell Inspiron 1525 • Xen 3.1, kernel 2.6.18 • Xen PCI-Passthrough

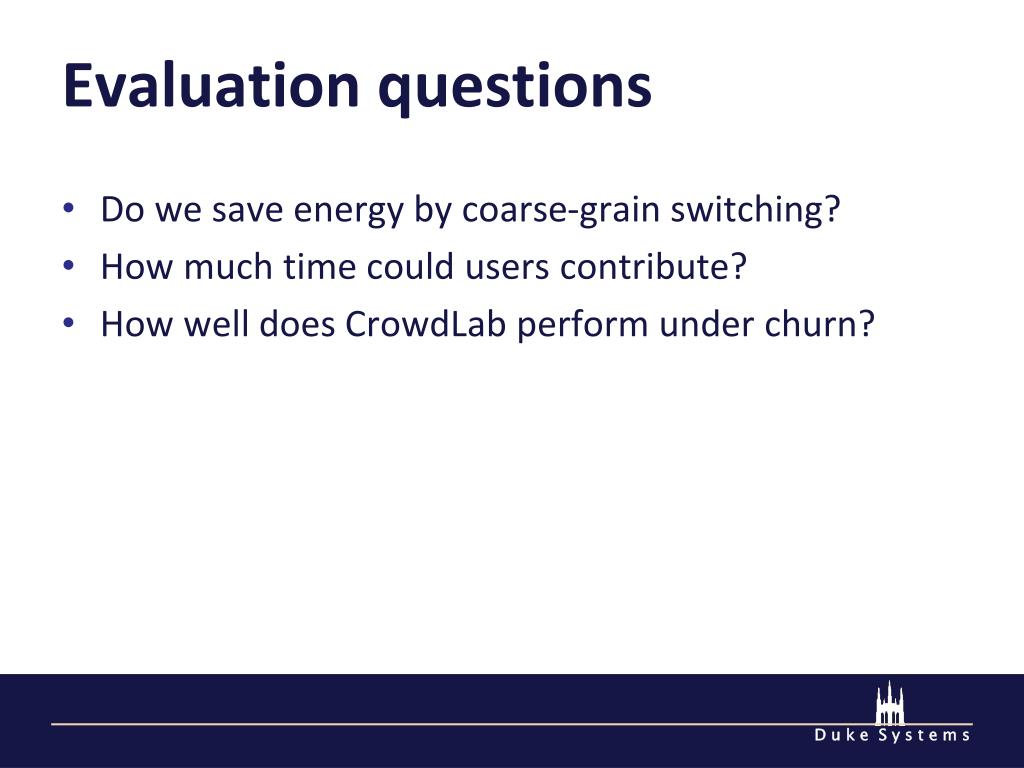

  27. Evaluation questions • Do we save energy by coarse-grain switching? • How much time could users contribute? • How well does CrowdLab perform under churn?

  28. Energy experiments • Used N810 testbed • Agilent power meter • Used C-Scan experiment • Evaluates AP performance collaboratively • Bandwidth, latency, connectivity

  29. Epoch switching savings Reducing managed epochs reduces power consumption

  30. How much time can be contributed? Owners can contribute one hour per day on a single charge

  31. Churn experiments • Used X86 laptop testbed • Mobility-trace emulation • Ile-Sans Fil (Restaurants and Cafes) • Laptop site running traces • Measurement (C-Scan) • Social sensing (C-Who) • Wireless driver experimentation (Vwifi)

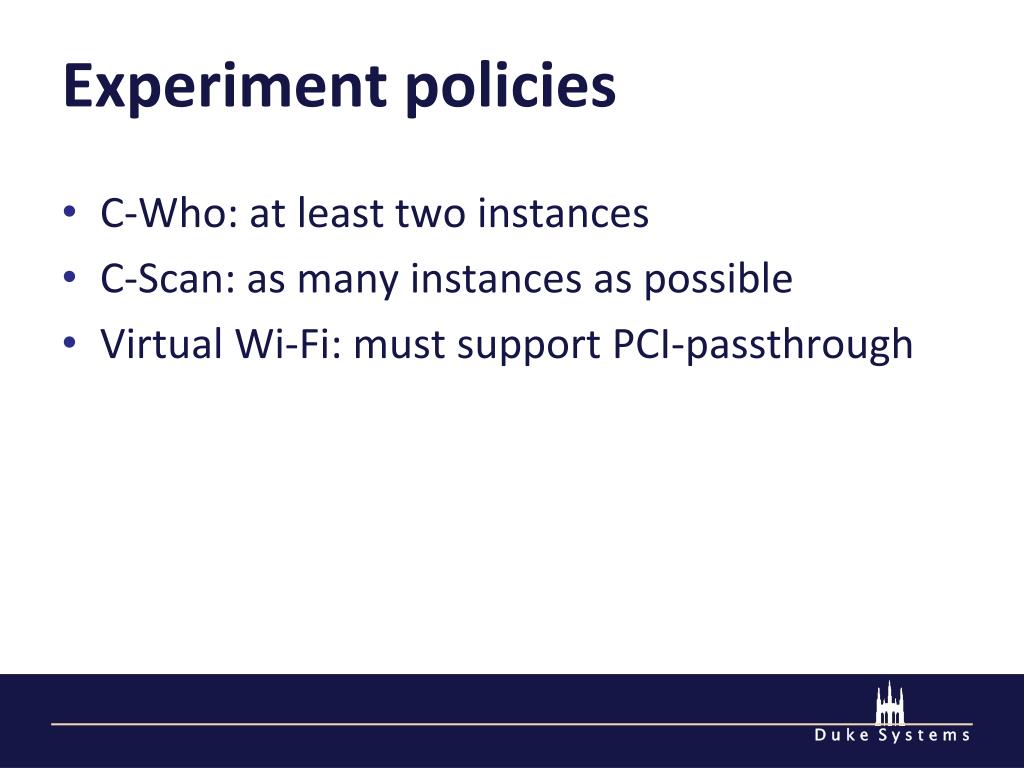

  32. Experiment policies • C-Who: at least two instances • C-Scan: as many instances as possible • Virtual Wi-Fi: must support PCI-passthrough

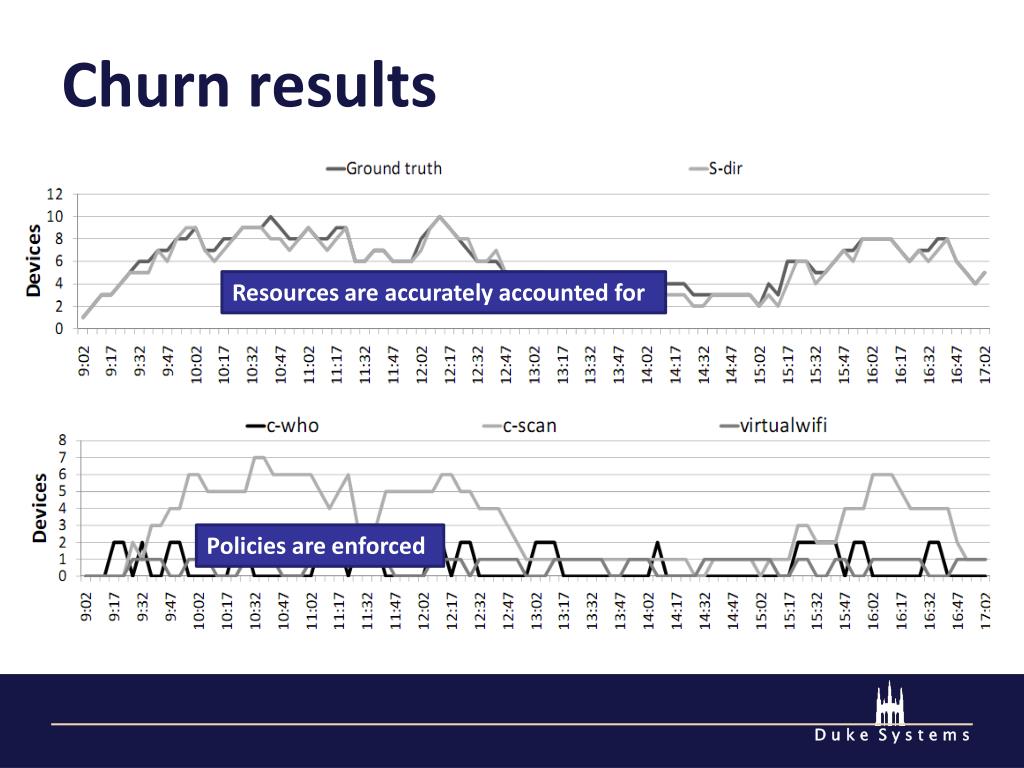

  33. Churn results Resources are accurately accounted for Policies are enforced

  34. Conclusions • CrowdLab: architecture for a mobile PlanetLab • Guest code runs on volunteer mobile devices: • Provides low-level access to Wi-Fi state • Protects user’s device and data integrity • Evaluation showed that CrowdLab • Allows users to contribute several hours each day • Provides a stable testbed environment even on churn

  35. Questions? Email: Eduardo Cuervo <ecuervo@cs.duke.edu>
