A Methodology for Creating Fast Wait-Free Data Structures

1. Alex Kogan and ErezPetrank Computer Science Technion, Israel A Methodology for Creating Fast Wait-Free Data Structures

2. Concurrency & (Non-blocking) synchronization • Concurrent data-structures require (fast and scalable) synchronization Non-blocking synchronization: • No thread is blocked in waiting for another thread to complete • no locks / critical sections

3. Lock-free (LF) algorithms Among all threads trying to apply operations on the data structure, one will succeed • Opportunistic approach • read some part of the data structure • make an attempt to apply an operation • when failed, retry • Many scalable and efficient algorithms • Global progress • All but one threads may starve

4. Wait-free (WF) algorithms • A thread completes its operation a bounded #steps • regardless of what other threads are doing • Particularly important property in several domains • e.g., real-time systems and operating systems • Commonly regarded as too inefficient and complicated to design

5. The overhead of wait-freedom • Much of the overhead is because of helping • key mechanism employed by most WF algorithms • controls the way threads help each other with their operations Can we eliminate the overhead? • The goal: average-case efficiency of lock-freedom and worst-case bound of wait-freedom

6. Why is helping slow? • A thread helps others immediately when it starts its operation • All threads help others in exactly the same order  contention  redundant work • Each operation has to be applied exactly once • usually results in a higher # expensive atomic operations

7. Reducing the overhead of helping Main observation: • “Bad” cases happen, but are very rare • Typically a thread can complete without any help • if only it had a chance to do that … Main ideas: • Ask for help only when you really need it • i.e., after trying several times to apply the operation • Help others only after giving them a chance to proceed on their own • delayed helping

8. Fast-path-slow-path methodology • Start operation by running its (customized) lock-free implementation • Upon several failures, switch into a (customized) wait-free implementation • notify others that you need help • keep trying • Once in a while, threads on the fast path check if their help is needed and provide help Fast path Slow path Delayed helping

9. Fast-path-slow-path generic scheme Do I need to help ? yes Start Help Someone Apply my opusing fast path(at most N times) no Success? Apply my op using slow path (until success) no Different threads may run on two paths concurrently! yes Return

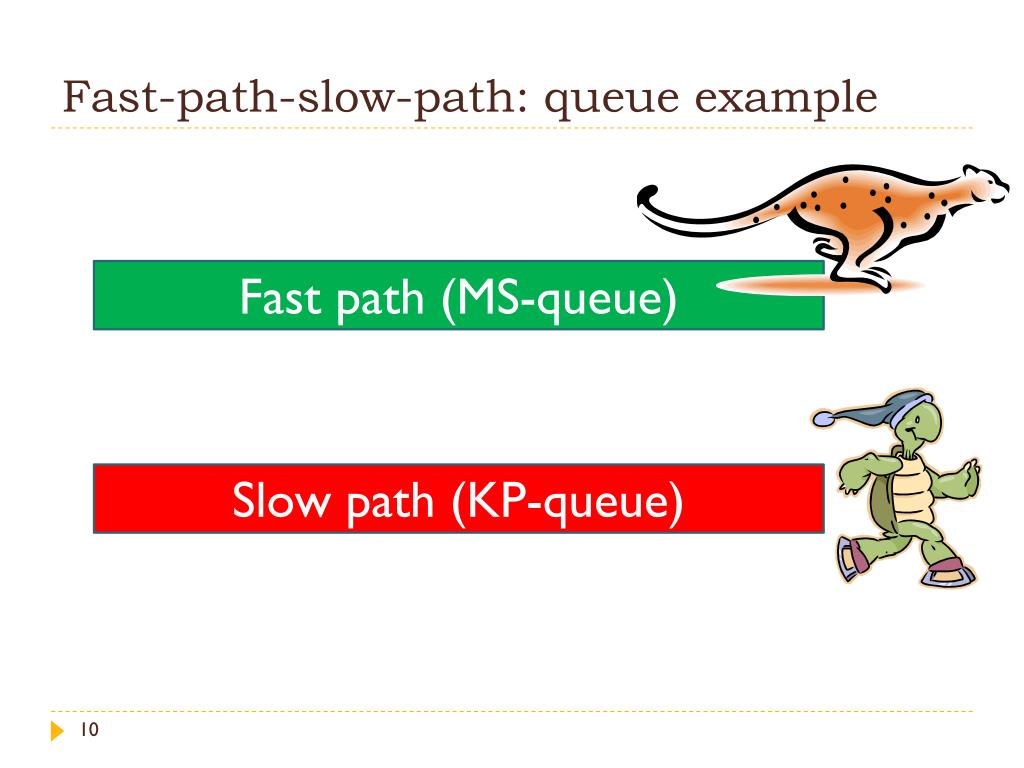

10. Fast-path-slow-path: queue example Fast path (MS-queue) Slow path (KP-queue)

11. Fast-path-slow-path: queue exampleInternal structures 1 2 0 Thread ID state 4 9 9 phase pending true true false false enqueue false true null node null null

12. Fast-path-slow-path: queue exampleInternal structures Counts # ops on the slow path 1 2 0 Thread ID state 9 4 phase 9 pending false true true true false false enqueue node null null null

13. Fast-path-slow-path: queue exampleInternal structures Is there a pending operation on the slow path? 1 2 0 Thread ID state 9 4 phase 9 pending false true true true false false enqueue node null null null

14. Fast-path-slow-path: queue exampleInternal structures 1 2 0 Thread ID What is the pending operation? state 9 4 phase 9 pending false true true true false false enqueue node null null null

15. Fast-path-slow-path: queue exampleInternal structures Thread ID 0 1 2 helpRecords 0 1 0 curTid 5 4 9 lastPhase nextCheck 8 0 3

16. Fast-path-slow-path: queue exampleInternal structures ID of the next thread that I will try to help Thread ID 0 1 2 helpRecords 1 curTid 0 0 4 5 lastPhase 9 0 3 8 nextCheck

17. Fast-path-slow-path: queue exampleInternal structures Phase # of that thread at the time the record was created Thread ID 0 1 2 helpRecords 1 curTid 0 0 4 5 lastPhase 9 0 3 8 nextCheck

18. Fast-path-slow-path: queue exampleInternal structures HELPING_DELAY controls the frequency of helping checks Thread ID 0 1 2 helpRecords Decrements with every my operation. Check if my help is needed when this counter reaches 0 1 0 0 curTid 4 5 lastPhase 9 nextCheck 0 8 3

19. Fast-path-slow-path: queue exampleFast path 1. help_if_needed() 2. int trials = 0 while (trials++ < MAX_FAILURES) { apply_op_with_customized_LF_alg (finish if succeeded) } 3. switch to slow path • LF algorithm customization is required to synchronize operations run on two paths MAX_FAILURES controls the number of trials on the fast path

20. Fast-path-slow-path: queue exampleSlow path 1. my phase ++ 2. announce my operation (in state) 3. apply_op_with_customized_WF_alg (until finished) • WF algorithm customization is required to synchronize operations run on two paths

21. Performance evaluation • 32-core Ubuntu server with OpenJDK 1.6 • 8 2.3 GHz quadcore AMD 8356 processors • The queue is initially empty • Each thread iteratively performs (100k times): • Enqueue-Dequeue benchmark: enqueueand then dequeue • Measure completion time as a function of # threads

22. Performance evaluation

23. Performance evaluation MAX_FAILURES HELPING_DELAY

24. Performance evaluation

25. The impact of configuration parameters MAX_FAILURES HELPING_DELAY

26. The use of the slow path HELPING_DELAY MAX_FAILURES

27. Tuning performance parameters • Why not just always use large values for both parameters (MAX_FAILURES, HELPING_DELAY)? • (almost) always eliminate slow path • Lemma: The number of steps required for a thread to complete an operation on the queue in the worst-case is O(MAX_FAILURES + HELPING_DELAY * n2) • Tradeoff between average-case performance and worst-case completion time bound

28. Summary • A novel methodology for creating fast wait-free data structures • key ideas: two execution paths + delayed helping • good performance when the fast path is extensively utilized • concurrent operations can proceed on both paths in parallel • Can be used in other scenarios • e.g., running real-time and non-real-time threads side-by-side

29. Thank you! Questions?
