  1. CS-C4035E Product Launch Presentation

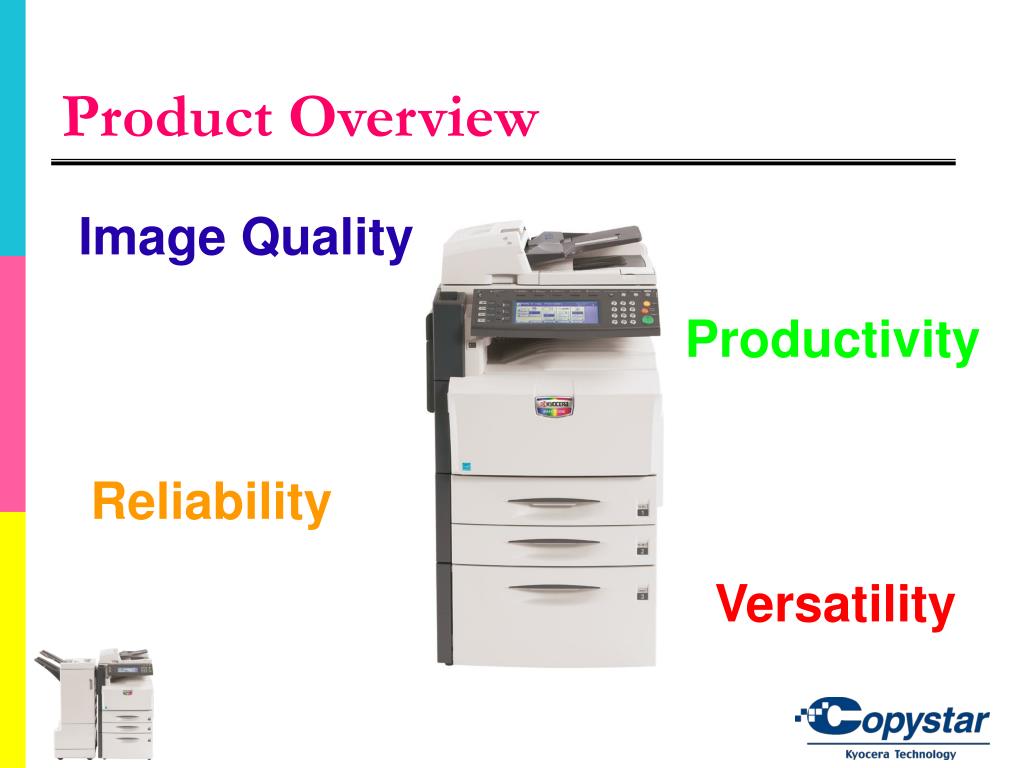

  2. Product Overview Image Quality Productivity Reliability Versatility

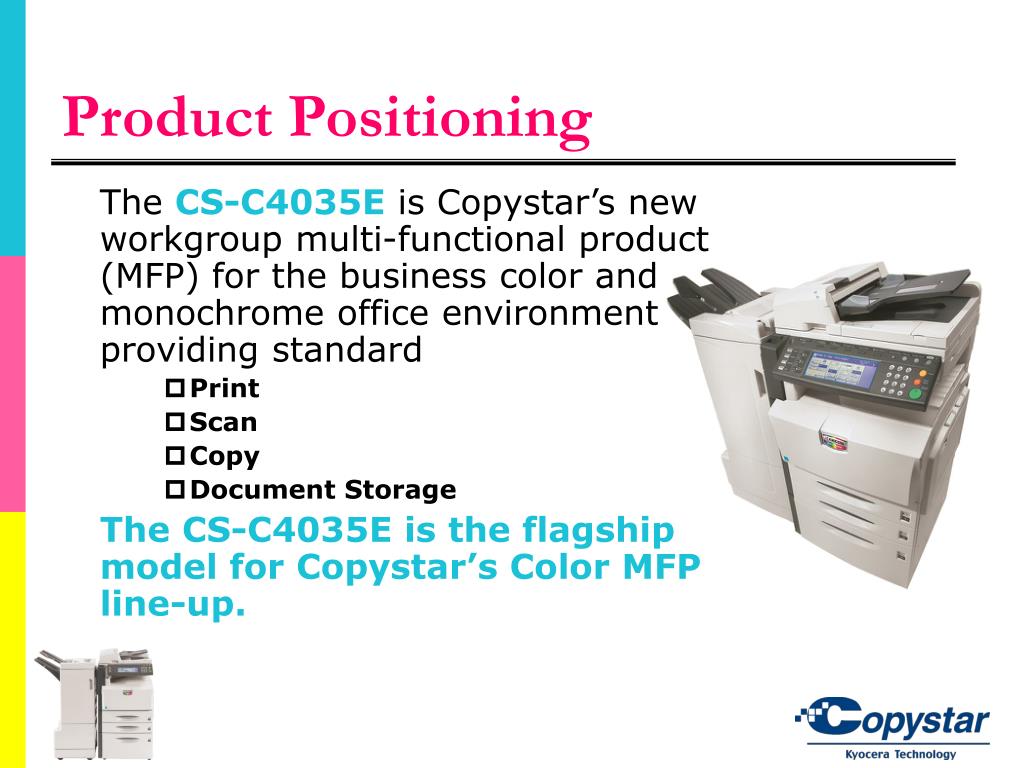

  3. The CS-C4035E is Copystar’s new workgroup multi-functional product (MFP) for the business color and monochrome office environment providing standard Print Scan Copy Document Storage The CS-C4035E is the flagship model for Copystar’s Color MFP line-up. Product Positioning

  4. Target Market Monochrome Color • Workgroup / Office • Color Copy • LV Color MFP/Printers • Scanning Applications • Document Capture/Retrieval • Workgroup / Office • Monochrome Copy • Inkjet Color Printers • MFP Users • Scanning Applications • Facsimile Requirements

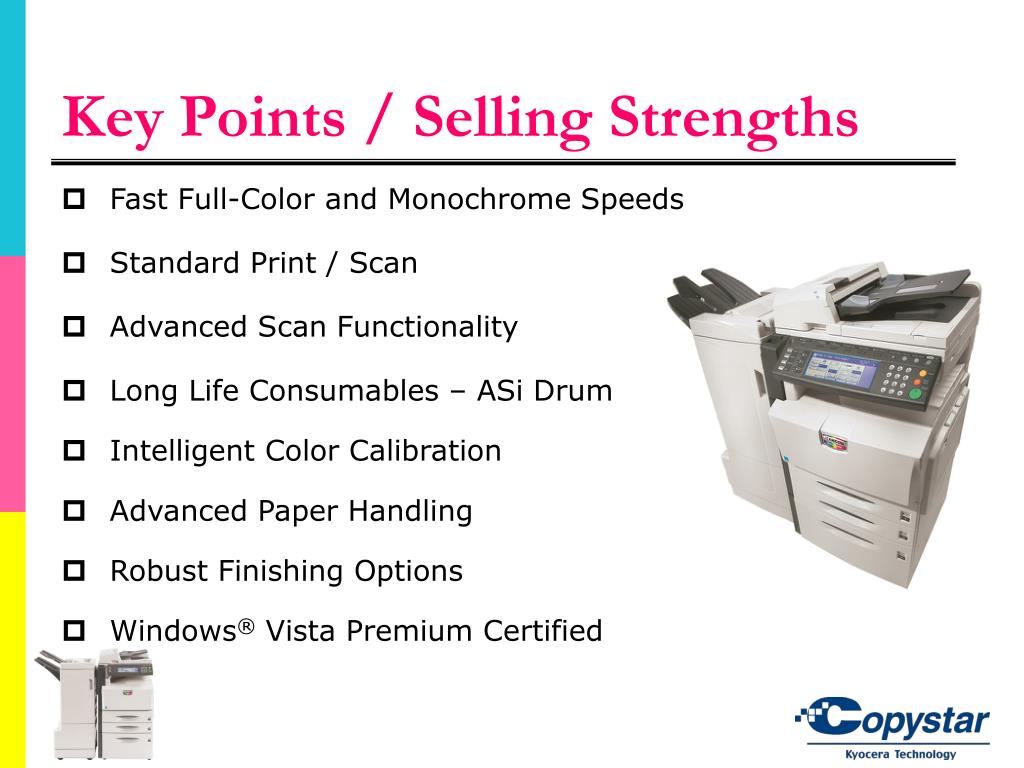

  5. Key Points / Selling Strengths • Fast Full-Color and Monochrome Speeds • Standard Print / Scan • Advanced Scan Functionality • Long Life Consumables – ASi Drum • Intelligent Color Calibration • Advanced Paper Handling • Robust Finishing Options • Windows® Vista Premium Certified

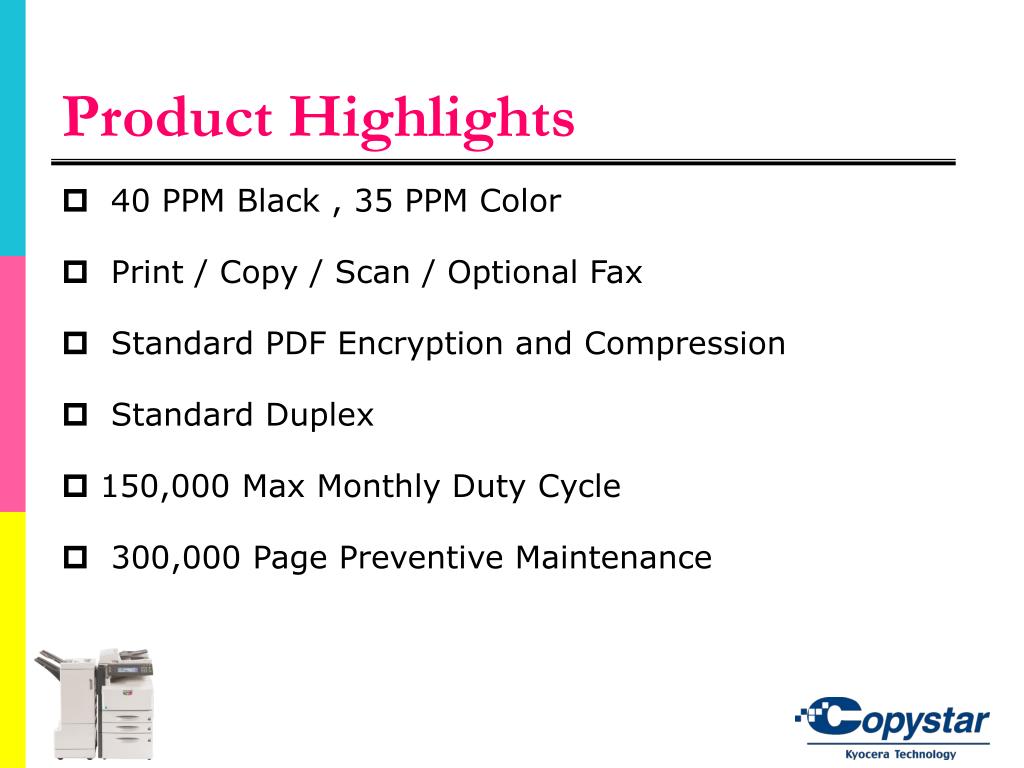

  6. Product Highlights • 40 PPM Black , 35 PPM Color • Print / Copy / Scan / Optional Fax • Standard PDF Encryption and Compression • Standard Duplex • 150,000 Max Monthly Duty Cycle • 300,000 Page Preventive Maintenance

  7. Copystar Color MFP Line-up New CS-C4035E CS-C3232E CS-C3225E CS-C2525E

  8. New Features • Color Reproduction on the KX Driver • New Enhanced Speed Document Processor • Standard PDF Encryption and Compression • Enhanced Calibration Settings • New Color Profile Tables for Printing

  9. Product Functionality Basic Specifications Network Print Color Scan Copy Fax / Network Fax Paper Handling Accessories

  10. Basic Specifications • Print / Scan / Copy • Optional Fax • 35 PPM Full Color • 40 PPM Black & White • 768MB System RAM • 40GB System HDD • 1,100 Sheet Standard • 4,100 Sheet Maximum Paper Supply

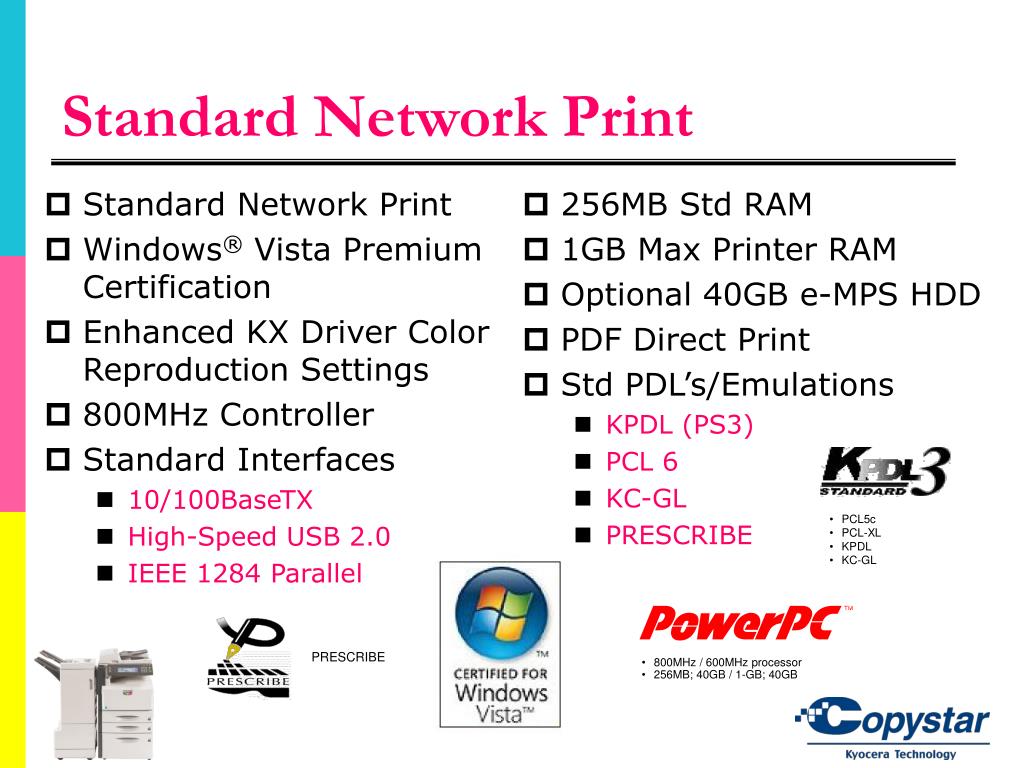

  11. 800MHz / 600MHz processor • 256MB; 40GB / 1-GB; 40GB • PCL5c • PCL-XL • KPDL • KC-GL PRESCRIBE Standard Network Print • Standard Network Print • Windows® Vista Premium Certification • Enhanced KX Driver Color Reproduction Settings • 800MHz Controller • Standard Interfaces • 10/100BaseTX • High-Speed USB 2.0 • IEEE 1284 Parallel • 256MB Std RAM • 1GB Max Printer RAM • Optional 40GB e-MPS HDD • PDF Direct Print • Std PDL’s/Emulations • KPDL (PS3) • PCL 6 • KC-GL • PRESCRIBE

  12. Standard Color Scan • Scan-to-Database • Scan-to-FTP • Scan-to-PC • Optional iTag / KYOcapture / KYOcapture Express • Scan Speed w/ DP • 35 ipm Full Color • 40 ipm Black and White • Std PDF Encryption and Compression • Scan-to-e-Mail

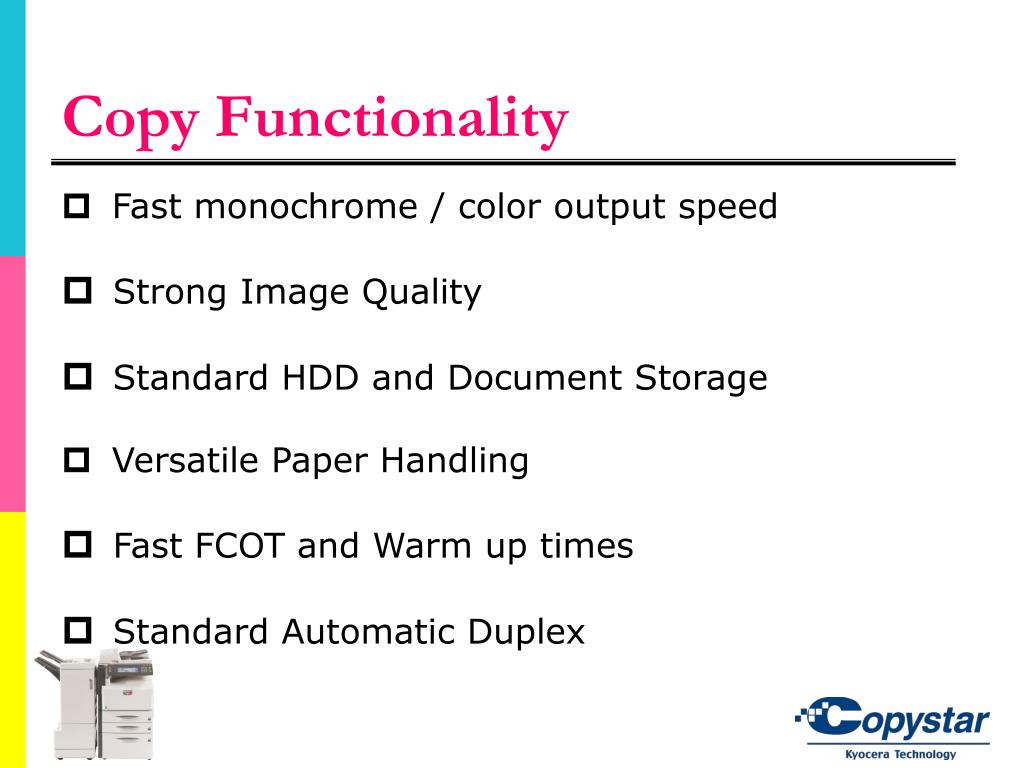

  13. Copy Functionality • Fast monochrome / color output speed • Strong Image Quality • Standard HDD and Document Storage • Versatile Paper Handling • Fast FCOT and Warm up times • Standard Automatic Duplex

  14. Optional Fax / Network Fax • 33.6 Kbps (Super G3) • Std. JBIG Compression • Duplex TX / RX • Confidential TX / RX • Auto Routing • Personal Address Book

  15. Paper Handling • 1,100 Sheet Standard Input • 4,100 Sheet Maximum Input • Optional 100 Sheet RADF • Optional Finishing • 1,000 Sheet Simple Finisher* • 3,000 Sheet Multi-Position Finisher** • Optional 2/3 Hole Punch • Optional 7 Bin Mailbox • Optional Booklet Folder *1,000 Sheet Finisher Requires JS-710 **3,000 Sheet Finisher Requires JS-710 and AK-710

  16. System Memory: Std. 768MB RAM / 40GB HDD Printer Memory: Std. 256MB RAM / Max. 1GB RAM / Opt. 40GB HDD Options • FAX System (N) • Opt. Printer/Fax Memory • Printer HDD (HD-5) • Data Security Kit (D) Job Separator (Required) 3,000-sheet Finisher Accessories Document Processor Reversing Document Feeder Platen Cover Finishing Accessories Mail Box 2/3-Hole Punch Unit Booklet Unit Paper Feed Units (Requires AK-710) 2 x 500-sheet Paper Feed Unit 3,000-sheet Paper Feed Unit 1,000-sheet Finisher

  17. Driver and Color Settings KX Driver Color Reproduction Color Optimizer e-MPS Hard Drive Print Utilities Auto Calibration Settings

  18. CS-C4035E KX Driver • Common GUI for all PDLs / Emulations • KPDL (PS3) • PCL 6 • KC-GL • PRESCRIBE • Simplified Print Driver • Same driver for all Copystar MFPs and Printers • Easy to Navigate • Common Features on Main Screen • Multi-Tab View for Easy Access to Advanced Functions • Windows® Vista Premium Certified

  19. KX Driver Layout Foldable Small Icons Graphical Side Panel

  20. Color Reproduction in the KX Driver • User Adjustable Print Output Setting • One Touch Modification of Output to Match Customer Requirements • Setting Choices • Printer Settings • Text and Graphics • Text and Photos • Vivid Colors • Publications • Line Art

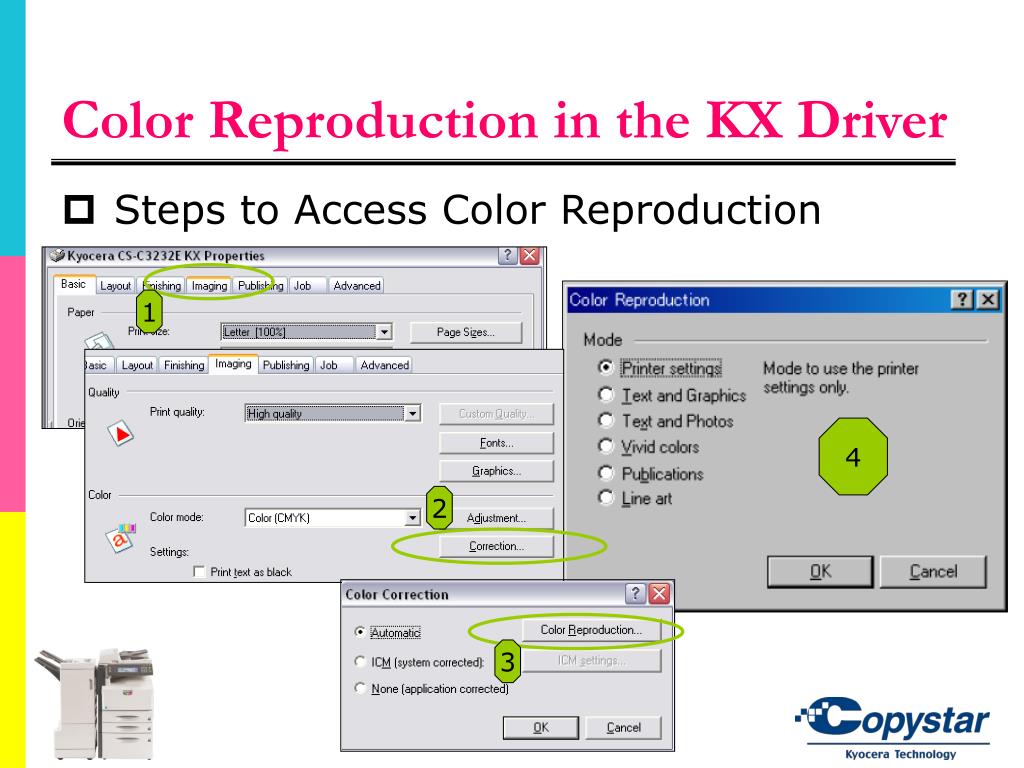

  21. Color Reproduction in the KX Driver • Steps to Access Color Reproduction 1 4 2 3

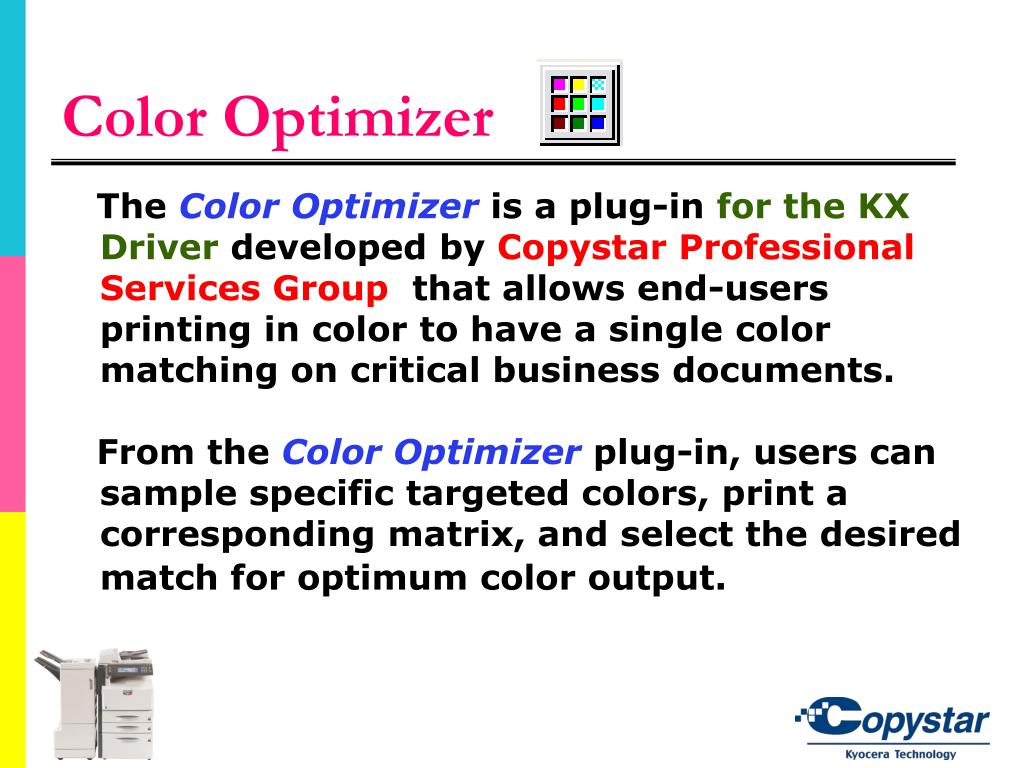

  22. Color Optimizer TheColor Optimizer is a plug-in for the KX Driver developed by Copystar Professional Services Group that allows end-users printing in color to have a single color matching on critical business documents. From the Color Optimizer plug-in, users can sample specific targeted colors, print a corresponding matrix, and select the desired match for optimum color output.

  23. Color Optimizer • Microsoft Office • Improve a single color on a logo, presentation, memo, meeting handout, etc. • Windows-based Design Applications • Improve color output for one color on a pamphlet, brochure, newsletter or flyer • Modify Hue and Lightness settings of one selected color to meet individual needs Note: This is a one color optimization and on documents with multiple colors the hue and contrast of all colors will be modified.

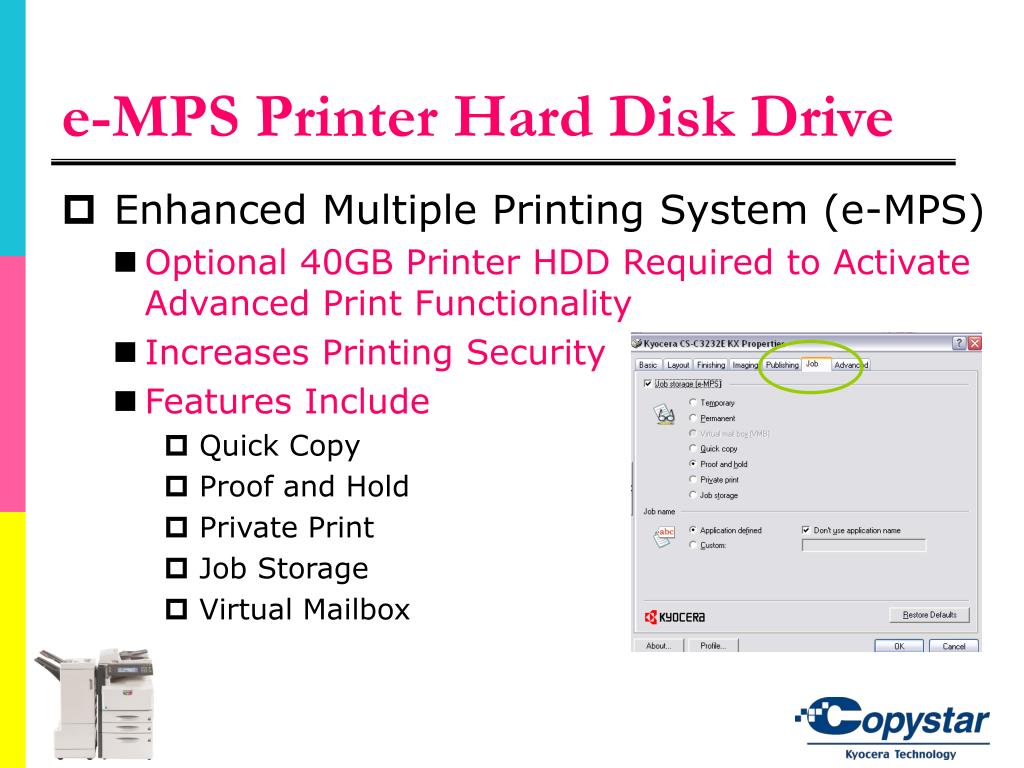

  24. e-MPS Printer Hard Disk Drive • Enhanced Multiple Printing System (e-MPS) • Optional 40GB Printer HDD Required to Activate Advanced Print Functionality • Increases Printing Security • Features Include • Quick Copy • Proof and Hold • Private Print • Job Storage • Virtual Mailbox

  25. KM-Net Suite / Print Utilities • Copystar’s Suite of Management and Print Utilities designed to assist in the daily management and use of their Copystar Devices • KMnet Admin • KM-NET Viewer • KM-NET for Accounting • PRESCRIBE • KX Spool Center

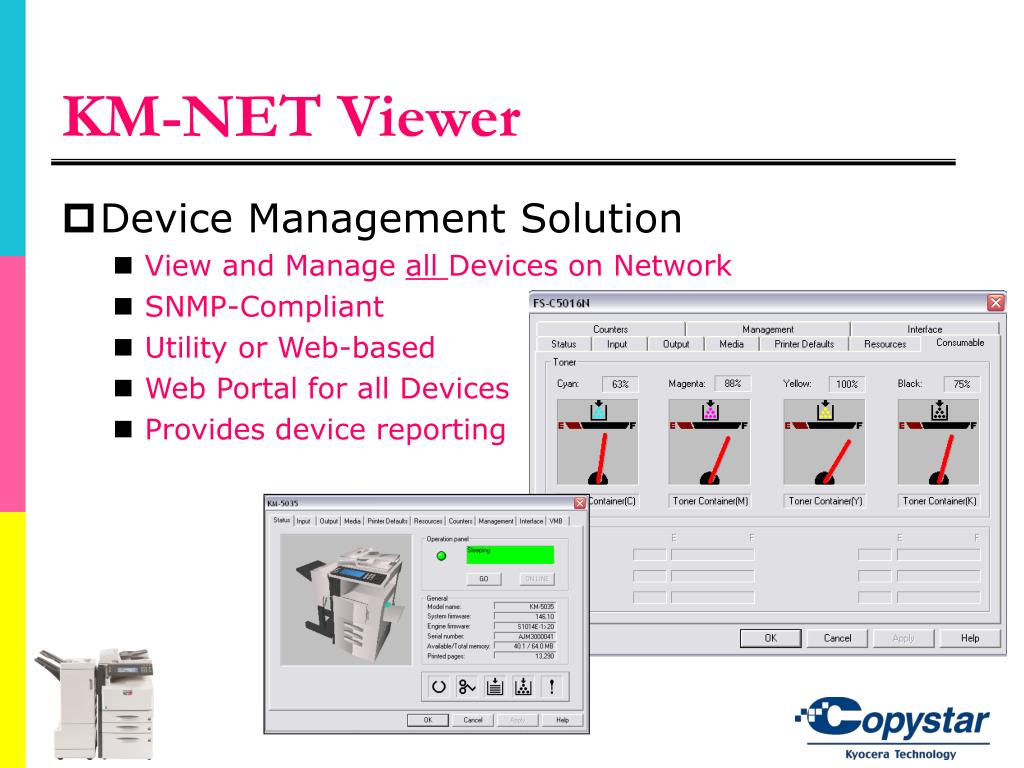

  26. KM-NET Viewer • Device Management Solution • View and Manage all Devices on Network • SNMP-Compliant • Utility or Web-based • Web Portal for all Devices • Provides device reporting

  27. KM-NET for Accounting • Tracks usage on Copystar Devices at the desktop • Supports Monochrome and Color • Copies, Prints, Scans, Fax • Can be integrated with other applications (.CSV data)

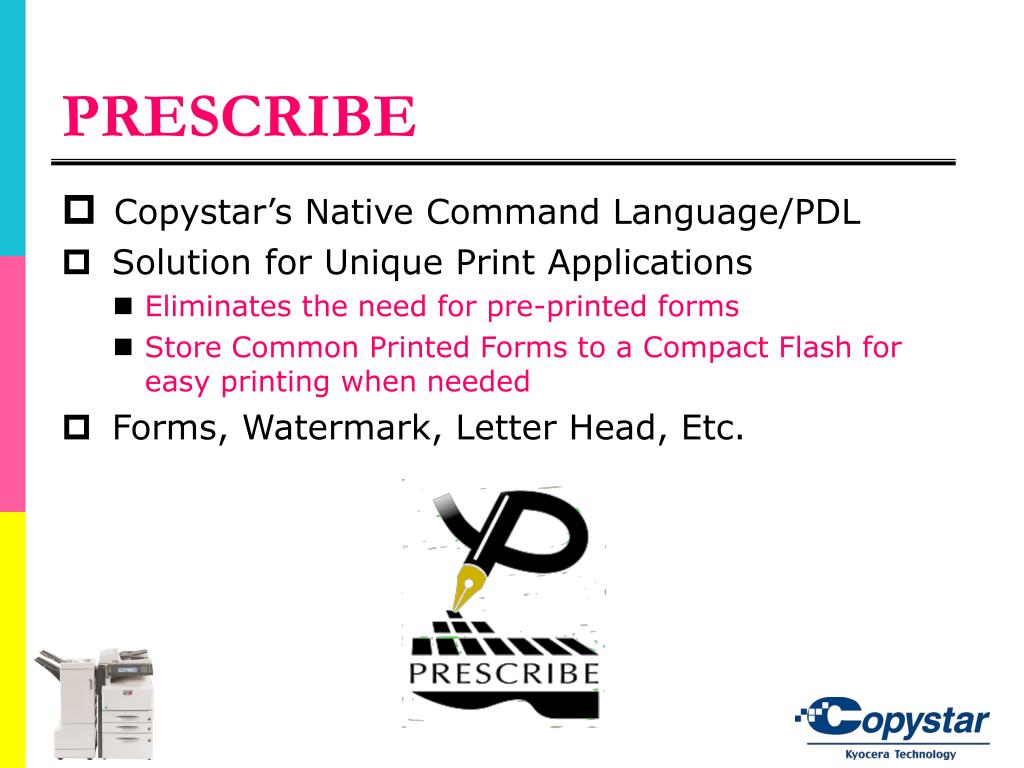

  28. PRESCRIBE • Copystar’s Native Command Language/PDL • Solution for Unique Print Applications • Eliminates the need for pre-printed forms • Store Common Printed Forms to a Compact Flash for easy printing when needed • Forms, Watermark, Letter Head, Etc.

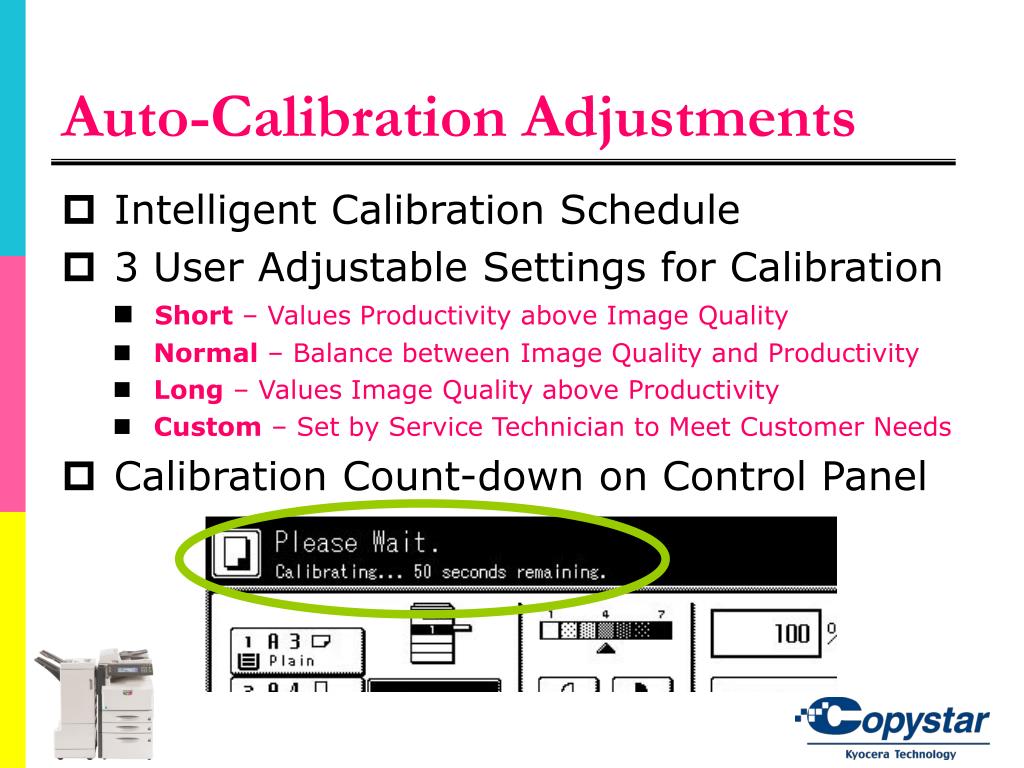

  29. Auto-Calibration Adjustments • Intelligent Calibration Schedule • 3 User Adjustable Settings for Calibration • Short – Values Productivity above Image Quality • Normal – Balance between Image Quality and Productivity • Long – Values Image Quality above Productivity • Custom – Set by Service Technician to Meet Customer Needs • Calibration Count-down on Control Panel

  30. Advanced Scan Functionality PDF Encryption PDF Compression iTag KYOcapture KYOcapture Express

  31. COLOR DOCUMENT Set password when originals are scanned. Originals Enter password to open documents. Standard PDF Encryption • Standard PDF Encryption helps to increase security on your sensitive business documents that are scanned to e-mail or a network location • Encrypt Scanned PDF’s Directly from the Control Panel • Password Protect Scanned Documents

  32. COLOR COLOR DOCUMENT DOCUMENT Extraction of image section. Compression of image section. Originals Reintegration COLOR Extraction of text section. Compression of text section. DOCUMENT Standard PDF Compression • Color documents can be large in size when scanned and sent across the network. With Standard PDF Compression you can compress these scanned files at pre-set ratios directly from the control panel • Compression Color Scans from the MFP • Reduce File Size of Color Scanned Documents • Reduce the Amount of Network Bandwidth used for scanning

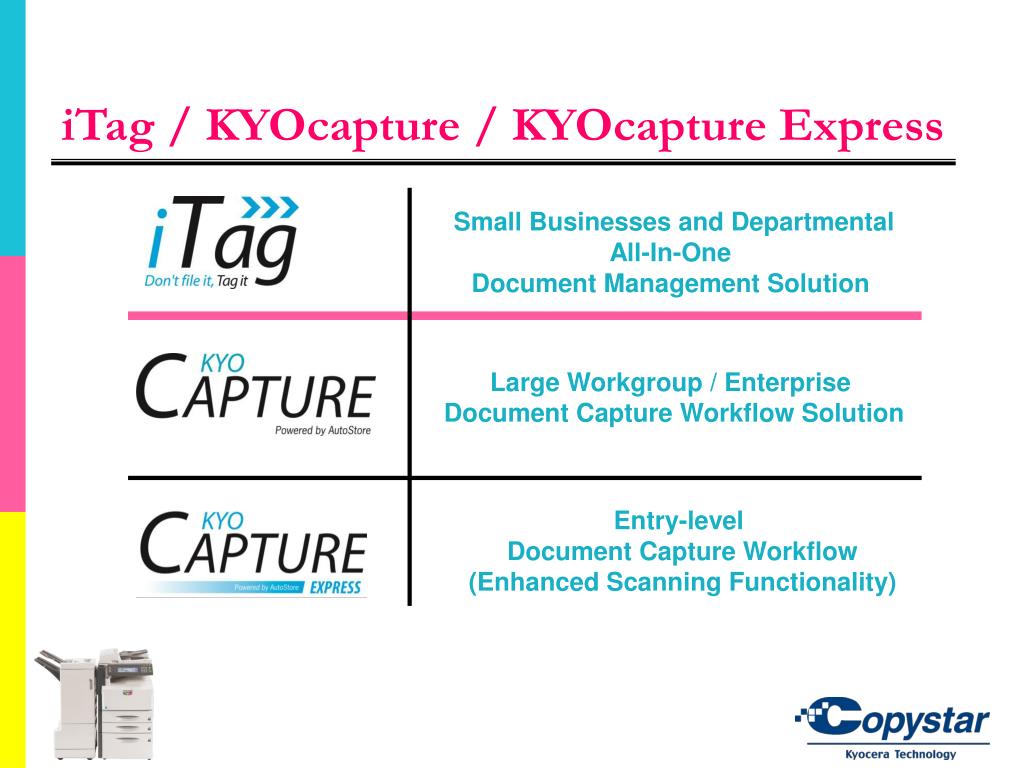

  33. iTag / KYOcapture / KYOcapture Express Small Businesses and Departmental All-In-One Document Management Solution Large Workgroup / Enterprise Document Capture Workflow Solution Entry-level Document Capture Workflow (Enhanced Scanning Functionality)

  34. iTag Document Management iTag is an out-of-the-box Document Management Solution for any company that would like to take hardcopy documents and them electronically within their existing infrastructure/organization

  35. iTag Product Positioning To provide a simple and scalable document management solution for companies who need to solve daily administrative problems revolving around paper • Small Business and Departmental Users • Paper Intensive Offices • No existing Document Management System • Little or no MIS Involvement Required • No Complex Infrastructure Needed

  36. KYOcapture KYOcapture transforms the document workflow process by allowing Copystar’s CS-C4035E color MFP to paper or electronic-based documents to existing or new document management systems. With KYOcapture, large workgroups and enterprises can boost productivity, secure, and manage their workflow all while lowering their total cost of ownership

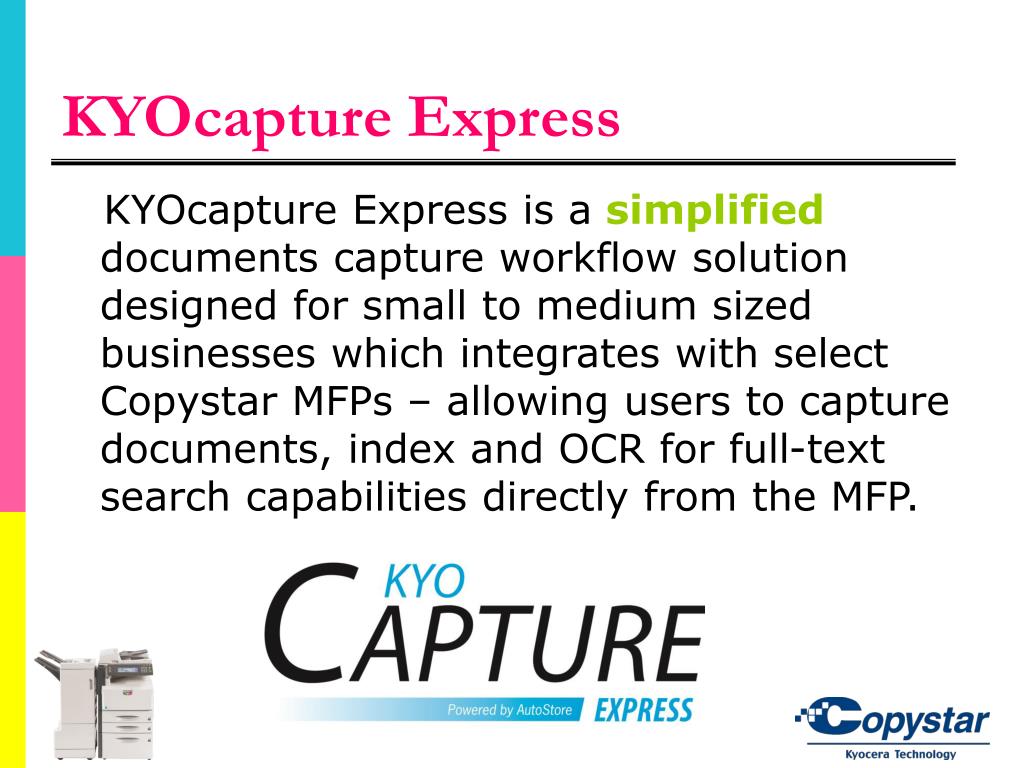

  37. KYOcapture Express KYOcapture Express is a simplifieddocuments capture workflow solution designed for small to medium sized businesses which integrates with select Copystar MFPs – allowing users to capture documents, index and OCR for full-text search capabilities directly from the MFP.

  38. Competitive Information CS-C4035E vs. Canon Konica Minolta Ricoh Sharp

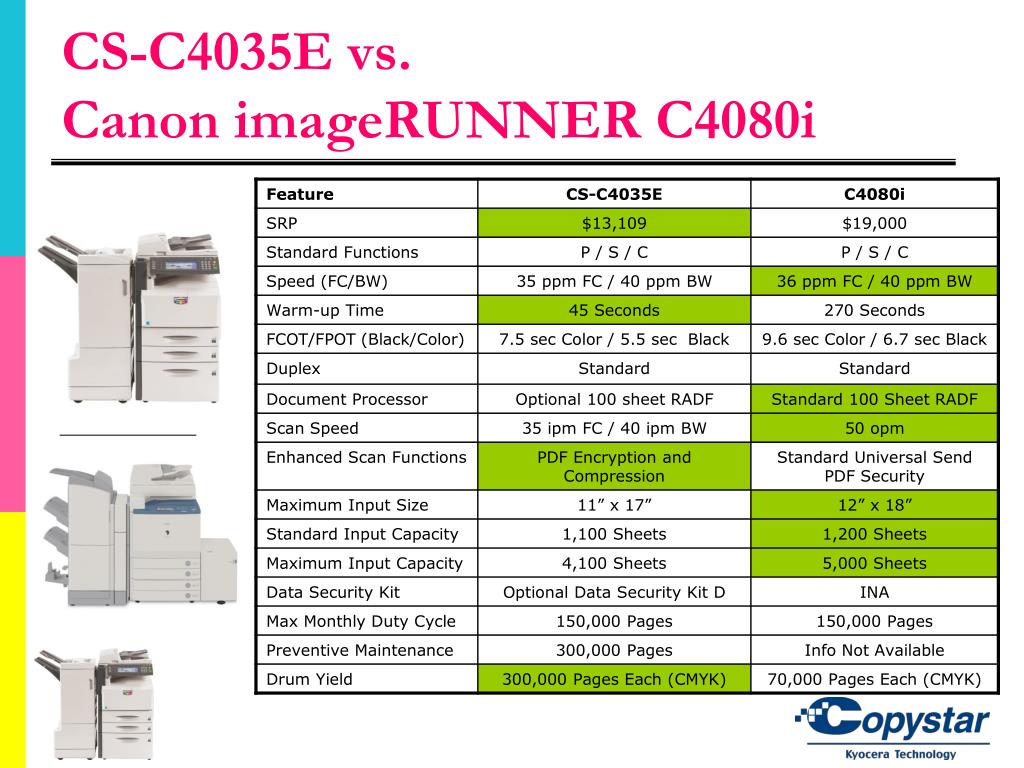

  39. CS-C4035E vs.Canon imageRUNNER C4080i

  40. CS-C4035E vs. Konica Minolta bizhub C450

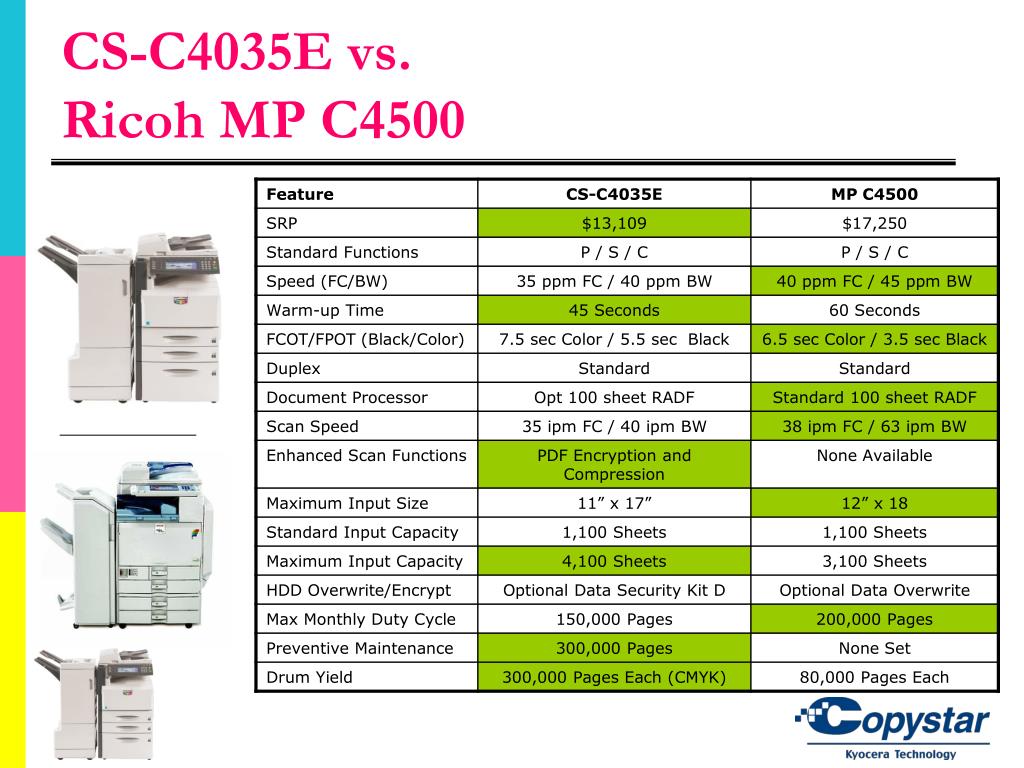

  41. CS-C4035E vs. Ricoh MP C4500

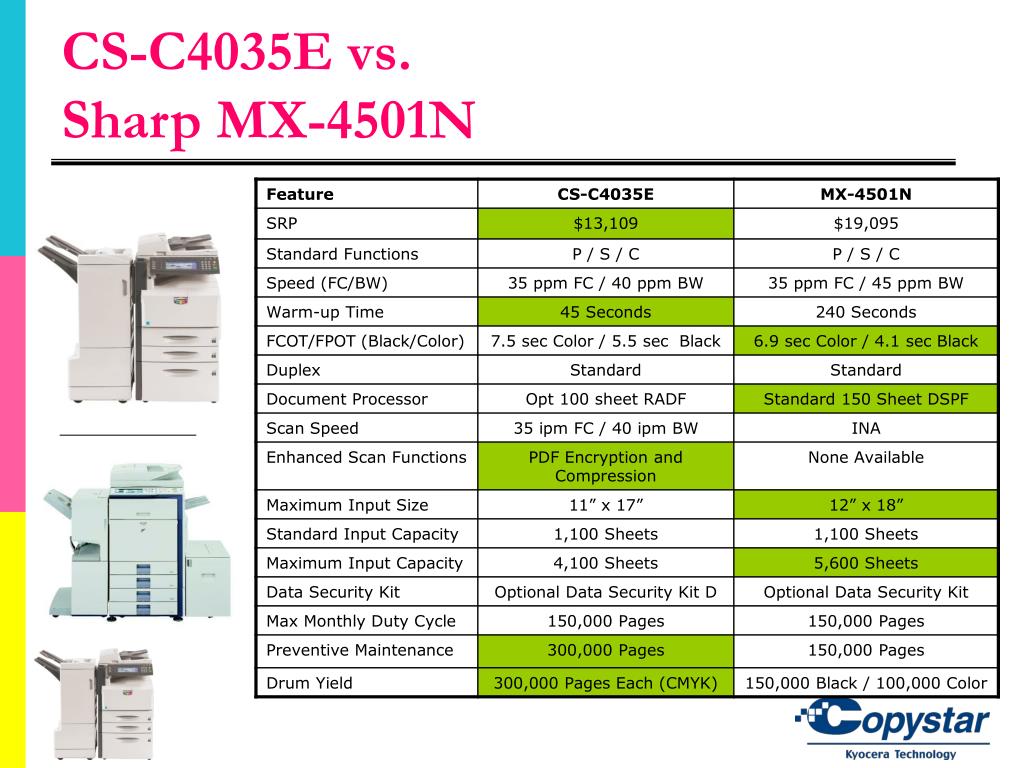

  42. CS-C4035E vs.Sharp MX-4501N

  43. Key Competitive Highlights • Long Life Consumables • ASi Drums – 300,000 Impressions Each • Toner and Waste Toner in One Container • No Additional Components to Replace • Competitive Overall Price Point • Less Required Maintenance • Fast Warm-up and FCOT • Highest PM Schedule in its Class • Advanced Scanning Functionality • Standard PDF Encryption and Compression • Optional iTag / KYOcapture / KYOcapture Express

  44. Thank You
