  1. Measuring Optical Properties of Fenestration Systems to Optimize Performance and Enable Simulation Nick Gayeski, Kellie Stokes

  2. Advanced Window Systems • Increasing and Evolving • How to Describe and Predict Dynamic Performance?

  3. Describing Performance • NFRC rating is lacking… New metrics are under development

  4. Predicting Performance Spectral, Bidirectional Transmission and Reflection Fenestration System Properties & Thermal Properties Tool for calculating total window thermal performance Simulation of electric and day light Window 5.x DElight Whole building energy simulation Complex fenestration systems (CFS) mean data rich simulation requirements

  5. Spectral, Bi-directional Transmission and Reflection… ???

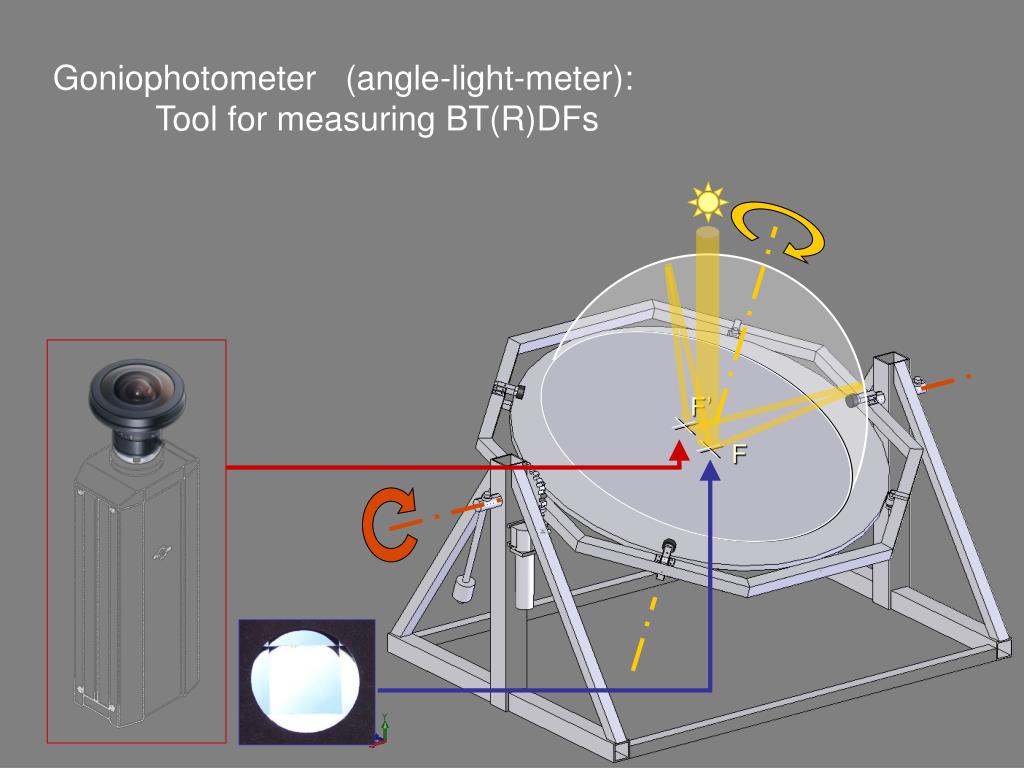

  6. Goniophotometer (angle-light-meter): Tool for measuring BT(R)DFs F’ F

  7. Extracting BT(R)DFs from a digital camera • Pixel value  Radiance • Pixel location  Emerging Angle • Pixel group  Solid Angle • Spatial Calibration

  8. Spectroradiometric calibration • How to do it? • Camera response function • Spectral sensitivity R = 155 λ = 550 nm integration time = 500 ms 2 microWatts/cm2-sr of monochromatic light

  9. Spectral Sensitivity

  10. Mixing monochromatic beams • How to measure beams with arbitrary spectra?

  11. ? Estimating the full spectrum Total energies in each interval

  12. sample reflection R: .45 G: .025 B: .075 Camera sensitivity R: .2 G: .95 B: .15 Estimating the full spectrum Using RGB channel sensitivity

  13. Camera sensitivity R: 2.0 G: 9.5 B: 1.5 sample reflection R: 4.5 G: .25 B: .75 Estimating the full spectrum RGB channel sensitivity

  14. Estimating sample transmissivity/reflectivity + + + + ?

  15. The Process…. Spatial Calibration Spectroradiometric calibration Spectrum estimation methods BT(R)DF !!

  16. Summary Advanced Systems Better Performance Describe Simulate New Information: BT(R)DF Better Measurement and AnalysisTools
